2ADTD-KH9510-WTE1IP Video Intercom Indoor Station

Video Intercom 9 Series Indoor Station Con figuration Guide Legal Information ©2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved. About this Manual The Manual includes instructions for using and managing the Product. Pictur es, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other r easons. Please find the latest version of this Manual at the Hikvision website ( https://www.hikvision.com/ ). Please use this Manual with the guidance and assis tance of professionals trained in supporting the Product. Trademarks and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned are the properties of their respective owners. Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PR ODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN Video Intercom 9 Series Indoor Station Configuration Guide i CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN AD VISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Video Intercom 9 Series Indoor Station Configuration Guide ii Symbol Conventions The symbols that may be found in this document are defined as follows. SymbolDescription Danger Indicates a hazardous situation which, if not avoided, will or c ould result in death or serious injury. Caution Indicates a potentially hazardous situation which, if not a voided, could result in equipment damage, data loss, performance degradation, or unexpected results. Note Provides additional information to emphasize or supplement important points of the main text. Video Intercom 9 Series Indoor Station Configuration Guide iii Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipmen t into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the f ollowing two conditions: 1. This device may not cause harmful interference. 2. This de vice must accept any interference received, including interference that may cause undesired operation. Video Intercom 9 Series Indoor Station Configuration Guide iv EU Conformity Statement This product and - if applicable - the supplied accessories too are mark ed with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/ 65/EU 2012/19/EU (WEEE directive): Products marked with this symbol c annot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Hikvision Digital Technology Co., Ltd. Address No. 555 Qianmo Road, Binjiang District Hangzhou 310052, China Grantee Code 2ADTD FCC ID 2ADTD-KH9510-WTE1 Authorized Contact Name Xiuying Zhang Contact Email [email protected] Contact Phone +86-571-88075998 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2020/5/19 Print Name: Xiuying Zhang Title: Senior Certification engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 2020-05-19 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ADTD-KH9510-WTE1 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Hikvision Digital Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Xiuying Zhang Title: Senior Certification engineer Signature: On behalf of Company: Hangzhou Hikvision Digital Technology Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Hikvision Digital Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, angzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2ADTD-KH9510-WTE1 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiuying Zhang Title: Senior Certification engineer Company Name: Hangzhou Hikvision Digital Technology Co., Ltd.

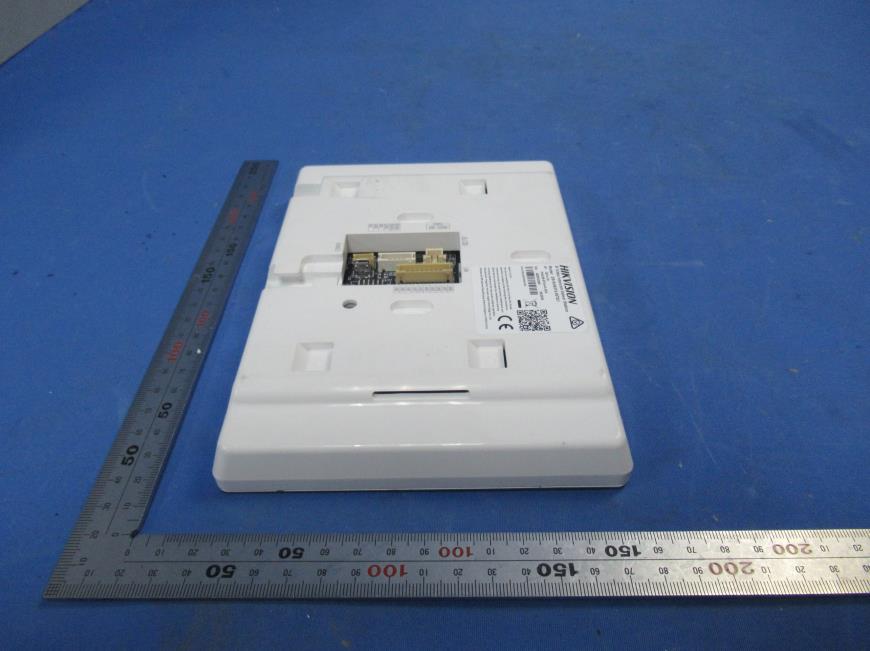

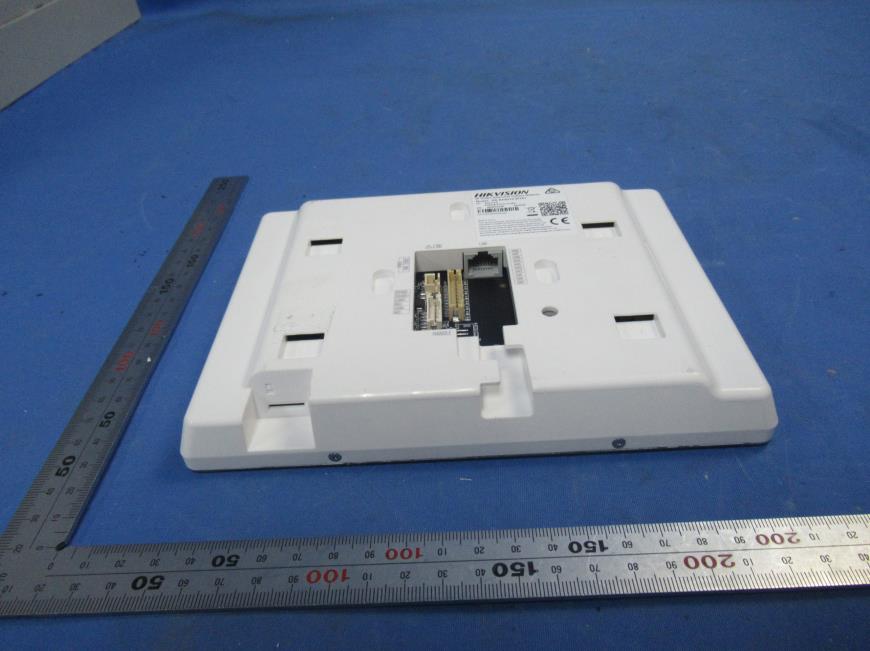

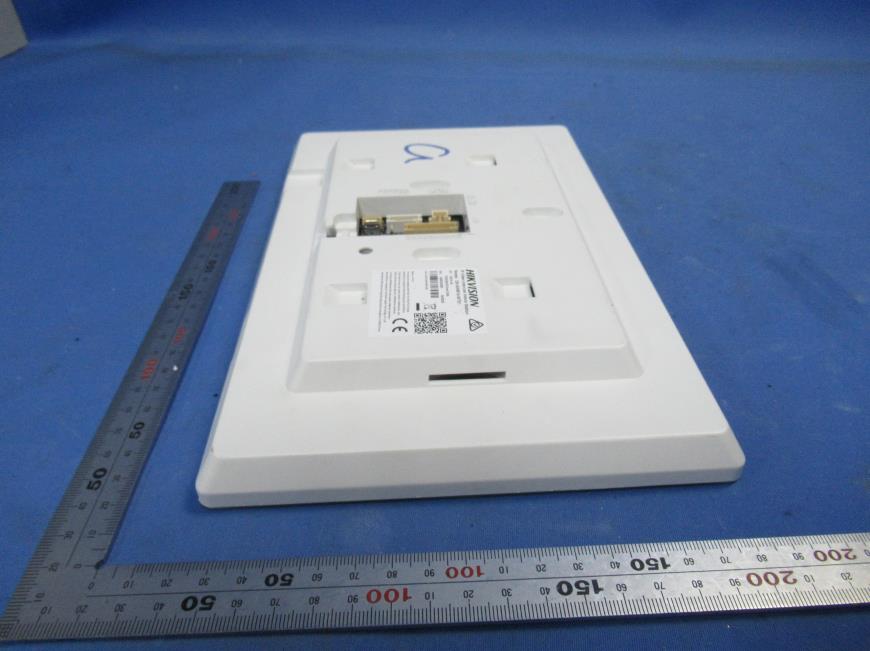

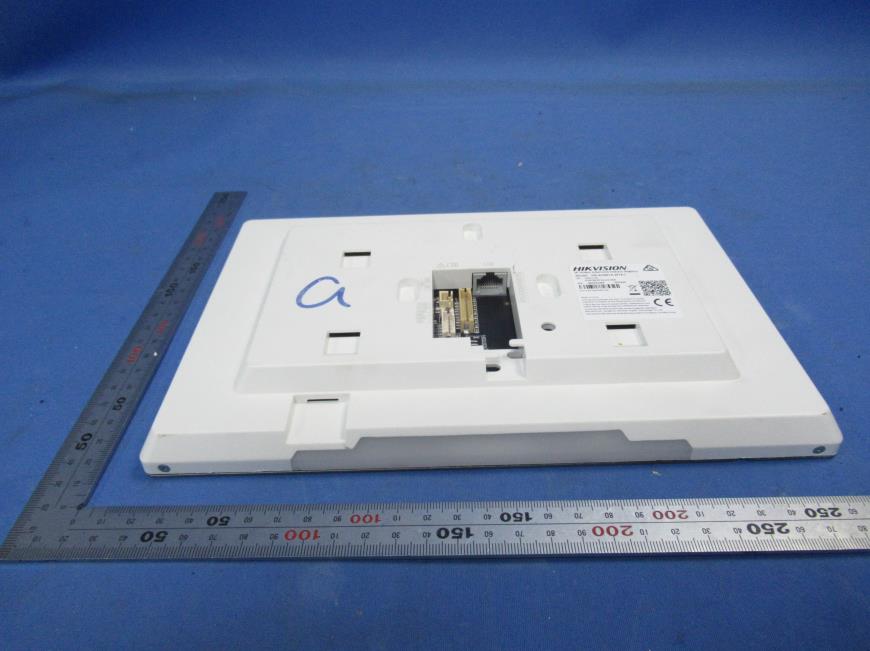

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 7 Page 1 of 7 External Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: IP Video Intercom Indoor Station Model No.: DS-KH9310-WTE1, DS-KH9510-WTE1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 7 Page 2 of 7 For model : DS-KH9510-WTE1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 7 Page 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 7 Page 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 7 Page 5 of 7 For model : DS-KH9310-WTE1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 7 Page 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 7 Page 7 of 7 End

Label location

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 12 Page 1 of 12 Internal Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: IP Video Intercom Indoor Station Model No.: DS-KH9310-WTE1, DS-KH9510-WTE1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 12 Page 2 of 12 For model: DS-KH9510-WTE1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 12 Page 3 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 12 Page 4 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 12 Page 5 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 12 Page 6 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 12 Page 7 of 12 For model: DS-KH9310-WTE1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 12 Page 8 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 12 Page 9 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 10 of 12 Page 10 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 11 of 12 Page 11 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 12 of 12 Page 12 of 12 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305102 Page: 1 of 9 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM2004003051CR FCC ID: 2ADTD-KH9510-WTE1 IC: 20199-KH9510WTE1 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1. Hangzhou Hikvision Technology Co., Ltd. 2. Hangzhou Hikvision Electronics Co., Ltd. 3. Chongqing Hikvision technology Co., Ltd. 4.Hangzhou Hikvision Digital Technology Co., Ltd Address of Factory: 1. No. 700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2. No. 299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China. 3. No. 118, Haikang Road, Area C, Jianqiao Industrial Park, Dadukou District, Chongqing, 401325, China 4. No. 555, Qianmo Road, Binjiang District, Hangzhou City, Zhejiang Province,China Equipment Under Test (EUT): EUT Name: IP Video Intercom Indoor Station Model No.: DS-KH9310-WTE1, DS-KH9310-WTE1UHK, DS-KH9310-WTE1CKV, DS-KH9310-WTE1UVS, DS-KH9310-WTE1KVO, DS-KH9310- WTE1HUN, DS-KH9510-WTE1, DS- KH9510-WTE1UHK, DS-KH9510- WTE1CKV, DS-KH9510-WTE1UVS, DS-KH9510-WTE1KVO, DS- KH9510-WTE1HUN Trade mark: HIKVISION Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 (March 2015) Date of Receipt: 2020-04-22 Date of Test: 2020-04-30 to 2020-05-13 Date of Issue: 2020-05-15 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305102 Page: 2 of 9 Note: For FCC Mode No: DS-KH9310-WTE1, DS-KH9510-WTE1, DS-KH9310-WTE1UHK, DS-KH9310-WTE1CKV, DS-KH9310-WTE1UVS, DS-KH9310-WTE1KVO, DS-KH9310-WTE1HUN, DS- KH9510-WTE1UHK, DS-KH9510-WTE1CKV, DS-KH9510-WTE1UVS, DS-KH9510-WTE1KVO, DS-KH9510-WTE1HUN For IC Mode No: DS-KH9510-WTE1UHK, DS-KH9510-WTE1CKV, DS-KH9510-WTE1, DS-KH9310-WTE1UHK, DS-KH9310-WTE1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305102 Page: 3 of 9 Revision Record Version Description Date Remark 00 Original 2020-05-15 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305102 Page: 4 of 9 2 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 CONTENTS .............................................................................................................................................. 4 3 GENERAL INFORMATION ..................................................................................................................... 5 3.1 GENERAL DESCRIPTION OF E.U.T. ..................................................................................................... 5 3.2 TECHNICAL SPECIFICATIONS............................................................................................................... 5 3.3 TEST LOCATION.................................................................................................................................. 6 3.4 TEST FACILITY .................................................................................................................................... 6 4 TEST STANDARDS AND LIMITS .......................................................................................................... 7 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ....................................................................... 7 4.2 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ........................................................................... 7 5 MEASUREMENT AND CALCULATION ................................................................................................ 8 5.1 MAXIMUM TRANSMIT POW ER ............................................................................................................... 8 5.2 MPE CALCULATION ............................................................................................................................ 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305102 Page: 5 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: 12V1A PoE(38-57V)0.35A 3.2 Technical Specifications Antenna Gain: DS-KH9510-WTE1: 4.61dBi; DS-KH9310-WTE1: 5.01dBi Antenna Type: FPC Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305102 Page: 6 of 9 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.4 Test Facility The test facility is recognized,…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Appendix A for SHEM200400305101 1.6dB Bandwidth Test Mode Test Channel Ant EBW[MHz] Limit Verdict 11B 2412 Ant1 10.07 0.5 PASS 11B 2437 Ant1 10.07 0.5 PASS 11B 2462 Ant1 10.07 0.5 PASS 11G 2412 Ant1 16.57 0.5 PASS 11G 2437 Ant1 16.57 0.5 PASS 11G 2462 Ant1 16.57 0.5 PASS 11N20SISO 2412 Ant1 17.79 0.5 PASS 11N20SISO 2437 Ant1 17.80 0.5 PASS 11N20SISO 2462 Ant1 17.78 0.5 PASS 11N40SISO 2422 Ant1 36.34 0.5 PASS 11N40SISO 2437 Ant1 36.34 0.5 PASS 11N40SISO 2452 Ant1 36.33 0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant1 6dB Bandwidth_11B_2437_Ant1 6dB Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant1 6dB Bandwidth_11G_2437_Ant1 6dB Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant1 6dB Bandwidth_11N20SISO_2437_Ant1 6dB Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N40SISO_2422_Ant1 6dB Bandwidth_11N40SISO_2437_Ant1 6dB Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 2.Occupied Bandwidth Test Mode Test Channel Ant OBW[MHz] Limit[MHz] Verdict 11B 2412 Ant1 15.04 --- PASS 11B 2437 Ant1 15.03 --- PASS 11B 2462 Ant1 15.06 --- PASS 11G 2412 Ant1 16.88 --- PASS 11G 2437 Ant1 16.90 --- PASS 11G 2462 Ant1 16.87 --- PASS 11N20SISO 2412 Ant1 17.99 --- PASS 11N20SISO 2437 Ant1 17.98 --- PASS 11N20SISO 2462 Ant1 17.99 --- PASS 11N40SISO 2422 Ant1 36.17 --- PASS 11N40SISO 2437 Ant1 36.15 --- PASS 11N40SISO 2452 Ant1 36.11 --- PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412 Occupied Bandwidth_11B_2437 Occupied Bandwidth_11B_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412 Occupied Bandwidth_11G_2437 Occupied Bandwidth_11G_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412 Occupied Bandwidth_11N20SISO_2437 Occupied Bandwidth_11N20SISO_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N40SISO_2422 Occupied Bandwidth_11N40SISO_2437 Occupied Bandwidth_11N40SISO_2452 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.Maximum conducted (average) output power Test Mode Test Channel Ant Level [dBm] 10log(1/x) Factor[dB] Power [dBm] Limit [dBm] Verdict 11B 2412 Ant1 13.54 0.00 13.54 30 PASS 11B 2437 Ant1 13.86 0.00 13.86 30 PASS 11B 2462 Ant1 13.66 0.00 13.66 30 PASS 11G 2412 Ant1 12.25 0.00 12.25 30 PASS 11G 2437 Ant1 12.84 0.00 12.84 30 PASS 11G 2462 Ant1 12.89 0.00 12.89 30 PASS 11N20SISO 2412 Ant1 12.22 0.00 12.22 30 PASS 11N20SISO 2437 Ant1 12.77 0.00 12.77 30 PASS 11N20SISO 2462 Ant1 12.79 0.00 12.79 30 PASS 11N40SISO 2422 Ant1 11.15 0.00 11.15 30 PASS 11N40SISO 2437 Ant1 11.4 0.00 11.40 30 PASS 11N40SISO 2452 Ant1 11.51 0.00 11.51 30 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant1 Maximum conducted (average) output power_11B_2437_Ant1 Maximum conducted (average) output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant1 Maximum conducted (average) output power_11G_2437_Ant1 Maximum conducted (average) output power_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N20SISO_2412_Ant1 Maximum conducted (average) output power_11N20SISO_2437_Ant1 Maximum conducted (average) output power_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N40SISO_2422_Ant1 Maximum conducted (average) output power_11N40SISO_2437_Ant1 Maximum conducted (average) output power_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 4.Maximum(average) power spectral density Test Mode Test Channel Ant Level [dBm/3kHz] 10log(1/x) Factor[dB] PSD[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B 2412 Ant1 -19.34 0.00 -19.34 8.00 PASS 11B 2437 Ant1 -18.96 0.00 -18.96 8.00 PASS 11B 2462 Ant1 -19.20 0.00 -19.20 8.00 PASS 11G 2412 Ant1 -22.34 0.00 -22.34 8.00 PASS 11G 2437 Ant1 -21.74 0.00 -21.74 8.00 PASS 11G 2462 Ant1 -21.81 0.00 -21.81 8.00 PASS 11N20SISO 2412 Ant1 -22.54 0.00 -22.54 8.00 PASS 11N20SISO 2437 Ant1 -21.91 0.00 -21.91 8.00 PASS 11N20SISO 2462 Ant1 -21.95 0.00 -21.95 8.00 PASS 11N40SISO 2422 Ant1 -26.91 0.00 -26.91 8.00 PASS 11N40SISO 2437 Ant1 -26.61 0.00 -26.61 8.00 PASS 11N40SISO 2452 Ant1 -26.48 0.00 -26.48 8.00 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11B_2412_Ant1 Maximum(average) power spectral density_11B_2437_Ant1 Maximum(average) power spectral density_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11G_2412_Ant1 Maximum(average) power spectral density_11G_2437_Ant1 Maximum(average) power spectral density_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N20SISO_2412_Ant1 Maximum(average) power spectral density_11N20SISO_2437_Ant1 Maximum(average) power spectral density_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N40SISO_2422_Ant1 Maximum(average) power spectral density_11N40SISO_2437_Ant1 Maximum(average) power spectral density_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 5.Band-edge for RF Conducted Emissions Test Mode Test Channel Ant Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 3.58 -38.23 -26.42 PASS 11B 2462 Ant1 3.72 -54.47 -26.28 PASS 11G 2412 Ant1 -2.05 -34.17 -32.05 PASS 11G 246…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305101 Page: 1 of 130 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2004003051CR FCC ID: 2ADTD-KH9510-WTE1 IC: 20199-KH9510WTE1 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1. Hangzhou Hikvision Technology Co., Ltd. 2. Hangzhou Hikvision Electronics Co., Ltd. 3. Chongqing Hikvision technology Co., Ltd. 4.Hangzhou Hikvision Digital Technology Co., Ltd Address of Factory: 1. No. 700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2. No. 299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China. 3. No. 118, Haikang Road, Area C, Jianqiao Industrial Park, Dadukou District, Chongqing, 401325, China 4. No. 555, Qianmo Road, Binjiang District, Hangzhou City, Zhejiang Province,China Equipment Under Test (EUT): EUT Name: IP Video Intercom Indoor Station Model No.: DS-KH9310-WTE1, DS-KH9310-WTE1UHK, DS-KH9310-WTE1CKV, DS- KH9310-WTE1UVS, DS-KH9310-WTE1KVO, DS-KH9310-WTE1HUN, DS- KH9510-WTE1, DS- KH9510-WTE1UHK, DS-KH9510-WTE1CKV, DS- KH9510-WTE1UVS, DS-KH9510-WTE1KVO, DS-KH9510-WTE1HUN ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: HIKVISION Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, March 2019 Amendment 1 Date of Receipt: 2020-04-22 Date of Test: 2020-04-30 to 2020-05-13 Date of Issue: 2020-05-15 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305101 Page: 2 of 130 Note: For FCC Mode No: DS-KH9310-WTE1, DS-KH9510-WTE1, DS-KH9310-WTE1UHK, DS-KH9310-WTE1CKV, DS-KH9310-WTE1UVS, DS-KH9310-WTE1KVO, DS-KH9310-WTE1HUN, DS- KH9510-WTE1UHK, DS-KH9510-WTE1CKV, DS-KH9510-WTE1UVS, DS-KH9510-WTE1KVO, DS-KH9510-WTE1HUN For IC Mode No: DS-KH9510-WTE1UHK, DS-KH9510-WTE1CKV, DS-KH9510-WTE1, DS-KH9310-WTE1UHK, DS-KH9310-WTE1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305101 Page: 3 of 130 Revision Record Version Description Date Remark 00 Original 2020-05-15 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200400305101 Page: 4 of 130 2 Test Summary Radio Spectrum Technical Requirement Item FCC Requirement IC Requirement Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203 & 15.247(c) RSS-Gen Clause 6.8 N/A Customer Declaration N/A: Not applicable Radio Spectrum Matter Part Item FCC Requirement IC Requirement Method Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.207 RSS-Gen Clause 8.8 ANSI C63.10 (2013) Section 6.2 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247a(2) RSS-247 Clause 5.2(a) ANSI C63.10 (2013) Section 11.8.1 Pass Conducted Average Output Power 47 CFR Par…

Text truncated - open the document above for the full version.
