2ADTD-PR160VSecurity Radar
Hangzhou Hikvision Digital Technology Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Aug 11, 2021
- Application Purpose
- Original Equipment
- Date of Application
- Aug 11, 2021
- Equipment Note
- Security Radar
- Frequency Range
- 24050.00000000 - 24200.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
User Manual Set Up E N G L I S H Indicator Installa on 1. Download and install the iVMS-4200 client so ware. 2. Enter Device Management page, and click Online Device. Note: For the first usage, select the device in the Online Device List, click Ac vate and create a password. 3. Select the radar, change the port as 80, and click Add. 4. Add the camera to iVMS-4200 client in the same way. Use the actual port No. of the camera. 5. Enter E-map, select a radar group and click Add Map to select a map. 6. Click Edit Scale to set the plo ng scale. 7. Drag the radar onto the map. 8. Move along the edge of the required monitoring field. Make sure the target sign (red arrow) is moving within the radar area (gray sector) shown on the added map. Test 1 3 Wiring 2 4 Set Up 5 Reset 6 Specification User Manual a. Detector Power on b. Flashing Red: Fault Alarm Occurred, Solid Green: Alarm Restored c. Solid Red: Zone/Trigger Line Alarm Occurred, Solid Green: Alarm Restored d. Forma ng Successfully a. Alarm Output Wiring (Dry Contact Output) a1: electrical load a2: electronic load b. Alarm Input Wiring (Reserved) c. DC Power Supply Wiring d. Ethernet (PoE port) Wiring e. Grounding Hold the Reset bu on while powering the radar on un l the red and green LED flashes 3 mes. 1. Ceiling Moun ng 2. Pole Moun ng Note: The recommended installa on height is 2.5m.Make sure that the moun ng surface is strong enough to withstand at least 50 N, as well as four mes the weight of the device and the bracket. Scan the QR code for more informa on and opera on help. Scan the QR code for speed dome calibra on. Use only power supply listed below: Manufacturer: MOSO Power Supply Technology Co.,Ltd Model: MSA-C2000IC12.0-24P-GB,Bri sh standard MSA-C2000IC12.0-24P-DE,European standard MSA-C2000IC12.0-24P-US,American standard ModelDS-PR1-60V Detection Range60 m Horizontal Angle100° Angle Measurement Accuracy16° Range Measurement Accuracy5 m Velocity Measurement Accuracy0.55 m/s Max. Target Number8 Trigger Line4 Zone8 3-ch weak current output: 0.5 A/ 125 VAC, breakdown voltage: 1 KV 1-ch strong current output: 10 A/ 240 VAC, breakdown voltage: 2.5 KV Netowrk Interface 1 RJ45 10M/100M self-adaptive, supports PoE Alarm Output Communication Protocol Standard ISAPI protocol, NAL2300, HTTP, DNS, NTP, TCP, UDP, DHCP, ARP and SSH Exception DetectionTampering alarm, moving alarm Power InterfaceDC 12 V/2 A Operation Temperature Operation temperature: -40°C to 65°C, storage temperature: -20°C to 65°C Operation Humidity10% to 90% Dimension(L×W×H)228 × 206 × 61 mm IP LevelIP67 Weight1.84 kg Installation Bracket installation, installation Height: 1.2 m to 4 m, recommended height range: 2.5 m User Manual Security Radar User Manual Set Up E N G L I S H 1 3 2 4 5 6 Specification User Manual 1 3 46 2 1 2 NC NO ...... ...... NO COM NC NO COM NC a 1 2 a b c d NO4 NC4 COM4 NO3 NC3 COM3 NO2 NC2 COM2 NO1 NC1 COM1 e a b c d 206.5 mm 2 2 8 . 5 mm 60.8 mm Product Information FCC Informa on Please take a en on that changes or modifica on not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec on against harmful interference in a residen al installa on. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc ons, may cause harmful interference to radio communica ons. However, there is no guarantee that interference will not occur in a par cular installa on. If this equipment does cause harmful interference to radio or television recep on, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separa on between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. FCC Condi ons This device complies with part 15 of the FCC Rules. Opera on is subject to the following two condi ons: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired opera on Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. This device complies with Industry Canada licence-exempt RSS standard(s). Opera on is subject to the following two condi ons: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired opera on of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploita on est autorisée aux deux condi ons suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'u lisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscep ble d'en comprome re le fonc onnement. Under Industry Canada regula ons, this radio transmi er may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmi er by Industry Canada. To reduce poten al radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communica on. Conformément à la réglementa on d'Industrie Canada, le présent éme eur radio peut fonc onner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuv…
Text truncated - open the document above for the full version.
Cover Letter(s)
Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ADTD-PR160V Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Long Cheng Position: Date: 2021-07-07
Cover Letter(s)
Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Declaration of Authorization We Name: Hangzhou Hikvision Digital Technology Co., Ltd. Address: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Security Radar FCC ID: 2ADTD-PR160V Model: DS-PRI-60V, DS-PRIABCD-EFG, DS-PRI60-VUHK, DS-PRI60-VCKV, DS-PRI60-VKVO, DS-PRI60-VHUN Brand: HIKVISION Sincerely, _________________ Name: Long Cheng Position: Date: 2021-07-07
Cover Letter(s)
Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Declaration letter For our business issue and marketing requirement, we would like to list different model number as following: Model No.: DS-PRI-60V, DS-PRIABCD-EFG, DS-PRI60-VUHK, DS-PRI60-VCKV, DS-PRI60-VKVO, DS-PRI60-VHUN Model Difference: The model differences are only for marketing purpose, all the schematics is identical. _____________________ Name: Long Cheng Position: Date: 2021-07-07
External Photos

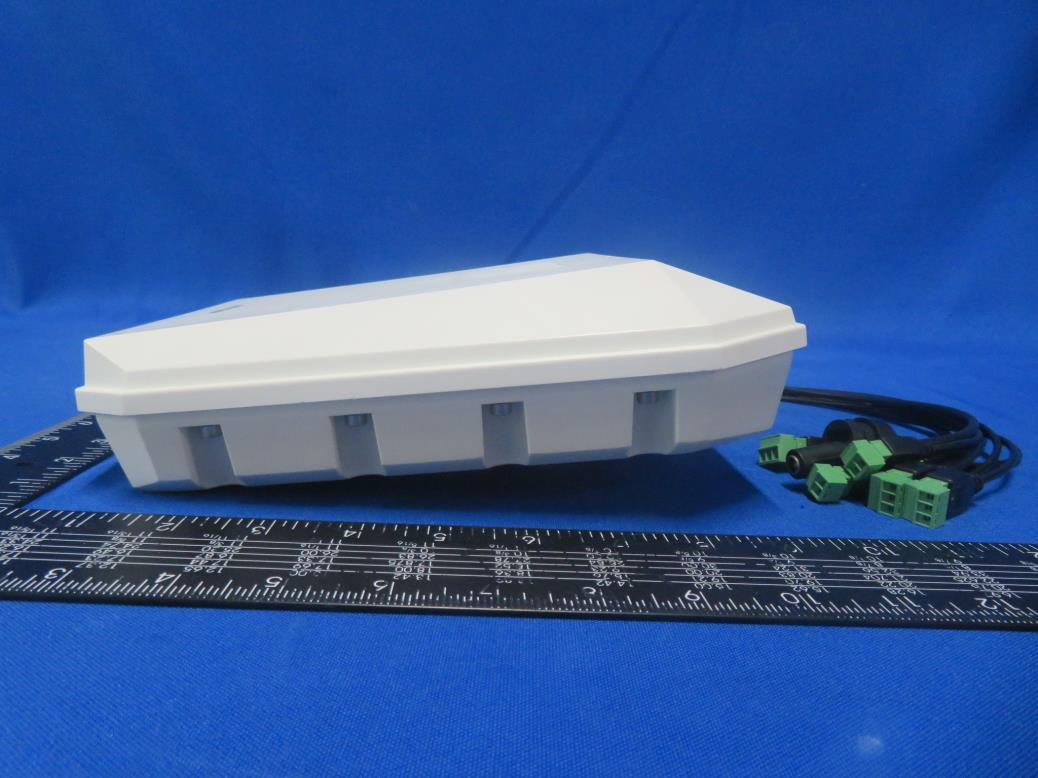

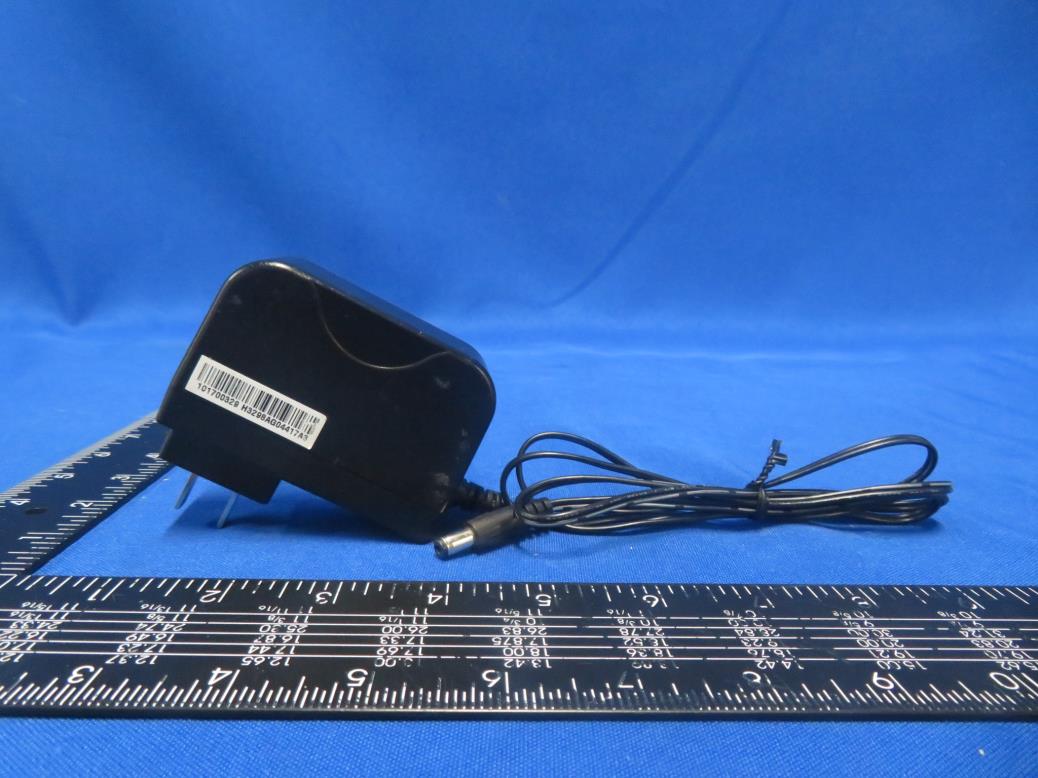

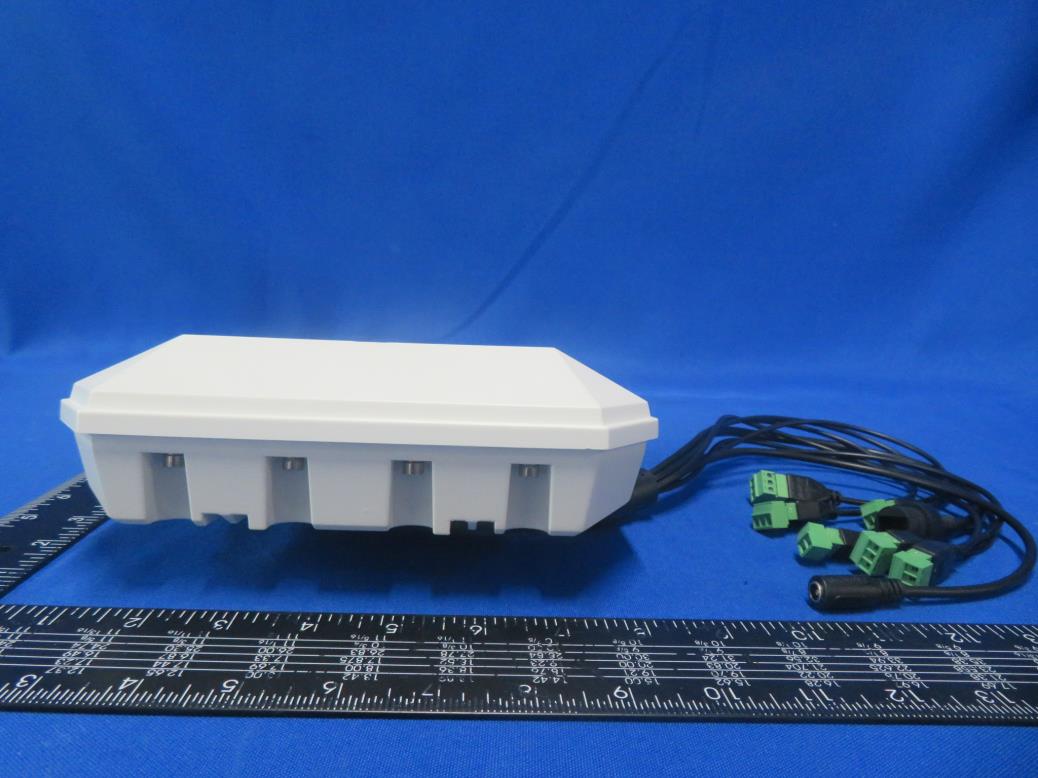

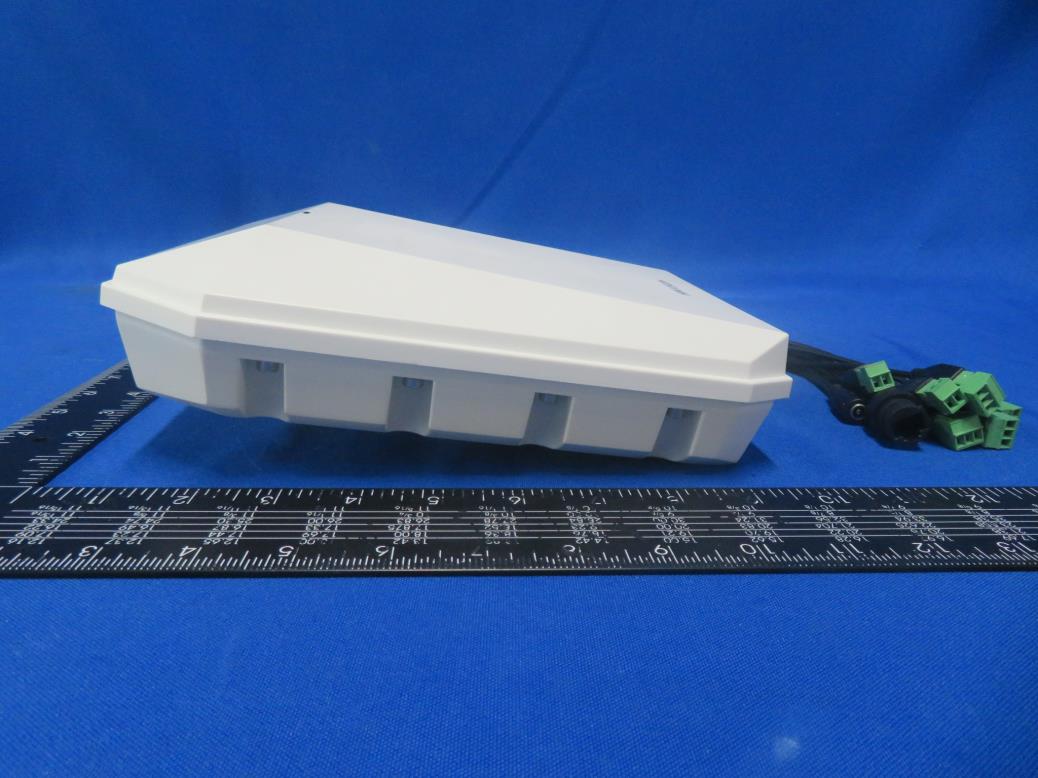

Report No.: 2104RSU021-UE 1 of 5 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2104RSU021-UE 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2104RSU021-UE 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 2104RSU021-UE 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2104RSU021-UE 5 of 5 (9) EUT Photo
ID Label/Location Info
Label and Label Location
Internal Photos
Report No.: 2104RSU021-UE 1 of 7 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2104RSU021-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2104RSU021-UE 3 of 7 (5) EUT Photo (Antenna Board) (6) EUT Photo (Radar Module) Antenna Report No.: 2104RSU021-UE 4 of 7 (7) EUT Photo (Radar Module) (8) EUT Photo (Radar Module) Report No.: 2104RSU021-UE 5 of 7 (9) EUT Photo (Radar Module) (10) EUT Photo Report No.: 2104RSU021-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2104RSU021-UE 7 of 7 (13) EUT Photo
Test Report
MRT Technology (Suzhou) Co., Ltd Report No.: 2104RSU021-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 07-17-2021 1 of 37 FCC ID: 2ADTD-PR160V Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Application Type: Certification Product: Security Radar Model No.: DS-PRI-60V Serial Model No.: DS-PRIABCD-EFG, DS-PRI60-VUHK, DS-PRI60-VCKV, DS-PRI60-VKVO, DS-PRI60-VHUN Brand Name: HIKVISION FCC Classification: Part 15 Low Power Communication Device Transmitter (DXX) FCC Rule Part(s): Part 15.249 Test Procedure(s): ANSI C63.10 - 2013 Test Date: April 29 ~ July 07, 2021 MEASUREMENT REPORT FCC PART 15.249 Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2104RSU021-U1 2 of 37 Revision History Report No. Version Description Issue Date Note 2104RSU021-U1 Rev. 01 Initial Report 07-17-2021 Valid Report No.: 2104RSU021-U1 3 of 37 CONTENTS Description Page 1. General Information ............................................................................................................... 5 1.1. Applicant ........................................................................................................................ 5 1.2. Manufacturer .................................................................................................................. 5 1.3. Testing Facility ............................................................................................................... 5 1.4. Product Information ........................................................................................................ 6 1.5. Radio Specification ........................................................................................................ 6 1.6. Test Mode ...................................................................................................................... 6 1.7. Test Environment Condition ........................................................................................... 6 1.8. Test System Connection Diagram .................................................................................. 7 1.9. Test System Details ....................................................................................................... 7 2. Antenna Requirements .......................................................................................................... 8 3. Test Equipment Calibration Date .......................................................................................... 9 4. Measurement Uncertainty.................................................................................................... 11 5. Test Result ............................................................................................................................ 12 5.1. Summary ..................................................................................................................... 12 5.2. AC Conducted Emissions Measurement ...................................................................... 13 5.2.1. Test Limit .................................................................................................................. 13 5.2.2. Test Setup................................................................................................................. 13 5.2.3. Test Result ................................................................................................................ 14 5.3. Radiated Emission ....................................................................................................... 16 5.3.1. Test Limit .................................................................................................................. 16 5.3.2. Test Procedure Used ................................................................................................ 17 5.3.3. Test Setting ............................................................................................................... 17 5.3.4. Test Setup................................................................................................................. 19 5.3.5. Test Result ................................................................................................................ 21 5.4. Radiated Restricted Band Edge Measurement ............................................................. 26 5.4.1. Test Limit .................................................................................................................. 26 5.4.2. Test Procedure Used ................................................................................................ 27 5.4.3. Test Setting ............................................................................................................... 27 5.4.4. Test Setup................................................................................................................. 28 5.4.5. Test Result ................................................................................................................ 29 5.5. 20dB Spectrum Bandwidth Measurement .................................................................... 33 5.5.1. Test Limit .................................................................................................................. 33 5.5.2. Test Procedure used ................................................................................................. 33 5.5.3. Test Setting ............................................................................................................... 33 5.5.4. Test Setup.................…
Text truncated - open the document above for the full version.
Test Setup Photos
Report No.: 2104RSU021-UT 1 of 4 RF Test Setup Photo Test Mode 1 Description: Front View Conducted Emission Test Setup for Power Port Test Mode 1 Description: Front View Conducted Emission Test Setup for Power Port Report No.: 2104RSU021-UT 2 of 4 Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Report No.: 2104RSU021-UT 3 of 4 Description: Radiated Emission Test Setup for 18GHz ~ 40GHz Description: Radiated Emission Test Setup for 40GHz ~ 50GHz Report No.: 2104RSU021-UT 4 of 4 Description: Radiated Emission Test Setup for 50GHz ~ 75GHz Description: Radiated Emission Test Setup for 75GHz ~ 100GHz
Contact Information
Applicant
Long Cheng
Test Firm
MRT Technology (Suzhou) Co., Ltd.Mr. Marlin Chen
[email protected]+86-512-66308358
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 24.05 GHz - 24.20 GHz | - |
