2ADTK-FBT0002100Indoor Air Quality Sensor

FBT0002100 This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference re- ceived, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Airboxlab S.A. July 20, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Airboxlab S.A. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product name: Indoor Air Quality Sensor Model No.: FBT0002100 FCC ID: 2ADTK-FBT0002100 Sincerely, Client’s signature: Client’s name / title: Inouk Bourgon / Chief technical officer Contact information / address: 9 Ave des Hauts-Fourneaux, L-4362 Esch-sur-Alzette, Luxembourg

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Airboxlab S.A. July 20, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADTK-FBT0002100 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Inouk Bourgon / Chief technical officer Contact information / address: 9 Ave des Hauts-Fourneaux, L-4362 Esch-sur-Alzette, Luxembourg

Airboxlab S.A. WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : 2ADTK-FBT0002100 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name: Airboxlab S.A. Address : 9 Ave des Hauts-Fourneaux, L-4362 Esch-sur-Alzette, Luxembourg Name / Title : Inouk Bourgon / Chief technical officer Signature : Phone : +352545580290 Email : [email protected] Date : 2015-07-22

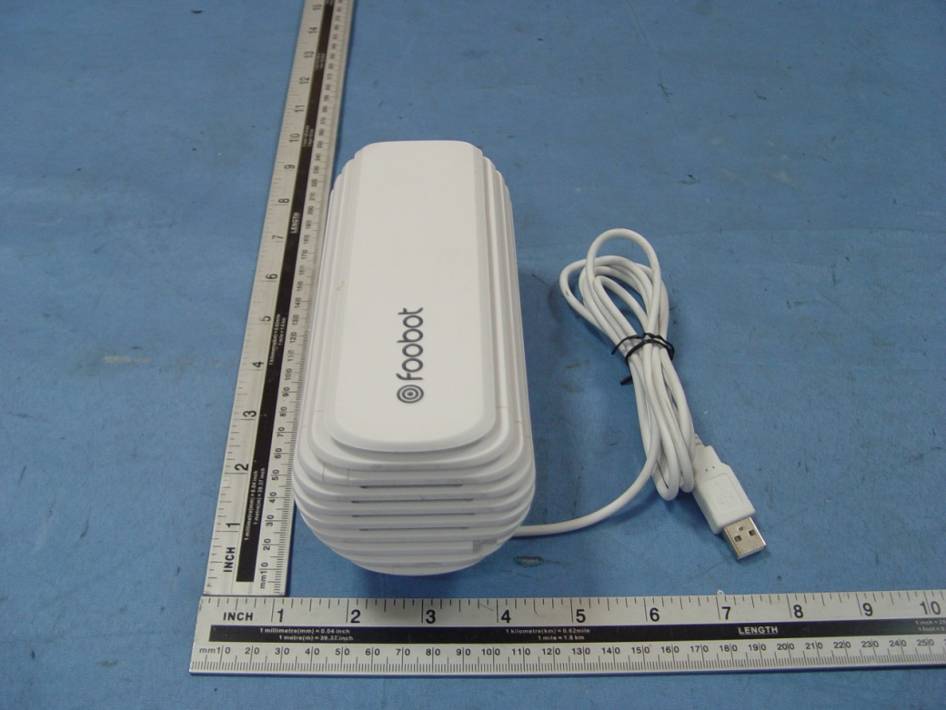

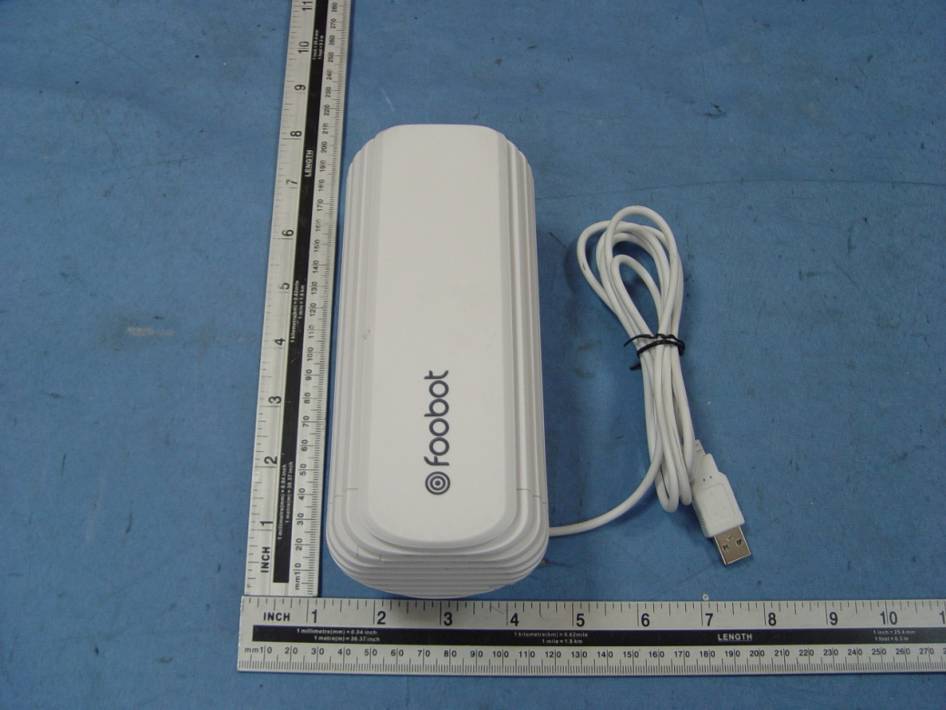

External Photos

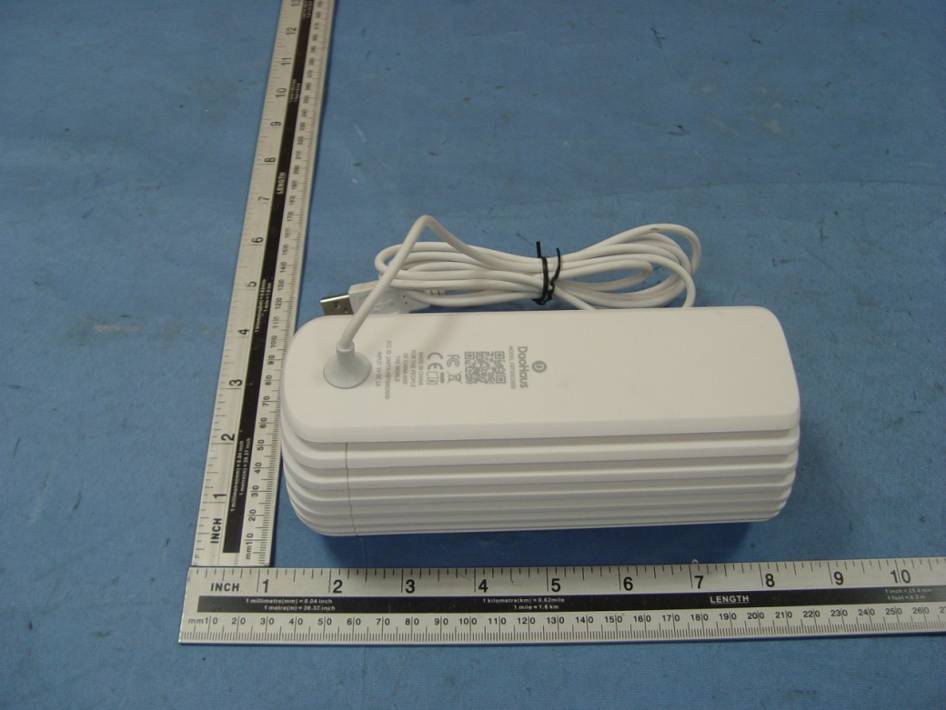

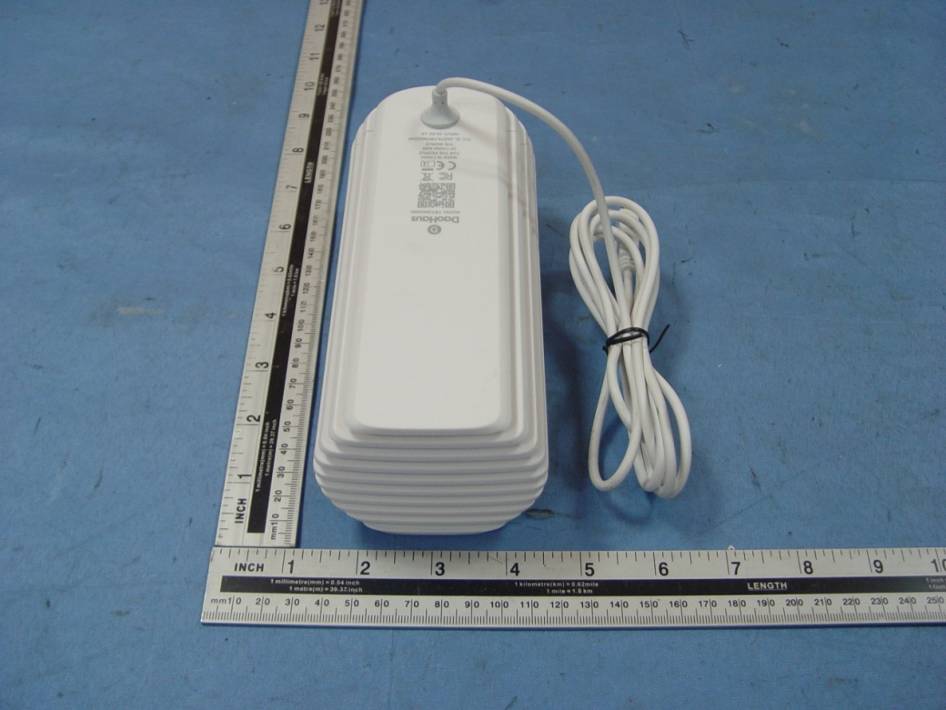

Label and label location File Name: foobot_back_label_150109 Print over: Back cover Print Color: Pantone 429 C MADE IN CHINA FOR THE PEOPLE OF CHINA AND THE WORLD FCC ID: 2ADTK-FBT0002100 INPUT: 5V DC 1A MODEL FBT0002100

Internal Photos Antenna

FCC ID : 2ADTK-FBT0002100 1. RF EXPOSURE 1.1. The Requirement System operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See Section 15.247(b)(4) and Section 1.1307(b)(1) 1.2. Limit For Maximum Permissible Exposure (MPE) Limits for General Population/ Uncontrolled Exposure F = frequency in MHz, * Plane-wave equivalent power density 1.3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) ( 2 mW/cm) Averaging Time 2 E, 2 H or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the antenna is 2.0 dBi, the RF power density can be obtained. 1.4. TEST RESULTS Maximum measured transmitter power 802.11B mode Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Output Power (mW) Target power (dBm) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2412 20.00 17.04 50.58 17 ±1 1.585 1.000 0.020 Pass 2437 20.00 16.95 49.55 17 ±1 1.585 1.000 0.020 Pass 2462 20.00 16.66 46.34 17 ±1 1.585 1.000 0.020 Pass 802.11G mode Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Output Power (mW) Target power (dBm) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2412 20.00 16.48 44.46 16 ±1 1.585 1.000 0.016 Pass 2437 20.00 16.44 44.06 16 ±1 1.585 1.000 0.016 Pass 2462 20.00 16.26 42.27 16 ±1 1.585 1.000 0.016 Pass 802.11N20 mode Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Output Power (mW) Target power (dBm) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2412 20.00 15.72 37.33 16 ±1 1.585 1.000 0.016 Pass 2437 20.00 15.78 37.84 16 ±1 1.585 1.000 0.016 Pass 2462 20.00 16.82 48.08 16 ±1 1.585 1.000 0.016 Pass 802.11N40 mode Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Output Power (mW) Target power (dBm) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2422 20.00 13.42 21.98 14 ±1 1.585 1.000 0.010 Pass 2437 20.00 13.65 23.17 14 ±1 1.585 1.000 0.010 Pass 2452 20.00 14.25 26.61 14 ±1 1.585 1.000 0.010 Pass The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure. 1.5. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm(8 inches) during normal operation. Proposed RF exposure safety information to include in User’s Manual.

Report No.: ATE20151328 Page 1 of 115 FCC ID: 2ADTK-FBT0002100 ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 15C On Behalf of Airboxlab S.A. Indoor Air Quality Sensor Model No.: FBT0002100 FCC ID: 2ADTK-FBT0002100 Prepared for : Airboxlab S.A. Address : 9 Ave des Hauts-Fourneaux, L-4362 Esch-sur-Alzette, Luxembourg Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: +86-755-26503290 Fax: +86-755-26503396 Report No. : ATE20151328 Date of Test : Jun 17, 2015-July 09, 2015 Date of Report : July 09, 2015 Report No.: ATE20151328 Page 2 of 115 FCC ID: 2ADTK-FBT0002100 ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT) .................................................................................................................... 5 1.2. Carrier Frequency of Channels ................................................................................................................. 6 1.3. Accessory and Auxiliary Equipment ........................................................................................................ 6 1.4. Description of Test Facility ...................................................................................................................... 6 1.5. Measurement Uncertainty ......................................................................................................................... 7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. OPERATION OF EUT DURING TESTING ................................................................................. 9 3.1. Operating Mode ........................................................................................................................................ 9 3.2. Configuration and peripherals .................................................................................................................. 9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. POWER LINE CONDUCTED MEASUREMENT ..................................................................... 11 5.1. Block Diagram of Test Setup .................................................................................................................. 11 5.2. Power Line Conducted Emission Measurement Limits .......................................................................... 11 5.3. Configuration of EUT on Measurement ................................................................................................. 11 5.4. Operating Condition of EUT .................................................................................................................. 11 5.5. Test Procedure ........................................................................................................................................ 12 5.6. Power Line Conducted Emission Measurement Results ........................................................................ 13 6. 6DB&20DB BANDWIDTH MEASUREMENT ........................................................................... 19 6.1. Block Diagram of Test Setup .................................................................................................................. 19 6.2. The Requirement For Section 15.247(a)(2) ............................................................................................ 19 6.3. EUT Configuration on Measurement ..................................................................................................... 19 6.4. Operating Condition of EUT .................................................................................................................. 19 6.5. Test Procedure ........................................................................................................................................ 19 6.6. Test Result .............................................................................................................................................. 20 7. MAXIMUM CONDUCTED (AVERAGE) OUTPUT POWER ................................................. 33 7.1. Block Diagram of Test Setup .................................................................................................................. 33 7.2. The Requirement For Section 15.247(b)(3) ............................................................................................ 33 7.3. EUT Configuration on Measurement ..................................................................................................... 33 7.4. Operating Condition of EUT .................................................................................................................. 33 7.5. Test Procedure ........................................................................................................................................ 33 7.6. Test Result .............................................................................................................................................. 34 8. POWER SPECTRAL DENSITY MEASUREMENT .................................................................. 41 8.1. Block Diagram of Test Setup .................................................................................................................. 41 8.2. The Requirement For Section 15.247(e) ................................................................................................. 41 8.3. EUT Configuration on Measurement ..................................................................................................... 41 8.4. Operating Condition of EUT ..................................................................…
