2ADWT-ICSR01Ground based receiver for powerline sensors

User Manual Information for Certified Device FCC Statements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. RF Exposure: This equipment complies with FCC RF Exposure requirements and should be installed and operated with a minimum distance of 20cm between the radiator and any part of the human body. Antenna Info: This equipment uses the following Antennas and may not be used with other antenna types or with antennas of higher gain: Mfg.: Molex _____ Type: External whip ____ Gain: 5.3 dBi @ 2.4 GHz_ Note: Antenna info above not required for permanently attached antennas such as chip antenna or trace antenna. ISED (Canada) Statements in English and French: This device contains license-exempt transmitters/receivers that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause the undesired operation thereof. This equipment complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment and meets the RSS-102 radio frequency (RF) exposure guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person’s body. Cet appareil est conforme aux normes RSS exemptes de licence d'Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences pouvant entraîner un fonctionnement indésirable. Cet équipement est conforme aux limites d'exposition aux radiations RSS-102 établies pour un environnement non contrôlé et répond aux directives d'exposition aux radiofréquences (RF) RSS- 102. Cet équipement doit être installé et utilisé en maintenant le radiateur à au moins 20 cm ou plus du corps de la personne.

Type Automation & Sensors Intelligent Circuit Sensor (ICS®) TFDIR 72.5kV – 550kV INSTRUCTION INSTALLATION& MANUAL Page 2 The Quality Name in High Voltage Switching Preliminary Page 3 The Quality Name in High Voltage Switching Preliminary LIMITED WARRANTY Southern States, LLC (“SSLLC”) warrants only to the Warranty Holder (hereinafter defined as the “End User” or the “Immediate Purchaser”, as applicable, pursuant to the terms and conditions of this Limited Warranty as set forth below), that the Product identified below will, upon shipment, be free of defects in workmanship and material for the applicable Warranty Period. The “Warranty Period” is that period of time during which this Limited Warranty is effective, and such period begins on the invoice date issued by SSLLC for the Product, and continues until the earlier to occur of (1) the expiration of the Warranty Duration period, or (2) the Number of Operations, both as specified in the table below. If the Product is both purchased and installed within the United States or Canada, this Limited Warranty is granted to each end user of the Product who acquired the Product for its own use during the Warranty Period (“End User”). In all other situations, this Limited Warranty is granted only to the first purchaser of the Product (“Immediate Purchaser”) from SSLLC. No primary or remote purchaser or owner of the Product who is not a Warranty Holder may claim any benefit under this Limited Warranty, or any remedial promise included in this Limited Warranty. SSLLC shall, upon prompt written notice from the Warranty Holder, correct a nonconforming Product by repair or replacement at the sole discretion of SSLLC of the nonconforming Product or any part or component of a nonconforming Product necessary in SSLLC’s discretion to make such Product conforming. Any transportation charges, labor for removing, reinstalling the Product or part, and/or costs related to providing access to the Product shall be the responsibility of the Warranty Holder. Correction in this manner will constitute the Warranty Holder’s exclusive remedy and fulfillment of all SSLLC’s liabilities and responsibilities hereunder. SSLLC’s duty to perform under this limited warranty may be delayed, at SSLLC’s sole option, until SSLLC has been paid in full for all products purchased by the Warranty Holder. No such delay will extend the Warranty Period. If SSLLC does not make such repair or replacement, SSLLC’s liability for damages on account of any claimed nonconformity will in no event exceed the purchase price of the Product in question. This Limited Warranty does not apply to any Product that has been disassembled, repaired, or altered by anyone other than SSLLC. This Limited Warranty will not apply to any Product that has been subjected to improper or abnormal use of the Product. SSLLC has no responsibility to repair or replace any Product or component thereof manufactured by another party, but SSLLC will assign, to the extent assignable, to the Warranty Holder any manufacturers’ warranty that applies to products and components not manufactured by SSLLC. THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES. THERE ARE NO OTHER EXPRESS, IMPLIED, OR STATUTORY WARRANTIES. ALL IMPLIED WARRANTIES WHICH MAY ARISE BY IMPLICATION OF LAW, OR APPLICATION OF COURSE OF DEALING OR USAGE OF TRADE, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT OR OTHERWISE ARE EXPRESSLY EXCLUDED. SSLLC SHALL NOT BE LIABLE OR RESPONSIBLE FOR ANY CONSEQUENTIAL, INCIDENTAL, INDIRECT, EXEMPLARY, SPECIAL, OR PUNITIVE DAMAGES, EVEN IF SSLLC HAS BEEN ADVISED OF THE POSSIBILITY OF SAME. THE WARRANTY HOLDER IS SOLELY RESPONSIBLE FOR THE SUITABILITY OF THE PRODUCT FOR ANY PARTICULAR APPLICATION. Product Purchased Region Product Installed Region Warranty Holder Warranty Duration U.S and CanadaU.S and CanadaEnd User2 years from shipment date All Other Conditions Immediate Purchaser Earlier of 1 year from installation or 18 months from shipment Page 4 The Quality Name in High Voltage Switching Preliminary ICS® TFDIR Installation & Instruction Manual Page 5 The Quality Name in High Voltage Switching Preliminary Table of Contents 1 Summary & Introduction ................................................................................................................. 6 1.1 Summary.................................................................................................................................. 6 1.2 Important................................................................................................................................. 6 1.3 Introduction ............................................................................................................................. 7 1.4 Ratings ..................................................................................................................................... 8 2 Product Description ......................................................................................................................... 9 2.1 Standard ICS TFDIR ............................................................................................................ 9 2.2 Receiving & Unpacking ........................................................................................................... 11 2.3 Storage .................................................................................................................................. 11 3 Installation & Configuration Procedures......................................................................................... 11 3.1 Assembly................................................................................................................................ 11 3.2 Installation ............................................................................................................................. 13 3.2.1 Mounting ..............…

Text truncated - open the document above for the full version.

Rev 1/26/2023 30 Georgia Avenue ● Hampton, GA 30226 Phone: 770-946-4562 ● Fax: 770-946-8106 E-mail: [email protected] Web: www. southernstatesllc.com Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-01-2024 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID or Grantee Code: _____2ADWT_____________ Southern States, LLC (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: __0021707666______________ Name: Southern States Address: 30 Georgia Avenue, Hampton, GA 30226 Contact Person: Tan Tran Tel.: __770-946-4562___________ _ Email: [email protected]__ Sincerely, Southern States, LLC

30 Georgia Avenue ● Hampton, GA 30226 Phone: 770-946-4562 ● Fax: 770-946-8106 E-mail: [email protected] Web: www. southernstatesllc.com Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-01-2024 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2ADWT-ICSR01 Southern States, LLC (“the applicant”) certifies that, as of the date of the filing of the application, the applicantis not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Tan Tran

30 Georgia Avenue ● Hampton, GA 30226 Phone: 770-946- 4562 ● Fax: 770-946- 8106 E-mail: [email protected] Web: www. southernstatesllc.com Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05- 06- 2024 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2ADWT-ICSR01 Southern State s, LLC (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Tan Tran Rev 1/26/2023

3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com SDoC Attestation Letter Date: June 28, 2024 Subject: SDoC Attestation Letter: FCC ID: 2ADWT-ICSR01 The following equipment meets FCC Part 15 Subpart B SDoC Requirements for digital device: Responsible Party: Southern States, LLC 30 Georgia Avenue Hampton, GA 30226 Responsible Party Contact Person: Tan Tran Email: [email protected] Equipment: Southern States, LLC Model: ICS/TFDIR Receiver Sincerely, __________________________ __George Yang__- Agent (Signature/Title) (Print name)

30 Georgia Avenue ● Hampton, GA 30226 Phone: 770-946-4562 ● Fax: 770-946-8106 E-mail: [email protected] Web: www. southernstatesllc.com AGENCY AGREEMENT Federal Communications Commission Date: 7435 Oakland Mills Road Columbia, MD 21045 Gentlemen: By signature below, we hereby appoint US Tech employees Alan Ghasiani and George Yang to act as our agents with regard to all FCC equipment authorizations. This appointment will remain in effect until otherwise notified. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Name: Tan Tran Signature: Title: Application Engineer II Date:

Request for Confidentiality Date: ___June 28, 2024_____ Subject: Confidentiality Request for: _FCC ID: 2ADWT-ICSR01, IC: 12660A-ICSR01_ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual Southern States, LLC. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Failure to protect the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, _______________________ __George Yang__- Agent (Signature) (Print name)

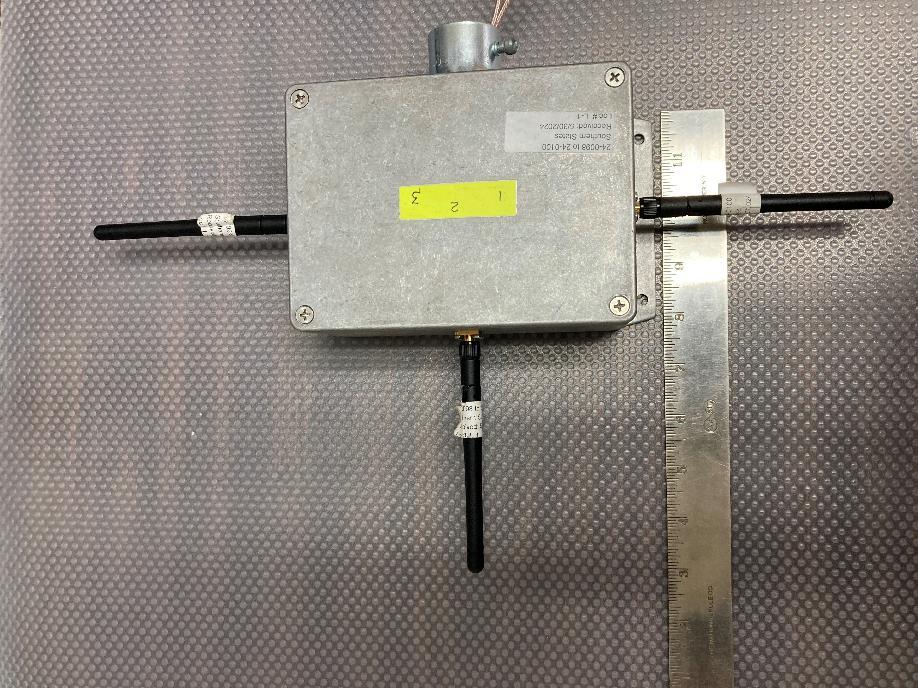

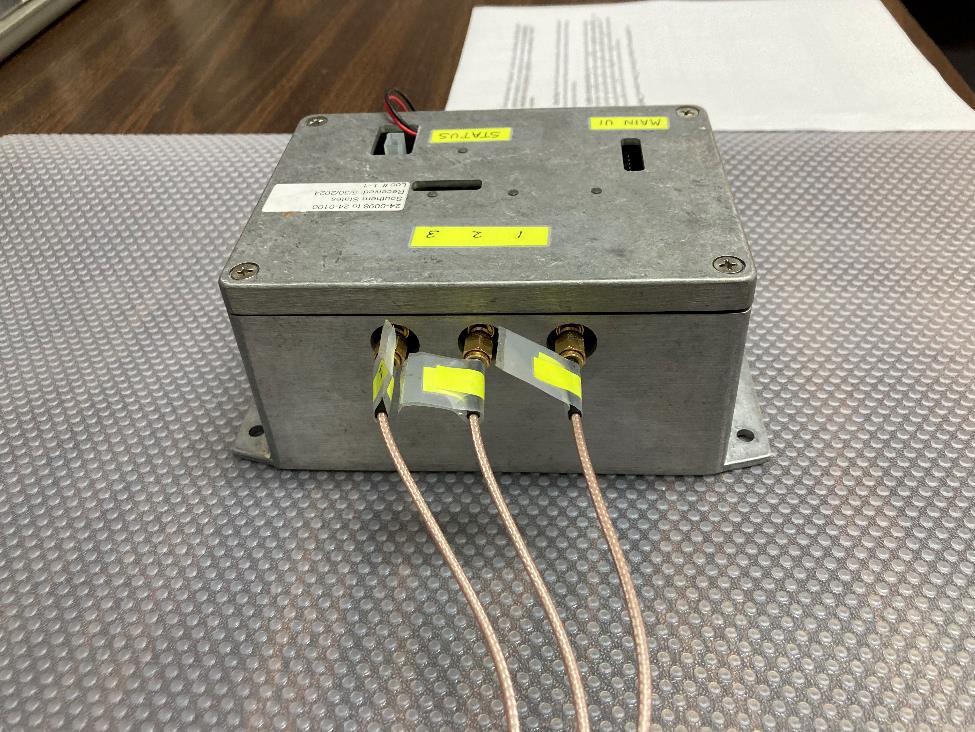

US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 1 of 14 EXTERNAL PHOTOGRAPHS The Equipment under Test (EUT) consists of two pieces, the main Unit including its power connection port and the enclosure device that the antennas are mounted on. The antenna enclosure is the representative example. In the field the RF cable can be longer than the lengths provided for testing. The length provided for testing is deemed to be the shortest representative example. Figure 1. Top of EUT Note: ¼ inch grid US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 2 of 14 Figure 2. Front of EUT Note: ¼ inch grid US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 3 of 14 Figure 3. Antenna Side of EUT Note: ¼ inch grid US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 4 of 14 Figure 4. Radio Side of EUT Note: ¼ inch grid US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 5 of 14 Figure 5. Rear of EUT Note: ¼ inch grid US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 6 of 14 Figure 6. SMA connector Side Radio Unit US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 7 of 14 Figure 7. Bottom of Radio Unit US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 8 of 14 Figure 8. Top of Antenna Unit US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 9 of 14 Figure 9. SMA cable exiting Antenna Unit US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 10 of 14 Figure 10. Bottom of Antenna Unit US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 11 of 14 Figure 11. Antennas Note: All three antennas are the same make and model. US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 12 of 14 Figure 12. Antenna remove Side 1 Note: SMA connector is reverse gender. US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 13 of 14 Figure 13. Antenna removed Side 2 Note: SMA connector is reverse gender. US Tech Test Report: FCC Part 15 Certification / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 14 of 14 Figure 14. Antenna removed Side 3 Note: SMA connector is reverse gender.

US Tech Test Report: FCC Part 15 / RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC. Model: ICS/TFDIR Receiver Page 1 of 1 SAMPLE LABEL AND LABEL LOCATION Figure 1. Sample Label Figure 2. Side of EUT Label location here

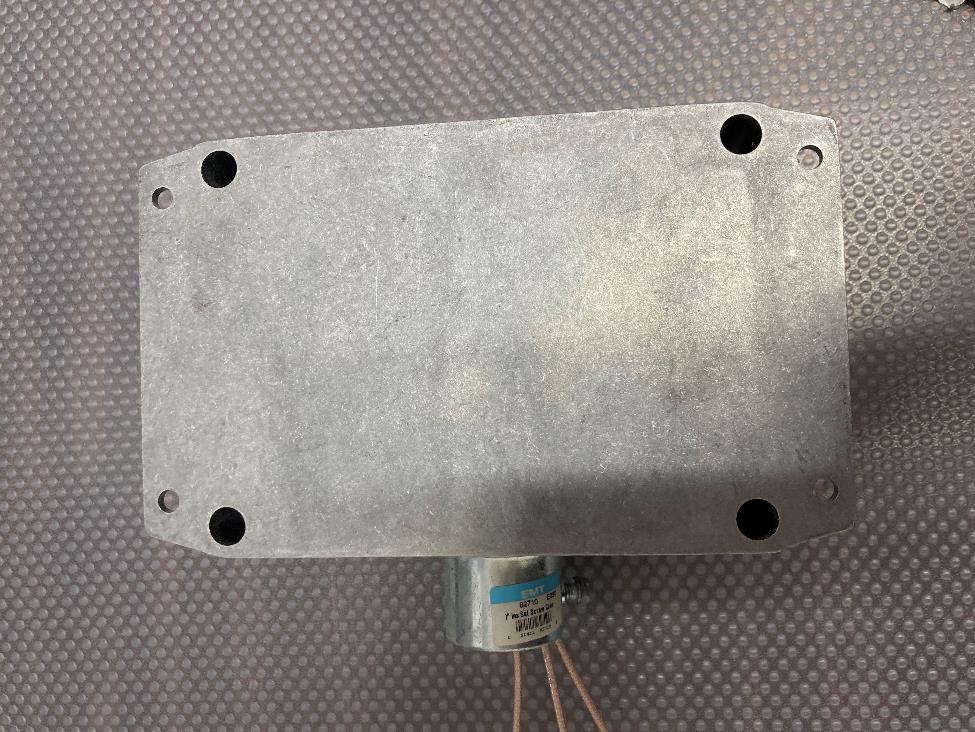

US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States. LLC Model: ISC/TFDIR Receiver Page 1 of 7 INTERNAL PHOTOGRAPHS Figure 1. EUT with Lids Removed. US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States. LLC Model: ISC/TFDIR Receiver Page 2 of 7 Figure 2 . EUT - Main Unit Lid Opened Figure 3. EUT - Main Unit Lid Note: ¼ in grid US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States. LLC Model: ISC/TFDIR Receiver Page 3 of 7 Figure 4. Main PCB Board Removed Note: ¼ in grid US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States. LLC Model: ISC/TFDIR Receiver Page 4 of 7 Figure 5. Close-Up of Main PCB Board US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States. LLC Model: ISC/TFDIR Receiver Page 5 of 7 Figure 6. Main PCB Board Shields Removed US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States. LLC Model: ISC/TFDIR Receiver Page 6 of 7 Figure 7. Backside of Main PCB Board Note: ¼ in grid US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States. LLC Model: ISC/TFDIR Receiver Page 7 of 7 Figure 8. Antenna Enclosure - Lid Removed

US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 1 of 2 Maximum Public Exposure to RF (MPE) CFR 1.1310 (e), CFR 2.1091, CFR 15.247 (i) The maximum exposure level to the public from the RF power of the EUT shall not exceed a power density, S, as per the respective limits in Table 1 below, at a distance, d, of 20 cm (Mobile condition) from the EUT. TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Therefore, for: MPE for 2400 MHz – 2483.5 MHz for this EUT: Limit: 1.0 mW/cm 2 Peak Power (dBm) = +4.0 dBm Peak Power (Watts) = 0.003 W Gain of Transmit Antenna = 5.3dB i = 3.39 numeric (Highest Gain) d = Distance = 20 cm = 0.2 m S = (PG/ 4d 2 ) = EIRP/4A = 0.003(3.39)/4*π*0.2*0.2 = 0.01017/0.5030 = 0.0202 W/m 2 = (0.0202 W/m 2 ) (1m 2 /W) (0.1 mW/cm 2 ) = 0.00202 mW/cm 2 which is << less than S = 1.0 mW/cm 2 US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: 2ADWT-ICSR01 IC: 12660A-ICSR01 Test Report Number: 24-0098 Issue Date: June 28, 2024 Customer: Southern States, LLC Model: ICS/TFDIR Receiver Page 2 of 2 RF Exposure Evaluation – IC According to RSS-102, 2.5.2 Exemption Limits for Routine Evaluation: At or above 300 MHz and below 6 GHz and the source-based time averaged maximum EIRP of the device is equal to or less than 1.31 x 10 -2 x f 0.6834 in Watts (adjusted for tune up tolerance where applicable), where f = frequency in MHz. For 2.4 GHz Band: Limit = 1.31 x 10 -2 x 2440 0.6834 = 2.7 Watts Max EIRP for this EUT = 4.0 dBm + 5.3 dB = 9.3 dBm = 8.511 mW << 2700 mW
