2ADXW-WCL00WiFi Controller

WIFI Controller User Instruction Ver1.0 1 Thanks for your purchase ! This manual describes the WIFI controller which can be used to all the RGBW light bulb/down light,etc.With this simple WIFI controller,you can control your lights with iOS 5.0 or Android ,free download from Apple App Store with the name : Touchlight1,or Android Google Play with the new App name:touchlight,automatically setting and let’s go! Wifi Controller setting 1.Supply power to the wifi controller box with DC5V 500mA power supply,the indicator will flash. 2.Go to the setting of your Android or Apple iOS smart phone or tablet,and connect with “R2WIFI”. 3.The indicator on your wifi controller box lights up when the connection is made. App Installation: Free download the App from Apple App Store, the App name is touchligh1; Free download the App from Android Google Play,the App name is touchlight; Basic functions Static_Color Music_Mode RGB_Mode Setting SceneMore TouchLight wifi Controller DC input : 5V1A Reset time : 5S Control distance : 0-80m DC5V Micro 5V USB 5V 3X indicators FRONT VIEWBACK VIEW 2 1.Static_Color You can change the color what you want ,dim the light ,As is shown below: Master ON Master OFF White Color ring Brightness - Brightness + 2.Music_Mode The control of the music have two mode that is built-in music and outdoor music by the speaker. we can import the music that we like into the play lists . If you want to import the music what you like to the App,please convert to the Mp3 format and copy to the root directory, then you must log out the App and log in again. If you want to turn off the music ,please click to the “Music” button for two times. 3.RGB_Mode We have two modes and effects to control the music ,they can mutual combination to four ways.For example , you want set the red,please choose the monochrome ;If you want set the red and green flash , please choose the flash ,and the effect is red and green. Red Blue Green Brightness MusicPlay Speaker Play Lists ON/OFF Monochrome Flash Color Flash Speed Brightness 3 4.Setting a.Match If you want to group the lights , please first click the number that you like , then turn on the lights that you want to group , click the “match” button one time within three seconds , finally the lights that have been grouped will flash three times . In this page ,we can see the case that the lights are turn on or turn off . b.controller If you want to control the lights for more 50M ,you must set the controller . First you must give your IP to us ,then we can set and come ture. c.time We can also set the time to turn on or turn off the lights . 5.Scene This is a good idea for us ,we can set the time , color and brightness what we like , then we select .so the scene is saved and the lights will turn on depend on the time that we set . Red Green Blue Brightness 6.More This page have two modes about CT Mode and Dim Mode . a.CT Mode You can control the dual white (warm white and cool white ) include the intensity and color temperature. b.Dim Mode You can control the intensity of the lights . Color ring Brightness color 4 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHENZHENYIRUIELECTRONICTECHNOLOGYCO., LTD Statement Feb.02,2015 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 ToWhomItMayConcern: We,SHENZHENYIRUIELECTRONICTECHNOLOGYCO.,LTD(Address:F4,Build B,SaiLianIndustryPark,The4thIndustryZone,Shuitian,ShiyanTown,Baoan District,Shenzhen,China)declarefortheequipmentidentifiedby: ProductDescription:WifiController ModelNumber:L00-000001-00 TradenameorBrands:TOUCHLIGHT FCCID:2ADXW-WCL00 TheproducthavetwoUSBPorts,butitcannottransmitorreceivedataviatheUSBport. Theonlypurposeisforcharging. YoursSincerely, ---------------------------------------------------------- FeiYu/ElectronicsEngineer SHENZHENYIRUIELECTRONICTECHNOLOGYCO.,LTD Email:[email protected]

SHENZHEN YIRUI ELECTRONIC TECHNOLOGY CO., LTD FCC Confidentiality Request Number:CF303 Version:V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameSHENZHEN YIRUI ELECTRONIC TECHNOLOGY CO., LTD AddressF4,Build B,SaiLian Industry Park,The 4th Industry Zone,Shuitian,Shiyan Town,Baoan District, CityShenzhen CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:2ADXW-WCL00 to maintainpermanent confidentialityfor the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription √ Operational DescriptionOperational Descriptionexplaining the functioning of the block diagram √ Block DiagramsBlock Diagramsshowing the systematic building blocks of the EUT √ Schematics DiagramsSchematicsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen, China2015-01-21Fei YuElectronics Engineer

SHENZHEN YIRUI ELECTRONIC TECHNOLOGY CO., LTD FCC Authorization Letter Number:CF304 Version:V03 Date: 01-08-2011 We, (the approval holder) Company nameSHENZHEN YIRUI ELECTRONIC TECHNOLOGY CO., LTD AddressF4,Build B,SaiLian Industry Park,The 4th Industry Zone,Shuitian,Shiyan Town,Baoan District, CityShenzhen, CountryChina declare that the following representative (agent): Name (person)Tom Chen Company nameShenzhen Anbotek Compliance Laboratory Limited Addresss1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, CityShenzhen CountryChina is hereby authorized to apply the following equipment for certification on our behalf: Product DescriptionWifi Controller Type or Model(s)L00-000001-00 Tradename or Brand(s)TOUCH LIGHT We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shezhen, China2015-01-21Fei YuElectronics Engineer

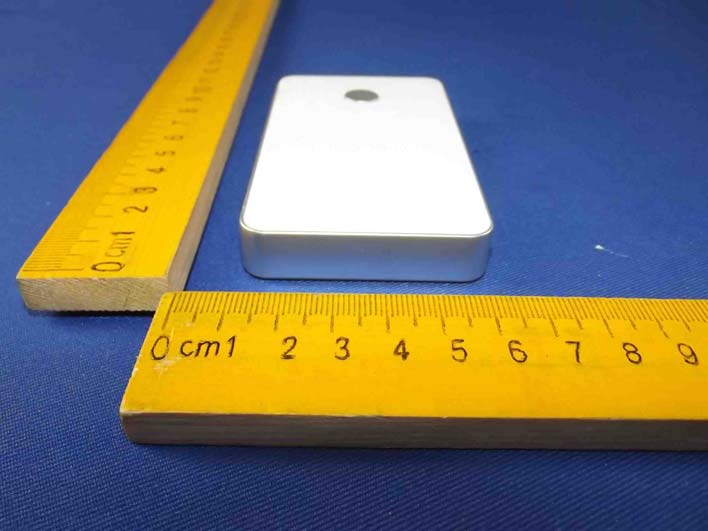

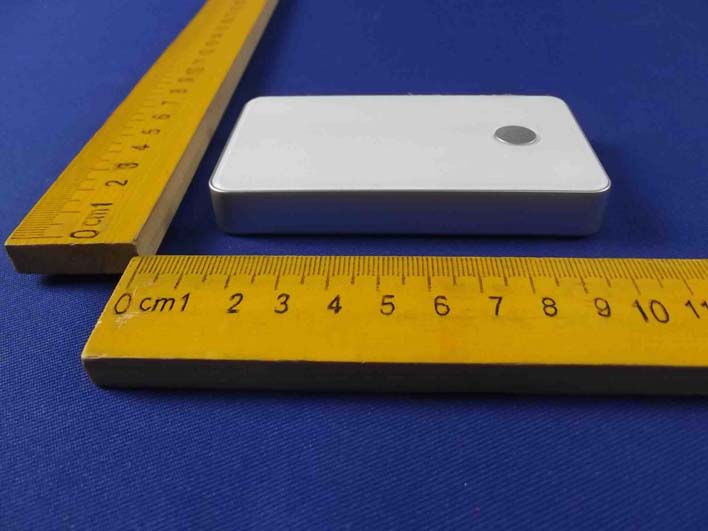

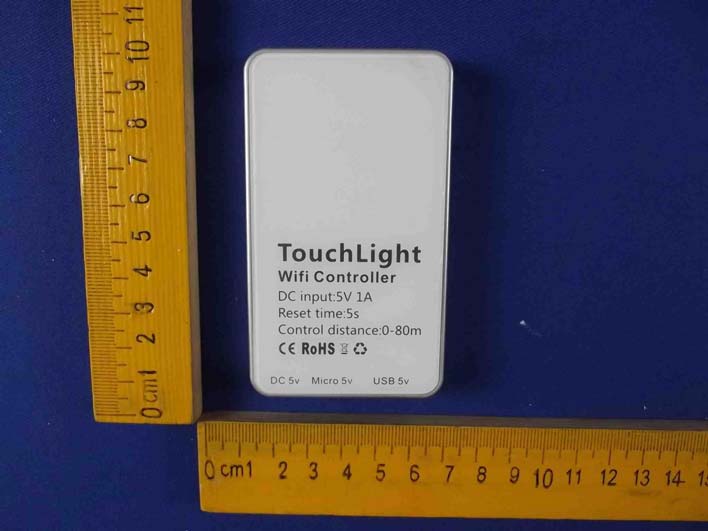

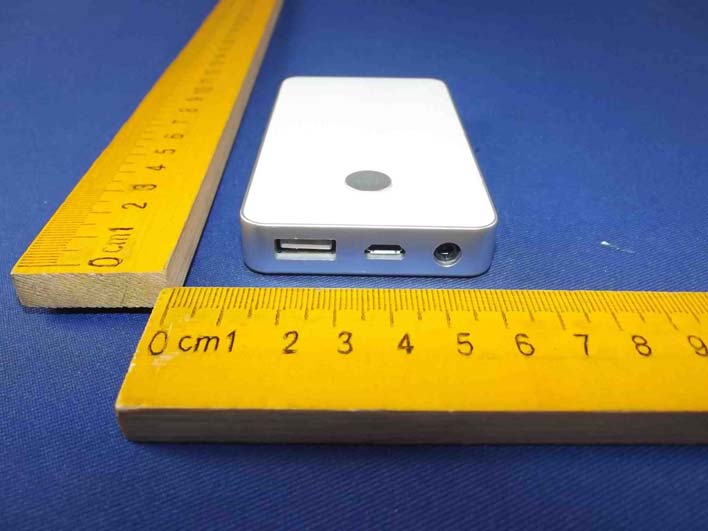

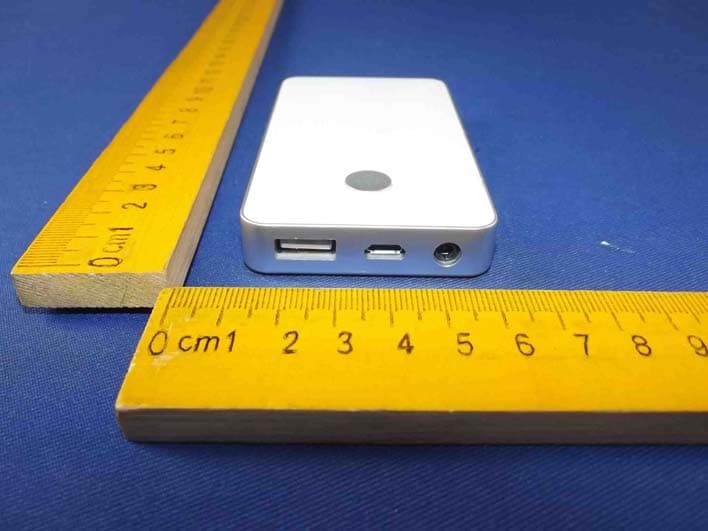

Figure 1 The EUT-Top View Figure 2 The EUT- Bottom View Figure 3 The EUT- Front View Figure 4 The EUT- Back View Figure 5 The EUT- Right View Figure 6 The EUT- Left View

Label Location On EUT

ProductName:WifiController ModelNo.:L00-000001-00 FCCID:2ADXW-WCL00 ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation.

Figure 7 The EUT-Inside View Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the EUT-Front View Figure 11 PCB of the EUT-Back View

RFEXPOSUREEVALUATION FCCID ： 2ADXW-WCL00 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Testmode:802.11b/802.11g/802.11n(HT20) Themaximumoutputpowerforlowchannelis:5.79dBm=3.79mW Thecalculationresults=3.79/5*√2.412=1.18 ＜ 3 Themaximumoutputpowerformiddlechannelis:4.99dBm=3.16mW Thecalculationresults=3.16/5*√2.437=0.99 ＜ 3 Themaximumoutputpowerforhighchannelis:4.33dBm=2.71mW Thecalculationresults=2.71/5*√2.462=0.85 ＜ 3 TestResults:PASS.

ShenzhenAnbotekComplianceLaboratoryLimited FCCID: 2ADXW-WCL00Page1 of 87 ReportNo. : R011410501E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com FCCTESTREPORT for SHENZHENYIRUIELECTRONICTECHNOLOGYCO.,LTD WifiController ModelNo.: L00-000001-00 ReportNumber:R011410501E DateofTest:Nov.05~Dec.19,2014 DateofReport:Jan.22,2015 Preparedfor:SHENZHENYIRUIELECTRONICTECHNOLOGYCO.,LTD Address: F4,BuildB,SaiLianIndustryPark,The4th Industry Zone,Shuitian,ShiyanTown,BaoanDistrict,Shenzhen,China PreparedBy:ShenzhenAnbotekComplianceLaboratoryLimited Address: 1/F.,Building1, SECIndustrialPark,No.0409QianhaiRoad, NanshanDistrict,Shenzhen,Guangdong,China Tel:(86)755-26066544 Fax:(86) 755-26014772 ShenzhenAnbotekComplianceLaboratoryLimited FCCID: 2ADXW-WCL00Page2 of 87 ReportNo. : R011410501E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com TABLEOF CONTENT Description Page Test Report 1. GENERALINFORMATION......................................................................................................4 1.1. Descriptionof Device(EUT)................................................................................................................4 1.2. AuxiliaryEquipmentUsedduringTest ................................................................................................5 1.3. Descriptionof Test Facility..................................................................................................................5 1.4. MeasurementUncertainty.....................................................................................................................5 2. TESTMETHODOLOGY............................................................................................................6 2.1. Summaryof Test Results......................................................................................................................6 2.2. Descriptionof Test Modes....................................................................................................................6 2.3. List of channels:....................................................................................................................................7 3. CONDUCTEDEMISSIONTEST..............................................................................................8 3.1. BlockDiagramof Test Setup................................................................................................................8 3.2. PowerLineConductedEmissionMeasurementLimits(15.207).........................................................8 3.3. Configurationof EUTon Measurement...............................................................................................8 3.4. OperatingConditionof EUT ................................................................................................................8 3.5. Test Procedure......................................................................................................................................9 3.6. Test equipment......................................................................................................................................9 3.7. PowerLineConductedEmissionMeasurementResults......................................................................9 4. FCCPART15.247REQUIREMENTSFORDSSS& OFDMMODULATION.................12 4.1 Test Setup.............................................................................................................................................12 4.2 6dB Bandwidth....................................................................................................................................12 4.3. MaximumOutputPowerTest .............................................................................................................26 4.4. BandEdgesMeasurement...................................................................................................................33 4.5. PeakPowerSpectralDensity..............................................................................................................62 4.6. RadiatedEmissions.............................................................................................................................69 5. PHOTOGRAPH.........................................................................................................................80 5.1 . Photoof ConductedEmissionMeasurement......................................................................................80 5.2 . Photoof RadiationEmissionTest .......................................................................................................80 APPENDIXI (EXTERNALPHOTOS)........................................................................................82 APPENDIXII(INTERNALPHOTOS)......................................................................................85 ShenzhenAnbotekComplianceLaboratoryLimited FCCID: 2ADXW-WCL00Page3 of 87 ReportNo. : R011410501E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com TESTREPORT Applicant: SHENZHENYIRUIELECTRONICTECHNOLOGYCO.,LTD Manufacturer: SHENZHENYIRUIELECTRONICTECHNOLOGYCO.,LTD EUT: WifiController ModelNo.: L00-000001-00 SerialNo.: N.A. TradeMark: TOUCHLIGHT Rating: DC 5V, 1A MeasurementProcedureUsed: FCCPart15SubpartC, Paragraph15.247 Thedevicedescribedaboveis testedby ShenzhenAnbotekComplianceLaboratory Limitedto determinethe maximumemissionlevelsemanatingfromthe deviceand the severelevelsof the devicecan endureand its performancecriterion.The measurement resultsare containedin this test reportand ShenzhenAnbotekComplianceLaboratory Limitedis assumedfull of responsibilityfor the accuracyand completenessof these measurements.Also,thisreportshowsthatthe EUT(EquipmentUnderTest)is technicallycompliantwiththe FCCPart 15 SubpartC requirements. Thisreportappliesto abovetestedsampleonlyand shallnot be reproducedin…

Text truncated - open the document above for the full version.

1. Photo of Conducted Emission Measurement 2. Photo of Radiation Emission Test
