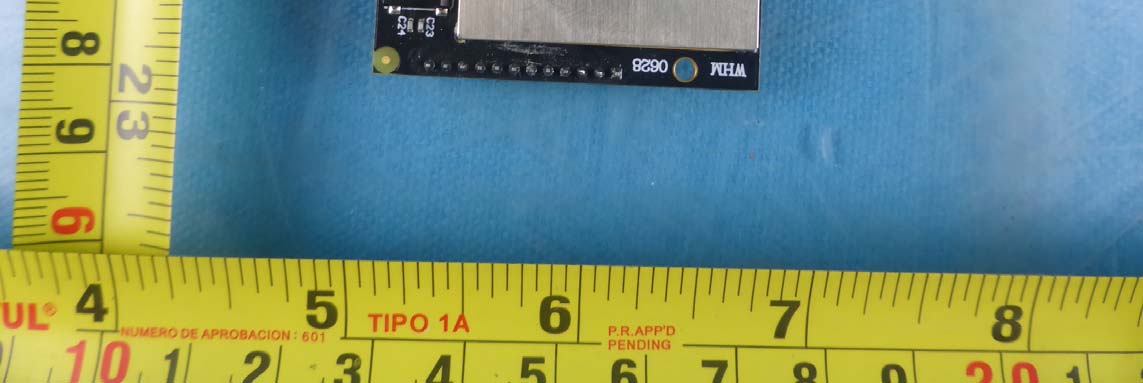

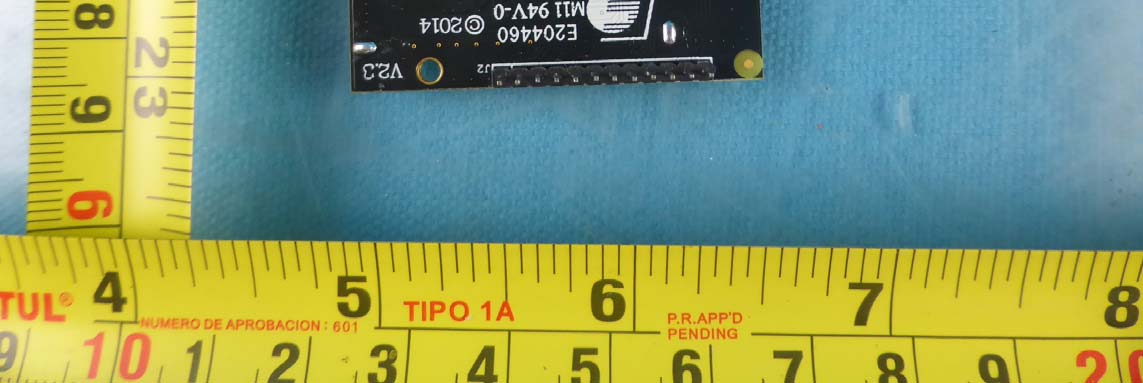

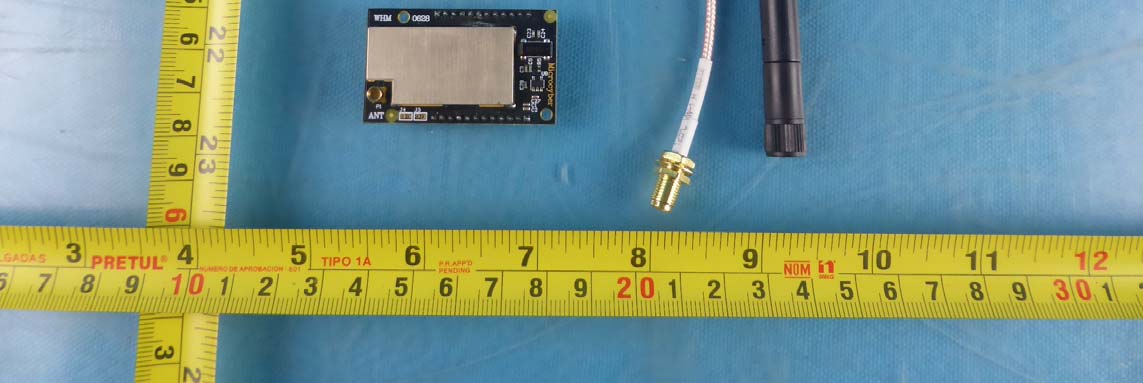

2ADYA-M1100WirelessHart module

1/8    2/8    3/8  1Summary 1.1WirelessHART Network Overview WirelessHART standard is developed together by HCF member companies, main wireless device manufacturers and industrial users under the guidance of the HART Communication Foundation (HCF). WirelessHART is a wireless mesh network communications protocol, specially designed for process automation application. WirelessHART adopts mesh topology network technology, safe and stable with 2.4 GHz ISM frequency band, and all the information is packaged in one packet, to realize data transmit through DSSS (Direct Sequence Spread Spectrum) based on IEEE802.15.4. A WirelessHART network consists of three key elements: WirelessHART field devices, WirelessHART gateway and WirelessHART network manager, also supports WirelessHART adapter, to let existing HART devices access WirelessHART network, and supports WirelessHART handheld devices, to connect adjacent WirelessHART devices. Figure 1.1 shows the complete WirelessHART network structure. Figure 1.1 WirelessHART Network Structure 1.2 Summary of WH-M WirelessHART Module WH-MWirelessHART module is a wireless communication module compliant with HART7.4 protocol, and is the core part of WirelessHART field device, as shown in Figure 1.2. WH-M periphery provides TTL serial port and control interface. Through the serial port, the WH-M communicates with special customized instrument board, to combine a complete WirelessHART field device. The control interface is used to control input and output of the serial port. WH-M supports all the mandatory commands of fieldbus device in HART7.4 protocol and Burst mode. 4/8  Figure 1.2 WH-M Module Photo 1.3 Reference Specifications Wireless Command Specification – HCF_SPEC-155 v2.0 HART Field Communication Protocol Specification – HCF_SPEC-13 v7.4 Command Summary Specification– HCF_SPEC-99 v9.0 Command Tables Specification–HCF_SPEC-183 v23.0 2WH-M Module Composition and Overall Framework Serial port communication mode is used between WH-M module and instrument board, with half-duplex communication mechanism, to complete information interaction between the instrument board and WH-M module. Instrument board provides maintenance port to realize parameter configuration of WH-M module, process monitoring, and other functions. Typical application scenarios of WH-M module are shown in Figure 2.1 below. Figure 2.1 WH-M Typical Application Framework    5/8  3Mechanical and Electrical Specifications 3.1 Mechanical Specifications  Figure 3.1 Mechanical Dimensions of the WH-M Module  3.2 Pin Assignment 6/8   3.3 Electrical Specifications  ModulationtypeDSSS 7/8  3.4 Antenna Specifications  Antennasupplier  SHENZHEN B&T TECHNOLOGY Co,. Ltd Frequencyrange 2400~2483.5MHz Inputelectrical impedance50ohm Standingwaveratio<2.0 Length   60f3mm Gain1dBi AntennamodelnumberC3 Color black      8/8  Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment.  FCCRadiationExposureStatement Themodularcanbeinstalledorintegratedinmobileorfixdevicesonly.Thismodular cannotbeinstalledinanyportabledevice,forexample,USBdongleliketransmitters isforbidden.  ThismodularcomplieswithFCCRFradiationexposurelimitssetforthforan uncontrolledenvironment.Thistransmittermustnotbecolocatedoroperatingin conjunctionwithanyotherantennaortransmitter.Thismodularmustbeinstalled andoperatedwithaminimumdistanceof20cmbetweentheradiatoranduserbody.  IftheFCCidentificationnumberisnotvisiblewhenthemoduleisinstalledinside anotherdevice,thentheoutsideofthedeviceintowhichthemoduleisinstalledmust alsodisplayalabelreferringtotheenclosedmodule.Thisexteriorlabelcanuse wordingsuchasthefollowing:“ContainsTransmitterModuleFCCID:2ADYAM1100 OrContainsFCCID:2ADYAM1100ā  Whenthemoduleisinstalledinsideanotherdevice,theusermanualofthisdevice mustcontainbelowwarningstatements; 1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. Thedevicesmustbeinstalledandusedinstrictaccordancewiththemanufacturer's instructionsasdescribedintheuserdocumentationthatcomeswiththeproduct

ModularapprovalDeclarationletter WeˈMicrocyberCorporationapplylimitedmodularapprovalfor  ProductName: WirelessHartmodule Model:M1100 FCCID:2ADYAM1100 According to 996369 D01 Module Equip Auth Guide v01r04and  15.212 requirement:  1)Theradioelementsmusthavetheradiofrequencycircuitryshielded.Physical componentsandtuningcapacitor(s)maybelocatedexternaltotheshield,butmust beonthemoduleassembly; Answer ˖YESˈ both side shielded 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer˖Ye s ˗All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer˖Ye s ˗A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer˖Ye s ˗Device is equipped with integral antennaˈand antenna type manufacture and gain are specified in user manual ˈrefer to user manual. (5)The module must demonstrate compliance in a stand-alone configuration; Answer˖NOˈdistance between modular and all AEs are shorter than 10cm ˈrefer to setup photo.  (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer˖Yes˗The modular has a permanent fixed label, and below statement was listed in the Users Manual;The host device must be labelled to display the FCCID of the moduleContains FCC ID:2ADYA-M1100 (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer˖Yes˗The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . Limit Modular approval Declaration letter Answer ˖Yes ˗Device is equipped with external antenna with unique antenna portˈand antenna type manufacture and gain are specified in user manual ˈrefer to user manual. (8)The module must comply with RF exposure requirements Answer˖Yes ˗Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPEReports and Refer to modular installation manual Client’s signature: Client’s name / title: Yong Li / Manager Contact information / address: No.17-8, Wensu Street, Hunnan District, Shenyang, Liaoning, China 110179.

DATE : Jan. 06, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADYA-M1100 Product Name: WirelessHart module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Agency agreement expiration date: Jan. 06, 2015 to Jan. 05, 2016 By: Yong Li Signature Printed Title: Manager On behalf of : Microcyber Corporation Telephone: 13654077750

FCC label information: FCC ID: 2ADYA-M1100

1 / 2 RF Exposures Evaluation According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) CALCULATIONS Given Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 2 / 2 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Pass Minimum separation distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) 20 12 1 1.0 0.003154 “This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.” 0.003975

Report No. : EESZG12300002 Page 1 of 33 TEST REPORT Product : WirelessHart module Trade mark : Model/Type reference : M1100 Serial number : N/A Ratings : DC 2.7V~DC 3.7V FCC ID : 2ADYA-M1100 Report number : EESZG12300002 Date : Jan. 06, 2015 Regulations : See below Test Standards Results 47 CFR FCC Part 15 Subpart C 15.247: 2014 PASS Prepared for: Microcyber Corporation No.17-8, Wensu Street, Hunnan District, Shenyang, Liaoning, China 110179 Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: Jan. 06, 2015 Jimmy Li Lab manager Check No.:!1727848373 Report No. : EESZG12300002 Page 2 of 33 TABLE OF CONTENTS 1.CERTIFICATION INFORMATION ............................................................................................................... 4 2.TEST SUMMARY ........................................................................................................................................ 4 3.MEASUREMENT UNCERTAINTY .............................................................................................................. 5 4.PRODUCT INFORMATION ......................................................................................................................... 5 5.TEST EQUIPMENT LIST ............................................................................................................................. 5 6.SUPPORT EQUIPMENT LIST .................................................................................................................... 5 7.6DB BANDWIDTH MEASUREMENT ......................................................................................................... 6 7.1.LIMITS ................................................................................................................................................. 6 7.2.BLOCK DIAGRAM OF TEST SETUP .................................................................................................. 6 7.3.TEST PROCEDURE ........................................................................................................................... 6 7.4.TEST RESULT .................................................................................................................................... 6 8.POWER SPECTRAL DENSITY .................................................................................................................. 9 8.1.LIMITS ................................................................................................................................................. 9 8.2.BLOCK DIAGRAM OF TEST SETUP .................................................................................................. 9 8.3.TEST PROCEDURE ........................................................................................................................... 9 8.4.TEST RESULT .................................................................................................................................... 9 9.MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT .................................................. 12 9.1.LIMITS ............................................................................................................................................... 12 9.2.BLOCK DIAGRAM OF TEST SETUP ................................................................................................ 12 9.3.TEST PROCEDURE ......................................................................................................................... 12 9.4.TEST RESULT .................................................................................................................................. 12 10.CONDUCTED BANDEDGE EMISSION MEASUREMENT .................................................................. 15 10.1.LIMITS ............................................................................................................................................... 15 10.2.BLOCK DIAGRAM OF TEST SETUP ................................................................................................ 15 10.3.TEST PROCEDURE ......................................................................................................................... 15 10.4.TEST RESULT .................................................................................................................................. 15 11.CONDUCTED SPURIOUS EMISSION MEASUREMENT ........................................................................ 17 Report No. : EESZG12300002 Page 3 of 33 11.1. LIMITS ............................................................................................................................................... 17 11.2.BLOCK DIAGRAM OF TEST SETUP ................................................................................................ 17 11.3.TEST PROCEDURE ......................................................................................................................... 17 11.4.TEST RESULT .................................................................................................................................. 17 12.RADIATED BANDEDGE EMISSION / RADIATED SPURIOUS EMISSION MEASUREMENT........... 20 12.1.LIMITS ............................................................................................................................................... 20 12.2.BLOCK DIAGRAM OF TEST SETUP ................................................................................................ 20 12.3.TEST PROCEDURE ......................................................................................................................... 21 12.4.TEST RESULT .................................................................................................................................. …
