2ADYC-SM-355GB2.4GHz Wireless Mouse

The RF2.4GHz Optical mouse usAA alkaline batteries. 1:when you want use the mouse ,you can take out the receiver to computer by the list step; 2:when you need stop the work or to travel, you can store the receiver on the mous e for the moving by the list step. one Installing the Batteries Installing Batteries in the Mouse Step 1.Open the battery compartment Step 2.Insert the batteries as shown inside the battery compartment. Step 3.Replace the cover. Connecting thw Receiver USB port 1.Connect the USB plug to USB port of your computer. Nano receiver Nano receiver Abtain the receiver on the mouse Take out the recaiver Store the receiver Power-Save function: Restoring factory default settings: Model:SM-355AG Instruction Manual RF2.4GHz Optica l Mouse CAUTION:To use this device properly,please reed the user’s guide before installation *Your RF2.4GHz mouse have economize model,When your wireless mouse keeps unused for continuous 8 minutes, the mouse will come to deep sleep mode, the Optical LED will turn off, you should click any mouse button to wake up the mouse. * This mouse is equipped with Traveling-Power-Save function. When you are traveling with this mouse,the LED of the mouse will be switched off automatically for the purpose of power-save,but the pre-condition is that the receiver is disconnected with your notebook or PC. When you find this set doesn't work, you can make the mouse in working condition by restoring the mouse back to factory default settings. 1: check the battery volume is normal; if the battery is used out, new batteries. if the battery volume is normal, please take out the battery and insert again the battery into the mouse. 2: insert the nano receiver onto the USB port of PC or notebook, make sure that the mouse is close to the receiver for auto-matching. please replace FCC STATEMENT: Thi s de vice complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1 ) This device may not cause harmful interference, and (2 ) This device must accept any interference received, including interference that may cause undesired operation. War ning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable prot ection against ha rmful int erference in a residential installa tion. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause ha rmful int erf ere nc e to radio communications. However, there is no guarantee that in terference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determine d by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Declaration on model difference 产品差异声明 Page 1 of 1 We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the Color and model no. for trading purpose. 我们在下面签名并据此确认:以下产品型号之间的差异仅为颜色及型号不同，其它设计完全相同。 Production name 产品名称 Trade name 商标 INPUT Model no. 型号 FCC ID 2.4GHz Wireless Mouse N.A. DC 1.5V, 12mA SM-355GB, SM-355AG, SM-364AG, SM-367AG, SM-351AG, SM-350AG, SM-335AG, SM-618AG 2ADYC-SM-355GB Confirmed by: Name in full:_ _Akiyoshi Sato __________ Authorzed signature:__ ______ Position:_ Product manager ________________ Date: __2015-03-02____________ Company Name:__ UNIQ CORPORATION _____________

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 (UNIQ CORPORATION) (2015-03-02) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADYC-SM-355GB We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Akiyoshi Sato / Product manager Company Name: UNIQ CORPORATION Address: 2-A Kashiwa Godo Office Wakabacho Kashiwa 277-0024 Chiba Japan Email: [email protected]

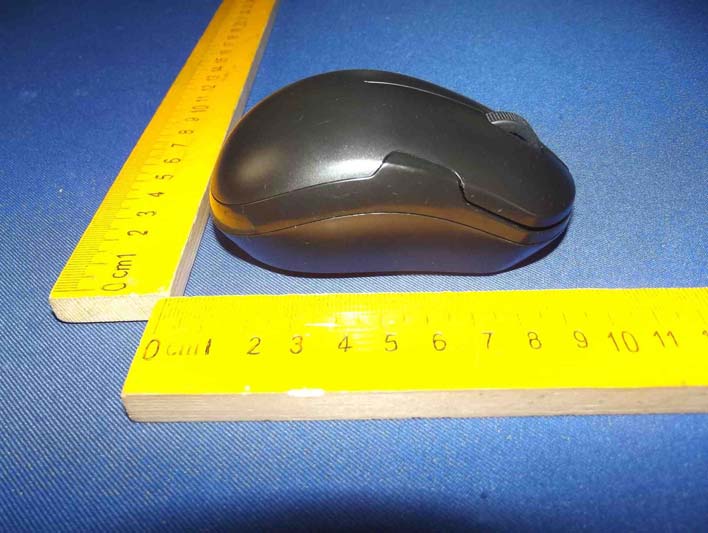

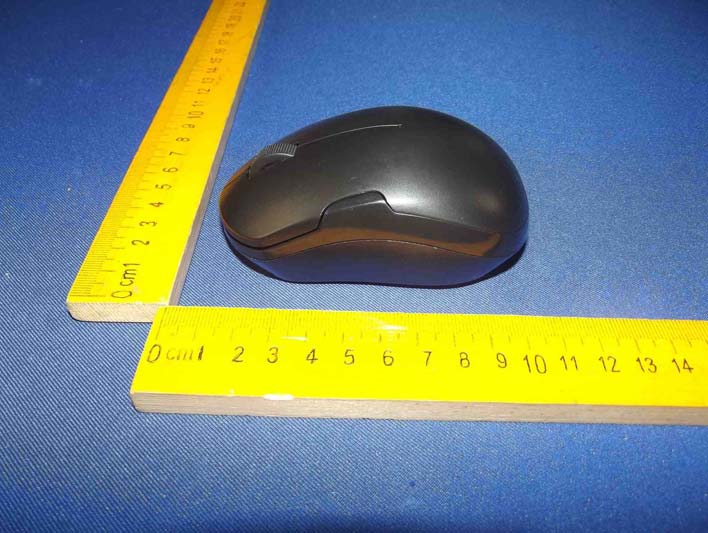

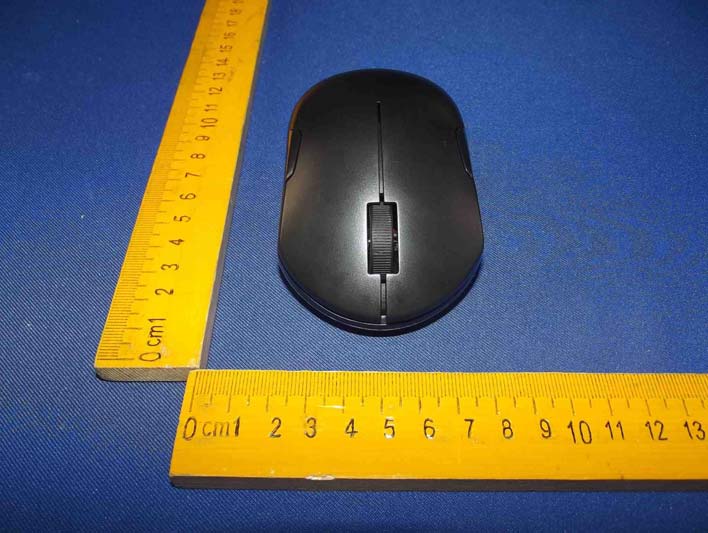

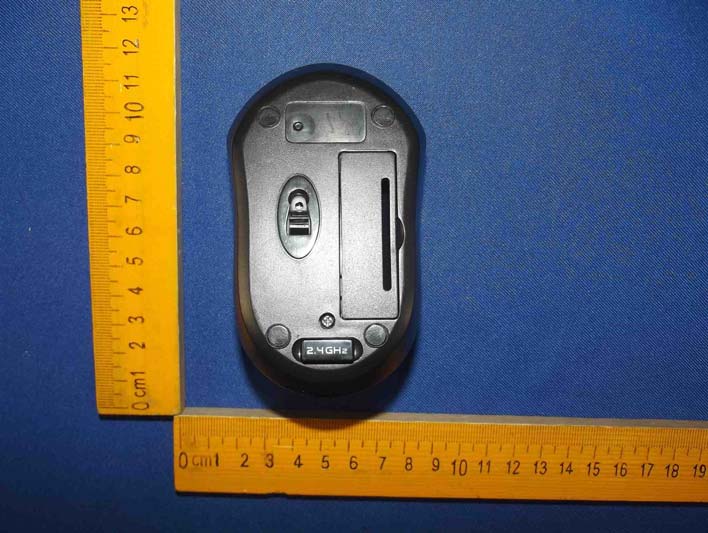

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure 3 The EUT-Front View Figure 4 The EUT-Back View Figure 5 The EUT-Right View Figure 6 The EUT-Left View

Label Location On EUT

Product Name: 2.4GHz Wireless Mouse Model No.: SM-355GB FCC ID: 2ADYC-SM-355GB

Figure 7 The EUT-Inside View Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the EUT-Module View
