2ADYY-BG7Mobile Phone

TECNO SPARK 20C User Manual Explosion diagram specification 1 LCM+CTP 2 UPPER_HOUSING 3 SIDEKEY_FPC 4 SPEAKER 5 BATTERY 6 PS_RUBBER 7 CHARGE_COPPER_FOIL 8 BB_COPPER_FOIL 9 MAIN_PCB 10 CAM_CON_FOAM 11 UPPER_YINGZHI_FAOM 12 UPPER_FANGSHUI_MYLAR 13 BACK_CAM_1 14 FRONT_CAM 15 COPPER_FOIL 16 FLASH_FPC 17 BATT_COVER 18 CATTO 19 BATT_DECO 20 BACK_CAM_LENS_1 21 FINGERPRINT 22 FLASH_LENS 23 CAM_DECO 24 BACK_CAM_LENS_2 25 MOTOR 26 SPEAKER 27 SUB_PCB 28 FR_CABLE 29 USB_RUBBER 30 EARPHONE_RUBBER 31 BACK_CAM_2 Know your phone 1. Front camera 2. Volume + key 3. Volume - key 4. Power key & side fingerprint sensor SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). Use only TECNO charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. FCC Caution Labelling requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This mobile phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: BG7(FCC ID:2ADYY-BG7) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.07 W/kg and when properly worn on the body is 1.19 W/kg. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. HiOS runs on Android TM OS. Android is a trademark of Google LLC.

TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Tel.: 86-755-61803856 E-mail: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-09-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ADYY-BG7 TECNO MOBILE LIMITED certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Yiting Luo Project Manager TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG

TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Tel.: 86-755-61803856 E-mail: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-09-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ADYY-BG7 TECNO MOBILE LIMITED certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Yiting Luo Project Manager TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG

U.S. AGENT LETTER OF ATTESTATION Date: 2023-09-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ADYY-BG7 TECNO MOBILE LIMITED certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. TECNO MOBILE LIMITED accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19- 25 SHAN MEI STREET FOTAN NT HONGKONG FRN: 0024206328 Email: [email protected] Signed by (printed name): Yiting Luo Signature: Tel: +86-0755-61803856

TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Tel.: +86-0755-61803856 E-mail: [email protected] FCC Confidential Authorization Date: 2023-09-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ADYY-BG7 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, TECNO MOBILE LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Software Security Description • Part list/Tune up Procedure (for licensed device) As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Yiting Luo Project Manager

TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Tel.: +86-0755-61803856 E-mail: [email protected] Date: 2023-09-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The Main chip, model: MT6765V installed in our product Mobile Phone, model:BG7, FCC ID: 2ADYY-BG7, this chip supports LTE function, but for marketing purpose, this chip only supports LTE B2/B4/B5/B7/B12/B17/B38/B40/B41(2535-2655MHz)/B66, not support other LTE bands. The other LTE bands was disabled to use by manufacture in the software, the end user has no capability to activate it. The RF chip, model: MT6631N installed in our product Mobile Phone, model: BG7, FCC ID: 2ADYY-BG7, supports 5G Wi-Fi function, but for marketing purpose, this chip only supports 5G Wi-Fi(5150-5250 MHz; 5725-5850 MHz). The 5G Wi-Fi (5250-5350 MHz, 5470-5725 MHz) was disabled to use by manufacture in the software, the end user has no capability to activate it. Signature: Yiting Luo Project Manager

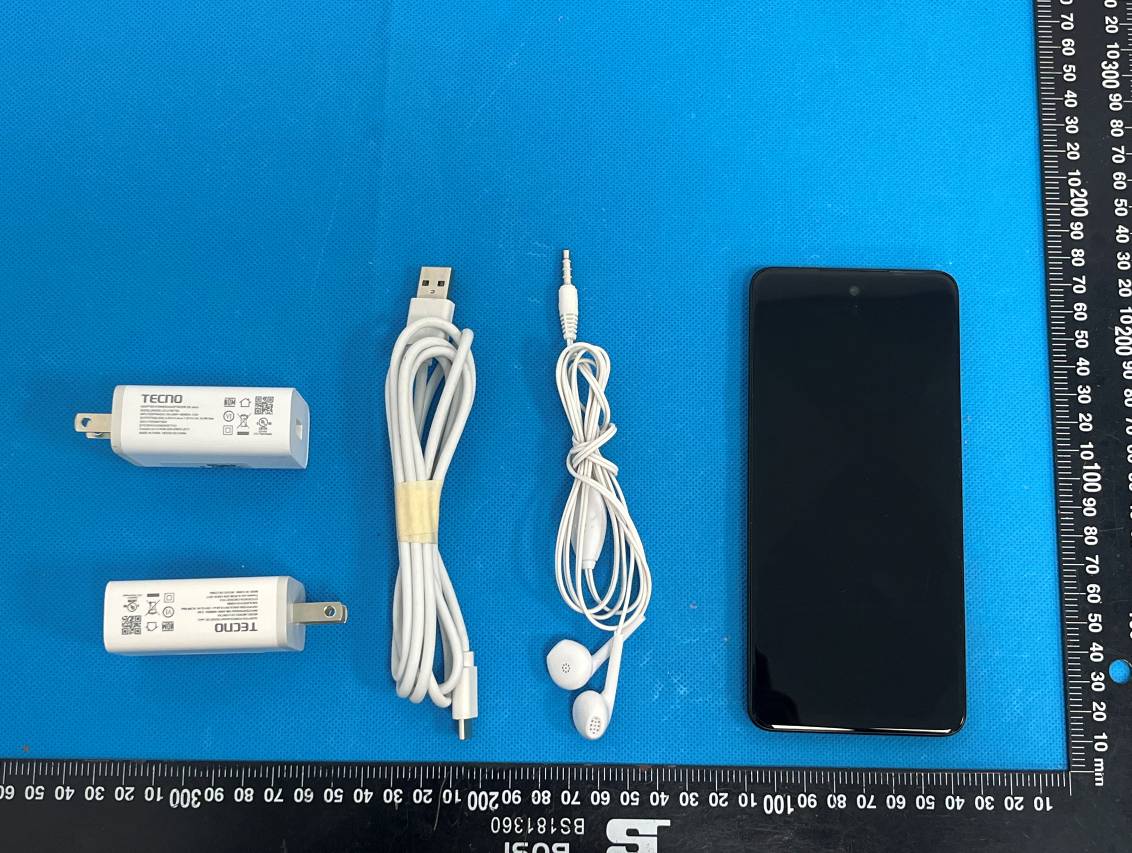

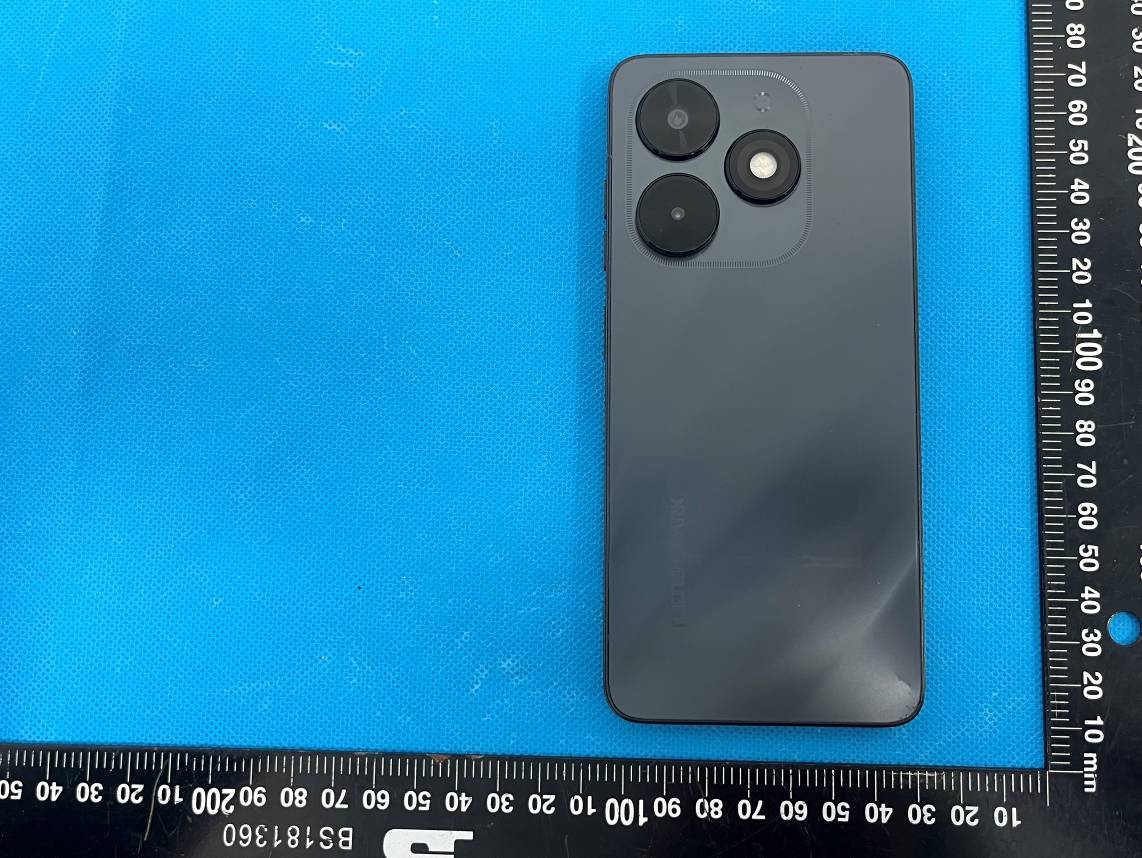

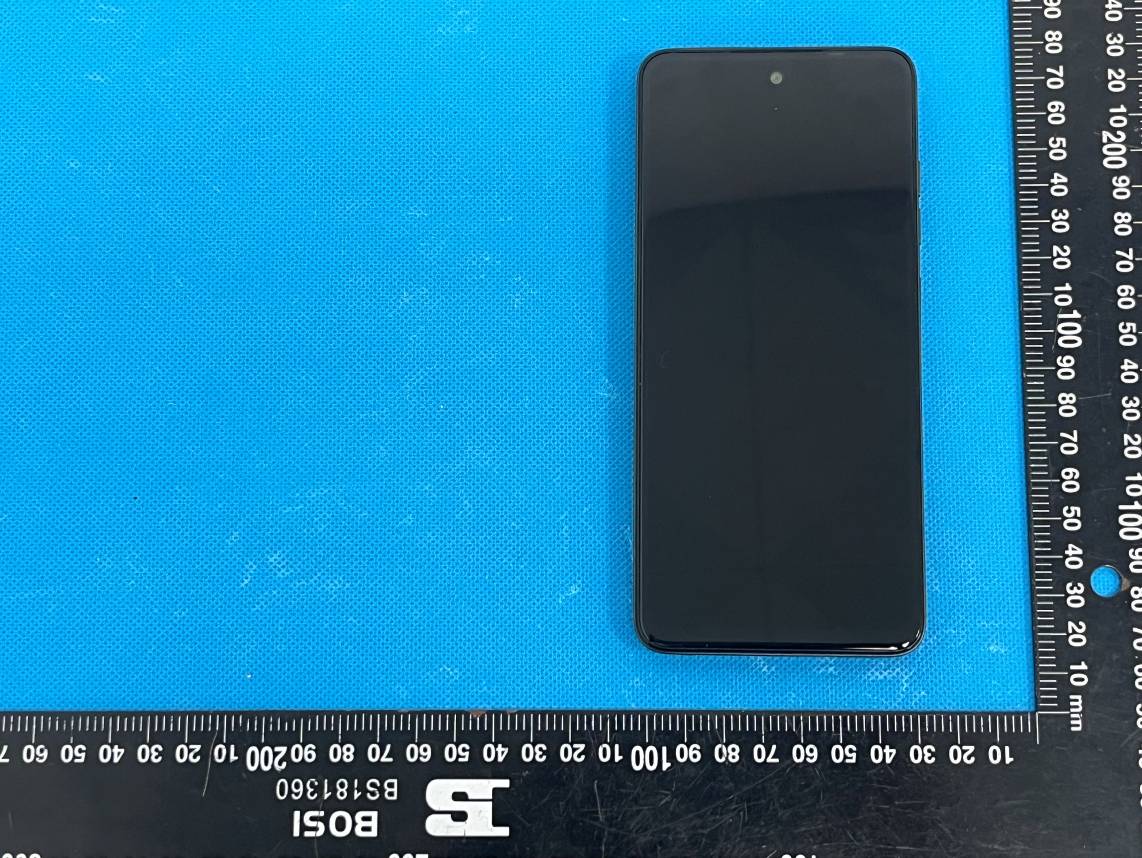

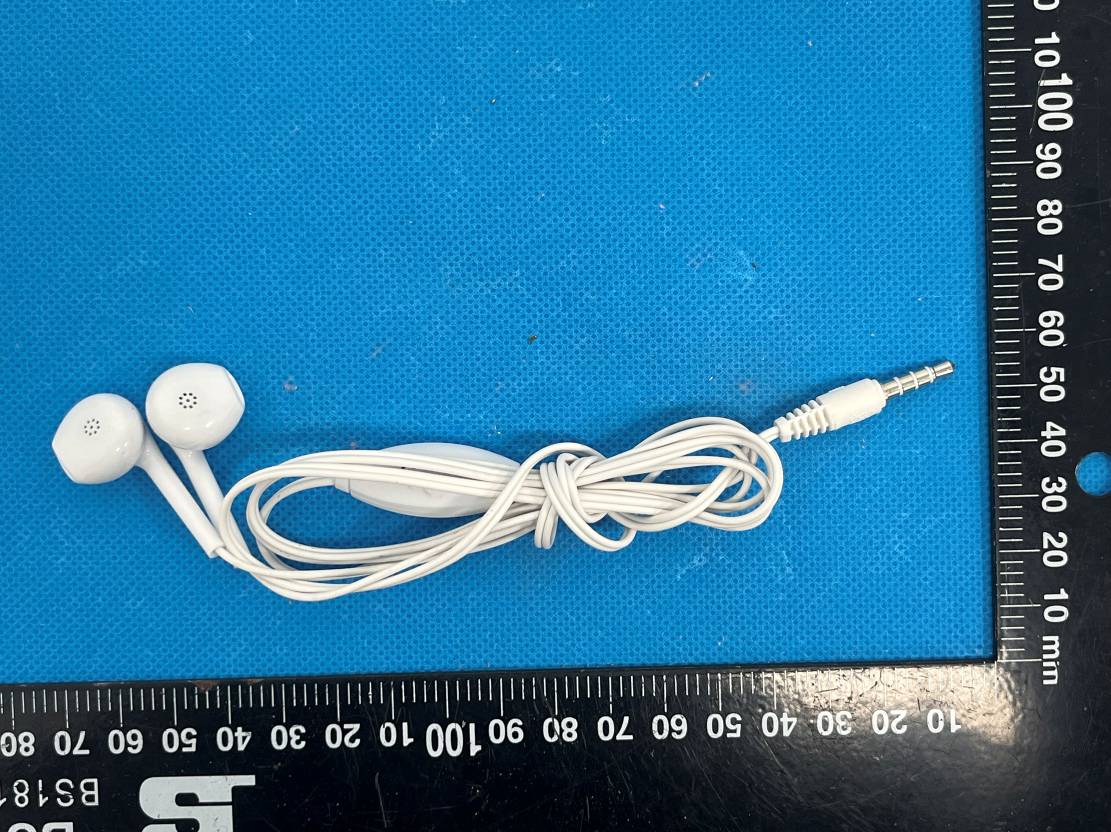

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851297-EXP Page 1 of 6 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851297-EXP Page 2 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851297-EXP Page 3 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851297-EXP Page 4 of 6 Port China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851297-EXP Page 5 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851297-EXP Page 6 of 6

128+8 GB IMEI XXXXXXXXXXXXX IMEI XXXXXXXXXXXXX PARA EL REGISTRO DEL MINORISTAFOR RETAILER RECORD BG7 128+8 GB IMEIXXXXXXXXXXXXX IMEIXXXXXXXXXXXXX BG7 FCC ID: 2ADYY-BG7 HECHO EN CHINA MADE IN CHINA VC:XXXXXD/N:XXXXX 128+8 GB IMEI XXXXXXXXXXXXX IMEI XXXXXXXXXXXXX PARA EL REGISTRO DEL MINORISTAFOR RETAILER RECORD BG7 128+8 GB IMEIXXXXXXXXXXXXX IMEIXXXXXXXXXXXXX BG7 FCC ID: 2ADYY-BG7 HECHO EN CHINA MADE IN CHINA VC:XXXXXD/N:XXXXX Label Label location
