2ADYY-CD6Mobile Phone

Emergency call If any emergency arises, dial 112/911 (or other emergency call number) for emergency help. Due to the nature of cellular networking, the success of emergency call is not guaranteed. FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types CD6 (FCC ID: 2ADYY-CD6) has also been tested against this SAR limit. The highest reported SAR values for head, body-worn accessory, and product specific (Hotspot) are 0.98 W/kg, 0.63 W/kg, and 0.63 W/kg respectively. The Max simultaneous SAR is 1.21W/kg. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. User Manual Mobile Phone CD6 TECNO TECNO MOBILE LIMITED ROOM 604 6/F SOUTH TOWER WORLD, FINANCE CTR HARBOUR CITY 17 CANTON ROAD TST KL, Hong Kong E E x x p p l l o o s s i i o o n n d d i i a a g g r r a a m m s s p p e e c c i i f f i i c c a a t t i i o o n n 1 FL(CTP+LCM)6.55HD+ CD7black TM V1.0 2Cam FF 2M GC2375H A P 3P+IR B SJ V1.0 3 Cam AF48M OV48B2Q B A 6P B ST V1.0 4Cam FF 2M GC2375HA P 3P+IRB LHYX V1.0 5 Cam FF8W GC6153 CSP W6003 XCG V1.0 6Cam FF8WGC8034 X627 TXD V2.0 7 SIM cars holder asm CD68FM 9 F CAM rubber CD6 8M Black10REC 1206W H20 broadband H:SPL 50mW AC 11 FPC REC CD612LT sensor light guide CD7 13 Distance Sensor Rubber CD7 Black14F hsg a smCD6 black 15 R vice CAM rubber CD6 8W Black 16FP Con foams CD6 17 F flash Lens CD718Rvice CAM rubber CD6 2M Black 19 R CAM lens CD6 KN3 0.5 Black20UP frame asm CD6 Black 21 mc screwM1.4*L2.5*D2.5*H0.5 sliver 22mcscrewM1.4*L3.5*D2.5*H0.5 black 23 FP imp steel CD624Rear cover CD6 25 Bat cover CD626MAIN PCB H6211 J1 64GB+3GB V1.1 27 Bat TECNO BL 49FT 4900mAh LW IN28Coaxial cable CD6 29 FPC MAIN CD630FPC Side key CD6 31 SUB PCBA H627 1 E V1.032Side key CD6 33 SPK 1115 SPR H2.5 RoHS HS 34Motor FPC 0827 L4.8 H AWA with Con ads 35 SPK frame a sm CD6 _ Black36Earphone rubber CD6 Black 37 USB rubber CD6 Black Know your phone 1. Front camera 2. Volume key 3. Return key SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). 1. Please remind the front and back of the plug. 2. Use only TECNO charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty.

TECNO MOBILE LIMITED Date: 2020-03-02 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADYY-CD6 To Whom It May Concern: This letter is to statement that CD6 / Mobile Phone. has been tested according to FCC Part 15B by Waltek Services (Shenzhen) Co., Ltd. (Test Report No.: WTS20S01000942E). And the SDOC file, meetting the requirements of the FCC regulations, would been provided when the device is sold by the responsible party in US. The service will not be sold until the SDOC is provided. If the sale does not have an SDOC, all responsibility is the responsibility of the applicant. Sincerely, Signature [Yiting Luo] [Manager] [TECNO MOBILE LIMITED]

TECNO MOBILE LIMITED Date: Mar. 02, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ADYY-CD6 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Long-term confidentilality: Schematics Block Diagram Operational Description Schematics.pdf Block Diagram.pdf Operational Description.pdf Part List Part Placement Schematics PCB Layout Schematics Tune-up Procedure Short-term confidentilality: External Photos User’s Manual Internal Photos Setup photos DSS DTS Setup photos PCE Setup photos NII Setup photos SAR Part List.pdf Part Placement Schematics.pdf PCB Layout Schematics.pdf Tune-up Procedure.pdf External Photos.pdf User’s Manual.pdf Internal Photos.pdf Setup photos DSS DTS.pdf Setup photos PCE.pdf Setup photos NII.pdf Setup photos SAR.pdf Short-term confidentilality days: 180 days. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, TECNO MOBILE LIMITED Signature Yiting Luo / Manager Typed name and Title

TECNO MOBILE LIMITED Date: 3/2/2020 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD To Whom It May Concern: We, TECNO MOBILE LIMITED, state that our device, FCC ID: 2ADYY-CD6, has a non-detachable battery, the label is visible to the users as they purchase the products and install TF card or SIM cards. The back cover can not be moved away, so the FCC ID label has to be placed on the surface of product. Sincerely, Signature [Yiting Luo (Name)] [Manager (Title)] [TECNO MOBILE LIMITED (Company name)]

TECNO MOBILE LIMITED FCC ID: 2ADYY-CD6 POWER OF ATTORNEY Date: Mar. 02, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Mar. 01, 2020. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, TECNO MOBILE LIMITED are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, TECNO MOBILE LIMITED Signature Yiting Luo / Manager Typed name and Title

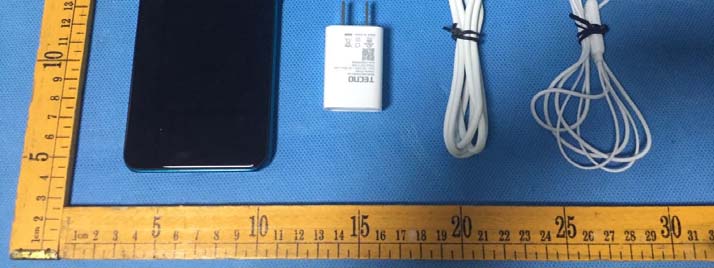

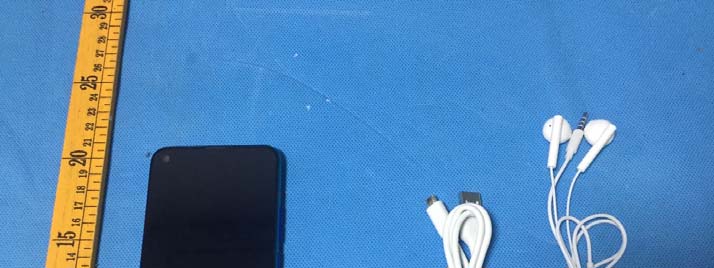

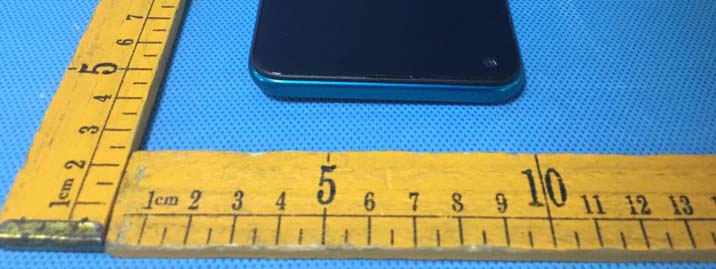

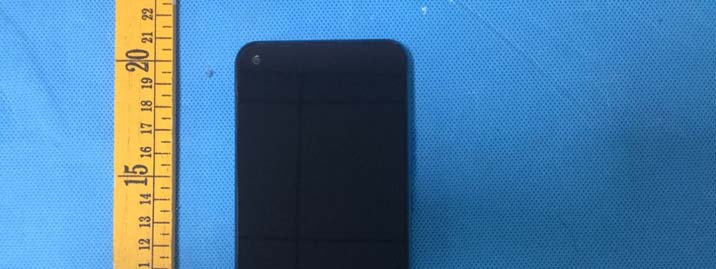

Appendix-CD6-Photos Page 4 of 14 EUT – External View Model CD6 FCC ID: 2ADYY-CD6 Appendix-CD6-Photos Page 5 of 14 Appendix-CD6-Photos Page 6 of 14 Appendix-CD6-Photos Page 7 of 14 Appendix-CD6-Photos Page 8 of 14

CD6 Label Sample and Location

Appendix-CD6-Photos Page 9 of 14 EUT – Internal View Model CD6 FCC ID: 2ADYY-CD6 GSM/WCDMA/LTE ANT. BT/WIFI/GPSANT. Appendix-CD6-Photos Page 10 of 14 Appendix-CD6-Photos Page 11 of 14 Appendix-CD6-Photos Page 12 of 14 Appendix-CD6-Photos Page 13 of 14 Appendix-CD6-Photos Page 14 of 14 ======End======

Model: CD6 Report No.: WTS20X01000944W Page 1 of 48 SAR Report FCC ID: 2ADYY-CD6 Test Standards: FCC Part 2.1093 ANSI / IEEE C95.1 :2005+A1:2010 ANSI / IEEE C95.3 : 2002(R2008) IEEE 1528 :2013 Product Description: Mobile Phone Tested Model: CD6 Report No.: WTS20X01000944W Sample Received Date: Jan.07, 2020 Tested Date: Jan.07, 2020 to Feb.21, 2020 Issued Date: Feb.24, 2020 Tested By: Jack Sun / Engineer Reviewed By: Lion Cai / RF Manager Approved & Authorized By: Silin Chen / Manager Prepared By: Shenzhen SEM Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM Test Technology Co., Ltd. FCC SAR Measurement and Test Report For TECNO MOBILE LIMITED ROOM 604 6/F SOUTH TOWER WORLD, FINANCE CTR HARBOUR CITY 17 CANTON ROAD TST KL, Hong Kong Model: CD6 Report No.: WTS20X01000944W Page 2 of 48 SAR Report TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 3 1.2 Test Standards .................................................................................................................................................... 4 1.3 Test Methodology ................................................................................................................................................ 4 1.4 Test Facility ......................................................................................................................................................... 4 2. Summary of Test Results .......................................................................................................................................... 5 3. Specific Absorption Rate (SAR) ................................................................................................................................ 6 3.1 Introduction .......................................................................................................................................................... 6 3.2 SAR Definition ..................................................................................................................................................... 6 4. SAR Measurement System ........................................................................................................................................ 7 4.1 The Measurement System .................................................................................................................................. 7 4.2 Probe ................................................................................................................................................................... 7 4.3 Probe Calibration Process ................................................................................................................................... 9 4.4 Phantom ............................................................................................................................................................ 10 4.5 Device Holder .................................................................................................................................................... 10 4.6 Test Equipment List ........................................................................................................................................... 11 5. Tissue Simulating Liquids ....................................................................................................................................... 12 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 12 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 13 5.3 Tissue Calibration Result ................................................................................................................................... 14 6. SAR Measurement Evaluation ................................................................................................................................ 15 6.1 Purpose of System Performance Check ............................................................................................................ 15 6.2 System Setup .................................................................................................................................................... 15 6.3 Validation Results .............................................................................................................................................. 16 7. EUT Testing Position ............................................................................................................................................... 17 7.1 Define Two Imaginary Lines on The Handset .................................................................................................... 17 7.2 Cheek Position .................................................................................................................................................. 18 7.3 Tilted Position .................................................................................................................................................... 18 7.4 Body Position .................................................................................................................................................... 19 7.5 EUT Antenna Position ................................................…
