2ADYY-CG8Mobile Phone

Know your phone 1. Front camera 2. Volume key 3. Power key & side fingerprint sensor SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. C C h h a a r r g g i i n n g g t t h h e e p p h h o o n n e e You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). 1. Please remind the front and back of the plug. 2. Use only TECNO charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. FCC Caution Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This mobile phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Mobile Phone CG8 (FCC ID: 2ADYY-CG8) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.21W/kg and when properly worn on the body is 1.10 W/kg. This device was tested for typical body-worn operations with the back of the handset kept 10 mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10 mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that does not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. HiOS is based on Android TM Android is a trademark of Google LLC.

TECNO MOBILE LIMITED Address: FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT Hong Kong Tel.: 86-755-61803856 Fax: +86-755-33979211 E-mail: [email protected] FCC Confidential Authorization Date: 2021-04-13 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ADYY-CG8 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, TECNO MOBILE LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description Part list/Tune up Procedure (for licensed device) Software Security Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Yiting Luo Project Manager

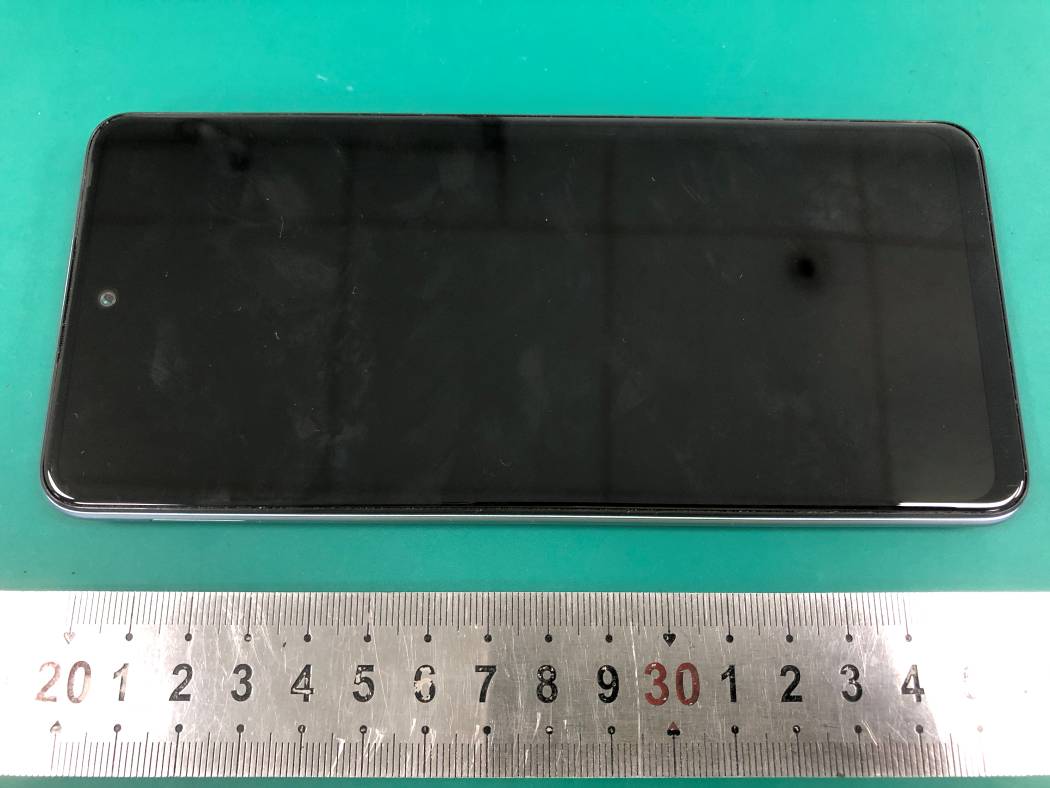

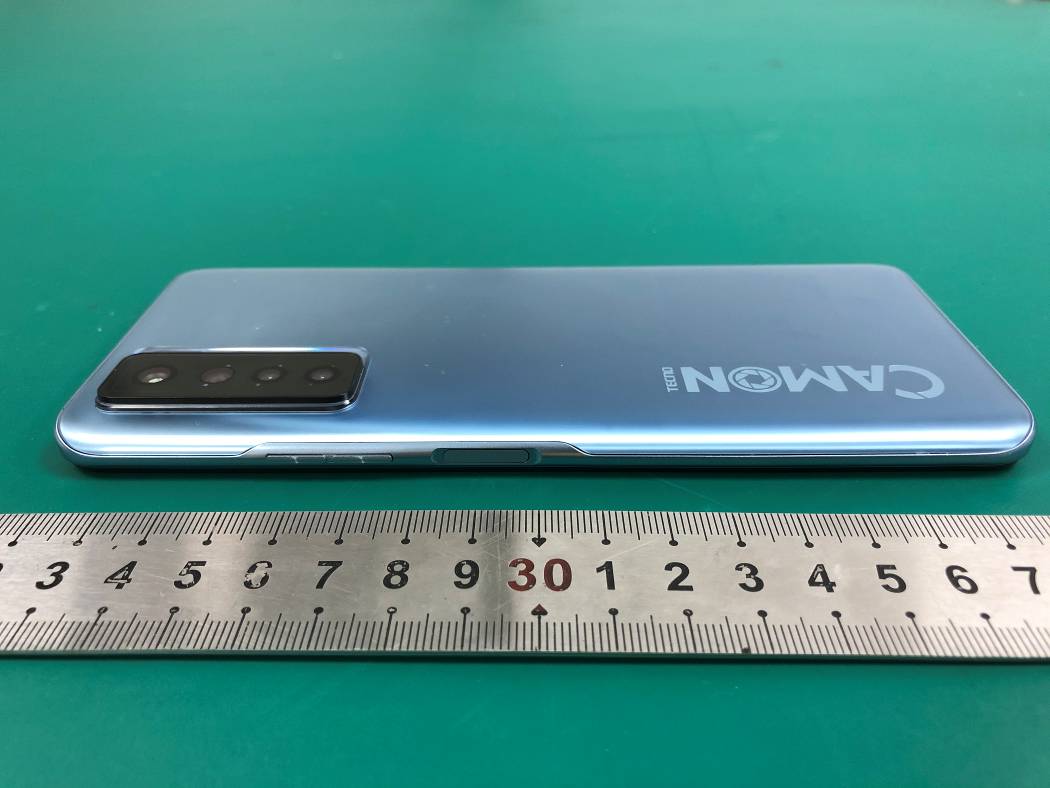

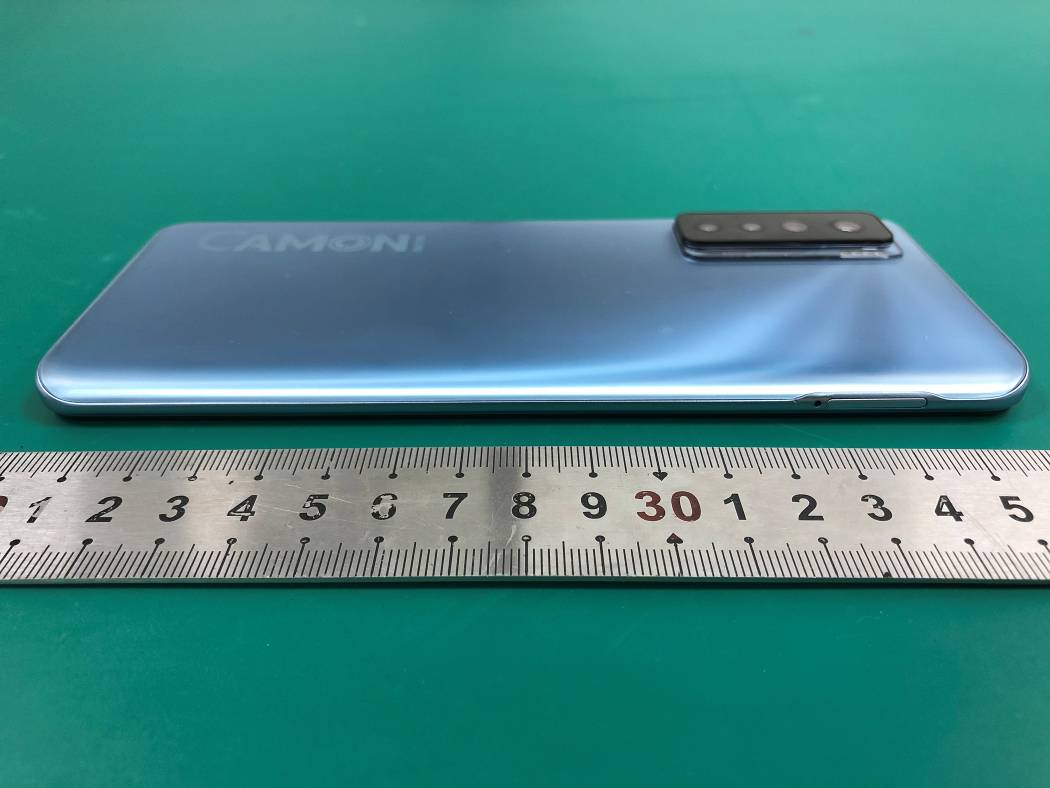

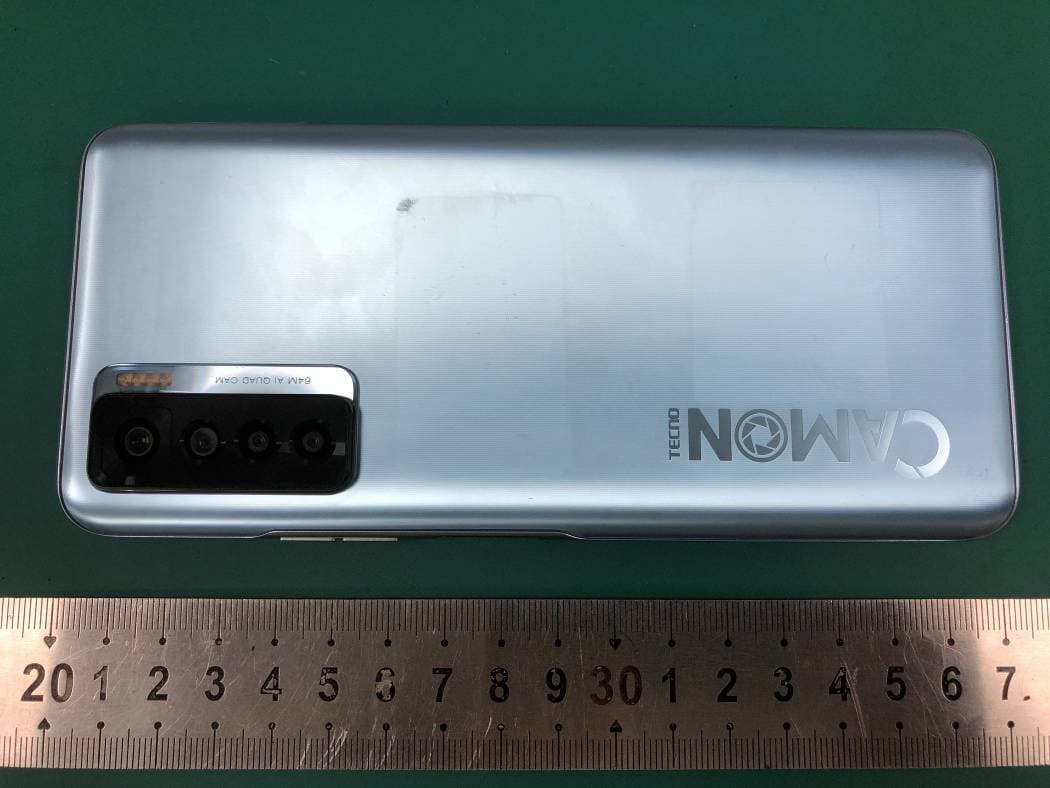

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 1 of 9 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EGSM/WCDMA/LTE Main Antenna 2.4G Wi-Fi/Bluetooth Antenna 5G Wi-Fi Antenna LTE Aux Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 2 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 3 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 4 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 5 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 6 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 7 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 8 of 9 Battery Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 9 of 9 Battery Label

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For TECNO MOBILE LIMITED FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT Hong Kong FCC ID: 2ADYY-CG8 Report Type: Original Report Product Type: Mobile phone Report Number: SZ1210303-05350E-20 Report Date: 2021-04-01 Reviewed By: Brave Lu SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210303-05350E-20 SAR Evaluation Report 2 of 93 Attestation of Test Results EUT Information EUT Description Mobile phone Tested Model CG8 FCC ID 2ADYY-CG8 Serial Number SZ1210303-05350E-SA-S1 Test Date 2021-03-09 ~ 2021-03-15 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 1.05 1.6 1g Body SAR 0.35 PCS 1900 1g Head SAR 1.21 1g Body SAR 1.10 WCDMA Band 2 1g Head SAR 0.77 1g Body SAR 0.25 WCDMA Band 4 1g Head SAR 0.73 1g Body SAR 0.29 WCDMA Band 5 1g Head SAR 1.06 1g Body SAR 0.16 LTE Band 2 1g Head SAR 0.96 1g Body SAR 0.38 LTE Band 5 1g Head SAR 0.93 1g Body SAR 0.23 LTE Band 7 1g Head SAR 0.48 1g Body SAR 0.38 LTE Band 17 1g Head SAR 0.25 1g Body SAR 0.07 LTE Band 41&38 1g Head SAR 0.88 1g Body SAR 0.64 LTE Band 66&4 1g Head SAR 0.79 1g Body SAR 0.24 WLAN 2.4G 1g Head SAR 0.20 1g Body SAR 0.13 Simultaneous 1g Head SAR 1.52 1g Body SAR 1.25 1g Body SAR 1.25(Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz) Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210303-05350E-20 SAR Evaluation Report 3 of 93 Applicable Standards KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 KDB 941225 D06 Hotspot Mode v02r01 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210303-05350E-20 SAR Evaluation Report 4 of 93 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 19 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 20 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 26 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 26 CHEEK/TOUCH POSITION ...............................................................................…

Text truncated - open the document above for the full version.

APPENDIX C PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.:SZ1210303-05350E-20 Page 1 of 165 Plot 1#: GSM 850_ Head Left Cheek_Mid DUT: Mobile phone; Type: CG8; Serial: SZ1210303-05350E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.911 S/m; ε r = 41.526; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 836.6 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.904 W/kg Zoom Scan (6x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.72 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.765 W/kg; SAR(10 g) = 0.591 W/kg Maximum value of SAR (measured) = 0.892 W/kg 0 dB = 0.892 W/kg = -0.50 dBW/kg Report No.:SZ1210303-05350E-20 Page 2 of 165 Plot 2#: GSM 850_ Head Left Tilt_Mid DUT: Mobile phone; Type: CG8; Serial: SZ1210303-05350E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.911 S/m; ε r = 41.526; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 836.6 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.899 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.80 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.713 W/kg; SAR(10 g) = 0.519 W/kg Maximum value of SAR (measured) = 0.949 W/kg 0 dB = 0.949 W/kg = -0.23 dBW/kg Report No.:SZ1210303-05350E-20 Page 3 of 165 Plot 3#: GSM 850_ Head Right Cheek_Mid DUT: Mobile phone; Type: CG8; Serial: SZ1210303-05350E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.911 S/m; ε r = 41.526; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 836.6 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.880 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.77 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.662 W/kg; SAR(10 g) = 0.503 W/kg Maximum value of SAR (measured) = 0.970 W/kg 0 dB = 0.970 W/kg = -0.13 dBW/kg Report No.:SZ1210303-05350E-20 Page 4 of 165 Plot 4#: GSM 850_ Head Right Tilt_Low DUT: Mobile phone; Type: CG8; Serial: SZ1210303-05350E-SA-S1 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 824.2 MHz; σ = 0.893 S/m; ε r = 41.642; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 824.2 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.32 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.05 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 2.24 W/kg SAR(1 g) = 0.928 W/kg; SAR(10 g) = 0.561 W/kg Maximum value of SAR (measured) = 1.64 W/kg 0 dB = 1.64 W/kg = 2.15 dBW/kg Report No.:SZ1210303-05350E-20 Page 5 of 165 Plot 5#: GSM 850_ Head Right Tilt_Mid DUT: Mobile phone; Type: CG8; Serial: SZ1210303-05350E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.911 S/m; ε r = 41.526; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 836.6 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.39 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.23 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 2.34 W/kg SAR(1 g) = 0.960 W/kg; SAR(10 g) = 0.578 W/kg Maximum value of SAR (measured) = 1.70 W/kg 0 dB = 1.70 W/kg = 2.30 dBW/kg Report No.:SZ1210303-05350E-20 Page 6 of 165 Plot 6#: GSM 850_ Head Right Tilt_High DUT: Mobile phone; Type: CG8; Serial: SZ1210303-05350E-SA-S1 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used: f = 848.8 MHz; σ = 0.921 S/m; ε r = 41.471; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.28, 10.28, 10.28) @ 848.8 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10…

Text truncated - open the document above for the full version.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For TECNO MOBILE LIMITED FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT Hong Kong FCC ID: 2ADYY-CG8 Report Type: Original Report Product Type: Mobile phone Re port Number: SZ1210303-05350E-00C Re port Date: 2021-04-14 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210303-05350E-00C FCC Part 15.247 Page 2 of 71 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 11 EXTERNAL I/O CABLE ................................................................................................................................................ 11 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 12 SUMMARY OF TEST RESULTS ............................................................................................................................. 13 TEST EQUIPMENT LIST ......................................................................................................................................... 14 FCC§15.247 (i), §1.1307 (b) (1) & §2.1093 – RF EXPOSURE ..................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 16 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 EUT SETUP ................................................................................................................................................................ 17 EMI TEST RECEIVER SETUP ....................................................................................................................................... 17 TEST PROCEDURE ...................................................................................................................................................... 17 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 18 TEST DATA ................................................................................................................................................................ 18 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 21 APPLICABLE STANDARD ............................................................................................................................................ 21 …

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 1 of 2 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210303-05350E-RF Page 2 of 2 Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)

Report No.: SZ1210303-05350E-20 Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Type: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 Report No.: SZ1210303-05350E-20 Page 2 of 6 Head Left Cheek Setup Photo Head Left Tilt Setup Photo Report No.: SZ1210303-05350E-20 Page 3 of 6 Head Right Cheek Setup Photo Head Right Tilt Setup Photo Report No.: SZ1210303-05350E-20 Page 4 of 6 Body (Worn) Back Setup Photo (10mm) Body (Worn) Front Setup Photo (10mm) 10 mm 10 mm Report No.: SZ1210303-05350E-20 Page 5 of 6 Body Left Setup Photo (10mm) Body Right Setup Photo (10mm) 10 mm 10 mm Report No.: SZ1210303-05350E-20 Page 6 of 6 Body Top Setup Photo (10mm) 10mm
