2ADYY-KF6PMobile Phone

Know your phone 1. Front camera 2. Volume key 3. Power key SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. C C h h a a r r g g i i n n g g t t h h e e p p h h o o n n e e You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). 1. Please remind the front and back of the plug. 2. Use only TECNO charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. FCC Caution Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This mobile phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types:KF6p (FCC ID: 2ADYY-KF6P has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.32 W/kg and when properly worn on the body is 1.12W/kg. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10 mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that does not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. HiOS is based on Android TM Android is a trademark of Google LLC.

TECNOMOBILELIMITED Address:FLAT398/FBLOCKDWAHLOKINDUSTRIALCENTRE31-35 SHANMEISTREETFOTANNT,HongKong Tel:86-755-61803856 Fax:+86-755-33979211 Email:[email protected] Date:2021-7-16 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 DearSir/Madam, TheMainchip,model:MT6765,installedinourproductMobilePhone,model:KF6p, FCCID:2ADYY-KF6P,thischipsupportsLTEfunction,butformarketingpurpose,this chiponlysupportsLTEband2/4/5/7/17/38/41,notsupportotherLTEbands.Theother LTEbandswasdisabledtousebymanufactureinthesoftware,theenduserhasno capabilitytoactivateit. TheRFchip,model:MT6631installedinourproductMobilephone,model:KF6p, FCCID:2ADYY-KF6P,supports5GWi-Fifunction,butformarketingpurpose,this chiponlysupports5GWi-Fi(5150-5250MHz;5725-5850MHz).The5GWi-Fi (5250-5350MHz,5470-5725MHz)wasdisabledtousebymanufactureinthe software,theenduserhasnocapabilitytoactivateit. Signature: YitingLuo ProjectManager

TECNOMOBILELIMITED Address: FLAT398/FBLOCKDWAHLOKINDUSTRIALCENTRE31-35SHANMEISTREETFOTANNT,HongKong Tel.:+86-0755-61803856 E-mail:[email protected] FCCConfidentialAuthorization Date:2021-3-16 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestregardingapplicationforcertificationof FCCID:2ADYY-KF6P InaccordancewithSections0.457and0.459oftheCommission’sRules, TECNOMOBILELIMITED herebyrequestslong-termconfidentialtreatmentof informationaccompanyingthisapplicationasoutlinedbelow: BlockDiagram Schematics OperationDescription Partlist/TuneupProcedure(forlicenseddevice) SoftwareSecurityDescription Aswellasshort-termconfidentialtreatmentofinformationaccompanyingthis applicationforaperiodof180daysaftergrantisissuedasoutlinedbelow: InternalPhotos User’sManual ExternalPhotos TestSet-upPhotos Theabovematerialscontainproprietaryandconfidentialinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsprovidesunjustified benefitstoitscompetitorsinthemarket. SincerelyYours, Signature YitingLuo ProjectManager

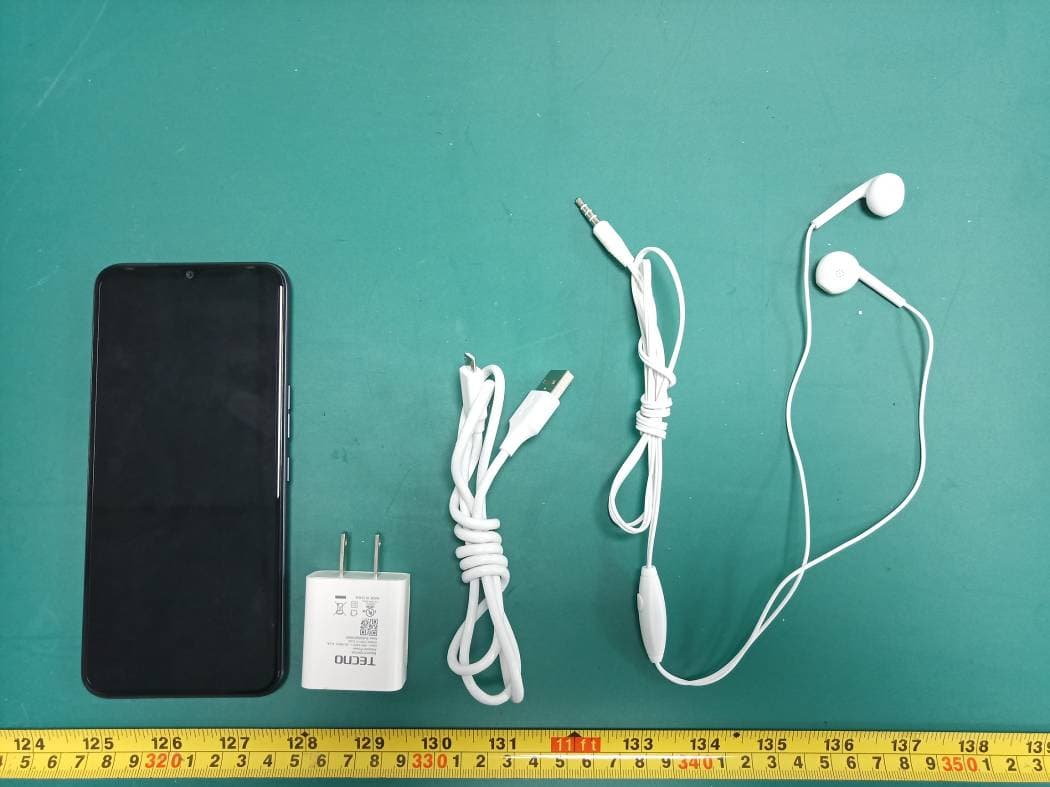

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 1 of 10 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 2 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 3 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 4 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 5 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 6 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 7 of 10 BT & Wi-Fi Antenna GSM & WCDMA & LTE Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 8 of 10 Aux Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 9 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210604-21497E-RF Page 10 of 10

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For TECNO MOBILE LIMITED FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT Hong Kong FCC ID: 2ADYY-KF6P Report Type: Original Report Product Type: Mobile Phone Report Number: SZ1210604-21497E-20 Report Date: 2021-07-14 Reviewed By: Brave Lu SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210604-21497E-20 SAR Evaluation Report 2 of 93 Attestation of Test Results EUT Information EUT Description Mobile Phone Tested Model KF6p FCC ID 2ADYY-KF6P Serial Number SZ1210604-21497E-SA-S1 Test Date 2021-06-06 ~ 2021-06-29 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 1.30 1.6 1g Body SAR 0.62 PCS 1900 1g Head SAR 1.03 1g Body SAR 1.12 WCDMA Band 2 1g Head SAR 0.73 1g Body SAR 0.25 WCDMA Band 4 1g Head SAR 0.90 1g Body SAR 0.39 WCDMA Band 5 1g Head SAR 1.29 1g Body SAR 0.64 LTE Band 2 1g Head SAR 0.91 1g Body SAR 0.46 LTE Band 4 1g Head SAR 0.75 1g Body SAR 0.40 LTE Band 5 1g Head SAR 1.32 1g Body SAR 0.53 LTE Band 7 1g Head SAR 1.25 1g Body SAR 0.92 LTE Band 17 1g Head SAR 0.63 1g Body SAR 0.23 LTE Band 41&38 1g Head SAR 1.01 1g Body SAR 0.94 WLAN 2.4G 1g Head SAR 0.49 1g Body SAR 0.39 Simultaneous 1g Head SAR 1.56 1g Body SAR 1.39 1g Body SAR 1.39(Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210604-21497E-20 SAR Evaluation Report 3 of 93 Applicable Standards KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 KDB 941225 D06 Hotspot Mode v02r01 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210604-21497E-20 SAR Evaluation Report 4 of 93 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 20 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 21 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 29 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 29 CHEEK/TOUCH POSITION ................................................................................…

Text truncated - open the document above for the full version.

APPENDIX C PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: SZ1210604-21497E-20 Page 1 of 204 Plot 1#: GSM 850_Head Left Cheek_Low DUT: Mobile Phone; Type: KF6p; Serial: SZ1210604-21497E-SA-S1 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 824.2 MHz; σ = 0.891 S/m; ε r = 41.619; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 824.2 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2020/9/30 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.871 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.40 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.659 W/kg; SAR(10 g) = 0.460 W/kg Maximum value of SAR (measured) = 0.891 W/kg 0 dB = 0.891 W/kg = -0.50 dBW/kg Report No.: SZ1210604-21497E-20 Page 2 of 204 Plot 2#: GSM 850_Head Left Cheek_Mid DUT: Mobile Phone; Type: KF6p; Serial: SZ1210604-21497E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.909 S/m; ε r = 41.564; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 836.6 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2020/9/30 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.13 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.73 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.835 W/kg; SAR(10 g) = 0.578 W/kg Maximum value of SAR (measured) = 1.13 W/kg 0 dB = 1.13 W/kg = 0.53 dBW/kg Report No.: SZ1210604-21497E-20 Page 3 of 204 Plot 3#: GSM 850_Head Left Cheek_High DUT: Mobile Phone; Type: KF6p; Serial: SZ1210604-21497E-SA-S1 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used: f = 848.8 MHz; σ = 0.918 S/m; ε r = 41.505; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 848.8 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2020/9/30 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.08 W/kg Zoom Scan (7x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.48 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.32 W/kg SAR(1 g) = 0.812 W/kg; SAR(10 g) = 0.559 W/kg Maximum value of SAR (measured) = 1.11 W/kg 0 dB = 1.11 W/kg = 0.45 dBW/kg Report No.: SZ1210604-21497E-20 Page 4 of 204 Plot 4#: GSM 850_ Head Left Tilt_Mid DUT: Mobile Phone; Type: KF6p; Serial: SZ1210604-21497E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.909 S/m; ε r = 41.564; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 836.6 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2020/9/30 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.888 W/kg Zoom Scan (7x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.77 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.607 W/kg; SAR(10 g) = 0.401 W/kg Maximum value of SAR (measured) = 0.880 W/kg 0 dB = 0.880 W/kg = -0.56 dBW/kg Report No.: SZ1210604-21497E-20 Page 5 of 204 Plot 5#: GSM 850_Head Right Cheek_Low DUT: Mobile Phone; Type: KF6p; Serial: SZ1210604-21497E-SA-S1 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 824.2 MHz; σ = 0.891 S/m; ε r = 41.619; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 824.2 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2020/9/30 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.71 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.56 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 2.30 W/kg SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.628 W/kg Maximum value of SAR (measured) = 1.70 W/kg 0 dB = 1.70 W/kg = 2.30 dBW/kg Report No.: SZ1210604-21497E-20 Page 6 of 204 Plot 6#: GSM 850_Head Right Cheek_Mid DUT: Mobile Phone; Type: KF6p; Serial: SZ1210604-21497E-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.909 S/m; ε r = 41.564; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.93, 9.93, 9.93) @ 836.6 MHz; Calibrated: 2021/4/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1354; Calibrated: 2020/9/30 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X V…

Text truncated - open the document above for the full version.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 27 FCC PART 22H, PART 24E TEST REPORT For TECNO MOBILE LIMITED FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT Hong Kong FCC ID: 2ADYY-KF6P Report Type: Original Report Product Type: Mobile phone Re port Number: SZ1210604-21497E-RF-00A Re port Date: 2021-07-24 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210604-21497E-RF-00A FCC Part 27, FCC Part 22H/24E Page 2 of 128 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 SUPPORT CABLE DESCRIPTION .................................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §1.1307(B) & §2.1093 - RF EXPOSURE INFORMATION ............................................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST RESULT ............................................................................................................................................................. 11 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................ 12 FCC § 2.1046, § 22.913 (A) & § 24.232 (C); §27.50 (C) (D) (H) - RF OUTPUT POWER ..................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST PROCEDURE ...................................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §2.1049, §22.917, §22.905 & §24.238 & §27.53 - OCCUPIED BANDWIDTH .............................................. 41 APPLICABLE STANDARD ............................................................................................................................................ 41 TEST PROCEDURE ...................................................................................................................................................... 41 TEST DATA ................................................................................................................................................................ 41 FCC §2.1051, §22.917(A) & §24.238(A); §27.53 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ..... 72 APPLICABLE STANDARD ............................................................................................................................................ 72 TEST PROCEDURE ...................................................................................................................................................... 72 TEST DATA .......................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210604-21497E-RF-00A Page 1 of 90 Please refer to following plots: Band 2_1.4 MHz_Low_QPSK_RB6#0 Band 2_1.4 MHz_Low_16QAM_RB6#0 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.8507 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -13.49 dBm 1.850046000 GHz 1 Delta 1 [T1 ] 0.78 dB 1.296000000 MHz OBW 1.104000000 MHz T1 Temp 1 [T1 OBW] 5.79 dBm 1.850148000 GHz T2 Temp 2 [T1 OBW] 5.54 dBm 1.851252000 GHz D1 12.76 dBm D2 -13.24 dBm Date: 11.JUL.2021 18:53:28 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.8507 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -13.22 dBm 1.850046000 GHz 1 Delta 1 [T1 ] 0.62 dB 1.296000000 MHz OBW 1.104000000 MHz T1 Temp 1 [T1 OBW] 3.60 dBm 1.850148000 GHz T2 Temp 2 [T1 OBW] 3.64 dBm 1.851252000 GHz D1 12.53 dBm D2 -13.47 dBm Date: 11.JUL.2021 18:53:46 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210604-21497E-RF-00A Page 2 of 90 Band 2_1.4 MHz_Middle_QPSK_RB6#0 Band 2_1.4 MHz_Middle_16QAM_RB6#0 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.88 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -12.80 dBm 1.879358000 GHz 1 Delta 1 [T1 ] -0.46 dB 1.302000000 MHz OBW 1.098000000 MHz T1 Temp 1 [T1 OBW] 5.70 dBm 1.879448000 GHz T2 Temp 2 [T1 OBW] 4.93 dBm 1.880546000 GHz D1 12.54 dBm D2 -13.46 dBm Date: 11.JUL.2021 18:54:08 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.88 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -14.01 dBm 1.879334000 GHz 1 Delta 1 [T1 ] 1.01 dB 1.320000000 MHz OBW 1.104000000 MHz T1 Temp 1 [T1 OBW] 4.43 dBm 1.879448000 GHz T2 Temp 2 [T1 OBW] 3.10 dBm 1.880552000 GHz D1 12.49 dBm D2 -13.51 dBm Date: 11.JUL.2021 18:54:28 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210604-21497E-RF-00A Page 3 of 90 Band 2_1.4 MHz_High_QPSK_RB6#0 Band 2_1.4 MHz_High_16QAM_RB6#0 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.9093 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -13.43 dBm 1.908646000 GHz 1 Delta 1 [T1 ] -0.03 dB 1.320000000 MHz OBW 1.104000000 MHz T1 Temp 1 [T1 OBW] 5.49 dBm 1.908748000 GHz T2 Temp 2 [T1 OBW] 5.62 dBm 1.909852000 GHz D1 12.45 dBm D2 -13.55 dBm Date: 11.JUL.2021 18:54:50 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.9093 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 15 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -14.00 dBm 1.908658000 GHz 1 Delta 1 [T1 ] 0.20 dB 1.284000000 MHz OBW 1.098000000 MHz T1 Temp 1 [T1 OBW] 4.43 dBm 1.908748000 GHz T2 Temp 2 [T1 OBW] 5.04 dBm 1.909846000 GHz D1 11.82 dBm D2 -14.18 dBm Date: 11.JUL.2021 18:55:13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210604-21497E-RF-00A Page 4 of 90 Band 2_3 MHz_Low_QPSK_RB15#0 Band 2_3 MHz_Low_16QAM_RB15#0 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.8515 GHzSpan 6 MHz600 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 30 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -15.78 dBm 1.850060000 GHz 1 Delta 1 [T1 ] 0.35 dB 2.880000000 MHz OBW 2.688000000 MHz T1 Temp 1 [T1 OBW] 4.69 dBm 1.850156000 GHz T2 Temp 2 [T1 OBW] 6.49 dBm 1.852844000 GHz D1 10.64 dBm D2 -15.36 dBm Date: 11.JUL.2021 18:55:36 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.8515 GHzSpan 6 MHz600 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 30 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -17.30 dBm 1.850060000 GHz 1 Delta 1 [T1 ] -2.07 dB 2.880000000 MHz OBW 2.688000000 MHz T1 Temp 1 [T1 OBW] 3.41 dBm 1.850156000 GHz T2 Temp 2 [T1 OBW] 4.68 dBm 1.852844000 GHz D1 8.97 dBm D2 -17.03 dBm Date: 11.JUL.2021 18:55:53 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210604-21497E-RF-00A Page 5 of 90 Band 2_3 MHz_Middle_QPSK_RB15#0 Band 2_3 MHz_Middle_16QAM_RB15#0 Att 30 dB * A Ref 30 dBm Offset 7 dB LVL Center 1.88 GHzSpan 6 MHz600 kHz/ 1 PK MAXH * * 3DB RBW 30 kHz VBW 100 kHz SWT 30 ms -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marke…
