2ADYY-KI5QMobile Phone

SPARK 10 User Manual Know your phone 1. Front camera 2. Volume + key 3. Volume - key 4. Power key & side fingerprint sensor 5. NFC SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). Use only TECNO charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. FCC Caution Labelling requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This mobile phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Kl5q(FCC ID: 2ADYY-KI5Q)has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.05 W/kg and when properly worn on the body is 1.12 W/kg. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. HiOS runs on Android TM OS. Android is a trademark of Google LLC.

TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Tel.: +86-0755-61803856 E-mail:[email protected] QA-FR-170-B FCC Authorization Date: 2022-12-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, TECNO MOBILE LIMITED hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature Yiting Luo Project Manager

TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Tel.: +86-0755-61803856 E-mail: [email protected] FCC Confidential Authorization Date: 2022-12-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ADYY-KI5Q In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, TECNO MOBILE LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description Software Security Description Part list/Tune up Procedure (for licensed device) As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Yiting Luo Project Manager

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF External Photos Page 1 of 6 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF External Photos Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF External Photos Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF External Photos Page 4 of 6 Adapter Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF External Photos Page 5 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF External Photos Page 6 of 6

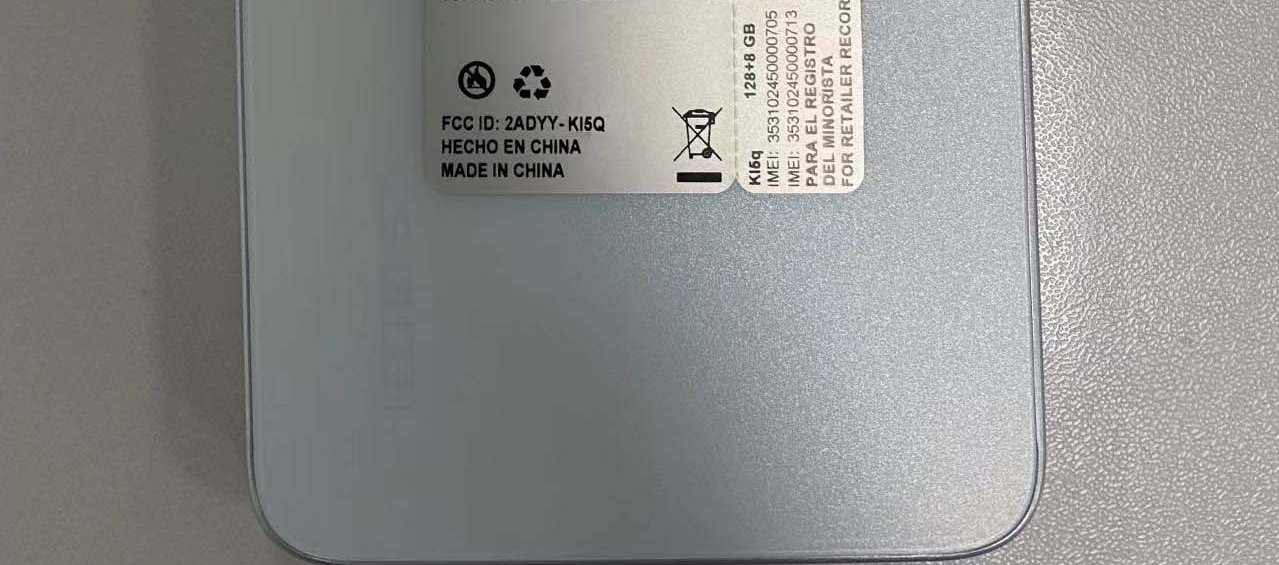

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 1 of 9 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 2 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 3 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 4 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 5 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 6 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 7 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 8 of 9 NFC ANT 2G/3G/4G ANT Shenzhen Accurate Technology Co., Ltd. Project No.: RA221206-59345E-RF Internal Photos Page 9 of 9 DIV ANT BT & WiFi ANT

Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 1 of 53 APPENDIX C PROBE CALIBRATION CERTIFICATES Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 2 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 3 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 4 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 5 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 6 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 7 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 8 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 9 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 10 of 53 APPENDIX D DIPOLE CALIBRATION CERTIFICATES Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 11 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 12 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 13 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 14 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 15 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 16 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 17 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 18 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 19 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 20 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 21 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 22 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 23 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 24 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 25 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 26 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 27 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 28 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 29 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 30 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 31 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 32 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 33 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 34 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 35 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 36 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 37 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 38 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 39 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 40 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 41 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 42 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 43 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 44 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 45 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 46 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 47 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 48 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 49 of 53 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221206-59345E-SA Page 50 of 53

Not ★ e: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 801: 2021-11-09 Page 1 of 94 FCC SAR 4G TEST REPORT Applicant Name : TECNO MOBILE LIMITED Address : FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Report Number : RA221206-59345E-SA FCC ID: 2ADYY-KI5Q Test Standard (s) FCC Part 2.1093 Sample Description Product Type: Mobile Phone Model No.: KI5q Trade Mark: TECNO Serial Number: RA221206-59345E-SA-S1 Date Received: 2022/12/06 Date of Test: 2022/12/19~2023/01/11 Report Date: 2023/01/18 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Lance Li Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221206-59345E-SA Version 801: 2021-11-09 Page 2 of 94 FCC SAR 4G Attestation of Test Results MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 0.49 1.6 1g Body SAR 0.27 PCS 1900 1g Head SAR 0.78 1g Body SAR 1.12 WCDMA Band 2 1g Head SAR 0.96 1g Body SAR 0.36 WCDMA Band 4 1g Head SAR 0.53 1g Body SAR 0.19 WCDMA Band 5 1g Head SAR 0.51 1g Body SAR 0.19 LTE Band 2 1g Head SAR 0.97 1g Body SAR 0.35 LTE Band 5 1g Head SAR 0.59 1g Body SAR 0.23 LTE Band 7 1g Head SAR 0.98 1g Body SAR 0.65 LTE Band 12&17 1g Head SAR 0.64 1g Body SAR 0.20 LTE Band 41&38 1g Head SAR 1.03 1g Body SAR 0.56 LTE Band 66&4 1g Head SAR 1.05 1g Body SAR 0.32 2.4G Wi-Fi 1g Head SAR 0.47 1g Body SAR 0.20 5.2G Wi-Fi 1g Head SAR 0.26 1g Body SAR 0.18 5.8G Wi-Fi 1g Head SAR 0.18 1g Body SAR 0.12 Bluetooth 1g Head SAR 0.16 1g Body SAR 0.07 Simultaneous 1g Head SAR 1.52 1g Body SAR 1.32 1g Body SAR 1.32 (Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2015(Overlapping LTE Bands) IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) Shenzhen Accurate Technology Co., Ltd. Report No.: RA221206-59345E-SA Version 801: 2021-11-09 Page 3 of 94 FCC SAR 4G KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Shenzhen Accurate Technology Co., Ltd. Report No.: RA221206-59345E-SA Version 801: 2021-11-09 Page 4 of 94 FCC SAR 4G TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION ................................................................................................................................................... 6 TECHNICAL SPECIFICATION ............................................................................................................................................. 6 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 7 SAR LIMITS ..................................................................................................................................................................... 8 FACILITIES ................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION ........................................................................................................ 15 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 16 LIQUID VERIFICATION ................................................................................................................................................... 16 …

Text truncated - open the document above for the full version.

ShenZhen Test Plot 1 DUT: Mob Communi c Medium pa Phantom s DASY5 C o • P • • E • P • M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Accurate Tech 1#: GSM 850 bile Phone; T cation System arameters use ection: Left S onfiguration: Probe: EX3D Senso r-Surfac Electronics: D Phantom: Twi Measurement n (8x10x1): M value of SAR an (5x5x7)/Cu Value = 19.6 (extrapolate d = 0.396 W/kg value of SAR 0 dB = 0. hnology CO., 0_Head Left C Type: K15q; S m: Generic GSM d: f = 836.6 M ection V4 - SN7441 ce: 4mm (Mec DAE4 SN1211 in SAM; Type t SW: DASY5 Measurement g R (interpolated ube 0: Measur 1 V/m; Power d) = 0.544 W/k g; SAR(10 g) R (measured) = .416 W/kg = - Ltd Cheek_Middl Serial: RA22 M (0); Freque MHz; σ = 0.93 ; ConvF(10.04 chanical Surfa 1;Calibrated: 2 e: QD000P40C 52, Version 52 grid: dx=15mm d) = 0.410 W/k rement grid: d r Drift = -0.15 kg = 0.279 W/k g = 0.416 W/kg -3.81 dB dBW Page 1 of 1 le 1206-59345 E ency: 836.6 M 36 S/m; ε r = 41 4, 10.04, 10.0 ace Detection) 2022/03/01 CD; Serial: TP 2.10 (4); SEMC m, dy=15mm kg dx=8mm, dy=8 5 dB g g W/kg 93 E-SA-S1; MHz;Duty Cyc 1.551; ρ = 100 04) @836.6 M ) P:1744 CAD X Versio 8mm, dz=5mm Report N le: 1:8 00 kg/m 3 ; MHz; Calibrate on 14.6.12 (75 m No.: RA22120 ed: 2022/5/16; 501) 06-59345E-SA A ShenZhen Test Plot 2 DUT: Mob Communi c Medium pa Phantom s DASY5 C o • P • • E • P • M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Accurate Tech 2#: GSM 850 bile Phone; T cation System arameters use ection: Left S onfiguration: Probe: EX3D Senso r-Surfac Electronics: D Phantom: Twi Measurement n (8x10x1): M value of SAR an (5x5x7)/Cu Value = 15.49 (extrapolated = 0.246 W/kg value of SAR 0 dB = 0. hnology CO., 0_Head Left T Type: K15q; S m: Generic GSM d: f = 836.6 M ection V4 - SN7441 ce: 4mm (Mec DAE4 SN1211 in SAM; Type t SW: DASY5 Measurement g R (interpolated ube 0: Measur 9 V/m; Power d) = 0.349 W/k g; SAR(10 g) R (measured) = .269 W/kg = - Ltd Tilt_Middle Serial: RA22 M (0); Freque MHz; σ = 0.93 ; ConvF(10.04 chanical Surfa 1;Calibrated: 2 e: QD000P40C 52, Version 52 grid: dx=15mm d) = 0.276 W/k rement grid: d r Drift = -0.05 kg = 0.158 W/k g = 0.269 W/kg -5.70 dB dBW Page 2 of 1 1206-59345E ency: 836.6 M 36 S/m; ε r = 41 4, 10.04, 10.0 ace Detection) 2022/03/01 CD; Serial: TP 2.10 (4); SEMC m, dy=15mm kg dx=8mm, dy=8 5 dB g g W/kg 93 E-SA-S1; MHz;Duty Cyc 1.551; ρ = 100 04) @836.6 M ) P:1744 CAD X Versio 8mm, dz=5mm Report N le: 1:8 00 kg/m 3 ; MHz; Calibrate on 14.6.12 (75 m No.: RA22120 ed: 2022/5/16; 501) 06-59345E-SA A ShenZhen Test Plot 3 DUT: Mob Communi c Medium pa Phantom s DASY5 C o • P • • E • P • M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Accurate Tech 3#: GSM 850 bile Phone; T cation System arameters use ection: Right onfiguration: Probe: EX3D Senso r-Surfac Electronics: D Phantom: Twi Measurement n (8x10x1): M value of SAR an (5x5x7)/Cu Value = 14.68 (extrapolated = 0.461 W/kg value of SAR 0 dB = 0. hnology CO., 0_Head Right Type: K15q; S m: Generic GSM d: f = 836.6 M Section V4 - SN7441 ce: 4mm (Mec DAE4 SN1211 in SAM; Type t SW: DASY5 Measurement g R (interpolated ube 0: Measur 8 V/m; Power d) = 0.817 W/k g; SAR(10 g) R (measured) = .504 W/kg = - Ltd t Cheek_Mid Serial: RA22 M (0); Freque MHz; σ = 0.93 ; ConvF(10.04 chanical Surfa 1;Calibrated: 2 e: QD000P40C 52, Version 52 grid: dx=15mm d) = 0.443 W/k rement grid: d r Drift = -0.13 kg = 0.266 W/k g = 0.504 W/kg -2.98 dB dBW Page 3 of 1 dle 1206-59345 E ency: 836.6 M 36 S/m; ε r = 41 4, 10.04, 10.0 ace Detection) 2022/03/01 CD; Serial: TP 2.10 (4); SEMC m, dy=15mm kg dx=8mm, dy=8 3 dB g g W/kg 93 E-SA-S1; MHz;Duty Cyc 1.551; ρ = 100 04) @836.6 M ) P:1744 CAD X Versio 8mm, dz=5mm Report N le: 1:8 00 kg/m 3 ; MHz; Calibrate on 14.6.12 (75 m No.: RA22120 ed: 2022/5/16; 501) 06-59345E-SA A ShenZhen Test Plot 4 DUT: Mob Communi c Medium pa Phantom s DASY5 C o • P • • E • P • M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Accurate Tech 4#: GSM 850 bile Phone; T cation System arameters use ection: Right onfiguration: Probe: EX3D Senso r-Surfac Electronics: D Phantom: Twi Measurement n (8x10x1): M value of SAR an (5x5x7)/Cu Value = 17.5 (extrapolate d = 0.475 W/kg value of SAR 0 dB = 0. hnology CO., 0_Head Right Type: K15q; S m: Generic GSM d: f = 836.6 M Section V4 - SN7441 ce: 4mm (Mec DAE4 SN1211 in SAM; Type t SW: DASY5 Measurement g R (interpolated ube 0: Measur 1 V/m; Power d) = 0.905 W/k g; SAR(10 g) R (measured) = .502 W/kg = - Ltd t Tilt_Middle Serial: RA22 M (0); Freque MHz; σ = 0.93 ; ConvF(10.04 chanical Surfa 1;Calibrated: 2 e: QD000P40C 52, Version 52 grid: dx=15mm d) = 0.393 W/k rement grid: d r Drift = -0.13 kg = 0.268 W/k g = 0.502 W/kg -2.99 dB dBW Page 4 of 1 e 1206-59345 E ency: 836.6 M 36 S/m; ε r = 41 4, 10.04, 10.0 ace Detection) 2022/03/01 CD; Serial: TP 2.10 (4); SEMC m, dy=15mm kg dx=8mm, dy=8 3 dB g g W/kg 93 E-SA-S1; MHz;Duty Cyc 1.551; ρ = 100 04) @836.6 M ) P:1744 CAD X Versio 8mm, dz=5mm Report N le: 1:8 00 kg/m 3 ; MHz; Calibrate on 14.6.12 (75 m No.: RA22120 ed: 2022/5/16; 501) 06-59345E-SA A ShenZhen Test Plot 5 DUT: Mob Communi c Medium pa Phantom s DASY5 C o • P • • E • P • M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Accurate Tech 5#: GSM 850 bile Phone; T cation System arameters use ection: Flat S e onfiguration: Probe: EX3D Senso r-Surfac Electronics: D Phantom: Twi Measurement n (8x10x1): M value of SAR an (5x5x7)/Cu Value = 13.8 (ext rapolated = 0.168 W/kg value of SAR 0 dB = 0. hnology CO., 0_Body Worn Type: K15q; S m: Generic GSM d: f = 836.6 M ection V4 - SN7441 ce: 4mm (Mec DAE4 SN1211 in SAM; Type t SW: DASY5 Measurement g R (interpolated ube 0: Measur 1 V/m; Power d) = 0.250 W/k g; SAR(10 g) R (measured) = .181 W/kg = - Ltd n Back_Midd Serial: RA22 M (0); Freque MHz; σ = 0.93 ; ConvF(10.04 chanical Surfa 1;Calibrated: 2 e: QD000P40C 52, Version 52 grid: dx=15mm d) = 0.191 W/k rement grid: d r Drift = -0.18 kg = 0.108 W/k g = 0.181…

Text truncated - open the document above for the full version.

ShenZhen Accurate Technology CO., Ltd Report No.: RA221206-59345E-SA Page 101 of 193 Test Plot 101#: LTE Band 12_Head Left Cheek_1RB_Middle DUT: Mobile Phone; Type: K15q; Serial: RA221206-59345E-SA-S1; Communication System: Generic FDD-LTE (0); Frequency: 710 MHz;Duty Cycle: 1:1 Medium parameters used: f = 710 MHz; σ = 0.881 S/m; ε r = 43.228; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(10.04, 10.04, 10.04) @710 MHz; Calibrated: 2022/5/16; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 SN1211;Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: TP:1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.12 (7501) Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.363 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.53 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.484 W/kg SAR(1 g) = 0.352 W/kg; SAR(10 g) = 0.248 W/kg Maximum value of SAR (measured) = 0.371 W/kg 0 dB = 0.371 W/kg = -4.31 dBW/kg ShenZhen Accurate Technology CO., Ltd Report No.: RA221206-59345E-SA Page 102 of 193 Test Plot 102#: LTE Band 12_Head Left Cheek_50%RB_Middle DUT: Mobile Phone; Type: K15q; Serial: RA221206-59345E-SA-S1; Communication System: Generic FDD-LTE (0); Frequency: 710 MHz;Duty Cycle: 1:1 Medium parameters used: f = 710 MHz; σ = 0.881 S/m; ε r = 43.228; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(10.04, 10.04, 10.04) @710 MHz; Calibrated: 2022/5/16; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 SN1211;Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: TP:1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.12 (7501) Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.301 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.61 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.420 W/kg SAR(1 g) = 0.293 W/kg; SAR(10 g) = 0.200 W/kg Maximum value of SAR (measured) = 0.307 W/kg 0 dB = 0.307 W/kg = -5.13 dBW/kg ShenZhen Accurate Technology CO., Ltd Report No.: RA221206-59345E-SA Page 103 of 193 Test Plot 103#: LTE Band 12_Head Left Tilt_1RB_Middle DUT: Mobile Phone; Type: K15q; Serial: RA221206-59345E-SA-S1; Communication System: Generic FDD-LTE (0); Frequency: 710 MHz;Duty Cycle: 1:1 Medium parameters used: f = 710 MHz; σ = 0.881 S/m; ε r = 43.228; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(10.04, 10.04, 10.04) @710 MHz; Calibrated: 2022/5/16; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 SN1211;Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: TP:1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.12 (7501) Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.354 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.81 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.493 W/kg SAR(1 g) = 0.333 W/kg; SAR(10 g) = 0.218 W/kg Maximum value of SAR (measured) = 0.358 W/kg 0 dB = 0.358 W/kg = -4.46 dBW/kg ShenZhen Accurate Technology CO., Ltd Report No.: RA221206-59345E-SA Page 104 of 193 Test Plot 104#: LTE Band 12_Head Left Tilt_50%RB_Middle DUT: Mobile Phone; Type: K15q; Serial: RA221206-59345E-SA-S1; Communication System: Generic FDD-LTE (0); Frequency: 710 MHz;Duty Cycle: 1:1 Medium parameters used: f = 710 MHz; σ = 0.881 S/m; ε r = 43.228; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(10.04, 10.04, 10.04) @710 MHz; Calibrated: 2022/5/16; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 SN1211;Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: TP:1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.12 (7501) Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.273 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.47 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.394 W/kg SAR(1 g) = 0.266 W/kg; SAR(10 g) = 0.174 W/kg Maximum value of SAR (measured) = 0.284 W/kg 0 dB = 0.284 W/kg = -5.47 dBW/kg ShenZhen Accurate Technology CO., Ltd Report No.: RA221206-59345E-SA Page 105 of 193 Test Plot 105#: LTE Band 12_Head Right Cheek_1RB_Middle DUT: Mobile Phone; Type: K15q; Serial: RA221206-59345E-SA-S1; Communication System: Generic FDD-LTE (0); Frequency: 710 MHz;Duty Cycle: 1:1 Medium parameters used: f = 710 MHz; σ = 0.881 S/m; ε r = 43.228; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(10.04, 10.04, 10.04) @710 MHz; Calibrated: 2022/5/16; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 SN1211;Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: TP:1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.12 (7501) Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.643 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.63 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.599 W/kg; SAR(10 g) = 0.386 W/kg Maximum value of SAR (measured) = 0.625 W/kg 0 dB = 0.625 W/kg = -2.04 dBW/kg ShenZhen Accurate Technology CO., Ltd Report No.: RA221206-59345E-SA Page 106 of 193 Test Plot 106#: LTE Band 12_Head Right Cheek_50%RB_Middle DUT: Mobile Phone; Type: K15q; Serial: RA221206-59345E-SA-S1; Communication System: Generic FDD-LTE (0); Frequency: 710 MHz;Duty Cycle: 1:1 Medium parameters used: f = 710 MHz; σ = 0.881 S/m; ε r = 43.228; ρ = 100…

Text truncated - open the document above for the full version.
