2ADYY-M1AAMini PC

印刷要求： 1.尺寸：85*90mm，公差：±2mm； 2.材质：80g书纸，RoHS，REACH，无卤； 3.工艺：彩色双面印刷，风琴折； 4.未注公差尺寸参考左上角公差范围。 排版方式 封面2封面1 正面(左到右) 背面(左到右) 21345 空白109876封底 Mini PC Model:M1AA User Manual Hereby, TECNO MOBILE LIMITED. Declares that this Mini PC is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. Views Set up your Mini PC Specifications Caution Frequency Range RF output power Eu Declaration Of Conformity Warranty Card FCC Caution 01 02 04 06 07 07 07 08 10 Contents English 1 Views 1/2. USB 3.2 Gen2 Port 2. Speaker/Headset 3. Power Button/LED Front Back 1/3. USB4+DP Port 2. USB 3.2 Gen2 Port 4. Electric Power Inlet 5/8. HDMI Port 6. Ethernet Port 7. USB 2.0 Port 3421 1 132 67854 Left 1. SD Reader 2 Set up Your Mini PC Windows user account If you use Windows for the first time, a Windows user account is required to be created. The first account created is of the “Administrator” type. With an Administrator account, you can create additional user accounts or change account types by the following steps: (1) Click the Start menu and select Settings Accounts Family&other people. (2) Follow the on-screen instructions. Windows account User account is required to use the Windows operating system. Either a Windows user account or a Microsoft account is accessable to log in. NOTE: This product does not have a built-in lithium battery, it needs to be used with the DC adapter for power supply. Microsoft account You can also sign in to the Windows operating system with a Microsoft account. To create a Microsoft account, go to the Microsoft sign-up page at https://signup.live.com and follow the on-screen instructions. 1. Get started with Windows 11 3 How to Access Control Panel 1. Click the Start menu and select Windows System Control Panel. 2. Use Windows Search. How to Launch an APP 1. Open the start menu and select the APP your want to launch. 2. Use Windows Search. Connect to Networks Your computer helps you connect to the world through a wireless network. 1. Click the network icon in the Windows notification area. A list of available wireless networks is displayed. 2. Select a network to connect to. Provide required information if needed. Windows user interface 1. Start button 2. Search 3. Virtual Desktop 4. Widgets 5. Chat 6. Documents 7. Microsoft Edge 8. Microsoft Store Access to Start menu. Type to search contents in your computer or from the Web. Handle multiple tasks. Get the information you care about faster. Quickly connect with people you care about. Access to Document folder. Browse the internet. Your favorite applications and entertainment items are all here. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. 4 Specifications NOTE: The weight of your laptop varies depending on the configuration ordered and the manufacturing variability. Computer model Computer model M1AA Intel Alder Lake MemoryDual channel DDR4 260PIN 3200MHz SODIMM, up to 32GB Memory AudioHDA CODEC Audio Sto rage1 x SSD 2280 M.2 PCIe Gen 3/Gen 4, 512GB/ 1TB Storage Video Engine Processor Inte l Iris Xe Graphics or UHD Graphics Video Engine Processor CPU CPU Height38mm Width112.4mm Depth112.4mm Weight (maximum)0.42Kg NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. Dimensions and weight 5 I/O Port 1 x rear USB 3.2 Gen 2 Type-A, 1 x rear USB 2.0 Type-A 2 x USB3.2 Gen 2 port (back panel) 2 x TypeC USB4.0(front panel) and 1 1 x SD card reader 4.0 1 x Combo jack 3.5mm for headphone (front panel, support Apple HeadPhone) 1 x RJ45 2.5Gbps (back panel) 2x HDMI 2.0 (back panel) 1 x DC in (back panel) 1 x PowerButto n I/O Port LED 1 x POWE R LED (Power On: Blue, S3: Flashing Orange) 1 x Eth ernet LED (Acti ve: Flashing Orange, Link: Orange) 1 x Eth ernet speed LED LED Ethernet Ethernet Intel® 2.5Gbps Ethernet Adapter Automatics Voltage adjustment between 100 and 240V AC, 50/60Hz, 3 pin, 120 Watts (19V/6.32A), 1.5 meters long Adapter WIFI Dual Band 2.4GHz/5GHz Support 802.11ac(WiFi5) or 802.11ax(WiFi6) Wireless LAN Operating time varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. 6 1. Please use the battery correctly. – disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; – Do not disassemble! – Do not short-circuit! –Keep the battery out of the reach of children. –Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2h of ingestion. –In case of ingestion of a cell or battery, seek medical assistance promptly. 2. Adapter shall be installed near the equipment and shall be easily accessible. 3. EUT Temperature: 0+45(Standalone). 45(with adapter). 4. Adapter1: MS-Z6320R190-120D0-E Input: 100-240V~50/60Hz 2.0A Max Output:120.0W 19.0V/6.32A 5. The device complies with RF specifications when the device used at 0 mm from your body, and the holder must not be of metal composition 6. To prevent possible hearing damage, do not listen at high volume levels for long periods. This device may be restricted for use, depending on the local network. Restrictions in the 5GHz band: According to 10(10) of Directive 2014/53/EU, the packaging shows that this radio equipment will be subject to some restrictions when placed on the market in Belgium (BE), Bulgaria (BG),Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL),Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT),Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL),Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE), Norway(NO), the United Kingdom in respect of Northern Ireland (UK(NI)) ,Iceland (IS), Liechtenstein(LI), Switzerland (CH) and Turkiey (TR). The WLAN function for this device is restricted to indoor use du…

Text truncated - open the document above for the full version.

(TECNO MOBILE LIMITED) (October 17, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2ADYY-M1AA#) [TECNO MOBILE LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Yiting,Luo / Certified Engineer (TECNO MOBILE LIMITED) (October 17, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2ADYY-M1AA#) [TECNO MOBILE LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Yiting,Luo / Certified Engineer

Attestation Statements (May 05,2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (GC:2ADYY) (TECNO MOBILE LIMITED ), the undersigned, hereby authorize Lucky Cowboy Global Services, LLC to act as our designated U.S. agent for service of process, (TECNO MOBILE LIMITED) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Lucky Cowboy Global Services, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: TECNO MOBILE LIMITED Contact Name: Yiting,Luo Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Telephone No: 0755-33979278 Email: [email protected] Signature [Yiting,Luo] U.S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Signature [Louie Liu]

TECNO MOBILE LIMITED Agent Authorization Letter (October 17, 2023) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen Tongzhou Testing Co.,Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Yiting,Luo / Certified Engineer

TECNO MOBILE LIMITED Long Term Confidentiality Request Letter (October 17, 2023) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Mini PC /M1AA # 2ADYY-M1AA#) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description - BOM - SOFTWARE SECURITY REQUIREMENTS required to be submitted with this application be permanently withheld from public review. The above-mentioned documents belong to internal documents, is our proprietary information, that could never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, Client’s name / title : Yiting,Luo / Certified Engineer Company Name: TECNO MOBILE LIMITED Contact information / address: [email protected] / FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG

TECNO MOBILE LIMITED Short Term Confidentiality Request Letter (October 17,2023) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For (Mini PC /M1AA # 2ADYY-M1AA#) To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, <TECNO MOBILE LIMITED. >. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < TECNO MOBILE LIMITED. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, <TECNO MOBILE LIMITED.> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Name: Yiting,Luo Function: Certified Engineer Signature:

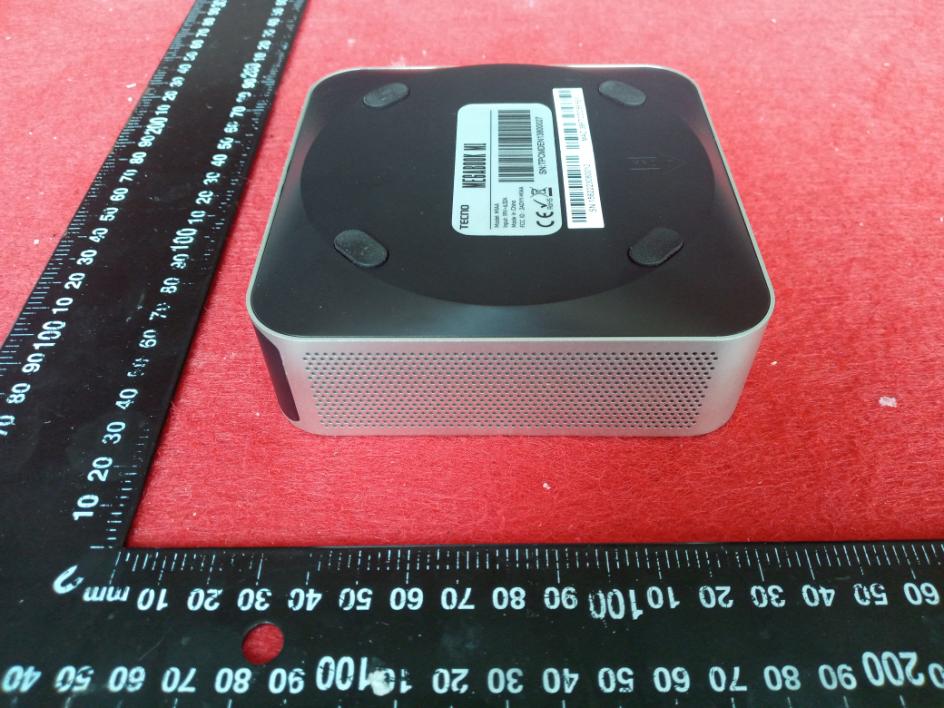

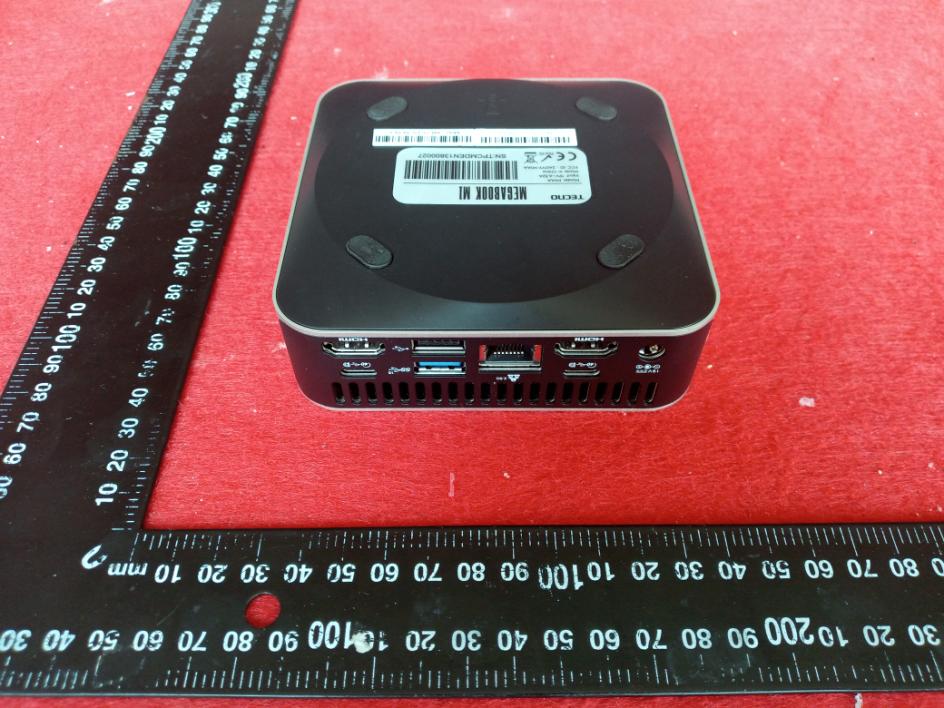

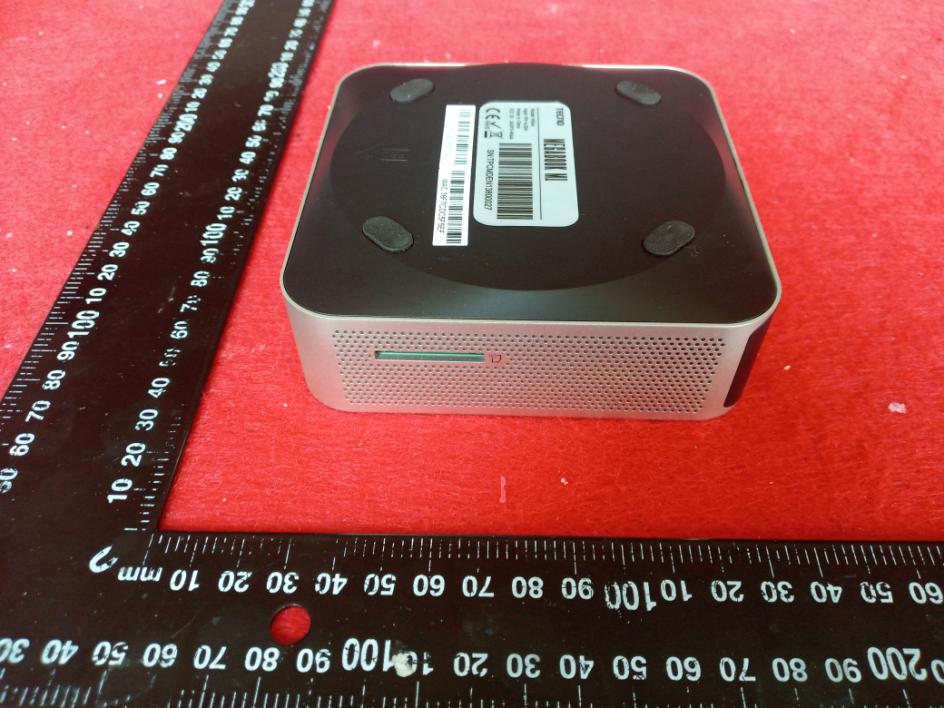

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

Label Location: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Wi-Fi AUX ANT BT/Wi-Fi MAIN ANT

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ADYY-M1AA This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 1 of 11 Maximum Permissible Exposure Report Product Information EUT : Mini PC Model Number : M1AA Model Declaration : NA Test Model : M1AA Power Supply : DC 19 by Adapter Hardware version : NUCAL02_MB_V30 Software version : Windows 11 Sample ID : TZ230904884–1# TZ230904884–2# Bluetooth Channel Number : 79 Channels for Bluetooth BR/EDR(DSS) 40 Channels for BLE (DTS) Modulation Technology : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth BR/EDR (DSS) GFSK for BLE (DTS) Data Rates : Bluetooth BR/EDR (DSS): 1/2/3Mbps BLE (DTS): 1/2Mbps Antenna Type And Gain : Internal Antenna /1.23dBi(Max.) WiFi WLAN : Supported IEEE 802.11b/g/n/ax WLAN FCC Operation Frequency : IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz IEEE 802.11n HT40:2422-2452MHz IEEE 802.11ax VHT20: 2412-2462MHz IEEE 802.11ax VHT40: 2422-2452MHz WLAN Channel Number : 11 Channels for 2412-2462MHz(IEEE 802.11b/g/n/ax HT20) 7 Channels for 2422-2452MHz(IEEE 802.11n/ax HT40) WLAN Modulation Technology : IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) IEEE 802.11ax: OFDM (256QAM, 64QAM, 16QAM, 1024QAM, QPSK, BPSK) Antenna Type And Gain : Internal Antenna1:1.23 dBi Internal Antenna2:1.47 dBi Note 1: Antenna position refer to EUT Photos Note 2: The above information supplied by the applicant Note 3: Models difference Model CPU M1AA i5 M1AA i7 The main test is M1AA (i7) 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ADYY-M1AA This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 2 of 11 In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use antennas certificated as follows provided by manufacturer; Antenna Gain and type refer to Product information Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ADYY-M1AA This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 3 of 11 6. Conducted Power 2.4G Band: Bluetooth(BDR+EDR) TestMode Antenna Channel Result[dBm] DH5 Ant1 2402 5.85 2441 6.02 2480 5.58 2DH5 Ant1 2402 2.98 2441 3.14 2480 3.19 3DH5 Ant1 2402 2.29 2441 2.96 2480 3.06 Bluetooth(BLE) TestMode Antenna Channel Result[dBm] BLE_1M Ant1 2402 3.50 2440 2.88 2480 3.11 BLE_2M Ant1 2402 5.95 2440 5.39 2480 5.60 WiFi 2.4GHz Band TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 16.13 ≤30 PASS Ant1 2437 16.13 ≤30 PASS Ant1 2462 16.09 ≤30 PASS 11G Ant1 2412 19.27 ≤30 PASS Ant1 2437 19.52 ≤30 PASS Ant1 2462 19.58 ≤30 PASS 11N20MIMO Ant1 2412 19.93 ≤30 PASS Ant1 2437 20.23 ≤30 PASS Ant1 2462 20.2 ≤30 PASS 11N40…

Text truncated - open the document above for the full version.

FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page1 TABLE OF CONTENTS 1．Appendix A -6dB Bandwidth.............................................................................................. 2 2．Appendix B Maximum Conducted Output Power. ........................................................... 7 3．Appendix C Maximum Power Spectral Density Level.................................................... 11 4．Appendix D Band Edge ................................................................................................... 15 5．Appendix E Conducted RF Spurious Emission.............................................................. 20 FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page2 1. Appendix A -6dB Bandwidth BLE 1M Test channel 6dB Emission Bandwidth (kHz) BT LE mode Limit Result Lowest 0.651 >500k PASS Middle 0.669 >500k Highest 0.679 >500k BLE 2M Test channel 6dB Emission Bandwidth (kHz) BT LE mode Limit Result Lowest 1.099 >500k PASS Middle 1.117 >500k Highest 1.106 >500k FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page3 Test Graph BLE 1M Lowest channel Middle channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page4 Highest channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page5 BLE 2M Lowest channel Middle channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page6 Highest channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page7 2. Appendix B Maximum Conducted Output Power. BLE 1M Test channel Maximum Conducted Output Power (dBm) Limit (dBm) Result Lowest 3.5 30.00 PASS Middle 2.88 30.00 PASS Highest 3.11 30.00 PASS BLE 2M Test channel Maximum Conducted Output Power (dBm) Limit (dBm) Result Lowest 5.95 30.00 PASS Middle 5.39 30.00 PASS Highest 5.6 30.00 PASS FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page8 Test Graph Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page9 Power NVNT BLE 1M 2480MHz Ant1 Power NVNT BLE 2M 2402MHz Ant1 FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page10 Power NVNT BLE 2M 2440MHz Ant1 Power NVNT BLE 2M 2480MHz Ant1 FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page11 3. Appendix C Maximum Power Spectral Density Level Test channel Power Spectral Density (dBm/3kHz) BLE 1M Limit Result Lowest -8.13 8 dBm/3kHz PASS Middle -8.06 8 dBm/3kHz Highest -8.25 8 dBm/3kHz Test channel Power Spectral Density (dBm/3kHz) BLE 2M Limit Result Lowest -10.62 8 dBm/3kHz PASS Middle -10.57 8 dBm/3kHz Highest -10.49 8 dBm/3kHz FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page12 Test Graph BLE 1M Lowest channel Middle channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page13 Highest channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page14 BLE 2M Lowest channel Middle channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page15 Highest channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page16 4. Appendix D Band Edge Test Graph BLE 1M Band Edge (Low channel) Band Edge (Low channel) FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page17 Band Edge (High channel) Band Edge (High channel) FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page18 BLE 2M Band Edge (Low channel) Band Edge (Low channel) FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page19 Band Edge (High channel) Band Edge (High channel) FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page20 5. Appendix E Conducted RF Spurious Emission BLE 1M Low channel Low channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page21 Middle channel Middle channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page22 High channel High channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page23 BLE 2M Low channel Low channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page24 Middle channel Middle channel FCCID: 2ADYY-M1AA Report Number: TZ230904884-BLE Page25 High channel High channel

The Holy bond Electronics Co., Ltd. Antenna Test Report 1 Content 1. Product Overview 2.Test Result 2.1 VSWR/S11 2.2 WIFI Antenna Gain/Efficienc/3D DATE 3. Conclusions 深圳市亿圣邦科技有限公司 2 1. Product Overview 3 2. Test Result 2.1 VSWR/S11 4 MAIN 2. Test Result 2.1 VSWR/S11 5 AUX 6 2. Test Result 2.2 Gain/Efficiency/3D DATE MAIN Freque ncy (MHz) 2400.02410.02420.02430.02440.02450.02460.02470.02480.05230.05350.05690.05820.06010.06450.06550.06890.0 Efficien cy (dBi) -3.41-3.36-3.35-3.30-3.32-3.38-3.17-3.67-4.32-4.18-2.88-1.80-1.71-1.90-3.49-3.40-4.22 Gain (dBi) 1.011.161.231.150.910.971.210.770.093.284.836.607.538.355.554.553.86 Efficien cy (%) 45.5646.1546.2246.7746.5145.9048.1442.9937.0138.1651.4866.0867.5064.5044.7745.7237.88 7 2. Test Result 2.3 Gain/Efficiency/3D DATE MAIN 8 2. Test Result 2.3 Gain/Efficiency/3D DATE AUX Freque ncy (MHz) 2400.02410.02420.02430.02440.02450.02460.02470.02480.05250.05350.05520.05820.06010.06450.06550.06890.0 Efficien cy (dBi) -5.45-5.34-5.17-4.99-4.75-4.70-4.58-4.55-4.70-2.90-2.21-2.02-2.21-2.99-4.39-4.20-4.90 Gain (dBi) 0.570.620.811.141.431.471.431.251.074.395.807.245.956.545.003.532.53 Efficien cy (%) 28.5129.2730.4131.6733.5133.9134.8035.0633.9151.3060.1062.8460.0950.2136.3738.0232.35 9 2. Test Result 2.3 Gain/Efficiency/3D DATE AUX 3. Conclusions 10 Thank you

Report No.: TZ230904884-BLE Page 1 of 32 FCC TEST REPORT Test report On Behalf of TECNO MOBILE LIMITED For Mini PC Model No: M1AA FCC ID: 2ADYY-M1AA Prepared for : TECNO MOBILE LIMITED FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 31 July 2023~ 08 October 2023 Date of Report: 09 October 2023 Report Number: TZ230904884-BLE The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230904884-BLE Page 2 of 32 TEST RESULT CERTIFICATION Applicant’s name ................. : TECNO MOBILE LIMITED Address .................................. : FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Manufacture's Name ............ : TECNO MOBILE LIMITED Address .................................. : FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Product description Trade Mark: TECNO Product name ........................... : Mini PC Model and/or type reference : M1AA Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 31 July 2023~ 08 October 2023 Date of Issue .......................................... : 09 October 2023 Test Result .............................................. : Pass Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230904884-BLE Page 3 of 32 Revision History Revision Issue Date Revisions Revised By 000 09 October 2023 Initial Issue Andy Zhang Report No.: TZ230904884-BLE Page 4 of 32 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 5 1.1 Description of Device (EUT) ...................................................................................................... 5 1.2 Wireless Function Tested in this Report .................................................................................... 5 1.3 EUT configuration ...................................................................................................................... 6 1.4 External I/O Cable ..................................................................................................................... 6 1.5 Description of Test Facility ........................................................................................................ 6 1.6 Statement of theMeasurement Uncertainty ............................................................................... 7 1.7 Measurement Uncertainty ......................................................................................................... 7 1.8 Description of Test Modes ......................................................................................................... 7 1.9 Frequency of Channels ............................................................................................................. 7 2 TEST METHODOLOGY ........................................................................................................ 8 2.1 EUT Configuration ..................................................................................................................... 8 2.2 EUT Exercise ............................................................................................................................. 8 2.3 Test Sample .............................................................................................................................. 8 3 SYSTEM TEST CONFIGURATION ....................................................................................... 9 3.1 Justification ................................................................................................................................ 9 3.2 EUT Exercise Software ............................................................................................................. 9 3.3 Special Accessories .................................................................................................................. 9 3.4 Block Diagram/Schematics ........................................................................................................ 9 3.5 Equipment Modifications ........................................................................................................... 9 3.6 Test Setup ................................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ......................................................................................... 10 5 TEST RESULT..................................................................................................................... 11 5.1 Maximum Peak Conducted Output Power Measurement ....................................................... 11 5.2 Power Spectral Density Measurement .................................................................................... 12 5.3 6 dB Spectrum Bandwidth Measurement ................................................................................ 13 5.4 Radiated Emissions Measurement ...............................................................…

Text truncated - open the document above for the full version.

Report No.:TZ230904884-WiFi2G4 Page 1 of 38 FCC TEST REPORT Test report On Behalf of TECNO MOBILE LIMITED For Mini PC Model No.: M1AA FCC ID: 2ADYY-M1AA Prepared for : TECNO MOBILE LIMITED FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 31 July 2023~ 08 October 2023 Date of Report: 09 October 2023 Report Numbe…
