2ADYY-T15RALaptop Computer

印刷要求： 1.尺寸：85*90mm，公差：±2mm； 2.材质：80g书纸，RoHS，REACH，无卤； 3.工艺：彩色双面印刷，风琴折； 4.未注公差尺寸参考左上角公差范围。 排版方式 封面2封面1 正面 背面 2134567 封底981011121314空白 排版方式 封面2封面1 正面 背面 2134567封底 9811 101213141516空白 Laptop Computer Model:T15RA User Manual Hereby, TECNO MOBILE LIMITED. Declares that this laptop computer is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. Views Set up your MEGABOOK Keyboard Shortcuts Specifications Trouble Shooting Caution Frequency Range RF output power Eu Declaration Of Conformity Warranty Card FCC Caution 01 03 05 06 09 11 12 12 13 14 15 Contents English 1 Views 1. Resetting key 2. Micro-SD Slot 3/4. USB 3.0 port 5. Earphone port Refresh all information to its original stat Reads from and writes to the SD card. Connect peripherals such as external storage devices and printers. Connect headphones or a headset (headphone and microphone combo). Right Left 1. Kensington 2. LED Indicators 3/6. Type-C(full function) 4. HDMI port 5. USB 3.1 port Connect to MEGABOOK security lock. Power-on and charging indicators. Through this interface can carry out high-speed data transmission, can be connected to the docking station. The computer can be charged through this interface. You can connect this interface to a display device for video and sound output. Connect a TV or another HDMI-in enabled device. Provide video and audio output. Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 10 Gbps. 3 4521 145632 White Orange Power On Charging Blinking Orange Breathing White Low Battery Sleep NOTE: For first-time usage or unused after long time, the battery might enter power saving mode to conserve battery power. It is recommended to connect the power adapter and press the power button to start up under these conditions. 2 1. Power button 2. Left-click area 3. Right-click area 4.Caps Lock light(on the keyboard) Press to turn on the laptop if it is turned off, in sleep state, or in hibernate state. Press to put the laptop in sleep state if it is turned on. Press and hold for 3 seconds to force shut-down the computer. Press to left-click. Press to right-click. Click on capslock,light on means uppercase, off means lowercase. Base Display Back 1/4. Microphone 2. Camera-status indicator 3. Light sensor Provides digital sound input for audio recording, voice calls, and so on. Turns on when the camera is in use. You can control the brightness of the screen, and the display can change with the external environment. 1. Left speaker 2. Right speaker 3.Rubber foot Provides audio output. Provides audio output. Pad to prevent scratches on the bottom of the computer, enhance heat dissipation at the bottom. 1 4 32 431 2 1 3 2 3 Set up Your MEGABOOK 1. Connect the power adapter and press the power button. Windows user account If you use Windows for the first time, a Windows user account is required to be created. The first account created is of the “Administrator” type. With an Administrator account, you can create additional user accounts or change account types by the following steps: (1) Click the Start menu and select Settings Accounts Family&other people. (2) Follow the on-screen instructions. Windows account User account is required to use the Windows operating system. Either a Windows user account or a Microsoft account is accessable to log in. Microsoft account You can also sign in to the Windows operating system with a Microsoft account. To create a Microsoft account, go to the Microsoft sign-up page at https://signup.live.com and follow the on-screen instructions. 2. Get started with Windows 11 NOTE: For first-time usage or unused after long time, the battery might enter power saving mode to conserve battery power. It is recommended to connect the power adapter and press the power button to start up under these conditions. 4 How to Access Control Panel 1. Click the Start menu and select Windows System Control Panel. 2. Use Windows Search. How to Launch an APP 1. Open the start menu and select the APP your want to launch. 2. Use Windows Search. Connect to Networks Your computer helps you connect to the world through a wireless network. 1. Click the network icon in the Windows notification area. A list of available wireless networks is displayed. 2. Select a network to connect to. Provide required information if needed. Windows user interface 1. Start button 2. Search 3. Virtual Desktop 4. Widgets 5. Chat 6. Documents 7. Microsoft Edge 8. Microsoft Store Access to Start menu. Type to search contents in your computer or from the Web. Handle multiple tasks. Get the information you care about faster. Quickly connect with people you care about. Access to Document folder. Browse the internet. Your favorite applications and entertainment items are all here. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. 5 Keyboard Shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. List of keyboard shortcuts KeysDescription Insert Key Turn the keyboard backlight on or off Decrease Brightness Increase Brightness Lock/Unlock Touchpad Play the last song Play /Pause Play the next song Mute Audio Decrease Volume Increase Volume Lock the computer 6 Specifications NOTE: The weight of your laptop varies depending on the configuration ordered and the manufacturing variability. Height14.8mm Width357.5mm Depth235mm Weight (maximum)1.56Kg NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. Dimensions and weight Computer model Computer modelT15RA VersionWindows 11 Intel® Core™ Raptor Lake OS Storage SSD M.2X1 Type 2280 Key M SSD, PCI-e interface (Gen 4/Gen 3) SpeakerBuild-in two speakers as default, 4Ω 2w MICInternal Microphone support,DMIC Audio Speed4266MHz TypeOn board Capacity8GB/16GB Memory Proce…

Text truncated - open the document above for the full version.

(TECNO MOBILE LIMITED) (September 26, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2ADYY-T15RA#) [TECNO MOBILE LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Yiting,Luo / Certified Engineer (TECNO MOBILE LIMITED) (September 26, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2ADYY-T15RA#) [TECNO MOBILE LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Yiting,Luo / Certified Engineer

Attestation Statements (May 05,2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (GC:2ADYY) (TECNO MOBILE LIMITED ), the undersigned, hereby authorize Lucky Cowboy Global Services, LLC to act as our designated U.S. agent for service of process, (TECNO MOBILE LIMITED) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Lucky Cowboy Global Services, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: TECNO MOBILE LIMITED Contact Name: Yiting,Luo Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG Telephone No: 0755-33979278 Email: [email protected] Signature [Yiting,Luo] U.S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Signature [Louie Liu]

TECNO MOBILE LIMITED Agent Authorization Letter (September 26, 2023) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (BTF Testing Lab (Shenzhen) Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Yiting,Luo / Certified Engineer

TECNO MOBILE LIMITED Long Term Confidentiality Request Letter (September 26, 2023) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Laptop Computer /T15RA # 2ADYY-T15RA#) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description - BOM - SOFTWARE SECURITY REQUIREMENTS required to be submitted with this application be permanently withheld from public review. The above-mentioned documents belong to internal documents, is our proprietary information, that could never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, Client’s name / title : Yiting,Luo / Certified Engineer Company Name: TECNO MOBILE LIMITED Contact information / address: [email protected] / FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG

TECNO MOBILE LIMITED Short Term Confidentiality Request Letter (September 26,2023) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For (Laptop computer /T15RA # 2ADYY-T15RA#) To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, <TECNO MOBILE LIMITED. >. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < TECNO MOBILE LIMITED. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, <TECNO MOBILE LIMITED.> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Name: Yiting,Luo Function: Certified Engineer Signature:

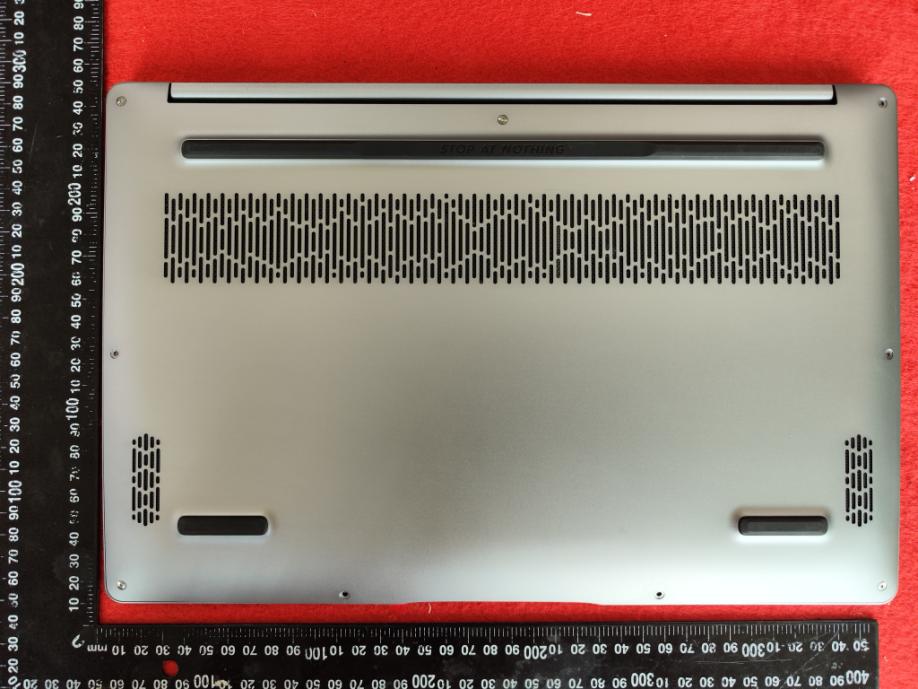

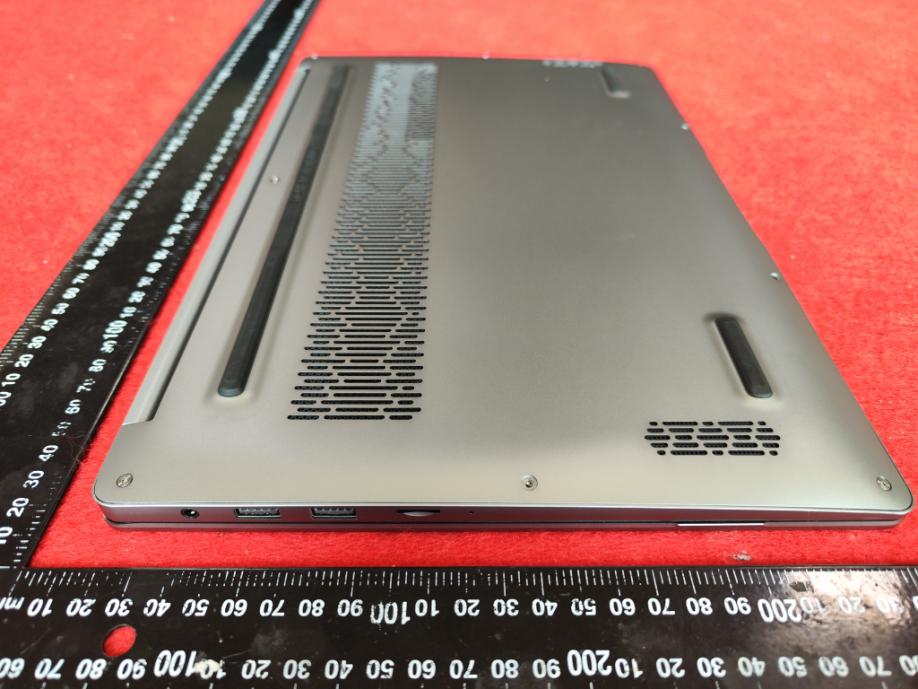

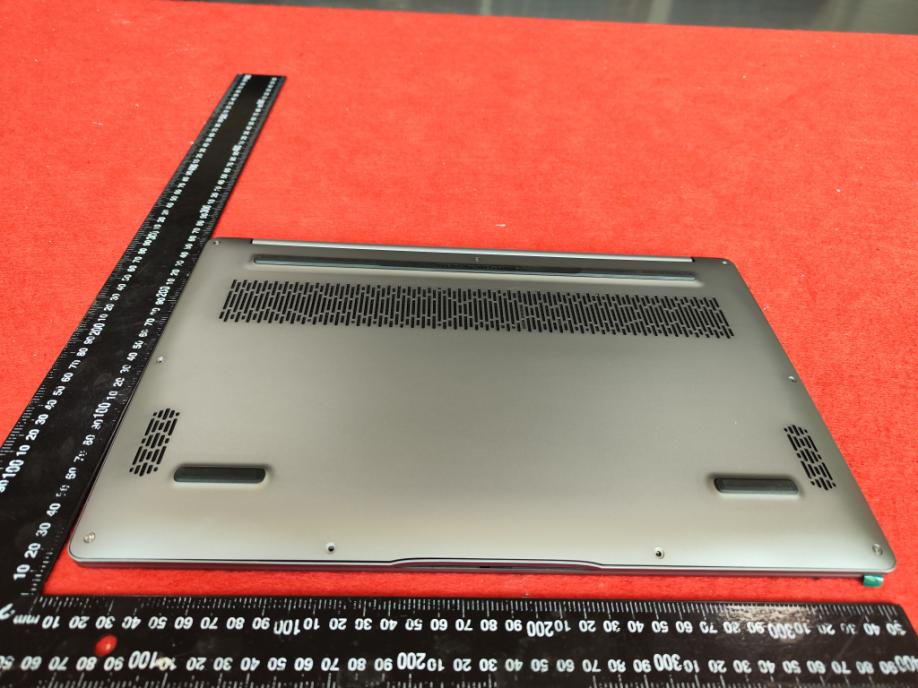

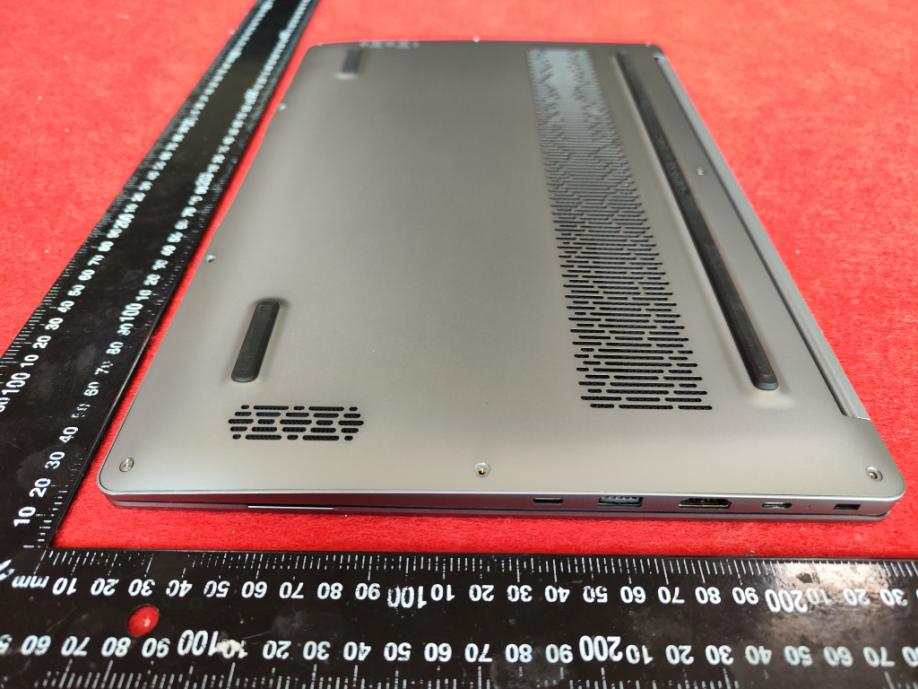

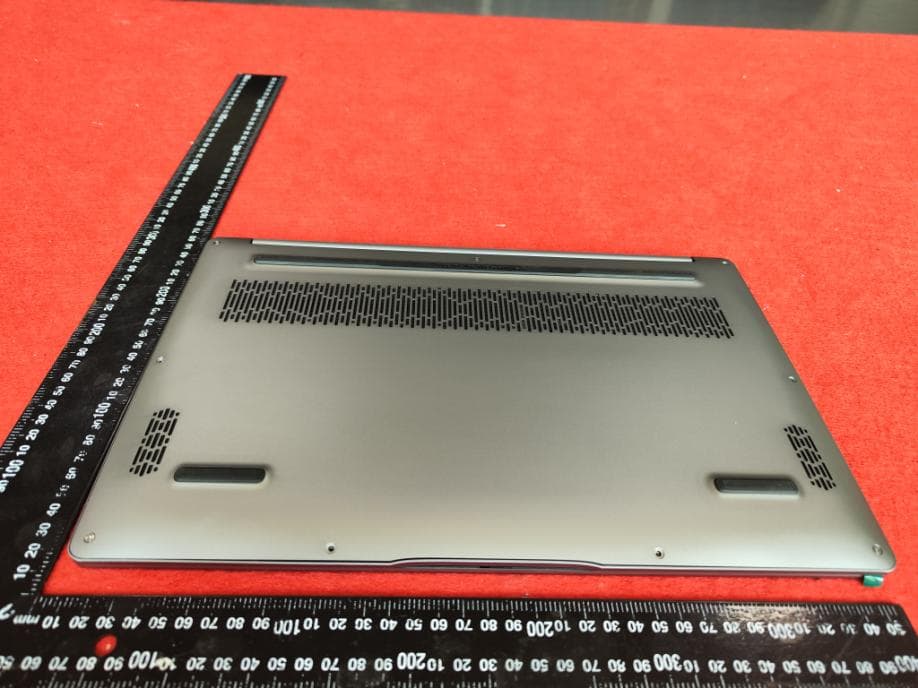

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

Label Location: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT BT/2.4GWiFi/5GWiFi MAIN ANT AUX ANT

TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 1 of 53 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China SARTestReport For ApplicantName:TECNOMOBILELIMITED Address: FLATN16/FBLOCKBUNIVERSALINDUSTRIALCENTRE19- 25SHANMEISTREETFOTANNTHONGKONG EUTName:LaptopComputer BrandName:TECNO ModelNumber:T15RA IssuedBy CompanyName:BTFTestingLab(Shenzhen)Co.,Ltd. Address: F101,201and301,Building1,Block2,TantouIndustrialPark, TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen, China ReportNumber:BTF230918R01001 TestStandards: 47CFRPart2.1093IEEE1528-2013IEEEC95.1-2019 KDB447498D01KDB865664D01KDB865664D02 KDB248227D01KDB616217D04KDB690783D01 FCCID:2ADYY-T15RA TestConclusion:Pass TestDate:2023-09-19 DateofIssue:2023-09-20 PreparedBy: MonicaZhou/ProjectEngineer Date:2023-09-20 ApprovedBy: Ryan.CJ/EMCManager Date:2023-09-20 Note:Allthetestresultsinthisreportonlyrelatedtothetestingsamples.Whichcanbeduplicatedcompletelyforthelegalusewithapprovalof applicant;itshallnotbereproducedexceptinfullwithoutthewrittenapprovalofBTFTestingLab(Shenzhen)Co.,Ltd.,Alltheobjectionsshouldbe raisedwithinthirtydaysfromthedateofissue.Tovalidatethereport,youcancontactus. TestReportNumber:BTF230918R01001 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 2 of 53 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China RevisionHistory VersionIssueDateRevisionsContent R_V02023-09-20Original Note:Oncetherevisionhasbeenmade,thenpreviousversionsreportsareinvalid. TestReportNumber:BTF230918R01001 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 3 of 53 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China TableofContents 1.Introduction.................................................................................................................................................................................................4 1.1IdentificationofTestingLaboratory..............................................................................................................................................4 1.2IdentificationoftheResponsibleTestingLocation....................................................................................................................4 1.3LaboratoryCondition......................................................................................................................................................................4 1.4Announcement.................................................................................................................................................................................4 2.ProductInformation...................................................................................................................................................................................5 2.1ApplicationInformation...................................................................................................................................................................5 2.2ManufacturerInformation...............................................................................................................................................................5 2.3FactoryInformation.........................................................................................................................................................................5 2.4GeneralDescriptionofEquipmentunderTest(EUT)................................................................................................................5 2.5EquipmentunderTestAncillaryEquipment................................................................................................................................5 2.6TechnicalInformation.....................................................................................................................................................................5 3.SummaryofTestResults.........................................................................................................................................................................6 3.1TestStandards................................................................................................................................................................................6 3.2DeviceCategoryandSARLimit...................................................................................................................................................7 3.3TestResultSummary.....................................................................................................................................................................7 3.4TestUncertainty..............................................................................................................................................................................8 4.MeasurementSystem.............................................................................................................................................................................10 4.1SpecificAbsorptionRate(SAR)Definition................................................................................................................................10 4.2MVGSARSystem.........................................................................................................................................................................10 5.SystemVerification..................................................................................................................................................................................14 5.1PurposeofSystemCheck.................................................…

Text truncated - open the document above for the full version.

E fficienc y Gain Efficiency Efficiency Gain Efficiency Efficiency Gain Efficiency E fficiency Gain Efficiency (dB) (dBi) (%) (dB) (dBi) (%) (dB) (dBi) (%) (dB) (dBi) (%) 2400 -3.24 3.49 47.43 5200 -4.57 3.69 34.89 2400 -4.16 1.19 38.36 5200 -4.35 0.44 36.7 2410 -3.45 3.43 45.15 5220 -4.42 3.46 36.11 2410 -4.19 1.26 38.14 5220 -3.98 0.67 39.97 2420 -3.39 3.33 45.86 5240 -4.35 3.08 36.74 2420 -3.98 1.49 40.03 5240 -3.98 0.49 40.03 2430 -3.52 3.05 44.5 5260 -4.44 3.05 36 2430 -3.9 1.51 40.73 5260 -4.12 0.65 3 8.75 2440 -3.5 2.82 44.63 5280 -4.01 3.06 39.72 2440 -3.73 1.71 42.37 5280 -3.83 0 .86 41.45 2450 -3.62 2.47 43.45 5300 -4.21 2.39 37.97 2450 -3.72 1.81 42.45 5300 -4.02 1.1 39.66 2460 -3.68 2.25 42.85 5320 -4.03 2.72 39.55 2460 -3.66 2 43.01 5320 -3.82 1.4 9 41.52 2470 -3.79 1.88 41.8 5340 -4.04 2.71 39.41 2470 -3.66 1.96 43.01 5340 -3.89 1 .51 40.79 2480 -3.83 1.64 41.42 5360 -4.28 2.19 37.3 2480 -3.64 2.22 43.23 5360 -4.08 1 .11 39.06 2490 -4.05 1.29 39.35 5380 -3.72 2.69 42.48 2490 -3.61 2.37 43.6 5380 -3.45 1 .91 45.22 5400 -3.72 3.08 42.42 5400 -3.54 1.59 44.23 5420 -3.79 2.78 41.77 5420 -3.59 1.4 43.73 5440 -3.88 3.13 40.96 5440 -3.83 0.99 41.41 5460 -3.97 3.6 40.11 5460 -4.03 0.88 39.51 5480 - 4.18 4.33 38.18 5480 - 4.06 1.45 39.25 Freq (MHz) Freq (MHz) Freq (MHz) N156EAL01-AX201 Freq (MHz) AUX Antenna Main Antenna 5480 4 . 18 4 . 33 38 . 18 5480 4 . 06 1 . 45 39 . 25 5500 -3.88 4.14 40.94 5500 -3.84 1.42 41.3 5520 -3.92 4.03 40.54 5520 -3.77 1.9 41.97 5540 -3.93 3.85 40.5 5540 -3.68 1.83 42.85 5560 -4.14 2.96 38.54 5560 -3.73 1.49 42.33 5580 -3.89 3.23 40.87 5580 -3.37 2.09 46.05 5600 -3.97 2.5 40.08 5600 -3.33 2.36 46.5 5620 -3.73 2.82 42.34 5620 -3.09 2.52 49.08 5640 -4.03 1.94 39.55 5640 -3.33 1.69 46.42 5660 -4.11 1.93 38.77 5660 -3.28 1.79 47 5680 -4.28 1.84 37.31 5680 -3.19 1.76 47.93 5700 -4.41 1.59 36.23 5700 -3.22 2.36 47.59 5720 -4.28 1.79 37.3 5720 -3.12 2.85 48.71 5740 -4.03 2.18 39.57 5740 -2.9 3.59 51.26 5760 -4.46 1.9 35.81 5760 -3.31 3.68 46.69 5780 -4.5 2.29 35.51 5780 -3.38 3.9 45.94 5800 -4.27 2.2 37.4 5800 -3.28 4.29 46.97 5820 -4.01 2.48 39.72 5820 -3.29 4.25 46.89 Radiation Pattern of 3D ： AUX ANT BT/2.4GWiFi/5GWiFi MAIN ANT Antenna：

Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 192 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China RF Test Report For Applicant Name: TECNO MOBILE LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG EUT Name: Laptop Computer Brand Name: TECNO Model Number: T15RA Series Model Number: Refer to Section 2 Issued By Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Report Number: BTF230918R00304 Test Standards: 47 CFR Part 15E Test Conclusion: Pass FCC ID: 2ADYY-T15RA Test Date: 2023-08-25 to 2023-09-21 Date of Issue: 2023-09-22 Prepared By: Chris Liu / Project Engineer Date: 2023-09-22 Approved By: Ryan.CJ / EMC Manager Date: 2023-09-22 Note: All the test results in this report only related to the testing samples. Which can be duplicated completely for the legal use with approval of applicant; it shall not be reproduced except in full without the written approval of BTF Testing Lab (Shenzhen) Co., Ltd., All the objections should be raised within thirty days from the date of issue. To validate the report, you can contact us. Test Report Number: BTF230918R00304 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 192 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Revision History Version Issue Date Revisions Content R_V0 2023-09-22 Original Note: Once the revision has been made, then previous versions reports are invalid. Test Report Number: BTF230918R00304 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 3 of 192 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Table of Contents 1 INTRODUCTION ......................................................................................................................................... 5 1.1 Identification of Testing Laboratory .............................................................................................. 5 1.2 Identification of the Responsible Testing Location ..................................................................... 5 1.3 Announcement ................................................................................................................................ 5 2 PRODUCT INFORMATION ......................................................................................................................... 6 2.1 Application Information .................................................................................................................. 6 2.2 Manufacturer Information ............................................................................................................... 6 2.3 Factory Information ........................................................................................................................ 6 2.4 General Description of Equipment under Test (EUT) .................................................................. 6 2.5 Technical Information ..................................................................................................................... 6 3 SUMMARY OF TEST RESULTS ................................................................................................................ 7 3.1 Test Standards ................................................................................................................................. 7 3.2 Uncertainty of Test .......................................................................................................................... 7 3.3 Summary of Test Result ................................................................................................................. 7 4 TEST CONFIGURATION ............................................................................................................................ 8 4.1 Test Equipment List ........................................................................................................................ 8 4.2 Test Auxiliary Equipment ............................................................................................................. 14 4.3 Test Modes ..................................................................................................................................... 14 4.4 Table of Parameters of Text Software Setting ............................................................................ 15 5 EVALUATION RESULTS (EVALUATION) ................................................................................................ 16 5.1 Antenna requirement .................................................................................................................... 16 5.1.1 Conclusion: .......................................................................................................................... 16 6 RADIO SPECTRUM MATTER TEST RESULTS (RF) .............................................................................. 17 6.1 Conducted Emission at AC power line ....................................................................................... 17 6.1.1 E.U.T. Operation: ................................................................................................................. 17 6.1.2 Test Setup Diagram: ............................................................................................................ 17 6.1.3 Test Data: ..........................................................................…

Text truncated - open the document above for the full version.

Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 45 of 192 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Appendix Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 46 of 192 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China 1. Bandwidth 1.1 OBW 1.1.1 Test Result -26dB Bandwidth Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict a 5180 Ant1 23.268 0.5 Pass a 5240 Ant1 22.461 0.5 Pass a 5260 Ant1 22.164 0.5 Pass a 5320 Ant1 22.993 0.5 Pass a 5500 Ant1 22.797 0.5 Pass a 5700 Ant1 23.683 0.5 Pass n20 5180 Ant1 23.319 0.5 Pass n20 5240 Ant1 22.946 0.5 Pass n20 5260 Ant1 22.99 0.5 Pass n20 5320 Ant1 23.124 0.5 Pass n20 5500 Ant1 23.425 0.5 Pass n20 5700 Ant1 22.927 0.5 Pass n40 5190 Ant1 41.109 0.5 Pass n40 5230 Ant1 41.67 0.5 Pass n40 5270 Ant1 42.365 0.5 Pass n40 5310 Ant1 42.065 0.5 Pass n40 5510 Ant1 41.611 0.5 Pass n40 5670 Ant1 41.759 0.5 Pass ac20 5180 Ant1 23.329 0.5 Pass ac20 5240 Ant1 23.205 0.5 Pass ac20 5260 Ant1 23 0.5 Pass ac20 5320 Ant1 23.253 0.5 Pass ac20 5500 Ant1 22.438 0.5 Pass ac20 5700 Ant1 23.13 0.5 Pass ac40 5190 Ant1 43.071 0.5 Pass ac40 5230 Ant1 42.01 0.5 Pass ac40 5270 Ant1 43.218 0.5 Pass ac40 5310 Ant1 42.106 0.5 Pass ac40 5510 Ant1 43.297 0.5 Pass ac40 5670 Ant1 42.702 0.5 Pass ac80 5210 Ant1 81.858 0.5 Pass ac80 5290 Ant1 81.816 0.5 Pass ac80 5530 Ant1 83.291 0.5 Pass ac80 5610 Ant1 83.593 0.5 Pass ax160 5250 Ant1 160.812 0.5 Pass ax160 5570 Ant1 161.02 0.5 Pass ax20 5180 Ant1 22.25 0.5 Pass ax20 5240 Ant1 22.439 0.5 Pass ax20 5260 Ant1 23.018 0.5 Pass ax20 5320 Ant1 22.278 0.5 Pass ax20 5500 Ant1 22.881 0.5 Pass ax20 5700 Ant1 22.274 0.5 Pass ax40 5190 Ant1 42.087 0.5 Pass ax40 5230 Ant1 42.462 0.5 Pass ax40 5270 Ant1 42.24 0.5 Pass ax40 5310 Ant1 42.551 0.5 Pass ax40 5510 Ant1 42.103 0.5 Pass ax40 5670 Ant1 41.048 0.5 Pass ax80 5210 Ant1 81.537 0.5 Pass ax80 5290 Ant1 82.098 0.5 Pass ax80 5530 Ant1 80.522 0.5 Pass ax80 5610 Ant1 80.285 0.5 Pass -6dB Bandwidth Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict a 5745 Ant1 16.315 0.5 Pass Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 47 of 192 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China a 5825 Ant1 16.316 0.5 Pass n20 5745 Ant1 17.558 0.5 Pass n20 5825 Ant1 17.328 0.5 Pass n40 5755 Ant1 36.334 0.5 Pass n40 5795 Ant1 36.282 0.5 Pass ac20 5745 Ant1 17.557 0.5 Pass ac20 5825 Ant1 17.533 0.5 Pass ac40 5755 Ant1 36.307 0.5 Pass ac40 5795 Ant1 36.307 0.5 Pass ac80 5775 Ant1 75.061 0.5 Pass ax20 5745 Ant1 18.63 0.5 Pass ax20 5825 Ant1 18.247 0.5 Pass ax40 5755 Ant1 37.665 0.5 Pass ax40 5795 Ant1 37.853 0.5 Pass ax80 5775 Ant1 74.998 0.5 Pass Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 48 of 192 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China 1.1.2 Test Graph Test Graphs -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5240MHz Ant1 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 49 of 192 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, …

Text truncated - open the document above for the full version.
