2ADYY-T430Mobile Phone

1 User Manual Mobile Phone FCCID: 2ADYY-T430 TECNO MOBILE LIMITED ROOMS 05-15, 13A/F., SOUTH TOWER, WORLD FINANCE CENTRE, HARBOUR CITY, 17 CANTON ROAD, TSIM SHA TSUI, KOWLOON, HONG KONG Please read these instructions for use and have a good look at the illustration before using. 2 Warning： This device complies with Part 15 of the FCC Rules. Operation is subject tothe following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses andcan radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3 RF Exposure Information: The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device Types Mobile Phone (FCC ID: 2ADYY-T430) has also been tested against this SAR limit. This device was tested for typical body worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 5mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Note: The SAR values against the SAR limit of FCC. Please refer to the FCC database(https://apps.fcc.gov/oetcf/eas/reports/ Generic Search.cfm) to search for FCC ID: 2adyy-T430 to get detailed information about RF Exposure(SAR). TECNO A675_T430 1 TECNO A675_T430 Dual_SIM Digital Multimedia Phone USER MANUAL Thank you for choosing this mobile phone. For a better use of the phone, please read the manual carefully. This color-screen phone is designed for use on the GSM/GPRS network. The phone supports Dual-card online at the same time, you remove the two phones at the same time bring the trouble to truly enjoy a life of science and technology. Along with the basic communication function, it also provides you with practical functions to help with your work and life, such as English input methods, card-styled phonebook, 64-chord ring tone, alarm, calendar, converter, calculator, games, Bluetooth, powerful film recorder, mp3 and mp4 player, and memory card. In addition, the phone is programmed with a personalized interface and well-designed functions to satisfy your individual needs. TECNO A675_T430 2 Contents Chapter 1 Safety Information ................................................................................................ 3 1.1G ENERAL PRECAUTIONS ....................................................................................................... 3 1.2B ATTERY PRECAUTIONS ......................................................................................................... 4 1.3C HARGER PRECAUTIONS ...................................................................................................... 5 1.4P RODUCT MATERIALS ........................................................................................................... 6 1.5P ART DESCRIPTION ............................................................................................................... 7 1.6SIM CARD AND MEMORY CARD .......................................................................................... 8 Chapter 2 Menu Details ............................................................................................................. 9 2.1 PHONEBOOK ....................................................................................................................... 9 2.2 MESSAGES ......................................................................................................................... 10 2.3 CALL CENTER..................................................................................................................... 12 2.4 PALMCHAT ........................................................................................................................ 13 2.5 T-ZONE ............................................................................................................................ 13 2.6 OPERA MINI ....................................................................................................................... 13 2.7 FACEBOOK ........................................................................................................................ 13 2.8 YAHOO ............................................................................................................................. 13 2.9 TWITTER ........................................................…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: TECNO MOBILE LIMITED Address: ROOMS 05-15, 13A/F., SOUTH TOWER, WORLD FINANCE CENTRE, HARBOUR CITY, 17 CANTON ROAD, TSIM SHA TSUI, KOWLOON City: HONG KONG Country: China Declare that: Name Representative of agent: WSCT Agent Company name: World Standardization Certification & Testing CO., LTD. Address: Building A, Baoshi Science & Technology Park, Baoshi Road, Bao’an District City: Shenzhen Country China is authorized to apply for Certification of the following product(s): Product description: Mobile Phone Type designation: T430 Trademark: on our behalf. Date: 2015.3.27 City: Shenzhen Name: Robben Xie Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

RF_743, Issue 02 Declaration of Authorization (to use documentation) We Name: TECNO MOBILE LIMITED Address: ROOMS 05-15, 13A/F., SOUTH TOWER, WORLD FINANCE CENTRE, HARBOUR CITY, 17 CANTON ROAD, TSIM SHA TSUI, KOWLOON City: HONG KONG Country: China Declare that: Name Representative of agent: WSCT Agent Company name: World Standardization Certification & Testing CO., LTD. Address: Building A, Baoshi Science & Technology Park, Baoshi Road, Bao’an District City: Shenzhen Country China may use our test reports and documentation of the following (already certified) product: Product description: Mobile Phone Type designation: T430 Trademark: Original FCC ID: 2ADYY-T430 Original Canada ID: ................. Original Japan certificate number: ................. for his own approval/certificate. Date: 2015.3.27 City: Shenzhen Name: Robben Xie Function: Manager Signature: COMPANY LETTER HEAD

Long Term Confidentiality Request Letter Date: February 5, 2015 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: TECNO MOBILE LIMITED FCC ID: 2ADYY-T430 Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. TECNO MOBILE LIMITED requests that the following documents regarding this submission for FCC ID: 2ADYY-T430 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf Part list BOM.pdf Tune-Up-Procedure Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which TECNO MOBILE LIMITED considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, TECNO MOBILE LIMITED considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Signatory TECNO MOBILE LIMITED

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: TECNO MOBILE LIMITED Address : ROOMS 05-15, 13A/F., SOUTH TOWER, WORLD FINANCE CENTRE, HARBOUR CITY, 17 CANTON ROAD, TSIM SHA TSUI, KOWLOON City: HONG KONG Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2ADYY-T430 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015.3.27 Name and signature of applicant: Steven Xie Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

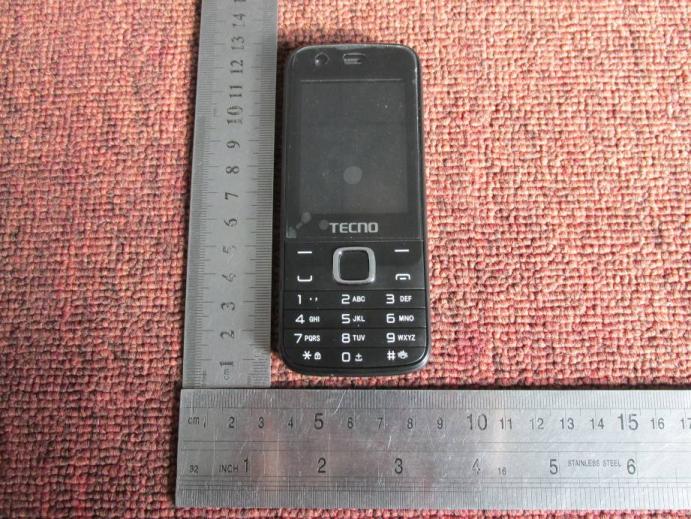

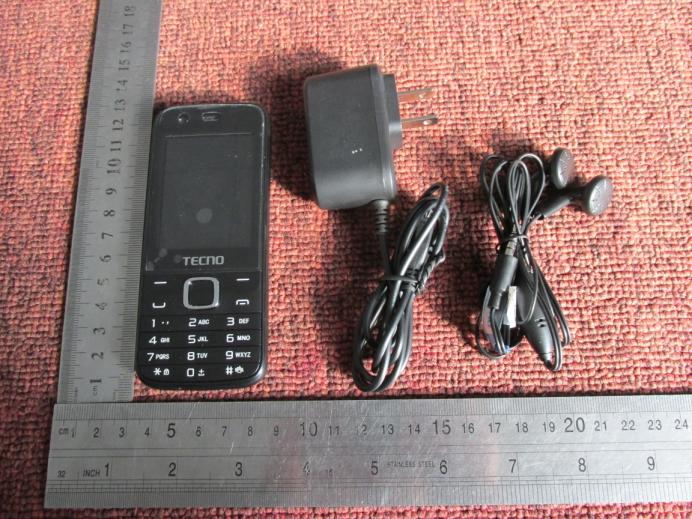

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

FCCID: 2ADYY-T430 Label Location of EUT Size：20 * 30 mm FCC ID:2ADYY-T430

Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT GSM Antenna BT Antenna Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT

GSM Test Report Application Purpose : Original grant Applicant Name: : TECNO MOBILE LIMITED FCC ID : 2ADYY-T430 Equipment Type : Mobile Phone Model Name : T430 Report Number : FCC 15016712-1 Standard(S) : FCC Part 22H & 24E Rules Date Of Receipt : January 16, 2015 Date Of Issue : January 23, 2015 Test By : ( Neil Wong) Reviewed By : ( Robie Chen) Authorized by : ( Michal Ling) Prepared by : Shenzhen WST Testing Technology Co., Ltd. 1F,No.9 Building,TGK Science & Technology ParkYangtian Rd., NO.72 Bao'an Dist., GuangDong, China ( Registration Number: 939433) Page 2 of 71 Report No.: FCC15016713-1 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / January 23, 2015 Valid Original Report Page 3 of 71 Report No.: FCC15016713-1 TABLE OF CONTENTS 1. Certification .................................................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................ 6 2.1 EUT DESCRIPTION ........................................................................................................................... 6 3. TEST DESCRIPTION ...................................................................................................................... 8 3.1 TEST FACILITY ...................................................................................................................................... 8 3.3 DESCRIPTION OF TEST CHANNELS AND TEST MODES ............................................................... 9 3.4 EQUIPMENT MODIFICATIONS ............................................................................................................ 9 4. SUMMARY OF TEST REQUIREMENTS AND RESULTS .............................................................. 10 For GSM850/GPRS850: ............................................................................................................................. 10 For PCS1900/GPRS1900: ......................................................................................................................... 10 5. MEASUREMENT INSTRUMENTS ...................................................................................................... 11 6. OUTPUT POWER ......................................................................................................................... 12 6.1 Conducted Output Power .................................................................................................................. 12 6.3. Peak-to-Average Ratio ...................................................................................................................... 18 7. SPURIOUS EMISSION ........................................................................................................................ 19 7.1 CONDUCTED SPURIOUS EMISSION................................................................................................ 19 7.2 Radiated Spurious Emission ............................................................................................................. 21 8. FREQUENCY STABILITY ...................................................................................................................... 24 8.1 MEASUREMENT METHOD ................................................................................................................. 24 8.2 PROVISIONS APPLICABLE ............................................................................................................... 24 8.3 MEASUREMENT RESULT (WORST) ................................................................................................. 25 9. OCCUPIED BANDWIDTH ................................................................................................................... 27 9.1 MEASUREMENT METHOD ..................................................................................................................27 9.2 PROVISIONS APPLICABLE ................................................................................................................27 9.3 MEASUREMENT RESULT ...................................................................................................................27 10. EMISSION BANDWIDTH .................................................................................................................. 28 10.1 MEASUREMENT METHOD ............................................................................................................... 28 10.2 PROVISIONS APPLICABLE ............................................................................................................. 28 Page 4 of 71 Report No.: FCC15016713-1 10.3 MEASUREMENT RESULT ................................................................................................................ 28 11. BAND EDGE .................................................................................................................................... 29 11.1 MEASUREMENT METHOD ............................................................................................................... 29 11.2 PROVISIONS APPLICABLE ............................................................................................................. 29 11.3 MEASUREMENT RESULT ................................................................................................................ 29 12. EUT TEST PHOTO ............................................................................................................................ 30 13. EUT PHOTO .................................................................................................................................... 32 APPENDIX A: TEST PLOTS FOR CONDUCTED SPURIOUS EMISSIO .................................... 42 APPENDIX B: TEST PLOTS FOR OCCUPIED BANDWIDTH (99%) .......................................... 49 APPENDIX C: EMISSION BANDWIDTH (-26dBc) .....................…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST RADIATED EMISSION TEST RADIATED EMISSION TEST RF TEST
