2ADYZAX-8321Car Audio

1. Home 2. Information Display 3. Tune Up 4. Preset Station Display 5. Next Menu 6. BAND 7. AS/PS 8. Audio Setup 9. Mute 10. Previous Menu 11. Tune Down 12. 13. TILT Angel Up 14. TILT Angel Down 15. (Automatic Memory Storing & Preset Scanning) LOCAL/DX (Distant) PTY (Program type) 1. Mute 2. Previous Track 3. Play/Pause 4. Next Tack 5. Back 6. Forward 7. Next Menu 8. Repeat Play 9. Random Play 10. TILT Angel Up 11. TILT Angel Down 12. Talk 13. TA 14. AF 15. Previous Menu (Traffic Announcement) (Alterative Frequencies) 1. Previous Menu 2. Mute 3. Audio Setup 4. Back 5. Forward 6. Next Menu 1. Eject 2. Release 3. IR 4. MIC 5. USB 6. AUX In 7. Mute/End call 8. Tune/Previous Track 9. Volume Up/Down 10. Mode 11. Power 12. Play/Pause/Band 13. Open 14. Tune/Next Track 15. Talk USER JAZZ CLASSIC POP ROCK BEAT FLAT USER PRESET 6 EQ Band frequencies are adjustable from the ASP settings. ASP menu adjust the Bass/MID/Treb center frequencies. Each band adjusts the center frequency average(Low/Mid/High). Bass/MID/Treb Q Value adjust the frequency width, wide to narrow. Loudness center frequency(Flat, 400,800,2400) Subwoofer center frequency(Flat, 80,120,160) FADER/BALANCE FADER: F 0-10 to R 0-10 BALANCE: F0-10 to R 0-10 SUB/LOUD SUB: Volume level Off - 12 LOUDNESS: Select loudness level OFF LOW HIGH Bluetooth Microphone The microphone is included in the unit. Pairing and Connecting Before using a Bluetooth device with this unit, the device must be paired and connected. The Bluetooth signal of the unit will broadcast when the power is on. Complete the pairing sequence from your Bluetooth device. The Dual unit will be displayed as "Dual BT". When prompted, enter the passcode "1234" on your device. Once paired, the Bluetooth device should automatically connect to this unit whenever the unit is in rage. Dialing a Number Press to display keypad and dial a number. Making and Ending a Call Press to make a call, and press to end a call. Accessing Recent Call List Press to view the Dialed Press to view the Received Press to view the Missed Transfering Audio Press to transfer audio between the head unit and mobile phone. Streaming Audio Press to enter the music control menu. Press to play or pause the music. Press to skip to the previous track. Press to advance to the next track. Bluetooth Operations One - Year Limited Warranty PLASTIC TRIM SLIDE BRACKET HOUSING KEY PLATE KEY PLATE Wiring Diagram FR OUTPUT RR OUTPUTVIDEO OUTPUT AUX INPUT L AUX INPUT R VIDEO INPUT VIDEO OUTPUT REAR CAMERA INPUT SUBWOOFER SUBWOOFER FL OUTPUT RL OUTPUT SWC - GND (BLACK) REAR VIEW CONTROL (B-) PARKING BRAKE ILLUMINATION REMOTE TURN - ON SWC - 1 (BROWN) SWC - 2 (BROWN/BLACK) ORANGE RED ACC B+ GROUND AUTO ANTENNA YELLOW BLACK BLUE WHITE GREEN WHITE / BLACK GREEN / BLACK GREY VILOET GREY / BLACK VIOLET / BLACK ORANGE / BLACK BLUE / BLACK PINK REAR RIGHT CHANNEL SPEAKER FRONT RIGHT CHANNEL SPEAKER FRONT LEFT CHANNEL SPEAKER CHANNEL SPEAKER REAR LEFT Front Panel Controls Remote Control 1. Power & Mode 2. Talk 3. Adjust angle 4. Setup 5. Subtitle & LOCAL/DX (Distant) 6. Tune/Previous Track 7. Band 8. Title/PBC (Push Button Configuration) & AS/PS (Automatic Memory Storing & Preset Scanning) 9. Back 10. Volume Up/Down 11. Menu & Subwoofer 12. Zoom & Angle 13. Audio & MO(Mono) /ST(Stereo) 14. EQ (Equalizer)/ Loud(ness) 15. Goto & * 16. Mute 17. END & Reject 18. Clock 19. SEL (Select) 20. Tune/Next Track 21. OK 22. Forward 23. Stop 24. Play/Pause 25.9/TA(Traffic Announcement) 26. +10/# 27. 0/AF(Alterative Frequencies) 28. Channel +/Channel - (TV Tuner models only) In the Main Menu screen, press the desired icon to enter each of the following settings: Radio, Disc (CD/DVD), USB, SD Card, Bluetooth Phone, Bluetooth Music, Rear-view Camera, Aux IN, AV IN, Setup In the Main Menu, press Setup icon to enter the general settings for the device 1.General(Animation, Key Beep, Disc, Radio, ....) 2. Time(Adjust Time and Time format) 3. Video(Adjust Color, Brightness, Contrast, Tint) 4. Language(Select Language) 5. RGB Illumination(Backlight and Buttons color) 6. Calibration(TFT Calibration) Setup Operations Main Menu Press MODE button on the Front Control Panel until Tuner is selected Radio Operations Insert a DVD in the disc slot for DVD playback (please see 'Safety Notes' on the front page of this guide). DVD Operations Inserting the MP3 CD into the disc slot will make the unit automatically read the CD. Disc Operations Audio EQ Presets USER JAZZ CLASSIC POP ROCK BEAT FLAT USER PRESET 6 EQ Band frequencies are adjustable from the ASP settings. ASP menu adjust the Bass/MID/Treb center frequencies. Each band adjusts the center frequency average(Low/Mid/High). Bass/MID/Treb Q Value adjust the frequency width, wide to narrow. Loudness center frequency(Flat, 400,800,2400) Subwoofer center frequency(Flat, 80,120,160) FADER/BALANCE FAD (F10 to R10): Fader adjusts the front-to-rear audio strength BAL (L10 to R10): Balance adjusts the left-to-right audio strength. SUB/LOUD SUB: Adjusts the subwoofer volume levels. LOUD (Off/Low/High): Loudness feature provides better overall sound at low volume levels by increasing low and high frequencies Audio Settings FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee…

Text truncated - open the document above for the full version.

INNO AUDIO&VIDEO(HK)LIMITED Room 1703, 17/F., Universal Trade Centre. No. 3-5A Arbuthnot Road, Hong Kong. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: February 5, 2015 To whom it may concern: The testing model of our INNO AUDIO&VIDEO(HK)LIMITED brand of FCC approval is AX-8321 and we have models or brands for listed. We hereby certify that the interior structure, electrical circuit and schematics of the listed models are the same as the testing model except the below list. And just for the marketing requirement. Our listed models is as follows: Product name: Car Audio Brand: N/A Model: AX-8321/AX-8320/AX-8305/AX-8318/AX-8401/AX8308/AX-8307/AX-8316/BV9963/BV9967/DV705/ DV715B/AV7115B/DSA775BV/DV725BH/AV7225BH/AX-8313/AX-8317/AX-7304/AX-8314 FCC ID: 2ADYZAX-8321 Your assistance on this mater is highly appreciated. Company Officer: Yellow Wong

INNO AUDIO&VIDEO(HK)LIMITED Room 1703, 17/F., Universal Trade Centre. No. 3-5A Arbuthnot Road, Hong Kong. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: January 23, 2015 Subject; Request for Confidentiality FCC ID: 2ADYZAX-8321 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yellow Wong Title: Marketing Assistant

INNO AUDIO&VIDEO(HK)LIMITED Room 1703, 17/F., Universal Trade Centre. No. 3-5A Arbuthnot Road, Hong Kong. Letter of Authorization Company: INNO AUDIO&VIDEO(HK)LIMITED Address: Room 1703, 17/F., Universal Trade Centre. No. 3-5A Arbuthnot Road, Hong Kong. Product Name: Car Audio Model Number: AX-8321/AX-8320/AX-8305/AX-8318/AX-8401/AX8308/AX-8307/ AX-8316/BV9963/BV9967 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following:  Testing  Approval applications (includes complete product documentation package, including Confidential information) and procedures  Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Yellow Wong Date: January 23, 2015 Title: Marketing Assistant Signature of applicant:

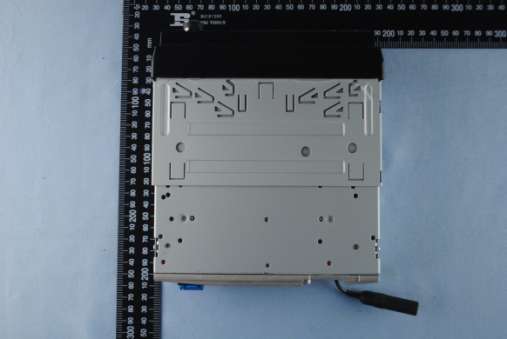

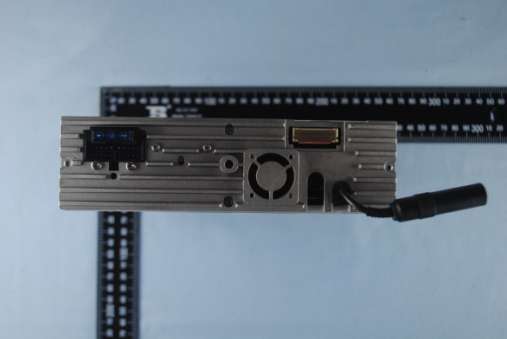

EUT top view EUT bottom view

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed Label Location FCC ID: 2ADYZAX-8321

The test report consists 31 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.249 Prepared For : INNO AUDIO&VIDEO(HK)LIMITED Room 1703, 17/F., Universal Trade Centre. No. 3-5A Arbuthnot Road, Hong Kong. FCC ID: 2ADYZAX-8321 EUT: Car Audio Model: AX-8321/AX-8320/AX-8305/ AX-8318/AX-8401/AX8308/AX-8307/ AX-8316/BV9963/BV9967 January 20, 2015 Issue Date: Original Report Report Type: Test Engineer: Eric Guo Review By: Apollo Liu / Manager E506, 5th Floor, No.39 Keji Middle 2nd Rd, Science & Technology Park, Nanshan District, Shenzhen, P. R. China Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com INNO AUDIO&VIDEO(HK)LIMITED FCC ID: 2ADYZAX-8321 KMO FCC ID Report Report #: KSZ2014121802J02 Page 2 of 31 TABLE OF CONTENTS 1. General Information .................................................................................................................................................... 3 1. 1 Notes ...................................................................................................................................................................... 3 1. 2 Testing Laboratory ................................................................................................................................................... 3 1. 3 Details of Applicant ................................................................................................................................................. 3 1. 4 Application Details .................................................................................................................................................. 3 1. 5 Test Item ................................................................................................................................................................. 3 1. 6 Test Standards ......................................................................................................................................................... 3 2. Technical Test ............................................................................................................................................................... 4 2. 1 Summary of Test Results.......................................................................................................................................... 4 3. EUT Modifications ....................................................................................................................................................... 4 4. Conducted Power Line Test.......................................................................................................................................... 5 4. 1 Test Equipment ........................................................................................................................................................ 5 4. 2 Test Procedure ......................................................................................................................................................... 5 4. 3 Test Setup................................................................................................................................................................ 5 4. 4 Configuration of the EUT ........................................................................................................................................ 6 4. 5 EUT Operating Condition ........................................................................................................................................ 7 4. 6 Conducted Power Line Emission Limits ................................................................................................................... 7 4. 7 Conducted Power Line Test Result ........................................................................................................................... 7 5. Radiated Emission Test ................................................................................................................................................ 8 5. 1 Test Equipment ........................................................................................................................................................ 8 5. 2 Test Procedure ......................................................................................................................................................... 8 5. 3 Radiated Test Setup ................................................................................................................................................. 8 5. 4 Configuration of the EUT ...................................................................................................................................... 10 5. 5 EUT Operating Condition ...................................................................................................................................... 10 5. 6 Radiated Emission Limit ........................................................................................................................................ 10 5. 7 Radiated Emission Test Result ............................................................................................................................... 11 6. Band Edge .................................................................................................................................................................. 15 6. 1 Test Equipment ...................................................................................................................................................... 15 6. 2 Test Procedure .......................................................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission test view(Frequency from 30MHz to 1GHz) Radiated Emission test view(Frequency above 1GHz)
