2ADZH-ET45TWIRELESS SPORT HEADPHONES

For Customer Use: Enter the Model No. and Serial No. (on the charging case) below. Retain this information for future reference. Model No. Serial No. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. This product contains rechargeable battery. Contact JVC authorised dealer for disposal. I prodotti e le batterie recanti questa icona (bidone carrellato della spazzatura con il simbolo della croce) non devono essere eliminati come rifiuti solidi urbani. In queste cuffie è installata una batteria ricaricabile. Per informazioni sulla sua eliminazione si raccomanda di rivolgersi al proprio rivenditore. Produkty i baterie opatrzone symbolem (przekreślony pojemnik na kółkach) nie mogą być wyrzucane razem z odpadami domowymi. Ten produkt zawiera akumulator. Informacje o usuwaniu odpadów można uzyskać u autoryzowanego dystrybutora JVC. Продуктите и батериите, обозначени със символа (зачертана с кръст кофа за боклук на колелца), не могат да се изхвърлят като битови отпадъци. Продуктът съдържа презареждаема батерия. Свържете се с оторизиран търговец на JVC за начина на изхвърляне. Produsele și bateriile cu simbolul (pubelă tăiată cu un x) nu pot fi aruncate ca deșeuri menajere. Acest produs conține o baterie reîncărcabilă. Dacă doriți să îl aruncați, luați legătura cu distribuitorul autorizat JVC. Izdelkov in baterij s simbolom (prečrtan smetnjak na kolesih) ni dovoljeno odstraniti kot gospodinjske odpadke. Ta izdelek vsebuje akumulatorsko baterijo. Za odstranitev se obrnite na pooblaščenega zastopnika podjetja JVC. Proizvodi i baterije sa simbolom (precrtana kanta za otpad) ne smiju se odlagati u kućanski otpad. Ovaj proizvod sadrži punjivu bateriju. Za informacije o odlaganju obratite se ovlaštenom prodavaču JVC-ovih proizvoda. Gaminių ir baterijų, ant kurių pateiktas perbrautos šiukšliadėžės simbolis, negalima išmesti kartu su buitinėmis atliekomis. Šiame gaminyje sumontuotas akumuliatorius. Dėl utilizavimo kreipkitės į JVC įgaliotąjį prekybos atstovą. Produkti un baterijas ar simbolu (nosvītrots atkritumu konteiners uz riteņiem) nedrīkst tikt likvidēti kā mājsaimniecības atkritumi. Šis produkts satur atkārtoti uzlādējamu bateriju. Sazinieties ar JVC autorizēto dīleri par likvidēšanu. Prodotti u batteriji bis-simbolu (tantk taż-żibel bir-roti maqtugħ) ma jistgħux jintremew bħala skart domestiku. Dan il-prodott fih batterija rikarikabbli. Ikkuntattja lin-negozjant awtorizzat minn JVC rigward ir-rimi. Προϊόντα και μπαταρίες που φέρουν το σύμβολο (διαγραμμένος τροχήλατος κάδος απορριμμάτων) δεν απορρίπτονται ως κοινά οικιακά απορρίμματα. Το παρόν προϊόν περιέχει επαναφορτιζόμενη μπαταρία. Για την ορθή διάθεσή του επικοινωνήστε με τον εξουσιοδοτημένο αντιπρόσωπο της JVC. Produkter og batterier med symbolet (overstreget skraldespand på hjul) kan ikke bortskaffes som husholdningsaffald. Dette produkt indeholder et genopladeligt batteri. Ret henvendelse til en autoriseret JVC-forhandler angående bortskaffelse. Sümboliga (ratastega prügikonteiner, millel on rist peal) tooteid ja akusid ei tohi kõrvaldada majapidamisjäätmetena. See toode sisaldab laetavat akut. Kõrvaldamiseks võtke ühendust JVC volitatud edasimüüjaga. Laitteita ja paristoja, joissa on seuraava merkintä (ruksattu roskapönttö), ei saa hävittää talousjätteiden mukana. Tässä laitteessa on ladattava paristo. Ota yhteys valtuutettuun JVCedustajaan ja kysy tietoja hävittämisestä. Výrobky a baterie s tímto symbolem (přeškrtnutá popelnice) nelze vyhazovat s domovním odpadem. Tento výrobek obsahuje dobíjecí baterii. Informace o likvidaci vám podá autorizovaný prodejce JVC. Produkty a batérie označené symbolom (preškrtnutá odpadová nádoba) sa nesmú likvidovať spolu s komunálnym odpadom. Tento produkt obsahuje nabíjateľnú batériu. V prípade likvidácie kontaktujte autorizovaného predajcu JVC. Azokat a termékeket, amelyeken az (áthúzott görgős szeméttároló) jelzés található, nem lehet háztartási szemétként eldobni. A termék újratölthető akkumulátorral rendelkezik. Ártalmatlanítás esetén vegye fel a kapcsolatot a JVC szerződéses kereskedőjével. Producten en batterijen met het (afvalcontainer met x-teken) symbool mogen niet als normaal huisvuill worden weggegooid. Dit product bevat een oplaadbare batterij. Raadpleeg een erkende JVC handelaar voor het weggooien. Os produtos e baterias com o símbolo (caixote de lixo com um X) não podem ser deitados fora junto com o lixo doméstico. Este produto contém uma bateria recarregável. Contate o revendedor JVC autorizado para a sua eliminação. Produkter och batterier med denna symbol (en överkryssad soptunna på hjul) får inte kastas med vanliga hushåll…

Text truncated - open the document above for the full version.

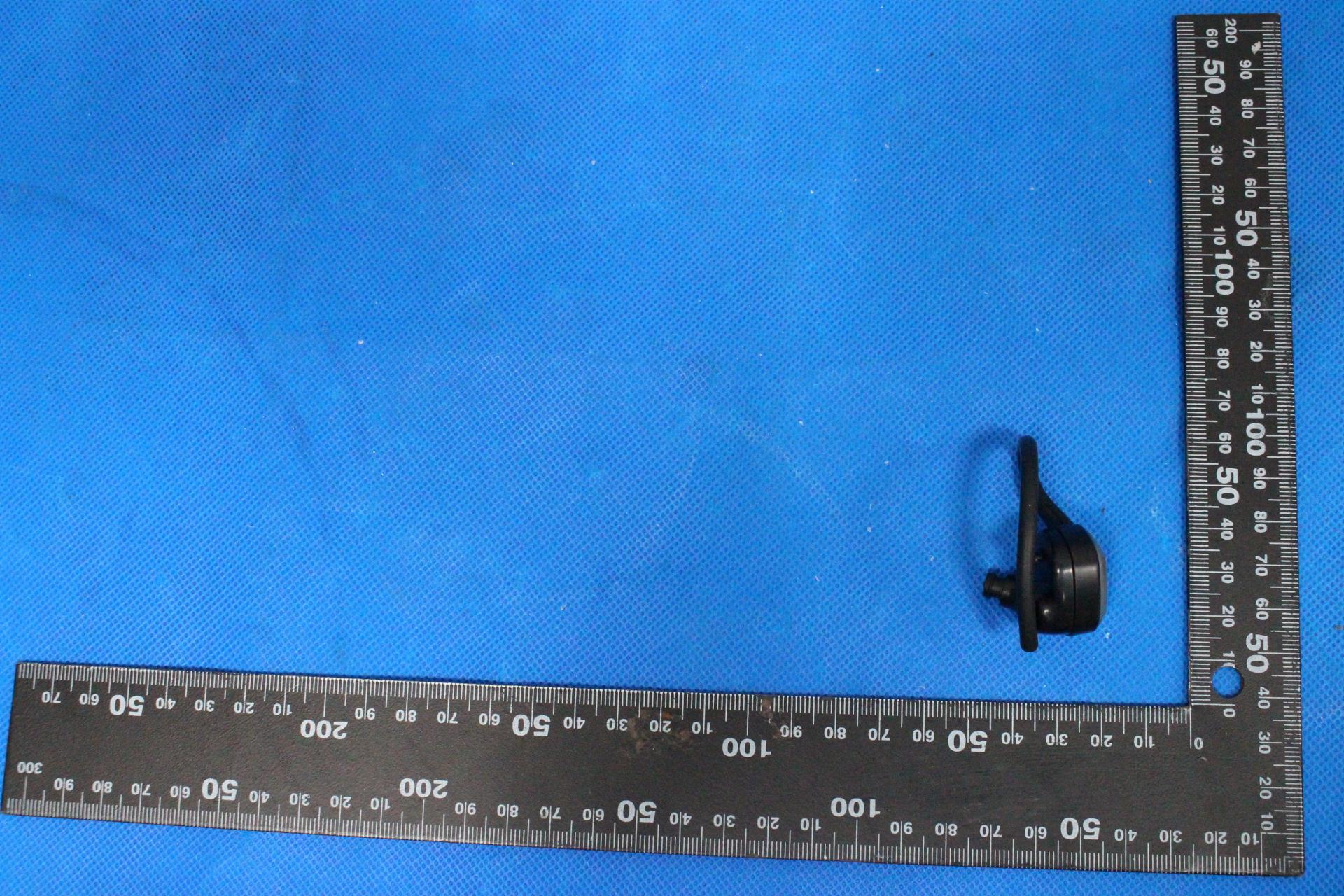

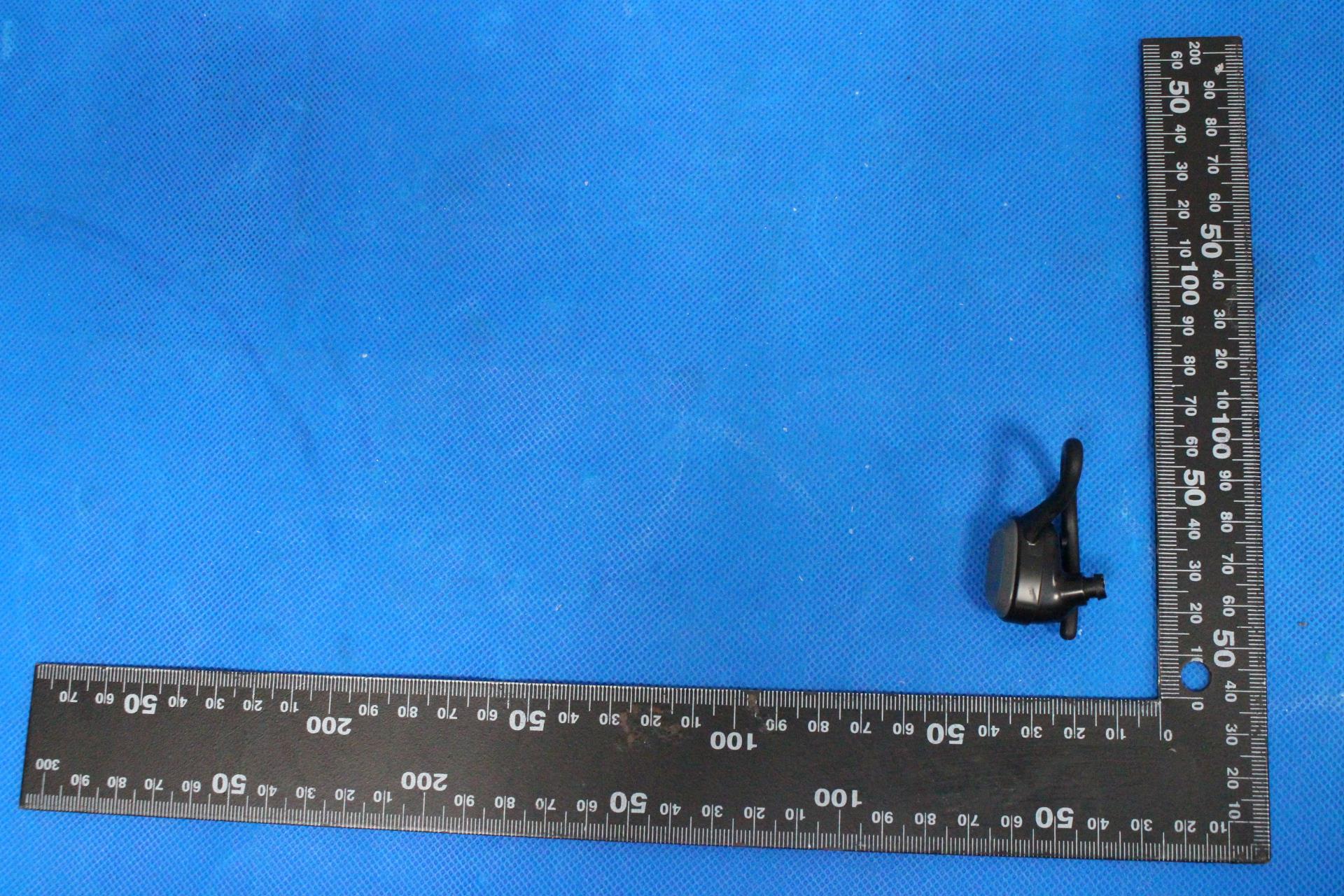

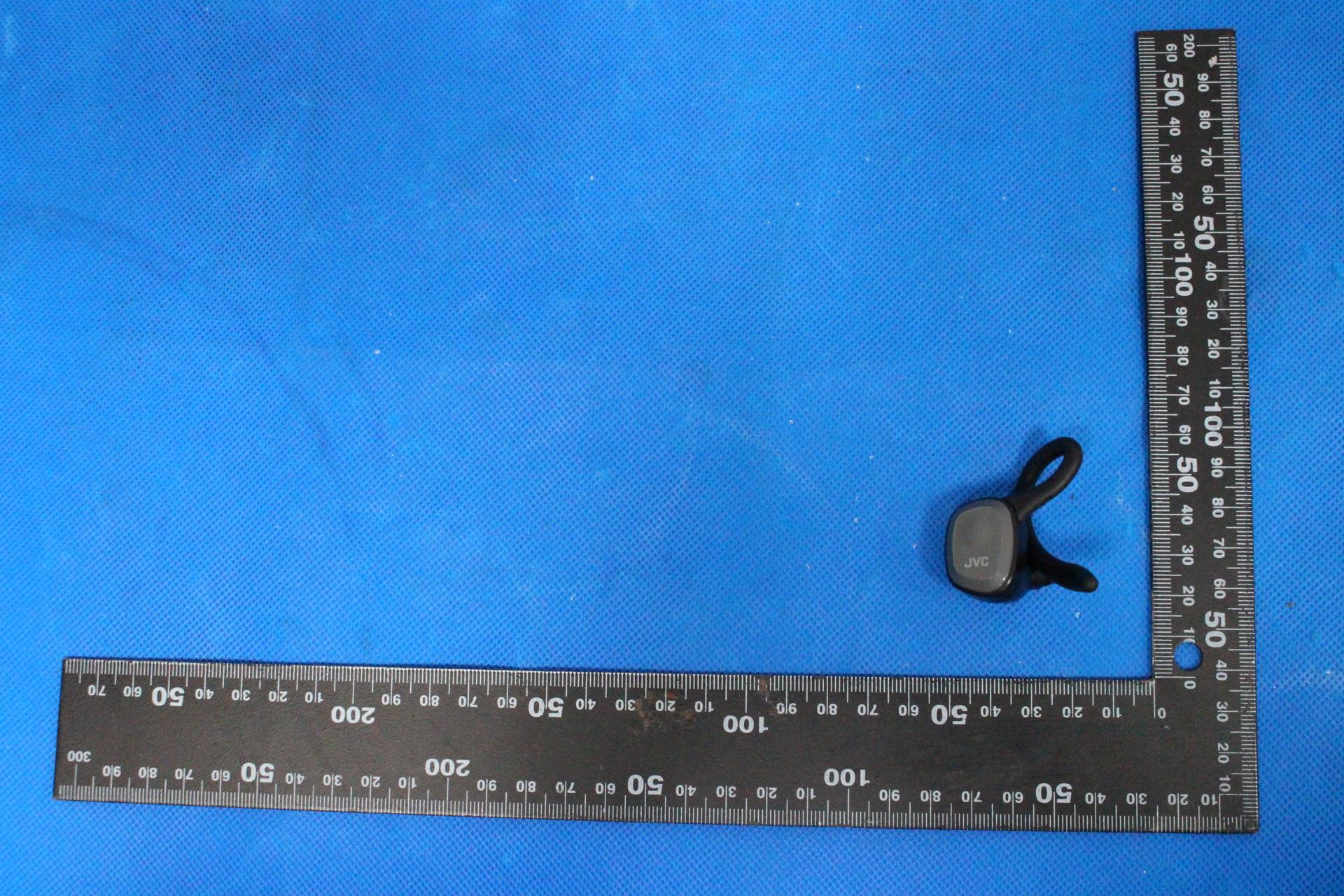

External Photo Right Left

B C D E : 8 7 6 54 3 21 F E D C B A

Internal Photo Right Left

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM191101716404 Page: 1 of 11 Kobe Jian EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: GZEM1911017164CR Applicant: Dongguan Siyoto Electronics Co., Ltd. Address of Applicant: No.15,16,17,Seven street of north Qiaodong,Dongjiang Village,Qiaotou Town,DongGuan,Guangdong,China Manufacturer: The same as applicant Address of Manufacturer: The same as applicant Factory: The same as applicant Address of Factory: The same as applicant Equipment Under Test (EUT): EUT Name: WIRELESS SPORT HEADPHONES Model No.: HA-ET45T Trade Mark: JVC Standard(s) : 47 CFR Part 1.1307, Part 2.1093, KDB 447498 Date of Receipt: 2019-11-20 Date of Test: 2019-11-25 to 2019-12-02 Date of Issue: 2019-12-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716404 Page: 2 of 11 Revision Record Version Chapter Date Modifier Remark 01 2019-12-17 Original Authorized for issue by: Tested By 2019-11-25 to 2019-12-02 Kevin_Zhang /Project Engineer Date Checked By 2019-12-17 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716404 Page: 3 of 11 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, Part 2.1093, KDB 447498 CFR 47 Part 2.1093 CFR 47 Part 2.1093 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716404 Page: 4 of 11 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 5 4.1 Details of E.U.T. ..................................................................................................................................... 5 4.2 Description of Support Units .................................................................................................................. 5 4.3 Measurement Uncertainty ...................................................................................................................... 5 4.4 Test Location ......................................................................................................................................... 6 4.5 Test Facility ............................................................................................................................................ 7 4.6 Deviation from Standards ...................................................................................................................... 8 4.7 Abnormalities from Standard Conditions ............................................................................................... 8 5 Equipment List .............................................................................................................................................. 9 6 Radio Spectrum Technical Requirement ................................................................................................. 10 6.1 RF Exposure ........................................................................................................................................ 10 6.1.1 Test Requirement: ........................................................................................................................... 10 6.1.2 Conclusion ....................................................................................................................................... 10 7 Photographs ............................................................................................................................................... 11 7.1 EUT Constructional Details .................................................................................................................. 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716404 Page: 5 of 11 4 General Information 4.1 Details of E.U.T. Power Supply: DC 5.0V for charging box charging. DC 3.7V for earbuds normal working. Test Voltage: DC 5.0V Cable: N/A Antenna Gain 4.75dBi Antenna Type Chip Antenna Channel Spacing 1MHz Modulation Type GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Operation Frequency 2402MHz to 2480MHz Spectrum Spread Technology Frequency Hopping Spread Spectrum(FHSS) 4.2 Description of Support Units The EUT has been tested as an independent unit. 4.3 Measurement Uncertainty No. Item Measurement Uncertainty 1 Radio Frequency ±5.5 x 10 -8 2 Duty cycle ±0.57% 3 Occupied Bandwidth ±3% 4 RF Conducted power ±0.68dB 5 RF Power Density ±1.50dB 6 Conducted Spurious Emissions ±1.04d…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM191101716402 Page: 1 of 157 FCC ID: 2ADZH-ET45T Kobe Jian EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: GZEM1911017164CR Applicant: Dongguan Siyoto Electronics Co., Ltd. Address of Applicant: No.15,16,17,Seven street of north Qiaodong,Dongjiang Village,Qiaotou Town,DongGuan,Guangdong,China Manufacturer: The same as applicant Address of Manufacturer: The same as applicant Factory: The same as applicant Address of Factory: The same as applicant Equipment Under Test (EUT): FCC ID: 2ADZH-ET45T EUT Name: WIRELESS SPORT HEADPHONES Model No.: HA-ET45T (for left earbud) Trade Mark: JVC Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2019-11-20 Date of Test: 2019-11-25 to 2019-12-02 Date of Issue: 2019-12-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 2 of 157 Revision Record Version Chapter Date Modifier Remark 01 2019-12-17 Original Authorized for issue by: Tested By 2019-11-25 to 2019-12-02 Kevin_Zhang /Project Engineer Date Checked By 2019-12-17 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 3 of 157 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 4 of 157 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 6 4.1 Details of E.U.T. ..................................................................................................................................... 6 4.2 Description of Support Units .................................................................................................................. 6 4.3 Measurement Uncertainty ...................................................................................................................... 6 4.4 Test Location ......................................................................................................................................... 7 4.5 Test Facility ............................................................................................................................................ 8 4.6 Deviation from Standards ...................................................................................................................... 9 4.7 Abnormalities from Standard Conditions ............................................................................................... 9 5 Equipment List ............................................................................................................................................ 10 6 Radio Spectrum Technical Requirement ................................................................................................. 13 6.1 Antenna Requirement ....................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 81 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 82 of 157 Dwell Time_2DH1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 83 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 84 of 157 Dwell Time_2DH3_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 85 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 86 of 157 Dwell Time_2DH3_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 87 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 88 of 157 Dwell Time_2DH3_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 89 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 90 of 157 Dwell Time_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 91 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 92 of 157 Dwell Time_2DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 93 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 94 of 157 Dwell Time_2DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 95 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 96 of 157 Dwell Time_3DH1_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 97 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 98 of 157 Dwell Time_3DH1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 99 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 100 of 157 Dwell Time_3DH1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 101 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 102 of 157 Dwell Time_3DH3_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 103 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 104 of 157 Dwell Time_3DH3_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 105 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 106 of 157 Dwell Time_3DH3_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 107 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 108 of 157 Dwell Time_3DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 109 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 110 of 157 Dwell Time_3DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 111 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 112 of 157 Dwell Time_3DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 113 of 157 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 114 of 157 5.Hopping Channel Number Test Mode Number of Hopping Channel[N] Limit[N] Verdict DH5 79 >=15 PASS 2DH5 79 >=15 PASS 3DH5 79 >=15 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 115 of 157 TEST PLOT Hopping Channel Number_DH5_2402 Hopping Channel Number_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 116 of 157 Hopping Channel Number_3DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 117 of 157 6.Band-edge for RF Conducted Emissions Test Mode Test Channel Hopping Carrier Power[dBm] Max. Spurious Level [dBm] Limit[dBm] Verdict DH5 2402 On 6.768 -47.842 -13.23 PASS DH5 2402 Off 6.232 -48.226 -13.77 PASS DH5 2480 On 6.467 -48.195 -13.53 PASS DH5 2480 Off 6.357 -48.901 -13.64 PASS 2DH5 2402 On 7.303 -48.073 -12.7 PASS 2DH5 2402 Off 6.708 -47.400 -13.29 PASS 2DH5 2480 On 6.782 -48.287 -13.22 PASS 2DH5 2480 Off 6.252 -48.370 -13.75 PASS 3DH5 2402 On 7.387 -48.362 -12.61 PASS 3DH5 2402 Off 6.848 -47.979 -13.15 PASS 3DH5 2480 On 6.778 -47.547 -13.22 PASS 3DH5 2480 Off 6.546 -48.491 -13.45 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 118 of 157 TEST PLOT Band-edge for RF Conducted Emissions_DH5_2402_Hopping On Band-edge for RF Conducted Emissions_DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 119 of 157 Band-edge for RF Conducted Emissions_DH5_2480_Hopping On SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 120 of 157 Band-edge for RF Conducted Emissions_DH5_2480_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716402 Page: 121 of 157 Band-edge for RF Conducted Emissions_2DH5_2402_…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM191101716403 Page: 1 of 157 FCC ID: 2ADZH-ET45T Kobe Jian EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: GZEM1911017164CR Applicant: Dongguan Siyoto Electronics Co., Ltd. Address of Applicant: No.15,16,17,Seven street of north Qiaodong,Dongjiang Village,Qiaotou Town,DongGuan,Guangdong,China Manufacturer: The same as applicant Address of Manufacturer: The same as applicant Factory: The same as applicant Address of Factory: The same as applicant Equipment Under Test (EUT): FCC ID: 2ADZH-ET45T EUT Name: WIRELESS SPORT HEADPHONES Model No.: HA-ET45T (for right earbud) Trade Mark: JVC Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2019-11-20 Date of Test: 2019-11-25 to 2019-12-02 Date of Issue: 2019-12-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716403 Page: 2 of 157 Revision Record Version Chapter Date Modifier Remark 01 2019-12-17 Original Authorized for issue by: Tested By 2019-11-25 to 2019-12-02 Kevin_Zhang /Project Engineer Date Checked By 2019-12-17 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716403 Page: 3 of 157 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM191101716403 Page: 4 of 157 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 6 4.1 Details of E.U.T. ..................................................................................................................................... 6 4.2 Description of Support Units .................................................................................................................. 6 4.3 Measurement Uncertainty ...................................................................................................................... 6 4.4 Test Location ......................................................................................................................................... 7 4.5 Test Facility ............................................................................................................................................ 8 4.6 Deviation from Standards ...................................................................................................................... 9 4.7 Abnormalities from Standard Conditions ............................................................................................... 9 5 Equipment List ............................................................................................................................................ 10 6 Radio Spectrum Technical Requirement ...........................................................…

Text truncated - open the document above for the full version.
