2ADZI-AWD-22TBTFloating speaker with Bluetooth

AWD-22TBT Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ATake Digital Technology (Shenzhen) Co., Ltd. Jan.29, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_____ 2A DZI-AWD-22TBT_______ Product Name:___ AWD-22TBT Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Jan.29, 2015 By: Signature Title: Manager On behalf of : ATake Digital Technology (Shenzhen) Co., Ltd. Telephone: 0755-27737950 2ADZI-AWD-22TBT Floating speaker with Bluetooth

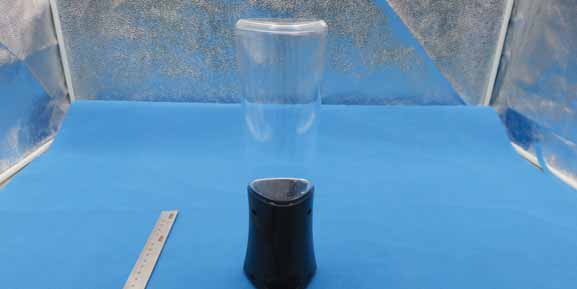

 ExternalPhotos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCCIDLabelLocation           FCC ID:  2ADZI-AWD-22TBT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 Antenna

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480 MHz -2.99dBm（0.5mW） output power] (0.5mW /5mm) ·[√2.480(GHz)]= 0.157<3.0 for 1-g SAR Then SAR evaluation is not required

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288FAX: +86-755 3688 6277E-mail:[email protected] FCC TESTREPORT Report No: STS1502030F01 Issued for ATake Digital Technology (Shenzhen) Co., Ltd. 15th Building, Changxing Industry Zone, Changzhen Village, Gongming , Guangming New District, Shenzhen, Guangdong, China Product Name: Floating speaker with Bluetooth Brand Name: N/A Model No.: AWD-22TBT FCC ID: 2ADZI-AWD-22TBT Test Standard: FCC Part 15.247 S T L A B S Page 2 of65Report No.:STS1502030F01 TEST RESULT CERTIFICATION Applicant’s name ............ ATake Digital Technology (Shenzhen) Co., Ltd. Address ............................ G-A1 BLDG,Democracy West Industry Park,ShajingTown,BaoanDistrict,Shenzhen,China Manufacture's Name ....... ATake Digital Technology (Shenzhen) Co., Ltd. Address ............................ G-A1 BLDG,Democracy West Industry Park,ShajingTown,BaoanDistrict,Shenzhen,China Product description Product name ..................... Floating speaker with Bluetooth Band name .......................... N/A Model and/or type reference ........................ AWD-22TBT Ratings ............................. DC5V Standards ........................ FCC Part15.247 Test procedure .................... ANSI C63.4-2009 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................ Date (s) of performance of tests .. Jan.22,2015 to Jan.23,2015 Date of Issue............................... Jan.26,2015 Test Result .................................. Pass Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of65Report No.:STS1502030F01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.1 DESCRIPTION OF TEST MODES 9 2.2 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.3BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS 11 2.5EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3.EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 TEST SETUP 14 3.1.4EUT OPERATING CONDITIONS 14 3.1.5TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TESTSETUP 19 3.2.5EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS炷炷WORST CASE: GFSK炸 21 4. CONDUCTED SPURIOUS EMISSIONS 38 4.1 REQUIREMENT 38 4.2TEST PROCEDURE 38 4.3 TEST SETUP 38 4.4 EUT OPERATION CONDITIONS 38 4.5 TEST RESULTS 39 5. NUMBER OF HOPPING CHANNEL 45 5.1APPLIED PROCEDURES / LIMIT 45 5.2 TEST PROCEDURE 45 5.3 TEST SETUP 45 5.4 EUT OPERATION CONDITIONS 45 Page 4 of65Report No.:STS1502030F01 Table of Contents Page 5.5TEST RESULTS 46 6. AVERAGE TIME OF OCCUPANCY 47 6.1 APPLIED PROCEDURES / LIMIT 47 6.2 TEST PROCEDURE 47 6.3 TEST SETUP 47 6.4 EUT OPERATION CONDITIONS 47 6.5TEST RESULTS 48 7. HOPPING CHANNEL SEPARATION MEASUREMENT 50 7.1 APPLIED PROCEDURES / LIMIT 50 7.2 TEST PROCEDURE 50 7.3 TEST SETUP 50 7.4 EUT OPERATION CONDITIONS 50 7.5TEST RESULTS 51 8. BANDWIDTH TEST 52 8.1APPLIED PROCEDURES / LIMIT 52 8.2 TEST PROCEDURE 52 8.3 TEST SETUP 52 8.4 EUT OPERATION CONDITIONS 52 8.5TEST RESULTS 53 9. OUTPUT POWER TEST 58 9.1 APPLIED PROCEDURES / LIMIT 58 9.2 TEST PROCEDURE 58 9.3 TEST SETUP 58 9.4 EUT OPERATION CONDITIONS 58 9.5TEST RESULTS 59 10. ANTENNA REQUIREMENT 63 10.1 STANDARD REQUIREMENT 63 10.2 EUT ANTENNA 63 APPENDIX-PHOTOS OF TEST SETUP 64 Page 5 of65Report No.:STS1502030F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(d) Conducted Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS Page 6 of65Report No.:STS1502030F01 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U炻where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2炻providing a level of confidence of approximately 95 %ˤ No. Item Uncertainty 1 Conducted Emission Test ±3.18dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.71dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of65Report No.:STS1502030F01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Floating speaker with Bluetooth Trade Name N/A Model Name AWD-22TBT Channel List Please refer to the Note 2. Bluetooth Frequency:2402 – 2480 MHz Modulation: GFSK(1Mbps),π/4-DQPSK(2Mbps),8-DPSK(3Mbps) Hardware version number N/A Software versioningnumber N/A Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed fe…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP Radiated Measurement Photos Conducted Measurement Photos
