2ADZIAWD-58XFountain sound bar

Fountain sound bar Model:AWD-58X N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.  Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo conditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation.  Changesormodificationstothisunitnotexpressly approvedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment.

ATake Digital Technology (ShenZhen) Co., Ltd. 15th Building, Changxing Industry Zone, Changzhen Village, Gongming, Guangming,Shenzhen,China TEL: 0755-27737950 FAX: 0755-27737950 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/7/2015 Request for Confidentiality Company name: ATake Digital Technology (ShenZhen) Co., Ltd. FCC ID: 2ADZIAWD-58X FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, ATake Digital Technology (ShenZhen) Co., Ltd. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which ATake Digital Technology (ShenZhen) Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, ATake Digital Technology (ShenZhen) Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [sally wong] [Manager] ATake Digital Technology (ShenZhen) Co., Ltd. 15th Building, Changxing Industry Zone,Changzhen Village, Gongming, Guangming,Shenzhen,China

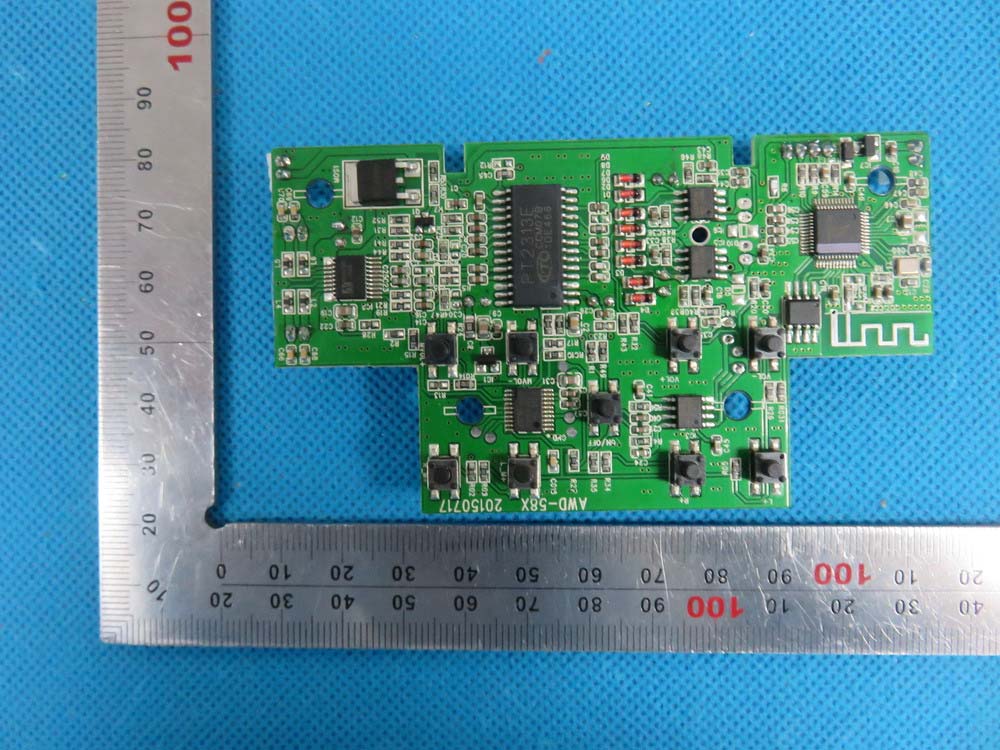

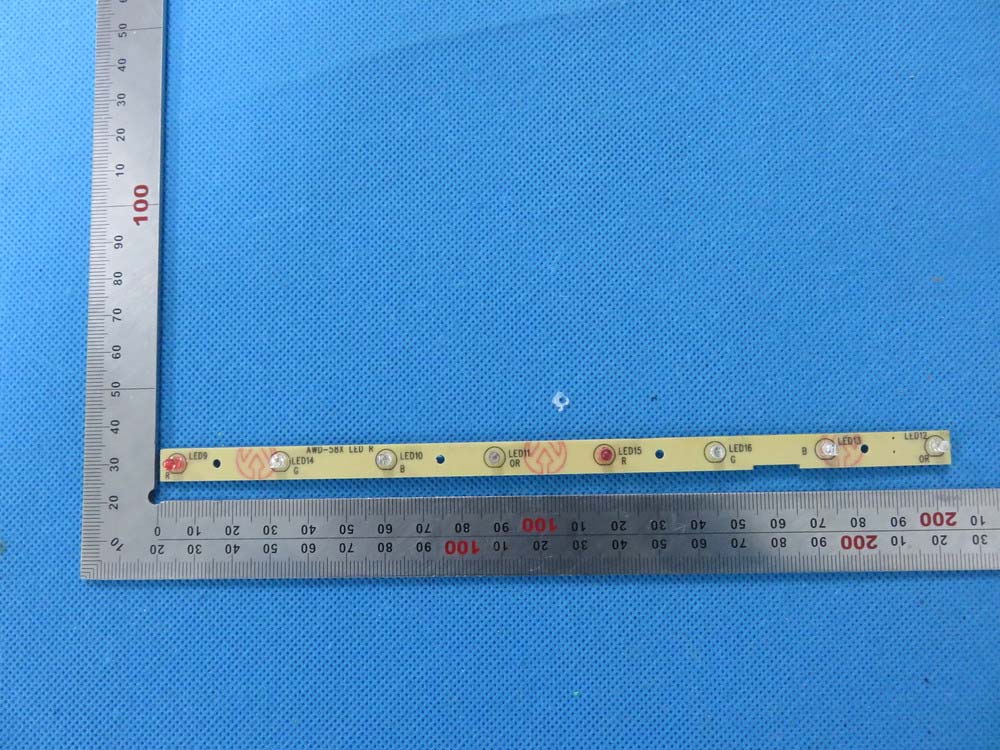

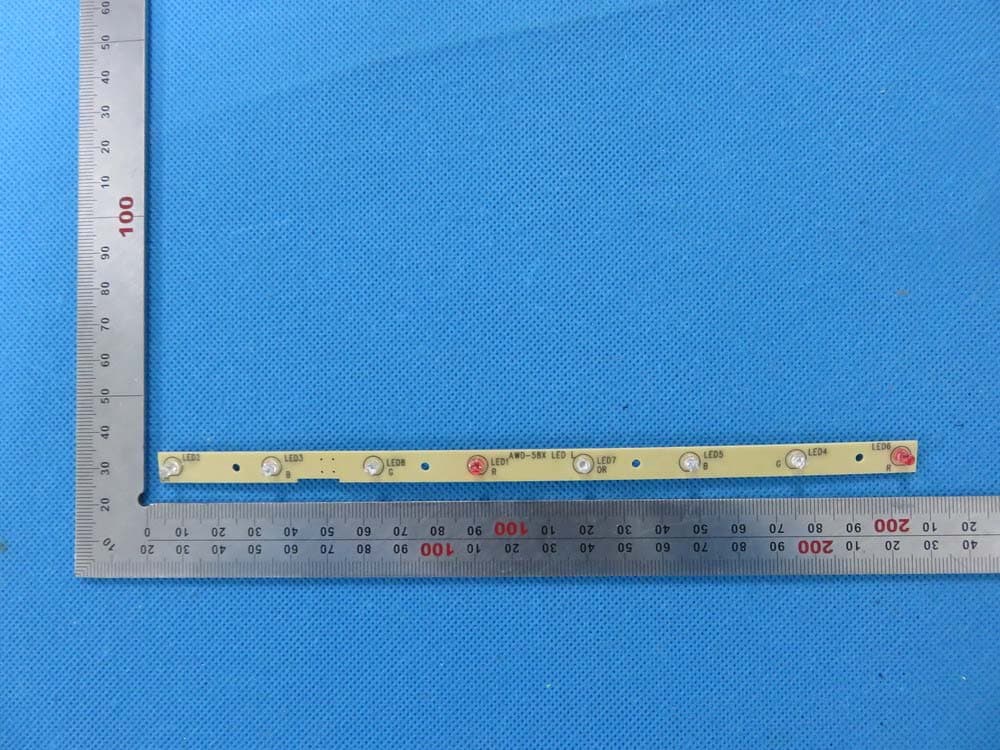

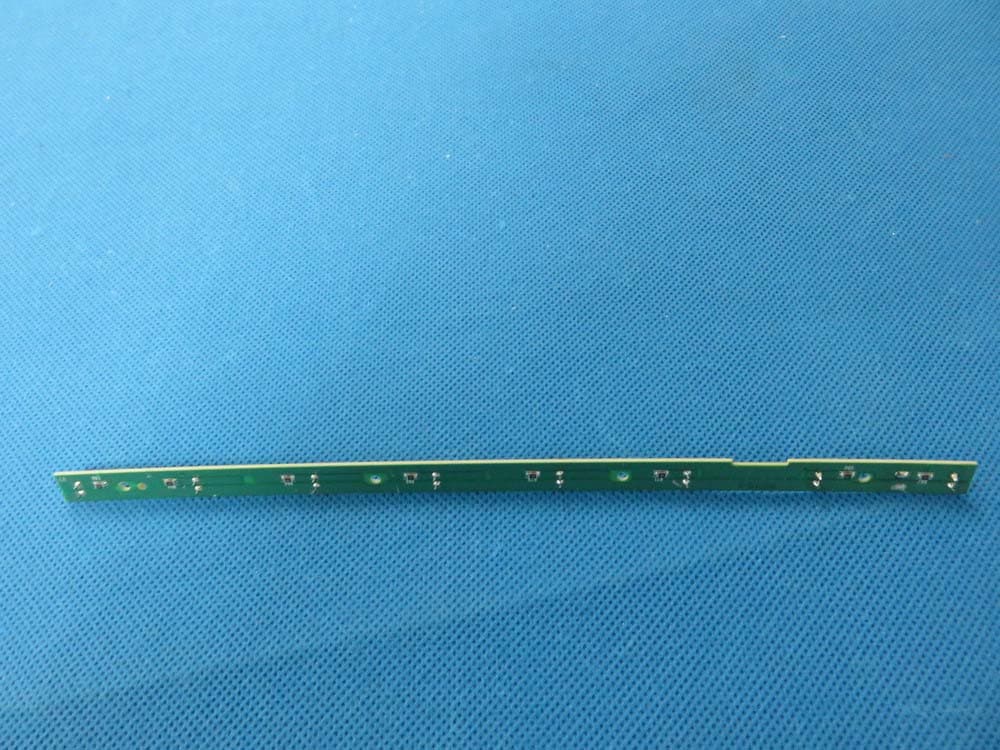

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Antenna INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9

RF Exposure evaluation Product Description:Fountain sound bar Model Number: AWD-58X FCC ID: 2ADZI AWD-58X According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=89.55dBuv/m=0.030V/m,d=3m,g t =1.35 P t =（E x d） 2 /（30 x g t ）=(0.030x3) 2 /(30x1.35)=0.0002W=0.2mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -0.2mW output power] (0.2mW /5mm) .[√2.402(GHz)]= 0.062<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 54 FCC Test Report Report No.: AGC01097151002FE03 FCC ID : 2ADZIAWD‐58X APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Fountain sound bar BRAND NAME : N/A MODEL NAME : AWD‐58X CLIENT : ATake Digital Technology (Shenzhen) Co., Ltd. DATE OF ISSUE : Nov.06,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01097151002FE03 Page 2 of 54 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Nov.06,2015 Valid Original Report Report No.: AGC01097151002FE03 Page 3 of 54 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7. ALL TEST EQUIPMENT LIST .............................................................................................. 8 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.2. MEASUREMENT PROCEDURE ................................................................................................ 11 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT ............................................................................................................................ 15 9. BAND EDGE EMISSION .................................................................................................... 28 9.1. MEASUREMENT PROCEDURE ................................................................................................ 28 9.2 TEST SETUP ............................................................................................................................... 28 9.3 RADIATED TEST RESULT .......................................................................................................... 29 10. 20DB BANDWIDTH .......................................................................................................... 33 10.1. MEASUREMENT PROCEDURE .............................................................................................. 33 10.2. TEST SET-UP ........................................................................................................................... 33 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 33 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 40 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 40 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 40 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 41 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 41 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 42 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 44 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 46 Report No.: AGC01097151002FE03 Page 4 of 54 1. VERIFICATION OF CONFORMITY Applicant ATake Digital Technology (Shenzhen) Co., Ltd. Address 15th Building, Changxing Industry Zone, Changzhen Village, Gongming , Guangming New District, Shenzhen, Guangdong, China. Manufacturer ATake Digital Technology (Shenzhen) Co., Ltd Address 15th Building, Changxing Industry Zone, Changzhen Village, Gongming , Guangming New District, Shenzhen, Guangdong, China Product Designation Fountain sound bar Brand Name N/A Test Model AWD-58X Date of test Nov.03,2015 to Nov.05,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Dongguan Precise Testing Service Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested By Water Zuo(Zuo Yingying) Nov.06,2015 …

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
