2AE59ADS1301Activity tracking sensor

1/4 User manual Activity tracking sensor Model No: ADS1301 FCC ID: 2AE59ADS1301 2/4 1 system introduction Activity sensors log users daily routine. e.g. Attach a sensor to the refrigerator and other kitchen objects to infer when food is prepared or consumed. OPU receives activity signals from each of the sensors to log more detail. 2 Specification Sensor Requirement Device Type Activity tracking sensor Alarm Sensor Type Movement (front, back, left, right, up and down) Detection type A signal will be issued when the sensor detects a movement of the object it attached to. Communication Requirement RF Frequency 433.92MHz Modulation ASK Antenna Internal Antenna, VSWR<2, Peak Gain di System Requirement Power 3 volt battery CR2032 Power Consumption 6 month (Triggered 10 times a day) Standby current ≤40uA Trigger current ≤30mA Battery’s voltage status 3V (Full power – functional) 2.1~2.35V (Low battery warning) Below 2.1V (shuts down) Operating Environment Working Temp: -10ɗ~50ɗ Humidity: 5%~80%RH non-condensing Storage Temp: -20ɗ~60ɗ Humidity: 5%~85%RH Environmental Standard RoHS, REACH Alarm Type Heart Beat Alive signal will be issued once per 12 hours. Activity Signal Each movement of the object being monitored will issue an RF signal for this event . (Variance烉1600 for Refrigerator) Low Battery Alarm The device will send out a low battery signal, if the voltage drop to low battery state and the signal will be sent accompany heart beat and other alarms. LED Indicator * LED color: Red * Normal Operation: LED off 3/4 * Power on: Flash Frequency 250 ms on/off炻4 times * HeartBeat&Event Alarm 烉LED on 460ms炻then off * Low Battery (When the battery is lower than 2.4V): Flash Frequency 50 ms on/off, 5 times Silence Time When Activity sensor power on within 5 minutes, once Activity sensor alarms it will start to count 5 seconds, if any movement detected in this silence period, the alarm will be not triggered. After the 5 minutes, the silence period is 1 minute. Activity trigger alarm Once Activity sensor alarms it will start to count 1 minute, if any m ovement detected in this period .The alarm will be not triggered. 3 Operating instructions 1. First use the Activity sensor, pull up the insulation spacer. 2. The Activity sensor fixed right where you need to detect, such as the refrigerator door, need to pay attention to the fixed in the near the door, away from the door of the shaft, because it is not easy to detect. 3. When battery low power, if Activity sensor send alarm, the low battery alarm will accompany to sending. 4. If battery low power, please replace the battery as soon as possible. 4/4 FCC Statement This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions: a) This device may not cause harmful interference b) This device must accept any interference received, including interference that may cause undesired operation. Warming! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

MivaTek Limited 09/18/2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2AE59ADS1301 Product Name:Activity tracking sensor Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 09/18/2015 By: Louis Chen Signature Printed Title: Engineer On behalf of : MivaTek Limited Telephone: +886-02-22188298

Differences Description We MivaTek Limited state: Product： Activity tracking sensor Model Name： ADS1301, ADS1302,ADS1303 Trade Name: MIVATEK FCC ID 2AE59ADS1301 The electrical circuit design, layout, components used and internal wiring for above models are identical, only different in model name. Signatory Date 2015-9-18 Signature Name: Louis Chen Title: Engineer Company: MivaTek Limited Address: 5/F, SPA Centre 53-55 Lockhart Road Wanchai,HongKong.

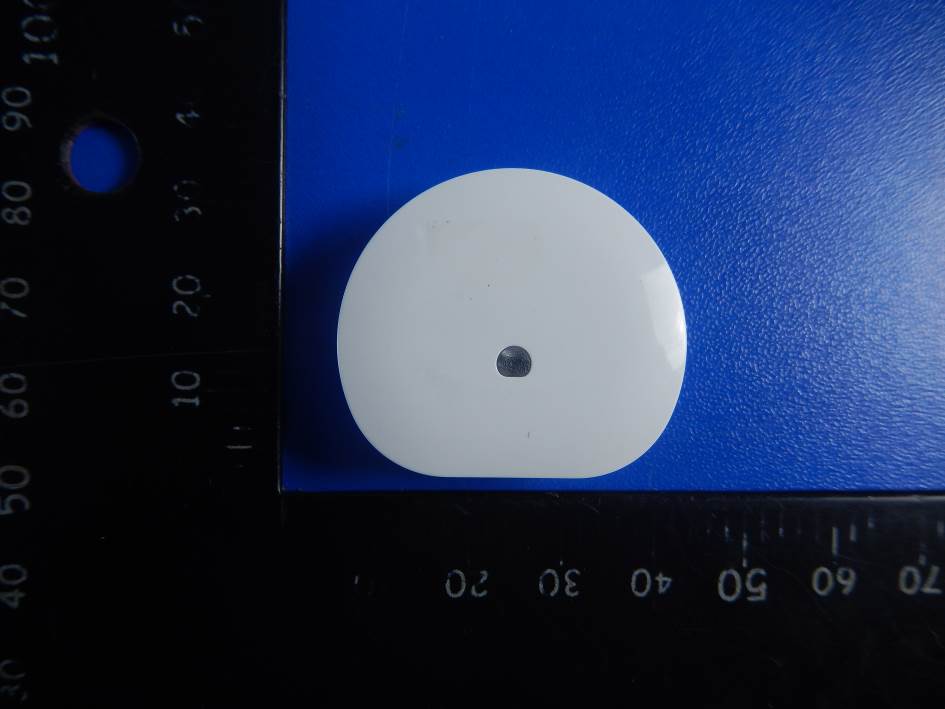

Project No: STS1508114 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1508114 Photo 3 Photo 4 Project No: STS1508114 Photo 5 Photo 6

Label Activity tracking sensor Model name: ADS1301 FCC ID: 2AE59ADS1301 label

Project No: STS1508114 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1508114 Photo 3 Photo 4 ANTENNA Project No: STS1508114 Photo 5

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 83.21dBuV/m @3m Ant gain -4dBi; so Ant numeric gain=0.4 So pt={[10 (83.21/20) /10 6 x3] 2 /(30x0.4)}x1000mW = 0.157mW So (0.157mW/5mm)x √0.43392GHz = 0.02<3 Then SAR evaluation is not required

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC TEST REPORT Report No: STS1508114F01 Issued for MivaTek Limited 5/F, SPA Centre 53-55 Lockhart Road Wancha Product Name: Activity tracking sensor Brand Name: MIVATEK Model No.: ADS1301 Series Model: ADS1302,ADS1303 FCC ID: 2AE59ADS01 Test Standard: FCC Part 15.231 S T L A B S 2AE59ADS1301 age 2 of 29 Report No.: STS1508114F01 Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) TEST RESULT CERTIFICATION Applicant’s name : MivaTek Limited Address : 5/F, SPA Centre 53-55 Lockhart Road Wancha Manufacture's Name : PrimeTechnology(Guangzhou) Inc. Address : No.19,BaoyingNan Road,GuangzhouFree Trade Zone,Guangzhou, China Product description Product name : Activity tracking sensor Brand name : MIVATEK Model and/or type reference : ADS1301 Standards : FCC Part 15.231 Test procedure : ANSI C63.10-2013 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test : Date of performance of tests : 01 Sep. 2015 ~06 Sep. 2015 Date of Issue : 07 Sep. 2015 Test Result : Pass age 3 of 29 Report No.: STS1508114F01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF SUPPORT UNITS 12 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.1.2 TEST PROCEDURE 15 3.1.3 TEST SETUP 15 3.1.4 EUT OPERATING CONDITIONS 15 3.1.5 TEST RESULTS 16 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS 20 4. BANDWIDTH TEST 23 4.1 APPLIED PROCEDURES / LIMIT 23 4.2 TEST REQUIREMENTS 23 4.3 TEST PROCEDURE 23 4.4 TEST SETUP 23 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS 24 5. PERIODIC OPERATION 25 5.1 TEST PROCEDURE 25 5.2 TEST SETUP 25 5.3 EUT OPERATION CONDITIONS 25 5.4 TEST RESULTS 26 6. ANTENNA REQUIREMENT 28 age 4 of 29 Report No.: STS1508114F01 Table of Contents Page 6.1 STANDARD REQUIREMENT 28 6.2 EUT ANTENNA 28 APPENDIX- PHOTOS OF TEST SETUP 29 age 5 of 29 Report No.: STS1508114F01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 07 Sep. 2015 STS1508114F01 ALL Initial Issue age 6 of 29 Report No.: STS1508114F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.231) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.205(a)/15.209/ 15.231.(b) Radiated Spurious Emission PASS 15.231(b) Periodic Operation PASS 15.231(C) 20 dB Bandwidth PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.4-2014 and ANSI C63.10:2013 15.231(a) (2) Operation duration age 7 of 29 Report No.: STS1508114F01 1.1 TEST FACTORY Shenzhen STS Test Services Co., Ltd. Add. : 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China CNAS Registration No.: L7649; FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U炻where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2炻providing a level of confidence of approximately 95 %ˤ No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±2.88dB 2 Conducted Emission (150KHz-30MHz) ±2.67dB 3 RF power,conducted ±0.70dB 4 Spurious emissions,conducted ±1.19dB 5 All emissions,radiated(<1G) 30MHz-200MHz ±2.83dB 6 All emissions,radiated(<1G) 200MHz-1000MHz ±2.94dB 7 All emissions,radiated(>1G) ±3.03dB 8 Temperature ±0.5°C 9 Humidity ±2% age 8 of 29 Report No.: STS1508114F01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Activity tracking sensor Trade Name MIVATEK Model Name ADS1301 Serial Model ADS1302,ADS1303 Model Difference Only different in model name Channel List Please refer to the Note 2. Frequency band 433.92MHz Power Rating DC 3V Hardware version number -- Software versioning number -- Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. age 9 of 29 Report No.: STS1508114F01 2. Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 433.92 3. Table for Filed Antenna Ant Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 MIVATEK ADS1301 ceramic NA -4 Antenna The EUT antenna is ceramic Antenna. no antenna other than that furnished by the responsible party shall be used with the device. age 10 of 29 Report No.: STS1508114F01 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre -scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration m…

Text truncated - open the document above for the full version.

SRD Setup photo SRD radiation L SRD radiationH
