2AE59IPC07WiFi Home Monitor

MivaTek Limited
WiFi Home Monitor - FCC ID 2AE59IPC07 - MivaTek Limited
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 08, 2015
Application Purpose
Original Equipment
Date of Application
Oct 07, 2015
Equipment Note
WiFi Home Monitor
Frequency Range
2412.00000000 - 2462.00000000
Company
MivaTek Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WiFi Home Camera User Manual IPC2202 MivaTek | 1 English Names of Parts Lens LED Indicator Micro USB Port Mode Button Speaker Reset Button microSD Card Slot Stand 2 | English 1. Insert a microSD Card (suggested class 10, up to 64GB). For initial use, mobile device needs to: 1. Connects to internet (via WiFi, 3G/4G). 2. Download and install App [Unieye Home] from Google Play Store or Apple App Store. Getting Started 2. Power on: Plug a USB power cable into one of • PC USB port • USB output adapter Unieye Home Mobile device connects to smart WiFi Home Camera directly via App [Unieye Home] for remote control, live view, Widget display and receives push alerts when events are detected. Modes Switch in Camera Led indicator shows network connection status. Press to switch. • Steady purple for direct control • Steady blue for Internet control Camera needs to: Led Indicator | 3 English Wireless & App Operation Run App [Unieye Home] on mobile device and navigate either one of modes: (I) Internet Mode - Internet (II) Local Mode - Direct control Unieye Home Internet Mode Local Mode 【 Local Mode 】 (I) 【 Internet Mode 】 (II) Mobile Local Camera Status: Purple Status: Blue Unieye Server AP 3G/4G Mobile Hotspot Wireless Router AP Camera 3G/4G Mobile Wireless Router AP Mobile Internet Mobile device directly connects to camera via WiFi for remote control, live view, pan angel change, camera setup and receives push alerts when noise and motion events are detected. Mobile device connects to camera via internet for remote control, live view, pan angel change, camera setup, push notification, Widget display and the instant live view from partner's camera. 4 | English Mobile Device Connects to Camera 1. For Android: Turn on [Wi-Fi]. For iOS: Go to [Settings] [Wi-Fi]. Turn on [Wi-Fi] and select the camera name. 2. Run [Unieye Home]. 3. Tap 【 Local 】 and select the camera to enter View Page. Tap [ ] to scan again if camera is not found. Note: For first use, password setting is required. iOS Settings H3-00000001 Before using 【 Internet Mode 】 on mobile App, ensure WiFi on mobile device is on and network indicator on camera shows steady purple. Remote Control Page Internet Mode Main Page 【 Internet Mode 】 1. Run [Unieye Home] and tap . 2. Tap Add Camera in list. Enter camera ID and password. Add Camera Before adding a configured camera or using another mobile, ensure the camera is in 【 Internet Mode 】 and status indicator shows steady green. | 5 English Remote Control: Advance Setup: ItemsDescriptions Talk to camera from mobile. Mute the sound from camera. Shoot videos or take photos and save to storage on mobile "Album\Unieye Home\“ ItemsDescriptionsItemsDescriptions Rescan for camerasDelete camera Switch to local modeTip for help Add cameraAbout 1. Go to [Setup] [ Internet Settings ] Edit Email and AP 2. Tap [Save] to complete Email & AP settings. Camera Internet Setup Before using internet cloud service, Email and AP must be properly set up. Note: AP(Access Point) can be • Wireless Router or • 3G/4G Mobile Wireless Router or • 3G/4G Mobile Hotspot AP AP AP AP AP AP AP AP AP Wireless Router 3G/4G Mobile Wireless Router 3G/4G Mobile Hotspot 6 | English Cloud Video Recording Widget displays on mobile desktop Cloud Video Recording (CVR) saves videos and images in your cloud account. For initial use, cloud account should be authenticated. Widget is a small tool for Android devices that real tim shows alert inforamtion on Mobile desktop. 1. Go to [Setup] Turn on [Save to CVR] 2. Select a cloud account and enter account information. 3. Tap Save on [Setup] page to activate CVR function. 1. Add an Unieye Home Widget. 2. On widget setting page, select a camera and adjust photo fetch interval. 3. Tap [Confirm] to create the Widget on mobile desktop. Photos on widget update regularly or when events detected. Push Alert When camera is in 【 Internet Mode 】 and events are detected, Push alerts and Email will be sent to mobile device. | 7 English Note: Record event clips only when mobile device did not connect to camera. GroupsDescriptions Camera Settings Edit name, password. Format SD card. Adjust night vision, noise detection, motion detection, image rotation, etc. Internet Settings Edit Email and AP for 【 Internet Mode 】 . Events (for camera) In [Setup] Page, tap [Save] to complete settings to camera. Tap [ ] and select [Local Mode] to switch to Local Mode . ItemsDescriptions Camera Videos View or delete recorded video files saved in camera SD card during motion and noise detection. Setup (for camera) 【 Local Mode 】 Local Mode Main Page Remote Control Page 8 | English ConditionStatus IndicatorBeep Power On Flash for few seconds, then turn to steady purple. 1 time 【 Local Mode 】 Steady purple (For 1st use, Indicator flashs for few seconds, then turn to steady purple) N/A 【 Internet Mode 】 Steady blueN/A Power OffNo indication1 time Low BatteryFlash in red 2 times Fail connect to 【 Internet Mode 】 Flash in blue for few seconds, then turn to purple N/A Factory ResetNo change3 times Camera Hotkey Forced Shutdown Press and holdfor 5 seconds to turn off camera. Forced Factory Settings • Camera: Open the top cover. Insert a small thin paper clip into the hole and press lightly to reset. • Mobile: Go to App [Unieye Home] Connect 【 Local Mode 】 [Setup] page Reset factory settings. Camera Indication Camera Hotkey | 9 English SituationCause/Solution Camera cannot turn on Unplug power adapter, then plug again to power on. Camera is frozen Unplug power adapter, then plug again to power on. Camera cannot record • No microSD card or microSD card is full • microSD card cannot be recognized • Format microSD card in [Unieye Home] or replace microSD card Camera cannot connect to AP or could server • Invalid AP name or password • Weak WiFi signal or not in WiFi coverage • No internet or cloud server is not accessible • Blocked by firewall Mobile cannot find Camera • Camera not in WiFi coverage • Mobile WiFi is disabled • iOS user does not cho…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date: October 6, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: 2AE59IPC07 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 60 days. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : MivaTek Limited Address : 5/F, SPA Centre 53-55 Lockhart Road, Wanchai, Hong Kong Signature : _________________________________ Name and Job Title. : Louis Chen/ Engineer E-mail : [email protected]

Cover Letter(s)

Date: 2015/10/6 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: 2AE59IPC07 Product name: WiFi Home Monitor To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model IPC2202 to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. Name : Kevin Liang Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : MivaTek Limited Address : 5/F, SPA Centre 53-55 Lockhart Road, Wanchai, Hong Kong Signature : _________________________________ Name and Job Title. : Louis Chen/ Engineer E-mail : [email protected] Tel. : +886 2 22188298

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: October 6, 2015 Subject: FCC Application for FCC ID: 2AE59IPC07 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : MivaTek Limited Address : 5/F, SPA Centre 53-55 Lockhart Road, Wanchai, Hong Kong Signature : _________________________________ Name and Job Title. : Louis Chen/ Engineer E-mail : [email protected] Tel. : +886 2 22188298

External Photos

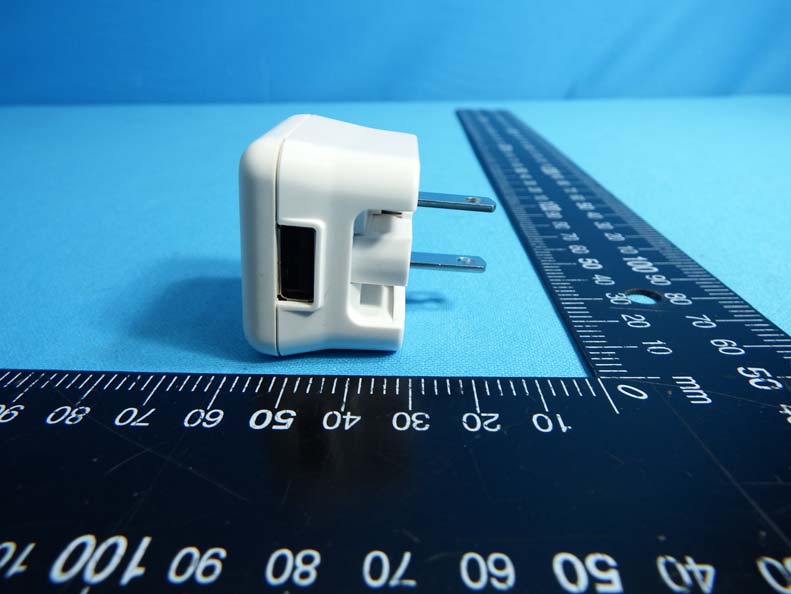

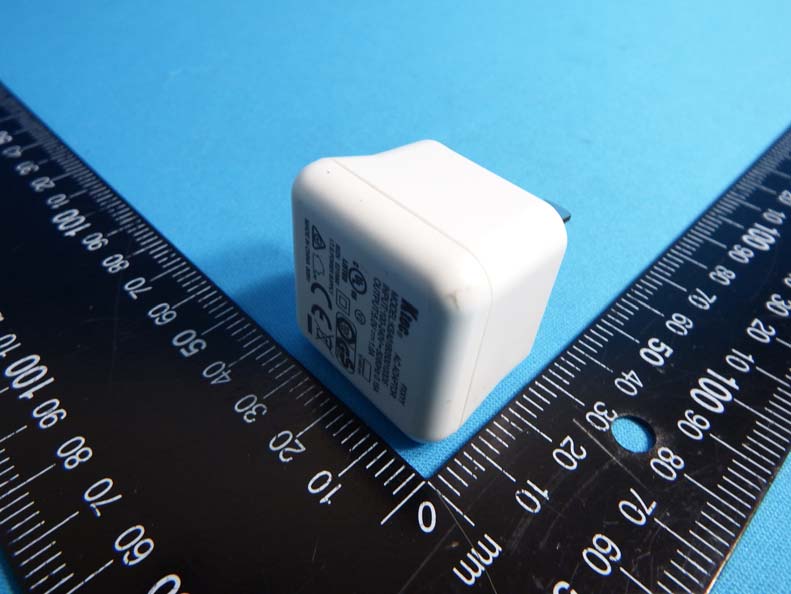

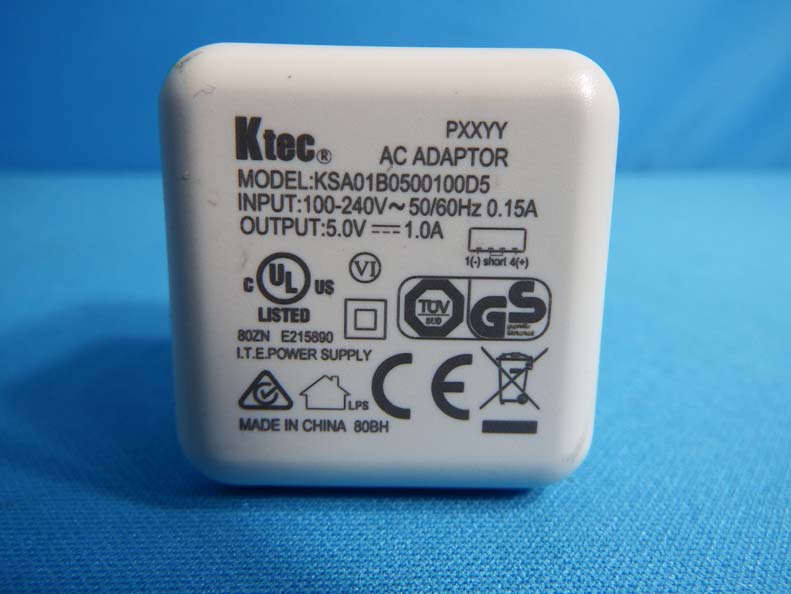

Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B1 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 White Appendix B. Photographs of EUT Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B2 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B12 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B13 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B14 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Adapter (1) SC050100-US Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B15 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B16 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Adapter (2) KSA01B0500100D5 (Add) Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B17 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B18 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Adapter (3) KSA29B0500200D5 (Add) Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B19 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B20 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Black Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B21 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B22 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B23 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B24 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B25 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Adapter (1) SC050100-US Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B26 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Internal Photos

Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B3 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B4 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B5 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 IC Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B6 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B7 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B8 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B9 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B10 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP541008-01 SPORTON International Inc. PAGE NUMBER : B11 of B26 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

RF Exposure Info

FCC EMF Test Report Report No. : FA541008-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA541008-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.2 Result of Maximum Permissible Exposure (2.4G) RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 20.80 2400-2483.5 g 2412-2462 1-11 [11] 1 19.81 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) DG (dBi) EIRP Power PD (S) (mW/cm²) b 1 20.80 2.31 23.11 0.04071 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

Test Report

FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 44 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : WiFi Home Monitor Brand Name : MivaTek Model No. : IPC2202 FCC ID : 2AE59IPC07 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant : MivaTek Limited 5/F SPA Centre 53-55 Lockhart Road Wanchai, Hong Kong Manufacturer : Chicony Electronics (Dong Guan ) Co.,Ltd. San Zhong Guan Li Qu, Qingxi Town, Dongguan City Guangdong 523651 China The product sample received on Apr. 13, 2015 and completely tested on Sep. 01, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 44 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 7 1.3 Support Equipment ................................................................................................................................. 7 1.4 Testing Applied Standards ..................................................................................................................... 7 1.5 Testing Location Information .................................................................................................................. 7 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ........................................................................................ 9 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Transmitter Bandedge Emissions ........................................................................................................ 23 3.6 Transmitter Unwanted Emissions......................................................................................................... 26 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 43 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : 3 of 44 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.4957480MHz 44.01 (Margin 12.06dB) - QP 41.08 (Margin 4.99dB) - AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 8.07 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 24.69 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/100kHz]: -3.90 PSD [dBm/3kHz]:8 Complied 3.5 15.247(d) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2398.48 MHz: 26.89dB Restricted Bands [dBuV/m at 3m]: 2389.97MHz 71.57 (Margin 2.43dB) - PK 52.12 (Margin 1.88dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4874MHz 55.16 (Margin 18.84dB) – PK 51.66 (Margin 2.34dB) – AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : 4 of 44 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR541008 Rev. 01 Initial issue of report Jul. 24, 2015 FR541008-01 Rev. 01 1. Add two adapters 2. Change information of Client Sep. 30, 2015 2500-2690 FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : 5 of 44 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Gener…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos 1. Photographs of Conducted Emissions Test Configuration Mode3 Front view Rear view FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Side view FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode3 Front view Rear view FCC Test Report Report No. : FR541008-01 SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode1 Front view Rear view

Contact Information

Applicant

Louis Chen(Engineer)
[email protected]+886 2 22188298Fax: +886 2 22188318

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz294.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
