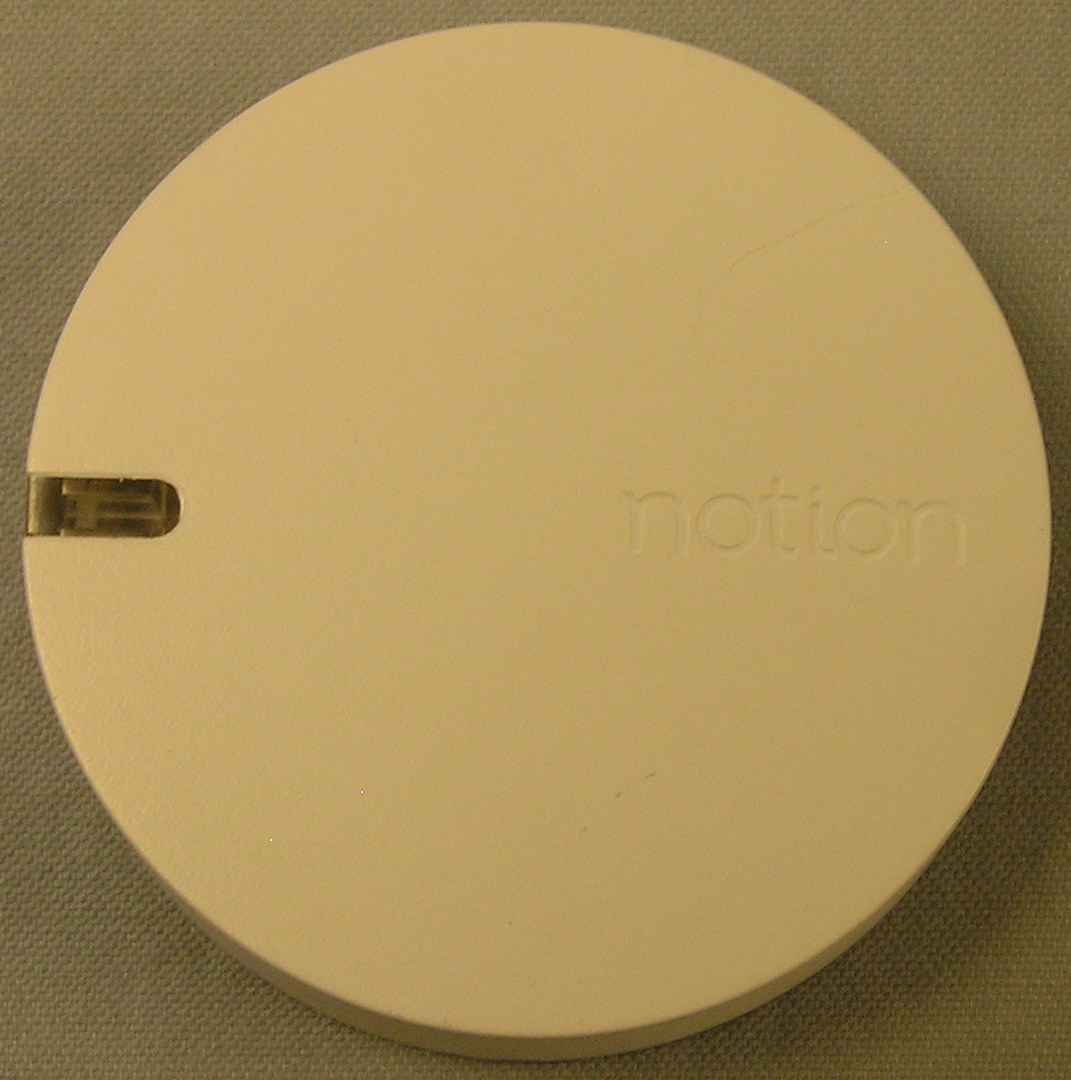

2AE5C-5280-S1Notion-Sensor

Questions? Go to getnotion.com/help for support. 0304 Follow the app’s instructions to set up your sensors. Place your sensors following the on-screen tips. 0102 Tap in the Notion app to open the settings menu. From the settings menu, select “Add new sensor.” This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC and IC RF (Radio Frequency) exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum separation distance of 20 centimeters between the device/antenna and the user's head/body. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. CAN ICES-3 (B)/NMB-3(B) A few details. Box may contain equipment pertaining to: FCC ID: 2AE5C-5280-S1 and IC: 20391-5280S1

Quick Start Guide 01 Plug the bridge into any centrally located power outlet. Your new bridge needs some juice to wake up from its nap before you get started. 02 Download the Notion app. Visit the Apple App Store, the Google Play Store, or getnotion.com/app to download the Notion app on your smartphone. 03 Register your account. Sign up and follow the instructions to set up your Notion sensors. 04 Stay connected to your home. Set up custom alerts tailored to your home. Let Notion focus on the little stuff, so you can focus on the things you love. Need help? Call us at (877) 668-4660 Email us at [email protected] Tweet us @notion Box may contain equipment pertaining to: FCC ID: 2AE5C-5280-S1 and IC: 20391-5280S1 | FCC ID: 2AE5C-5280-B1 and IC: 20391-5280B1 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC and IC RF (Radio Frequency) exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum separation distance of 20 centimeters between the device/antenna and the user’s head/body. Caution: Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES-3 (B)/NMB-3(B) In order to comply with the maximum permissible exposure (MPE) limit for radio frequency (RF) energy allowed by both the FCC and IC, the bridge must be placed no closer than 20 cm to the operator during normal operatione placed no closer than 20 cm to the operator during normal operation Afi n de se conformer à l’exposition tolérée (EMT) limite maximale pour la fréquence radio (RF) a permis à la fois par la FCC et IC , le pont doit être placé pas moins de 20 cm à l’opérateur pendant le fonctionnement normal . Happy Monitoring!

Block Diagram - Sensor CC2538 f = <2405 – 2480 MHz > RF-P RF-N PA LNA Frequency Synthesizer f _internal = <4810 – 4960 MHz> f_output = <2405 – 2480 MHz> IQ I Q Clock Mux 16 MHz RC OSC 32 kHz RC OSC 32 .768 kHz Crystal Osc (unused) 32 MHz Crystal Osc LPF DAC DAC I Q Modulator AAF ADC ADC ADC _CLK Demodulator Radio Data Interface and Control Logic ARM Cortex-M3 LEDs Photo and Resistance Detectors BMX055 Accel /Gryo/ Mag Amp Piezo Element Buf I Q Block Diagram of Sensor showing all oscillators and functional blocks where they reside

DATE : July 8th, 2015 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Pat Schroepfer of EMC Integrity at 1736 Vista View Drive, Longmont, CO 80504 to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides (company name and address). Dated this 8 Day of July 20 15 Agency agreement expiration date: July 8 th , 2016 By: Ryan Margoles Signature Printed Title: Co-Founder, CTO On behalf of : Loop Labs, Inc. dba Notion Telephone: 303-875-7176

Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: 2AE5C-5280-S1 Product Name: Sensor Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commissions rules, we hereby request that the following documents be held confidential: • Schematics • Bill of Materials These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 27th Day of August 20 15 By: Ryan Margoles Signature Printed Title: Co-Founder, CTO On behalf of : Loop Labs, Inc. dba Notion Telephone: 303-875-7176

Sensor Label with Markings and Placement Location

Design Note DN0007 2.4 GHz Inverted F Antenna By Audun Andersen Keywords • CC2400 • CC2420 • CC2430 • CC2431 • CC2500 • CC2510 • CC2511 • CC2550 • CC2520 • CC2480 • PCB Antenna • 2.4 GHz • Inverted F Antenna 1 Introduction This document describes a PCB antenna design that can be used with all 2.4 GHz transceivers and transmitters from Texas Instruments. Maximum gain is measured to be +3.3 dB and overall size requirements for this antenna are 25.7 x 7.5 mm. Thus, this is a compact, low cost and high performance antenna. SWRU120B Page 1 of 14 Design Note DN0007 Table of Contents KEYWORDS..............................................................................................................................1 1 INTRODUCTION.............................................................................................................1 2 ABBREVIATIONS...........................................................................................................2 3 DESCRIPTION OF THE INVERTED F ANTENNA DESIGN.........................................3 3.1 IMPLEMENTATION OF THE INVERTED F ANTENNA..........................................................3 4 RESULTS........................................................................................................................4 4.1 RADIATION PATTERN..................................................................................................4 4.2 REFLECTION............................................................................................................11 4.3 BANDWIDTH.............................................................................................................11 5 CONCLUSION ..............................................................................................................12 6 REFERENCES ..............................................................................................................13 7 GENERAL INFORMATION..........................................................................................14 7.1 DOCUMENT HISTORY................................................................................................14 2 Abbreviations CC2480 Z-Accel ZigBee Processor EM Evaluation Module IFA Inverted F Antenna ISM Industrial, Scientific, Medical PCB Printed Circuit Board SWRU120B Page 2 of 14 Design Note DN0007 3 Description of the Inverted F Antenna Design Since the impedance of the Inverted F Antenna is matched directly to 50 ohm no external matching components are needed. 3.1 Implementation of the Inverted F Antenna It is important to make an exact copy of the antenna dimensions to obtain optimum performance. The easiest approach to implement the antenna in a PCB CAD tool is to import the antenna layout from either a gerber or DXF file. Such files are included in CC2430DB reference design [1]. The gerber file is called “Inverted_F_Antenna.spl” and the DXF file is called “Inverted_F_Antenna.dxf”. If the antenna is implemented on a PCB that is wider than the antenna it is important to avoid placing components or having a ground plane close to the end points of the antenna. If the CAD tool being used doesn’t support import of gerber or DXF files, Figure 1 and Table 1 can be used. Figure 1. IFA Dimensions H1 5.70 mmW2 0.46 mm H2 0.74 mmL1 25.58 mm H3 1.29 mmL2 16.40 mm H4 2.21 mmL3 2.18 mm H5 0.66 mmL4 4.80 mm H6 1.21 mmL5 1.00 mm H7 0.80 mmL6 1.00 mm H8 1.80 mmL7 3.20 mm H9 0.61 mmL8 0.45 mm W1 1.21 mm Table 1. IFA Dimensions Since there is no ground plane beneath the antenna, PCB thickness will have little effect on the performance. The results presented in this design note are based on an antenna implemented on a PCB with 1 mm thickness. SWRU120B Page 3 of 14 Design Note DN0007 4 Results All results presented in this chapter are based on measurements performed with CC2430DB [1]. 4.1 Radiation Pattern Figure 2 shows how to relate all the radiation patterns to the orientation of the antenna. The radiation patterns were measured with CC2430 programmed to 0 dBm output power. XY plane XZ plane YZ plane Figure 2. How to Relate the Antenna to the Radiation Patterns SWRU120B Page 4 of 14 Design Note DN0007 Figure 3. XY Plane Vertical Polarization SWRU120B Page 5 of 14 Design Note DN0007 Figure 4. XY Plane Horizontal Polarization SWRU120B Page 6 of 14 Design Note DN0007 Figure 5. XZ Plane Vertical Polarization SWRU120B Page 7 of 14 Design Note DN0007 Figure 6. XZ Plane Horizontal Polarization SWRU120B Page 8 of 14 Design Note DN0007 Figure 7. YZ Plane Vertical Polarization SWRU120B Page 9 of 14 Design Note DN0007 Figure 8. YZ Plane Horizontal Polarization SWRU120B Page 10 of 14 Design Note DN0007 4.2 Reflection Figure 9. Measured Reflection at the Feed Point of the Antenna Figure 9 show that the IFA ensures less than 10 % reflection of the available power for a bandwidth of more than 300 MHz. A large bandwidth makes the antenna less sensitive to detuning due to plastic encapsulation or other objects in the vicinity of the antenna. 4.3 Bandwidth Another way of measuring the bandwidth after the antenna is implemented on a PCB and connected to a transmitter is to write test software that steps a carrier across the frequency band of interest. By using the “Max hold” function on a spectrum analyzer the variation in output power across frequency can easily be measured. Figure 10 shows how the output power varies on the IFA when the PCB is horizontally oriented and the receiving antenna has horizontal polarization. This measurement was not performed in an anechoic chamber thus the graph shows only the relative variation for the given frequency band. SWRU120B Page 11 of 14 Design Note DN0007 Bandwidth IFA 2.4 2.4835 -60 -50 -40 -30 -20 -10 0 2.22.32.42.52.62.72.8 Frequency [GHz] R e l a ti v e output pow e r [dB ] Output pow er Lower band edge Upper band edge Figure 10. Bandwidth of IFA 5 Conclusion The PCB antenna presented in this document performs well for all frequencies in the 2.4 GHz ISM band. Except for …

Text truncated - open the document above for the full version.

Notion Operational Description for Sensor (model 0001) The sensor is comprised of individual sensing components including audio, light, moisture, and motion sensors, as well as LED indicators connected to a Ti cc2538 SOC, through analog and low frequency digital connections (DC to 100KHz) The cc2538 contains a 32 Khz RC oscillator used for timekeeping, a 16 MHz RC oscillator used to boot and for low power operatoin of an on-board Cortex M3 processor, and a 32 MHz crystal oscillator which may be used to drive the the processor, and is used as a source for the radio circuity of the cc2538. All memory for the CPU is contained on-chip. The sensor is powered from a single 3.0 volt Lithium primary cell, type CR2477N. The cc2538 including all radio functions are directly powered form the battery. The CPU within the Ti cc2538 SOC gathers data from sensor inputs and generates messages of significant events to be transmitted by 802.15.4 radio message. Inside the Ti cc2538 SOC, the FSM submodule controls the RF transceiver state, the transmitter and receiver FIFOs, and the dynamically controlled analog signals. The modulator transforms raw data into I/Q signals to the transmitter digital-to-analog converters (DACs). This is done in compliance with the IEEE 802.15.4 standard. The demodulator retrieves the over-the-air data from the received signal. The amplitude information from the demodulator is used by the automatic gain control (AGC). The AGC adjusts the gain of the analog LNA so that the signal level within the receiver is approximately constant. The frame filtering and source matching supports the FSM in the RF Core by performing all operations needed to do frame filtering and source address matching, as defined by IEEE 802.15.4. The frequency synthesizer (FS) generates the carrier wave for the RF signal. Modulation Process: (per IEEE 802.15.4) Each byte is divided into two symbols of 4 bits each. The least-significant symbol is transmitted first. For multibyte fields, the least-significant byte is transmitted first, except for security-related fields, where the most-significant byte is transmitted first. Each symbol is mapped to 1 of 16 pseudo-random sequences, 32 chips each. The chip sequence is then transmitted at 2 Mchips/s, with the least-significant chip (C0) transmitted first for each symbol. The modulation format is offset – quadrature phase shift keying (O-QPSK) with half-sine chip shaping. This is equivalent to minimum shift keying (MSK) modulation. Each chip is shaped as a half-sine, transmitted alternately in the I and Q channels with one-half chip-period offset. The carrier frequency is generated by a PLL from the 32MHz crystal oscillator. Carrier frequencies in the range from 2405 to 2480 MHz are supported. The carrier frequency will be one of the IEEE 802.15.4-2006 specifies 16 channels within the this range. These channels are numbered 11 through 26 and are 5 MHz apart. The radio generates an RF signal to the antenna matching ntework. The Ti cc2538 SOC and surrounding components are on a PCB with reference ground plane covering all unused area except that surrounding the antenna, as required by the antenna design. The passive antenna matching network is connected to a PCB printed trace 'F' antenna, and no external antenna connection is provided. The maximum antenna gain is 3.3 dBi.

ONE WORLD  OUR APPROVAL www.nemko.com KDB 447498 D01 General RF Exposure Guidance v05r02 (February 7, 2014) 1. Declaration of RF exposure compliance for exemption from routine evaluation limits FCC ID: 2AE5C-5280-B1 Model number: 0001 Manufacturer: Loop Labs, Inc. dba Notion 4.3.1. Standalone SAR test exclusion considerations: During normal operation, user extremities can come within 20 cm of the internal antenna and therefore product is considered as “Portable”. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at Test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) ÷ (min. test separation distance, mm)] × [ � 퐹퐹(퐺퐺퐺퐺퐺퐺)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion Calculation based on the above formula: Separation Distance = 5 mm Conducted Output Power = -8.67 dBm = 0.14 mW Frequency = 2.480 GHz Calculation = (0.14 ÷ 5) × √ 2.480 = 0.044 < 3 The calculation is below the threshold, therefore the product exempt from the SAR test requirements 2. Attestation ATTESTATION: I attest that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned departmental standard(s), and that the radio equipment identified in this application has been subject to all applicable test conditions specified in the departmental standards and all of the requirements of the standards have been met. Signature: Date: August 21, 2015 Name: Vincent W. Greb, Quality Manager, EMC Integrity, Inc. FCC SAR Exemption per KDB 447498

EMC Integrity, Inc. 1736 Vista View Drive Longmont, CO 80504 USA Page 1 of 63 Tel: +1 303-776-7249 Fax: +1 303-776-7314 NVLAP Lab Code 200737-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. EMCI, Inc. is a NVLAP accredited laboratory . Test Report issued under the responsibility of: TEST REPORT FCC Part 15 Radio Frequency Devices Subpart C – Intentional Radiators Report Reference No. ..................... : ETRB50505, Rev. A Compiled by (+ signature) ............... : Kevin Johnson. Approved by (+ signature) ................ : Vincent W. Greb Date of issue .................................... : 31 August 2015 Report Revision ............................... : Initial Release Total number of pages ..................... : 62 Testing Laboratory ......................... : EMC Integrity, Inc. Address ............................................ : 1736 Vista View Drive. Longmont, CO 80504 USA FRN: 0015264914 IC Registration Number: 7726A Tel: +1 303-776-7249 Fax: +1 303-776-7314 Applicant’s name ............................ : Loop Labs, Inc. Address ............................................. : 1530 Blake Street, Suite 220, Denver, CO 80202 Model(s) Tested ............................... : 0001 Test specification: Standard ........................................... : FCC Part 15, Subpart C, , DTS 247 (v03r02), RSS-247 (Issue 1) Test procedure .................................. : ANSI C63.4:2009, ANSI C63.10: 2013 Non-standard test method ................ : N/A TRF Revision .................................... : 31 August 2015 FCC Part 15, Subpart C Report #: ETRB50505, Rev. A Issue Date: 31 August 2015 EMC Integrity, Inc. 1736 Vista View Drive Longmont, CO 80504 USA Page 2 of 63 Tel: +1 303-776-7249 Fax: +1 303-776-7314 Revision History # Description Date - Initial Report Release 21 August 2015 A Corrected RF output power in SAR exemption calculation 31 August 2015 Notices: 1.This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory. 2.The test results presented in this report relate only to the object tested. 3.The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. 4."(See Enclosure #)" refers to additional information appended to the report. 5.Throughout this report a point is used as the decimal separator. 6.Dimensions in English units for convenience only, metric units prevail. FCC Part 15, Subpart C Report #: ETRB50505, Rev. A Issue Date: 31 August 2015 EMC Integrity, Inc. 1736 Vista View Drive Longmont, CO 80504 USA Page 3 of 63 Tel: +1 303-776-7249 Fax: +1 303-776-7314 Table of Contents Revision History ................................................................................................................................................................. 2 Normative References ........................................................................................................................................................ 4 Equipment Under Test (EUT) ............................................................................................................................................. 5 Details: ........................................................................................................................................................................... 5 EUT Configuration ......................................................................................................................................................... 6 EUT Photo(s) ................................................................................................................................................................. 8 Summary of Testing .......................................................................................................................................................... 10 Testing Location ........................................................................................................................................................... 11 Procedural Requirements ............................................................................................................................................ 11 United States ........................................................................................................................................................... 11 Information to the User and Labeling Requirements ................................................................................................... 11 United States ........................................................................................................................................................... 12 Technical Requirements ................................................................................................................................................... 13 Conducted Emissions ....................................................................................................................................................... 13 Mains ............................................................................................................................................................................ 13 Radiated Emissions – Restricted Bands .......................................................................................................................... 14 Restricted Bands 47 CFR 15.205 ............................................................................................................................ 15 Radiated Emission Limit – Restricted Bands ........................................................................................................... 15 DTS - Bandwidth .........…
