2AE5QBL-759Headphone Bluetooth

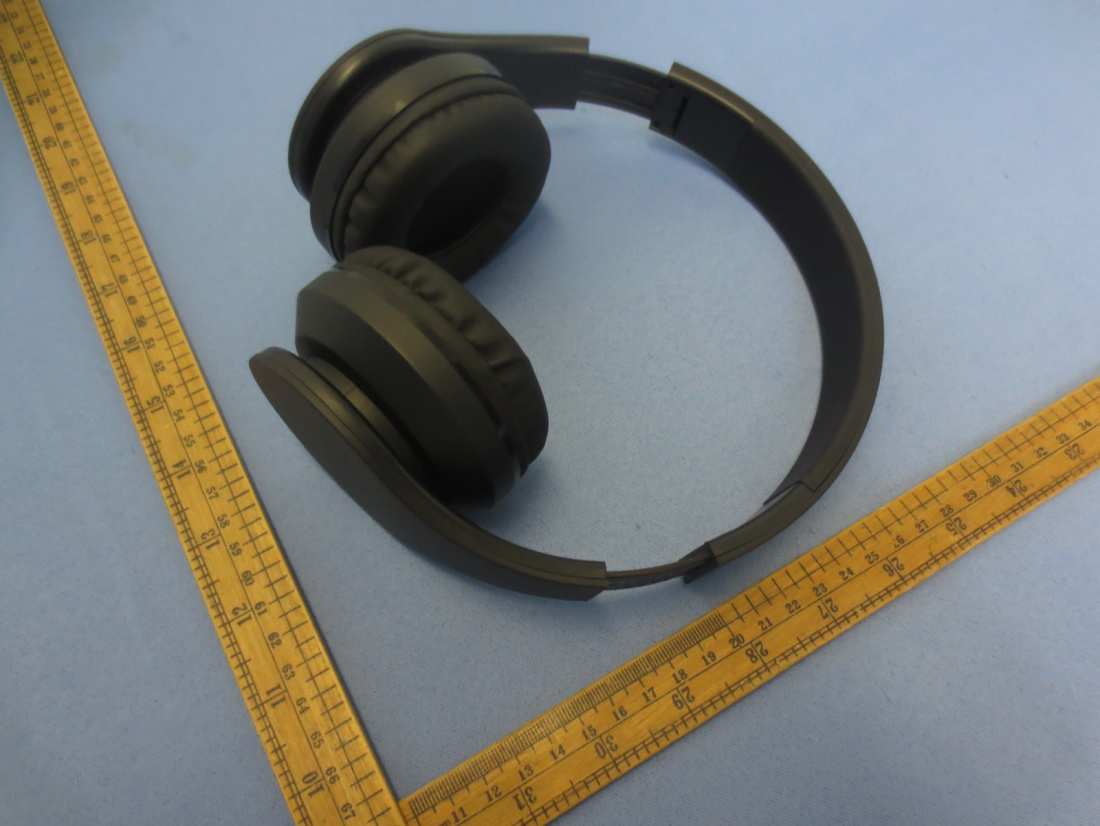

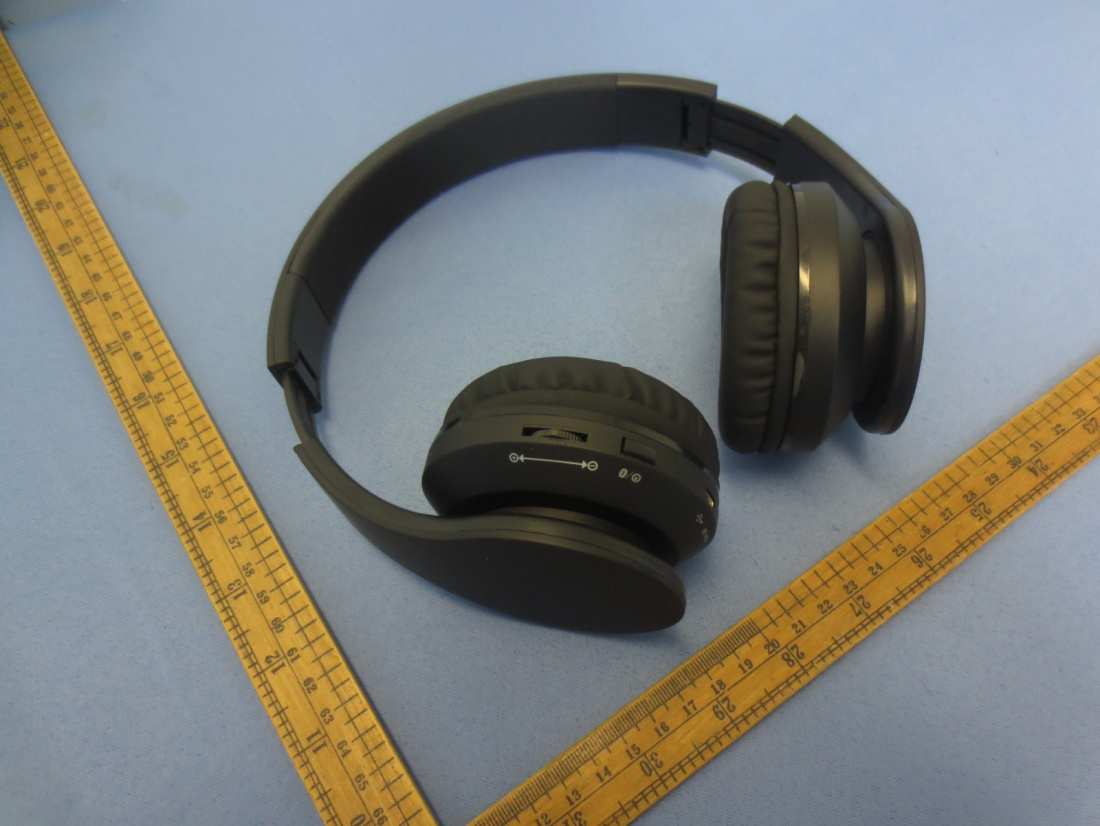

External Photos

Internal photos

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Headphone with Bluetooth function operating in 2402-2480MHz. The EUT is powered by DC 3.7V internal rechar geable battery and can be charged through USB interface. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0 dBi. Modulation Type: GFSK. The nominal conducted output power specified: 3dBm +/-3dB. The maximum tested conducted output power is 4.35d Bm in the frequency 2.440 GHz. The minimum tested conducted output power is 3.66dBm in the frequency 2.480 GHz. According to the KDB 447498: The m aximun conducted output power specified is 6.0 dBm = 4.0mW The source- based time-averaging conducted output power = 4.0 * Duty Cycle mW <= 4.0 mW (Duty Cycle<=100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AE5QBL-759

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_Tx_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Aesonic Electronics Co., Ltd Application For Certification FCC ID: 2AE5QBL-759 Headphone Bluetooth Model: AS-BTHP-15 2.4GHz Transceiver Report No.: 150618014SZN-002 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepared and Checked by: Approved by: Sign on file Powell Bao Engineer Andy Yan Senior Project Engineer Date: August 21, 2015 INTERTEK TESTING SERVICE TRF no.: FCC 15C_TX_b FCC ID: 2AE5QBL-759 Report No.: 150618014SZN-002 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labeling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Miscellaneous Information EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: 2AE5QBL-759 Report No.: 150618014SZN-002 ii MEASUREMENT/TECHNICAL REPORT Aesonic Electronics Co.,Ltd MODEL: AS-BTHP-15 FCC ID: 2AE5QBL-759 This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Bluetooth LE portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-13 Edition] provision. Report prepared by: Powell Bao Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0682 Fax: (86 755) 8614 6751 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: 2AE5QBL-759 Report No.: 150618014SZN-002 iii Table of Contents 1.0 Summary of test results ...................................................................................2 2.0 General Description .................................................................................................. ..4 2.1 Product Description .................................................................................................................................... 4 2.2 Related Submittal(s) Grants ...................................................................................................................... 4 2.3 Test Methodology ....................................................................................................................................... 5 2.4 Test Facility ................................................................................................................................................. 5 3.0 System Test Configuration .................................................................................................................... 7 3.1 Justification ................................................................................................................................................. 7 3.2 EUT Exercising Software ..................................................................................................................... 7 3.3 Special Accessories ............................................................................................................................. 7 3.4 Measurement Uncertainty ................................................................................................................... 7 3.5 Equipment Modification ...................................................................................................................... 8 3.6 Support Equipment List and Description ............................................................................................. 8 4.0 Measurement Results .............................................................................................................................10 4.1 Maximum Conducted Output Power at Antenna Terminals.................................................................10 4.2 Minimum 6 dB RF Bandwidth......................................................................................11 4.3 Maximum Power Density Reading.................................................................................14 4.4 Out of Band Conducted Emissions....................................…

Text truncated - open the document above for the full version.
