2AE66-KGTM24Commentary Transmitter

The KRUSEGO Multilingual System OPERATING INSTRUCTIONS PLEASE READ THIS IMPORTANT INFORMATION BEFORE USING THE KRUSEGO SYSTEM CHARGING THE KRUSEGO RECEIVERS When charging the KRUSEGO Receivers, ALWAYS ENSURE THE CASE IS OPEN. If the case lid is closed during recharging the air movement restriction will cause heat build-up and result in overheating and render the system unusable. Note: When charging, a red light glows in the headphone connector socket. When fully charged the red light goes out. KRUSEGO RECEIVERS When placing the KRUSEGO Receivers in and out of the recharger, they simply slot in with a VERY GENTLE push. Do not force the KRUSEGO Receivers into the recharger case as this will break the connectors in the base of the recharger case. If a connector breaks it cannot be replaced easily. THE KRUSEGO TOUR MASTER SETTING UP FOR EACH TOUR 1. Attach and lock the KRUSEGO Tour Master and suction mount to the vehicle windscreen by turning the levers on the base of the suction mount until they click and lock into place 2. Squeeze two of the vertical the X-GRIP levers to open the X-GRIP and insert the KRUSEGO Tour Master as demonstrated in the picture. Once released, the X-GRIP will hold the KRUSEGO Tour Master as shown in the bottom picture. 3. Turn on the KRUSEGO Tour Master using the ORANGE Power button at the bottom left of the keypad. The KRUSEGO Tour Master will now display “SYSTEM READY”. Push the BLUE “TOUR” Button. The display will now read “SELECT TOUR” with the default “NONE”. Push the ARROW UP button until the desired tour is reached. Press the PLAY/PAUSE Button and the display will now read “ON TOUR” for the selected tour. Shortly the screen will blink intermittently; this is “power save mode” to save battery power. 4. When the KRUSEGO Tour Master has obtained GPS lock, the GPS Icon at the top right of the screen display will change from GPS X to GPS . 5. When the KRUSEGO Receivers have been turned on, set to the required tour and languages, given to the passengers and the tour is ready to commence. (Instructions for setting up the KRUSEGO Receivers for a tour are on the following pages) If the selected tour commences with manually triggered “INTRODUCTION” commentary, the procedure to manually play the Introduction commentary is as follows:  Push the SAFETY button at the bottom right of the KRUSEGO Tour Master. If the display is flashing, the KRUSEGO Tour Master is in “power save mode”. To activate and play an Introduction commentary in “power save” mode, push the Safety button 2 X until the display shows “Select Safety Msg”. Use the ARROW UP and ARROW DOWN buttons to scroll through the list of manually triggered commentaries until the desired “INTRODUCTION” commentary is displayed.  Firmly push the BLUE Play/Pause button ONCE to play the “INTRO” commentary. “Triggered” appears in the display to confirm the instruction to play the “INTRO” commentary has been transmitted to the KRUSEGO Receivers. Once activated, the KRUSEGO Tour Master Screen will revert to blinking and display “ON TOUR” and the selected tour and the GPS status. GPS COMMENTARY TRIGGERING When GPS Lock is obtained (GPS ) the KRUSEGO Tour Master will automatically send the instruction to the KRUSEGO Receivers to play the commentary relating to the vehicle’s location as the vehicle passes through a GPS trigger point. MANUAL COMMENTARY TRIGGERING All manually triggered commentaries are stored under the SAFETY button. To activate ANY manually triggered commentary the procedure is basically the same as Step 6 above. i.e. Push the SAFETY button at the bottom right of the KRUSEGO Tour Master. If the display is flashing, the KRUSEGO Tour Master is in “power save mode”. To activate and play any manually triggered commentary when the KRUSEGO Tour Master is in “power save mode”, push the Safety button 2 X until the display shows “Select Safety Msg”. Use the ARROW UP and ARROW DOWN buttons to scroll through the list of manually triggered commentaries until the required commentary is displayed. Once the required commentary is displayed, firmly push the BLUE Play/Pause button ONCE to play the selected commentary (“triggered” appear in the display to confirm the instruction to play the selected commentary has been transmitted to the KRUSEGO Receivers). Once activated, the KRUSEGO Tour Master Screen will revert to blinking and display “ON TOUR”, the selected tour and the GPS status. THE KRUSEGO RECEIVERS SETTING THE LANGUAGE 1. Turn the KRUSEGO Receivers on by SIMULTANEOUSLY pushing the MENU and POWER buttons. The KRUSEGO Receivers screen will default to “Select Tour” and one of the tour names”. 2. Scroll through the tours using the volume up/volume down button until the desired tour is displayed. Then press the MENU Button to confirm the tour. 3. The screen will now display SELECT Language and the last language that the KRUSEGO Receiver was set too. 4. Use the “Volume Up” and “Volume Down” buttons to toggle though the languages until the desired language is displayed. Once the desired language is displayed, push the MENU button to confirm the language choice. The Kruse Receiver screen will display the word “READY” and is now set for the tour. Note: If the receivers are collected back partway through the tour and placed back in the recharger they will automatically turn off. When resuming the tour, STEPS 1 and 2 to set the language will need to be configured again. SETTING THE VOLUME 1. To adjust the volume, use the Volume up and Volume down buttons. The Kruse Guide screen will display the volume level as it is changed 2. At the end of each tour, the Kruse Master Controller and Kruse Receivers are shut down either by holding the POWER button (the display will show “SHUTDOWN” and then count down 3 seconds before finally powering off) or simply place the Kruse Master Controller and Kruse receivers into the recharger and they will shut down automatically. FCC Compliance This device complies with part 15 of the FCC rules and regu…

Text truncated - open the document above for the full version.

KRUSE MULTILINGUAL SYSTEMS LIMITED PO BOX 41169 ST LUKES AUCKLAND 1346 6 th July 2015 EMC Technologies (NZ) Ltd PO Box 68-307, Newton Auckland 1145 New Zealand Re: Authorisation to Act for Kruse Multilingual Systems Limited for FCC Certification Dear Mr Cutler, Kruse Multilingual Systems Limited wishes to appoint Andrew Cutler, Managing Director of EMC Technologies (NZ) Ltd to act on its behalf to obtain formal IC and FCC certification of our KRUSEGO Tour Master transmitter. Any correspondence or additional information can be requested from me c/o: [email protected] Kind regards Jonathan Kruse Managing Director

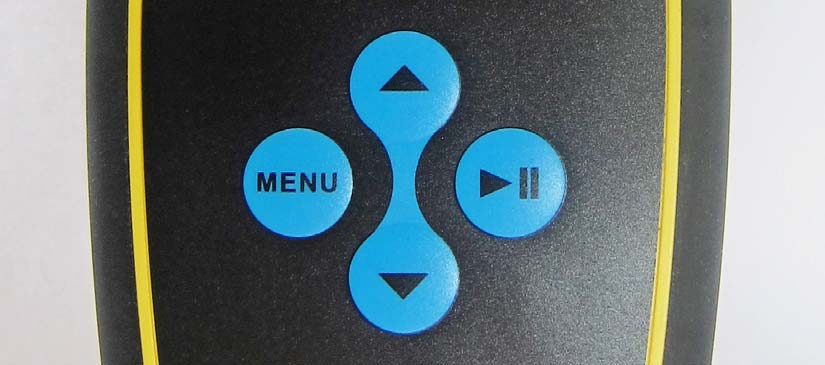

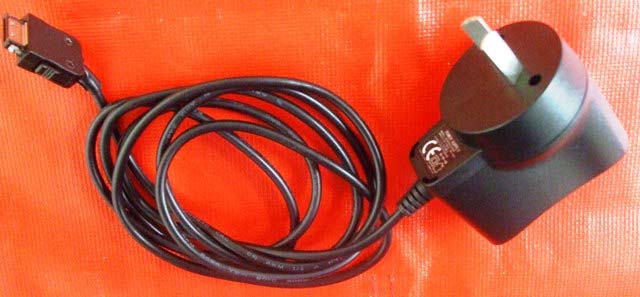

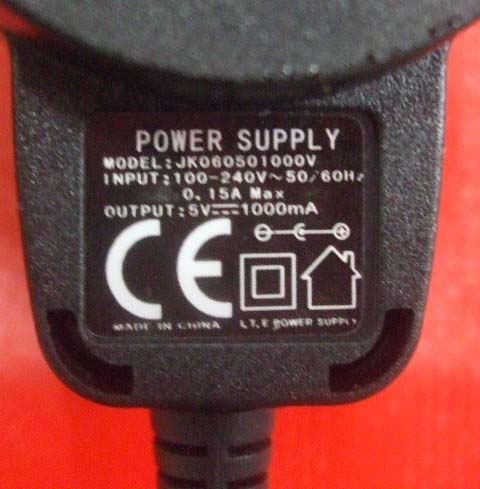

____________________________________________________________________________________________________________________________________________________________________________ Page 23 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. 9. PHOTOGRAPHS External photos ____________________________________________________________________________________________________________________________________________________________________________ Page 24 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 25 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Unique antenna connector – Reverse SMA connector

FCC Labeling Standard warning text will not be placed on label as small size of text would make it very difficult to read. Figure 4: Tour Master Label Placement Figure 5: Label Placement

____________________________________________________________________________________________________________________________________________________________________________ Page 26 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Internal Photos ____________________________________________________________________________________________________________________________________________________________________________ Page 27 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full.

____________________________________________________________________________________________________________________________________________________________________________ Page 21 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Section 15.247(i) – Radio Frequency Hazard Information As per Section 15.247 (i) spread spectrum transmitters operating in the 2400 – 2483.5 MHz band are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). In accordance with Section 1.1310 this device would be classed as a portable device and therefore Section 2.1093 will apply. Section 2.1093 requires SAR measurements to be carried out. A SAR evaluation has been carried out in accordance with KDB Publication 447498 D01 General RF Exposure Guidance v05 dated October 24, 2012. Clause 4.3.1 1 has been applied to this device as the power output is very low. The highest output power observed from this device was +9.5 dBm or 8.91 mW when transmitting on 926.800 MHz. The 1-g SAR threshold level was calculated using a safe distance of 5 mm 1-g SAR = (8.91 mW / 5 mm) * (√ 0.9268 GHz) = 1.72 The 1-g SAR threshold level, for distances < 50 mm, is < 3.0. The device will therefore meet the requirements of Section 2.1093 without any further testing falling below the 1-g SAR threshold level. Result: Complies.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307, Newton Auckland 1145 New Zealand Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Kruse GO Tour Master Transmitter tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Section 15.247 - Operation in the band 902 – 928 MHz for Kruse Multilingual Systems Ltd This Test Report is issued with the authority of: ______________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 4 5. DESCRIPTION OF TEST SYSTEM 4 6. RESULTS 5 7. TEST EQUIPMENT USED 22 8. ACCREDITATIONS 22 9. PHOTOTGRAPHS 23 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The Kruse GO Tour Master Transmitter complies with FCC Part 15 Subpart C Section 15.247 as an Intentional Radiator when the methods as described in ANSI C63.4 - 2003 are applied along with the methods defined in FCC Public Notice DA 00-705. 2. RESULTS SUMMARY The results of testing carried out between September 12 th and September 17 th 2013 are detailed below: Clause Parameter Result 15.201 Equipment authorisation requirement Certification required. 15.203 Antenna requirement Complies. An external whip with a unique connector has been used. 15.204 External PA and antenna modifications Noted. 15.205 Restricted bands of operation Complies. 15.207 Conducted limits Complies. 15.209 Radiated emission limits Noted. See 15.247 requirements. 15.247 (a)(1) Hopping channel separation Complies (a)(1)(i)(iii) Channel occupancy / Bandwidth Complies (b)(1)(2) Peak output power Complies (b)(4) Antenna gain less than 6 dBi Complies (d) Out of band emissions Complies (g) Use of all channels Not applicable (h) Intelligent frequency hopping Not applicable (i) Radio frequency hazards Complies ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. 3. INTRODUCTION This report describes the tests and measurements performed for the purpose of determining compliance with the specification. The client selected the test sample. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. 4. CLIENT INFORMATION Company Name Kruse Multilingual Systems Ltd Address PO Box 41169 St Lukes City Auckland 1346 Country New Zealand Contact Mr Shaun O’Donnell 5. DESCRIPTION OF TEST SYSTEM Brand Name Kruse Model Number GO Product Tour Master Transmitter Manufacturer Kruse Multilingual Systems Ltd Country of Origin New Zealand Serial Number Sample not serialized FCC ID 2AE66-KGTM24 ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Product Description The system tested consists of one master unit, the unit under test, and one or many receiver units. Both the master unit and the receiver are powered using re-chargable lithium polymer battery packs at 3.7 Vdc. The playing of audio commentaries held on the receivers is triggered by a pulse from the master unit. This pulse can be generated automatically by the master unit assessing its location using a GPS receiver or manually by the operator using the keypad on the master unit. When a pulse is activated it consists of 100 messages which are approximately 7 ms long which gives a total transmission time of approximately 700 ms. Testing was carried out in a test mode with a pulse being transmitted automatically once every 2 seconds to give a worst case scenario. Band of Operation: 902 – 928 MHz Modulation: Frequency hopping spread spectrum Number of channels: 50 Operating frequencies: 922.000 – 926.900 MHz Channel spacing: 100 kHz Rated Conducted Power: +10 dBm (10 mW) Frequencies in use: Microcontroller 16.000 MHz, Audio Decoder 12.288 MHz RF Module 30.000 MHz LCD power supply 4.000 MHz Main power supply 850.0 kHz Antenna Type: Half wave dipole Power Supply: 3.7 Vdc internal lithium polymer battery pack Ports: Battery charging port Antenna port RF Module Hope RF RFM22B Transceiver ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. 6. RESULTS Standard The sample was tested in accordance with 47 CFR Part 15 Subpart C and in particular section 15.247 Methods and Procedures The following measurement methods and procedures have been applied: - ANSI C63.4 – 2003 - FCC Public Notice DA 0…

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 28 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Radiated Emission Test Set Up Standing up right ____________________________________________________________________________________________________________________________________________________________________________ Page 29 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Laying Flat Laying on its side ____________________________________________________________________________________________________________________________________________________________________________ Page 30 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Radiated emissions test set up photos – Below 30 MHz Radiated emissions test set up photos – Above 30 MHz ____________________________________________________________________________________________________________________________________________________________________________ Page 31 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full. Conducted Emissions Test Set Up ____________________________________________________________________________________________________________________________________________________________________________ Page 32 of 32 Test Report No 130901.1 26 h September 2013 This report may not be reproduced except in full.
