2AE8V-NOTHING1Smart Watch

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022/11/8 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AE8V-NOTHING1 NOTHING1 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Tao Cheng / General Manager Company: SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. Address: No.6 Building, Longfu Industrial Area, Huarong Road, Dalang Street, Longhua, Shenzhen, 518000, China Phone: +86 755 86599086 Fax: +86 755 86599100 E-Mail: [email protected]

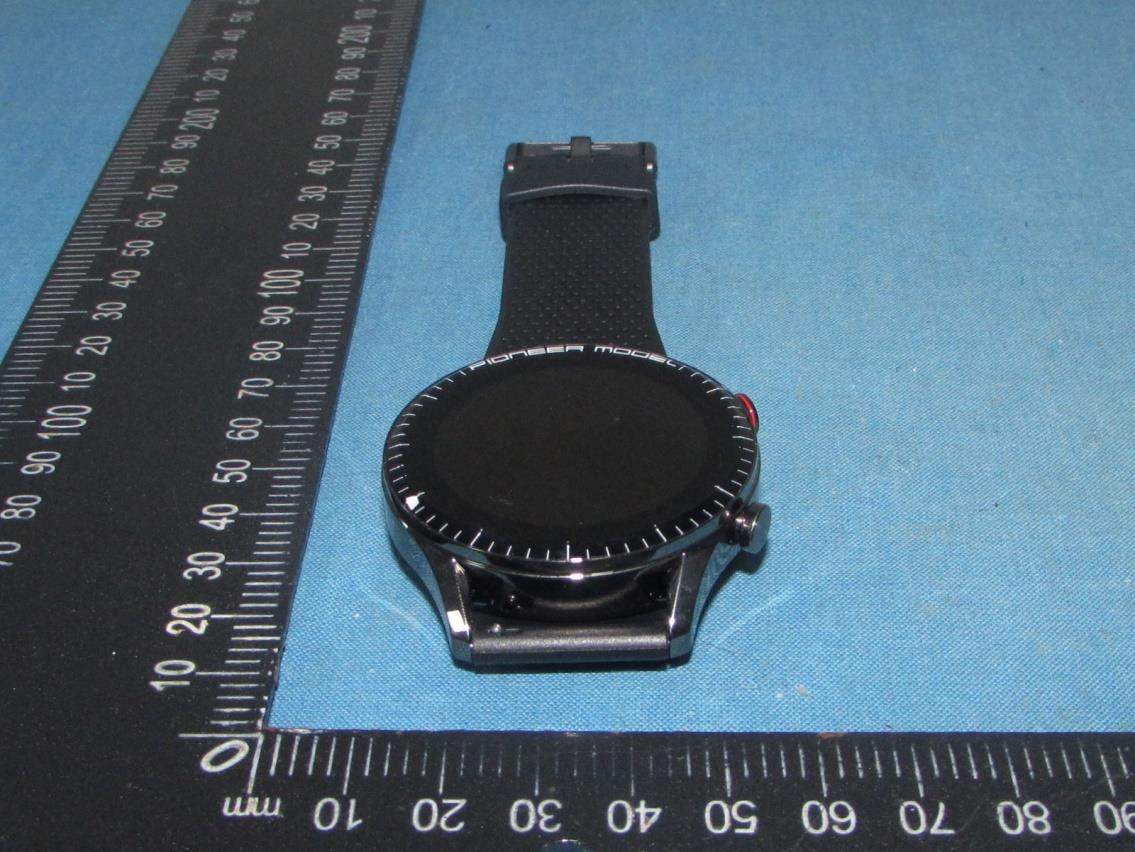

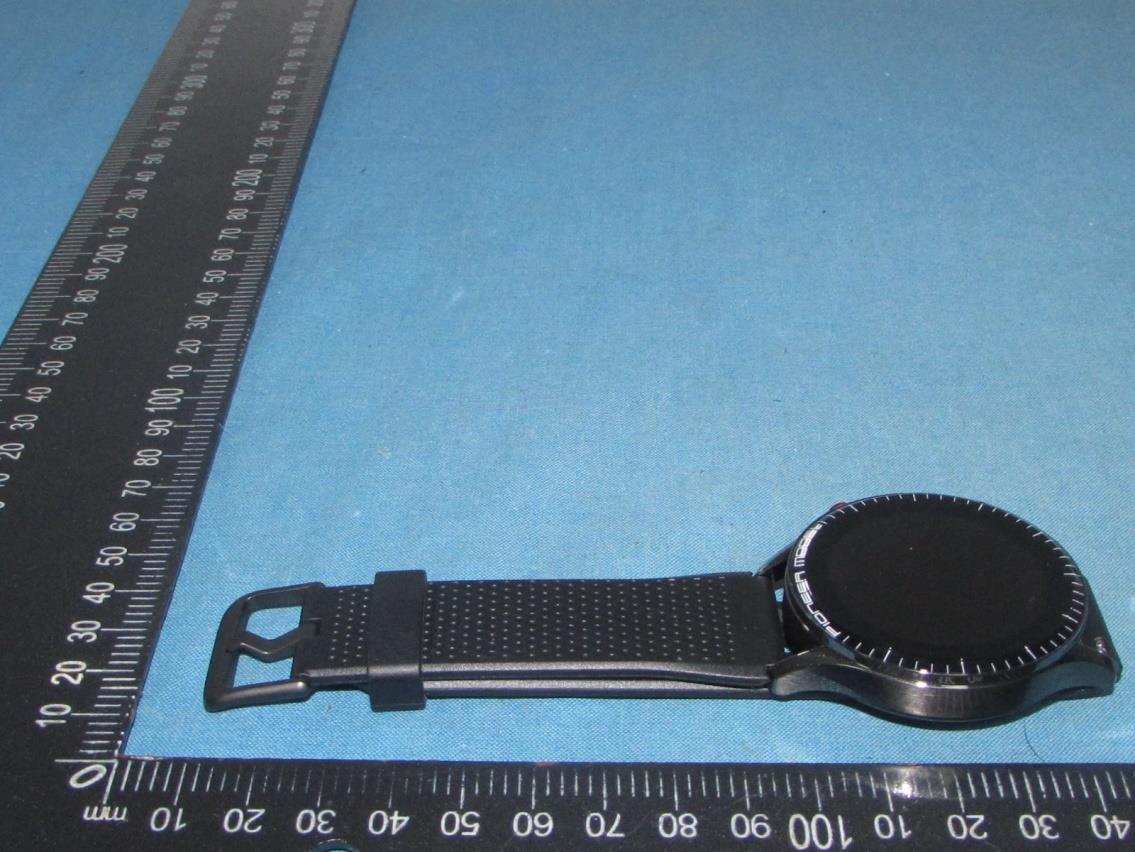

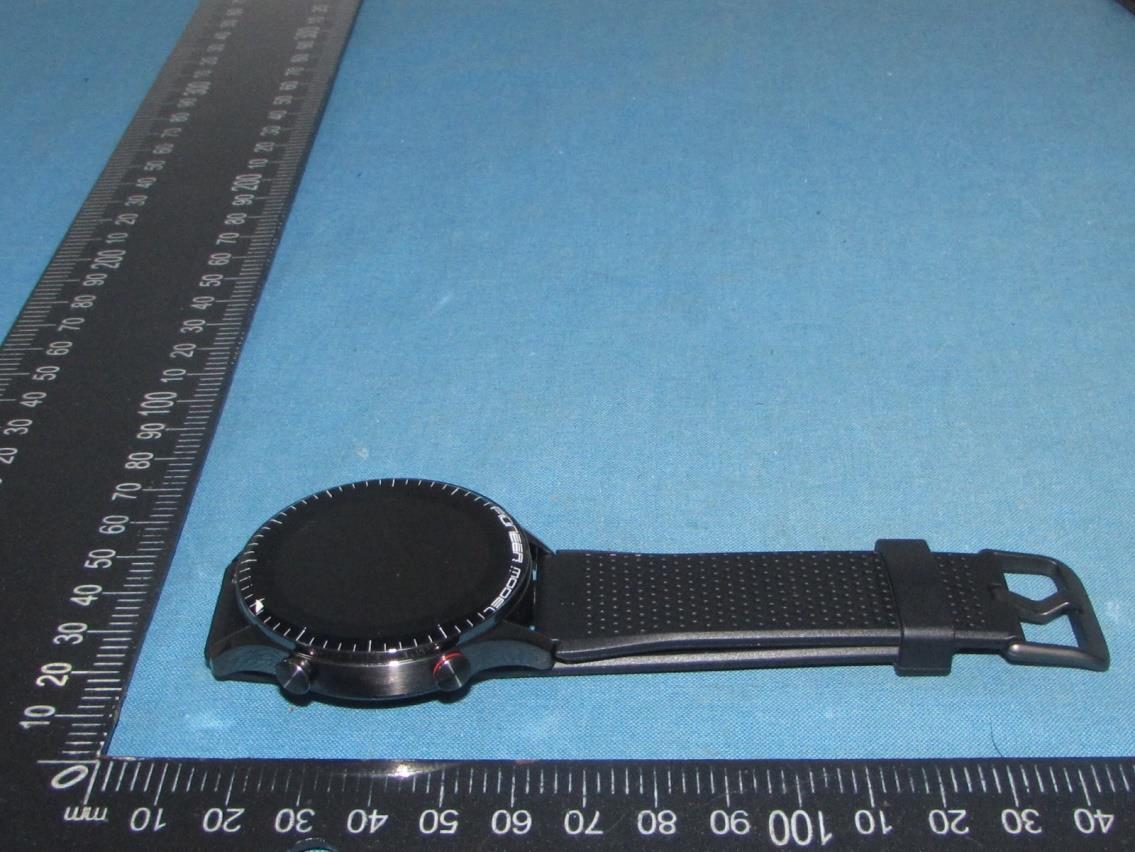

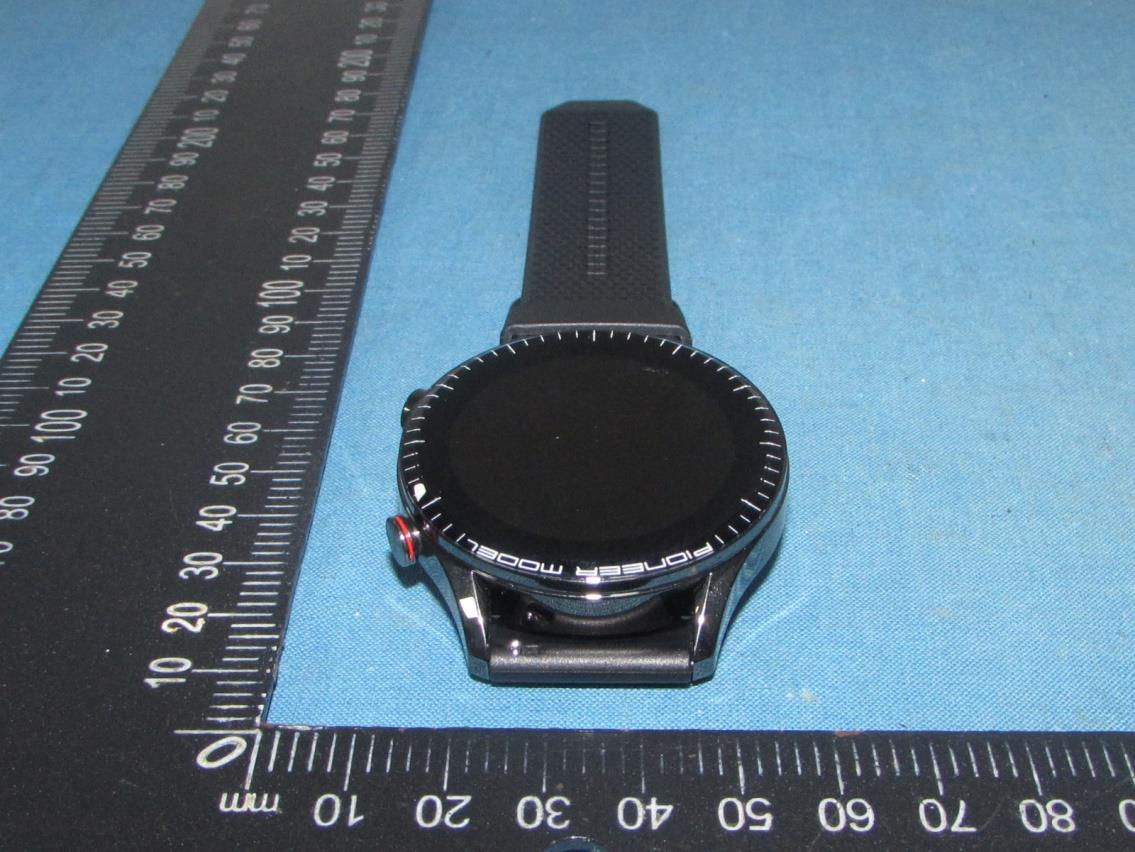

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label Location: FCC ID: 2AE8V-NOTHING1

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Conducted Power Results BR/EDR Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 1.17 39 2441 1.95 78 2480 1.79 π/4-DQPSK 00 2402 1.57 39 2441 2.3 78 2480 1.99 8-DPSK 00 2402 2.00 39 2441 2.78 78 2480 2.55 BLE Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 1.21 19 2440 2.41 39 2480 1.70 GFSK(2Mbps) 00 2402 1.45 19 2440 2.22 39 2480 1.91 Manufacturing tolerance BR/EDR GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.5 1.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.5 2.0 1.5 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.5 2.5 2.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 2.0 1.5 Tolerance ±(dB) 1.0 1.0 1.0 GFSK (2Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 2.0 1.5 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Results BR/EDR Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 2.0 2.0 1.58 3 2441 2.5 2.5 1.78 3 2480 2.5 2.5 1.78 3 π/4-DQPSK 2402 2.5 2.5 1.78 3 2441 3.0 3.0 2.00 3 2480 2.5 2.5 1.78 3 8-DPSK 2402 2.5 2.5 1.78 3 2441 3.5 3.5 2.24 3 2480 3.0 3.0 2.00 3 BLE Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 2.0 2.0 1.58 3 2440 3.0 3.0 2.00 3 2480 2.5 2.5 1.78 3 GFSK(2Mbps) 2402 2.0 2.0 1.58 3 2440 3.0 3.0 2.00 3 2480 2.5 2.5 1.78 3 The antenna gain of the EUT for BT is -2.97dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

求是 价值 双赢 Shenzhen Qianmu Communication Technology Co.,Ltd. Focus on antenna scheme, design and production Client ：Linwear Project：LA23(version changed) Date ：2021-12-17 Version：A1 RFID：ZHENG LI GUO Shenzhen Qianmu Communication Technology Co.,Ltd. 求是 价值 双赢 Content 1. Test Environment 2. Description of previous debugging records 3. Matching circuit description 4. Active test data 5. Conduction test data 6. Sound simulation test of call current 7. Environmental Treatment Description 8. GPS/WIFI/BT passive parameter 9. GPS/WIFI/BT measured results 10. Conlusion 求是 价值 双赢 testing environment Test project Equipment 1. S-parameter 1. Return Loss 2. voltage standing wave ratio (VSWR） Network analyzer: Agilent E5071B HP 8753D 2. Active test 1. transmitted power （TRP） 2. receive sensitivity（TIS） 3.Frequency Error 4.screen off,screen on 1. Darkroom：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2.General-purpose tester: Agilent 8960 E5515B ×2 StarPoint SP6011 3.Passive test 1.Antenna Gain 2.Antenna effeciency 1. darkroom：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2. network analyzer：Agilent E5071B HP 8753D 求是 价值 双赢 Description of previous debugging records Date Version Debugging Record Description 2021-12-17 A1 Test prototype 求是 价值 双赢 machine type Bluetooth watch Type mainboard Antenna profile State of the antenna Antenna state Antenn a form Design area Match change state of the nation BT 2.4GHz~2.5GHz BPP L=25mm D=0.6mm Monopole holder none State of the prototype Debugging machine environmental manipulation Machine debugging Description 求是 价值 双赢 Matching circuit -BT antenna ANT PA The original matching circuit has not made any changes NF NF 0Ω 0Ω 求是 价值 双赢 Antenna passive efficiency gain data 求是 价值 双赢 Antenna direction diagram and apple diagram 求是 价值 双赢 Antenna direction diagram and apple diagram 求是 价值 双赢 Antenna pattern and apple chart 求是 价值 双赢 BT antenna environment processing： Bluetooth antenna position 求是 价值 双赢 Measurement of BT antenna： Test mode 求是 价值 双赢 Measurement of BT antenna： 1. APP Bluetooth test, Android phone connected to the bracelet, bracelet search mobile phone (indoor) test if the straight line distance without obstacles about 30 meters. testing software APP Bluetooth test, Android system mobile phone connection bracelet, bracelet search mobile phone (outdoor) test linear distance is about 15 meters without obstacles 求是 价值 双赢 BT antenna measurement: call test 1. Bluetooth measurement of phone calls, phone calls through the mobile phone, bracelet (indoor) test phone calls smoothly without any obstacles straight-line distance about 13 meters. Shenzhen Qianmu Communication Technology Co.,Ltd. 求是 价值 双赢 Instructions Tips: I. This data only refers to the data generated by the prototype provided by the customer, and does not represent the final mass production status of the customer; 2. Please carefully confirm the description of matching circuit modification and environmental treatment in our report; Iii. Before the mass production, please provide the trial production prototype to our company for second verification; Please inform us in advance of material replacement, software update and environmental treatment. Iv. If the customer needs the third party to retest or send the sample to the customer for testing, please come to our company for verification before sending the sample; To prevent the difference between the machine and the test machine; V: Our company does not accept the machine data other than our debugging and other darkroom test data, but you can refer to it, except the certification darkroom. If there is any difference in the data, all the reasons shall be based on the commissioning machine. Shenzhen Qianmu Communication Technology Co.,Ltd. 求是 价值 双赢 Thanks! All information and copyright contained in this report belong to our company. Please do not spread it to any third party without our permission

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 1 of 29 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: Smart Watch Trade Mark: XINJI Test Model: NOTHING1 FCC ID: 2AE8V-NOTHING1 Environmental Conditions Temperature: 22.8 C Relative Humidity: 60% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.676 2401.660 2402.336 0.5 PASS 2440 0.656 2439.680 2440.336 0.5 PASS 2480 0.668 2479.668 2480.336 0.5 PASS BLE_2M Ant1 2402 1.140 2401.476 2402.616 0.5 PASS 2440 1.036 2439.444 2440.480 0.5 PASS 2480 1.000 2479.528 2480.528 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 2 of 29 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 3 of 29 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 4 of 29 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0335 2401.4940 2402.5275 --- --- 2440 1.0355 2439.4955 2440.5310 --- --- 2480 1.0329 2479.4921 2480.5250 --- --- BLE_2M Ant1 2402 2.0539 2401.0079 2403.0618 --- --- 2440 2.0671 2438.9975 2441.0646 --- --- 2480 2.0518 2479.0044 2481.0562 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 5 of 29 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 6 of 29 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 7 of 29 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 1.21 ≤30 PASS 2440 2.41 ≤30 PASS 2480 1.7 ≤30 PASS BLE_2M Ant1 2402 1.45 ≤30 PASS 2440 2.22 ≤30 PASS 2480 1.91 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 8 of 29 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 9 of 29 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 10 of 29 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -14.62 ≤8.00 PASS 2440 -14.34 ≤8.00 PASS 2480 -13.75 ≤8.00 PASS BLE_2M Ant1 2402 -16.86 ≤8.00 PASS 2440 -15.92 ≤8.00 PASS 2480 -16.03 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 11 of 29 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 12 of 29 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 13 of 29 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 1.12 -49.9 ≤-18.88 PASS High 2480 1.48 -49.99 ≤-18.52 PASS BLE_2M Ant1 Low 2402 1.06 -32.25 ≤-18.94 PASS High 2480 1.44 -49 ≤-18.56 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 14 of 29 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 BLE_2M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 15 of 29 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 16 of 29 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 0.80 0.80 --- PASS 30~1000 0.80 -53.21 ≤-19.2 PASS 1000~26500 0.80 -43.39 ≤-19.2 PASS 2440 Reference 1.65 1.65 --- PASS 30~1000 1.65 -53.31 ≤-18.35 PASS 1000~26500 1.65 -43.92 ≤-18.35 PASS 2480 Reference 1.44 1.44 --- PASS 30~1000 1.44 -53.4 ≤-18.56 PASS 1000~26500 1.44 -44.22 ≤-18.56 PASS BLE_2M Ant1 2402 Reference 0.45 0.45 --- PASS 30~1000 0.45 -54.39 ≤-19.55 PASS 1000~26500 0.45 -44.29 ≤-19.55 PASS 2440 Reference 1.75 1.75 --- PASS 30~1000 1.75 -53.86 ≤-18.25 PASS 1000~26500 1.75 -45.65 ≤-18.25 PASS 2480 Reference 0.54 0.54 --- PASS 30~1000 0.54 -53.81 ≤-19.46 PASS 1000~26500 0.54 -47.57 ≤-19.46 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 17 of 29 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 18 of 29 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 19 of 29 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 BLE_2M_Ant1_2402_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 20 of 29 BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 21 of 29 BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 BLE_2M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 22 of 29 BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 Report No.: TZ221003752-E1 Page 23 of 29 Appendix G: Duty Cycle Test Result TestMode Antenna Chan…

Text truncated - open the document above for the full version.

Report No.: TZ221003752-E1 Page 1 of 35 FCC TEST REPORT Test report On Behalf of SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. For Smart Watch Model No.: NOTHING1 FCC ID: 2AE8V-NOTHING1 Prepared for : SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. No.6 Building, Longfu Industrial Area, Huarong Road, Dalang Street, Longhua, Shenzhen, 518000, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2022/10/25~2022/11/2 Date of Report: 2022/11/3 Report Number: TZ221003752-E1 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ221003752-E1 Page 2 of 35 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. Address .................................. : No.6 Building, Longfu Industrial Area, Huarong Road, Dalang Street, Longhua, Shenzhen, 518000, China Manufacture's Name ............ : SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. Address .................................. : No.6 Building, Longfu Industrial Area, Huarong Road, Dalang Street, Longhua, Shenzhen, 518000, China Product description Trade Mark: XINJI Product name ........................... : Smart Watch Model and/or type reference : NOTHING1 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2022/10/25~ 2022/11/2 Date of Issue .......................................... : 2022/11/3 Test Result .............................................. : Pass Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ221003752-E1 Page 3 of 35 Revision History Revision Issue Date Revisions Revised By 000 2022/11/3 Initial Issue Andy Zhang Report No.: TZ221003752-E1 Page 4 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 10 5. TEST RESULT .........…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-NOTHING1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Emission
