2AE8V-SHARKS1Bluetooth Speaker

, 1 XlN J l SHARK 51 Bluetooth Speaker USER MANUAL ⑩M创h。d们perati。n ＠ ＋ ．．．．．．． ’II 。。 A Powe「。n Short p『ess Powe「off Hold on 3 seconds Volume up: Short press Change to next H。Id on 1 seconds Volume down Short press Back to last: Hold on 1 seconds Play/pause: Short press Receive a call Short press to receive incoming calls Reject the call Hold on 1 seconds to reject l门comingcalls Hang up the call Short press to hang up an on going call Voice Assistant: Hold on 2 seconds to 「eject Disconnect the current connected device and ente「pairingmode: Short press Clear the paired list Hold on 7 seconds Activate TWS mode Short press Deactivate TWS mode Short press ⑨Packing list (D Portable Speaker x 1 ι二三二〉 Charging Cable Hand Strap • 1 • 1 ：二口 3.5mm AUX Cable User Manual x 1 x 1 ②Specifications Bluetooth Versio「1:5.0 Play Time: 14 hours (at 50% volL」me) Wate「Resistance:IPX6 Battery Capacity: 4000mAh Wo「kingRange: 15M (free space) Charge Current: 5V-2A Output Powe「16W(8W x 2)RMS Charging Time: 4 hours D「iverUnit: 44mm•2 Build-in Microphone: Yes Frequency: 80Hz-20KHz Charge Port USB Type C Power On/Off LED 3.5mm Aux In Type C Po内 Blu副。。thc。nnect Volume Up/Next Volume Down/Last Play/Pause/ Assistant/ Answer Call/End Call/ Reject Cal Bluet。。th Connect TWS Connect 1. Turn the speaker on and its LED indicator will blink blue in c。lor until the paring is d。ne. 2. Activate the ph。ne'sbluet。othfunction and search f。r"XINJl-51 ” As s。。n as the speaker has been selected by y。u and paired, there will be a s。undpr。mpt indicating pairing. Note: • The speaker can automatically rec。nnectto the last paired device. • The speaker gets automatically turned off if there's n。 paring f。r 10 minutes. Disconnecting the Sp倒ker For disconnecting the Wireless connection, short press the Wireless button. TWSConnect 1. Confirm that the tw，。speakers51 to be c。nnectedare powered on, and the Bluetooth of the two speakers is disconnected. 2. Press the TWS button on the tw。speakersat the same time. At this time, the LED indicat。rs。f the tw。devices flash green rapidly at the same time; after the pairing is successful, the s。undprompt confirms the same, and only。ne flashes blue light, and the other blue light o忏 ， the green lights of the two devices flash twice every 5 sec。nds. 3. The device with the flashing blue light is the main speaker, f。II。w the wireless pairing procedure to c。nnect the main speaker t。yourmobile / media device. AUX M。de To switch to AUX mode ， 到mplyconnect the speaker t。 your mobile phone via the provided AUX cable. If you want t。switcht。Wirelessmode, kindly remove the AUX cable. Charging • Connect one end of the provided charging cable to the charging Input and the 。therend to a wall adapt。r, laptop's USB, etc. • While getting charged, the LED stays orange. ．。ncethe speaker gets fully charged, the LED turns into green. Note: •Low p。，werstatus: gets Indicated by Orange LED flashes every 15 sec. ( l 丁 Pleaseread the instructions \ : J before use • Please n。tethat the battery life。f the speaker varies with the volume music Is being played at. If at a lowe『 volume, the battery life will be l。ngerthan when the speakers are playing at full volume • If the speakers need cleaning, please be sure to d。s。 carefully. And make sure it is turned off and disc。nnectedfr。m all wireless devices. Do not use alcoh。I, benzene，。r。therchemicals t。cleanthe speakers and d。not allow the speake『S t。be exposed t。 ext reπ，e heat or cold. • T『y to ensure that no physical damage c。mest。the speaker via falling，。r c。minginto contact with hard surfaces 。r sharp edges. • D。n。t dismantle the speaker。r handle the battery in any way. If any Issue arises with the speaker, please enlist the aid。f a manufacturer. The battery must not be mishandled or replaced as it can result in expl。sions。『 fire hazards. Therefo『e, please ensure that any servicing of the speaker Is d。ne through the service pr。videro『 manufacturer. • If the speaker gets wet. please ensure that it is dried quickly and completely after coming Into contact with water, Please do not allow the speaker to be submerged Into water at any costct. • Please keep the speaker from heat source, such as radiators, hot air regulat。rs, stoves，。『otherheat generating instruments As it is not anti high temperature. • In order t。protectyour hearing and extend the speake『 service life, it is not rec。mmendedto adjust the volume to the maximum level f。r a long time. Tr。ublesh。。ting A: • Issue: The device cannot find "XINJl-51 ” 。n Bluetooth. • Reason: The speaker may not be in pairing mode. •S。lution:Restart the speaker to search again. B: • Issue: The speaker is taking long t。get charged. • Reas。n: The adapter's power output is too low, and the charging cable's consumpti。n is too high. •S。lution:Please ch。。se the adapter with an。utputthat is n。t less than DC 5V / 2A and use the original charging cable. ⑨胁rrantycard Customer informati。nSeller information Name Name Add. Add Email Purchase Date P.C. Product mccel Tel Invoice number Date Malfuncti。nPr。cess「esult Made in China 1,1 XlNJl �R。HS互合 © 2022 XINJI Smart. All 「ights「ese「ved This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,…

Text truncated - open the document above for the full version.

Sincerely, Name/Title： Tao Cheng / General Manager Company: SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. Address: No.6 Building, Longfu Industrial Area, Huarong Road, Dalang Street, Longhua, Shenzhen, 518000, China Phone: +86 755 86599086 Fax: +86 755 86599100 E-Mail: [email protected]

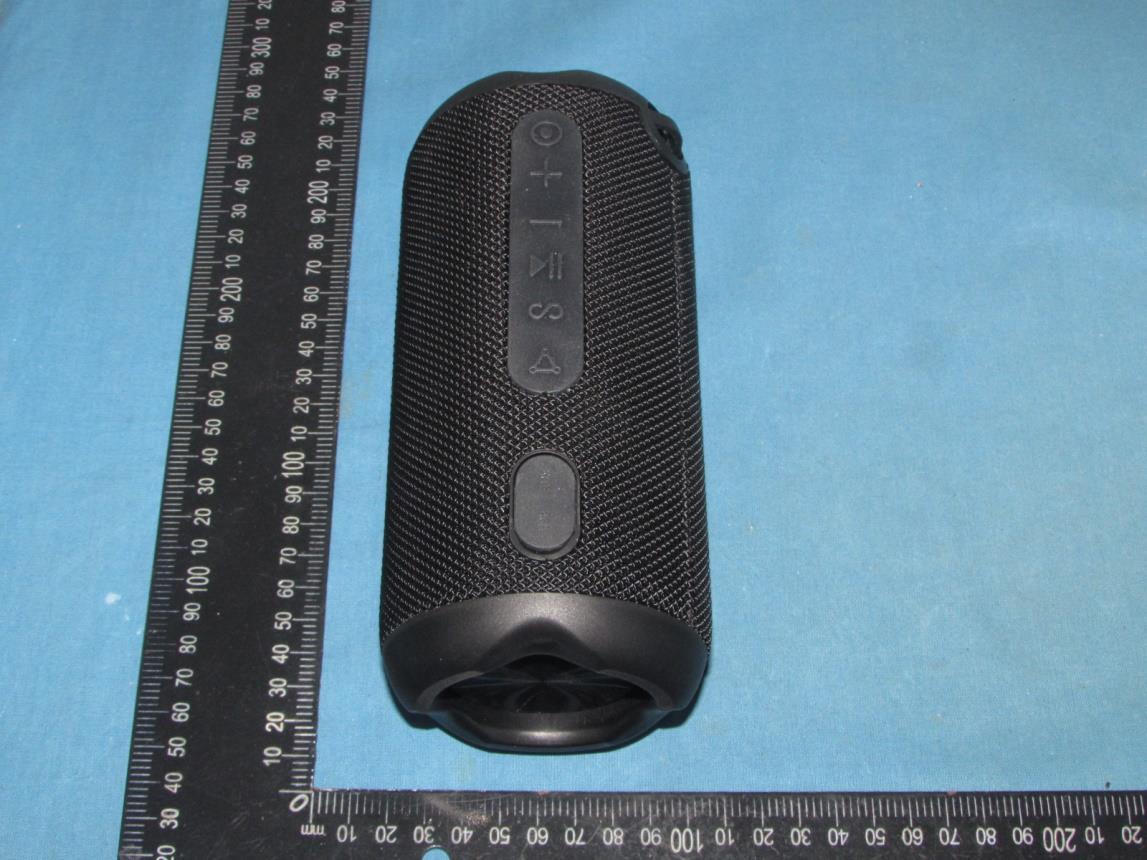

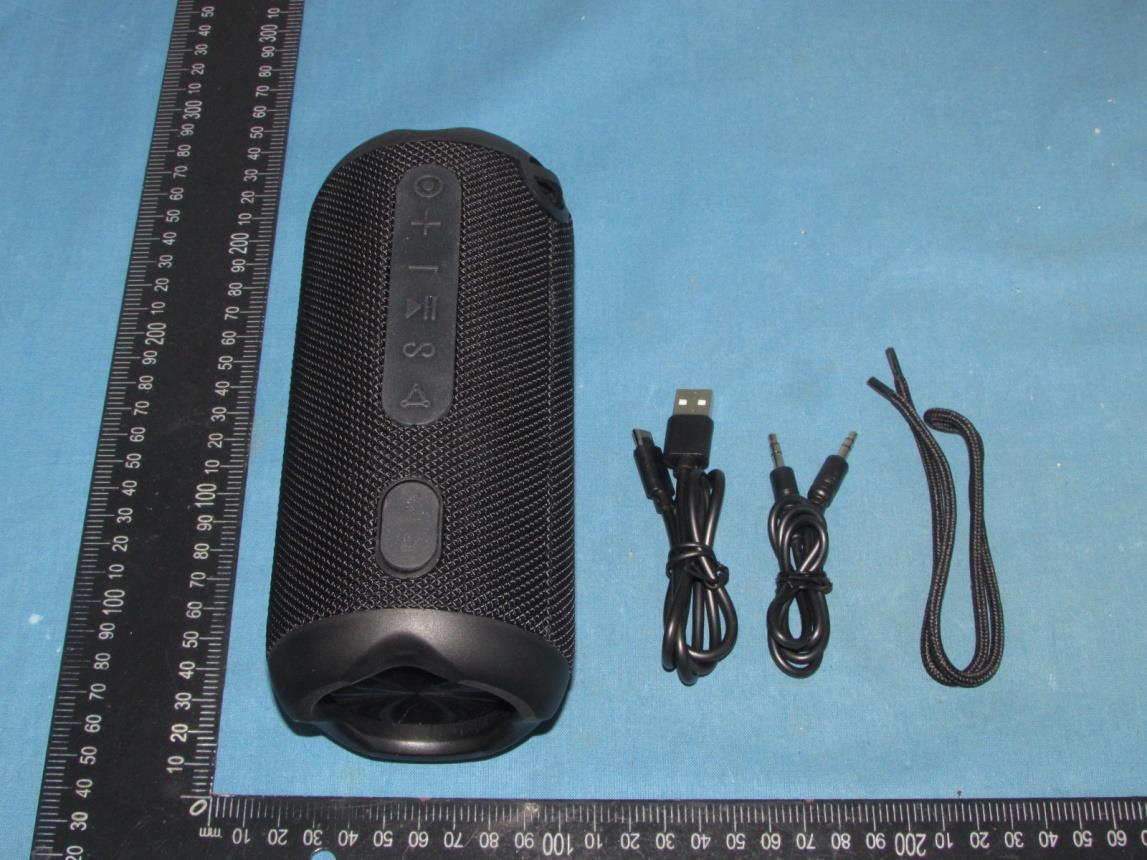

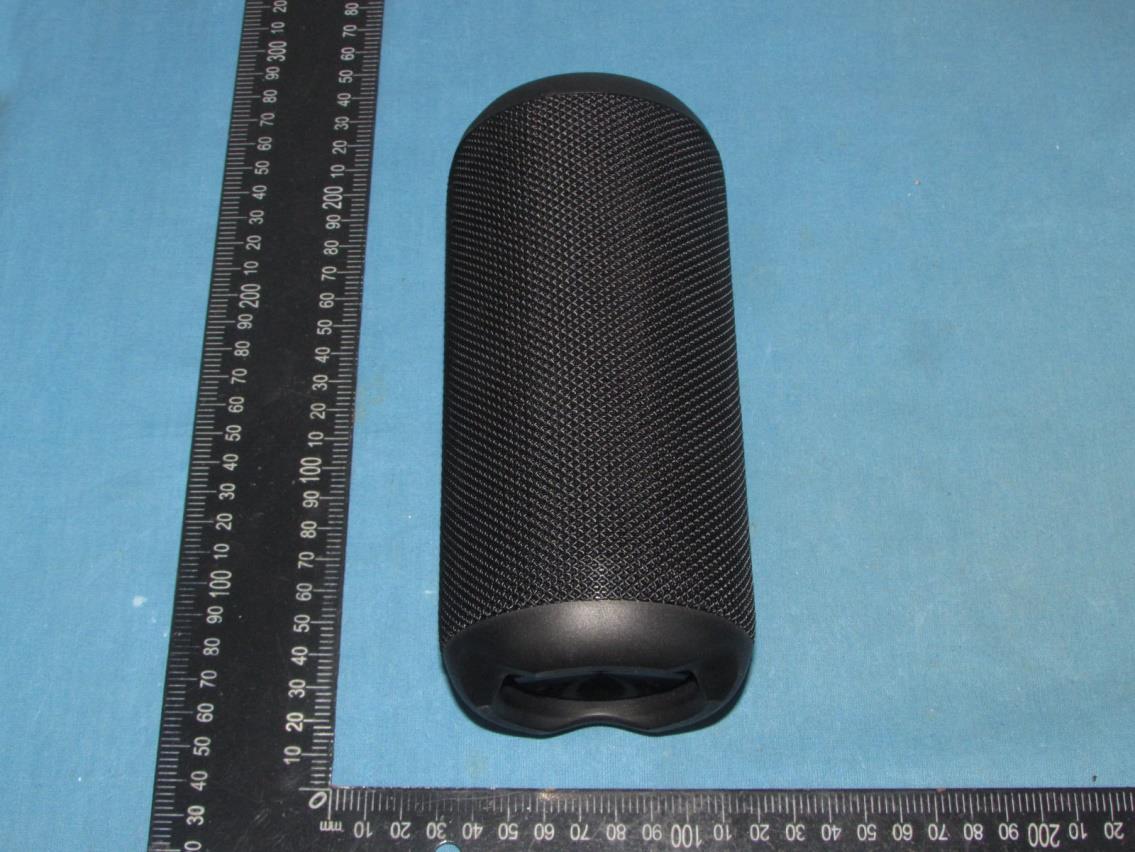

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label Location: FCC ID: 2AE8V-SHARKS1

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is -3.38dBi(Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 3.65 39 2441 3.75 78 2480 3.79 π/4-DQPSK 00 2402 4.18 39 2441 4.23 78 2480 4.29 8-DPSK 00 2402 4.49 39 2441 4.67 78 2480 4.71 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.5 3.5 3.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.0 4.5 4.5 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 4.5 4.5 2.82 10 2441 4.5 4.5 2.82 10 2480 4.5 4.5 2.82 10 π/4-DQPSK 2402 5.0 5.0 3.16 10 2441 5.0 5.0 3.16 10 2480 5.0 5.0 3.16 10 8-DPSK 2402 5.0 5.0 3.16 10 2441 5.5 5.5 3.55 10 2480 5.5 5.5 3.55 10 The antenna gain of the EUT for BT is 1 dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

N c v NOTE: This doc company. The te validation and in MORLA App PRO MO TRA BRA STA REC TES ISS cument is issue est results appl nformation confi AB SHENZ FL1-3, B Block67 plicant ODUCT NA ODEL NAM ADE NAM AND NAM ANDARD(S CEIPT DAT ST DATE SUE DATE ed by MORLAB y only to the pa rmed at our we ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, She TE : AME : ME : E : ME : S) : ATE : : : B, the test repo articular sample bsite. MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon EST SHANGHA MV_BP10 MV_BP10 MVSILICO MVSILICO ANSI/IEEE 2019-08-3 2019-09-0 2019-10-1 Edited Approved rt shall not be e(s) tested and CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Ch T RE AI MOUNT 0xx PCB An 0 ON ON E Std 149- 30 02 15 d by: by: reproduced exc to the specific d. ina Te l : 8 Http:/ RE EPOR TAIN VIEW ntenna -2008 Chi Sh Andy Yeh cept in full with tests carried o u 86-755-36698555 //www.morlab.cn EPORT No RT W SILICON ide(Rappo h(Technica out prior written ut which is avai Fax: 86-755-3669 E-mail: service@ o.：SZ190 CO,. LTD orteur) l Director) n permission of lable on reques 98525 @morlab.cn Page 1 of 1 080340E01 f the st for 4 1 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 14 REPORT No.：SZ19080340E01 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1. Manufacturer and Factory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2. Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 2. Test Results ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.1. Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.2. Test Conditions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.3. Test Results lists ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 Annex A Photographs ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 Annex B Figures ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 1. 2D Radiation Pattern ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 2. 3D Radiation Pattern ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3. Return Loss ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 4. VSWR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 5. Input Impedance ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 Annex C Photographs ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 12 Annex D General Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.1 Identification of the Responsible Testing Laboratory ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.2 Identification of the Responsible Testing Location ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.3 Test Equipments Utilized ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 Change History Version Date Reason for change 1.0 2019-10-15 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 14 REPORT No.：SZ19080340E01 1. Technical Information Note: Provide by manufacturer. 1.1. Manufacturer and Factory Information Applicant: SHANGHAI MOUNTAIN VIEW SILICON CO,. LTD Applicant Address: Suite 4C, Building 3, 1238 Zhangjiang Road, Pudong New District, Shanghai, China Manufacturer: SHANGHAI MOUNTAIN VIEW SILICON CO,. LTD Manufacturer Address: Suite 4C, Building 3, 1238 Zhangjiang Road, Pudong New District, Shanghai, China 1.2. Equipment Under Test (EUT) Description Wireless Type N/A Frequency N/A MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 14 REPORT No.：SZ19080340E01 2. Test Results 2.1. Applied Reference Documents Leading reference documents for testing: No. Identity Document Title 1 ANSI/IEEE Std 149-2008 IEEE Standard Test Procedures for Antennas 2.2. Test Conditions Test Environment Conditions： Relative Humidity: 25 ... 75 % Temperature: +10 °C to +30 °C 2.3. Test Results lists 2.3.1. Gain Frequency Gain(dBi) 2400MHz 2.81 2410MHz 2.74 2420MHz 3.38 2430MHz 2.73 2440MHz 1.01 2450MHz 1.26 2460MHz 1.50 2470MHz 1.49 2480MHz 1.42 2490MHz 0.36 2500MHz 0.33 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 14 REPORT No.：SZ19080340E01 2.3.2. Return Loss/VSWR/Input Impedance Frequency Return Loss (dB) VSWR Input Impedance(Ω) 240…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 1 of 43 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) roduct Name: Bluetooth Speaker Trade Mark: Test Model: SHARK S1 FCC ID: 2AE8V-SHARKS1 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Nancy Li Supervised by: Hugo Chen Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.954 2401.535 2402.489 --- --- 2441 0.990 2440.496 2441.486 --- --- 2480 0.939 2479.535 2480.474 --- --- 2DH5 Ant1 2402 1.251 2401.376 2402.627 --- --- 2441 1.308 2440.340 2441.648 --- --- 2480 1.344 2479.328 2480.672 --- --- 3DH5 Ant1 2402 1.248 2401.361 2402.609 --- --- 2441 1.269 2440.349 2441.618 --- --- 2480 1.248 2479.361 2480.609 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 2 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 3 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 4 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 5 of 43 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.91455 2401.5432 2402.4578 --- --- 2441 0.89203 2440.5524 2441.4444 --- --- 2480 0.89908 2479.5464 2480.4455 --- --- 2DH5 Ant1 2402 1.1815 2401.4059 2402.5874 --- --- 2441 1.1767 2440.4071 2441.5838 --- --- 2480 1.1809 2479.4054 2480.5863 --- --- 3DH5 Ant1 2402 1.1896 2401.3963 2402.5859 --- --- 2441 1.1879 2440.3975 2441.5854 --- --- 2480 1.1738 2479.4074 2480.5812 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 6 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 7 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 8 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 9 of 43 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 3.65 ≤30 PASS 2441 3.75 ≤30 PASS 2480 3.79 ≤30 PASS 2DH5 Ant1 2402 4.18 ≤20.97 PASS 2441 4.23 ≤20.97 PASS 2480 4.29 ≤20.97 PASS 3DH5 Ant1 2402 4.49 ≤20.97 PASS 2441 4.67 ≤20.97 PASS 2480 4.71 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 10 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 11 of 43 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 12 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 13 of 43 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.008 ≥0.990 PASS 2DH5 Ant1 Hop 1.01 ≥0.896 PASS 3DH5 Ant1 Hop 1.032 ≥0.846 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 14 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 15 of 43 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.866 110 0.315 ≤0.4 PASS 2DH5 Ant1 Hop 2.879 110 0.317 ≤0.4 PASS 3DH5 Ant1 Hop 2.882 110 0.317 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 16 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 17 of 43 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 18 of 43 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 19 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 20 of 43 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 3.19 -48.98 ≤-16.81 PASS High 2480 3.39 -48.3 ≤-16.61 PASS Low Hop_2402 2.53 -50.56 ≤-17.47 PASS High Hop_2480 3.21 -48.83 ≤-16.79 PASS 2DH5 Ant1 Low 2402 2.74 -49.53 ≤-17.26 PASS High 2480 3.38 -49.43 ≤-16.62 PASS Low Hop_2402 2.10 -50.74 ≤-17.9 PASS High Hop_2480 0.21 -49.38 ≤-19.79 PASS 3DH5 Ant1 Low 2402 3.19 -49.13 ≤-16.81 PASS High 2480 3.44 -49.43 ≤-16.57 PASS Low Hop_2402 -0.37 -50.86 ≤-20.37 PASS High Hop_2480 0.22 -48.58 ≤-19.78 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 21 of 43 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 22 of 43 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 23 of 43 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 24 of 43 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Shenz…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 30 of 43 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 31 of 43 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 3DH5_Ant1_2402_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 32 of 43 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 33 of 43 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 34 of 43 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 35 of 43 Appendix I: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] DH5 Ant1 2402 2.86 3.75 76.27 0.35 2441 2.87 3.75 76.53 0.35 2480 2.87 3.75 76.53 0.35 2DH5 Ant1 2402 2.88 3.75 76.80 0.35 2441 2.88 3.75 76.80 0.35 2480 2.88 3.75 76.80 0.35 3DH5 Ant1 2402 2.88 3.75 76.80 0.35 2441 2.88 3.75 76.80 0.35 2480 2.89 3.76 76.86 0.35 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 36 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 37 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 38 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 39 of 43 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq(MHz) Result(dBm) Limit(dBm) Verdict DH5 Ant1 Low 2402 AV 2310.000 -47.97 ≤-41.20 PASS AV 2389.985 -46.33 ≤-41.20 PASS AV 2390.000 -46.33 ≤-41.20 PASS Peak 2310.000 -41.9 ≤-21.20 PASS Peak 2325.095 -37.46 ≤-21.20 PASS Peak 2390.000 -38.55 ≤-21.20 PASS High 2480 AV 2483.500 -45.69 ≤-41.20 PASS AV 2483.520 -45.69 ≤-41.20 PASS AV 2500.000 -47.06 ≤-41.20 PASS Peak 2483.500 -39.03 ≤-21.20 PASS Peak 2487.040 -37.2 ≤-21.20 PASS Peak 2500.000 -38.73 ≤-21.20 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -47.93 ≤-41.20 PASS AV 2389.985 -46.66 ≤-41.20 PASS AV 2390.000 -46.66 ≤-41.20 PASS Peak 2310.000 -41.2 ≤-21.20 PASS Peak 2315.330 -37.73 ≤-21.20 PASS Peak 2390.000 -39.97 ≤-21.20 PASS High 2480 AV 2483.500 -45.63 ≤-41.20 PASS AV 2483.520 -45.62 ≤-41.20 PASS AV 2500.000 -47.04 ≤-41.20 PASS Peak 2483.500 -38.14 ≤-21.20 PASS Peak 2488.480 -37.04 ≤-21.20 PASS Peak 2500.000 -40.38 ≤-21.20 PASS 3DH5 Ant1 Low 2402 AV 2310.000 -48.04 ≤-41.20 PASS AV 2389.985 -46.65 ≤-41.20 PASS AV 2390.000 -46.65 ≤-41.20 PASS Peak 2310.000 -41.15 ≤-21.20 PASS Peak 2357.750 -37.42 ≤-21.20 PASS Peak 2390.000 -39.25 ≤-21.20 PASS High 2480 AV 2483.500 -45.73 ≤-41.20 PASS AV 2483.520 -45.73 ≤-41.20 PASS AV 2500.000 -46.97 ≤-41.20 PASS Peak 2483.500 -39.87 ≤-21.20 PASS Peak 2499.840 -36.33 ≤-21.20 PASS Peak 2500.000 -39.97 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 40 of 43 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV DH5_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 41 of 43 2DH5_Ant1_Low_2402_AV 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 42 of 43 2DH5_Ant1_High_2480_Peak 3DH5_Ant1_Low_2402_AV 3DH5_Ant1_Low_2402_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AE8V-SHARKS1 Report No.: TZ221103842-E Page 43 of 43 3DH5_Ant1_High_2480_AV 3DH5_Ant1_High_2480_Peak

Report No.: TZ221103842-E Page 1 of 38 FCC TEST REPORT Test report On Behalf of SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. For Bluetooth Speaker Model No: SHARK S1 FCC ID: 2AE8V-SHARKS1 Prepared for : SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. No.6 Building, Longfu Industrial Area, Huarong Road, Dalang Street, Longhua, Shenzhen, 518000, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2022/11/27 – 2022/12/6 Date of Report: 2022/12/7 Report Number: TZ221103842-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ221103842-E Page 2 of 38 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN FISE TECHNOLOGY HOLDING CO.,LTD. Address .................................. : No.6 Building, Longfu Industrial Area, Huarong Road, Dalang Street, Longhua, Shenzhen, 518000, China Manufacture's Name ............ : SHENZHEN VSOUND TECHNOLOGY CO LTD Address .................................. : 10th Floor, Building B, B5-1, Junfeng Zhongcheng Zhizao Innovation Park, 176 Fuyong Chongqing Road, Bao’an District, Shenzhen, Guangdong Province, China Product description Trade Mark ............................. : Product name ........................... : Bluetooth Speaker Model No ................................ : SHARK S1 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : 2022/11/27- 2022/12/6 Date of Issue ......................................... : 2022/12/7 Test Result ............................................ : PASS Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ221103842-E Page 3 of 38 Revision History Revision Issue Date Revisions Revised By 00 2022/12/7 Initial Issue Andy Zhang Report No.: TZ221103842-E Page 4 of 38 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ................................................................................................................... 5 1.2 Support equipment List ................................................................................................................................ 5 1.3 External I/O Cable …
