2AEBT-MI1Mobile Phone

KUMI Mi 1 EnglishUser Guide 1 1 Foreword Thank you for choosing this mobile phone – you have made a wise choice, congratulations! Our cellular phones are approved for GSM networks and meet stringent European standards. Your phone may be usedinternationally with various networks depending on your roaming arrangements with your service provider. To use this phone you must subscribe to a GSM service from a provider. We have included many features in this device but their function depends on the features available with your subscribed wireless network. Please contact your service provider for more information. This User Manual is published by the manufacturer without any warranty.Revisions and improvements resulting from typographical errors, inaccuracy of current information, and improvements to the device or software may be done without any prior notification, but will be incorporated into newer editions. More information and help on your phone may be available at the manufacturer’s website. The manufacturer reserves all rights to the contents herein. Copyrights and trade marks mentioned in this document remain with their respective owner, Reproduction, transfer, storage, or distribution in whole or in part of copyrighted materials without prior written permission is expressly prohibited.We strongly recommend you carefully read and understand this manual before using your phone in order to keep it under best conditions for your effective usage and utmost satisfaction. 2 2 Safety Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited.Use of your phone is subject to safety measures designed to protect users and their environment. Do not use your phone in damp areas (bathroom, swimming pool...). Protect it from liquids and other moisture. Do not expose your phone to extreme temperatures lower than - 10°C and higher than + 55°C. The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone automatically protects the batteries in extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). 3 Knowing the Keys 1. Left soft key/Right soft key: Implement the functions shown in the lower left /right hand corner. 2.Call/Answer (Green) Key Press after dialing to connect. Press if there is an incoming call to answer. Press from standby to go to call records list. 3.End/Power key: Long press to switch phone on/off; Press to end, reject call; or to exit a menu. 4.OK key: Confirm or accept selection in menu access. Press from standby to enter the selected shortcut function. 5.Navigator keys: Press the 3 up/down/left/right direction in menu to scroll, browse or in edit page to move cursor. In idle mode, press the up/down/left/right direction keys to select the shortcut function showed on the top of the screen, and then press the OK key to confirm. 6.1-9 alphanumeric keys: in standby mode you can long press the key to call corresponding number. From Standby: Long press “2” to “9” key to dial speed dial numbers (as defined in the menu [Phonebook/Speed dial]). Long press “0” start the SOS. Press “+” to input “*” symbol for international access in the dialing interface. 7.＃(Pound) Key: long press from standby to activate or deactivate silent and meeting mode. 4Preparing Your Phone 4.1 Installing SIM Card Beforeinstalling or removing the SIM card, make sure the phone is switched off, and remove the back cover and battery. Note:Find SIM card's groove in the back of phone and slide it completely there. During installation, please make sure that the chip is facing downwards and payattention to slot direction. 4.2 Installing Memory Card This phone supports the memory card function. Please ensure the memory card is inserted correctly before using. Please be careful when using the memory card, especially when inserting and removing it. Some memory cards must be formatted in PC before it is used for the first time. 4 Please regularly backup information in the cards on other equipment when you use cards like T-flash! Improper use or other uncertain factors may cause the damage or loss to the content in the cards. 4.3 Installing Battery 1.Align the battery chip with the metallic salient point in battery jar, insert the battery and press top of the battery downwards as per the arrow direction until it is inserted into the battery jar. 2.Slide battery cover into back of the phone until it is locked. 4.4 Removing Battery First switch off the phone and make it face downwards, push the battery cover to top of the phone, get its top and remove it. Note: All settings or information stored in SIM card and the phone may be lost when the battery is removed. Please remove the battery when the phone is switched off, because it may suffer from abnormity if you remove the battery when it is switched on. 4.5 Charging Battery insert one end of the charger, i.e., the charging plug into attachment mode and the other end into electrical outlet. If the phone is switched on and the battery power icon stripes in right hand of the screen are rolling, then it is charging; if the stripes are full and have stopped rolling, it is fully charged. If the phone is switched off when charging, a large charging sign will display in screen. After charging is finished, just pull out the plug. Note: 1.When the battery is low; the phone display will show a warning message. Recharge the battery as soon as possible to avoid inconvenience of the phone shutting 5 off during a call. Your phone will power off automatically if the voltage becomes too low. Prolong use of battery in low charge state will adversely affect the quality and life of the battery. 2. To ensure normal operations, please use approved chargers. 3. Do not remove the battery when charging. 4. Before you first …

Text truncated - open the document above for the full version.

Shenzhen Huibaizhou Electronics Co., Ltd. Agent Authorization Company: Shenzhen Huibaizhou Electronics Co., Ltd. Address: Room 1011, Hualianfa building, Huaqiang North Road, Futian District, Shenzhen City, Guangdong Province, China Product Name: Mobile Phone Trade Mark: KUMI Model Number(s): Mi 1 FCC ID: 2AEBT-MI1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-06-04 Name: JinWei Guo Title: CEO Company: Shenzhen Huibaizhou Electronics Co., Ltd.

Shenzhen Huibaizhou Electronics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-06-04 Subject; Request for Confidentiality FCC ID: 2AEBT-MI1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: JinWei Guo Title: CEO

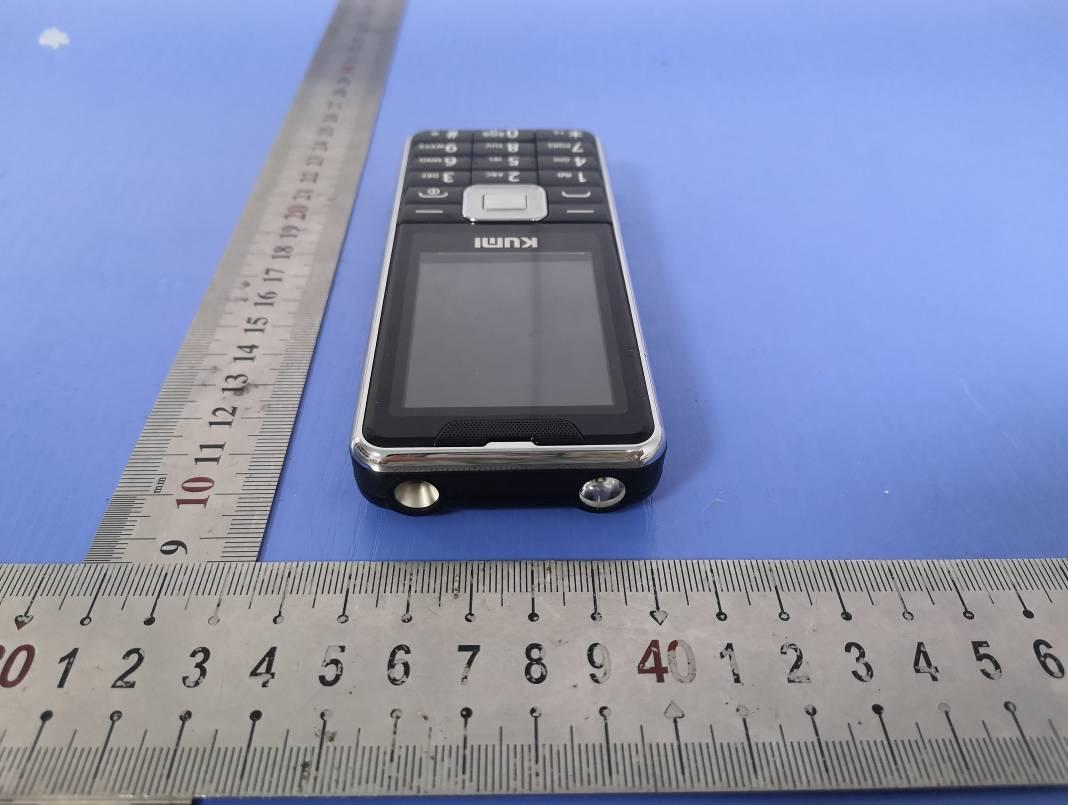

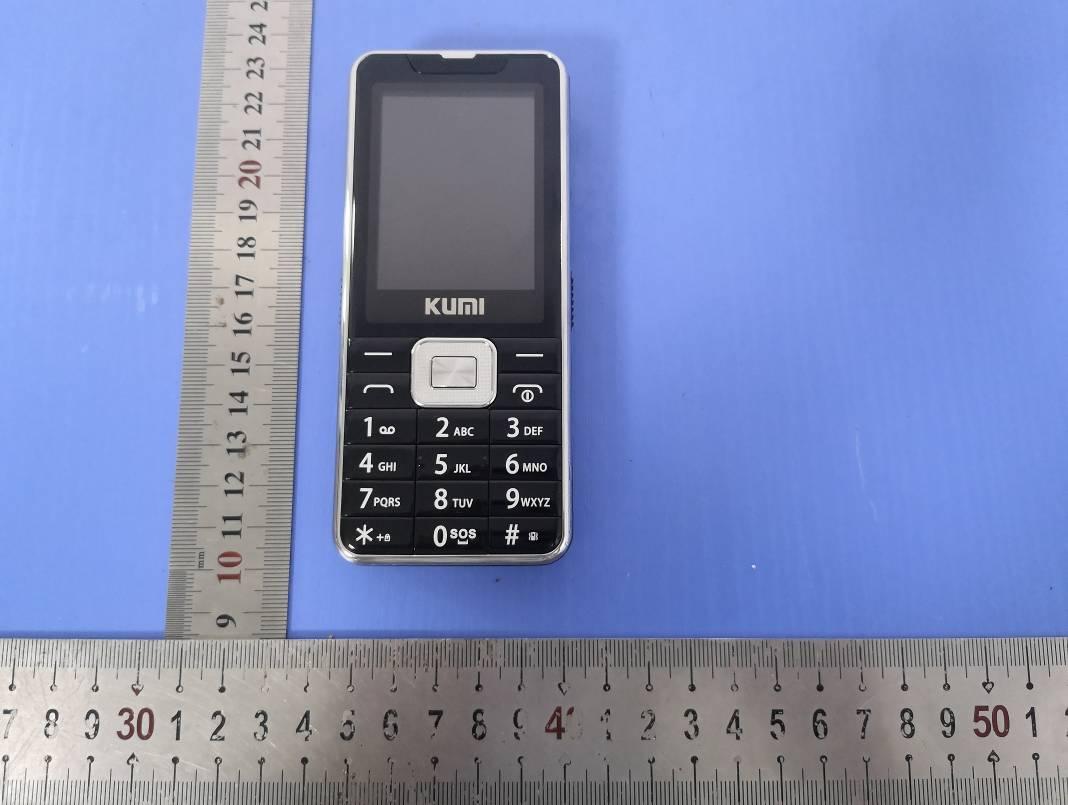

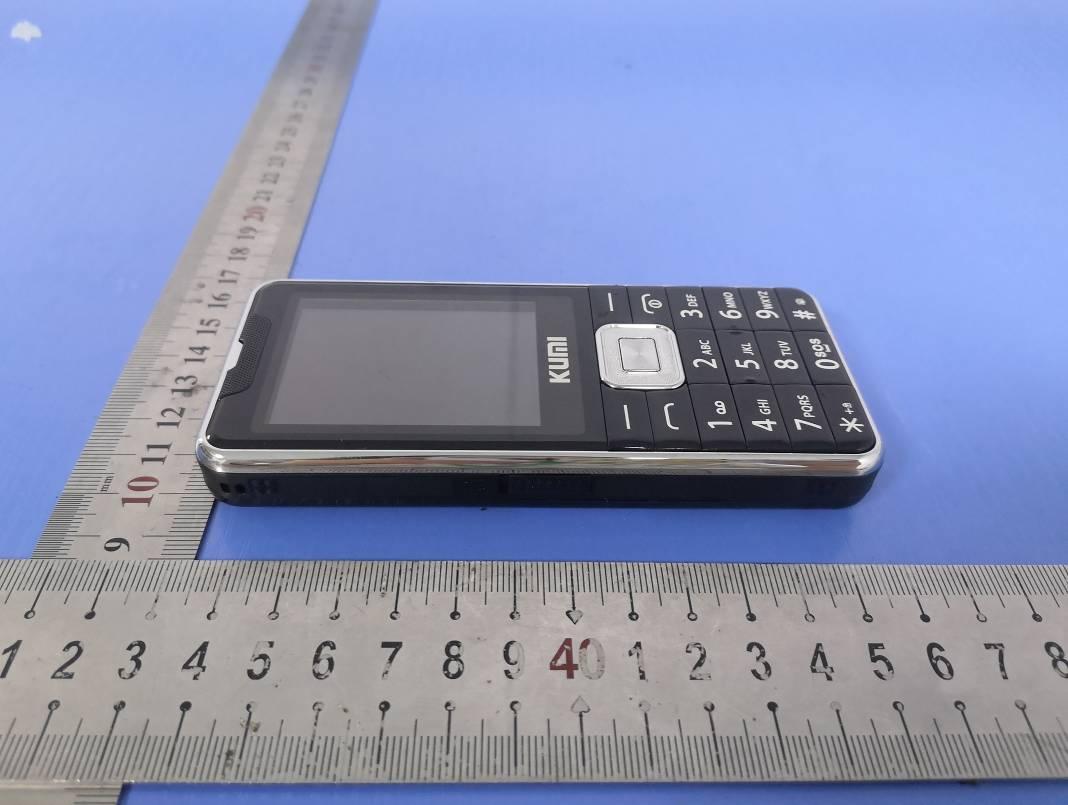

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3..0cm*W3.0cm Label Location Mobile Phone Model No.: Mi 1 FCC ID: 2AEBT-MI1 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 6 Internal Photos of the EUT Fig. 1 Fig. 2 GSM Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 6 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 6 Fig. 5 Fig. 6 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 6 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 6 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 6 Fig. 11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 1 of 47 Appendix A RF Test Data for BT V3.0(BDR/EDR) (Conducted Measurement) Product Name: Mobile Phone Trade Mark: KUMI Test Model: Mi 1 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 1.647 21 PASS MCH 2.678 21 PASS HCH 2.705 21 PASS π/4DQPSK LCH 1.558 21 PASS MCH 2.556 21 PASS HCH 2.555 21 PASS 8DPSK LCH 1.471 21 PASS MCH 2.473 21 PASS HCH 2.464 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.045 Not Specified PASS MCH 1.040 Not Specified PASS HCH 1.053 Not Specified PASS π/4DQPSK LCH 1.291 Not Specified PASS MCH 1.309 Not Specified PASS HCH 1.308 Not Specified PASS 8DPSK LCH 1.306 Not Specified PASS MCH 1.299 Not Specified PASS HCH 1.301 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.914 0.702 PASS MCH 1.030 0.702 PASS HCH 1.130 0.702 PASS π/4DQPSK LCH 0.998 0.873 PASS MCH 1.028 0.873 PASS HCH 0.948 0.873 PASS 8DPSK LCH 0.992 0.871 PASS MCH 1.014 0.871 PASS HCH 1.138 0.871 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 1.096 -37.255 -18.904 PASS MCH 2.134 -38.052 -17.866 PASS HCH 2.05 -36.411 -17.950 PASS π/4DQPSK LCH -0.027 -37.738 -20.027 PASS MCH 1.447 -37.519 -18.553 PASS HCH 1.315 -36.986 -18.685 PASS 8DPSK LCH 0.187 -37.449 -19.813 PASS MCH 1.556 -37.656 -18.444 PASS HCH 1.284 -37.666 -18.716 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA Page 29 of 47 π/4DQPSK_MCH_Graphs Pre…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT FOR Shenzhen Huibaizhou Electronics Co., Ltd. Mobile Phone Test Model: Mi 1 Prepared for : Shenzhen Huibaizhou Electronics Co., Ltd. Address : Room 1011, Hualianfa building, Huaqiang North Road, Futian District, Shenzhen City, Guangdong Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 25, 2020 Number of tested samples : 2 Sample No. ： 200508123A-1, 200508123A-2 Serial number : Prototype Date of Test : May 25, 2020 ~ May 30, 2020 Date of Report : May 30, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200508123AEA Date of Issue ................................... : May 30, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Huibaizhou Electronics Co., Ltd. Address ........................................... : Room 1011, Hualianfa building, Huaqiang North Road, Futian District, Shenzhen City, Guangdong Province, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Mobile Phone Trade Mark ...................................... : KUMI Test Model ...................................... : Mi 1 Ratings ............................................ : Input: DC 5V, 2A DC 3.7V by Rechargeable Li-ion Battery, 1700mAh Result ........................................... : Positive Tested by: Compiled by: Approved by: Linda He/ Administrators Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200508123AEA May 30, 2020 Date of issue Test Model.............................. : Mi 1 EUT......................................... : Mobile Phone Applicant............................... : Shenzhen Huibaizhou Electronics Co., Ltd. Address................................... : Room 1011, Hualianfa building, Huaqiang North Road, Futian District, Shenzhen City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Shenzhen Huibaizhou Electronics Co., Ltd. Address................................... : Room 1011, Hualianfa building, Huaqiang North Road, Futian District, Shenzhen City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 May 30, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 Report No.: LCS200508123AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ...................................................................................................................... 7 1.3 External I/O Cable ............................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEBT-MI1 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Fig. 3 Test Setup Photo(s) of Conducted Emissions Measurement Fig. 4
