2AECZKS039778000491 18 5CH R/C CAR

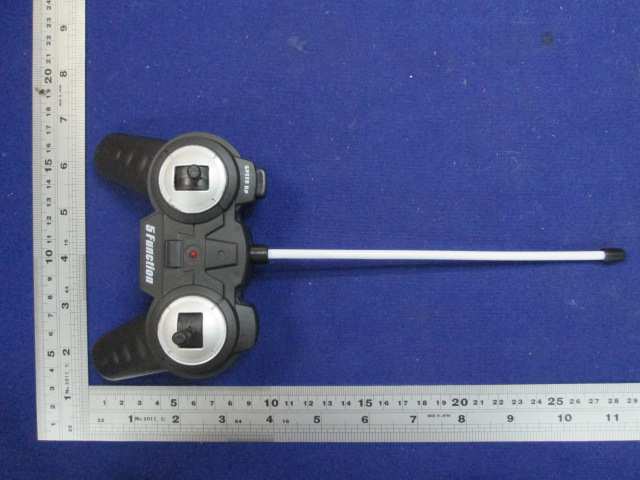

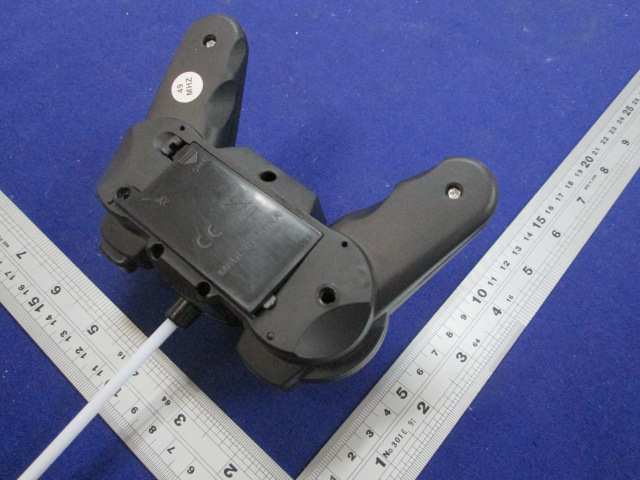

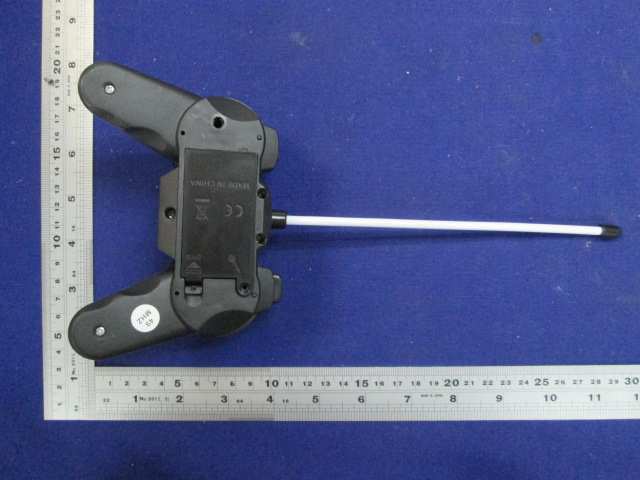

External Photos

Label Artwork and Location SIZE: 30mm (W) x 16mm (H) FCC ID: 2AECZKS03977800049 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photo

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a 1:18 5CH R/C Car operating at 49.86MHz. The EUT is powered by two 1.5V AA size batteries. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -15.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -17.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: The w orst-case peak radiated emission for the EUT is 79.7d BμV/m at 3m in the frequency 49.86MHz The EIRP = [(FS*D) ^2 / 30] mW= -15.53dBm Th e ERP = EIRP – 2.15 = -17.68 dBm wh ich is within the production variation. The maximun conducted output power specified is -12.0dBm =0.06mW The sou rce- based time-averaging conducted output power = 0.06* Duty Cycle mW< 0.1mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 20.0000 m s Effective period of the cycle = 0.5652ms x 10 + 1.6957ms x 4 = 12.4348 ms DC = 12.4348 m s / 20.0000 ms = 0.6217 or 62.17 % FC C ID: 2AECZKS03977800049

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F , D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 CHENGHAI JINJIANG TOYS Application For Certification FC C ID: 2AECZKS03977800049 1:18 5CH R/C Car Model: KS039778 Additional Models: UJ99-1, UJ99-2, UJ99-3, UJ99-4, UJ99-5, UJ99-6, UJ99-7, UJ99-9, UJ99-28, UJ99-29, UJ99-30, UJ99-11, UJ99-12, UJ99-13, UJ99-14, UJ99-15, UJ99-16, UJ99-17, UJ99-35, UJ99-36, KS128935, KS128936, KS128937, KS128938, KS128939, KS128940, KS128941, KS128942, KS128943, J1509A, J1509B, J1509C, J1509D, J1509E, J1509F, J1509G, J1509H, J1509I Tr ansmitter Report No.: GZHH00179428-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-14] Pr epared and Checked by: Approved by: Sign on file Terry Tang Engineer Andy Yan Senior Project Engineer Date: October 23, 2015 INTERTEK TESTING SERVICES Report No.: GZHH00179428-001 FCC ID: 2AECZKS03977800049 TRF No.: FCC 15C_TX_b i G E N E RAL INFORMATION CHENGHAI JINJIANG TOYS MODEL: KS039778 FCC ID: 2AECZKS03977800049 Gra n tee: CHENGHAI JINJIANG TOYS Grantee Address: R Meixin Area, Pumei, Chenghai Shantou City Guangdong, China Contact Person: Yokia Lin Tel: 13790835407 Manufacturer: CHENGHAI JINJIANG TOYS Manufacturer Address: Meixin Area, Pumei, Chenghai Shantou City Guangdong, China Model: KS039778 Type of EUT: Transmitter Description of EUT: 1:18 5CH R/C Car Serial Number: N/A FCC ID : 2AECZKS03977800049 Date of Sample Submitted: July 8, 2015 Date of Test: October 23, 2015 Report No.: GZHH00179428-001 Report Date: October 23, 2015 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: GZHH00179428-001 FCC ID: 2AECZKS03977800049 TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT C H ENGHAI JINJIANG TOYS MODEL: KS039778 FCC ID: 2AECZKS03977800049 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15. 247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15 . 231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15. 231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15. 235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an integral antenna, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: GZHH00179428-001 FCC ID: 2AECZKS03977800049 TRF No.: FCC 15C_TX_b iii T a ble of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ......................................................................…

Text truncated - open the document above for the full version.

Radiated Emission
