2AECZKS096549000276 CH R/C BULLDOZER

FCC ID: Data: To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: Request is hereby submitted by permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and CHENGHAI JINJIANG TOYS access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Dis permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Signature: Print Name: Yokia Lin Title: Sales Manager To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification Request is hereby submitted by CHENGHAI JINJIANG TOYS permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the owing sections of the application are to be kept permanently confidential and CHENGHAI JINJIANG TOYS reserves the right to discern which parties can obt access to these information: Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of CHENGHAI JINJIANG TOYS it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Dis permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge echnology developed by us. If you have questions or need further information, please contact the undersigned. CHENGHAI JINJIANG TOYS to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the owing sections of the application are to be kept permanently confidential and reserves the right to discern which parties can obtain JINJIANG TOYS and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge If you have questions or need further information, please contact the undersigned. 2 November, 2015 2AECZKS09654900027

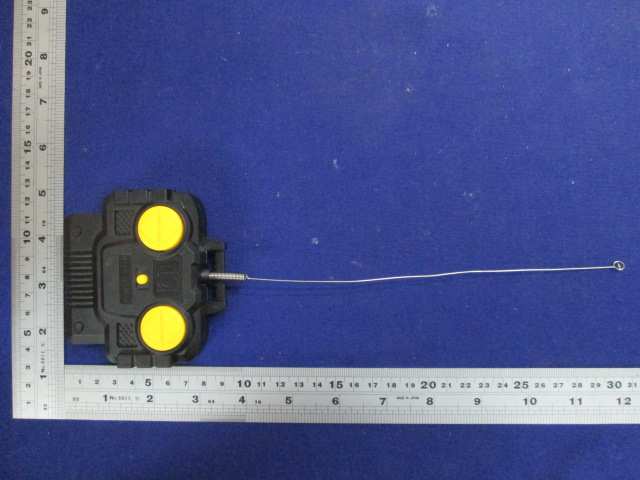

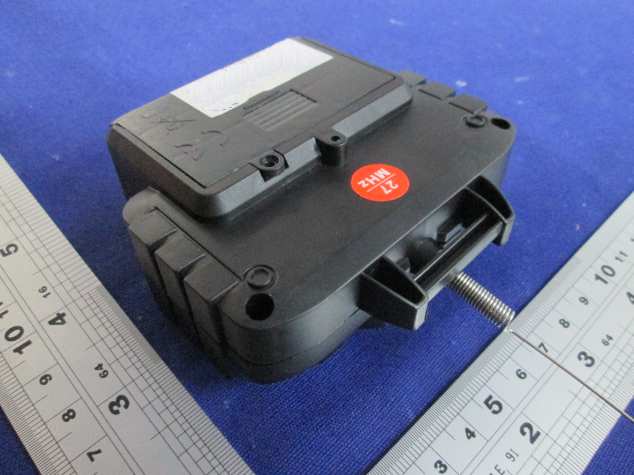

External Photos

Label Artwork and Location SIZE: 40mm (W) x 20mm (H) FCC ID: 2AECZKS09654900027

Internal photos

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a 6 CH R/C BULLDOZER operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AA size battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -25.0dBm (+/- 3dB) Th e nominal radiated output power (e.r.p) specified: -27.15dBm (+/- 3dB) Mo dulation Type: Pulse modulation According to the KDB 447498: Th e worst-case peak radiated emission for the EUT is 68.4dBuV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -26.83dBm T he ERP = EIRP – 2.15 = -28.98 dBm whi ch is within the production variation. The maximun conducted output power specified is -22.0dBm =0.006mW Th e source- based time-averaging conducted output power = 0.006* Duty Cycle mW < 0.1mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 27.145MHz when t he minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 19.2754ms Effective period of the cycle = 550.7μs x 10 + 1.6232ms x 4 = 11.9998ms DC = 11.9998ms / 19.2754ms = 0.6225 or 62.25 % FCC ID: 2AECZKS09654900027

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 CHENGHAI JINJIANG TOYS Application For Certification FCC ID: 2AECZKS09654900027 6 CH R/C BULLDOZER Model: KS096549 Additional Models: See Page 1 Transmitter Report No.: GZHH00187863-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-14] Prepared and Checked by: Approved by: Sign on file Terry Tang Engineer Andy Yan Senior Project Engineer Date: November 6, 2015 INTERTEK TESTING SERVICES Report No.: GZHH00187863-001 FCC ID: 2AECZKS09654900027 TRF No.: FCC 15C_TX_b i GENERAL INFORMATION CHENGHAI JINJIANG TOYS MODEL: KS096549 FCC ID: 2AECZKS09654900027 Grantee: CHENGHAI JINJIANG TOYS Grantee Address: R Meixin Area, Pumei, Chenghai Shantou City Guangdong, China Contact Person: Yokia Lin Tel: 13790835407 Manufacturer: CHENGHAI JINJIANG TOYS Manufacturer Address: Meixin Area, Pumei, Chenghai Shantou City Guangdong, China Model: KS096549 Type of EUT: Transmitter Description of EUT: 6 CH R/C BULLDOZER Serial Number: N/A FCC ID : 2AECZKS09654900027 Date of Sample Submitted: August 25, 2015 Date of Test: August 27, 2015 Report No.: GZHH00187863-001 Report Date: November 6, 2015 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: GZHH00187863-001 FCC ID: 2AECZKS09654900027 TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT CHENGHAI JINJIANG TOYS MODEL: KS096549 FCC ID: 2AECZKS09654900027 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an integral antenna, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: GZHH00187863-001 FCC ID: 2AECZKS09654900027 TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software .................................................................................. 2 2.3 Special Accessories .................................................................…

Text truncated - open the document above for the full version.

Radiated Emission
