2AEDGP220Petkit P2

LOOP COIN CELL OPENER PETKIT P2 BAND Attach the pet collar with the BAND and LOOP hook buttoned up on one side, button up the other side accross the pet collar. Place one side of the device into the LOOP and press the other until you hear a click. LED Download the PETKIT Application from the App Store or Google Play. Create an account and link PETKIT by App Guide. PETKIT P2 smart device with the application is not medical equipment and not applicable for neither medical treatment nor disease preventing. Please be aware that any change you make on your pet might lead to severe consequence. Please consult your veterinarian for professional guide and advice before taking action. Scan the code by WeChat to download. (the code for Chinese area) “” “” App StoreGoogle Play Scan to join PETKIT’s after-sales services, Available for WeChat users. Available on the App Store Android app on PETKIT SHANGHAI PETKIT NETWORK TECHNOLOGY Co., Ltd. WWW.PETKIT.COM WWW.PETKIT.COM Get more information from website. OVERVIEW Place the OPENER into the notch and open the cell cover. OPEN PETKIT P2 Place battery into cell cover with the positive(+) side facing down. Align the edge of cell cover with main part and press firmly until you hear a click. LED on the front side glimmers three times. INSERT BATTERY ATTACH THE LOOP ATTACH THE COLLAR LINK PETKIT P2 AND SYNC SERVICE AND SUPPORT ATTENTION USER MANUAL N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In order to comply with RF exposure requirements, a minimum all persons distance of 5mm must be maintained between the antenna and

SHANGHAI PETKIT NETWORK TECHNOLOGY CO., LTD. Room 106, No.22 Boxia Road,Shanghai,China TEL: 021-51355816 FAX: 021-51355817 Date (27/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AEDGP220 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SHANGHAI PETKIT NETWORK TECHNOLOGY CO., LTD. hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Huili Zhang/Manager Telephone Number: 021-51355816 Email: [email protected]

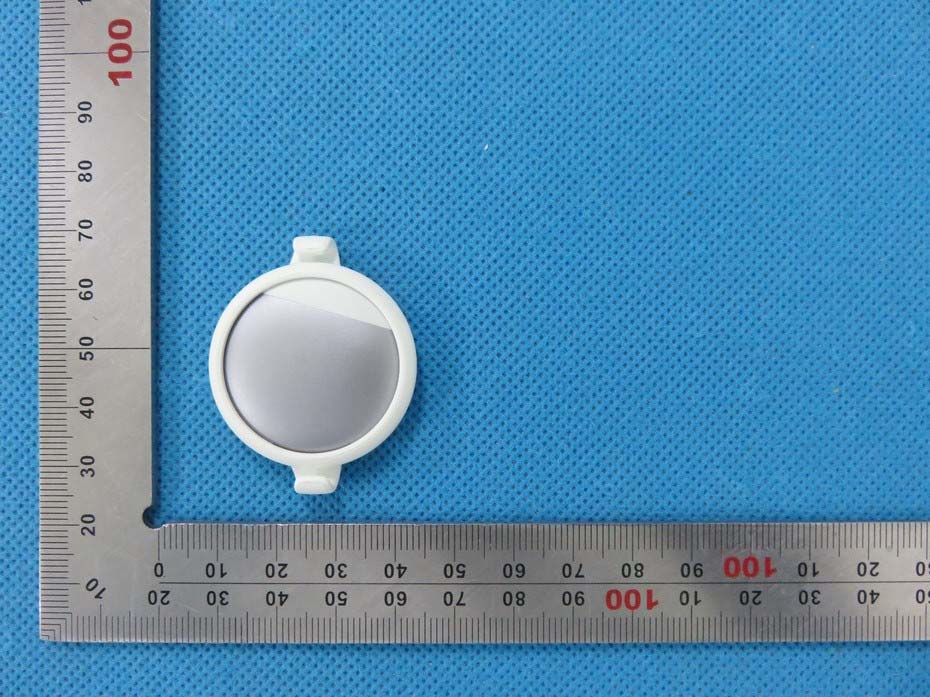

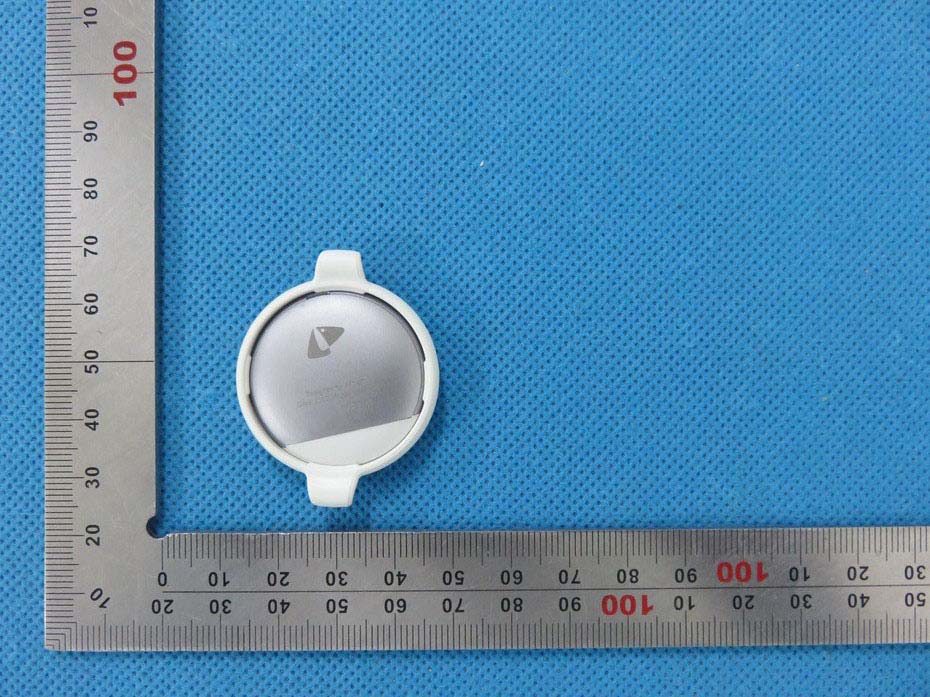

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AEDGP220

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna INTERNAL VIEW OF EUT-3

RF Exposure evaluation Product Description:Petkit P2 Model Number: P120 FCC ID: 2AEDGP220 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=94.55 dBuv/m=0.054V/m,d=3m,g t =0.63 P t =（E x d） 2 /（30 x g t ）=(0.054x3) 2 /(30x0.63)=0.001388W=1.38mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -1.38mW output power] (1.38mW /5mm) .[√2.402(GHz)]= 0.43<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 44 FCC Test Report Report No.: AGC04017150201FE03 FCC ID : 2AEDGP220 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Petkit P2 BRAND NAME : PETKIT MODEL NAME : P120 CLIENT : SHANGHAI PETKIT NETWORK TECHNOLOGY CO., LTD. DATE OF ISSUE : Apr.24,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04017150201FE03 Page 2 of 44 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.24,2015 Valid Original Report Report No.: AGC04017150201FE03 Page 3 of 44 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 7 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7 ALL TEST EQUIPMENT LIST ........................................................................................................................ 9 8. RADIATED EMISSION ................................................................................................................................. 10 8.1TEST LIMIT ............................................................................................................................................. 10 8.2. MEASUREMENT PROCEDURE ............................................................................................................ 11 8.3. TEST SETUP ......................................................................................................................................... 13 8.4. TEST RESULT(WORST MODULATION:GFSK) .......................................................................................... 15 9. BAND EDGE EMISSION ............................................................................................................................. 28 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 28 9.2 TEST SETUP .......................................................................................................................................... 28 9.3 RADIATED TEST RESULT(WORST MODULATION:GFSK) ......................................................................... 29 10 20DB BANDWIDTH .................................................................................................................................... 33 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 33 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 33 10.3. LIMITS AND MEASUREMENT RESULTS ........................................................................................... 33 11. FCC LINE CONDUCTED EMISSION TEST ............................................................................................... 36 Report No.: AGC04017150201FE03 Page 4 of 44 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ............................................................................... 36 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................................. 36 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 37 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ......................................................... 37 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ................................................................... 37 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 38 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 39 Report No.: AGC04017150201FE03 Page 5 of 44 1. VERIFICATION OF CONFORMITY Applicant SHANGHAI PETKIT NETWORK TECHNOLOGY CO., LTD. Address Room 106, No.22 Boxia Road, Shanghai, China Manufacturer SHANGHAI PETKIT NETWORK TECHNOLOGY CO., LTD. Address Room 106, No.22 Boxia Road, Shanghai, China Product Designation Petkit P2 Brand Name PETKIT Test Model P120 Date of test Apr.22,2015 to Apr.23,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc.. The test data, da…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC RADIATED EMISSION TEST SETUP
