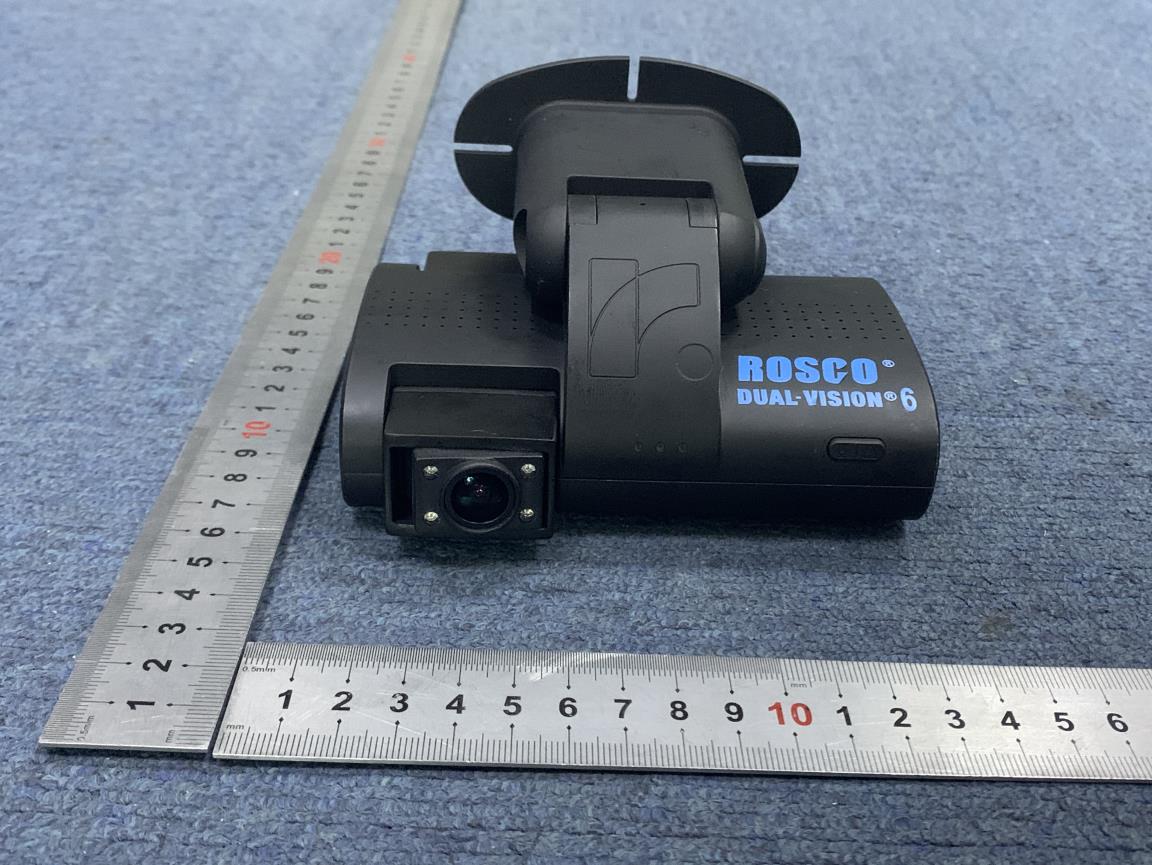

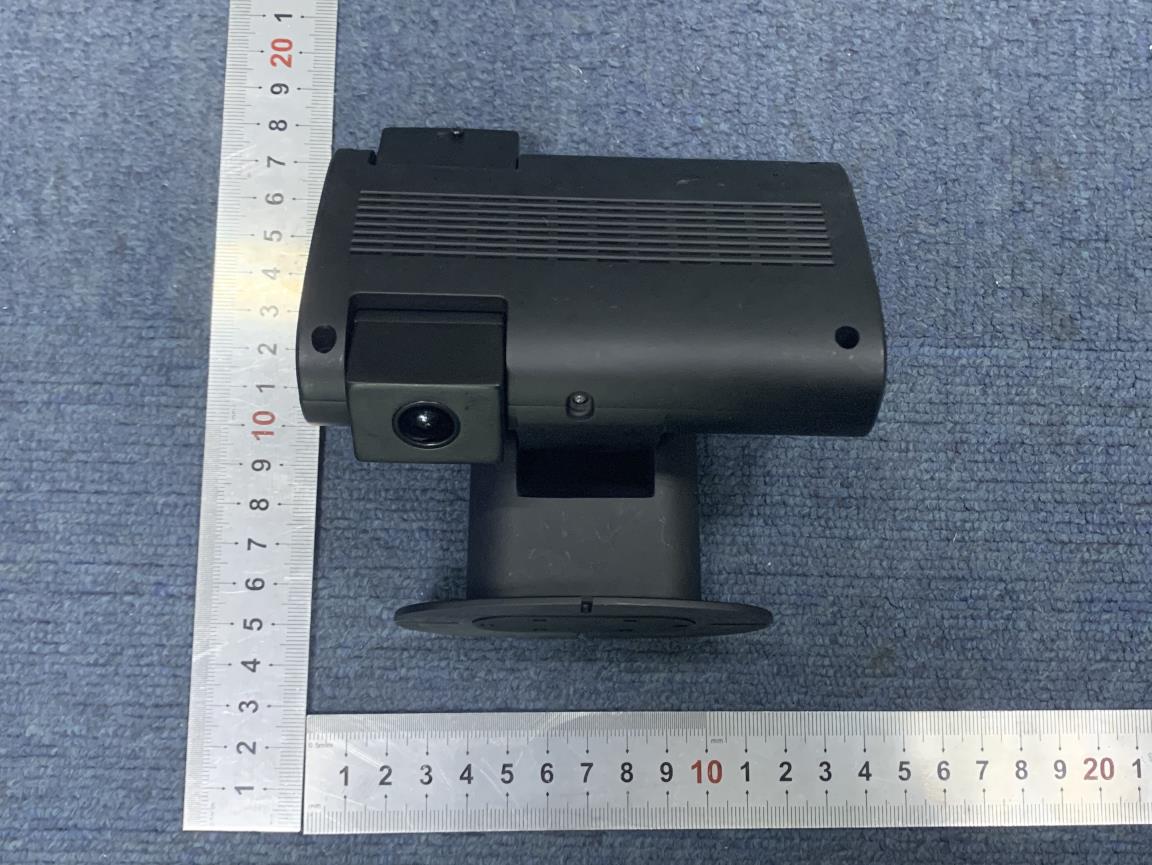

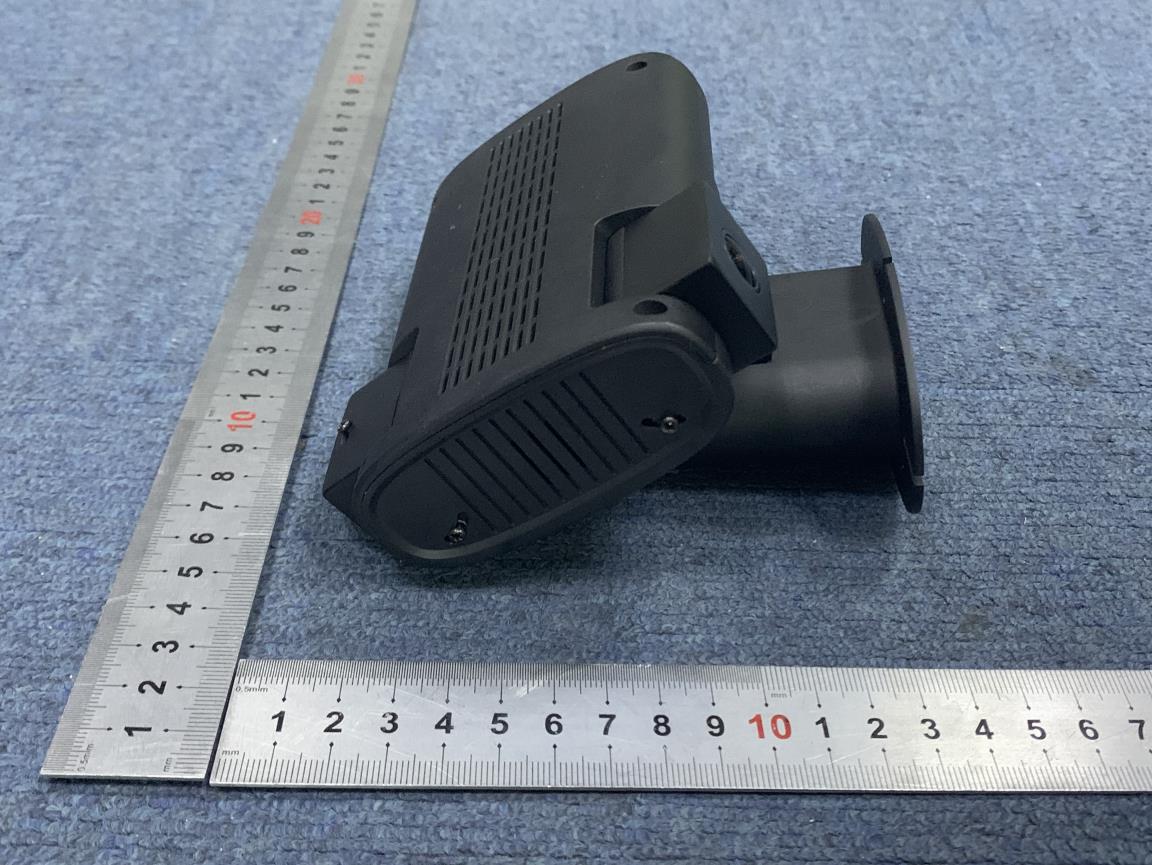

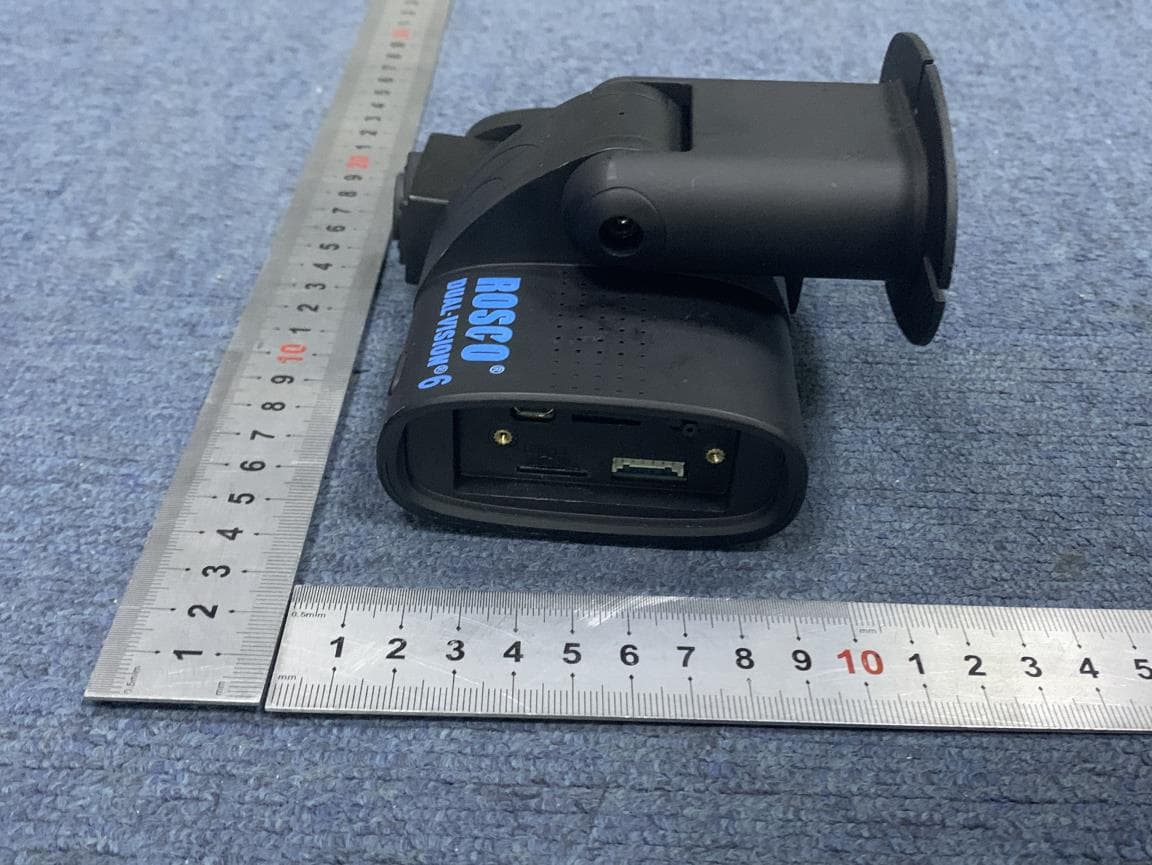

Title: DV601 User Manual Department Engineering Revision: DRAFT Page: 1 Authored by: Mathew Locoteta Document Owner: Mathew Locoteta Approved by: **PENDING* Effective Date: 11/23/2020 Doc ID: UM-0030-DO Printed by Mathew Locoteta on January 20, 2021 at 4:31 PM. This document is marked CONFIDENTIAL and PROPRIETARY. Copyright © 2020 User Manual (UM) DV601 Version: A Author: Mathew Locoteta Date: 2020-11-23 Rosco, Inc. Title: DV601 User Manual Department Engineering Revision: DRAFT Page: 2 Authored by: Mathew Locoteta Document Owner: Mathew Locoteta Approved by: **PENDING* Effective Date: 11/23/2020 Doc ID: UM-0030-DO Printed by Mathew Locoteta on January 20, 2021 at 4:31 PM. This document is marked CONFIDENTIAL and PROPRIETARY. Copyright © 2020 I. Revision History Rev. # Rev. Date Author Section Summary of Changes A 2020-11-23 M. Locoteta ALL Initial release II. Related Documents Ref. # Document Name Rev. Date Author Title: DV601 User Manual Department Engineering Revision: DRAFT Page: 3 Authored by: Mathew Locoteta Document Owner: Mathew Locoteta Approved by: **PENDING* Effective Date: 11/23/2020 Doc ID: UM-0030-DO Printed by Mathew Locoteta on January 20, 2021 at 4:31 PM. This document is marked CONFIDENTIAL and PROPRIETARY. Copyright © 2020 I. Table of Contents Contents I. Revision History ................................................................................................................................................. 2 II. Related Documents ........................................................................................................................................... 2 I. Table of Contents .............................................................................................................................................. 3 1 Introduction ......................................................................................................................................................... 4 1.1 Purpose of this Document ....................... 4 1.2 Scope of this DocumentError! Bookmark not defined. 2 Basic Menu ........................................................................................................... Error! Bookmark not defined. 3 Advanced Menu .................................................................................................. Error! Bookmark not defined. 4 Graphic Implementation Example .................................................................. Error! Bookmark not defined. 5 Markup to Current DV-Pro 5 ............................................................................. Error! Bookmark not defined. 6 Internal Approval Sign-off ................................................................................ Error! Bookmark not defined. Title: DV601 User Manual Department Engineering Revision: DRAFT Page: 4 Authored by: Mathew Locoteta Document Owner: Mathew Locoteta Approved by: **PENDING* Effective Date: 11/23/2020 Doc ID: UM-0030-DO Printed by Mathew Locoteta on January 20, 2021 at 4:31 PM. This document is marked CONFIDENTIAL and PROPRIETARY. Copyright © 2020 1 Introduction 1.1 Purpose of this Document This document is meant to be a reference to quickly understand the basic features and functions of the DV601. 1.2 Device Description The Rosco DV601 is an AI-Enhanced dual-channel commercial grade dashcam built with driver safety in mind. 2 Key Features The DV601 dashcam supports the following features: 1. On-device 2 Channel, 1080p @ 30FPS recording. 2. AI- Enhanced Real-Time Driver Monitoring System. 3. On-Device wireless technology: 4G, Wi-Fi, and GPS. 4. Tamper resistant construction with locking camera and bracket. 5. Micro SD expandable storage up to 1TB. 3 Camera Hardware Figure 1: Camera View 1 Camera Locks Night Vision IR (4X) Interior Camera Indicator LED (R,Y,G) Panic Button Camera Mount Camera-Mount Lock Screw Title: DV601 User Manual Department Engineering Revision: DRAFT Page: 5 Authored by: Mathew Locoteta Document Owner: Mathew Locoteta Approved by: **PENDING* Effective Date: 11/23/2020 Doc ID: UM-0030-DO Printed by Mathew Locoteta on January 20, 2021 at 4:31 PM. This document is marked CONFIDENTIAL and PROPRIETARY. Copyright © 2020 Figure 2: Camera Side View Figure 3: Camera Underside View 2FF SIM Slot 12 Pin Power Connection Micro USB Debug Port Micro SD Card Slot Third Camera VX1 Port Light Sensor Exterior Camera Microphone Slot Interior Camera Horiztonal Lock Third Camera Lock Title: DV601 User Manual Department Engineering Revision: DRAFT Page: 6 Authored by: Mathew Locoteta Document Owner: Mathew Locoteta Approved by: **PENDING* Effective Date: 11/23/2020 Doc ID: UM-0030-DO Printed by Mathew Locoteta on January 20, 2021 at 4:31 PM. This document is marked CONFIDENTIAL and PROPRIETARY. Copyright © 2020 4 DV601 Harnessing The DV601 is can be supplied with several harnesses to meet various applications. 1. DV665- Standard OBD II with Ignition and Turn Signals. 2. DV667- Breakout harness with all used connections. 3. DV668 – OBD II to J1939 Connector 4. DV669 – OBD II to Breakout Harness The DV665 can be combined with the DV668 or DV669 to meet most non-OBD-II applications. If known in advance, it is recommended to use the DV667 breakout harness during installation. Title: DV601 User Manual Department Engineering Revision: DRAFT Page: 7 Authored by: Mathew Locoteta Document Owner: Mathew Locoteta Approved by: **PENDING* Effective Date: 11/23/2020 Doc ID: UM-0030-DO Printed by Mathew Locoteta on January 20, 2021 at 4:31 PM. This document is marked CONFIDENTIAL and PROPRIETARY. Copyright © 2020 5 Before Installation Before installation of DV601 ensure the following is complete: 1. A micro-SD card is formatted to FAT32 and inserted in the micro SD Slot. 2. If necessary, contact Rosco Engineering to supply a valid device configuration for your device. 3. If using on-device 4G, make sure an activated SIM card is inserted in the SIM slot. 4. Ensure your harness matches your vehicle requireme…

Text truncated - open the document above for the full version.

FCC Caution § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated withminimum dist ance 20cm between the radiator & your body. Operations in the 5.15-5.25GHz band are restricted to indoor usage only ISED Caution - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause in terference, and (2) This device must accept any interference, including interference th at may cause undesired operation of the device. - French: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

ROSCO,INC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/02/24 Subject; Request for Confidentiality FCC ID: 2AEDLDV601 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Bom List Tune up procedure NII Software Security In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Benjamin Englander Title: CEO

Letter of Authorization Company: ROSCO,INC Address: 90-21 144th Place, Jamaica, N.Y. 11435 Product Name: DV601 Model Number: DV601 FCC Identifier: 2AEDLDV601 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Benjamin Englander Date: 2021/02/24 Title: CEO Signature of applicant: E-Mail: [email protected] Tel: (516) 426-9294 Fax:(718) 297-0323

5150-5350MHz Indoor Used Only

WWAN MAIN ANT LTE Sub ANT GPS ANT WIFI ANT

RF Exposure FCC ID: 2AEDLDV601 Applicant: Rosco Inc. Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: DV601 Refer Standard: FCC Part 2.1091: Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands) FCC MPE Limited: Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Test Data Predication of MPE limit at a given distance Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) SRD Antenna Gain information 2.4G WLAN： 2.8dBi 5G WLAN：2.5dBi BT: 2.8 dBi WWAN Antenna Gain information: Max gain：3.5dBi Worst-Case mode Conducted Output Power Results for2.4G WIFI 802.11b mode Channel Frequency (MHz) Output Power(dBm) Tune Up tolerance(dBm) 1 2412 17.16 17±1 6 2437 17.26 17±1 11 2462 16.72 17±1 Worst-Case mode Conducted Output Power Results for BT /BLE Bluetooth Band Mode Test Frequency Power(dBm) Tune-up tolerance(dBm) BT EDR GFSK 2402 3.61 4±1 GFSK 2441 5.53 5±1 GFSK 2480 5.22 5±1 pi/4DQPSK 2402 2.71 2±1 pi/4DQPSK 2441 5.90 5±1 pi/4DQPSK 2480 2.20 3±1 8DPSK 2402 3.32 3±1 8DPSK 2441 3.12 3±1 8DPSK 2480 2.59 2±1 BLE GFSK 2402 5.79 5±1 GFSK 2440 5.87 5±1 GFSK 2480 5.67 5±1 Worst-Case mode Conducted Power Test results of band U-NII-1/U-NII-3 802.11a mode Frequency (MHz) Conducted Output Power (dBm) Tune Up tolerance(dBm) 5180 12.08 12±1 5220 12.60 12±1 5240 12.07 12±1 5745 12.80 12±1 5785 12.68 12±1 5825 12.44 12±1 Worst-Case mode Conducted Output Power Results for WWAN Band Channel Frequency (MHz) Max Tune up power(dBm) Max Tune up power(W) Duty cycle(%) Average power(W) WCDMA850 Low 826.4 23.00 0.200 100 0.200 Mid 836.6 23.00 0.200 100 0.200 High 846.4 23.00 0.200 100 0.200 WCDMA1900 Low 1852.4 24.00 0.251 100 0.251 Mid 1880 24.00 0.251 100 0.251 High 1907.6 24.00 0.251 100 0.251 WCDMA1700 Low 1852.4 24.00 0.251 100 0.251 Mid 1880 24.00 0.251 100 0.251 High 1907.6 24.00 0.251 100 0.251 LTE Band 2 Low 1860 24.00 0.251 100 0.251 Mid 1880 24.00 0.251 100 0.251 High 1900 24.00 0.251 100 0.251 LTE Band 4 Low 1720 24.00 0.251 100 0.251 Mid 1732.5 24.00 0.251 100 0.251 High 1745 24.00 0.251 100 0.251 LTE Band 5 Low 829 25.00 0.316 100 0.316 Mid 836.5 25.00 0.316 100 0.316 High 844 25.00 0.316 100 0.316 LTE Band 12 Low 704 25.00 0.316 100 0.316 Mid 707.5 25.00 0.316 100 0.316 High 711 25.00 0.316 100 0.316 LTE Band 13 Low 779.5 25.00 0.316 100 0.316 Mid 782 25.00 0.316 100 0.316 High 784.5 25.00 0.316 100 0.316 LTE Band 14 Low 790.5 25.00 0.316 100 0.316 Mid 793 25.00 0.316 100 0.316 High 795.5 25.00 0.316 100 0.316 LTE Band 66 Low 1720 24.00 0.251 100 0.251 Mid 1745 24.00 0.251 100 0.251 High 1770 24.00 0.251 100 0.251 LTE Band 71 Low 665.5 23.00 0.200 100 0.200 Mid 680.5 23.00 0.200 100 0.200 High 695.5 23.00 0.200 100 0.200 Note: for power tolerance please refer to tune up for detail. Calculation results (for 2.4G WIFI): Worst-case mode Frequency (MHz) Maximum tune up power(dBm) RF distance(cm) Result (mW/cm2) Limit (mW/cm2) 2412 18 20 0.024 1.0 2437 18 20 0.024 2462 18 20 0.024 Calculation results (for 5G WIFI): Worst-Case mode Frequency (MHz) Maximum tune up power(dBm) RF distance(cm) Result (mW/cm2) Limit (mW/cm2) 5180 13 20 0.007 1.0 5220 13 20 0.007 5240 13 20 0.007 5745 13 20 0.007 5785 13 20 0.007 5825 13 20 0.007 Calculation results (for BT/BLE): Worst-case mode Bluetooth Band Mode Test Frequency Power(dBm) Result (mW/cm2) Limit (mW/cm2) BT EDR GFSK 2402 5 0.001 1.0 GFSK 2441 6 0.0015 GFSK 2480 6 0.0015 pi/4DQPSK 2402 3 0.001 pi/4DQPSK 2441 4 0.001 pi/4DQPSK 2480 4 0.001 8DPSK 2402 4 0.001 8DPSK 2441 4 0.001 8DPSK 2480 3 0.001 BLE GFSK 2402 6 0.0015 GFSK 2440 6 0.0015 GFSK 2480 6 0.0015 Calculation results (for WWAN): Worst-Case mode Band Channel Frequency (MHz) Result(mW/cm2) Limit(mW/cm2) Ratio WCDMA850 Low 826.4 0.089 0.55 0.160 Mid 836.6 0.089 0.56 0.160 High 846.4 0.089 0.57 0.160 WCDMA1900 Low 1852.4 0.112 1.0 0.112 Mid 1880 0.112 1.0 0.112 High 1907.6 0.112 1.0 0.112 LTE Band 2 Low 1860 0.112 1.0 0.112 Mid 1880 0.112 1.0 0.112 High 1900 0.112 1.0 0.112 LTE Band 4 Low 1720 0.112 1.0 0.112 Mid 1732.5 0.112 1.0 0.112 High 1745 0.112 1.0 0.112 LTE Band 5 Low 829 0.141 0.55 0.256 Mid 836.5 0.141 0.56 0.252 High 844 0.141 0.56 0.252 LTE Band 12 Low 704 0.141 0.47 0.300 Mid 707.5 0.141 0.47 0.300 High 711 0.141 0.47 0.300 LTE Band 13 Low 779.5 0.141 0.52 0.271 Mid 782 0.141 0.52 0.271 High 784.5 0.141 0.52 0.271 LTE Band 14 Low 790.5 0.141 0.53 0.266 Mid 793 0.141 0.53 0.266 High 795.5 0.141 0.53 0.266 LTE Band 66 Low 1720 0.112 1.0 0.112 Mid 1745 0.112 1.0 0.112 High 1770 0.112 1.0 0.112 LTE Band 71 Low 665.5 0.089 0.44 0.202 Mid 680.5 0.089 0.45 0.198 High 695.5 0.089 0.46 0.193 Simultaneous Transmission Calculation (Worst-case mode) No. Transmitter Combinations Scenario Supported or not 1 WWAN+2.4G WLAN+BT Yes 2 WWAN +5G WLAN+BT Yes Antenna Mode/Channel Calculation results(mW/cm2) Limit (mW/cm2) Ratio WWAN LTE Band12 0.141 0.47 0.300 WLAN 2.4G WIFI 0.024 1.0 0.024 WLAN 5G WIFI 0.007 1.0 0.007 BT BLE 0.0015 1.0 0.0015 Max Simultaneous Transmission Calculation (Worst-case mode) No. Worst Mode MPE Ratio Results 1 LTE Band12 +2.4G WIFI+BLE 0.3+0.024+0.0015 0.3255<1.0(pass)

Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 1 of 352 RF TEST REPORT Report No.: SET2020-00468 Product: DV601 IC: 25914-DV601 FCC ID: 2AEDLDV601 Model No.: DV601 Applicant: ROSCO,INC Address: 90-21 144TH PLACE JAMAICA, NY 11435. Dates of Testing: 01/01/2021 —02/23/2021 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel：86 755 26627338 Fax：86 755 26627238 This test report consists of 352 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 2 of 352 Test Report Product ................................. : DV601 Brand Name .......................... : DV6 Trade Name .......................... : DV6 Applicant .............................. : ROSCO,INC Applicant Address ............... : 90-21 144TH PLACE JAMAICA, NY 11435. Manufacturer ........................ : ROSCO,INC Manufacturer Address ......... : 90-21 144TH PLACE JAMAICA, NY 11435. Test Standards ..................... : FCC:47 CFR Part 2/22/24/27/90 IC: RSS-130, issue 2 RSS-132, Issue 3 RSS-133, Issue 6 RSS-139, issue 3 RSS-140, issue 1 Test Result......................... : PASS Tested by ..........................: 2021.02.23 Vincent, Test Engineer Reviewed by .... ...................: 2021.02.23 Chris You, Senior Engineer Approved by......................: 2021.02.23 Shuangwen Zhang，Manager Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 3 of 352 Table of Contents 1. GENERAL INFORMATION .................................................................................................... 5 1.1 EUT Description ............................................................................................................ 5 1.2 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator...... 6 1.3 Test Standards and Results........................................................................................... 9 1.4 Test Configuration of Equipment Under Test .......................................................... 11 1.5 Measurement Results Explanation Example ............................................................ 13 1.6 Facilities and Accreditations ...................................................................................... 13 2. TEST REQUIREMENTS ........................................................................................................ 14 2.1 Conducted RF Output Power ..................................................................................... 14 2.2 Peak to Average Radio ................................................................................................ 15 2.3 99% Occupied Bandwidth and 26dB Bandwidth .................................................... 17 2.4 Frequency Stability ..................................................................................................... 19 2.5 Conducted Out of Band Emissions ............................................................................ 22 2.6 Conducted Band Edge ................................................................................................ 25 2.7 Transmitter Radiated Power (EIRP/ERP) ................................................................ 27 2.8 Radiated Out of Band Emissions ............................................................................... 37 2.9 Transmit antenna ........................................................................................................ 46 3. LIST OF MEASURING EQUIPMENT ................................................................................. 47 4. UNCERTAINTY OF EVALUATION ..................................................................................... 48 Appendix A .......................................................................................................................................... 49 1.1 Conducted RF Output Power ..................................................................................... 49 1.2 Peak To Average Ratio ................................................................................................ 94 1.3 99% Occupied Bandwidth .......................................................................................... 99 1.4 26dB Bandwidth ........................................................................................................ 113 1.5 Frequency Stability ................................................................................................... 127 1.6 Conducted Out of Band Emissions .......................................................................... 131 1.7 Conducted Band Edge .............................................................................................. 193 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 4 of 352 Change History Issue Date Reason for change 1.0 2021.02.23 First edition Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 5 of 352 1. GENERAL INFORMATION 1.1 EUT Description EUT Type DV601 Hardware Version REV A Software Version 2.1.0 EUT supports Radios application LTE Band 2/4/5/12/13/14/66/71 Frequency Range(Tx) LTE Band 2: 1850.7MHz~1909.3MHz LTE Band 4: 1710.7MHz~1754.3MHz LTE Band 5: 824.7MHz~848.3MHz LTE Band 12: 699.7MHz~715.3MHz LTE Band 13: 779.5MHz~784.5MHz LTE Band 14: 790.5MHz~795.5MHz LTE Band 66: 1710.7MHz~1779.3MHz LTE Band 71: 665.5 MHz~695.5MHz Maximum Ou…

Text truncated - open the document above for the full version.

Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 121 of 352 FDD05_MidRange_10MHz_836.5MHz_QPSK FDD05_MidRange_10MHz_836.5MHz_Q16 FDD12_MidRange_1.4MHz_707.5MHz _QPSK FDD12_MidRange_1.4MHz_707.5MHz _Q16 FDD12_MidRange_3MHz_707.5MHz_QPSK FDD12_MidRange_3MHz_707.5MHz_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 122 of 352 FDD12_MidRange_5MHz_707.5MHz_QPSK FDD12_MidRange_5MHz_707.5MHz_Q16 FDD12_MidRange_10MHz_707.5MHz_QPSK FDD12_MidRange_10MHz_707.5MHz_Q16 FDD13_MidRange_5MHz_782MHz_QPSK FDD13_MidRange_5MHz_782MHz_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 123 of 352 FDD13_MidRange_10MHz_782MHz_QPSK FDD13_MidRange_10MHz_782MHz_Q16 FDD14_MidRange_5MHz_793MHz_QPSK FDD14_MidRange_5MHz_793MHz_Q16 FDD14_MidRange_10MHz_793MHz_QPSK FDD14_MidRange_10MHz_793MHz_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 124 of 352 FDD66_MidRange_1.4MHz_1745MHz_QPSK FDD66_MidRange_1.4MHz_1745MHz_Q16 FDD66_MidRange_3MHz_1745MHz_QPSK FDD66_MidRange_3MHz_1745MHz_Q16 FDD66_MidRange_5MHz_1745MHz_QPSK FDD66_MidRange_5MHz_1745MHz_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 125 of 352 FDD66_MidRange_10MHz_1745MHz_QPSK FDD66_MidRange_10MHz_1745MHz_Q16 FDD66_MidRange_15MHz_1745MHz_QPSK FDD66_MidRange_15MHz_1745MHz_Q16 FDD66_MidRange_20MHz_1745MHz_QPSK FDD66_MidRange_20MHz_1745MHz_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 126 of 352 FDD71_MidRange_5_680.5_QPSK FDD71_MidRange_5_680.5_Q16 FDD71_MidRange_10_680.5_QPSK FDD71_MidRange_10_680.5_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 127 of 352 1.5 Frequency Stability 1.5.1 Test Result and Data Frequency Stability NormalTC_NormalVol Temperature Voltage Band BandWidth (MHz) RbMode Modulation Frequency Error (Hz) Frequency Error (ppm) Limit (ppm)Result Normal Low FDD02 10 fullRB QPSK -7.753 0.004 2.5 Pass Normal Normal FDD02 10 fullRB QPSK -7.825 0.004 2.5 Pass Normal High FDD02 10 fullRB QPSK -7.095 0.004 2.5 Pass 50 Normal FDD02 10 fullRB QPSK -6.495 0.003 2.5 Pass 40 Normal FDD02 10 fullRB QPSK -7.696 0.004 2.5 Pass 30 Normal FDD02 10 fullRB QPSK -6.580 0.004 2.5 Pass 20 Normal FDD02 10 fullRB QPSK -10.915 0.006 2.5 Pass 10 Normal FDD02 10 fullRB QPSK -12.074 0.006 2.5 Pass 0 Normal FDD02 10 fullRB QPSK -7.467 0.004 2.5 Pass -10 Normal FDD02 10 fullRB QPSK -8.454 0.004 2.5 Pass -20 Normal FDD02 10 fullRB QPSK -8.683 0.005 2.5 Pass -30 Normal FDD02 10 fullRB QPSK -5.994 0.003 2.5 Pass Normal Low FDD04 10 fullRB QPSK 6.137 0.004 2.5 Pass Normal Normal FDD04 10 fullRB QPSK 5.279 0.003 2.5 Pass Normal High FDD04 10 fullRB QPSK 7.210 0.004 2.5 Pass 50 Normal FDD04 10 fullRB QPSK -3.633 0.002 2.5 Pass 40 Normal FDD04 10 fullRB QPSK 4.535 0.003 2.5 Pass 30 Normal FDD04 10 fullRB QPSK -4.435 0.003 2.5 Pass 20 Normal FDD04 10 fullRB QPSK 3.991 0.002 2.5 Pass 10 Normal FDD04 10 fullRB QPSK -5.980 0.003 2.5 Pass 0 Normal FDD04 10 fullRB QPSK -5.865 0.003 2.5 Pass -10 Normal FDD04 10 fullRB QPSK -4.692 0.003 2.5 Pass -20 Normal FDD04 10 fullRB QPSK 4.778 0.003 2.5 Pass -30 Normal FDD04 10 fullRB QPSK -5.221 0.003 2.5 Pass Normal Low FDD05 10 fullRB QPSK -3.076 0.004 2.5 Pass Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 128 of 352 Normal Normal FDD05 10 fullRB QPSK -4.134 0.005 2.5 Pass Normal High FDD05 10 fullRB QPSK -3.304 0.004 2.5 Pass 50 Normal FDD05 10 fullRB QPSK 1.974 0.002 2.5 Pass 40 Normal FDD05 10 fullRB QPSK -4.206 0.005 2.5 Pass 30 Normal FDD05 10 fullRB QPSK 2.418 0.003 2.5 Pass 20 Normal FDD05 10 fullRB QPSK -3.805 0.005 2.5 Pass 10 Normal FDD05 10 fullRB QPSK 2.246 0.003 2.5 Pass 0 Normal FDD05 10 fullRB QPSK -2.646 0.003 2.5 Pass -10 Normal FDD05 10 fullRB QPSK -2.718 0.003 2.5 Pass -20 Normal FDD05 10 fullRB QPSK -2.203 0.003 2.5 Pass -30 Normal FDD05 10 fullRB QPSK 3.419 0.004 2.5 Pass Normal Low FDD12 10 fullRB QPSK -2.890 0.004 2.5 Pass Normal Normal FDD12 10 fullRB QPSK -1.488 0.002 2.5 Pass Normal High FDD12 10 fullRB QPSK -3.476 0.005 2.5 Pass 50 Normal FDD12 10 fullRB QPSK -3.505 0.005 2.5 Pass 40 Normal FDD12 10 fullRB QPSK -2.933 0.004 2.5 Pass 30 Normal FDD12 10 fullRB QPSK -3.061 0.004 2.5 Pass 20 Normal FDD12 10 fullRB QPSK 3.190 0.005 2.5 Pass 10 Normal FDD12 10 fullRB QPSK -3.133 0.004 2.5 Pass 0 Normal FDD12 10 fullRB QPSK 2.275 0.003 2.5 Pass -10 Normal FDD12 10 fullRB QPSK -2.818 0.004 2.5 Pass -20 Normal FDD12 10 fullRB QPSK -2.933 0.004 2.5 Pass -30 Normal FDD12 10 fullRB QPSK -3.262 0.005 2.5 Pass Normal Low FDD13 10 fullRB QPSK -2.332 0.003 2.5 Pass Normal Normal FDD13 10 fullRB QPSK -2.031 0.003 2.5 Pass Normal High FDD13 10 fullRB QPSK -3.262 0.004 2.5 Pass 50 Normal FDD13 10 fullRB QPSK -3.290 0.004 2.5 Pass 40 Normal FDD13 10 fullRB QPSK -3.676 0.005 2.5 Pass 30 Normal FDD13 10 fullRB QPSK -3.977 0.005 2.5 Pass 20 Normal FDD13 10 fullRB QPSK -4.134 0.005 2.5 Pass 10 Normal FDD13 10 fullRB QPSK -3.591 0.005 2.5 Pass 0 Normal FDD13 10 fullRB QPSK -3.977 0.005 2.5 Pass Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 129 of 352 -10 Normal FDD13 10 fullRB QPSK -3.047 0.004 2.5 Pass -20 Normal FDD13 10 fullRB QPSK 2.804 0.004 2.5 Pass -30 Normal FDD13 10 fullRB QPSK 2.275 0.003 2.5 Pass Normal Low FDD14 10 fullRB QPSK -3.033 0.004 2.5 Pass Normal Normal FDD14 10 fullRB QPSK 2.661 0.003 2.5 Pass Normal High FDD14 10 fullRB QPSK -4.520 0.006 2.5 Pass 50 Normal FDD14 10 fullRB QPSK -3.262 0.004 2.5 Pass 40 Normal FDD14 10 fullRB QPSK -3.691 0.005 2.5 Pass 30 Normal FDD14 10 fullRB QPSK -2.418 0.003 2.5 Pass 20 Normal FDD14 10 fullRB QPSK -2.031 0.003 2.5 Pass 10 Normal FDD14 10 fullRB QPSK -3.290 0.004 2.5 Pass 0 Normal FDD14 10 fullRB QPSK -2.146 0.003 2.5 Pass -10 Normal FDD14 10 fullRB QPSK -4.177 0.005 2.5 Pass -20 Normal FDD14 10 fullRB QPSK -4.106 0.005 2.5 Pass -30 Normal FDD14 10 fullRB QPSK -2.317 0.003 2.5 Pass Normal Low FDD66 10 fullRB QPSK -4.735 0.003 2.5 Pass Normal Normal FDD66 10 fullRB QPSK -5.851 0.003 2.5 Pass Normal High FDD66 10 fullRB QPSK -5.836 0.003 2.5 Pass 50 Nor…

Text truncated - open the document above for the full version.

Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 221 of 352 HighRange_ FDD05_5MHz_846.5_fullRB _High_QPSK HighRange_ FDD05_5MHz_846.5_fullRB _High_Q16 HighRange_FDD05_10MHz_844_OneRB _high_QPSK HighRange_FDD05_10MHz_844_OneRB _high_Q16 HighRange_ FDD05_10MHz_844_fullRB _High_QPSK HighRange_ FDD05_10MHz_844_fullRB _High_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 222 of 352 LowRange_FDD12_1.4MHz_699.7_OneRB _low_QPSK LowRange_FDD12_1.4MHz_699.7_OneRB _low_Q16 LowRange_ FDD12_1.4MHz_699.7_fullRB _Low_QPSK LowRange_ FDD12_1.4MHz_699.7_fullRB _Low_Q16 LowRange_FDD12_3MHz_700.5_OneRB _low_QPSK LowRange_FDD12_3MHz_700.5_OneRB _low_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-05-23) Page 223 of 352 LowRange_ FDD12_3MHz_700.5_fullRB _Low_QPSK LowRange_ FDD12_3MHz_700.5_fullRB _Low_Q16 LowRange_FDD12_5MHz_701.5_OneRB _low_QPSK LowRange_FDD12_5MHz_701.5_OneRB _low_Q16 LowRange_ FDD12_5MHz_701.5_fullRB _Low_QPSK LowRange_ FDD12_5MHz_701.5_fullRB _Low_Q16 Report No.: SET2020-00468 CCIC-SET/ TRF:IRF(2019-…
