2AEDLND100Mini Router

ND100 User Guide 1 Rosco Vision Systems : ND100 ND100 USER GUIDE By : ND100 User Guide 2 Rosco Vision Systems : ND100 Index Contents About Product ................................................................................................................................... 3 Interfaces .................................................................................................................................. 3 Power on the ND100: ........................................................................................................ 4 Configure ND100 ............................................................................................................... 4 Homepage ......................................................................................................................... 5 Manage WIFI User ............................................................................................................. 6 Settings .............................................................................................................................. 7 Advance Settings ............................................................................................................. 14 ND100 User Guide 3 Rosco Vision Systems : ND100 About Product ND100 is a Mini Router is a CAT-4 device which can support high download and upload throughput as per the 3GPP standards with following features : ◼ Supports FDD-LTE on band ◼ Supports WCDMA on band ◼ Supports WIFI 802.11b/g/n on 2.4GHz & 802.11ac on 5GHz with Internal Antennas. ◼ Max 8 users can connect over WIFI ◼ 1 x RJ45 Port for LAN (10/100 BaseT support) ◼ SIM Slot with 3FF MICRO SIM standard ◼ 2x RP-SMA connectors for Cellular Antennas Interfaces ND100 User Guide 4 Rosco Vision Systems : ND100 Let’s start using ND100 1. Insert SIM card with 3FF (MICRO SIM) into SIM slot section. 2. Connect both antennas provided with packaging. Power on the ND100: ⚫ ND100 can be power on using USB, Just connect USB to your PC. OR Using 4 PIN Molex connector for Power Supply (Ref. Interface section). Kindly use the adaptor & cables provided with packaging. ⚫ Power Led will be turned out Green, which indicates that device is powered on successfully and it is ready to use or setup the device configurations if required. Configure ND100 ⚫ Turn ON the device and connect LAN port with your PC . ND100 User Guide 5 Rosco Vision Systems : ND100 ⚫ Device support webGUI management. Which means it can be setup using any web browser which makes this device so easy to configure ⚫ Once your PC recognized this device , you can open any web browser ⚫ Input http://192.168.0.1 on address bar and hit enter. ⚫ User will get login window for ND100 as below User needs to enter admin/admin for Username/Password. NOTE: ➢ Default password is admin but it can be modify. ➢ After press reset switch or select factory default function from webGUI, Password will be again as default (admin) with all the default configurations. ⚫ After input correct credentials, click on Sign In tab. User can login to web management page. Homepage ⚫ After log-in , User can see homepage where all the basic details about ND100 are displayed like: IMEI Firmware & Hardware version SIM card ICCID Network Status and Signals information WIFI Status with SSID, Password and connected users Internet status with available WAN IP, connected time and data usage. ND100 User Guide 6 Rosco Vision Systems : ND100 Manage WIFI User ⚫ On Connected Devices page, User can see all the connected devices details like IP & MAC address and if required, user can block any unwanted or suspicious connected device by simply click on Block tab. All the blocked devices can be seen under Blocked devices. Where user can also unblock them if required. ND100 User Guide 7 Rosco Vision Systems : ND100 Settings ⚫ On this section, User can see different important configuration settings like: WIFI Setting Device Settings Mobile Network Remote Update (Firmware over the Air feature) WIFI Settings ➢ On this page, User can configure the WIFI feature like SSID, Security , Password, Transmission mode & channel etc. ( ref. image ) ND100 User Guide 8 Rosco Vision Systems : ND100 WiFi Name (SSID): Subscriber set identity; User can define this field as per their requirement. Default SSID is “default_XXXXXX“(last six characters for WIFI MAC address) Security: available options are None ( as Default), WAP2 Personal (AES) & WPA/WPA2 Mixed Mode WIFI Password (Key): User can setup password 8~ 63 ASCII characters for password. By Default , There is no password. 802.11 Mode: Supports 802.11 bgn (as default) & 802.11ac. Channel: Supports Automatic channel (as default) and manual channel from 1 ~ 9 for 802.11bgn Supports Automatic channel (as default) and manual channel from 36, 40, 44, 48, 149, 153, 157, 161& 165 for 802.11ac. Broadcast Wi-Fi Name (SSID): Enabled as default. If disabled, SSID name will not be visible during WIFI AP scan. Wi-Fi Privacy Separation: Enabled as default, User can uncheck it wants to disable this security function. Max WIFI connections: Default is 8, user can defined the number of devices (1~8) which can connect to ND100 over WIFI NOTE: After change any configuration, User needs to click on Save Changes tab on below to save the modify configurations. Device Settings Admin Password: on this page, user can change the default password if required. User need to first input existing password and click on continue as below ND100 User Guide 9 Rosco Vision Systems : ND100 New page will open and then user needs to put current admin password and then only User can define new password , ref below image To make change into effect, user must need to click on Save Changes tab. Backup and Restore: On this section, User can get many important features like backup/Restore, Reboot/Reset. ND100 User Guide 10 Rosco Vision Systems : ND100 ⚫ To backup the current configuration, User needs to input admin password and then click on Download tab to the PC…

Text truncated - open the document above for the full version.

ROSCO,INC Agent Authorization Company: ROSCO,INC Address: 90-21 144TH PLACE JAMAICA New York 11435 United States Product Name: Mini Router Model Number(s): ND100 Product Description: 4G LTE Wi-Fi Mini Router We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: May-13-2020 Name: Title: Company:

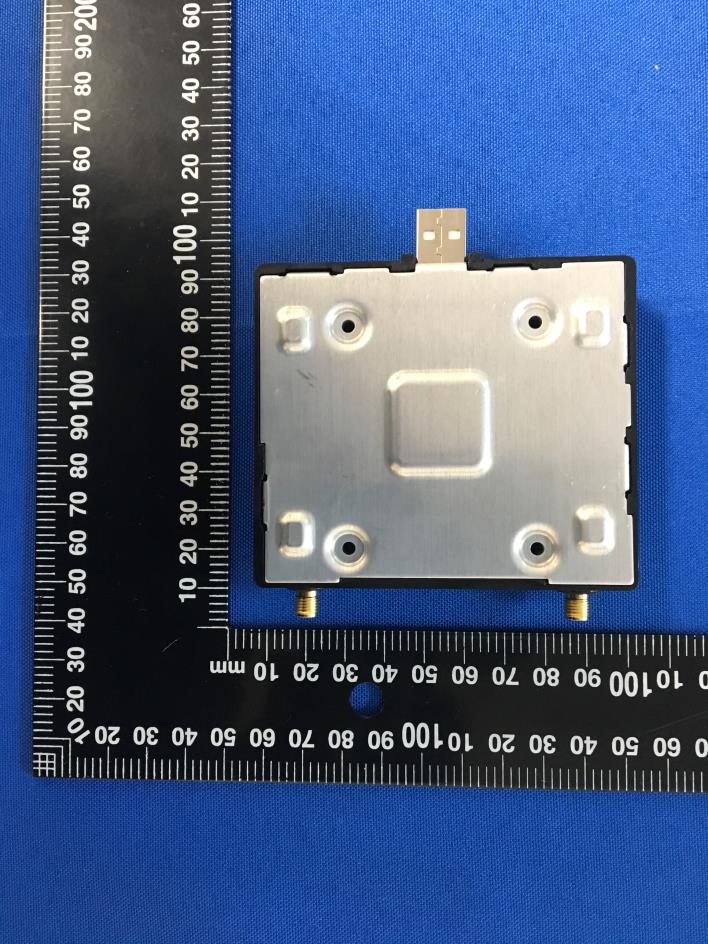

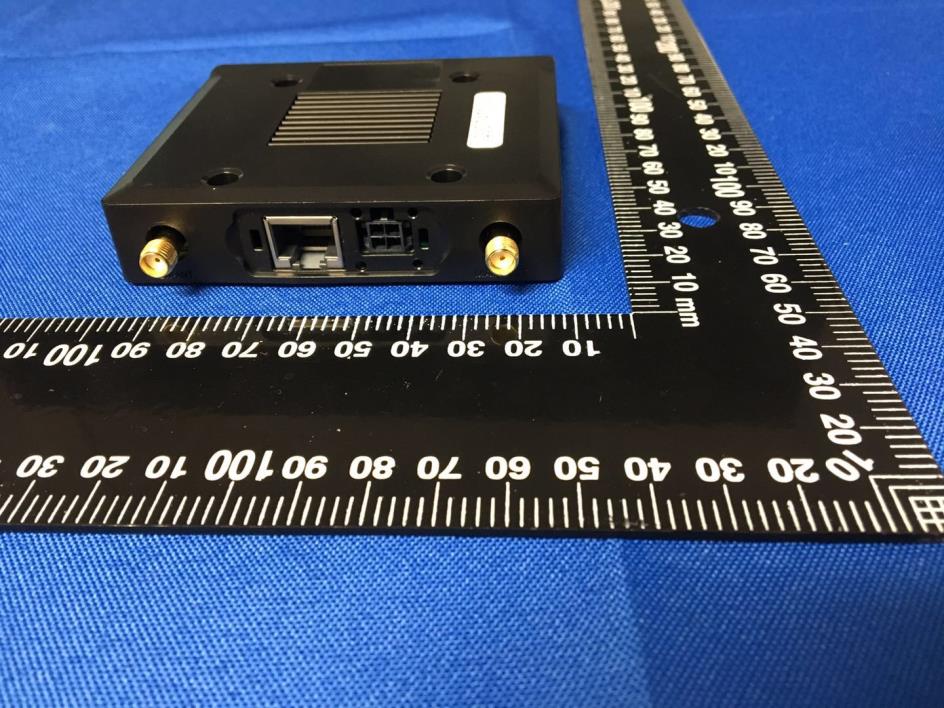

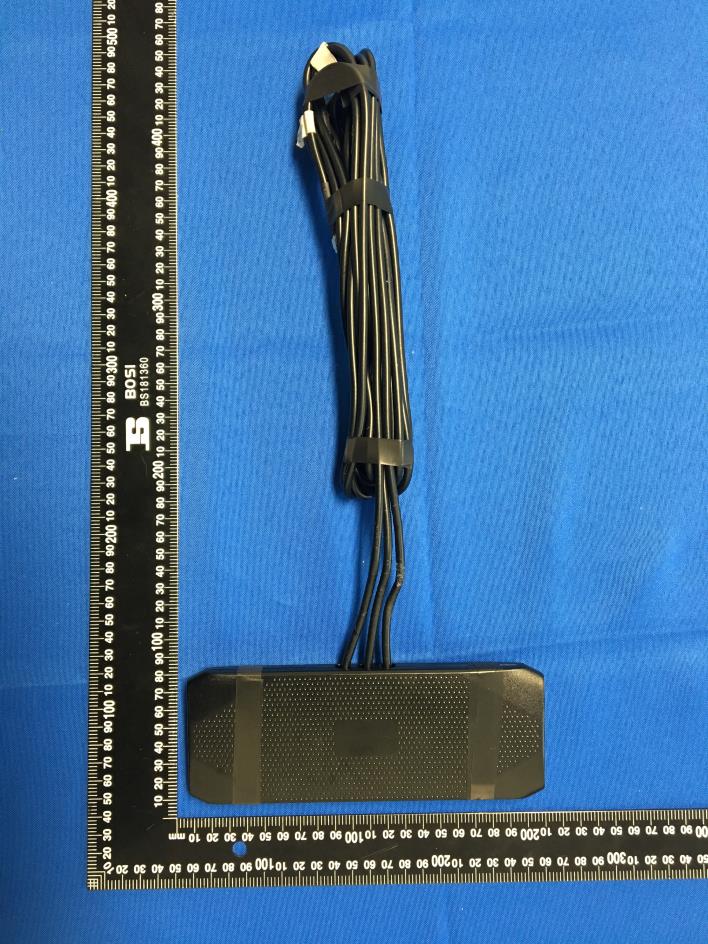

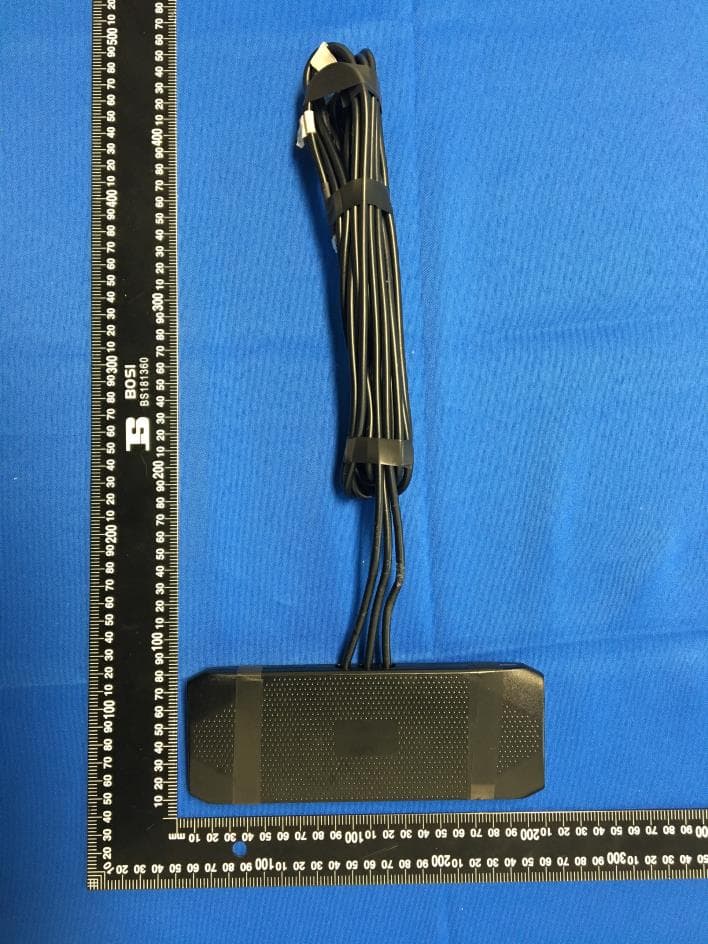

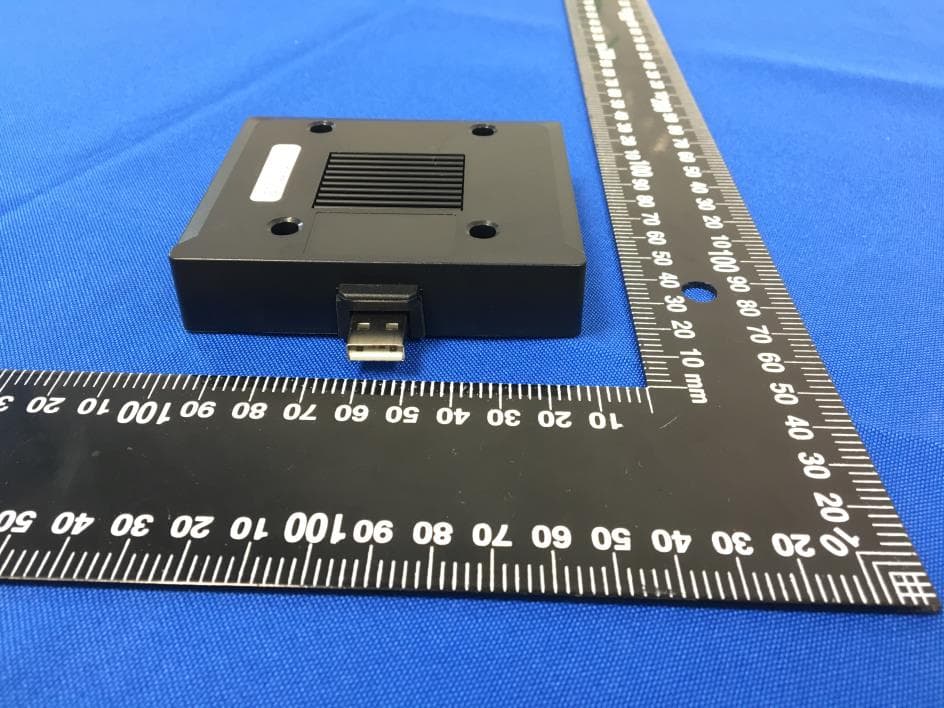

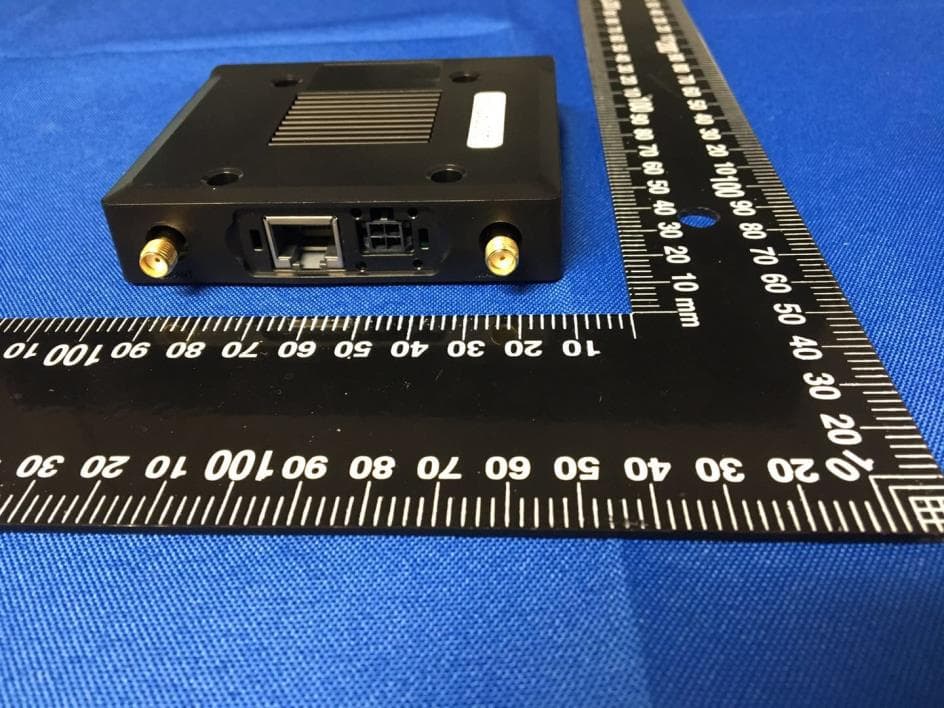

Annex No.: BL-EC2010026-AW 1 / 4 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-EC2010026-AW 2 / 4 LEFT VIEW OF EUT vvv RIGHT VIEW OF EUT Annex No.: BL-EC2010026-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-EC2010026-AW 4 / 4 Ports 3G/4G Antenna

Annex No.: BL-EC2010026-AI 1 / 4 ANNEX D EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 WIFI ANTENNA Annex No.: BL-EC2010026-AI 2 / 4 MAIN BOARD TOP VIEW1 MAIN BOARD TOP VIEW2 Annex No.: BL-EC2010026-AI 3 / 4 MAIN BOARD REAR VIEW 3G/4G Antenna Annex No.: BL-EC2010026-AI 4 / 4 3G/4G Antenna WIFI Antenna 3G/4G ANTENNA

RF Exposure Evaluation For FCC ID: 2AEDLND100 Refer user manual this device is a Mini Router, and this device was designed used in Mobile devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test Data WCDMA Band2 Mode Low Channel Middle Channel High Channel EIRP (dBm) 23.698 23.547 23.370 WCDMA Band4 Mode Low Channel Middle Channel High Channel EIRP (dBm) 24.665 24.789 25.023 WCDMA Band5 Mode Low Channel Middle Channel High Channel ERP (dBm) 23.012 23.098 22.987 Note: This report listed the worst case ERP/EIRP power value, please refer to RF report BL-EC2010026-501. LTE Band2 Bandwidth (MHz) 10 UL Channel Low UL Modulation QPSK EIRP (dBm) 24.404 LTE Band4 Bandwidth (MHz) 3 UL Channel Low Channel UL Modulation QPSK EIRP (dBm) 25.814 LTE Band5 Bandwidth (MHz) 10 UL Channel Low Channel UL Modulation QPSK ERP (dBm) 23.616 LTE Band12 Bandwidth (MHz) 1.4 UL Channel High Channel UL Modulation QPSK ERP (dBm) 19.932 LTE Band13 Bandwidth (MHz) 5 UL Channel Low Channel UL Modulation QPSK ERP (dBm) 22.763 LTE Band14 Bandwidth (MHz) 5 UL Channel Low Channel UL Modulation QPSK ERP (dBm) 23.013 LTE Band66 Bandwidth (MHz) 1.4 UL Channel Middle Channel UL Modulation QPSK EIRP (dBm) 25.979 LTE Band71 Bandwidth (MHz) 20 UL Channel Middle Channel UL Modulation QPSK ERP (dBm) 22.450 Note: This report listed the worst case ERP/EIRP power value, please refer to RF report BL-EC2010026-501. 2.4G WIFI Mode 802.11 b 802.11 g 802.11 VHT20 Average Power (dBm) 18.55 16.62 15.27 Note: This report listed the worst case AV power value, please refer to RF report: BL-EC2010026-601. 5G WIFI Band 1(5180-5240 MHz) Mode 802.11 a 802.11 n (HT20) 802.11 n (HT40) 802.11 ac (VHT20) 802.11 ac (VHT40) 802.11 ac (VHT80) Average Power (dBm) 11.98 11.44 11.08 11.35 10.98 7.39 Band 4 (5745-5825) Mode 802.11 a 802.11 n (HT20) 802.11 n (HT40) 802.11 ac (VHT20) 802.11 ac (VHT40) 802.11 ac (VHT80) Average Power (dBm) 11.38 10.74 10.70 10.70 11.01 7.38 Note: This report listed the worst case AV power value, please refer to report: BL-EC2010026-602. Turn-up power Mode ERP/EIRP Tune up Limit (dBm) WWAN WCDMA Band2 25.00 WCDMA Band4 26.00 WCDMA Band5 25.00 LTE Band2 26.00 LTE Band4 27.00 LTE Band5 25.00 LTE Band12 21.00 LTE Band13 24.00 LTE Band14 24.00 LTE Band66 27.00 LTE Band71 24.00 Mode Average Power Tune up Limit (dBm) WLAN 2.4G 802.11 b 20.00 802.11 g 18.00 802.11 VHT20 16.00 WLAN 5G Band 1 (5180-5240) 802.11a 13.00 802.11 n (HT20) 12.00 802.11 n (HT40) 12.00 802.11 ac (VHT20) 12.00 802.11 ac (VHT40) 12.00 802.11 ac (VHT80) 8.00 Band 4 (5745-5825) 802.11a 13.00 802.11 n (HT20) 12.00 802.11 n (HT40) 12.00 802.11 ac (VHT20) 12.00 802.11 ac (VHT40) 12.00 802.11 ac (VHT80) 8.00 Assessment re…
