2AEE31SPPolice Radar Detector

Pro ProPro Pro series seriesseries series User manual User manualUser manual User manual Page | 1 Radar Detector Radar DetectorRadar Detector Radar Detector RADENSO RADENSORADENSO RADENSO Pro ProPro Pro Foreword Congratulation to your new investment. You chose one of the best GPS enabled mobile radar- and laser detetcor available on the market today. The Radenso Pro is high tech MADE IN EUROPE packaged into the smallest detetcor in the world. The focus of the development of Radanso Pro was simple: Design the most ergonomic and user-friendly radar detector for easy and unobtrusive installation with long range warning on all radar bands coupled with intelligent filters to eliminate annoying false alarms from non-radar threats. And our Engineers delivered! Radenso Pro features:
Smallest high performance radar detetcor in the world
Selectable X, K and Ka radar band
Selectable Ka narrow radar band tuned to the exact radar frequencies used in North America
Selectable K narrow radar band tuned to the exact radar frequencies used in North America for increased range and reduced false alarms
Selectable Ka POP radar band (ON/OFF)
Selectable Traffic Sensor Rejection Filter (TSRF)
Highway, City and AutoCity Mode
Revolutionary AutoCity Mode with selectable Band filtering based on speed settings
Bright, Dim, Dark Display modes
Smart Dark Display Mode (turns on display only for alerts)
Bright Alphanumeric LED display
AutoMute reduces volume of alerts after 2 seconds
Preloaded GPS Speed- and Redlight camera data base
Unlimited free lifetime updates for database and firmware – no obsolescence ever
7 selectable display modes (Speed/Time, Speed/Voltage, Battery Voltage, Time, Speed, Speed/Compass)
Display of radar frequency during visual alert
Voice Alerts
SpeedMeter Option (turns off radar circuitry completely and converts Radenso Pro into a digital Speedometer for states where radar detector are prohibited)
Mark your own POI locations for future alerts
User friendly, easy voice guided feature selection
Extreme suction cups for firm, secure installation at windshield
Power Cord with Power ON/OFF button
Optional Direct Wire power cord available
Optional Vertical windshield mount available
2 year manufacturer warranty Page | 2 Quick Start up Guide To start using your Radenso Pro radar detetcor follow these easy steps: 1. Slide the windshield mounting bracket into the QuickMount slot at the front of the radar detector 2. Plug the small end of the power cable into the Power Jack of Radenso Pro on the left side of the detector and connect the large plug with the 12V power socket of your car 3. Press the red button at the large end of the power cable (at the 12 V socket) to turn the power cable on. The button will light up and indicate if Power is on. 4. Press the Power button (left button on top of unit) for 2 seconds to turn on Radenso Pro Unit will power up with start up sequence. After a few seconds Radenso Pro will notify you with a Voice message that Satellite is connected Adjust the volume level by pressing the Volume buttons „“+“ or “-“ located on the right side of the unit. Change Default settings: Radenso Pro is now ready to go. If you want to change any of the default settings of your unit please refer to the next pages Main functions of Main functions of Main functions of Main functions of Radenso Radenso Radenso Radenso Pro ProPro Pro Radenso PRO is one the most powerful detectors in the Industry and is designed to protect the driver from speeding fines. Radenso Pro communicates with the driver in English language and its main functions are the detection of microwave radars (X / K / Ka narrow bands), laser guns, red light cameras and fixed speed cameras (GPS database). Notifications NotificationsNotifications Notifications: :: : When a radar signal is detected the driver is being alerted by a visual text warning and a voice and tone alert. The display and voice alert will indicate the received radar band or frequency and the signal strength. A beeping warning tone will increase its intensity with increasing signal strength. The signal strength has ten levels. GPS alerts are reported by voice, for example “Speed Camera”. Page | 3 Function of Control Buttons Power / Menu Button Short press: You will enter into setup menu. During an alert pressing the button mutes the volume. The next alarm will be reported again with the default vol. Long press: Turn unit ON / OFF Volume Buttons [+ - ] Short press: Changing volume of Radenso Pro or change program options in the Menu Mode Power Jack Plug power cord into this port Alphanumeric Display Radenso Pro will show selected display mode, visual alerts and text messages Radar Horn Antenna and Laser Lens Needs unbostructed view of the road ahead. Do not mount behind metal Release Button Press this button and slide the windshield mount until it is locked. Press button to unlock the mount for removal Mode/Sensitivity/Mark Button Short press: Scroll between Highway/City/AutoCity modes. . Long Press: Add your own POI GPS point for future alarms Display/Alert Lockout Button Short press: Select display brighness (Bright, dim, smart dark, full dark) Long press: Lockout alert location USB Port Connect USB data cable to update database and/or firmware from our website Windshield Mount Slot Insert the windshield mount into this slot until you hear the „click“ Page | 4 coated windshields or wipers Installation The Radenso Pro windshield mount allows a firm and secure installation of the radar detector at the windshield of your vehicle. Locate an area at the windshield that enables an unobtrusive installation with clear view to the road ahead. 1. Place the nipple of the suction cups in the large hole of the bracket und pull the suction cup into the small hole to secure them. Push the rubber damper into the hole in the middle of the bracket Rubber damper 2. Attach the windshield mount to the desired area of the windshield. Mak…

Text truncated - open the document above for the full version.

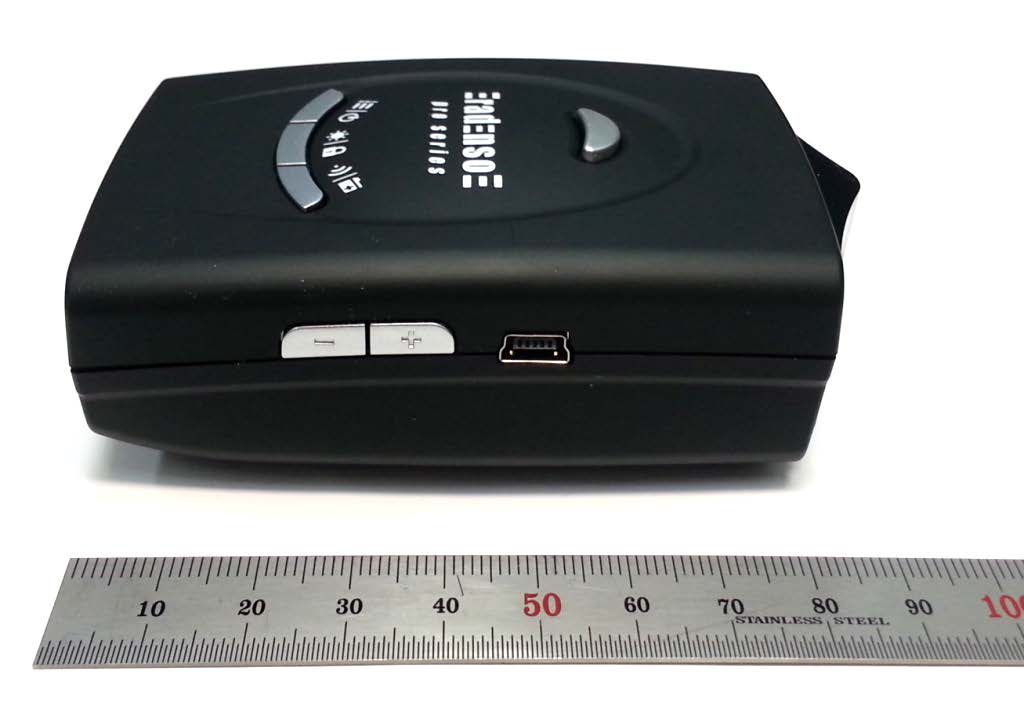

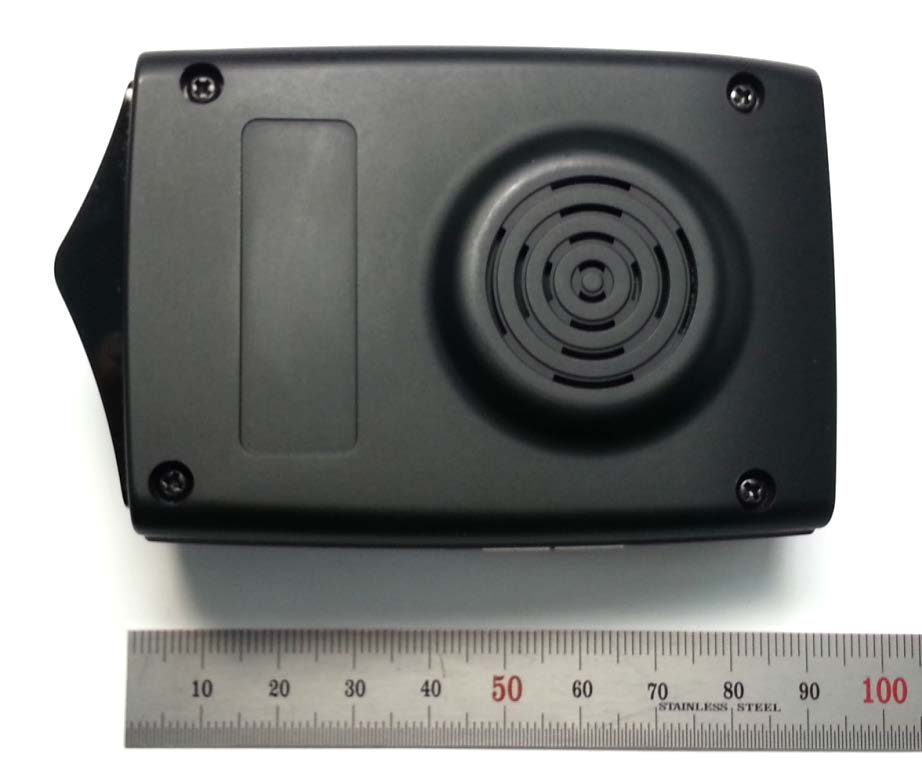

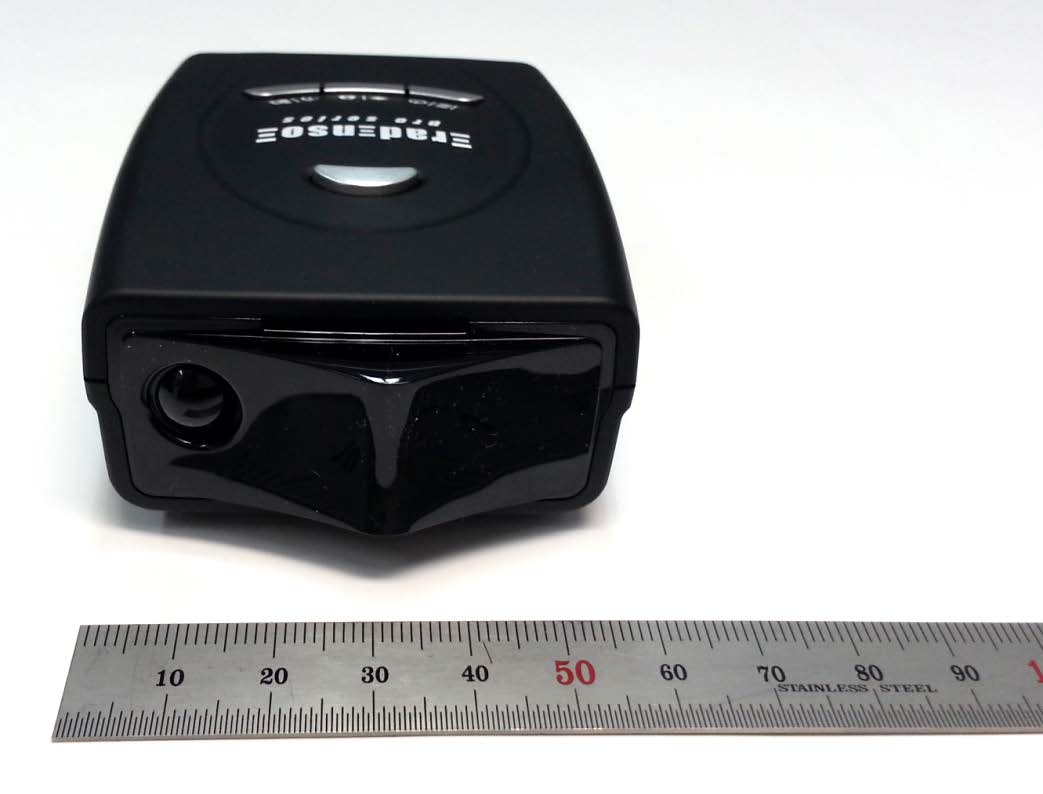

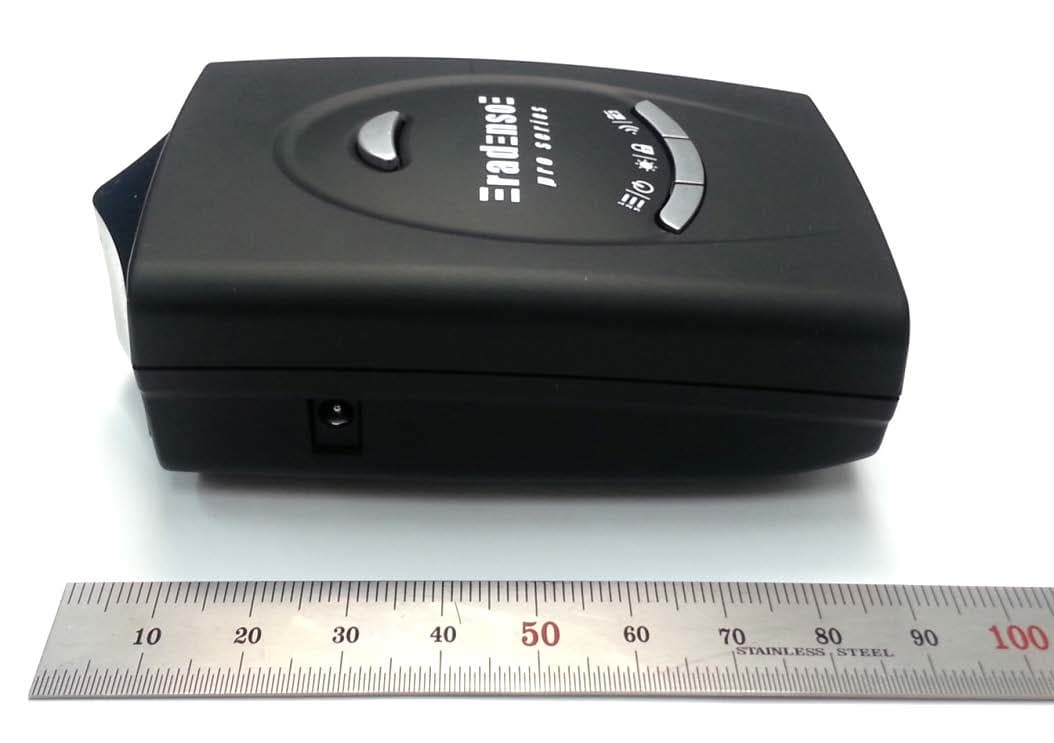

Radenso Pro External Photos FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP

Radenso PRO Label sample and Location This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID: 2AEE31SP S/N XXXXX-XXXXX

Radenso PRO In ternal Photos FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP FCC ID : 2AEE31SP

FCC PART 15.109 RADAR DETECTOR REPORT Applicant B&M MERCHANDISE LLC Address 744 STABLEWATCH DR INDEPENDENCE KY 41051 USA Product Description POLICE RADAR DETECTOR FCC ID: 2AEE31SP Date Sample Received 5/4/2015 Date Tested 5/6/2015 Tested By Sid Sanders Approved By Cory Leverett Test Results PASS FAIL Report Number Version Number Description Issue Date 837UT15TestReport.docx Rev.1 Initial Issue 5/6/2015 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www timcoengr com APPLICANT: B&M MERCHANDISE LLC FCC ID:: 2AEE31SP REPORT: V:\B\BM MERCH_2AEE3\837UT15\837UT15TESTREPORTREV1.DOCX Page 2 of 9 TABLE OF CONTENTS GENERAL REMARKS.................................................................................................. 3 GENERAL INFORMATION ........................................................................................... 4 TEST RESULTS SUMMARY ......................................................................................... 4 RADIATED SPURIOUS EMISSIONS .............................................................................. 5 RADIATED SPURIOUS EMISSIONS .............................................................................. 6 RADIATED SPURIOUS EMISSIONS .............................................................................. 7 RADIATED SPURIOUS EMISSIONS (Cont.) ................................................................... 8 HORIZONTAL PLOT .................................................................................................. 8 TEST EQUIPMENT LIST ............................................................................................. 9 APPLICANT: B&M MERCHANDISE LLC FCC ID:: 2AEE31SP REPORT: V:\B\BM MERCH_2AEE3\837UT15\837UT15TESTREPORTREV1.DOCX Page 3 of 9 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Authorized Signatory Name: Sid Sanders Engineering Project Manager Date: 5/6/2015 Table of Contents APPLICANT: B&M MERCHANDISE LLC FCC ID:: 2AEE31SP REPORT: V:\B\BM MERCH_2AEE3\837UT15\837UT15TESTREPORTREV1.DOCX Page 4 of 9 GENERAL INFORMATION EUT Specification EUT Description POLICE RADAR DETECTOR FCC ID 2AEE31SP Model Number 1SP Operating Frequency 10.525GHz(X-Band), 24.150 GHz (K-Band), 33.4- 36.0G Hz (Ka Band) EUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions Temperature: 24-26ºC Relative humidity: 50-65% Barometric Pressure: 30.08 in. Modification to the EUT None Test Exercise The EUT was operated in a normal mode. Applicable Standards FCC Pt 15.109, Pt 15.107, Test Procedure ANSI C63.4: 2009 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. TEST RESULTS SUMMARY The test results relate only to the items tested. FCC Rules Part No. RESULTS Pass/Fail/NA 15.109 Radiated Emissions PASS 15.109 Radiated Emissions in 11- 12GHz PASS 15.207 Power Line Emissions NA Table of Contents APPLICANT: B&M MERCHANDISE LLC FCC ID:: 2AEE31SP REPORT: V:\B\BM MERCH_2AEE3\837UT15\837UT15TESTREPORTREV1.DOCX Page 5 of 9 RADIATED SPURIOUS EMISSIONS Rules Part No.: 15.109 Requirements: Frequency Limits 30 – 88 40.0 dBμV/m measured @ 3 meters 80 – 216 43.5 dBμV/m measured @ 3 meters 216 – 960 46.0 dBμV/m measured @ 3 meters Above 960 54.0 dBμV/m measured @ 3 meters 11.7 to 12.2GHz 54.0 dBμV/m measured @ 3 meters Test Procedure: A search was made of the spectrum from 30 to 1000MHz and from 11.7 to 12.2GHz. Measurements in the 11.7 to 12.2GHz band were made with a Standard Gain Horn. The measurements in the 11.7 to 12.2GHz band represent the ambient noise levels. The attached plots were made with peak detector with the analyzer in a maximum hold for 2 minutes. Testing was done in accordance with ANSI C63.4 & 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. Table of Contents APPLICANT: B&M MERCHANDISE LLC FCC ID:: 2AEE31SP REPORT: V:\B\BM MERCH_2AEE3\837UT15\837UT15TESTREPORTREV1.DOCX Page 6 of 9 RADIATED SPURIOUS EMISSIONS Test Procedure (Cont.): 2) …

Text truncated - open the document above for the full version.

Applicant: B&M MERCHANDISE LLC FCC ID: 2AEE31SP Test Set Up Photo:
