2AEE3HDRRadar Detector

User ́s manual Radar antenna RADENSO HD+ Main functions of Radenso HD+ Radenso HD+ equipment is the first radar detector from the Radenso family, intended for fixed installation in vehicles. It is designed to protect the driver from fines for speeding; its main functions are detections of micro-wave radars (X / K / Ka narrow bands) and laser guns. In combination with GPS detector Radenso GPS+ (wireless connection), it communicates with drivers in English language and also detects GPS points like red light cameras and sectional speed cameras. Installation: Installation of Radenso HD+ is not complicated; however, it is recommended that the installation is committed to a professional service or your retailer if it is capable of ensuring an appropriate quality technical support. Installation of the radar antenna: The antenna captures signals emitted by radars; the choice of the installation place is therefore crucial to its proper functioning and good sensitivity of the detector. The antenna is mounted to the front of the car, usually into its plastic bumper or behind the front grille in front of the vehicle radiator. It must be installed in the place from where the front part has a good view of the road ahead. It is ideal to locate the antenna into the bumper vent, 30-50 cm above the ground. If you choose to mount the antenna so that the bumper covers its front part, check the material from which the bumper is made and whether it contains a metal reinforcement. Some types of plastic can weaken radar waves and reduce the efficiency of the detector. Never mount the antenna behind metal parts of the vehicle! In North America, install the antenna in a horizontal position for maximum performance. Only in countries that use horizontally polarized radar gun a vertical installation is recommended. The connecting cable must point backwards and mounting holes up and down. Selection of mounting screws: When installing the antenna, you can use self-tapping screws in places where the nut can be attached from the other side, as well as classic nut bolts: Screw Antenna Self-tapping screw Mounting area Spring part Hole 5mm Support plate Support plate Antenna Spring part Hole 3.7 mm Nut Mounting area Mounting the antenna: After selecting a suitable location for the antenna and the type of screws, drill two to four screw holes. It is recommended that the antenna is attached with 4 screws. The antenna cable can be slightly bent. Firstly, attach the antenna with two screws crosswise against each other and tighten them partly; then mount the remaining two screws. In some vehicles, it is advisable to carry out the installation using a special support plate that is included in the sales package. It has the shape of the letter “L” and is made of thick steel plate with pre-drilled holes. Firstly, screw the support plate to the appropriate place, and then attach the antenna to the plate. An example of the antenna vertical installation (the arrow points in the driving direction > front of the car): Remember: A vertical installation is only recommended in countries where horizontally polarized radar guns are in use (e.g. Australia) An example of the antenna horizontal installation (the arrow points in the driving direction > front of the car): The antenna cable: After fixing the antenna, pull the cable through to the driver’s cab. It is recommended that you add it to the existing cabling and attach by fastening straps. The length of the cable from the antenna to the coupling connector is 1.7 meters. The length of the second part of the cable is 2.5 meters. Antenna connector is waterproof and allows easy connection and disconnection when changing the point of antenna mounting or replacing the antenna. When pulling the cable through, keep in mind that the cable must not touch any hot parts of the car or be installed in places with higher temperature, and must not be attached to any moving parts of the car! To pull the cable through to the driver’s cab, use the hole with diameter of about 8 mm. If there is no free hole available, drill a hole in a suitable place. The drilled hole should be adjusted so that the cable is protected against accidental abrasion, for example by using a rubber grommet. When drilling the hole, keep the utmost care not to damage surrounding cabling. 12V power supply: After the mechanical installation of the radar antenna and cabling, connect the cabling to power. Connect the black wire to -12V, and the red wire with a fuse to +12V. Before connecting the +12V power supply, remove the fuse from the case because of the possibility of a short circuit during installation It is recommended to connect cables to a switched power source (No. 15). When connecting cables to a constant power supply (No. 30), it is recommended to use a delayer so that the antenna is not powered continuously; this avoids discharging of the vehicle battery. Operating frequency: Ka narrow: 34,0GHz, 34,3GHz, 34.7GHz, 35,5GHz (± 120MHz) Ka Wide: 33.4 GHz ~ 36.0 GHz K narrow: 24.125GHz (± 70MHz) K wide: 24.125GHz (± 150MHz) X band: 10.525GHz (± 50MHz) Laser: 904nm Technical parameters: Operating temperature: -20 - +85 ° C Operating voltage: 11-16 V Energy consumption: 190 mA normal, 220 mA max. (12V) Dimensions: 96 * 109 * 40 mm FCC Compliance This device complies with part 15 of FCC rules: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. FCC NOTE: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT Your Dealer: Manual REV: 2015-08-18

B & M Merchandise LLC 744 Stablewatch Dr Independence KY 41051 www.radenso.com August 18, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045 Confidentiality Request regarding application for certification of FCC ID: 2AEE3HDR Gentlemen, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name 1. Schematics Main Board 2. Schematics LNA Board 3. Block Diagram 4. Operational Description D. Schematic of MAIN BOARD RF portion.pdf D. Schematic of LNA BOARD RF portion.pdf C. Radenso HD+SE – BlockDiagram.pdf E Radenso HD+SE - Operational Description.pdf In addition, we request temporary confidential treatment of information accompanying this application for a period of 180 days. Exhibit Type File Name 5. Internal photos I. Radenso HD+SE - Internal Photos.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Michael Berg Co-Owner B & M Merchandise LLC 744 Stablewatch Dr Independence, KY 41051

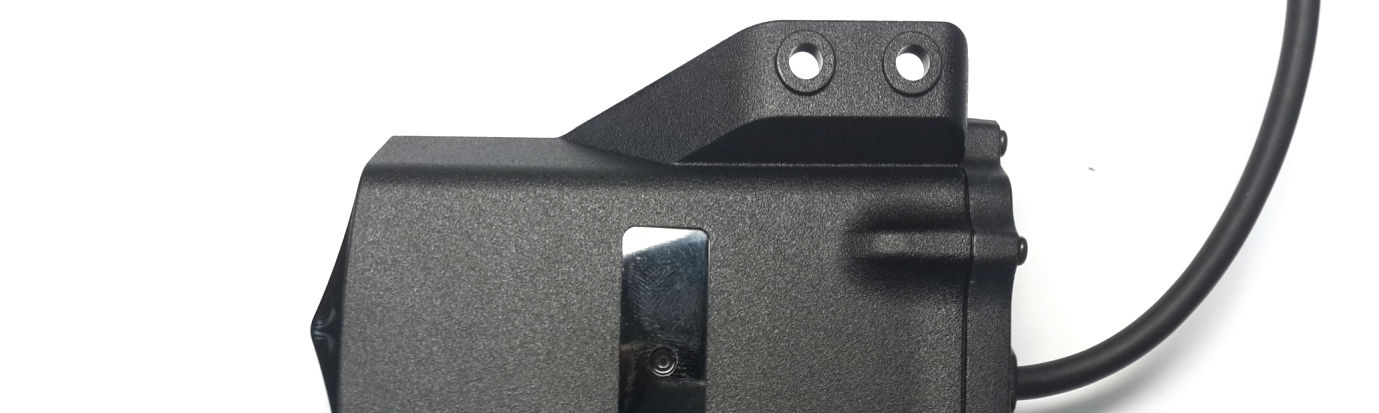

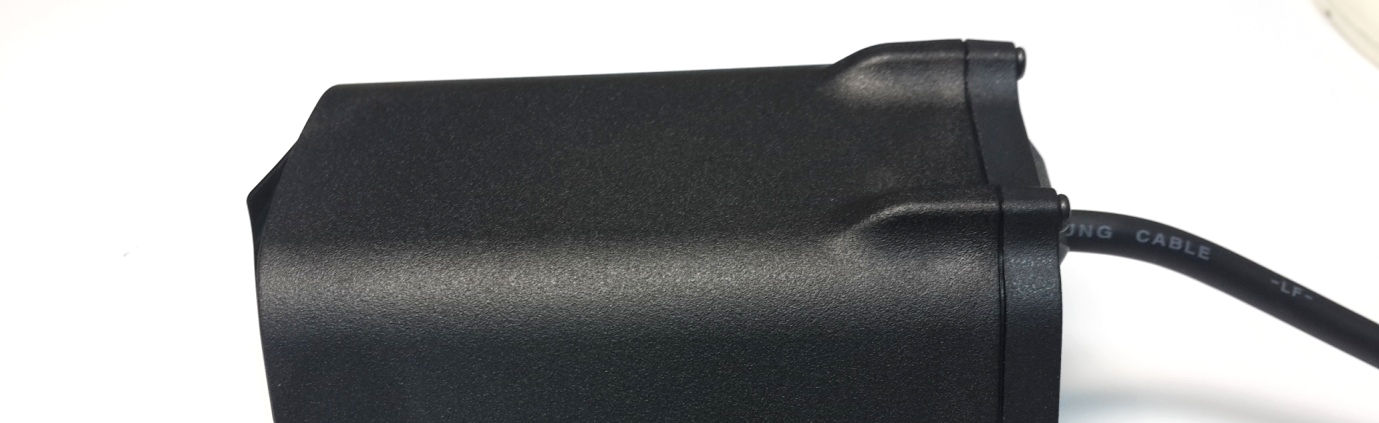

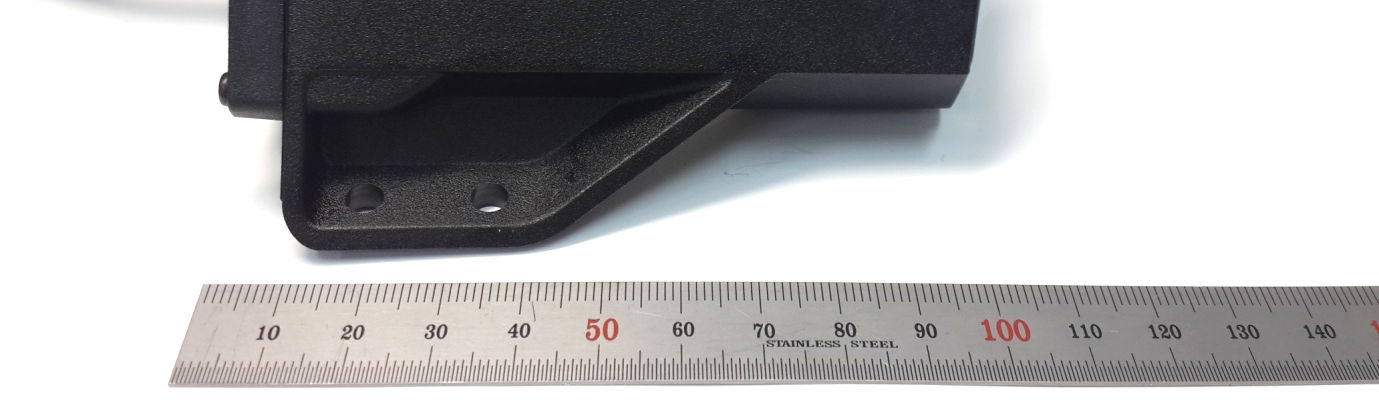

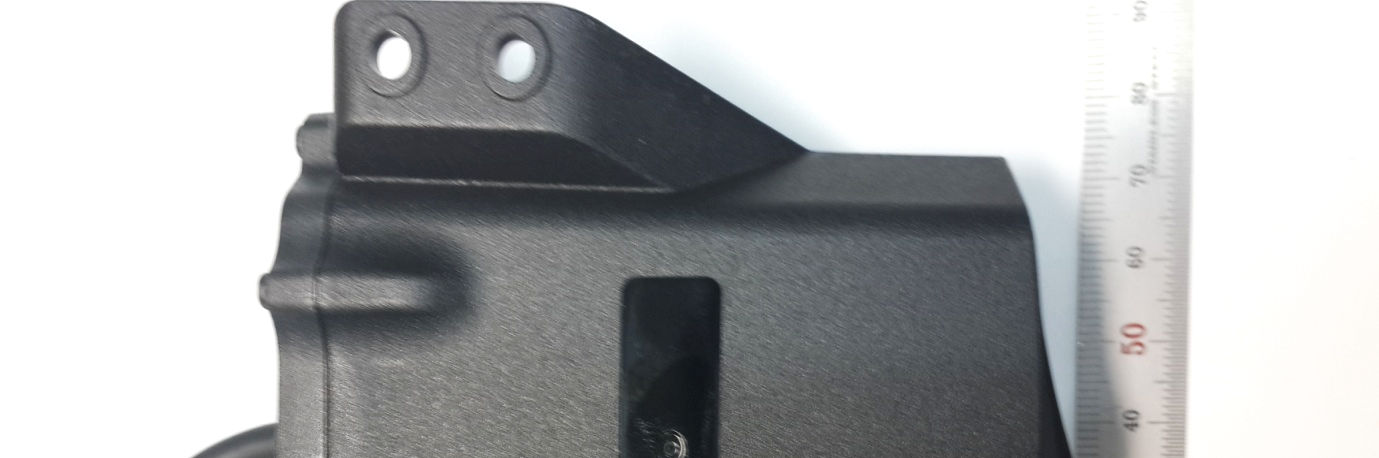

RADENSO HD+ SE External Photos FCC ID : 2 FCC ID : FCC ID : FCC ID : FCC ID : FCC ID : FCC ID : FCC ID:

????? ????? This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID: 2AEE3HDR

Radenso HDR Label location FCC ID 2AEE3HDR

RADENSO HD+ SE Internal Photos FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR FCCID: 2AEE3HDR FCC ID : 2AEE3HDR FCC ID : 2AEE3HDR

FCC PART 15.109 RADAR DETECTOR REPORT Applicant B&M MERCHANDISE LLC Address 744 STABLEWATCH DR INDEPENDENCE KY 41051 USA Product Model Number RADENSO HD+ Product Description RADAR DETECTOR FCC ID: 2AEE3HDR Date Sample Received 8/11/2015 Date Tested 8/28/2015 Tested By Tim Royer Approved By Cory Leverett Test Results PASS FAIL Report Number Version Number Description Issue Date 1634UT15TestReport.docx Rev.1 Initial Issue 8/28/2015 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com APPLICANT: B&M MERCHANDISE LLC FCC ID: 2AEE3HDR REPORT: 1634UT15\1634UT15TestReport.docx Page 2 of 9 TABLE OF CONTENTS GENERAL REMARKS.................................................................................................. 3 GENERAL INFORMATION ........................................................................................... 4 TEST RESULTS SUMMARY ......................................................................................... 4 RADIATED SPURIOUS EMISSIONS .............................................................................. 5 RADIATED SPURIOUS EMISSIONS .............................................................................. 6 RADIATED SPURIOUS EMISSIONS .............................................................................. 7 Test Data: 11.7 – 12.2 GHz 3 Meter Field Strength .................................................... 8 TEST EQUIPMENT LIST ............................................................................................. 9 APPLICANT: B&M MERCHANDISE LLC FCC ID: 2AEE3HDR REPORT: 1634UT15\1634UT15TestReport.docx Page 3 of 9 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: Fulfill the general approval requirements as identified in this test report Not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Authorized Signatory Name: Tim Royer Engineering Project Manager Date: 8/28/2015 TABLE OF CONTENTS APPLICANT: B&M MERCHANDISE LLC FCC ID: 2AEE3HDR REPORT: 1634UT15\1634UT15TestReport.docx Page 4 of 9 GENERAL INFORMATION EUT Specification EUT Description RADAR DETECTOR FCC ID 2AEE3HDR Model Number RADENSO HD+ Operating Frequency 10.525GHz(X-Band), 24.150 GHz (K-Band), 33.4- 36.0G Hz (Ka Band) EUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions Temperature: 24-26ºC Relative humidity: 50-65% Barometric Pressure: Modification to the EUT None Test Exercise The EUT was operated in a normal mode. Applicable Standards FCC Pt 15.109 Test Procedure ANSI C63.4: 2009 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. TEST RESULTS SUMMARY The test results relate only to the items tested. FCC Rules Part No. RESULTS Pass/Fail/NA 15.109 Radiated Emissions Pass TABLE OF CONTENTS APPLICANT: B&M MERCHANDISE LLC FCC ID: 2AEE3HDR REPORT: 1634UT15\1634UT15TestReport.docx Page 5 of 9 RADIATED SPURIOUS EMISSIONS Rules Part No.: 15.109 Requirements: Frequency Limits 30 – 88 40.0 dBμV/m measured @ 3 meters 80 – 216 43.5 dBμV/m measured @ 3 meters 216 – 960 46.0 dBμV/m measured @ 3 meters Above 960 54.0 dBμV/m measured @ 3 meters 11.7 to 12.2GHz 54.0 dBμV/m measured @ 3 meters Test Procedure: A search was made of the spectrum from 30 to 1000MHz and from 11.7 to 12.2GHz. Measurements in the 11.7 to 12.2GHz band were made with a Standard Gain Horn. The measurements in the 11.7 to 12.2GHz band represent the ambient noise levels. The attached plots were made with peak detector with the analyzer in a maximum hold for 2 minutes. Testing was done in accordance with ANSI C63.4 & 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. TABLE OF CONTENTS APPLICANT: B&M MERCHANDISE LLC FCC ID: 2AEE3HDR REPORT: 1634UT15\1634UT15TestReport.docx Page 6 of 9 RADIATED SPURIOUS EMISSIONS Test Procedure (Cont.): 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detector Function Peak Measure the value of the peak emission using Max Hold for a minimum of 2 minutes. This can be done at zero s…

Text truncated - open the document above for the full version.

APPLICANT: B&M MERCHANDISE LLC FCC ID: 2AEE3HDR TEST SET UP PHOTOS RADIATED SPURIOUS EMISSIONS 30 – 200MHz RADIATED SPURIOUS EMISSIONS 200 – 1000MHz RADIATED SPURIOUS EMISSIONS 11.7 – 12.2GHz
