2AEEA23110700F306, Remote Control

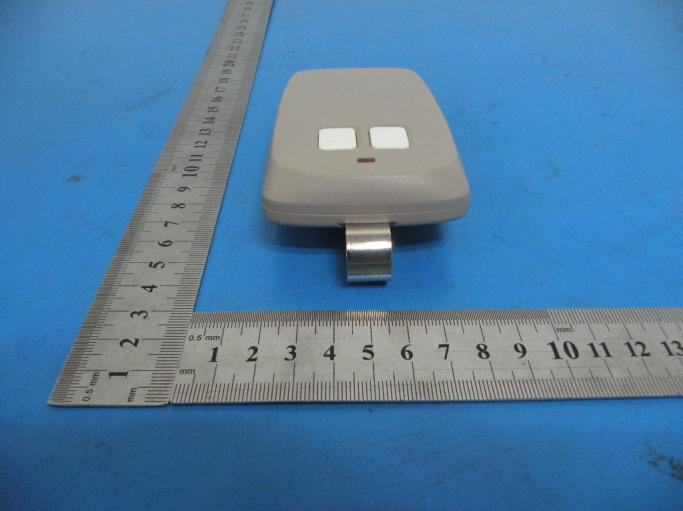

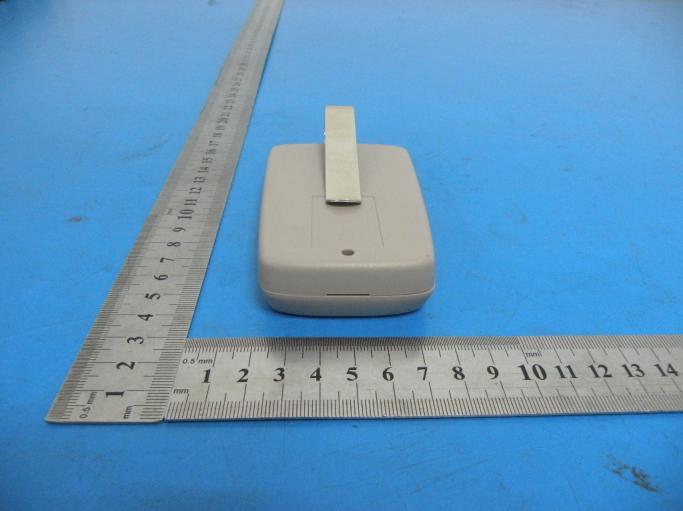

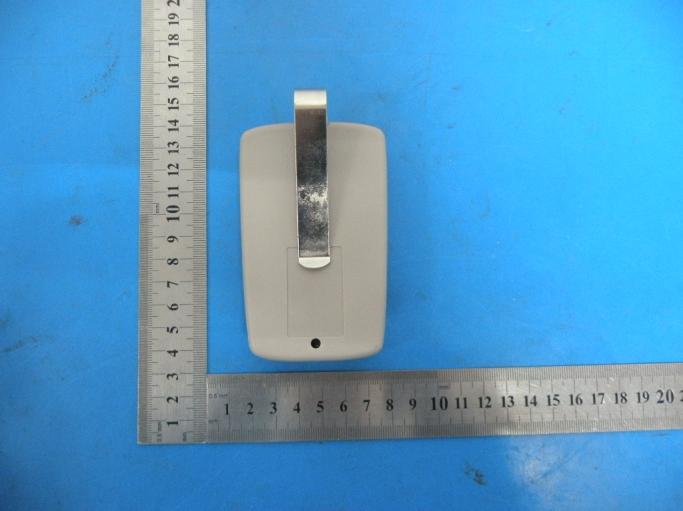

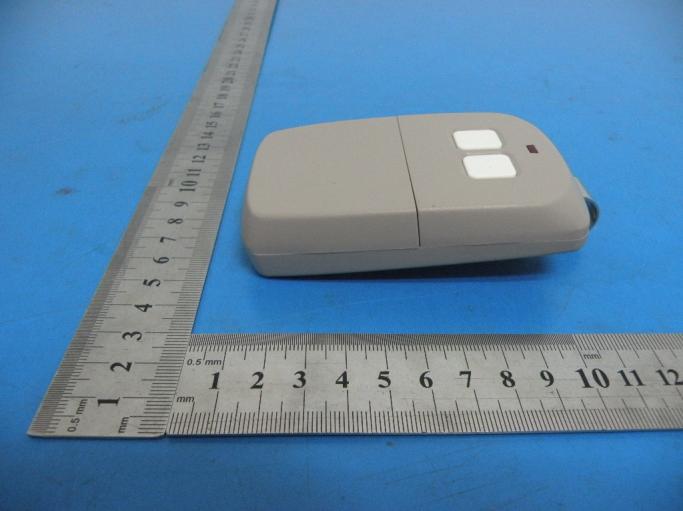

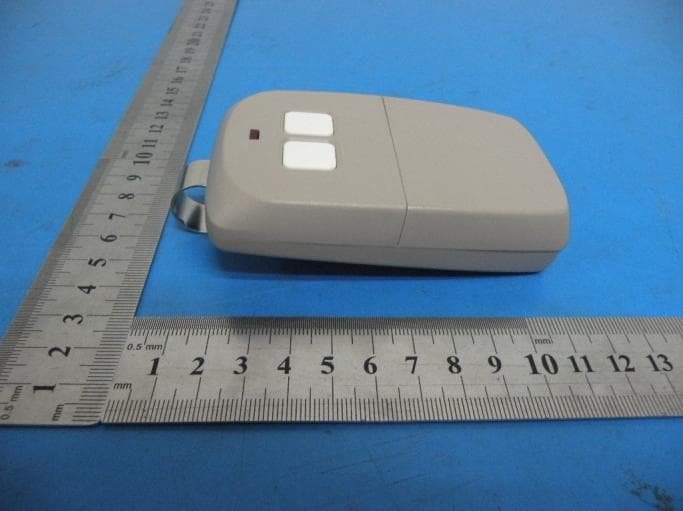

User manual The 23110700 is a Remote Controller, which operating at 300MHz, and its frequency is fixed, the end-user can not adjust the frequency themselves. It uses DIP coding scheme, and it allows the end-user to changing the transmission code by DIP - switch. The characteristic is as follows: Operating voltage: DC9V Operating frequency: 300MHz Frequency stabilization mode: SAW frequency stabilization Encoding: DIP (SCM) Standby current: 0mA Working current: 12-18mA Modulation: OOK (AM) Working temperature: -20 °C -70 °C Dip –Switch: change transmission code Photo graphs of the EUT Photo graphs of the EUT Dip –Switch This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

SEA S.p.A. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: SEA S.p.A. FCC ID : 2AEEA23110700 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Signatory 2015-03-18 Name : Fabrizio Saverio Company: SEA S.p.A. Adress : Zona Industriale S. Atto Teramo 64100 Italy Teramo Italy Tel. : +39 0861 588341 Fax : +39 0861 588344 Email : [email protected]

SEA S.p.A. Date: 03/18/2015 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Alpha Product Testing Laboratory Address Building B, East Area of Nanchang Second, Industrial Zone, Gushu 2nd Road, Bao'an, Shenzhen, China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name F306 Model Name 23110700 Brand Name N/A FCC ID 2AEEA23110700 . Signatory Name : Fabrizio Saverio Company: SEA S.p.A. Adress : Zona Industriale S. Atto Teramo 64100 Italy Teramo Italy Tel. : +39 0861 588341 Fax : +39 0861 588344 Email : [email protected]

20mm 20mm FCC ID: 2AEEA23110700 SEA S.p.A. Model name: F306 Model No.: 23110700 Label Location

Antenna Location

Page 1 of 27 Report No.: A1850082 01 TEST REPORT FCC ID: 2AEEA23110700 Applicant : SEA S.p.A. Address : Zona Industriale S. Atto Teramo 64100 Italy Equipment under Test (EUT): Name : F306 Model : 23110700 Standards : FCC PART 15, SUBPART C : 2014 (Section 15.231) Report No. : A1850082 01 Date of Test : February 02- March 13, 2015 Date of Issue : March 13, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Alpha Product Testing Laboratory Or test done by Alpha Product Testing Laboratory Approvals in connection with, distribution or use of the product described in this report must be approved by Alpha Product Testing Laboratory Approvals in writing. Page 2 of 27 Report No.: A1850082 01 TABLE OF CONTENT Description Page 1 General Information ---------------------------------------------------------------------------------- 3 1.1 Description of Device (EUT) --------------------------------------------------------------------- 3 1.2 Description of Test Facility ----------------------------------------------------------------------- 4 2 EMC Equipment List --------------------------------------------------------------------------------- 4 3 Test Procedure ----------------------------------------------------------------------------------------- 5 4 Summary of Measurement ------------------------------------------------------------------------- 6 4.1 Summary of test result ---------------------------------------------------------------------------- 6 4.2 Block Diagram ------------------------------------------------------------------------------------- 6 4.3 Assistant equipment used for test ---------------------------------------------------------------- 6 4.4 Test Conditions ------------------------------------------------------------------------------------- 7 4.5 Measurement Uncertainty (95% confidence levels, k=2)------------------------------------- 7 5 Radiation Emission ----------------------------------------------------------------------------------- 8 5.1 Radiation Emission Limits(15.209&231)------------------------------------------------------- 8 5.2 Test Setup ------------------------------------------------------------------------------------------- 8 5.3 Test Procedure ------------------------------------------------------------------------------------ 10 5.4 Test Equipment Setting For emission test. --------------------------------------------------- 11 5.5 Test Condition ------------------------------------------------------------------------------------ 11 5.6 Test Result ---------------------------------------------------------------------------------------- 11 6 POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 14 6.1 Conducted Emission Limits(15.209) ---------------------------------------------------------- 14 6.2 Test Setup ----------------------------------------------------------------------------------------- 14 6.3 Test Procedure ------------------------------------------------------------------------------------ 15 6.4 Test Results --------------------------------------------------------------------------------------- 15 7 Occupied bandwidth -------------------------------------------------------------------------------- 16 7.1 Test limit ------------------------------------------------------------------------------------------ 16 7.2 Method of measurement ------------------------------------------------------------------------ 16 7.3 Test Setup ----------------------------------------------------------------------------------------- 16 7.4 Test Results --------------------------------------------------------------------------------------- 16 8 Transmission time ----------------------------------------------------------------------------------- 18 8.1 Test limit ------------------------------------------------------------------------------------------ 18 8.2 Method of measurement ------------------------------------------------------------------------ 18 8.3 Test Setup ----------------------------------------------------------------------------------------- 18 8.4 Test Results --------------------------------------------------------------------------------------- 18 9 Band Edge Check ------------------------------------------------------------------------------------ 20 9.1 Test limit ------------------------------------------------------------------------------------------ 20 9.2 Test Procedure ------------------------------------------------------------------------------------ 20 9.3 Test Setup ----------------------------------------------------------------------------------------- 20 9.4 Test Result ---------------------------------------------------------------------------------------- 20 10 Antenna Requirement ------------------------------------------------------------------------------ 21 10.1 Standard Requirement --------------------------------------------------------------------------- 21 10.2 Antenna Connected Construction -------------------------------------------------------------- 21 10.3 Result ---------------------------------------------------------------------------------------------- 21 11 Photographs of Test Setup ----------------------------------------------------------------------- 22 12 Photographs of EUT--------------------------------------------------------------------------------- 23 Page 3 of 27 Report No.: A1850082 01 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : F306 Model No. : 23110700 Type of Antenna : Integrated antenna, Max Gain 0d…
