2AEHC-RADIOKEYDPLUSRADIOKEYD+

RADIOKEYD+ RADIOKEYDS+ Radio keypad encrypted & vandal proof RADIO KEYD+/ RADIO KEYDS+ 2 1. Presentation The RADIOKEYD+ (433MHz) /RADIOKEYDS+ (868MHz) encrypted radio keypad enables 2-channel wireless access control for doors and gates. It can be paired with a Prastel receiver in either encrypted or unencrypted ranges. Thus, this system makes it possible to activate, via a 433MHz/868MHz radio channel, the automatic opening/closing of a gate. Example: 2. Overview Center distance for fixing: 3. Technical data: Battery powered: 1x CR2450 (3V) * Power consumption:  Transmit: ≤80mA, Standby: ≤1.5μA Transmission frequency:  RADIOKEYD+: 433MHz / RADIOKEYDS+: 868MHz Radio Range:  Up to 110m** Number of Channels:  2 Number of access codes:  100 Operating modes: - MONOCODE - MULTICODE - CURTAIN Storage Temperature:  -40°C to +80°C Operating Temperature:  -1 0°C to +50°C IP rating:  IP65 Dimensions / Weight:  86x86x25 mm / 430g * Battery life≈4 years. ** Under optimal conditions in encrypted operation. Ø3mm 60mm A registered code is typed. A channel is selected. The keypad sends a radio order The receiver interprets the order Input box  Two-color indicator light  CHANNEL 2 / CHANNEL 4 CHANNEL 1 / CHANNEL 3 Fixed  Code Encrypted radio keypad ISRADIOKEYD+_EN_1124 3 4. CR2450 Battery: To access the battery compartment, unlock the cover using a coin or token (not included): 3V CR2450 BATTERY: WARNING: − Do not reverse the polarity of the battery. − Respect the type and reference of the original battery. − Do not recharge the battery. − Dispose of the used battery in the containers provided for this purpose. − Keep new and used batteries out of the reach of children. − Do not swallow the battery. If swallowed or inserted into other body openings, seek immediate medical attention. During the battery change operation, handle the battery as shown in the following figure: Locked Unlocked  RADIO KEYD+/ RADIO KEYDS+ 4 5. OPERATING MODES MONOCODE (by default)  encrypted and unencrypted radio transmission (+)  This mode is suitable for RESIDENTIAL sites. In this mode, the access codes are stored in the memory of the keypad (maximum 100 different codes). Each access code can be made up of 2 to 6 digits. Each user can have their own access code (for example: 1981) which will be linked or not to a channel by the installer. The keypad must be registered prior in the receiver's memory, the registration is done as for a transmitter according to the procedure indicated in the instructions for the receiver used. If the access code does not have an assigned channel, by entering its personal code: 1981 then pressing the channel of his choice " " or " ", the keypad ID will be played on the selected channel. (Default " "= Channel 1 and " "= Channel 2. This configuration can be modified via menu 3). Example of code without an assigned channel: Enter the code Channel selection Keypad check Radio transmission:  +  Keypad ID On Channel 1  +  Keypad ID On Channel 2  +  No transmission When a code is programmed with a channel assignment (For example: 12022 with channel 1), by entering the code: 12022 then by pressing any channel key " " or " ", the keypad ID will be transmitted only with the channel assigned during programming. NB: The user will not be able to change channels regardless of which channel key is pressed. Each code can have its own channel assigned, so access control can be done on several accesses. Example code with assigned channel: Enter the code Channel selection Keypad check Radio transmission:  +  Keypad ID On Channel 1  +  Keypad ID On Channel 1  +  No transmission 1981 Registered code ✔ 1981 Registered code ✔ 11 Unknown code � 12022 Registered code ✔ 12022 Registered code ✔ 11 Unknown code � Encrypted radio keypad ISRADIOKEYD+_EN_1124 5 Scenario for a Monocode installation: Channel 1 Channel 2 Access 1 Access 2 1) Register the keypad in the receiver memory (see receiver manual). Channel 1 on relay 1 (= access 1) Channel 2 on relay 2 (= access 2) 2) Registration process for access codes and eventual assigned channels on the keypad: a) Enter programming mode.  b) Add codes and eventual channels to be assigned: • Code 1: 1981 (without an assigned channel) • Code 2: 2008 1 (with channel 1 assigned) • Code 3: 20222 2 (with channel 2 assigned) c) Exit programming mode.  3) Operation: - Code 1981: can open access 1 or access 2 1981  Open Closed Transmitting the Keypad ID on Channel 1 Access 1 Access 2 1981  Closed Open Transmitting the Keypad ID on Channel 2 Access 1 Access 2 - Code 2008: can only open access 1 2008 or  Open Closed Transmitting the Keypad ID on Channel 1 Access 1 Access 2 - Code 20222: Can only open access 2 20222 or  Closed Open Transmitting the Keypad ID on Channel 2 Access 1 Access 2 Receiver Master code ��� RADIO KEYD+/ RADIO KEYDS+ 6 MULTICODE  Unencrypted radio transmission only. ()  This mode is suitable for COLLECTIVE sites with user management. All codes are directly registered in the receiver. Each code will be registered upstream in the receiver and on the defined channel. The memory capacity will depend on the capacity of the receiver. The user will be able to activate the channel of his choice. The t ransmitted code is identical to the one entered and is sent on the selected channel. Example of code transmission: Enter the code Channel selection Keypad radio transmission: Receiver code verification  +  12345 On Channel 1  +  1981 On Channel 2  +  11 On Channel 2 Scenario for a Multicode installation: Channel 1 Channel 2 Access 1 Access 2 1) Register access codes in the receiver's memory: 1981 on relay 1 and 2 of the receiver 120222 on Relay 2 of the receiver 2) Entering codes in nominal operation: - Code 1981: can open access 1 or access 2 1981  Open Closed Transmitting the code 1981 on channel 1 Access 1 Access 2 1981  Closed Open Transmitting the code 1981 on channel 2 Access 1 Access 2 - Code 120222: can only open access 2 120222…

Text truncated - open the document above for the full version.

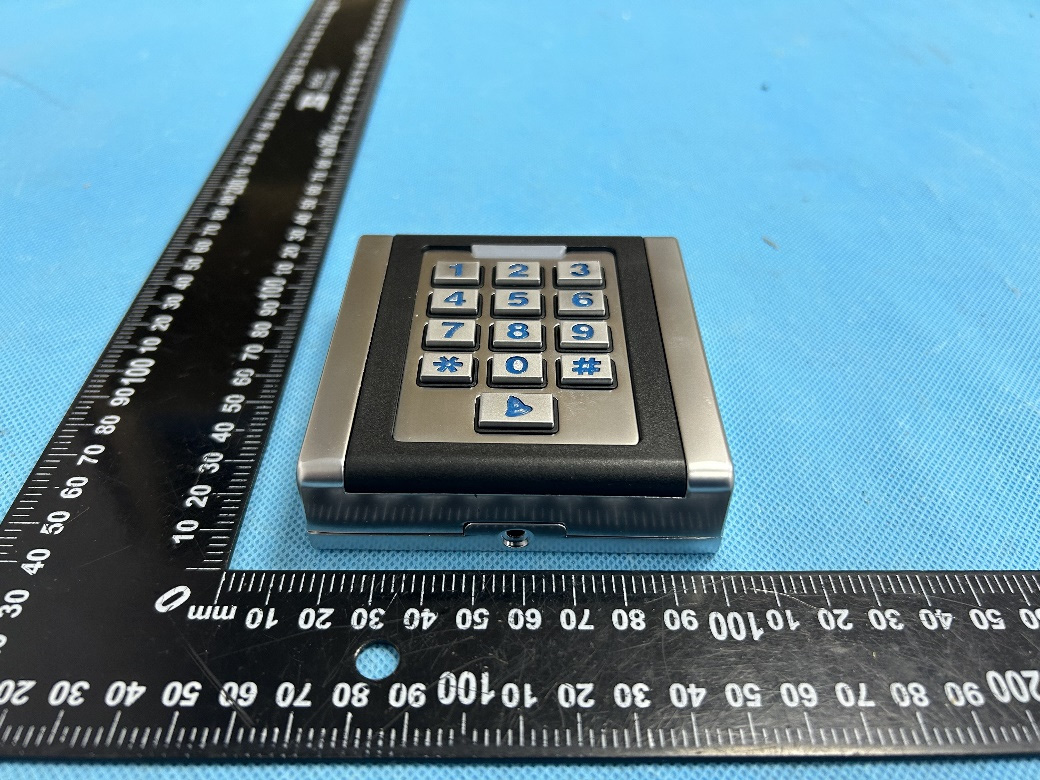

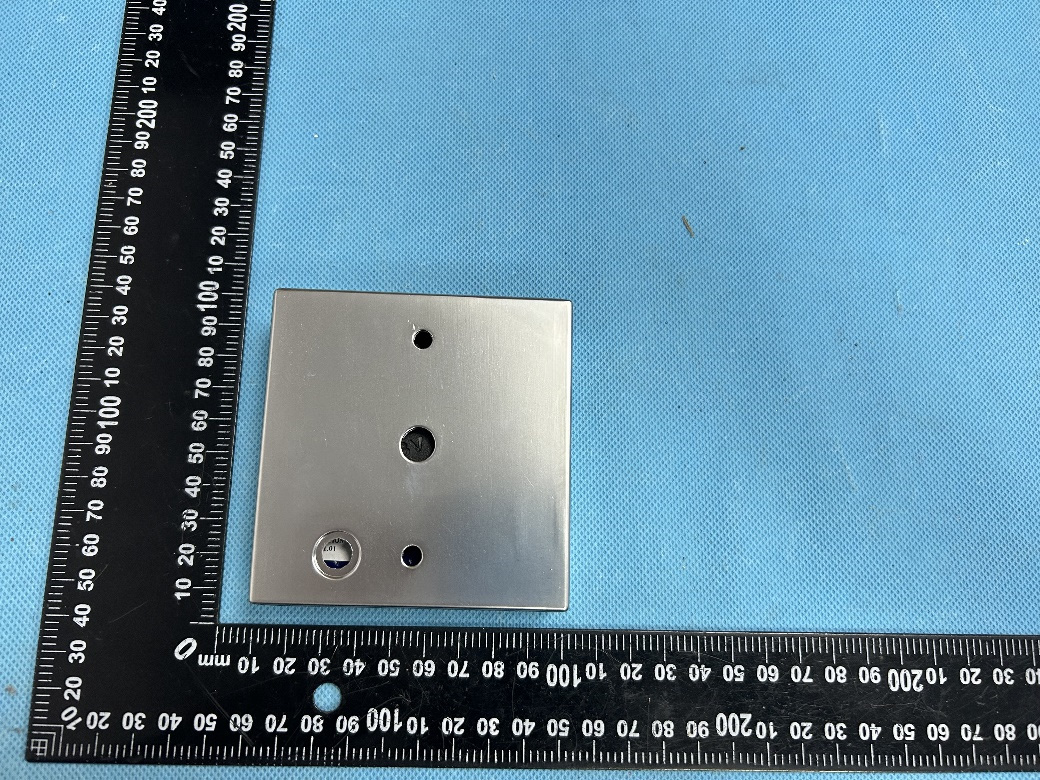

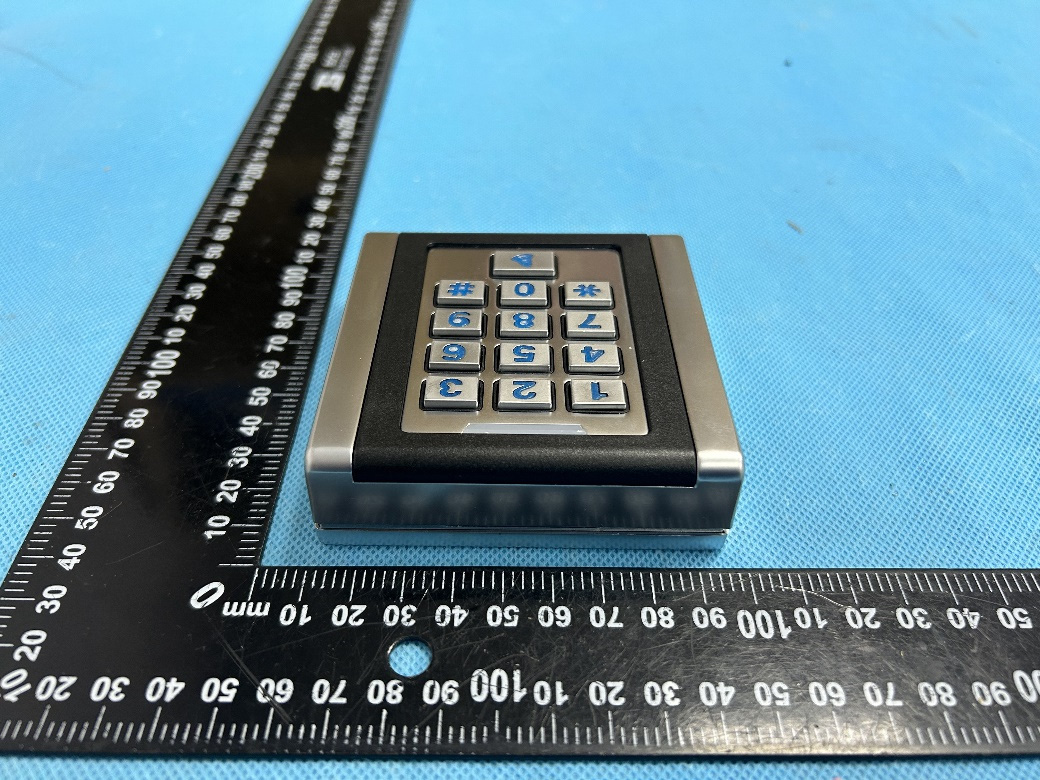

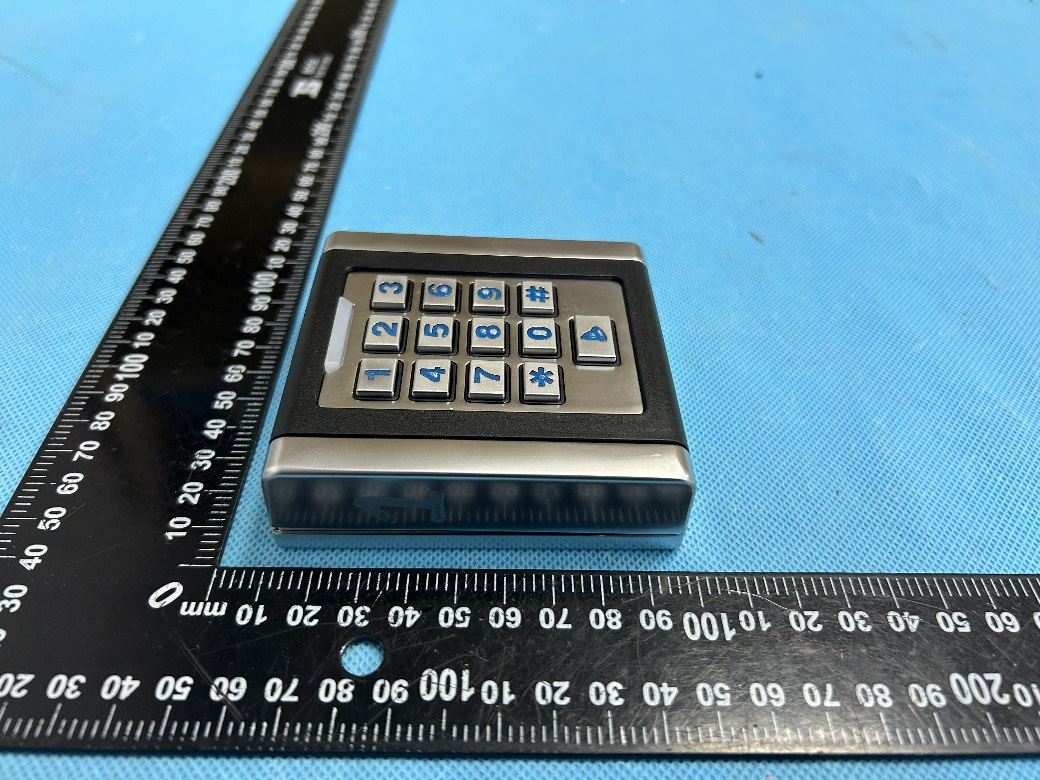

Reference No.: WTH24X10234117W Page 2 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTH24X10234117W Page 3 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTH24X10234117W Page 4 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTH24X10234117W Page 1 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTH24X10234117W Page 5 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTH24X10234117W Page 6 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTH24X10234117W Page 7 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View Antenna

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: PRASTEL FRANCE Address of applicant: ZI ATHELIA II 225 IMPASSE DU SERPOLET 13704, LA CIOTAT CEDEX, France Manufacturer: PRASTEL FRANCE Address of manufacturer: ZI ATHELIA II 225 IMPASSE DU SERPOLET 13704, LA CIOTAT CEDEX, France General Description of EUT: Product Name: RADIOKEYD+ Trade Name: PRASTEL Model No.: L8074-3 Adding Model(s): / Rated Voltage: DC3V Battery Capacity / Power Adapter Model: / FCC ID: 2AEHC-RADIOKEYDPLUS Equipment Type: Portable device Technical Characteristics of EUT: Frequency Range: 433.92 MHz Max. Field Strength: 433.92MHz: 81.98dBuV/m(3m) Data Rate: / Modulation: GFSK Antenna Type: Integral Antenna Antenna Gain: -20.0dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Max. Field Strength Antenna Gain Output Power Tune-Up Power ERP (MHz) (dBuV/m) (dBi) (dBm) (dBm) (dBm) SRD 433.92 81.98 -20.0 6.72 7.00 -15.15 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 433.92 B 0.5 7.00 5.01 23.17 0.22 Pass Note: 1. EIRP= E-104.8+20logD; Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Ratio 3 Simultaneous Ratio Limit Result Pass/Fail / / / / / / / Result: Pass

ANTENNA LAYOUT RADIOKEYD+ 433.92 MHZ - Wire 0.8mm diameter - lenght 175mm +/- 2 with 5mm max without protection - Shape following picture - 2 pieces 4.8x50x1.6 placed in right and left position in order to push the antenna to the back

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 28 TEST REPORT Reference No. ....................: WTH24X10234117W FCC ID ............................... .: 2AEHC-RADIOKEYDPLUS Applicant .......................... .: PRASTEL FRANCE Address ............................ .: ZI ATHELIA II 225 IMPASSE DU SERPOLET 13704, LA CIOTAT CEDEX, France Manufacturer .................... .: The same as Applicant Address ............................ .: The same as Applicant Product Name .................. .: RADIOKEYD+ Model No... ........................ .: L8074-3 Standards ......................... .: FCC Part 15.231 Date of Receipt sample ... .: 2024-10-11 Date of Test....................... .: 2024-10-11 to 2024-10-28 Date of Issue .................... .: 2024-10-28 Test Report Form No. ...... . : WTX_Part 15_231W Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Jason Su Reference No.: WTH24X10234117W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................. 5 1.3 TEST METHODOLOGY ........................................................................................................................................... 5 1.4 TEST FACILITY ...................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE .............................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 12 3. ANTENNA REQUIREMENT ................................................................................................................................. 13 3.1 STANDARD APPLICABLE ..................................................................................................................................... 13 3.2 TEST RESULT ...................................................................................................................................................... 13 4. RADIATED EMISSIONS ....................................................................................................................................... 14 4.1 STANDARD APPLICABLE ..................................................................................................................................... 14 4.2 TEST PROCEDURE .............................................................................................................................................. 15 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ........................................................................................... 16 4.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 16 5. 20DB BANDWIDTH ............................................................................................................................................... 21 5.1 STANDARD APPLICABLE ..................................................................................................................................... 21 5.1 TEST PROCEDURE .............................................................................................................................................. 21 5.2 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 21 6. TRANSMISSION TIME .......................................................................................................................................... 22 6.1 STANDARD APPLICABLE ..................................................................................................................................... 22 6.2 TEST PROCEDURE .............................................................................................................................................. 22 6.3 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 22 7. DUTY CYCLE ......................................................................................................................................................... 24 7.1 STANDARD APPLICABLE ..................................................................................................................................... 24 7.2 TEST PROCEDURE ....................................................................................…
