2AEHG-TG-DParameter Calibration Instrument

- 1 - ParameterCalibrationInstrument Instructions Theparametercalibrationinstrumentcontainsthehandheldinstrument、theadsorption-typedisplacement sensor、thechargerandthedatacable.Theinstrumentcansetupwirelesscommunicationwiththewirelesscombo sensorandtheRTU.TheinstrumentallowsoperatorstobrowsethedynamometerdatastoredintheRTU,setand calibratetheparametersofthewirelesscombosensor. TechnicalSpecifications 1.HostPerformance l Processor:ARM7,basicfrequency:48MHz; l Monitor:LCDMGL320240T,Screensize93×70mm,Resolution320×240pi,extendedtemperature, backlight; lKeyboard:LightTouch-tonekey,26keys; lUSBPort:2.0; lStorage:SDcard,Capacity:4GB. 2.InstrumentMeasuringRangeandAccuracy lLoad:0～150KN，1%F.S; lDisplacement:0～10m,1%F.S; lCarrierfrequency:2.4GHz lCommunicationerror:≤10 -6 l Transmissionpower:≤10mW l Timeerror:≤1min/year lTransmissionRange:≤500m 3.HostPowerSupply lDCpowersupply:LithiumBattery,Output:7.2VDC,Capacity:2200mAH,ChargingTime:4hours; lChargingmode:chargingbydedicatedcharger; lInstrumentworkingvoltage:7.0V～8.3V; lInstrumentworkingcurrent:100mA; lContinuousworkinghours:24hours; lAutomaticshutdown:Hostpowerautomaticallyturnsoffifyoudonotperformanyoperationandthere isnodatatransmissionformorethan10minutes. 4.SensorPowerSupply l Dcpower:LithiumBattery,Output:7.2VDC,Capacity:2200mAH,ChargingTime:4hours; lChargingmode:Chargingbydedicatedcharger; l Instrumentworkingvoltage:7.0V～8.3V; l Instrumentworkingcurrent:70mA; l ContinuousWorkinghour:30hours; lAutomaticshutdown:Sensorpowerautomaticallyturnsintolowpowerconsumptionmodeifthereisno - 2 - datatransmissionformorethan10minutes. 5.OperatingEnvironment l Temperature:-30°C~70°C; l Humidity:0~90%; 6.HostSize&Weight lDimensions:215mmx105mmx45mm(Heightxwidth×Depth); lWeight:0.95kg; InstrumentFunctions 1.TestFunctions l Displacement～loadindicatordiagrams. 2.AnalysisandDiagnosisFunctions l Calculatetheareaoftheindicatordiagram,polishedrodpower. 3.CalibrationFunctions lIndicatorDiagramSensorCalibration. lPressureSensorCalibration. 4.DataStorageandPlaybackFunctions l Sorethedataofindicatordiagram,fluidlevelandLeakageforover500Wellsx100Times. l Searchwellnameandthecorrespondingsupportingdata. lDataplaybackoftheindicatordiagram. InstrumentFeatures lTesttheindicatordiagrambywirelessmode,andthedigitaltransmissionofdatahasimprovedthe reliabilityandsafetyofthetest,andiseasytooperate. lLargeStorageCapacity:2GBstorage,capabletostoredataoftheindicatordiagram,thefluidleveland Leakagefor500Wellsx100Times. l Lowpowerconsumptionofthehost.Hostpowerautomaticallyturnsofftoprotectthebatteryifthe operatorforgetstoturnitoff. l Fasttestspeed,fullyfunctional. l Longdistanceofwirelesstransmission,stableandreliable. lUSB2.0port,replaythedatafast. lSmallsizeandlightweight,easytobecarried. l Intelligentbatterychargerwithanti-overchargingandshort-circuitprotectionfunctions. HandlingPrecautions lBesuretoreadthissectioncarefullybeforeyouusetheinstrumentinordertouseitcorrectly. lTheinstrumentisaprecisiontestinstrument,andshouldavoidstorageinareasubjectedtoheatsource likeheater,airconditioning,electricstove,etc.Alsoavoidstorageinareawithdirectsunlight,rain,dust andlargehumidity. l Inordertoavoiddamagethescreen.Donotpushonthescreenorputweightontheinstrument. l Avoidfrequentdismantlementofthesensoraerialtoavoidbadcontact. l Neverplaceheavyobjectsontheinstrumentorotherwisesubjectthescreentolargepressuretoavoid damageofthescreen. - 3 - lNeverdropmetalobjectsintothesocketsonthepaneltoavoidshort-circuitanddamageofthe motherboard. lNeverdroptheinstrumentorotherwisesubjectittostrongimpacttoavoiddamageoftheinstrument. l Theinstrumentusesnon-memory-effectlithiumbatteryforpowersupply.Usersshouldtimelycharge thebatterytoincreaseitsservicelife,thebatterycanbechargedforover700timeswithproperuse. l Operateincorrectordertoavoidsystemcrash PanelIntroduction InstrumentPanel Theinstrumentpanelisshownbelowinfigure1 Figure1InstrumentPanel Keyboard lPower On/Offfunction:pressandholdthekeyformorethan2secondstoturnonorturnofftheinstrument. l IndicatorLamp Work:openingapparatus,theworklamplights - 4 - Charge:connectingthecharger,Chargelamplights lNumeric&FunctionDual-UseKeys Thisgroupofkeyscanbeusedasthenumerickey0~9orotherwiseasfunctionkeysinspecificconditions. lLetterKeysandSpecialCharacters TheletterkeyscanrealizetheinputoflettersfromAtoZandtwospecialcharactersincluding“-"and".". Usage:e.g.,forthekeyABCD,pressthekeyoncefor"A",presstwice,threetimesandfourtimesconsecutively for“B”,“C”,“D”respectively. Note:Toinputtwosameordifferentcharactersinthesamekeyconsecutively,press→afterinputtingthe firstone,andtheninputthesecondone. l FunctionKeys Implementdifferentfunctionsbasedontheworkingstatusoftheinstrument. PanelPortsandAdjustingknob 1.ChargingPort:Electricaloutletforcharging,connecttothededicatedchargertocharge. 2.USBPort:Tobeconnectedtothecomputerfordatacommunications. TheOn/OffandBacklightFunctions 1.Boot:PressandholdtheOn/Offkeyformorethan2secondsuntilthescreendisplaysthenameofthe instrument,releasetheOn/Offkey,pressanykeyexcepttheOn/Offkeytoenterthemainmenuscreen,or otherwisetheinstrumentautomaticallyentersthemainmenuscreenfor10secondswithoutanykeystrokes. 2.Shutdown:PressandholdtheOn/Offkeyformorethan2secondsuntilthescreendisplays"Thanksfor Using",releasetheOn/Offkeytoturnofftheinstrument. 3.Backlight:Tousethebacklightindimlightordarkplace,presstheOn/Offkey(nomorethan1second)to turnon/offthebacklight. - 5 - 4.Instrumentpowerautomaticallyturnsoffifyoudonotperformanyoperationandthereisnodata transmissionformorethan10minutes. MainMenu Themainmenuisshownbelow(Figure2). Figure2MainMenu Theversionofsoftware,batteryvoltage,dateandtimeisdisplayedatthebottomofthescreen. Note: 1.ThescreendisplaysWarning:SDcardfailure!whenenteringthemainmenuindicatesthatthereisnoSD cardinstalledorSDcardfailure,theSDcardshouldbereinstalledorreplaced. 2.ThescreendisplaysWarning:NewSDcard,needinitialization!whenenteringthemainmenuindicates thatthedataformatoftheSDcardcannotberecognized,andthecardneedstobeinitialized.PresstheEnterkey, th…

Text truncated - open the document above for the full version.

ShandongWelltek PetroleumEquipmentCO., LTD. FCCConfidentialityRequest Number:CF303 Version:V05 Date:21-05-2012 (Permanentoralsocalledlongtermconfidentialityisthenormalmethodtokeepcertaindocuementsconfidential,andmayapplyto schematics,blockdiagrams,operationaldescriptionandbillofmaterials.) To:FederalCommunicationsCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 Pursuantto47CFRSection0.459(a)&(b),we, (theapplicant/grantee) CompanynameShandongWelltekPetroleumEquipmentCO.,LTD. AddressYulanRoad,No.618,HighandNewTechnologyIndustryDevelopmentZone, CityQufuCity,ShandongProvince CountryChina requestforthiscertificationfilingunder: GranteeCodeProductNumber FCCID:2AEHG-TG-D tomaintainpermanentconfidentialityforthefollowingdocumentssubmittedwithinthisapplication: (pleasecrosswhatisapplicable,oraddotherdocuments,providethefilenameanddescription) ExhibitFileNameDescription √ OperationalDescriptionOperationalDescriptionexplainingthefunctioningoftheblockdiagram √ BlockDiagramsBlockDiagramsshowingthesystematicbuildingblocksoftheEUT √ SchematicsDiagramsSchematicsshowingcomponents,theirvaluesandinterconnection BillofMaterialsListofcomponentsusedonthePCB’softheEUT Abovematerialscrossedcontainsecrets,proprietaryandtechnicalinformation,whichwouldcustomarilybeguardedfrom competitorsunder47CFR,section0.457(d)(2).Disclosureorpublicationoranyportionofthiscompanyconfidentialmaterial tootherpartiescouldcausesubstantialcompetitiveharmandprovideunjustifiedbenefitsforcompetitors.Weunderstandthat pursuantto47CFRsection0.457(d)(1)(ii)disclosureoftheapplicantandallaccompanyingdocumentationwillnotbemade beforethedateofthegrant.Thedocumentsindicatedasconfidentialabove,arenotpubliclyavailableelsewhere. Attestation: CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) QufuCity,China2015-03-26HaiboLiDirector

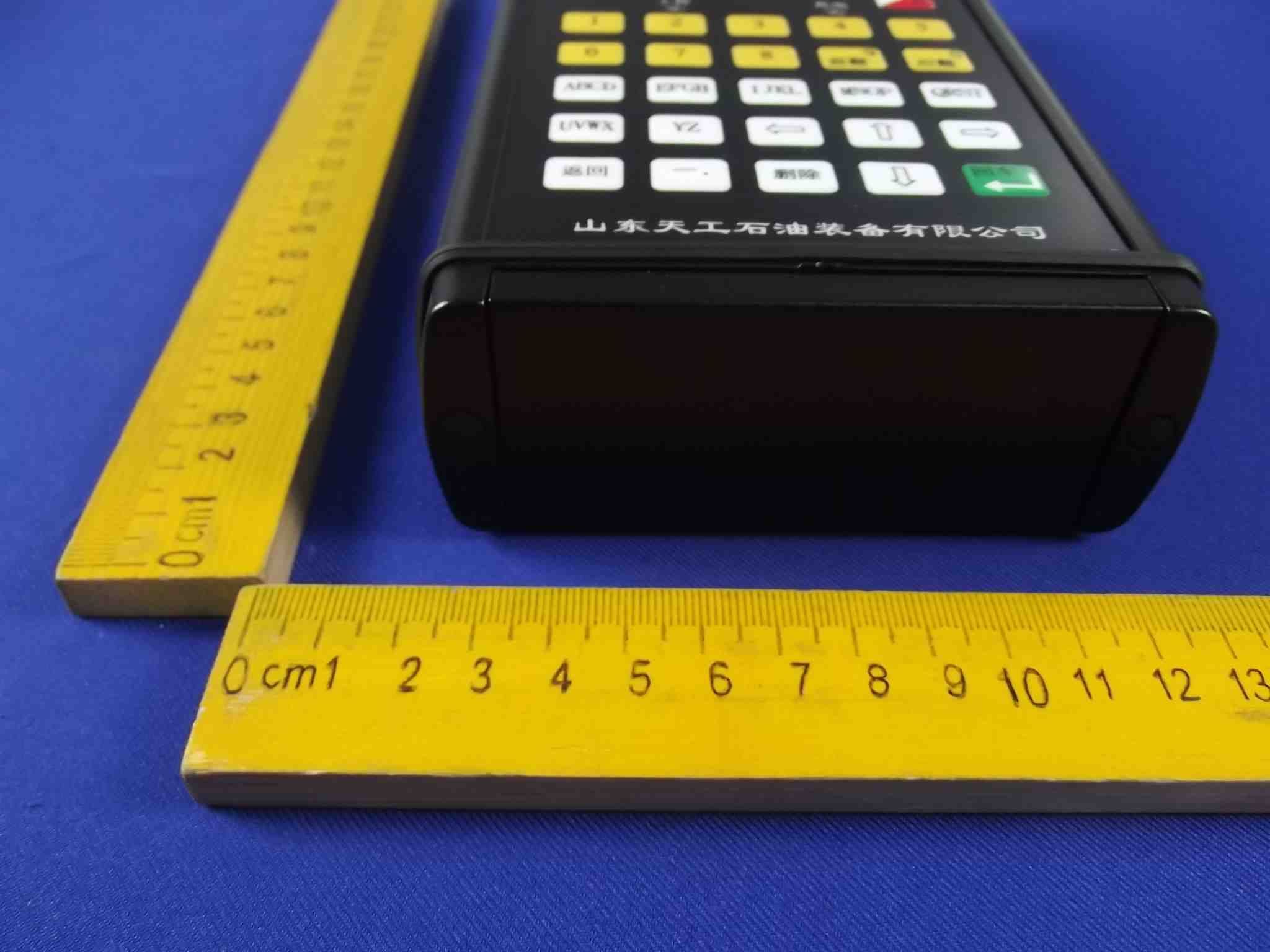

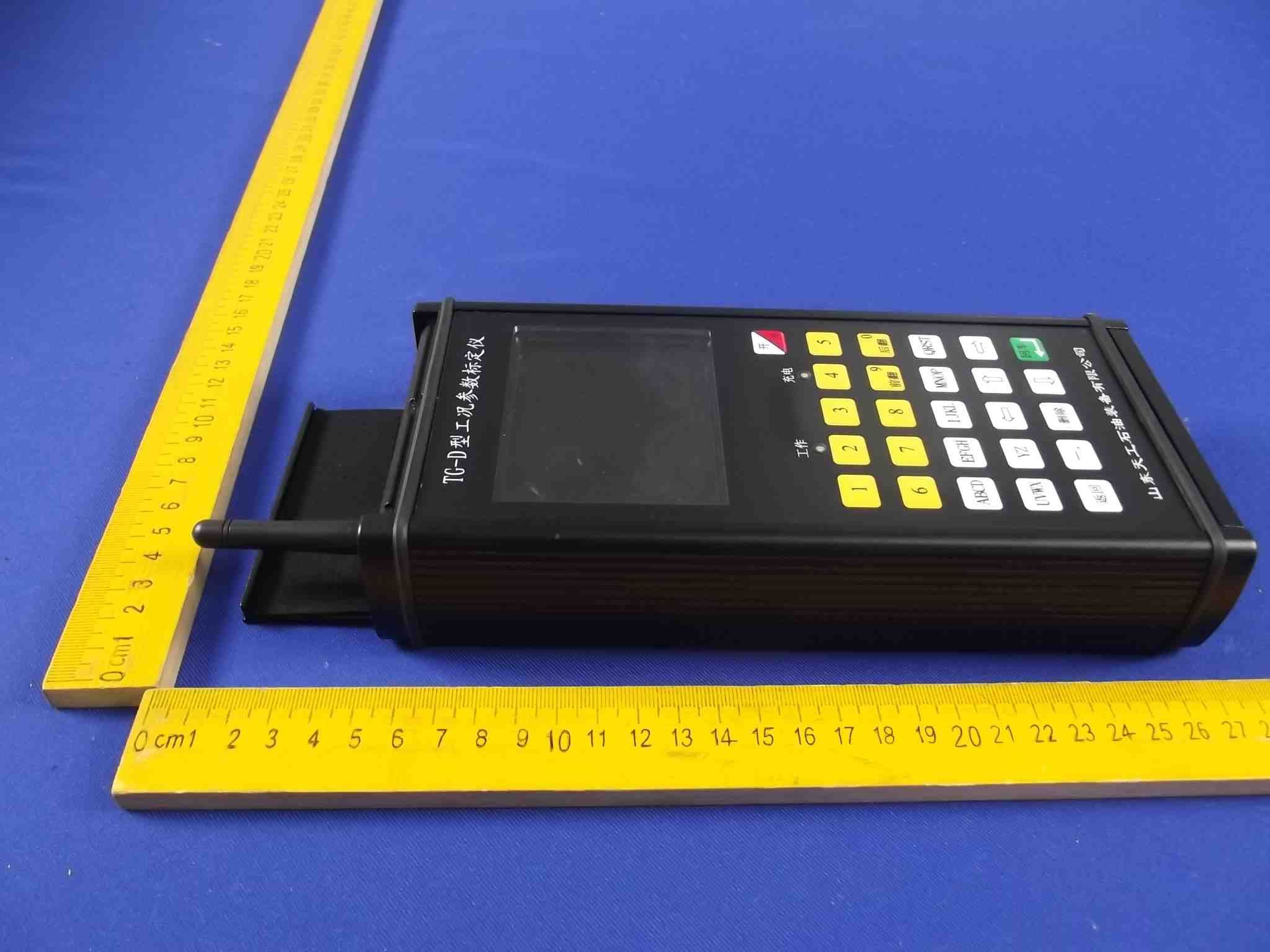

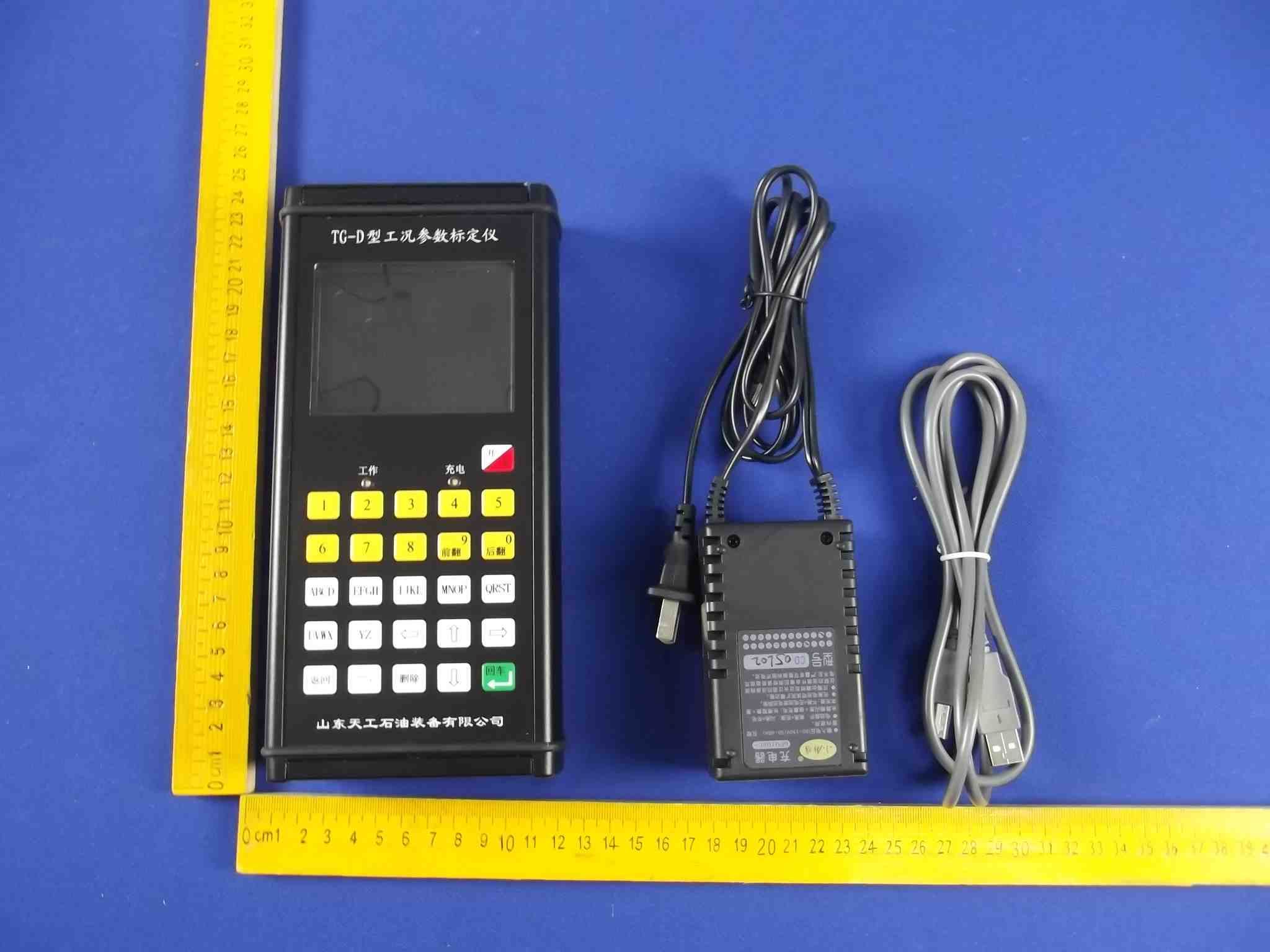

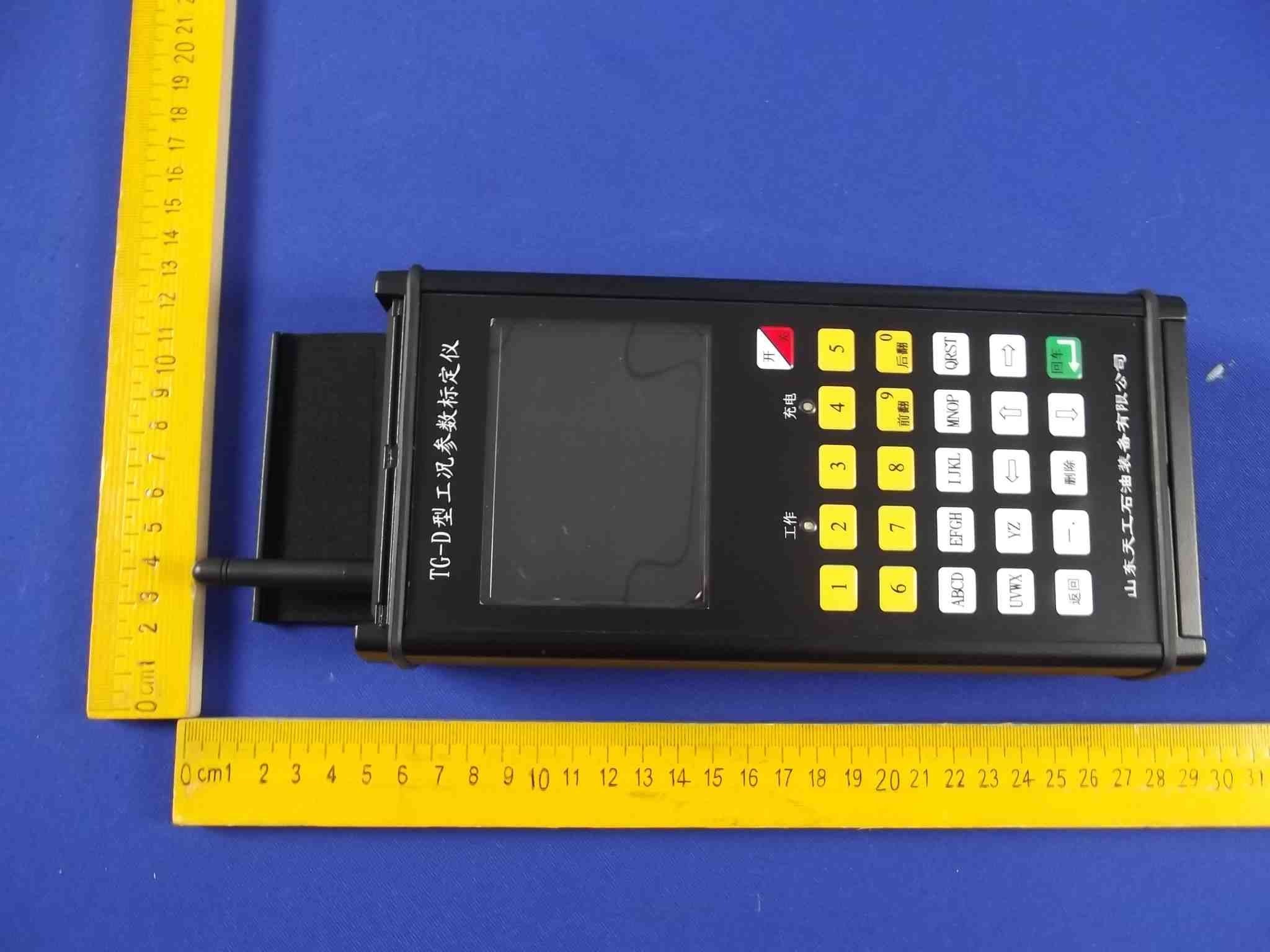

Figure1 TheEUT-OverallView Figure2 TheEUT-TopView Antenna Figure3 TheEUT-TopView Figure4 TheEUT-BottomView Figure5 TheEUT-FrontView Figure6 TheEUT-BackView Figure7 TheEUT-LeftView Figure8 TheEUT-RightView

LabelLocationOnEUT

ProductName:ParameterCalibrationInstrument ModelNo.:TG-D FCCID:2AEHG-TG-D ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation.

Figure9 PCBoftheEUT-FrontView Figure10 PCBoftheEUT-FrontView Figure11 PCBoftheEUT-BackView Figure12 PCBoftheEUT-FrontView Figure13 PCBoftheEUT-BackView Figure14 PCBoftheEUT-FrontView Figure15 PCBoftheEUT-BackView

RFEXPOSUREEVALUATION FCCID ： 2AEHG-TG-D AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Themaximumoutputpowerforlowchannelis:8.31dBm=6.78mW Thecalculationresults=6.78/5*√2.405=2.10 ＜ 3 Themaximumoutputpowerformiddlechannelis:7.52dBm=5.65mW Thecalculationresults=5.65/5*√2.440=1.77 ＜ 3 Themaximumoutputpowerforhighchannelis:6.60dBm=4.57mW Thecalculationresults=4.57/5*√2.480=1.44 ＜ 3 TestResults:PASS.

ShenzhenAnbotekComplianceLaboratoryLimited FCCID: 2AEHG-TG-DPage1 of 43 ReportNo. : R011412290E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com FCCTESTREPORT for ShandongWelltekPetroleumEquipmentCO.,LTD. ParameterCalibrationInstrument ModelNo.: TG-D ReportNumber:R011412290E DateofTest:Dec.16,2014~Mar.26,2015 DateofReport:Mar.27,2015 Preparedfor:ShandongWelltekPetroleumEquipmentCO.,LTD. Address: YulanRoad,No. 618, Highand NewTechnologyIndustry DevelopmentZone,QufuCity,ShandongProvince,China PreparedBy:ShenzhenAnbotekComplianceLaboratoryLimited Address: 1/F.,Building1, SECIndustrialPark,No.0409QianhaiRoad, NanshanDistrict,Shenzhen,Guangdong,China Tel:(86)755-26066544 Fax:(86)755-26014772 ShenzhenAnbotekComplianceLaboratoryLimited FCCID: 2AEHG-TG-DPage2 of 43 ReportNo. : R011412290E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com TABLEOF CONTENT Description Page Test Report 1. GENERALINFORMATION......................................................................................................4 1.1. Descriptionof Device(EUT)................................................................................................................4 1.2. AuxiliaryEquipmentUsedduringTest ................................................................................................5 1.3. Descriptionof Test Facility..................................................................................................................5 1.4. MeasurementUncertainty.....................................................................................................................5 2. TESTMETHODOLOGY............................................................................................................6 2.1. Summaryof Test Results......................................................................................................................6 2.2. Descriptionof Test Modes....................................................................................................................6 3. POWERLINECONDUCTEDMEASUREMENT...................................................................7 3.1. Test Equipment.....................................................................................................................................7 3.2. BlockDiagramof Test Setup................................................................................................................7 3.3. PowerLineConductedEmissionMeasurementLimits(FCCPart 15 ClassB) ...................................7 3.4. Configurationof EUTon Measurement...............................................................................................7 3.5. OperatingConditionof EUT ................................................................................................................8 3.6. Test Procedure......................................................................................................................................8 3.7. PowerLineConductedEmissionMeasurementResults......................................................................8 4. FCCPART15.247REQUIREMENTSFORDSSS& OFDMMODULATION.................11 4.1 Test Setup.............................................................................................................................................11 4.2 6dB Bandwidth....................................................................................................................................11 4.3. MaximumPeakoutputpowertest ......................................................................................................14 4.4. BandEdgesMeasurement...................................................................................................................17 4.5. PeakPowerSpectralDensity..............................................................................................................20 4.6. RadiatedEmissions.............................................................................................................................23 5. PHOTOGRAPH.........................................................................................................................34 5.1 . Photoof ConductedEmissionMeasurement......................................................................................34 5.2 . Photoof RadiationEmissionTest .......................................................................................................34 APPENDIXI (EXTERNALPHOTOS)........................................................................................36 APPENDIXII(INTERNALPHOTOS)......................................................................................40 APPENDIXI (ExternalPhotos)(4 pages) APPENDIXII( InternalPhotos)(4 pages) ShenzhenAnbotekComplianceLaboratoryLimited FCCID: 2AEHG-TG-DPage3 of 43 ReportNo. : R011412290E ShenzhenAnbotekComplianceLaboratoryLimited Tel:(86)755-26066544Fax:(86)755-26014772www.anbotek.com TESTREPORT Applicant: ShandongWelltekPetroleumEquipmentCO.,LTD. Manufacturer: ShandongWelltekPetroleumEquipmentCO.,LTD. EUT: ParameterCalibrationInstrument ModelNo.: TG-D SerialNo.: N.A. TradeMark: Rating: DC 7.2V,200mA MeasurementProcedureUsed: FCCPart15SubpartC, Paragraph15.247 Thedevicedescribedaboveis testedby ShenzhenAnbotekComplianceLaboratory Limitedto determinethe maximumemissionlevelsemanatingfromthe deviceand the severelevelsof the devicecan endureand its performancecriterion.The measurement resultsare containedin this test reportand ShenzhenAnbotekComplianceLaboratory Limitedis assumedfull of responsibilityfor the accuracyand completenessof these measurements.Also,thisreportshowsthatthe EUT(EquipmentUnderTest)is technicallycompliantwiththe FCCPart 15 SubpartC requirements. Thisreportappliesto abovetestedsampleonlyand shallnot be reproducedin part withoutwrittenapprovalof ShenzhenAnbotekComplianceLaboratoryLimited. DateofTest:Dec.16,2014~Mar.26,20…

Text truncated - open the document above for the full version.

1.PhotoofConductedEmissionMeasurement 2.PhotoofRadiationEmissionTest
