2AEHG-TG-RTURemote Transmission Unit

- 1 - Remote Transmission Unit Instructions The RTU is researched for oil field data transmissions and it’s installed in the DRS. The DRS is installed by the onsite workers at the well site within a radius of 500 meters nearby its targeting pumping units for data transmission with the oil field data acquisition equipments through Zigbee Network. Extended function: the RTU can be connected to an external GPRS module to transmit the data to client servers. 1、external antenna 2、power input terminal and GPRS expansion interface Remote Transmission Unit Technical Specifications: Power supply: 9VDC 300mA Working currency:＜200 mA Dynamometer data storage:≥2000 Working status data storage:≥180 Liquid yield data storage:≥2000 Battery continuous working time:≥10min Working environment:Temperature: - 45 °C～ +85 °C； Humidity: 5% ～ 95%RH Carrier frequency:2.4GHz Communication error:≤10 -6 Transmission power:≤50mW - 2 - Time error:≤1 min/year Transmission range:≤500m FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

ShandongWelltek PetroleumEquipmentCO., LTD. FCCConfidentialityRequest Number:CF303 Version:V05 Date:21-05-2012 (Permanentoralsocalledlongtermconfidentialityisthenormalmethodtokeepcertaindocuementsconfidential,andmayapplyto schematics,blockdiagrams,operationaldescriptionandbillofmaterials.) To:FederalCommunicationsCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 Pursuantto47CFRSection0.459(a)&(b),we, (theapplicant/grantee) CompanynameShandongWelltekPetroleumEquipmentCO.,LTD. AddressYulanRoad,No.618,HighandNewTechnologyIndustryDevelopmentZone, CityQufuCity,ShandongProvince CountryChina requestforthiscertificationfilingunder: GranteeCodeProductNumber FCCID:2AEHG-TG-RTU tomaintainpermanentconfidentialityforthefollowingdocumentssubmittedwithinthisapplication: (pleasecrosswhatisapplicable,oraddotherdocuments,providethefilenameanddescription) ExhibitFileNameDescription √ OperationalDescriptionOperationalDescriptionexplainingthefunctioningoftheblockdiagram √ BlockDiagramsBlockDiagramsshowingthesystematicbuildingblocksoftheEUT √ SchematicsDiagramsSchematicsshowingcomponents,theirvaluesandinterconnection BillofMaterialsListofcomponentsusedonthePCB’softheEUT Abovematerialscrossedcontainsecrets,proprietaryandtechnicalinformation,whichwouldcustomarilybeguardedfrom competitorsunder47CFR,section0.457(d)(2).Disclosureorpublicationoranyportionofthiscompanyconfidentialmaterial tootherpartiescouldcausesubstantialcompetitiveharmandprovideunjustifiedbenefitsforcompetitors.Weunderstandthat pursuantto47CFRsection0.457(d)(1)(ii)disclosureoftheapplicantandallaccompanyingdocumentationwillnotbemade beforethedateofthegrant.Thedocumentsindicatedasconfidentialabove,arenotpubliclyavailableelsewhere. Attestation: CityandCountry:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) QufuCity,China2015-03-26HaiboLiDirector

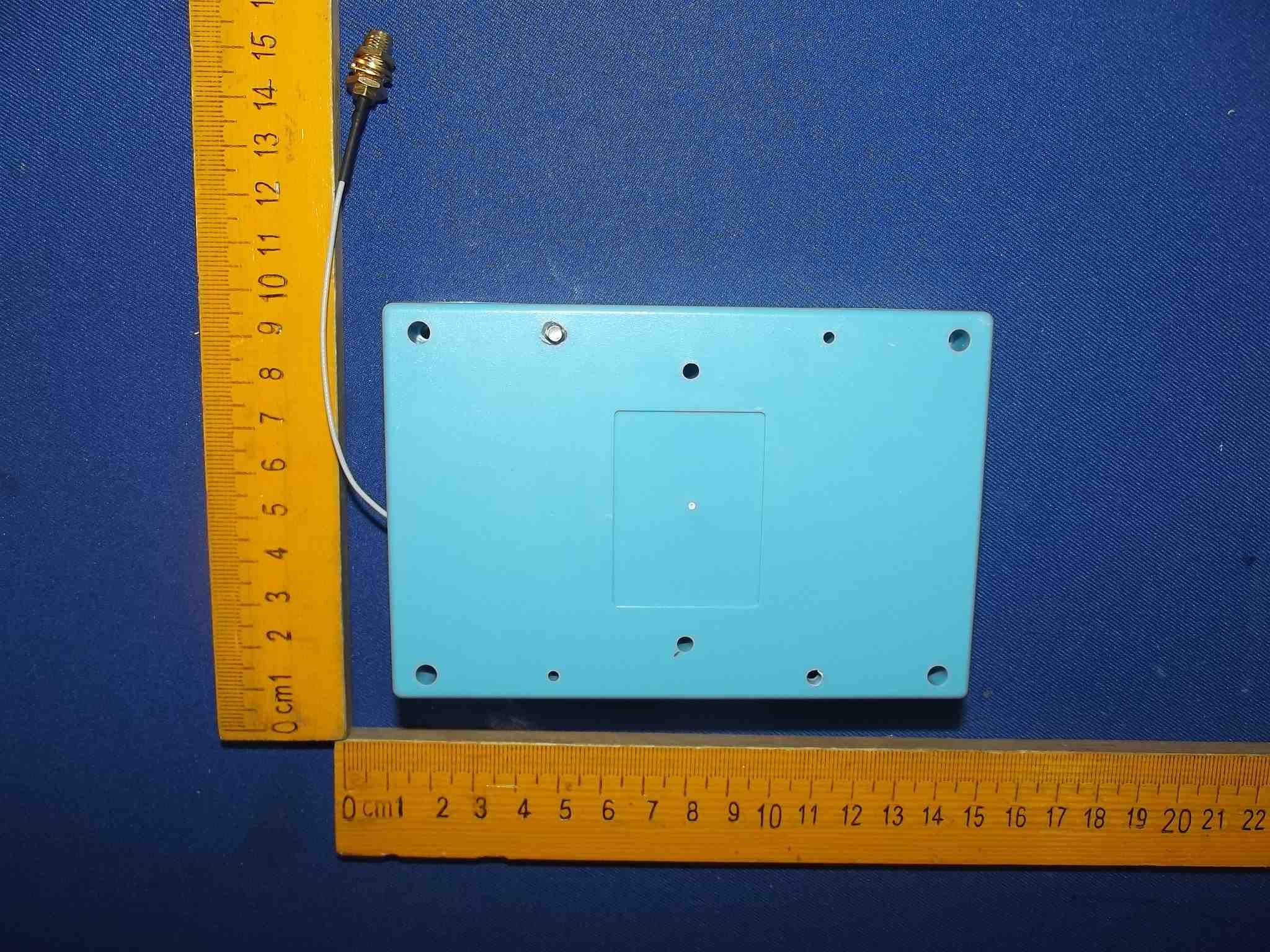

Figure1 TheEUT-OverallView Figure2 TheEUT-TopView Antenna Figure3 TheEUT-BottomView Figure4 TheEUT-FrontView Figure5 TheEUT-BackView Figure6 TheEUT-LeftView Figure7 TheEUT-RightView

ProductName:RemoteTransmissionUnit ModelNo.:TG-RTU FCCID:2AEHG-TG-RTU ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation.

LabelLocationOnEUT

Figure8 TheEUT-InsideView Figure9 PCBoftheEUT-FrontView Figure10 PCBoftheEUT-FrontView Figure11 PCBoftheEUT-BackView Figure12 PCBoftheEUT-FrontView Figure13 PCBoftheEUT-BackView

RFEXPOSUREEVALUATION FCCID ： 2AEHG-TG-RTU AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Themaximumoutputpowerforlowchannelis:8.28dBm=6.73mW Thecalculationresults=6.73/5*√2.405=2.09 ＜ 3 Themaximumoutputpowerformiddlechannelis:7.52dBm=5.65mW Thecalculationresults=5.65/5*√2.440=1.77 ＜ 3 Themaximumoutputpowerforhighchannelis:6.63dBm=4.60mW Thecalculationresults=4.60/5*√2.480=1.45 ＜ 3 TestResults:PASS.

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AEHG-TG-RTU Page 1 of 40 Report No.: R011412289E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772www.anbotek.com FCC TEST REPORT for Shandong Welltek Petroleum Equipment CO., LTD. Remote Transmission Unit Model No.: TG-RTU Report Number: R011412289E Date of Test:Dec. 16, 2014 ~Mar. 26, 2015 Date of Report:Mar. 27, 2015 Prepared for: Shandong Welltek PetroleumEquipment CO., LTD. Address: Yulan Road, No. 618, High and New Technology Industry Development Zone, Qufu City, Shandong Province, China Prepared B y: Shenzhen Anbotek Compliance LaboratoryLimited Address: 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AEHG-TG-RTU Page 2 of 40 Report No.: R011412289E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST METHODOLOGY............................................................................................................6 2.1. Summary of Test Results......................................................................................................................6 2.2. Description of Test Modes....................................................................................................................6 3. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION................... 7 3.1 Test Setup...............................................................................................................................................7 3.2 6dB Bandwidth...................................................................................................................................... 7 3.3. Maximum Peak output power test...................................................................................................... 10 3.4. Band Edges Measurement...................................................................................................................13 3.5. Peak Power Spectral Density..............................................................................................................16 3.6. Radiated Emissions.............................................................................................................................19 4. PHOTOGRAPH......................................................................................................................... 30 4.1. Photo of Radiation Emission Test.......................................................................................................30 APPENDIX I (EXTERNAL PHOTOS)........................................................................................31 APPENDIXII(INTERNAL PHOTOS)...................................................................................... 35 APPENDIX I (External Photos) (4 pages) APPENDIXII(Internal Photos) (4 pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AEHG-TG-RTU Page 3 of 40 Report No.: R011412289E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772www.anbotek.com TEST REPORT Applicant: Shandong Welltek Petroleum Equipment CO., LTD. Manufacturer: Shandong Welltek Petroleum Equipment CO., LTD. EUT: Remote Transmission Unit Model No.: TG-RTU Serial No.: N.A. Trade Mark: Rating: DC 9V, 300mA Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen Anbotek Compliance Laboratory Limited. Date of Test :Dec. 16, 2014 ~Mar. 26, 2015 Prepared by : (Tested Engineer/Kebo Zhang) Reviewe r: (Project Manager /Amy Ding) Approve d& AuthorizedSigner: (Manager/Tom Chen) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AEHG-TG-RTU Page 4 of 40 Report No.: R011412289E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772www.anbotek.com 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT:Remote Transmission Unit Model Number:TG-RTU Test Power Supply: DC 9V from Switching Power Supply RF Transmission Frequency :Zigbee: 2405-2480MHz No. of Channels:16 Channel Space:5MHz Modulation:DSSS Antenn aGain::0dBi Applicant:Shandong WelltekPetroleumEquipment CO., LTD. Address:Yulan Road, No. 618, High and New Technology Industry Development Zone, Qufu City, Shandong Province, Chin a Manufacturer:Shandong WelltekPetroleumEquipment CO., LTD. Address:Yulan Road, No. 618, High and New Technology Industry Development Zone, Qufu City, Shandong Province, Ch…

Text truncated - open the document above for the full version.

1. Photo of Radiation Emission Test
