2AEIGKNNS00052.4GHz remote transmitter

User Manual of KNNS0005 Description: The product specification applies to transmitter. A. Basic data B. Appearance size Type RX+TX Working frequency band 2405-2478MHz The shift number 74 Item 92100V3.2 Distance (m) 120 Input voltage 6V DC Suitable model Model Car /Ship Rx size Maximum Length (mm) 147.5 Maximum Height (mm) 207.7 Maximum Wide (mm) 114.8 4CH C. Appearance picture  D. Test method 1. Diagram E. Instructions 1. Trigger with the tone wheel without moving, press CH1 +, CH1-, CH2 + .CH2- to the center position ST, TH regulation. 3. D / R +, D / R- is for ST angle for total amplitude adjustment addition, subtraction. 3. ST pull to the left in the end does not move, press the CH1 + .CH1- left margin for ST angle adjustment to add, subtract. 4. ST pull to the right in the end does not move, press the CH1 + .CH1- for ST angle to the right of amplitude adjustment to add, subtract. 5. TH pull ahead in the end does not move, press the CH1 + .CH1- TH forward amplitude adjustment for addition, subtraction. 6. TH pull back in the end does not move, press the CH1 + .CH1- TH Back amplitude adjustment for addition, subtraction. 7. CH3 for three-channel direction, click CH3, three-channel direction in the end does not move to the right, then click back into place CH3 8 .ST to the left or right end do not pull the end, press REV for about 3 seconds for the ST direction and reverse adjustment. 9. TH pulled forward or backward and not really the end, press REV for about 3 seconds for the TH direction and reverse adjustment. 10. The transmitter is in static state about 10 minutes a buzzer rang enter a sleep mode, power indicator lamp. 11. Battery warning mode, when the battery voltage is lower than 4.5Vf0.2, the buzzer discontinuity is called. 12. Setting out of control protection mode, TH pull forward or backward in the end what real, press CH4 for about 5 seconds a buzzer rang, loosen the CH4 about 1-2 seconds and then release the TH, the transmitter power switch off (transmitter in the energized state), forward or backward in the end what real. 13. The third mode switch in the 1 files, all normal function; the 2 files, ST/TH function is normal, can only be adjusted ST TRIM; file 3 adjustable ST TRIM and TH advance, only half. 14. Hold down the reset wait 5 seconds after boot flash once, and clear the current memory beep, wait 5 seconds and then continue to hold the rear lights flash twice and will beep twice, indicating restored to factory settings Notice 1. The transmitter with out of control protection function, when the signal is lost, the accelerator will automatically at a set position, please do not also pick out of control protection device. 2. Into the function mode of operation, each press the clear buzzer rang. 3.Function setting mode into DC6Vf0.1 voltage test. 4. Steering angle indication: left, right, forward, backward each 45 ± 5 degrees , CH3, angle of 90 degrees to the right bit amplitude.   In sleep mode, the transmitter power off automatically, turn off the power supply when there opening of use, function returned to normal use. This device com plies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC Warning Statements:

2015-04-09 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEIGKNNS0005 Product Name: 2.4GHz Remote Transmitter Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Name Jason Corl Position Manager Company Name Firelands Group, LLC Address 1214 Dorchester Dr Champaign, IL 61821 Tel +1-714-743-2155 Fax +1-714-743-2155 Email [email protected]

2015-04-09 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Alpha Product Testing Co., Ltd, Address: Building B, East Area of Nanchang Second, Industrial Zone, Gushu 2nd Road, Bao'an, Shenzhen, China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. FCC ID: 2AEIGKNNS0005 For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Firelands Group, LLC . Address: 1214 Dorchester Dr, 2919 Crossing Court,Suite 2, Champaign, IL 61822 ( applicant name and address). Signature: Name Jason Corl Position Manager Company Name Firelands Group, LLC Address 1214 Dorchester Dr Champaign, IL 61821 Tel +1-714-743-2155 Fax +1-714-743-2155 Email [email protected]

Antenna

50mm 30mm FCC ID: 2AEIGKNNS0005 Firelands Group, LLC Model name: Ikonnik HRS3.2 3Ch 2.4GHz Xenon (Xe) Transmitter Model No.: KNNS0005 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

Antenna connector location

FCC ID: 2AEIGKNNS0005 RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison. Worse case is as below: For this hand held controller, 10-g extremity SAR evaluation shall be applied. The minimum separation distance between user’s hand and device antenna is 30 mm (please refer to below photos). [2441MHz 15.947dBm (39.33mW) output power] (39.33mW /30mm) ·[√2.441(GHz)]= 2.05 <7.5 for 10-g SAR Then extremity SAR evaluation is not required FCC ID: 2AEIGKNNS0005

Page 1 of 44 Report No.: A1850210 01 TEST REPORT FCC ID: 2AEIGKNNS0005 Applicant : Firelands Group, LLC Address : 1214 Dorchester Dr, 2919 Crossing Court,Suite 2, Champaign, IL 61822 Equipment Under Test (EUT): Name : Ikonnik HRS3.2 3Ch 2.4GHz Xenon (Xe) Transmitter Model : KNNS0005 In Accordance with: FCC PART 15, SUBPART C : 2014 (Section 15.247) Report No : A1850210 01 Date of Test : March 26 to April 09, 2015 Date of Issue : April 09, 2015 Test Result: PA SS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd Or test done by Shenzhen Alpha Product Testing Co., Ltd Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd Approvals in writing . Page 2 of 44 Report No.: A1850210 01 Contents 1. General Information ............................................................................................................... 4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................5 1.3. Test Lab information ............................................................................................5 2. Summary of test ...................................................................................................................... 6 2.1. Summary of test result .........................................................................................6 2.2. Assistant equipment used for test .........................................................................6 2.3. Block Diagram .....................................................................................................7 2.4. Test mode .............................................................................................................7 2.5. Test Conditions .....................................................................................................8 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.7. Test Equipment .....................................................................................................9 3. Maximum Peak Output power ............................................................................................ 10 3.1. Limit ...................................................................................................................10 3.2. Test Procedure ....................................................................................................10 3.3. Test Setup ...........................................................................................................10 3.4. Test Result ..........................................................................................................10 4. Bandwidth ............................................................................................................................. 11 4.1. Limit ................................................................................................................... 11 4.2. Test Procedure .................................................................................................... 11 4.3. Test Result .......................................................................................................... 11 5. Carrier Frequency Separation ............................................................................................. 14 5.1. Limit ...................................................................................................................14 5.2. Test Procedure ....................................................................................................14 5.3. Test Result ..........................................................................................................14 6. Number Of Hopping Channel ............................................................................................. 16 6.1. Limit ...................................................................................................................16 6.2. Test Procedure ....................................................................................................16 6.3. Test Result ..........................................................................................................16 7. Dwell Time ............................................................................................................................. 18 7.1. Test limit ............................................................................................................18 7.2. Test Procedure ....................................................................................................18 7.3. Test Results ........................................................................................................18 8. Radiated emissions ................................................................................................................ 20 8.1. Limit ...................................................................................................................20 8.2. Block Diagram of Test setup ..............................................................................21 8.3. Test Procedure ....................................................................................................21 8.4. Test Result ..........................................................................…

Text truncated - open the document above for the full version.

(2) Setup EUT and simulator as shown in section 1.4 and 6.1 (3) Test antenna was located 3m from the EUT on an adjustable mast. Below pre-scan procedure was first performed in order to find prominent radiated emissions. (a) Change work frequency or channel of device if practicable. (b) Change modulation type of device if practicable. (c) Rotated EUT though three orthogonal axes to determine the attitude of EUT arrangement produces highest emissions (4) Spectrum frequency from 9KHz to 25GHz (tenth harmonic of fundamental frequency) was investigated (5) For final emissions measurements at each frequency of interest, the EUT were rotated and the antenna height was varied between 1m and 4m in order to maximize the emission. Measurements in both horizontal and vertical polarities were made and the data was recorded. In order to find the maximum emission, the relative positions of equipments and all of the interface cables were changed according to ANSI C63.4 2003 on Radiated Emission test. (6) For emissions above 1GHz, both Peak and Average level were measured with Spectrum Analyzer, and the RBW is set at 1MHz, VBW is set at 3MHz for Peak measure; RBW is set at 1MHz, VBW is set at 10Hz for Average measure. 8.4. Test Result We have scanned the 10th harmonic from 9KHz to the EUT. Detailed information please see the following page. From 9KHz to 30MHz: Conclusion: PASS Note: The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Peak detector is used for both. From 30MHz to 1000MHz: Conclusion: PASS Remark: All modes have been tested, and only worst data of FHSS(FSK) mode, Channel 2405MHz was listed in this report. Channel 2405MHz 1GHz—25GHz Radiated emissison Test result EUT: Ikonnik HRS3.2 3Ch 2.4GHz Xenon (Xe) Transmitter M/N: KNNS0005 Power: DC 3.7V From battery Test date: 2015-04-03 Test site: 3m Chamber Tested by: Peter Test mode: FHSS(FSK) Tx CH1 2405MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 1 4810 51.72 31.25 5.7 34.2 54.47 74 19.53 PK 2 4810 40.86 31.25 5.7 34.2 43.61 54 10.39 AV 3 7215 / 4 / / 5 / / Antenna Polarity: Horizontal 1 4810 53.77 31.25 5.7 34.2 56.52 74 17.48 PK 2 4810 41.68 31.25 5.7 34.2 44.43 54 9.57 AV 3 7215 / 4 / / 5 / / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. 1GHz—25GHz Radiated emissison Test result EUT: Ikonnik HRS3.2 3Ch 2.4GHz Xenon (Xe) Transmitter M/N: KNNS0005 Power: DC 3.7V From battery Test date: 2015-04-03 Test site: 3m Chamber Tested by: Peter Test mode: FHSS(FSK) Tx CH40 2441MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4882 51.96 31.68 5.75 34.29 55.1 74 18.9 PK 2 4882 40.72 31.68 5.75 34.29 43.86 54 10.14 AV 3 7323 / 4 9764 / 5 12205 / Antenna Polarity: Horizontal 1 4882 54.26 31.68 5.75 34.29 57.4 74 16.6 PK 2 4882 42.74 31.68 5.75 34.29 45.88 54 8.12 AV 3 7323 / 4 9764 / 5 12205 / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. 1GHz—25GHz Radiated emissison Test result EUT: Ikonnik HRS3.2 3Ch 2.4GHz Xenon (Xe) Transmitter M/N: KNNS0005 Power: DC 3.7V From battery Test date: 2015-04-03 Test site: 3m Chamber Tested by: Peter Test mode: FHSS(FSK) Tx CH79 2478MHz Antenna polarity: Vertical No Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/ m) Margin (dB) Remark 1 4956 53.52 31.5 5.79 34.06 56.75 74 17.25 PK 2 4956 41.49 31.5 5.79 34.06 44.72 54 9.28 AV 3 7434 / 4 / / 5 / / Antenna Polarity: Horizontal 1 4956 54.49 31.5 5.79 34.06 57.72 74 16.28 PK 2 4956 42.84 31.5 5.79 34.06 46.07 54 7.93 AV 3 7434 / 4 / / 5 / / Note: 1, Measuring frequency from 1GHz to 25GHz 2, Spectrum Set for PK measure: RBW=1MHz, VBW=1MHz, Sweep time=Auto, Detector: PK 2, Spectrum Set for AV measure: RBW=1MHz, VBW=10Hz, Sweep time=Auto, Detector: PK 3, Result = Read level + Antenna factor + cable loss-Amp factor 4, All the other emissions not reported were too low to read and deemed to comply with FCC limit. 9. Band Edge Compliance 9.1. Block Diagram of Test Setup 9.2. Limit All the lower and upper band-edges emissions appearing within restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 9.3. Test Procedure All restriction band and non- restriction band have been tested ˈonly worse case is reported. 9.4. Test Result PASS. (See below detailed test data) Radiated Method FHSS(FSK) CH LOW : Band Edge Test result EUT: Ikonnik HRS3.2 3Ch 2.4GHz Xenon (Xe) Transmitter M/N: KNNS0005 Power: DC 6.0V From battery Test date: 2015-04-03 Test site: 3m Chamber Tested by: Peter Test mode: Tx CH1 2405MHz Antenna polarity: Vertical Freq (MHz) Read Level (dBuV/m) Antenna Factor (dB/m) Cable loss(d B) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 2390 53.74 27.62 3.92 34.97 50.31 74 23.69 PK 2390 / 27.62 3.92 34.97 / 54 / AV 2400 66.24 27.62 3.94 34.97 62.83 74 11.17 PK 2400 50.78 27.62 3.94 34.97 47.37 54 6.63 AV Antenna Polarity: Horizontal 2390 51.89 27.62 3.92 34.97 48.46 74 25.54 PK 2390 / 27.62 3.9…

Text truncated - open the document above for the full version.

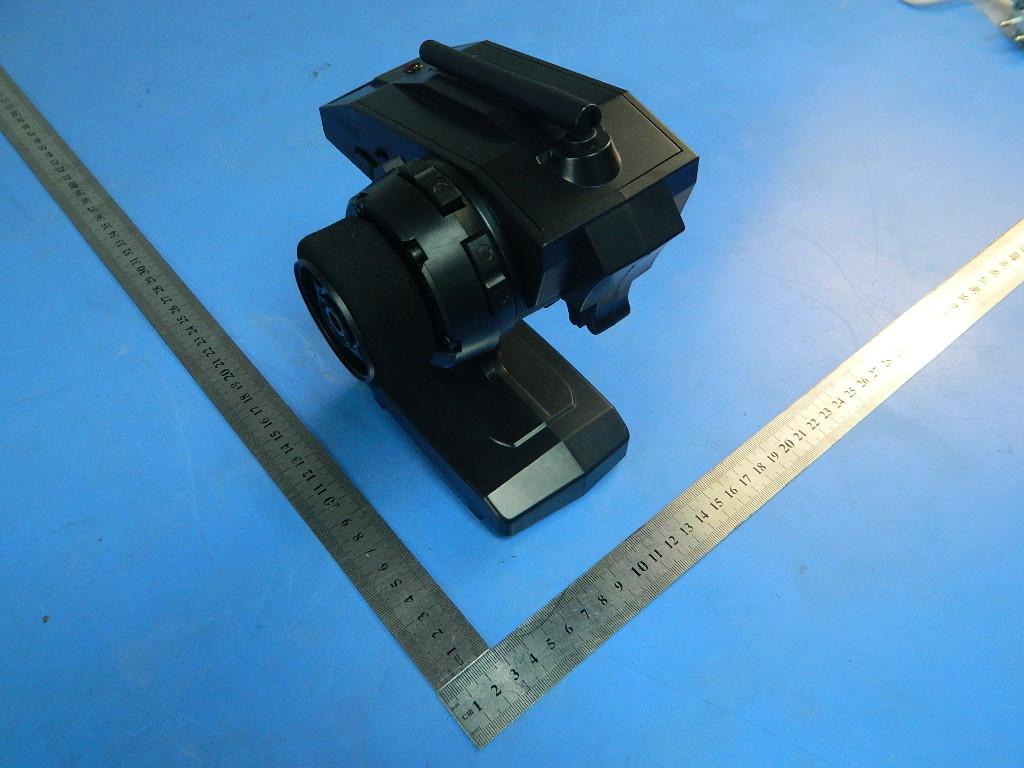

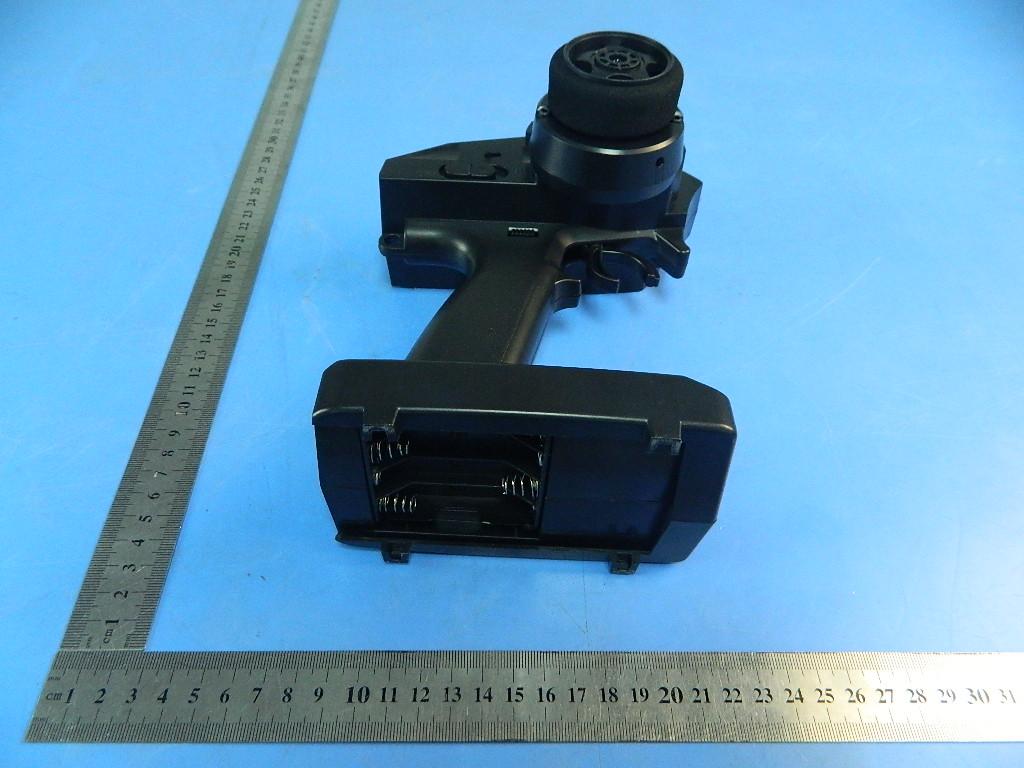

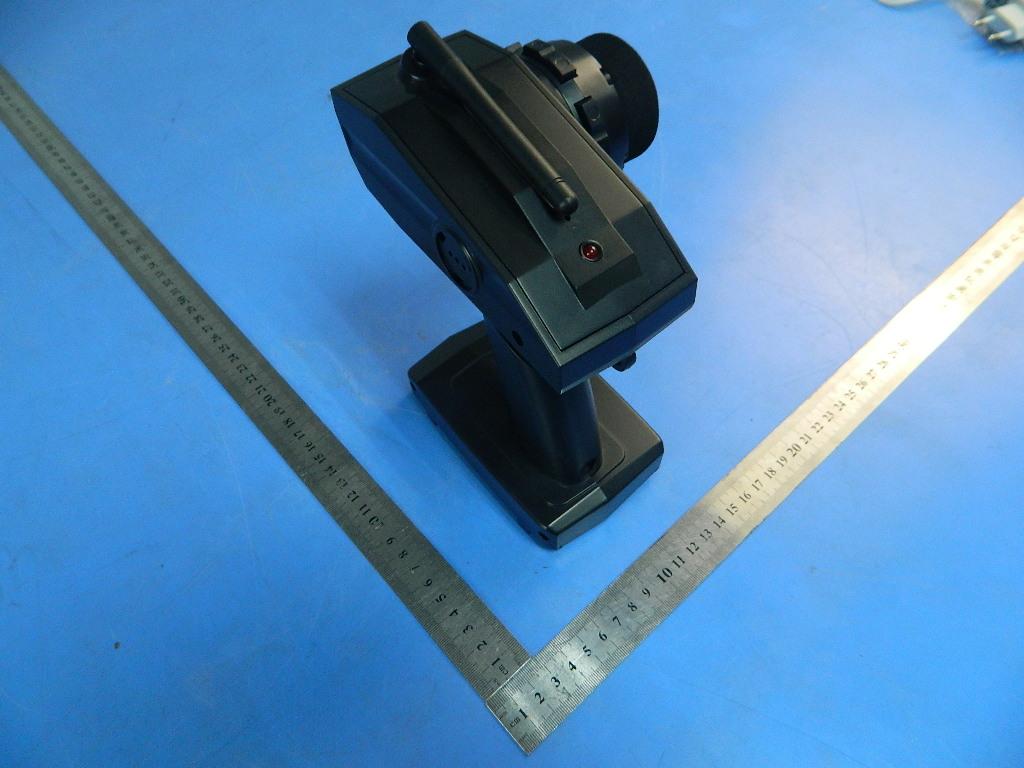

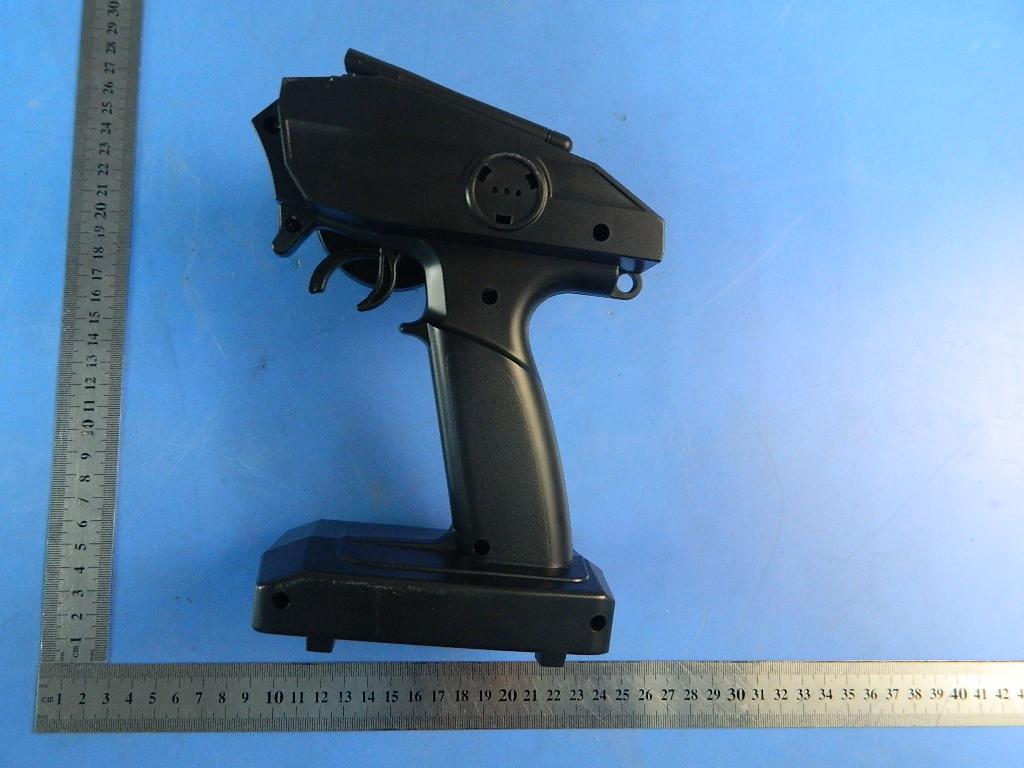

12. Test setup photo Photos of Radiated emission 13. Photos of EUT ---------END OF THE REPORT-------
