2AEIM-1642783Bluetooth USB Hub

USB Ports Two USB ports are located in the front compartment of the center console. These can be used to charge USB devices and to play audio files from a phone or USB device (see Playing Media from Devices on page 168) To access the front USB ports, open the front compartment of the center console. The front USB ports are located on the rear wall of the compartment: NOTE: Power is available whenever the vehicle is considered "awake". The vehicle may be awake for many reasons. For example, when using features such as Summon, or when features such as Preconditioning, Keep Climate On, Dog Mode, Camp Mode, Sentry Mode, etc. are enabled. The vehicle is also awake whenever the 12V battery is being charged or is in use, during HV charging, when the vehicle is communicating with the mobile app, etc. Leaving an accessory plugged in does not deplete the 12V battery. NOTE: Use USB 3.0 compliant cables to connect a device to a USB port. Using non- compliant cables can result in slower charging, potential connection problems or degraded performance. NOTE: Do not connect multiple devices using a USB hub. This can prevent connected devices from charging or from being recognized by Media Player, Sentry Mode, Dashcam, etc. USB Connected Flash Drives Connect a flash drive to a front USB connection (see ). Touch Media Player > USB, and then touch the name of the folder that contains the song you want to play. After you display the contents of a folder on the USB connected flash drive, you can touch any song in the list to play it. Or use the previous and next arrows in Miniplayer to scroll through your songs. NOTE: To play media from a USB connection, Model X recognizes flash drives only. You can play media from other types of devices (such as an iPod) by connecting the device using Bluetooth. NOTE: Media Player supports USB flash drives with FAT32 formatting (NTFS and exFAT are not currently supported). NOTE: Use a USB connection located at the front of the center console. The USB connections at the rear of the console are for charging only. Bluetooth Connected Devices If you have a Bluetooth-capable device such as a phone that is paired and connected to Model X (see #unique_384 on page ), you can play audio files stored on it and you can stream music from it. Choose Media Player's Phone source, then touch the name of your Bluetooth-connected device, and then touch CONNECT. Your Bluetooth device begins playing the audio file that is currently active on your device, and Media Player displays the Miniplayer view. If no audio file is playing on your device, use your device to choose the audio file you want to listen to. When the chosen file begins to play, you can then use Miniplayer's next and previous icons to play other tracks NOTE: To play media from a Bluetooth- connected device, ensure that access to the device’s media is turned on (see #unique_384 on page ). 362 OWNER'S MANUAL ALL REGIONS - FCC and IC Certification Component Manufacturer Model Operating Frequency (MHz) FCC ID IC BT USB hub Tesla 1642783 2400-2483.5 2AEIM-1642783 20098-1642783 The devices listed above comply with Part 15 of the FCC rules and Industry Canada's license-exempt RSS Standard(s) and EU Directive 2014/53/EU. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Tesla could void your authority to operate the equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1. l'Appareilne doit pas produire de brouillage, et 2. l'Utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement. Radiation Exposure Statement The product complies with the FCC/IC RF Exposure for Low Power Consumer Wireless Power Transfer. The RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The furthest RF exposure that compliance was demonstrated at 15mm and greater separation from the user body. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour unenvironnement non contrôlé. Déclaration d'exposition aux radiations: Le produit est conforme à l'exposition RF IC pour le transfert de puissance sans fil de consommateurs de faible puissance. La limite d'exposition RF fixée pour un environnement non contrôlé est sans danger pour le fonctionnement prévu tel que décrit dans ce manuel. L'exposition RF supplémentaire que la conformité a été démontrée à 15mm et plus de séparation du corps de. ALL REGIONS - Radio Frequency Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician to help. Consumer Information 363 CAUTION: This equipment and its antennas must not b…

Text truncated - open the document above for the full version.

Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848 || Fax: +1.510.933.8849 Page 1 of 1 04-28-2021 To: Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave San Jose, CA 95131, USA Agent Authorization Letter Applicant Tesla Motors, Inc Model Name 1642783 Brand Tesla, Inc. FCC ID 2AEIM-1642783 IC ID 20098-1642783 We, the undersigned, hereby authorize Hyundai C-Tech, Inc. dba HCT America Inc. to act on behalf of Tesla Motors, Inc as our agent in all manners related to application submission for equipment authorization/certification. This includes report submittal, signing of all documents relating to these matters, correspondence, and any other lawful activity necessary to obtain such authorization/certification. Any and all acts carried out by Hyundai C-Tech, Inc. dba HCT America Inc. on our behalf shall have the same effect as our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Cindy Li Tesla Motors, Inc 3500 Deer Creek Road Palo Alto, CA 94304, USA

Tesla, Inc. 3500 Deer Creek Road, Palo Alto, CA 94304 p +650 681 5100 f +650 681 5101 Federal Communications Commission Office of Engineering & Technology Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Via Electronic Filing Date: April 28, 2021 Re: Authorized Personnel for Grantee Code 2AEIM To Whom It May Concern: I currently serve as Tesla, Inc’s (Tesla) grantee contact (Grantee Code 2AEIM) for Federal Communications Commission (FCC) equipment authorizations. As prescribed in KDB 852134 Authorized Policy Form 731, I authorize the following personnel to act on Tesla’s behalf with regard to all matters that relate to FCC equipment authorization (i.e., signing Form 731, attestation letters, and confidentiality request letters). These individuals also are authorized to assign additional persons to act on Tesla’s behalf as authorized agents. Authorized Personnel: • Peng Zhang • Cindy Li This authorization is valid until further written notice from any of Tesla’s authorized grantee contacts. Sincerely Yours, Sean Lui Sr. Staff Charging Compliance Engineer 3500 Deer Creek Road, Palo Alto, California US 94304 Phone: (650)681-5109 [email protected]

Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848 || Fax: +1.510.933.8849 Page 1 of 1 04-28-2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC Request for Confidentiality We hereby request confidential treatment of information accompanying this application as outlined below: Applicant Tesla Motors, Inc Model Name 1642783 FCC ID 2AEIM-1642783 Long-Term Confidentiality Short-Term Confidentiality • Block Diagram • Internal Photos • Schematics • External Photos • Operational Description • Test Setup Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. We would like request to hold documents listed under Short-Term Confidentiality to remain confidential up to 180 days. Sincerely, Cindy Li Tesla Motors, Inc 3500 Deer Creek Road Palo Alto, CA 94304, USA

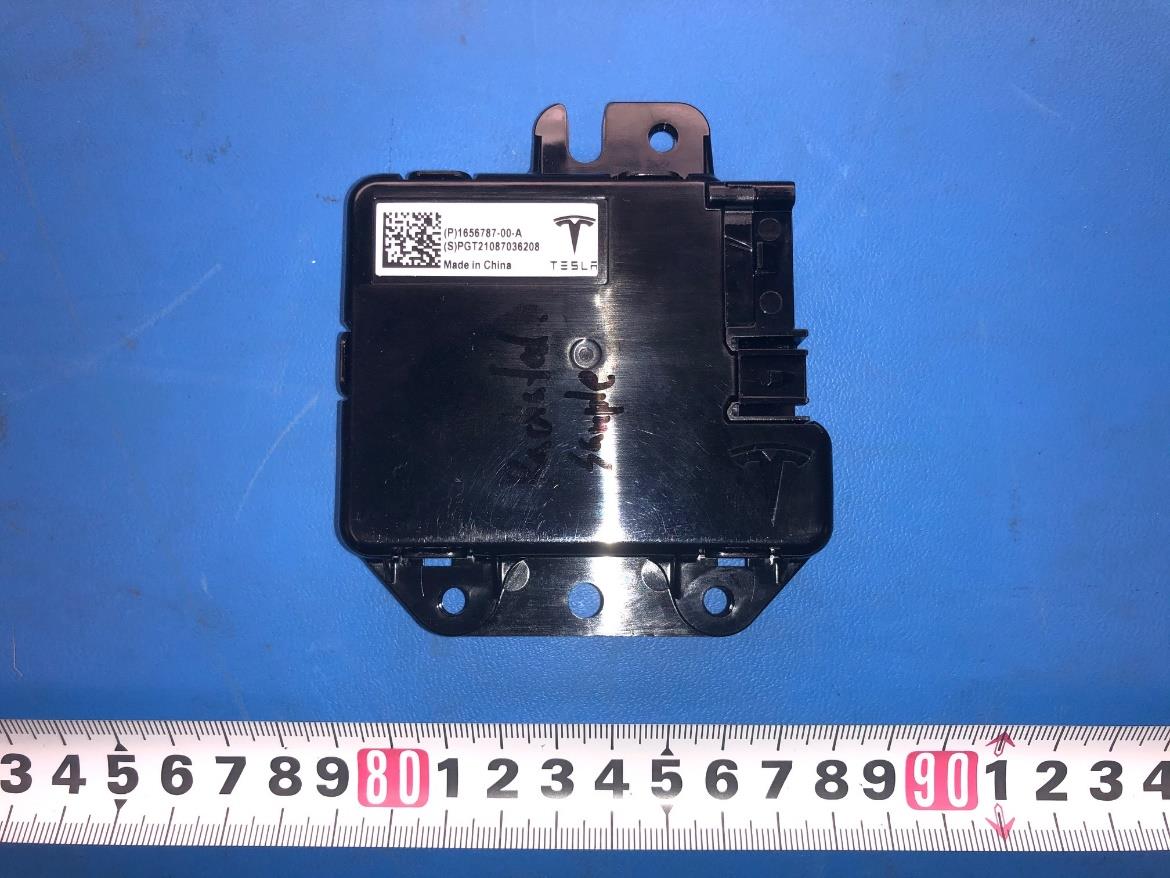

APPENDIX B 1 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.1 PHOTOGRAPHS OF EUT EXTERNAL PHOTOS Applicant Tesla Motors, Inc. Model Name 1642783 FCC ID 2AEIM-1642783 IC ID 20098-1642783 Reference Test Report No.: HA210413-TES-002-R01 APPENDIX B 2 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Front View Rear View APPENDIX B 3 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Left Side View Right Side View APPENDIX B 4 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Top View Bottom View

Note: 1. All logos need to be 5mm minimum diameter; for small device can reduce to 3mm. 2. All letters font size needs to be 4pt minimum. 3. TRA label. TRA letter need to be 3mm in height. Other letter in TRA letter need to be 2mm height. If TRA label print on package instead of product. The requirement for size needs to be double. Model Number: 1642783 FCC ID: 2AEIM-1642783 IC: 20098-1642783 CAN ICES-003 (B)/NMB-003(B) <INPUT: 16 Vcc, 6A> <OUTPUT: 5 or 9 or 12 Vcc, 3A> CMIIT ID: XXXXXXXX XXXXXXXXXXXXX 020-210046 R-C-Tsa-1642783 Made in China

APPENDIX B 1 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.2 PHOTOGRAPHS OF EUT INTERNAL PHOTOS Applicant Tesla Motors, Inc. Model Name 1642783 FCC ID 2AEIM-1642783 IC ID 20098-1642783 Reference Test Report No.: HA210413-TES-002-R01 APPENDIX B 2 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Internal Front Internal Rear APPENDIX B 3 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Internal Front – No Shield Internal Rear – No Shield

RF TEST REPORT FCC / ISED APPLICANT Tesla Motors, Inc. MODEL NAME 1642783 FCC ID 2AEIM-1642783 ISED ID 20098-1642783 REPORT NUMBER HA210413-TES-002-R01 Report No.: HA210413-TES-002-R01 1 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TEST REPORT Date of Issue April 30, 2021 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Tesla Motors, Inc. Applicant Address 3500 Deer Creek Road, Palo Alto, CA 94304, USA FCC ID 2AEIM-1642783 ISED ID 20098-1642783 Model Name 1642783 EUT Type Bluetooth USB Hub Modulation Type GFSK, π/4-DQPSK, 8DPSK FCC Classification Spread Spectrum Transmitter (DSS) FCC Rule Part(s) Part 15.247 ISED Rule Part(s) RSS-247 Issue 2 (February 2017), RSS-Gen Issue 5 (April 2018) Test Procedure ANSI C63.10-2013 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures required. The results of testing in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By Yongsoo Park Sunwoo Kim Test Engineer Technical Manager Report No.: HA210413-TES-002-R01 2 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA210413-TES-002-R01 4/30/2021 Initial Issue Report No.: HA210413-TES-002-R01 3 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 4 2. METHODOLOGY ............................................................................................................................................... 8 3. INSTRUMENT CALIBRATION .............................................................................................................................. 8 4. FACILITIES AND ACCREDITATIONS ...................................................................................................................... 9 5. ANTENNA REQUIREMENTS ............................................................................................................................. 10 6. MEASUREMENT UNCERTAINTY ........................................................................................................................ 11 7. DESCRIPTION OF TESTS ................................................................................................................................... 12 8. SUMMARY OF TEST RESULTS ........................................................................................................................... 23 9. TEST RESULT ................................................................................................................................................... 24 9.1. 20 dB BANDWIDTH / 99% BANDWIDTH MEASUREMENT ........................................................................ 24 9.2. OUTPUT POWER .................................................................................................................................. 27 9.3. NUMBER OF HOPPING CHANNELS ......................................................................................................... 30 9.4. CARRIER FREQUENCY SEPARATION ........................................................................................................ 32 9.5. TIME OF OCCUPANCY ........................................................................................................................... 33 9.6. CONDUCTED BAND EDGE & SPURIOUS EMISSIONS ................................................................................ 36 9.7. RADIATED SPURIOUS EMISSIONS .......................................................................................................... 42 9.8. RADIATED RESTRICTED BAND EDGES ..................................................................................................... 53 9.9. RECEIVER SPURIOUS EMISSION ............................................................................................................. 55 10. LIST OF TEST EQUIPMENT ............................................................................................................................. 57 APPENDIX A. TEST SETUP PHOTOS ...................................................................................................................... 58 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................................. 59 Report No.: HA210413-TES-002-R01 4 / 60 This document may not be…

Text truncated - open the document above for the full version.

Report No.: HA210413-TES-002-R01 24 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 9. TEST RESULT 9.1. 20 dB BANDWIDTH / 99% BANDWIDTH MEASUREMENT BDR (GFSK) 99% Bandwidth (kHz) 20 dB Bandwidth (kHz) Frequency (MHz) Channel Result Result Limit 2 402 0 900.56 965.19 - 2 441 39 911.46 961.77 2 480 78 914.76 967.88 EDR (π/4-DQPSK) 99% Bandwidth (kHz) 20 dB Bandwidth (kHz) Frequency (MHz) Channel Result Result Limit 2 402 0 1 215.78 1 357.74 - 2 441 39 1 214.42 1 349.12 2 480 78 1 214.71 1 354.85 EDR (8DPSK) 99% Bandwidth (kHz) 20 dB Bandwidth (kHz) Frequency (MHz) Channel Result Result Limit 2 402 0 1 220.00 1 325.04 - 2 441 39 1 215.78 1 322.73 2 480 78 1 219.02 1 323.33 Report No.: HA210413-TES-002-R01 25 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 ▣ TEST PLOTS BDR (GFSK) : 20 dB BW / OBW (CH0) EDR (π/4-DQPSK) : 20 dB BW / OBW (CH0) BDR (GFSK) : 20 dB BW / OBW (CH39) EDR (π/4-DQPSK) : 20 dB BW / OBW (CH39) BDR (GFSK) : 20 dB BW / OBW (CH78) EDR (π/4-DQPSK) : 20 dB BW / OBW (CH78) Report No.: HA210413-TES-002-R01 26 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 ▣ TEST PLOTS EDR (8DPSK) : 20dB BW / OBW (CH0) EDR (8DPSK) : 20dB BW / OBW (CH39) EDR (8DPSK) : 20dB BW / OBW (CH78) Report No.: HA210413-TES-002-R01 27 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 9.2. OUTPUT POWER Peak Power BDR (GFSK) Test Result Frequency (MHz) Channel No. Measured Power (dBm) Limit (dBm) Result 2 402 0 3.281 30 Compliant 2 441 39 4.250 30 Compliant 2 480 78 4.943 30 Compliant EDR (π/4-DQPSK) Test Result Frequency (MHz) Channel No. Measured Power (dBm) Limit (dBm) Result 2 402 0 1.883 30 Compliant 2 441 39 2.798 30 Compliant 2 480 78 3.399 30 Compliant EDR (8DPSK) Test Result Frequency (MHz) Channel No. Measured Power (dBm) Limit (dBm) Result 2 402 0 2.209 30 Compliant 2 441 39 3.368 30 Compliant 2 480 78 3.945 30 Compliant Note(s) : 1. The output power results in plot include the spectrum offset, which is a combination loss of the attenuator and the cable used for testing Report No.: HA210413-TES-002-R01 28 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 ▣ TEST PLOTS BDR (GFSK) : Output Power (CH0) EDR (π/4-DQPSK) : Output Power (CH0) BDR (GFSK) : Output Power (CH39) EDR (π/4-DQPSK) : Output Power (CH39) BDR (GFSK) : Output Power (CH78) EDR (π/4-DQPSK) : Output Power (CH78) Report No.: HA210413-TES-002-R01 29 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 ▣ TEST PLOTS EDR (8DPSK) : Output Power (CH0) EDR (8DPSK) : Output Power (CH39) EDR (8DPSK) : Output Power (CH78) Report No.: HA210413-TES-002-R01 30 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 9.3. NUMBER OF HOPPING CHANNELS BDR (GFSK) Test Result Frequency Range (MHz) No. of Channels Limit Result 2 402 – 2 480 79 ≥ 15 Compliant EDR (π/4-DQPSK) Test Result Frequency Range (MHz) No. of Channels Limit Result 2 402 – 2 480 79 ≥ 15 Compliant EDR (8DPSK) Test Result Frequency Range (MHz) No. of Channels Limit Result 2 402 – 2 480 79 ≥ 15 Compliant Report No.: HA210413-TES-002-R01 31 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 ▣ TEST PLOTS BDR (GFSK) : Number of Hopping Channels EDR (π/4-DQPSK) : Number of Hopping Channels EDR (8DPSK) : Number of Hopping Channels Report No.: HA210413-TES-002-R01 32 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 9.4. CARRIER FREQUENCY SEPARATION Mode Test Result Separation (kHz) Limit (kHz) 1) Result BRD (GFSK) 1 001.11 ≥ 645.25 Compliant EDR (π/4-DQPSK) 994.44 ≥ 905.16 Compliant EDR (8DPSK) 954.39 ≥ 883.36 Compliant Note(s) : 1. 2/3 of the highest 20 dB was used as the limit since it is greater than 25 kHz and the peak output power did not exceed 0.125 W. ▣ TEST PLOTS BDR (GFSK) EDR (π/4-DQPSK) EDR (8DPSK) Report No.: HA210413-TES-002-R01 33 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 9.5. TIME OF OCCUPANCY Mode Data Rate Frequency (MHz) Pulse Time (ms) No of Hops Dwell Time (ms) …

Text truncated - open the document above for the full version.

SA R E X E M PT I O N E X H I B I T F C C APPLICANT Tesla Motors, Inc. MODEL NAME 1642783 FCC ID 2AEIM-1642783 REPORT NUMBER HA210413-TES-002-R02 Report No.: HA210413-TES-002-R02 1 / 7 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue April 30, 2021 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Tesla Motors, Inc. Applicant Address 3500 Deer Creek Road, Palo Alto, CA 94304, USA FCC ID 2AEIM-1642783 Model Name 1642783 EUT Type Bluetooth USB Hub FCC Rule Part(s) Part 2 (§2.1091) Test Procedure KDB 447498 D01 v06 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was in accordance with the procedures specified in §2.947. The results in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By Yongsoo Park Sunwoo Kim Test Engineer Technical Manager Report No.: HA210413-TES-002-R02 2 / 7 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA210413-TES-002-R02 4/30/2021 Initial Issue Report No.: HA210413-TES-002-R02 3 / 7 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. EUT DESCRIPTION ............................................................................................................................................ 4 2. INTRODUCTION ................................................................................................................................................ 5 2.1. LIMIT ..................................................................................................................................................... 5 3. RESULT ............................................................................................................................................................ 6 3.1. SUMMARY OF RESULTS .......................................................................................................................... 6 3.2. CONCLUSION ......................................................................................................................................... 6 Report No.: HA210413-TES-002-R02 4 / 7 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 1. EUT DESCRIPTION Model 1642783 EUT Type Bluetooth USB Hub Power Supply 10 – 17.5 VDC (16 VDC nominal) RF Specification Bluetooth BDR/EDR Frequency Range 2402 MHz - 2480 MHz Max. RF Output Power Max tune up power including the tolerance : 5 dBm (3.162 mW) Modulation Type GFSK, π/4-DQPSK, 8DPSK Number of Channels 79 Channels Antenna Specification 1) Antenna Type : PCB Trace Antenna Peak Gain : 4.89 dBi Transmitter Chain 1 Operating Environment 2) Indoor and outdoor Operating Temperature 2) -40 °C ~ +85 °C Note : 1. Antenna information is based on the document provided. 2. Environmental operating condition is declared by the manufacturer. Report No.: HA210413-TES-002-R02 5 / 7 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 2. INTRODUCTION 2.1. LIMIT The RF exposure from potable device, as defined by FCC, must be evaluated with respect to FCC-adopted limits for SAR in accordance with 47 CFR §2.1091. If no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to quali…

Text truncated - open the document above for the full version.
