ZTE TRUNKING TECHNOLOGY CORPORATION Add: 4/F, R&D Building 1, ZTE Industrial Park, LiuXian Road, Xili, Nanshan District, Shenzhen, P. R. China Tel: 86-0755-26773333 Fax: 86-0755-26774670 Web site: Http://www.hqt-tech.com Attestation letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, ZTE TRUNKING TECHNOLOGY CORPORATION hereby declare that our product: Digital portable Radio; FCC ID: 2AEKCPR800U1 is capable of supporting a voice channel and a minimum data rate of 4800 bits per second per 6.25 kHz of channel bandwidth. DMR interphone’s bandwidth is 12.5 kHz, and it has a double time slot, one is the speech time slot, one is the data time slot, just language sequence is satisfied with 4800 bps/6.25 kHz BW. Sincerely, Yanchun Ma Signature: 2015-12-04

ZTE TRUNKING TECHNOLOGY CORPORATION 022311 – 6 Authority to Act as Agent Date: 2015-12-04 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Shenzhen Huatongwei International Inspection Co., Ltd. / Hans Hu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____2016-06-01_____ By: Yanchun Ma (Signature 1 ) (Print name) Title: On behalf of: ZTE TRUNKING TECHNOLOGY CORPORATION (Company Name) Telephone: 0755-26773333 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

ZTE TRUNKING TECHNOLOGY CORPORATION Request for Confidentiality Date: 2015-12-04 Subject: Confidentiality Request for: FCC ID: 2AEKCPR800U1 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ZTE TRUNKING TECHNOLOGY CORPORATION has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (specify number of days not to exceed 180 ) 2 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, Yanchun Ma By: (Signature3) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

ZTE TRUNKING TECHNOLOGY CORPORATION Justification Letter DATE: Dec 02, 2015 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: 2AEKCPR800U1 Model: PR800 U(1) Dear Sir/Madam, We, TRUNKING TECHNOLOGY CORPORATION acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorized frequencies inside the U.S.A.. We, TRUNKING TECHNOLOGY CORPORATION acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely yours, TRUNKING TECHNOLOGY CORPORATION Yanchun Ma Fax: 86-0755-26773333 Tel: 86-0755-26774670 E-mail: [email protected]

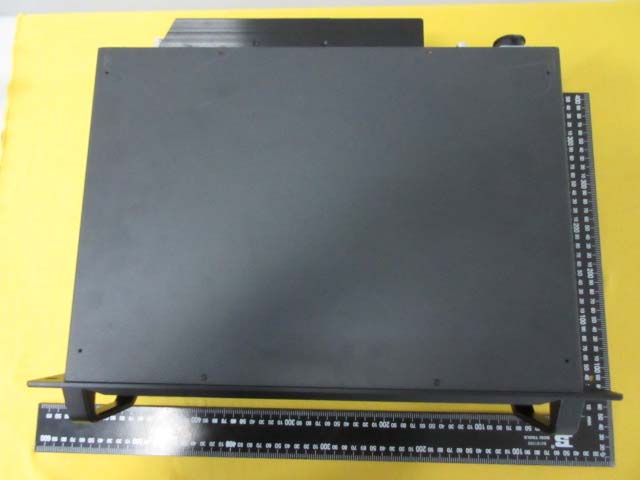

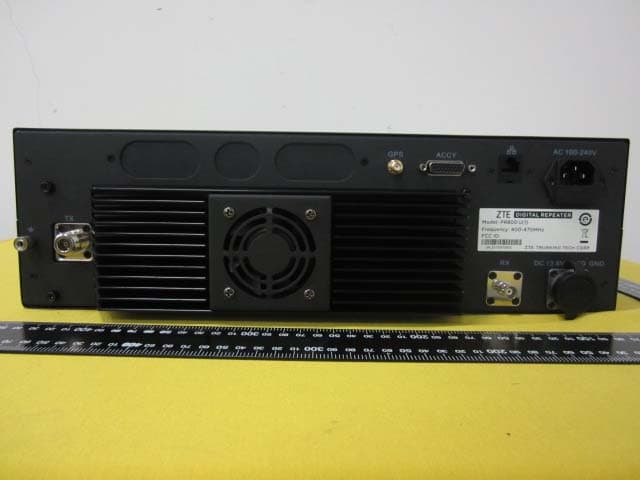

Report No : TRE1510015701 Page 66 of 76 Issued: 2015-11-23 6. External and Internal Photos of the EUT External photos of the EUT Report No : TRE1510015701 Page 67 of 76 Issued: 2015-11-23

Label location

Report No : TRE1510015701 Page 68 of 76 Issued: 2015-11-23 Internal photos of the EUT Report No : TRE1510015701 Page 69 of 76 Issued: 2015-11-23 Report No : TRE1510015701 Page 70 of 76 Issued: 2015-11-23 Report No : TRE1510015701 Page 71 of 76 Issued: 2015-11-23 Report No : TRE1510015701 Page 72 of 76 Issued: 2015-11-23 Report No : TRE1510015701 Page 73 of 76 Issued: 2015-11-23 Report No : TRE1510015701 Page 74 of 76 Issued: 2015-11-23 Report No : TRE1510015701 Page 75 of 76 Issued: 2015-11-23 Report No : TRE1510015701 Page 76 of 76 Issued: 2015-11-23 .....................End of Report.........................

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. MPE TEST REPORT Report Reference No. .................... : TRE1510015702 R/C..........:19279 FCC ID ............................................. : 2AEKCPR800U1 Applicant’s name ........................... : ZTE TRUNKING TECHNOLOGY CORPORATION Address ............................................. : 4/F,R&D Building 1,ZTE Industrial Park,LiuXian Road,Xili,Nanshan District,Shenzhen,P.R.China Manufacturer......................................: ZTE TRUNKING TECHNOLOGY CORPORATION Address...............................................: 4/F,R&D Building 1,ZTE Industrial Park,LiuXian Road,Xili,Nanshan District,Shenzhen,P.R.China Test item description .................... : DIGITAL REPEATER Trade Mark ....................................... : ZTE Model/Type reference ....................... : PR800 U(1) Listed Model(s) ................................. : - Standard ......................................... : FCC Per 47 CFR 2.1091(b)；KDB447498 v05r02 Date of receipt of test sample...........: Nov 2, 2015 Date of testing..............................: Nov 2, 2015 –Nov 23,2015 Date of issue.................................: Nov 23,2015 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators Shayne Zhu Supervised by ( position+printed name+signature) .. : Project Engineer Cary Luo Approved by ( position+printed name+signature) .. : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Report No : TRE1510015702 Page 2 of 9 Issued: 2015-11-23 Contents 1. SUMMARY 3 1.1. Client Information 3 1.2. Product Description 3 1.3. Test frequency list 4 1.4. EUT operation mode 5 1.5. EUT configuration 5 1.6. Modifications 5 2. TEST ENVIRONMENT 6 2.1. Address of the test laboratory 6 2.2. Environmental conditions 6 2.3. Statement of the measurement uncertainty 6 3. METHOD OF MEASUREMENT 7 3.1. Applicable Standard 7 3.2. Limit 7 3.3. MPE Calculation Method 7 4. CONCLUSION 9 Report No : TRE1510015702 Page 3 of 9 Issued: 2015-11-23 1. SUMMARY 1.1. Client Information Applicant: ZTE TRUNKING TECHNOLOGY CORPORATION Address: 4/F,R&D Building1,ZTE Industrial Park,LiuXian Road, Xili,Nanshan District, Shenzhen, P. R. China Manufacturer: ZTE TRUNKING TECHNOLOGY CORPORATION Address: 4/F,R&D Building 1,ZTE Industrial Park,LiuXian Road, Xili,Nanshan District, Shenzhen,P.R.China 1.2. Product Description Name of EUT: DIGITAL REPEATER Trade mark: ZTE Model/Type reference: PR800 U(1) Listed mode(s): - Power supply: AC 120V/60Hz,or DC 13.6V Battery information: - Charger information: - Adapter information: - Operation Frequency Range: From 400MHz to 470 MHz Rated Output Power: High Power: 40W (46.02dBm)/Low Power: 25W (43.98dBm) Modulation Type: Analog Voice: FM Digital Voice /Digital Data: 4FSK Digital Type: DMR Channel Separation: Analog Voice: 12.5kHz Digital Voice /Digital Data: 12.5kHz 6.25kHz Emission Designator: Analog Voice: 12.5kHz Channel Separation: 9K90F3E 25kHz Channel Separation: --- Digital Voice& Data: 12.5kHz Channel Separation: 7K44FXW 6.25kHz Channel Separation: --- Digital Data: 12.5kHz Channel Separation: 7K44FXD 6.25kHz Channel Separation: --- Support data rate: 9.6kbps Antenna Type: External Maximum Transmitter Power: Digital 40.93W for 12.5kHz Channel Separation Analog 41.78W for 12.5kHz Channel Separation Note: The product has the same digital working characters when operating in both two digitized voice/data mode. So only one set of test results for digital modulation modes are provided in this test report. Report No : TRE1510015702 Page 4 of 9 Issued: 2015-11-23 1.3. Test frequency list Mode Modulation Operation Frequency Range Test Frequency (MHz) Digital 4FSK 406.1MHz~420MHz CH L 406.1125 CH M 413.0500 CH H 419.9875 421MHz~470MHz CH L 421.0125 CH M 445.0000 CH H 469.9875 Analog FM 406.1MHz~420MHz CH L 406.1125 CH M 413.0500 CH H 419.9875 421MHz~470MHz CH L 421.0125 CH M 445.0000 CH H 469.9875 Note: In section 15.31(m), regards to the operating frequency range over 10 MHz, the Lowest frequency, the middle frequency, and the highest frequency of channel were selected to perform the test, please see the above listed frequency for testing. Report No : TRE1510015702 Page 5 of 9 Issued: 2015-11-23 1.4. EUT operation mode Test mode Transmitting Power level Digital Analog High 12.5kHz 12.5kHz TX1 √ √ √ TX2 √ √ √ √: is operation mode. 1.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ● Power Cable Length (m) : 3.00 Shield : Unshielded Detachable : Undetachable ○ Multimeter Manufacturer : / Model No. : / 1.6. Modifications No modifications were implemented to meet testing criteria. Report No : TRE1510015702 Page 6 of 9 Issued: 2015-11-23 2. TEST ENVIRONMENT 2.1. Address of the test laboratory 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Phone: 86-755-26748019 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication…
