2AEL6-JUPCAMWireless IP Cam

Wireless IP Cam

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 < Dec. 24, 2020 > TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AEL6-JUPCAM Jup-IPC02 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Ace Liu/Senior Director Company: Phytrex Technology Corp. Address: 3F-2, No.189, Sec.2 Keelung Rd., Taipei, Taiwan Phone: 02-7352700-50 E-Mail: [email protected]

Phytrex Technology Corp. 3F-2, No.189, Sec.2 Keelung Rd., Taipei, Taiwan Date: Dec. 24, 2020 FCC ID: 2AEL6-JUPCAM Model Number: Jup-IPC02 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Phytrex Technology Corp. declare that this EUT (FCC ID: 2AEL6-JUPCAM) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Ace Liu/Senior Director Company: Phytrex Technology Corp. Address: 3F-2, No.189, Sec.2 Keelung Rd., Taipei, Taiwan Phone: 02-7352700-50 E-Mail: [email protected]

Phytrex Technology Corp. 3F-2, No.189, Sec.2 Keelung Rd., Taipei, Taiwan Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/24/2020 To whom it may concern: We, Phytrex Technology Corp. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AEL6-JUPCAM including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Ace Liu/Senior Director Company: Phytrex Technology Corp. Address: 3F-2, No.189, Sec.2 Keelung Rd., Taipei, Taiwan Phone: 02-7352700-50 E-Mail: [email protected]

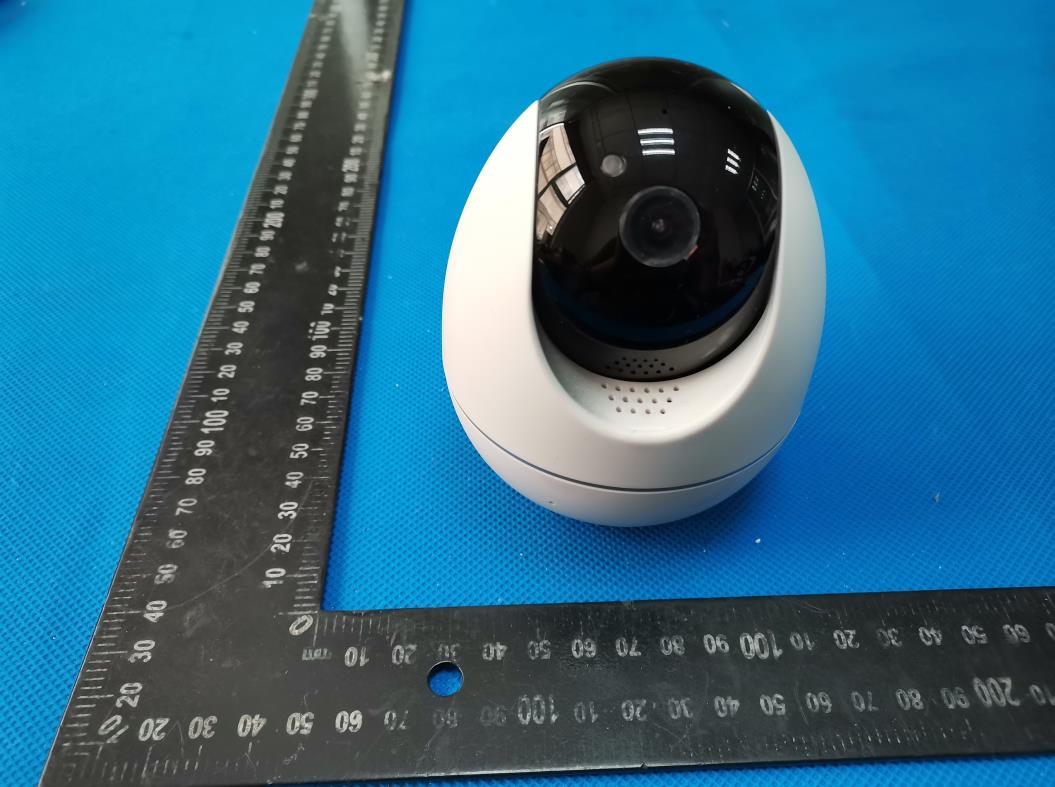

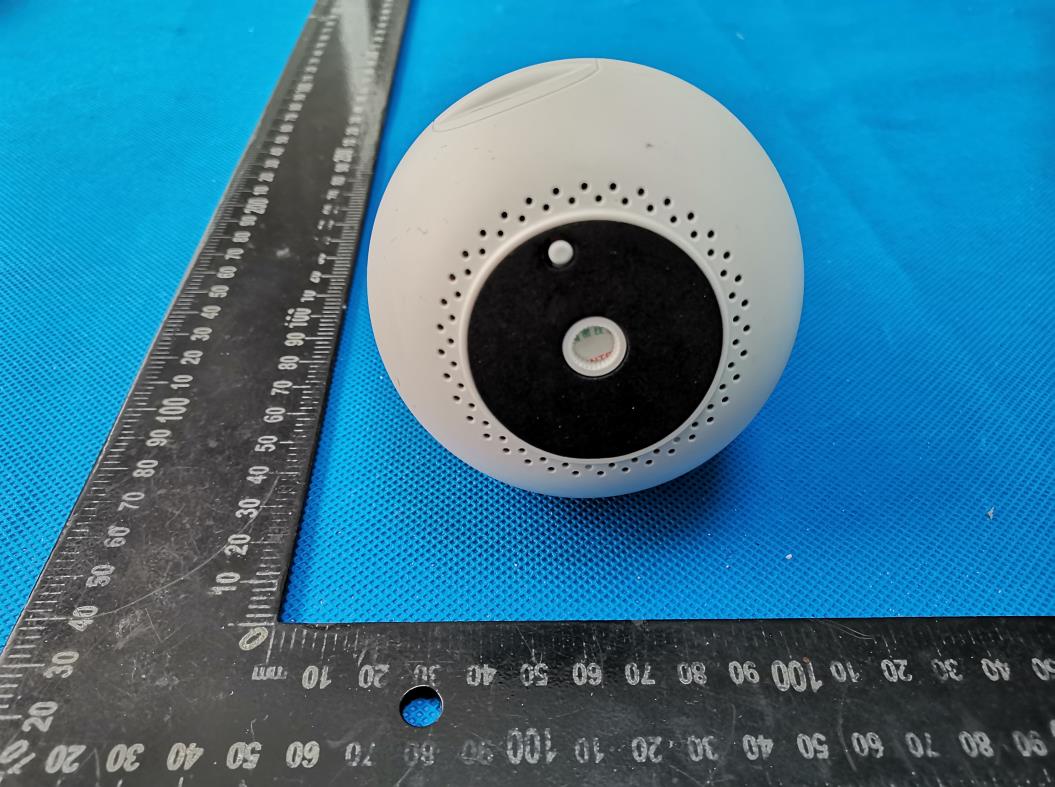

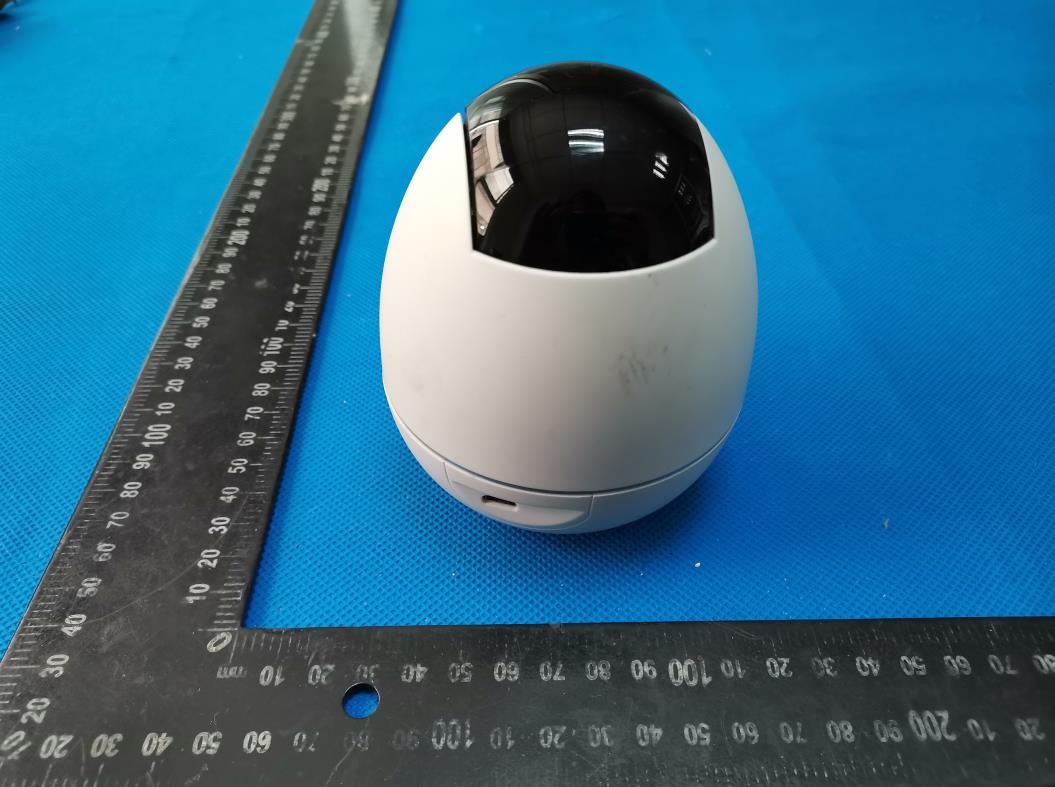

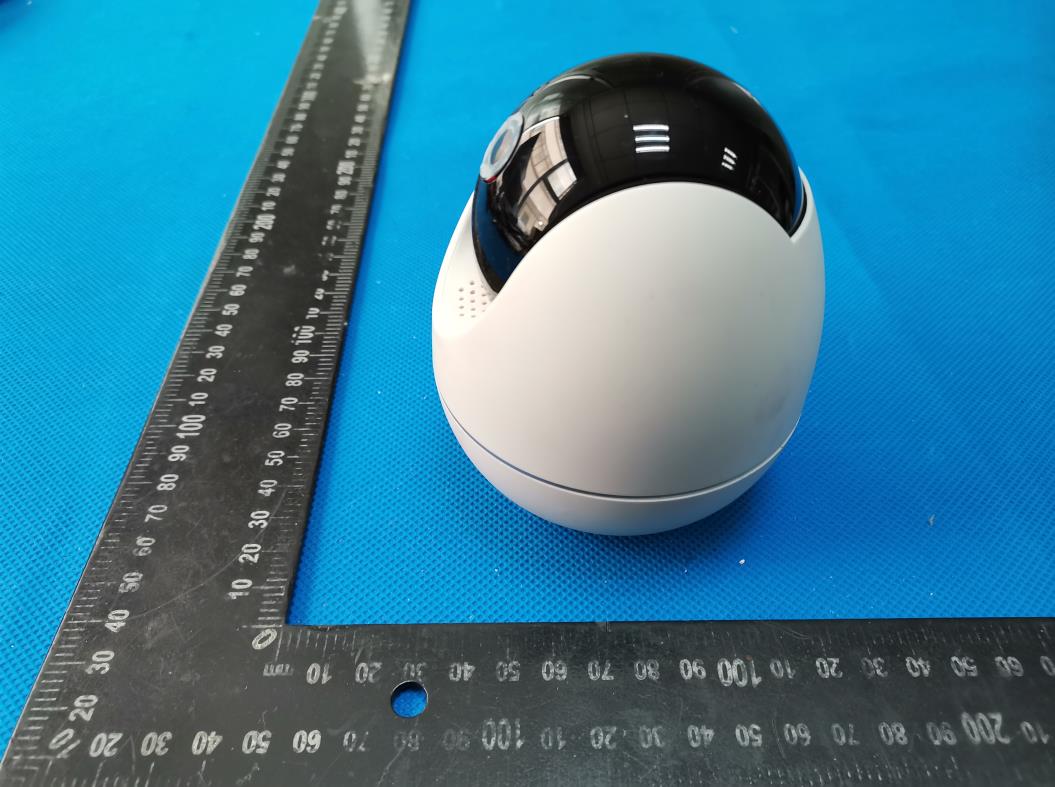

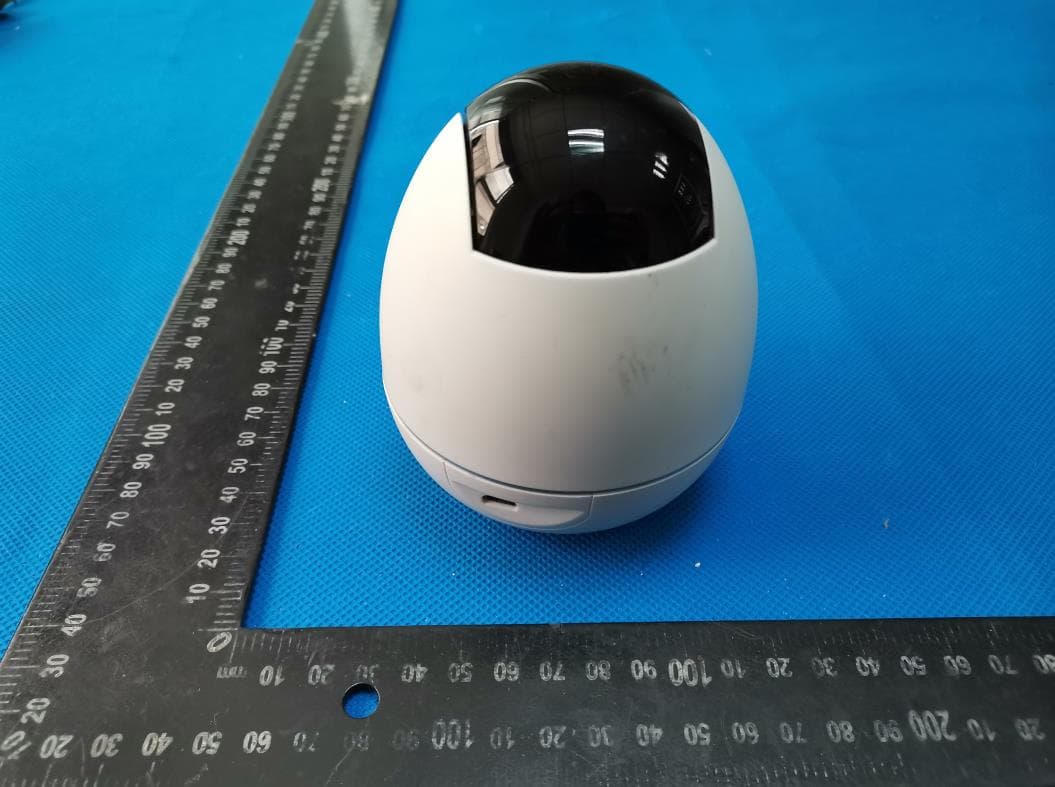

FCC ID: 2AEL6-JUPCAM Fig. 1 Fig. 2 FCC ID: 2AEL6-JUPCAM Fig. 3 Fig. 4 FCC ID: 2AEL6-JUPCAM Fig. 5 Fig. 6 FCC ID: 2AEL6-JUPCAM Fig. 7

FCC ID: 2AEL6-JUPCAM Label and Location Wireless IP Cam waciao Model No.: Jup-IPC02 FCC ID: 2AEL6-JUPCAM Label and Location

FCC ID: 2AEL6-JUPCAM Fig. 1 Fig. 2 FCC ID: 2AEL6-JUPCAM Fig. 3 Fig. 4 FCC ID: 2AEL6-JUPCAM Fig. 5 Fig. 6 FCC ID: 2AEL6-JUPCAM Fig. 7 Fig. 8 FCC ID: 2AEL6-JUPCAM Fig. 9 Fig. 10 FCC ID: 2AEL6-JUPCAM Fig. 11 Fig. 12 FCC ID: 2AEL6-JUPCAM Fig. 13 Fig. 14

RF Exposure evaluation FCC ID: 2AEL6-JUPCAM Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information Jup-IPC02 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Identification in Internal photos Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna 2.4G FPC Antenna 2.4GHz – 2.5 GHz 2.0 dBi 5. Conducted power [2.4GHz WLAN] Mode Channel Frequency Peak Conducted Output Power (dBm) IEEE 802.11b 1 2412 15.60 6 2437 16.44 11 2462 15.85 IEEE 802.11g 1 2412 14.04 6 2437 14.39 11 2462 14.29 IEEE 802.11n HT20 1 2412 13.52 6 2437 13.63 11 2462 13.93 6. Manufacturing Tolerance 2.4GHz WLAN Frequency (MHz) IEEE 802.11b (Peak) 2412 2437 2462 Target (dBm) 16.00 16.00 16.00 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) IEEE 802.11g (Peak) 2412 2437 2462 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) IEEE 802.11n HT20 (Peak) 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 7. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 2dBi, the RF power density can be obtained. 2.4GHz WLAN Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) Duty Cycle MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11b 17.00 50.11872 2.00 1.5849 100% 0.0158 1.0000 IEEE 802.11g 15.00 31.62278 2.00 1.5849 100% 0.0100 1.0000 IEEE 802.11n HT20 14.00 25.11886 2.00 1.5849 100% 0.0079 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. Output power was adjust to duty cycle at 100% if measured duty cycle less than 98%; 3. MPE evaluate distance is 20cm from user manual provide by manufacturer. 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : GTS20201219006-1-1 2AEL6-JUPCAM Compiled by ( position+printed name+signature) .. : File administrators Jimmy Wang Supervised by ( position+printed name+signature) .. : Test Engineer Aaron Tan Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Dec.19, 2020 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, China Applicant’s name ............................ : Phytrex Technology Corp. Address ............................................ : 3F-2, No.189, Sec.2 Keelung Rd., Taipei, Taiwan Test specification ...........................: Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wireless IP Cam Trade Mark ....................................... : waciao Manufacturer .................................... : Phytrex Technology Corp. Model/Type reference....................... : Jup-IPC02 Listed Models .................................. : N/A Modulation Type ............................... : CCK/DSSS/ OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 5V From External circuit Result................................................ : PASS Report No.: GTS20201219006-1-1 Page 2 of 40 T E S T R E P O R T Test Report No. : GTS20201219006-1-1 Dec.19, 2020 ____________________________________________________________________________________ Date of issue Equipment under Test : Wireless IP Cam Model /Type : Jup-IPC02 Listed Models : N/A Applicant : Phytrex Technology Corp. Address : 3F-2, No.189, Sec.2 Keelung Rd., Taipei, Taiwan Manufacturer : Phytrex Technology Corp. Address : 3F-2, No.189, Sec.2 Keelung Rd., Taipei, Taiwan Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20201219006-1-1 Page 3 of 40 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Conducted Output Power 19 4.4 Power Spectral Density 20 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 32 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 33 6 P H O T O S O F T H E E U T ........................................................... 34 Report No.: GTS20201219006-1-1 Page 4 of 40 1 T E ST S T ANDARDS The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: GTS20201219006-1-1 Page 5 of 40 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Dec.01, 2020 Testing commenced on : Dec.01, 2020 Testing concluded on : Dec.18, 2020 2.2 Product Description Product Name: Wireless IP Cam Model/Type reference: Jup-IPC02 Power supply: DC 5V From External circuit Adapter(Auxiliary test Provided by the laborator) Mode:EP-TA20CBC Input:AC100-240V-50/60Hz，0.5A Output:DC 5V,2A testing sample ID： GTS20201219006-1-1-1#(Engineer sample), GTS20201219006-1-1-2#(Normal sample) WIFI : Supported type: 802.11b/802.11g/802.11n(H20): Modulation: 802.11b: DSSS 802.11g/802.11n(H20): OFDM Operation frequency: 802.11b/802.11g/802.11n(H20): 2412MHz~2462MHz Channel number: 802.11b/802.11g/802.11n(H20): 11 Channel separation: 5MHz Antenna type: FPC antenna Antenna gain: 2.0dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 5V From externa…
