2AEN52033202Bluetooth sports earphones

Boston Bluetooth sports earphones Boston_broschyr_90x105.indd 131/03/15 20:36 FCC ID: 2AEN52033202 YOU ARE AN URBANISTA! Thank you for your purchase of Urbanista Boston Bluetooth earphones. Urbanista is a tribute to people living modern urban lives. Products are developed to allow an active and mobile lifestyle. Boston is designed to resist rain and sweat, but should not be dipped into water. Keep in mind to put the silicon lid on the micro USB connection, to better withstand water (IPX5). To start Boston, press the logo button for 5 seconds. Boston will start and go into synch mode. The small blue light will show continuous frequent blinking. Volume control hands free. Bluetooth unit. USB port LED Boston_broschyr_90x105.indd 231/03/15 20:36 Now you can switch on the Bluetooth on your phone or computer and search for ”Urbanista Boston”. Once you connect the two devices you can start using Boston for listening to music or making phone calls. The blue light will blink 3 times and then pause. Functions Volume Click shortly on + or – buttons Forward Press and hold the + button Backward Press and hold – button. Answer Click logo button at incoming calls Hang up Click logo button On/Off Press and hold the logo button 5 sec. The playing time is around 4 hours. The charging time is around 1-2 hours, depending on the energy source. The blue light is on when charging and turns off when the battery is full. The Bluetooth distance is about 10 meters, without obstacles between the two devices. To charge the batteries of Boston, connect the complimentary cable A to the micro USB connection and the USB to an energy source such as a computer. Boston_broschyr_90x105.indd 331/03/15 20:36 GoFit silicon wings come in three sizes. To get the most out of your workout it’s important that you choose the right size. To switch ear-buds, pull it off to the side without damaging the latch that secures it in the earphone and gently slip the other over using the same motion in reverse. The smallest of the three ear-buds, without the GoFit wing, can be a good choice when you’re not working out and want to be more discreet. Clean the headphones gently with a cloth. The ear buds can be rinsed with soap under running water. Make sure that the ear-buds are dry before you put them back on. If you need instructions in additional languages, visit us at: Stereo Kopfhörer. 1 Jahr Gewährleistung. Anleitung und Informationen können unter folgendem Link abgerufen werden: Auriculares Garantía limitada de un año. Pueden encontrar el modo de empleo y información técnica aquí: Casque audio. Garantie limitée d’un an. Retrouvez les conseils d’utilisation et les informations techniques ici: http://us.urbanista.com/pages/translations Boston_broschyr_90x105.indd 431/03/15 20:36 1. Boston, GoFit 3. Do not push the latch! 2. Pull & remove gently 4. Put on in reverse order Boston_broschyr_90x105.indd 531/03/15 20:36 All Urbanista headphones are designed and manufactured with your high expectations and best customer experience in mind. We are devoted in providing the best quality and modern technology, how- ever, as most people realize, electronic products sometimes do have technical difficulties, and sometimes it is due to a manufacturing defect. This is why we offer a one (1) full year replacement warranty, from purchase date, against manufacturer defects on each headphone we sell. URBANISTA ONE YEAR LIMITED WARRANTY Urbanista AB hereby warrants that, under normal use, this product will be free from defects in materials and workmanship for a period of one (1) year from the date of original retail purchase. The replacement warranty is valid only if the original proof of purchase issued to the purchaser, specifying the date of purchase, is presented with the product to be replaced. How does it work? If you believe this product is defective within the warranty period, carefully repack the unit and return the product to your authorized dealer, with the original proof of purchase. Your authorized dealer will replace the product in the case a defect in manufacture or workmanship is identified. In Case your authorized dealer does not have the corresponding product or color in stock, Urbanista AB will promptly provide you with a new product. This limited replacement warranty does not apply in cases of abuse or misuse of the product, use contrary to Urbanista AB instructions, ordinary wear and tear, incorrect connection, force majeure or unauthorized repair. Any lawsuit for breach of this limited warranty shall be commenced, if at all, within one (1) year of the date that the claim accrues. Urbanista AB shall not be liable for special, indirect, incidental or consequential damages resulting from the use or inability to use this product, regardless of the legal theory on which the claim is based. This warranty gives you specific legal rights, and you may have other rights, which vary from country to country. This warranty does not restrict the rights of the consumer mandated under applicable laws. Boston_broschyr_90x105.indd 631/03/15 20:36 This product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and elec- tronic equipment. This product was produced after April 1 2015. The limited Premium replacement warranty is valid only if the original proof of purchase issued to the purchaser, specifying the date of purchase, is presented with the product to be replaced. IMPORTANT SAFETY INSTRUCTIONS Warnings • Contains small parts which may be a choking hazard. Not suitable for children under age three. • Set a low volume setting before using the headphones. • Long-term exposure to loud music or sounds may cause hearing damage. It is best to avoid high volume levels when using these headphones, especially for extended periods. • Do not use these headphones when operating a motor vehicle, a bicycle, machinery or where your inability to hear outside sounds may present a…

Text truncated - open the document above for the full version.

Urbanista AB RUNEBERGSGATAN 6, SE-114 29 STOCKHOLM, SWEDEN TEL:(86) 18688703891 FAX: (86) 769-82986915 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 DATE 2015-05-21 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID:2AEN52033202 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Urbanista AB Contact person: Robin Luo Title: Manager

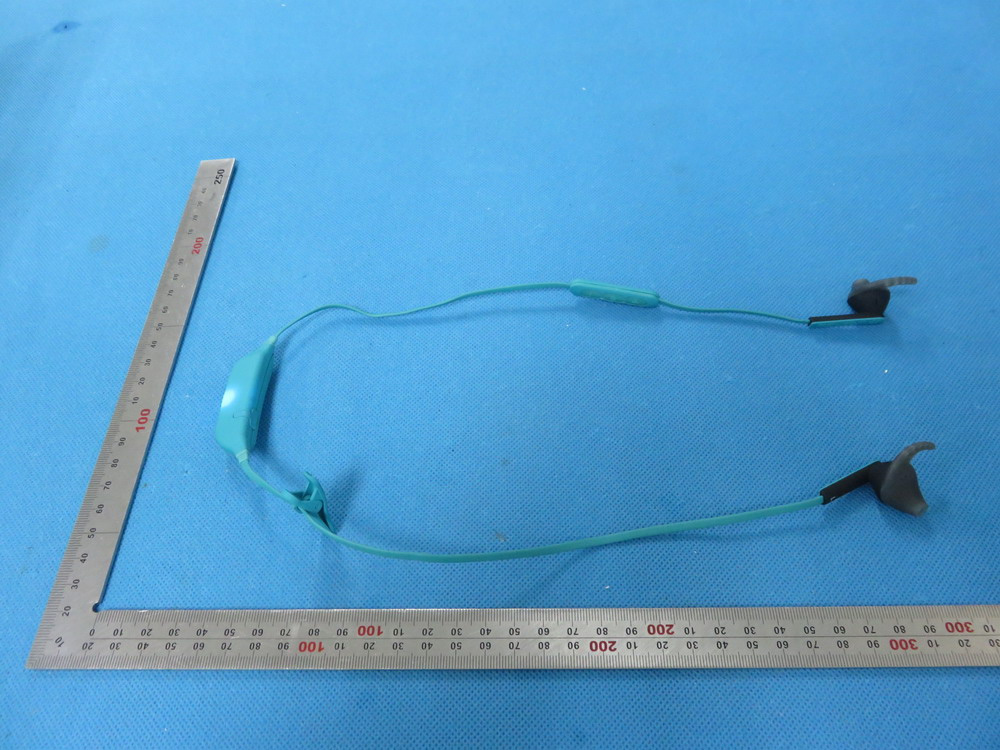

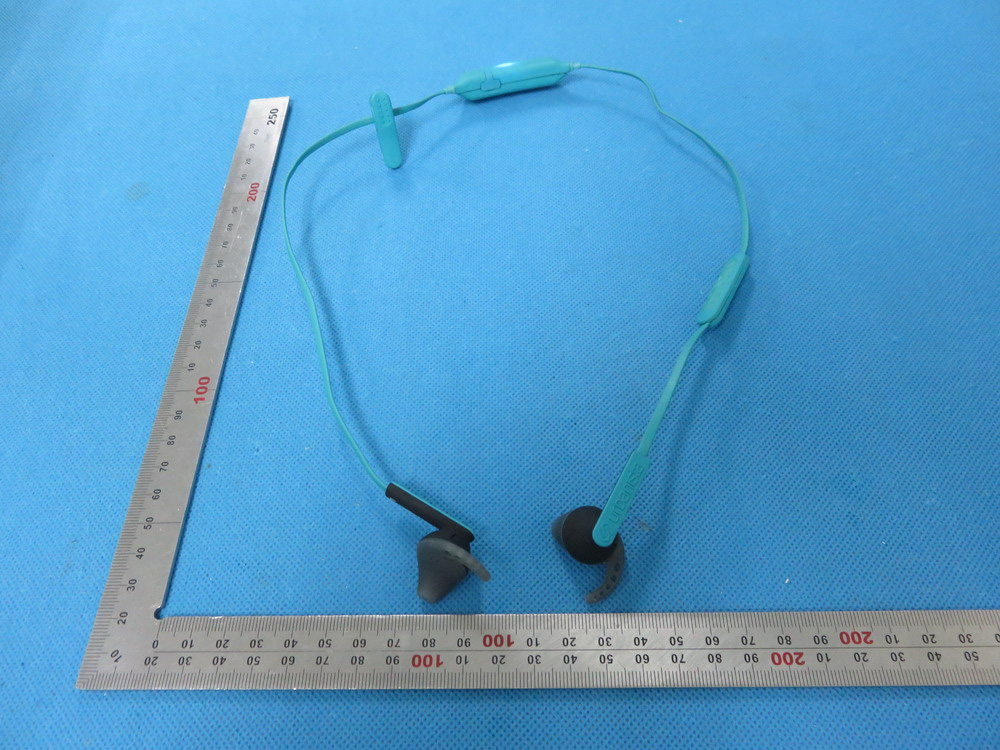

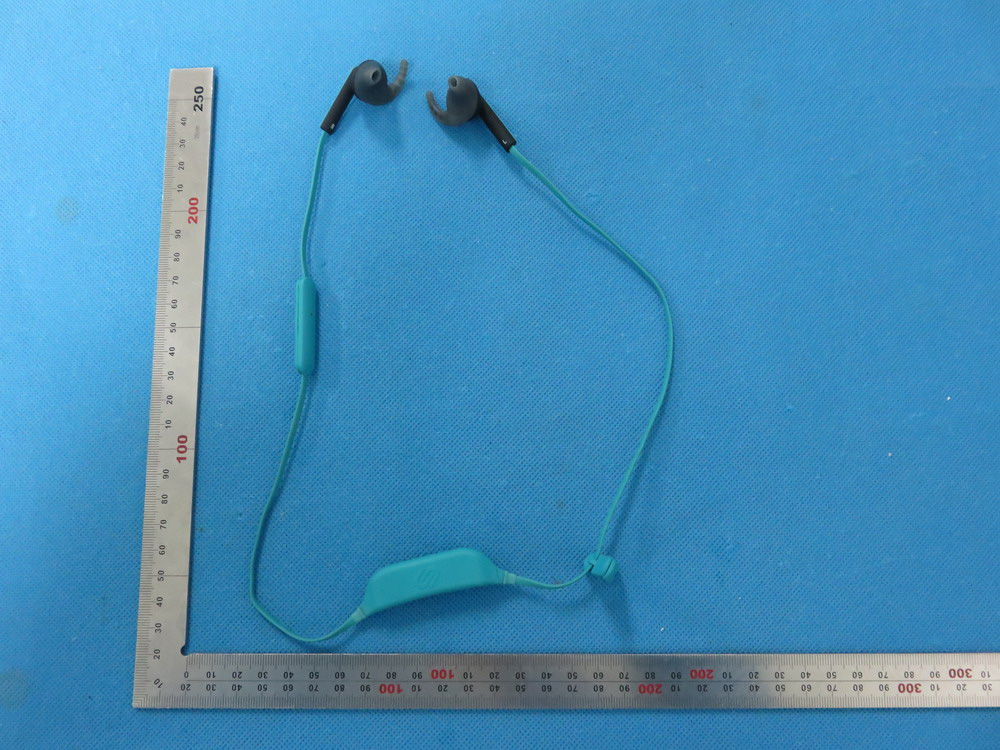

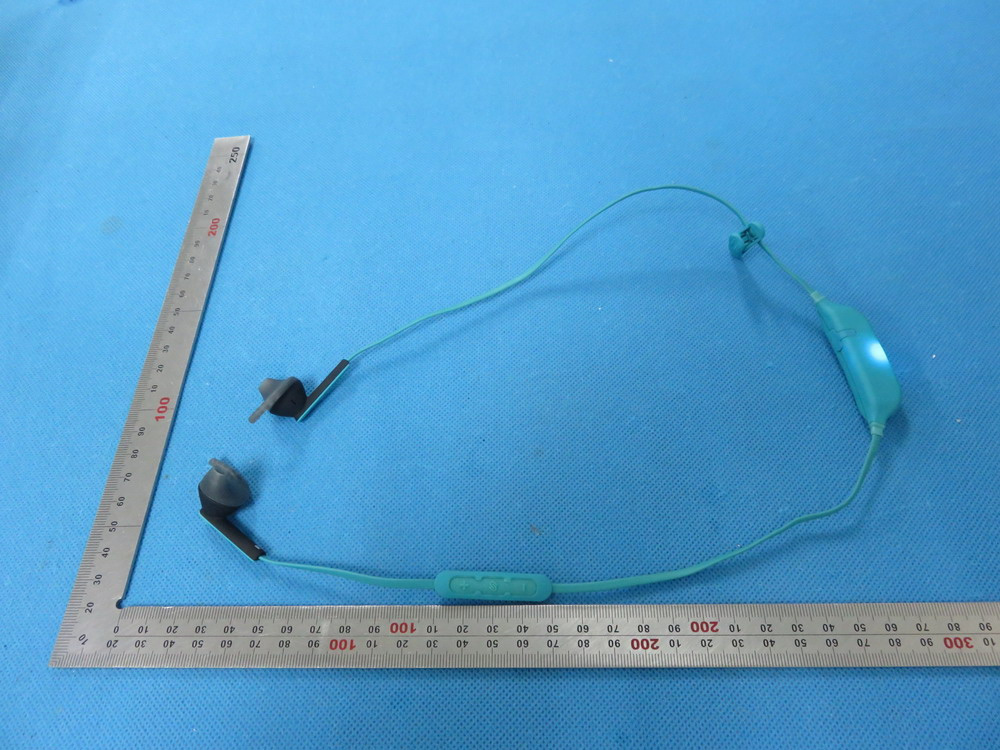

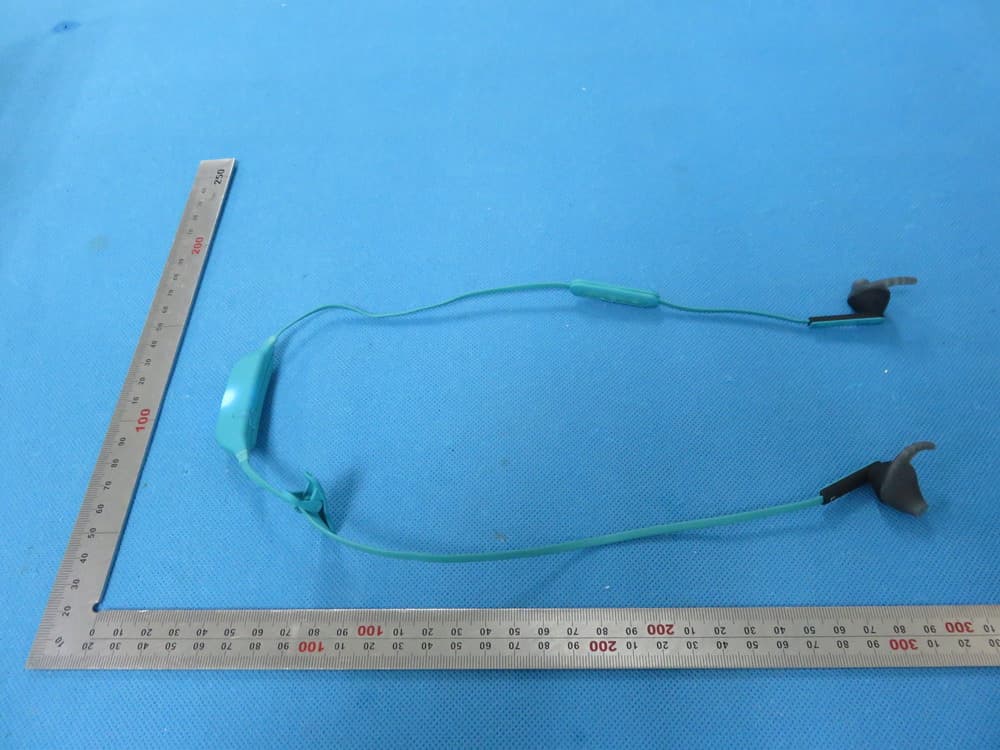

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AEN52033202

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 Antenna

Runebergsgatan 6, SE-114 29 Stockholm, Sweden Declaration concerning Antenna Specification It is hereby declared that the product Model No.: 2033202 FCC ID: 2AEN52033202 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: Ceramic Antenna permanently attached Gain of the antenna: 1 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Urbanista AB Address: Runebergsgatan 6, SE-114 29 Stockholm, City: Stockholm ZIP / Postal code: 999027 Country: Sweden Place: Sweden Date: 2015-05-15 Signature:

RF Exposure evaluation Product Description: Boston Model Number: 2033202 FCC ID: 2AEN52033202 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=100.28dBuv/m=0.103V/m,d=3m,g t =1.26 P t =（E x d） 2 /（30 x g t ）=(0.103x3) 2 /(30x1.26)=0.002526W=2.53mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -2.53mW output power] (2.53mW /50mm) .[√2.480(GHz)]= 0.080<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 73 FCC Test Report Report No.: AGC04411150401FE03 FCC ID : 2AEN52033202 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Boston BRAND NAME : URBANISTA MODEL NAME : 2033202 CLIENT : Urbanista AB DATE OF ISSUE : Apr.29,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04411150401FE03 Page 2 of 73 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr.29,2015 Valid Original Report Report No.: AGC04411150401FE03 Page 3 of 73 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 8 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 8 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT................................................................................................................................ 10 8.2. MEASUREMENT PROCEDURE ............................................................................................... 11 8.3. TEST SETUP ........................................................................................................................... 13 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................. 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE .............................................................................................. 41 9.2 TEST SETUP ............................................................................................................................ 41 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ............................................................... 42 10. 20DB BANDWIDTH .......................................................................................................... 50 10.1. MEASUREMENT PROCEDURE ............................................................................................ 50 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS .............................................................................. 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 59 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................. 59 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................... 59 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................. 60 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 60 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ..................................................... 61 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 65 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 66 Report No.: AGC04411150401FE03 Page 4 of 73 1. VERIFICATION OF CONFORMITY Applicant Urbanista AB Address Runebergsgatan 6, SE-114 29 Stockholm, Sweden Manufacturer Dongguan Excellent Electronic Technologies CO., LTD. Address No. 1 Zhenxing Dong RD., Liujia Industrial Park, Hengli Town, Dongguan, China Product Designation Boston Brand Name URBANISTA Test Model 2033202 Date of test Apr.27,2015 to Apr.28,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Apr.29,2015 Checked By Forrest Lei Apr.29,2015 Authorized By Solger Zhang Apr.29,2015 Report No.: AGC04411150401FE03 Page 5 of 73 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.402 GHz to 2.480GHz RF Output Power 4.03dBm(Max) Bluetooth Ver…

Text truncated - open the document above for the full version.

DATE 2015-05-19 Declaration for Test Report Eurofins Product Service GmbH Storkower Str. 38c 15526 Reichenwalde GERMANY To whom it may concern: We, Compliance Certification Service(Shenzhen) Inc., the undersigned, hereby attested that those test item including Conduction Emission, Radiated Emission, Band Edges for follow product are tested by us. Product Descr.: Boston Model No.: 2033202 Brand name: URBANISTA Applicant: Urbanista AB Test date: Apr.27,2015 to Apr.28,2015 When you issued the GRANT, Attestation of Global Compliance (Shenzhen) Co., Ltd will sent the report to us and then back-up it. If you have other problem, please contact the undersigned. Sincerely,

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
