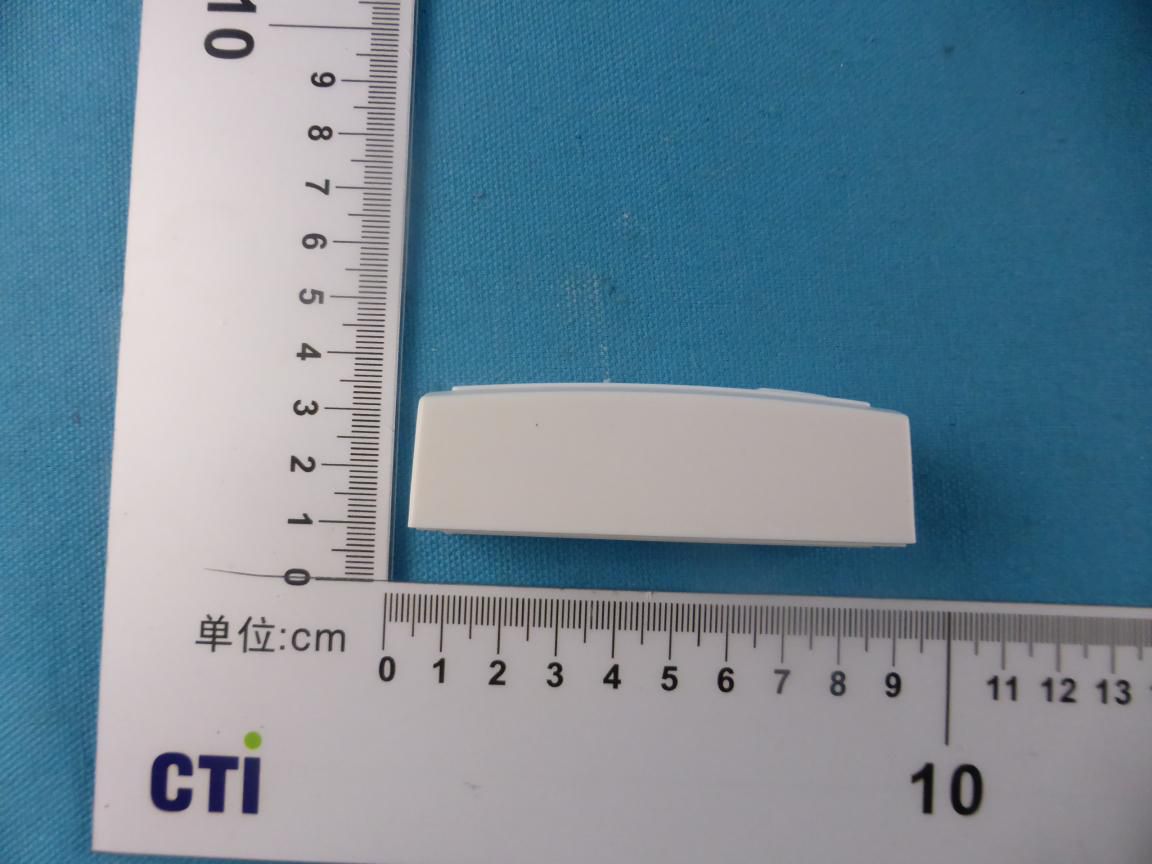

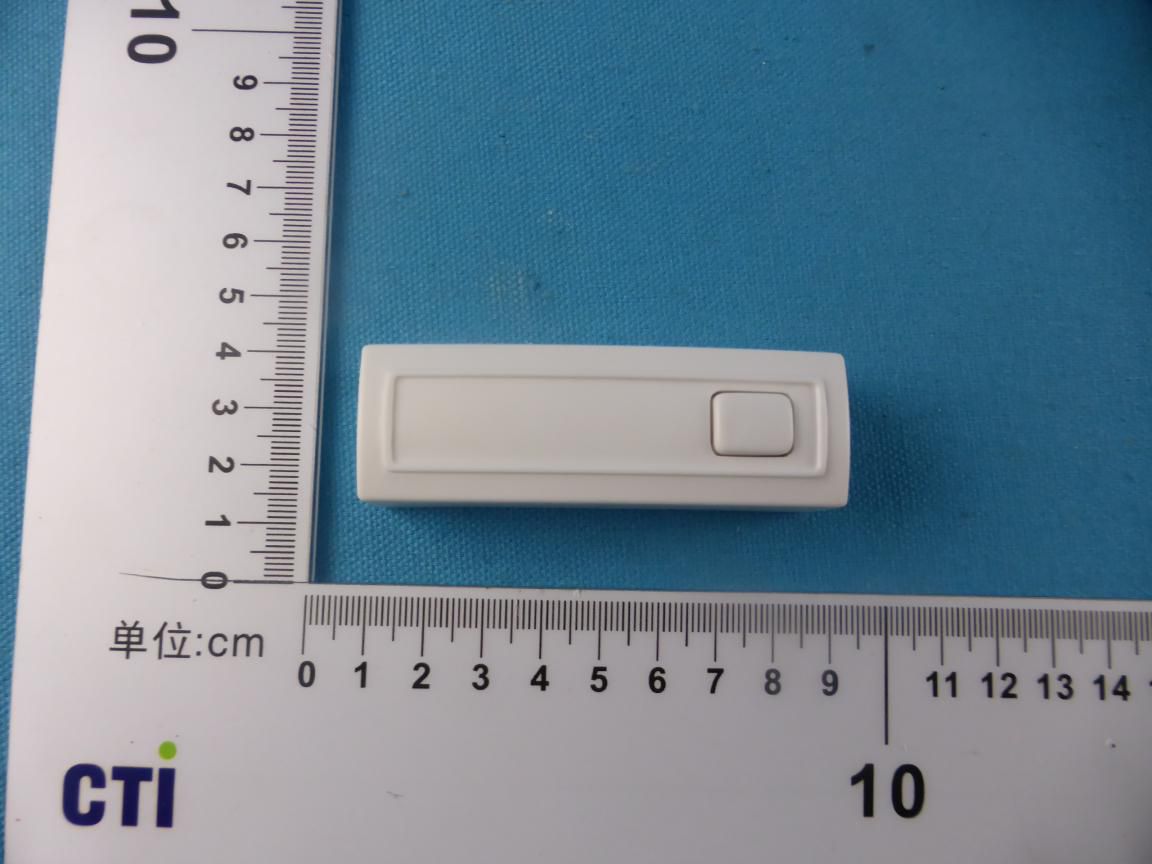

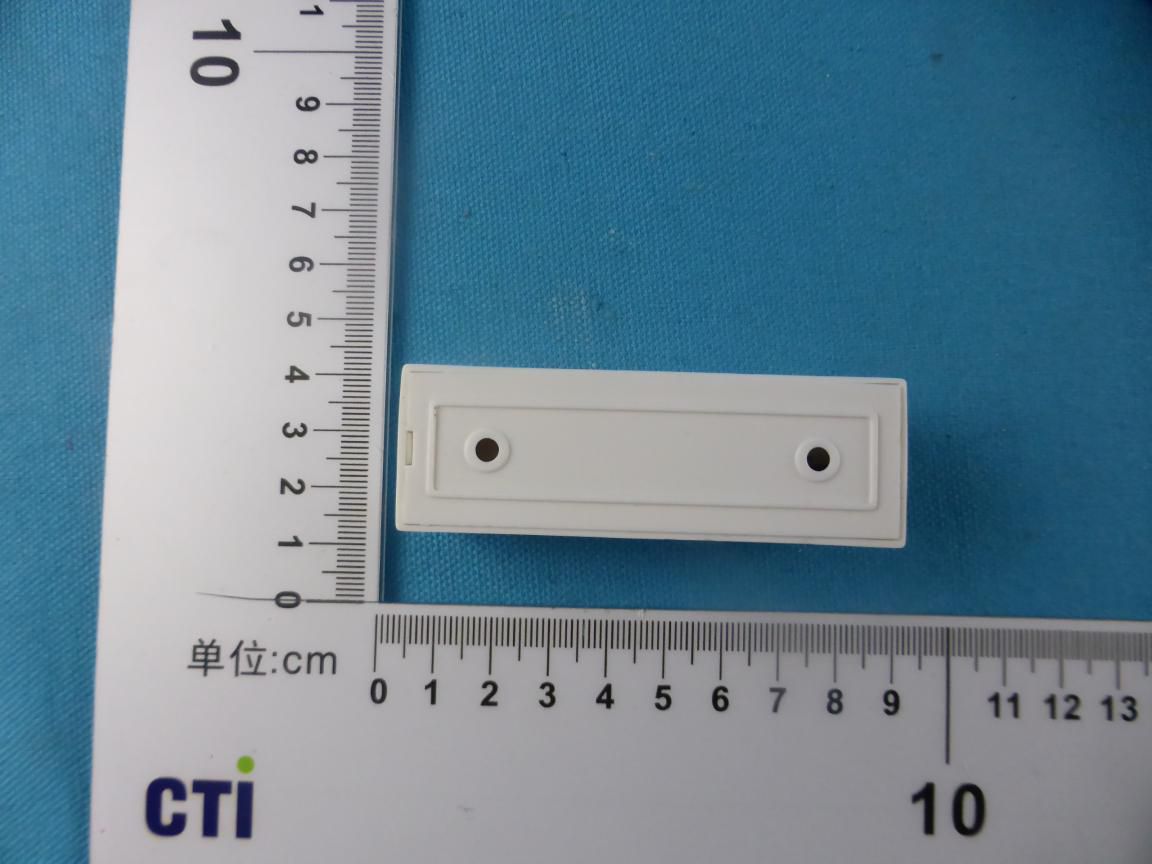

2AEOF-WLDB2331TXWireless Door Chime Push Button

WIRELESS DOOR CHIME PUSH BUTTON WPB1,2328-TX,2329-TX,2330-TX,2331-TX,2332-TX You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DATE:August,12,2015 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2AEOF-WLDB2331TX ProductName:WIRELESSDOORCHIMEPUSHBUTTON RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. Dated this Agencyagreementexpirationdate:August12,2015toAugust11,2016 By:HeJun SignaturePrinted Title:Manager Onbehalfof:DONGGUANSMARTHEROELECTRONIC PRODUCTSCOLTD Telephone:0769-81119390

Product Similarity Declaration To Whom it may Concern, We, DONGGUAN SMART HERO ELECTRONIC PRODUCTS CO LTD hereby declare that our product (WIRELESS DOOR CHIME PUSH BUTTON) Model Number : All models are same except model name and brand name. Model 2331-TX was selected for test. Please contact me if you have any question. Signture: Manufacture: DONGGUAN SMART HERO ELECTRONIC PRODUCTS CO LTD Date: 2015-8-12 We, DONGGUAN SMART HERO ELECTRONIC PRODUCTS CO LTD hereby declare that our product (WIRELESS DOOR CHIME PUSH BUTTON) Model Number : WPB1, 2328-TX, 2329-TX, 2330-TX, 2331-TX, 2332-TX,All models are electrically identical except model name and brand name is different. Please contact me if you have any question.

RevNo Date Signature Checked Revision note Title: Model: Finish:Material: D/N:P/N: SHEET 1 OF 1 Latest Rev.: Unit: Scale: Date: CH'K'D.: Drawn: SMART HERO ENTERPRISES LTD. SIZE: A4 UNLESS OTHER SPECIFIED 654321 D CA B Customer Part No.: N/A APPR.: Part Weight: Date:Date: TOLERANCES .XXX 0.050 HOLE DIA 0.10 ANGLE 0.50 ABCD 1 2 3 4 5 6 THIRD ANGLE PROJECTION

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 81.5 dBuV/m @3m Ant gain 0dBi ; so Ant numeric gain=1 So pt ={ [10 (81.5 /20) /10 6 x3] 2 /30x1 }x1000 mW =0.0424 mW So (0.0424 mW/5mm) x √0.315 GHz = 0.005 <3 Then SAR evaluation is not required

Report No. : EED32H000928 Page 1 of 20 TEST REPORT Product : WIRELESS DOOR CHIME PUSH BUTTON Trade mark : N/A Model/Type reference : WPB1, 2328-TX, 2329-TX, 2330-TX, 2331-TX, 2332-TX Serial number : N/A Ratings : DC 12V FCC ID : 2AEOF-WLDB2331TX Report number : EED32H000928 Date : Aug. 07, 2015 Regulations : See below Test Standards Results 47 CFR FCC Part 15 Subpart C 15.231: 2014 PASS Prepared for: DONGGUAN SMART HERO ELECTRONIC PRODUCTS CO LTD 118 LI XIANG ROAD WEST, SHUI PING VILLAGE, DALANG, DONGGUAN, GUANGDONG, CHINA Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: August, 07, 2015 Sheek Luo Lab supervisor Check No.: 2211455112 Report No. : EED32H000928 Page 2 of 20 TABLE OF CONTENTS 1. CERTIFICATION INFORMATION ............................................................................................................... 3 2. TEST SUMMARY ........................................................................................................................................ 3 3. MEASUREMENT UNCERTAINTY .............................................................................................................. 4 4. PRODUCT INFORMATION ......................................................................................................................... 4 5. TEST EQUIPMENT LIST ............................................................................................................................. 5 6. SUPPORT EQUIPMENT LIST .................................................................................................................... 5 7. OPERATION CHARACTERISTICS ............................................................................................................ 6 7.1. LIMITS ................................................................................................................................................. 6 7.2. BLOCK DIAGRAM OF TEST SETUP .................................................................................................. 6 7.3. TEST PROCEDURE ........................................................................................................................... 6 7.4. TEST RESULT .................................................................................................................................... 6 8. 20DB/ 99% BANDWIDTH MEASUREMENT .............................................................................................. 8 8.1. LIMITS ................................................................................................................................................. 8 8.2. BLOCK DIAGRAM OF TEST SETUP .................................................................................................. 8 8.3. TEST PROCEDURE ........................................................................................................................... 8 8.4. TEST RESULT .................................................................................................................................... 8 9. RADIATED EMISSION MEASUREMENT ................................................................................................. 10 9.1. LIMITS ............................................................................................................................................... 10 9.2. BLOCK DIAGRAM OF TEST SETUP ................................................................................................ 10 9.3. TEST PROCEDURE ......................................................................................................................... 11 9.4. TEST RESULT .................................................................................................................................. 12 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ............................................................................................ 17 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF PRODUCT ............................................................................ 18 APPENDIX 3 INTERNAL PHOTOGRAPHS OF PRODUCT ............................................................................. 19 N/A means not applicable. Report No. : EED32H000928 Page 3 of 20 1. CERTIFICATION INFORMATION The above equipment was tested by Centre Testing International (Shenzhen) Corporation for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart C and the measurement procedure according to ANSI C63.4:2014 and ANSI C63.10:2013. 2. TEST SUMMARY No. Test Item Rule Result 1 Operation characteristics FCC Part15.231(a) & A1.1.1 PASS 2 Radiated Emission FCC Part15.231(b) & A1.1 PASS 3 20dB bandwidth & 99% bandwidth FCC Part15.231 & A1.1.3 PASS 4 AC Conducted Emission FCC PART15.207 & RSS-Gen 7.2.4 N/A 5 Antenna requirements FCC PART15.203 & RSS-Gen 7.1.2 PASS (See Note 1) Note: 1. According to Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The EUT has a built in the PCB; this is permanently attached antenna and meets the requirements of this section. 2. New battery is used during all the test. Applicant: DONGGUAN SMART HERO ELECTRONIC PRODUCTS CO LTD 118 LI XIANG ROAD WEST, SHUI PING VILLAGE, DALANG, DONGGUAN, GUANGDONG, CHINA Manufacturer: DONGGUAN SMART HERO ELECTRONIC PRODUCTS CO LTD 118 LI XIANG ROAD WEST, SHUI PING VILLAGE, DALANG, DONGGUAN, GUANGDONG, CHINA FCC ID: 2AEOF-WLDB2331TX Product: WIRELESS DOOR CHIME PUSH BUTTON Model/Type reference: WPB1, 2328-TX, 2329-TX, 2330-TX, 2331-TX, 2332-TX Trade Name: N/A Serial Number: N/A Report Number: EED32H000928 Sample Received Date: Jul. 28, 2015 Sample tested Date: Jul. 28, 2015 to Aug. 07, 2015 Report No. : EED32H000928 Page 4 of 20 3. MEASUREMENT UNCERTAINTY …
