2AES5-1504TDS03166RElsa Light Up Costume with Capa Connected by 2.4GHz

Royal Regent Products (H.K.) Limited

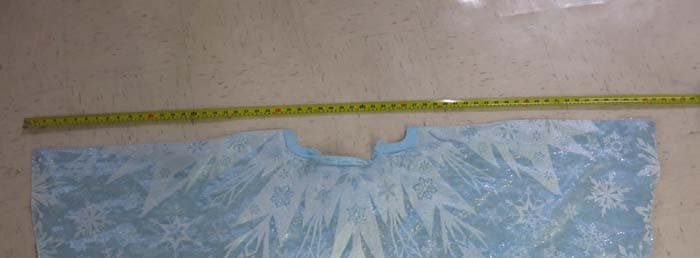

Elsa Light Up Costume with Capa Connected by 2.4GHz - FCC ID 2AES5-1504TDS03166R - Royal Regent Products (H.K.) Limited
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jul 26, 2015
Application Purpose
Original Equipment
Date of Application
Jul 26, 2015
Equipment Note
Elsa Light Up Costume with Capa Connected by 2.4GHz
Frequency Range
2420.00000000 - 2478.00000000
Company
Royal Regent Products (H.K.) Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

Cape Battery Box Cape (Sleeve Unit) MCU 2.4GHz RF Transmitter LED Elsa light up costume block diagram 2420-2478MHz 16MHz clock BK2425 Revision 1.0 Copyright © 2013 Beken Corporation Jan, 2013 Page 1 of 30 Low Power High Performance 2.4 GHz GFSK Transceiver Features  2400-2483.5 MHz ISM band operation  Support 250Kbps, 1Mbps and 2 Mbps air data rate  Programmable output power  Low power consumption  Tolerate +/- 60ppm 16 MHz crystal  Variable payload length from 1 to 32bytes  Automatic packet processing  6 data pipes for 1:6 star networks  1.9V to 3.6V power supply  4-pin SPI interface with maximum 8 MHz clock rate  20-pin 4x4mm QFN package Applications  Wireless PC peripherals  Wireless gamepads  Wireless audio  Remote controls  Home automation  Toys Block Diagram Pin Assignments 1 2 3 4 5 BK2425 678109 14 13 12 11 NC NC NC CE CSNVSS RF NCCDVDDVDD NC 15 1617181920 SCK MOSI MI SO IRQXOXI VSSVDD VDD Integrated TDD RF Transceiver XTALNXTALP FM Demodulator FM Modulator Data Slicer Rx FIFO Tx FIFO Gaussian shaping Packet Processing & State Control SPI Interface Power Management CE IRQ CSN SCK MOSI MISO RFP RFN Register banks

External Photos

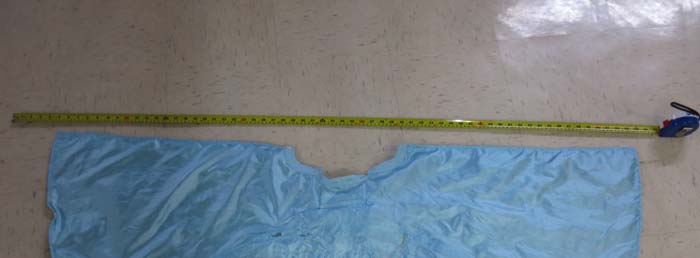

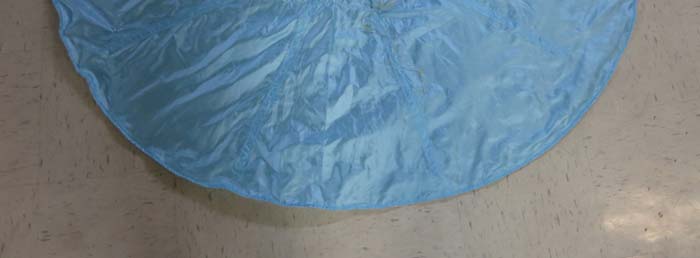

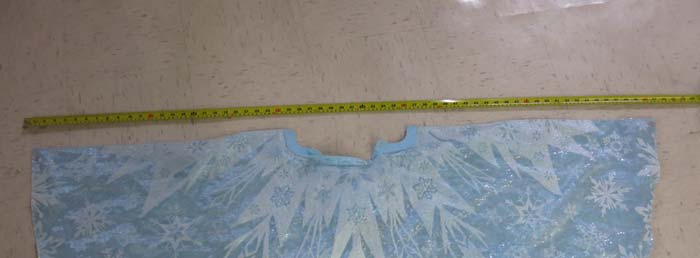

INTERTEK TESTING SERVICE Report No.: 15050260HKG-002 Equipment Photographs Model : Disney PG14 PRR1504-TDS03166 (External) FCC ID: 2AES5-1504TDS03166R

Internal Photos

INTERTEK TESTING SERVICE Report No.: 15050763HKG-002 Equipment Photographs Model : Disney PG14 PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166R INTERTEK TESTING SERVICE Report No.: 15050763HKG-002 Equipment Photographs Model : Disney PG14 PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166R INTERTEK TESTING SERVICE Report No.: 15050763HKG-002 Equipment Photographs Model : Disney PG14 PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166R INTERTEK TESTING SERVICE Report No.: 15050763HKG-002 Equipment Photographs Model : Disney PG14 PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166R INTERTEK TESTING SERVICE Report No.: 15050763HKG-002 Equipment Photographs Model : Disney PG14 PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166R INTERTEK TESTING SERVICE Report No.: 15050763HKG-002 Equipment Photographs Model : Disney PG14 PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166R

Operational Description

Technical Description The brief circuit description is listed as below: 1) U1 acts as MCU (PX0480). 2) U3 acts as 2.4GHz RF transceiver module (BK2425). 3) U2 acts as Voltage Regulator (ME6206-3.3V). 4) X1 is 16MHz crystal oscillator providing clock for U3. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 62.4dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB BK2425 Revision 1.0 Copyright © 2013 Beken Corporation Jan, 2013 Page 1 of 30 Low Power High Performance 2.4 GHz GFSK Transceiver Features  2400-2483.5 MHz ISM band operation  Support 250Kbps, 1Mbps and 2 Mbps air data rate  Programmable output power  Low power consumption  Tolerate +/- 60ppm 16 MHz crystal  Variable payload length from 1 to 32bytes  Automatic packet processing  6 data pipes for 1:6 star networks  1.9V to 3.6V power supply  4-pin SPI interface with maximum 8 MHz clock rate  20-pin 4x4mm QFN package Applications  Wireless PC peripherals  Wireless gamepads  Wireless audio  Remote controls  Home automation  Toys Block Diagram Pin Assignments 1 2 3 4 5 BK2425 678109 14 13 12 11 NC NC NC CE CSNVSS RF NCCDVDDVDD NC 15 1617181920 SCK MOSI MI SO IRQXOXI VSSVDD VDD Integrated TDD RF Transceiver XTALNXTALP FM Demodulator FM Modulator Data Slicer Rx FIFO Tx FIFO Gaussian shaping Packet Processing & State Control SPI Interface Power Management CE IRQ CSN SCK MOSI MISO RFP RFN Register banks BK2425 Revision 1.0 Proprietary and Confidential Page 2 of 30 Table of Contents 1 General Description ................................................................................................................. 3 2 Abbreviations .......................................................................................................................... 4 3 Pin Information ....................................................................................................................... 5 4 State Control ........................................................................................................................... 6 4.1 State Control Diagram ............................................................................................................... 6 4.2 Power Down Mode .................................................................................................................... 7 4.3 Standby-I Mode ......................................................................................................................... 7 4.4 Standby-II Mode ........................................................................................................................ 7 4.5 TX Mode ................................................................................................................................... 7 4.6 RX Mode ................................................................................................................................... 8 5 Packet Processing .................................................................................................................... 8 5.1 Packet Format ............................................................................................................................ 8 5.1.1 Preamble ........................................................................................................................... 9 5.1.2 Address ............................................................................................................................. 9 5.1.3 Packet Control .................................................................................................................. 9 5.1.4 Payload ........................................................................................................................... 10 5.1.5 CRC ................................................................................................................................ 10 5.2 Packet Handling ...................................................................................................................... 10 6 Data and Control Interface .................................................................................................... 11 6.1 TX/RX FIFO ........................................................................................................................... 11 6.2 Interrupt ................................................................................................................................... 11 6.3 SPI Interface ............................................................................................................................ 12 6.3.1 SPI Command ................................................................................................................ 12 6.3.2 SPI Timing ..................................................................................................................... 13 7 Register Map ......................................................................................................................... 15 7.1 Register Bank 0 ....................................................................................................................... 15 7.2 Register Bank 1 ....................................................................................................................... 21 8 Electrical Specifications ......................................................................................................... 22 9 Typical Application Schematic ............................................................................................... 23 10 Package and Die Bonding Information ................................................................................... 24 10.1 Package Information ........................................................................................................... 24 10.2 Die Bonding Information ..................................................................................................…

Text truncated - open the document above for the full version.

Schematics

Title: Size:File: Number: Rev: Date: APPROVALS APPRD BY: CHKD BY: DRAWN BY: Sheet:_____of_____ BT14.5V PB3PA6PA0PA3PB6 VDD PB2PB1PB0 PX0480 U1 梁荣远 1 1 A4 REV1.0 闪灯裙原理图 E:\20120711\SCHPCB\ 华登 .dbb D10415Q40091-RX 20150430 R910R PB4PA4 L1 R11K Q1S8050 R21K Q2S8050 R5100R R6100R VSSPA7PA2PA1PA5 C2104 C1106 VDD CECSNSCKMOSIMISO L2 L3 L4 L5 L6 L7 L8 L9 L10 PB2 PB3 VCC VCC GNDVDD CE CSNSCK MOSIMISO 2.4GHz MODULE ANTENNA VCC VDD ME6206-3.3V U2 1 23 D1 IN4148 VDDCECSNSCKMOSIMISO U3 J1J2 J1 Option PinOpen:High Sensitivity L11 R31K Q3S8050 R41K Q4S8050 R7100R R8100R L12 L13 L14 L15 L16 L17 L18 L19 L20 PB4 PB6 VCC VCC PB2 PB3PB4PB6 SW1SS12D02G7 2420-2478MHz

Test Report

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050260HKG-002R1 i FCC ID: 2AES5-1504TDS03166R IC: 20291-031661504C Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Royal Regent Products (H.K.) Limited Grantee Address: Flat C, 12/F., Ford Glory Plaza, 37-39 Wing Hong Street, Cheung Sha Wan Street, Kowloon, Hong Kong. Contact Person: Mr. Wong Kin On Tel: (852) 2425-0720 Fax: (852) 2424-3407 e-mail: [email protected] Manufacturer: Royal Regent Products (H.K.) Limited Manufacturer Address: Flat C, 12/F., Ford Glory Plaza, 37-39 Wing Hong Street, Cheung Sha Wan Street, Kowloon, Hong Kong. Brand Name: Disney FCC Model: Disney PG14 PRR1504-TDS03166 IC Model: 03166Ca Type of EUT: Transceiver Description of EUT: Elsa Light Up Costume with Cape connected by 2.4GHz Serial Number: N/A FCC ID / IC: 2AES5-1504TDS03166R / 20291-031661504C Date of Sample Submitted: May 05, 2015 Date of Test: May 05, 2015 to June 03, 2015 Report No.: 15050260HKG-002(R1) Report Date: June 11, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050260HKG-002R1 ii FCC ID: 2AES5-1504TDS03166R IC: 20291-031661504C Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.209 / RSS-210 A2.9 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2014 Edition RSS-210 Issue 8, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050260HKG-002R1 iii FCC ID: 2AES5-1504TDS03166R IC: 20291-031661504C Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation.................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs ....................................................................................... 8 5.0 Product Labelling .................................................................................................. 8 6.0 Technical Specifications ...................................................................................... 8 7.0 Instruction Manual ................................................................................................ 8 8.0 Miscellaneous Information ................................................................................... 9 8.2 Discussion of Pulse Desensitization .................................................................. 10 8.3 Calculation of Average Factor............................................................................ 10 8.4 Emissions Test Procedures ............................................................................... 12 8.5 Occupied Bandwidth.......................................................................................... 15 9.0 Equipment List ................................…

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICE Report No: 15050260HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : Disney PG14 PRR1504-TDS03166 FCC ID: 2AES5-1504TDS03166R INTERTEK TESTING SERVICE Report No: 15050260HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : Disney PG14 PRR1504-TDS03166 FCC ID: 2AES5-1504TDS03166R

Contact Information

Applicant

Kin On Wong
[email protected]24250720Fax: 24243407

Technical Contact

Intertek Testing Services Hong Kong Ltd.Terry Chan
[email protected]852 2173 8888

2/F Garment Centre · Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong Ltd.Terry Chan
[email protected]852 2173 8888

Test Firm

Intertek Testing Services Hong Kong Ltd.Billy Chow
[email protected]85221738528Fax: 85227410521

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.42 GHz - 2.48 GHz-
