2AES5-1504TDS03166TElsa Light Up Costume with Cape connected by 2.4 GHz

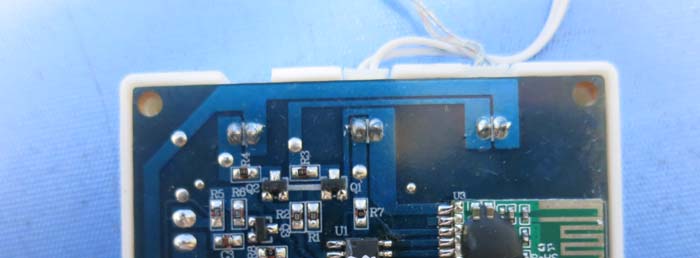

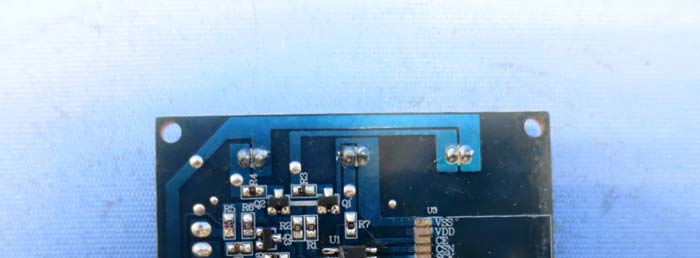

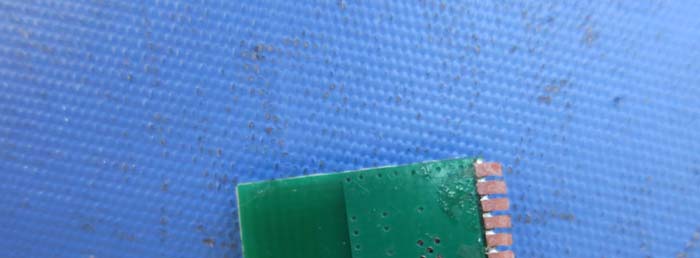

INTERTEK TESTING SERVICE Report No.: 15050260HKG-001 Equipment Photographs Model : Disney PG14PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166T INTERTEK TESTING SERVICE Report No.: 15050260HKG-001 Equipment Photographs Model : Disney PG14PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166T INTERTEK TESTING SERVICE Report No.: 15050260HKG-001 Equipment Photographs Model : Disney PG14PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166T INTERTEK TESTING SERVICE Report No.: 15050260HKG-001 Equipment Photographs Model : Disney PG14PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166T INTERTEK TESTING SERVICE Report No.: 15050260HKG-001 Equipment Photographs Model : Disney PG14PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166T INTERTEK TESTING SERVICE Report No.: 15050260HKG-001 Equipment Photographs Model : Disney PG14PRR1504-TDS03166 (Internal) FCC ID: 2AES5-1504TDS03166T

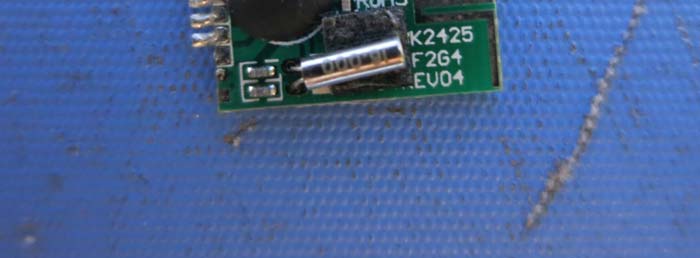

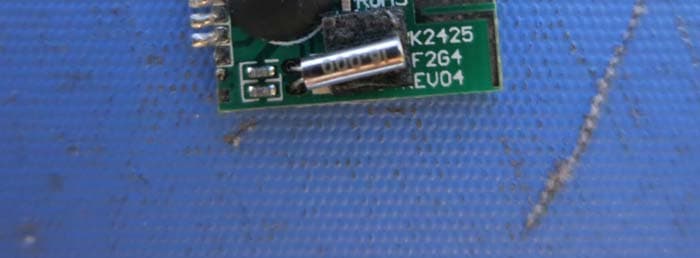

Technical Description The brief circuit description is listed as below: 1) U1 acts as MCU (PX0479). 2) U3 acts as 2.4GHz RF transceiver module (BK2425). 3) U2 acts as Voltage Regulator (ME6209A-3.3V). 4) X1 is 16MHz crystal oscillator providing clock for U3. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 61.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB BK2425 Revision 1.0 Copyright © 2013 Beken Corporation Jan, 2013 Page 1 of 30 Low Power High Performance 2.4 GHz GFSK Transceiver Features  2400-2483.5 MHz ISM band operation  Support 250Kbps, 1Mbps and 2 Mbps air data rate  Programmable output power  Low power consumption  Tolerate +/- 60ppm 16 MHz crystal  Variable payload length from 1 to 32bytes  Automatic packet processing  6 data pipes for 1:6 star networks  1.9V to 3.6V power supply  4-pin SPI interface with maximum 8 MHz clock rate  20-pin 4x4mm QFN package Applications  Wireless PC peripherals  Wireless gamepads  Wireless audio  Remote controls  Home automation  Toys Block Diagram Pin Assignments 1 2 3 4 5 BK2425 678109 14 13 12 11 NC NC NC CE CSNVSS RF NCCDVDDVDD NC 15 1617181920 SCK MOSI MI SO IRQXOXI VSSVDD VDD Integrated TDD RF Transceiver XTALNXTALP FM Demodulator FM Modulator Data Slicer Rx FIFO Tx FIFO Gaussian shaping Packet Processing & State Control SPI Interface Power Management CE IRQ CSN SCK MOSI MISO RFP RFN Register banks BK2425 Revision 1.0 Proprietary and Confidential Page 2 of 30 Table of Contents 1 General Description ................................................................................................................. 3 2 Abbreviations .......................................................................................................................... 4 3 Pin Information ....................................................................................................................... 5 4 State Control ........................................................................................................................... 6 4.1 State Control Diagram ............................................................................................................... 6 4.2 Power Down Mode .................................................................................................................... 7 4.3 Standby-I Mode ......................................................................................................................... 7 4.4 Standby-II Mode ........................................................................................................................ 7 4.5 TX Mode ................................................................................................................................... 7 4.6 RX Mode ................................................................................................................................... 8 5 Packet Processing .................................................................................................................... 8 5.1 Packet Format ............................................................................................................................ 8 5.1.1 Preamble ........................................................................................................................... 9 5.1.2 Address ............................................................................................................................. 9 5.1.3 Packet Control .................................................................................................................. 9 5.1.4 Payload ........................................................................................................................... 10 5.1.5 CRC ................................................................................................................................ 10 5.2 Packet Handling ...................................................................................................................... 10 6 Data and Control Interface .................................................................................................... 11 6.1 TX/RX FIFO ........................................................................................................................... 11 6.2 Interrupt ................................................................................................................................... 11 6.3 SPI Interface ............................................................................................................................ 12 6.3.1 SPI Command ................................................................................................................ 12 6.3.2 SPI Timing ..................................................................................................................... 13 7 Register Map ......................................................................................................................... 15 7.1 Register Bank 0 ....................................................................................................................... 15 7.2 Register Bank 1 ....................................................................................................................... 21 8 Electrical Specifications ......................................................................................................... 22 9 Typical Application Schematic ............................................................................................... 23 10 Package and Die Bonding Information ................................................................................... 24 10.1 Package Information ........................................................................................................... 24 10.2 Die Bonding Information .................................................................................................…

Text truncated - open the document above for the full version.

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Dress Unit) for a Cape operating at 2420 to 2478MHz with 1MHz channel spacing. The EUT is powered by 3X 1.5V AAA batteries. After switch on the EUT, The LED in the Dress and Cape will be twinkling when the dress detected movement. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 61.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 64.8dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.001mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.001mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.478) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050260HKG-001R1 i FCC ID: 2AES5-1404TDS03166T IC: 20291-031661504D Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Royal Regent Products (H.K.) Limited Grantee Address: Flat C, 12/F., Ford Glory Plaza, 37-39 Wing Hong Street, Cheung Sha Wan Street, Kowloon, Hong Kong. Contact Person: Mr. Wong Kin On Tel: (852) 2425-0720 Fax: (852) 2424-3407 e-mail: [email protected] Manufacturer: Royal Regent Products (H.K.) Limited Manufacturer Address: Flat C, 12/F., Ford Glory Plaza, 37-39 Wing Hong Street, Cheung Sha Wan Street, Kowloon, Hong Kong. Brand Name: Disney FCC Model: Disney PG14 PRR1504-TDS03166 IC Model: 03166Dr Type of EUT: Transceiver Description of EUT: Elsa Light Up Costume with Cape connected by 2.4GHz Serial Number: N/A FCC ID / IC: 2AES5-1504TDS03166T / 20291-031661504D Date of Sample Submitted: May 05, 2015 Date of Test: May 05, 2015 to June 03, 2015 Report No.: 15050260HKG-001R1 Report Date: June 11, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050260HKG-001R1 ii FCC ID: 2AES5-1404TDS03166T IC: 20291-031661504D Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Band edge 15.249, 15.209 / RSS-210 A2.9 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2014 Edition RSS-210 Issue 8, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050260HKG-001R1 iii FCC ID: 2AES5-1404TDS03166T IC: 20291-031661504D Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation.................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs ....................................................................................... 8 5.0 Product Labelling .................................................................................................. 8 6.0 Technical Specifications ...................................................................................... 8 7.0 Instruction Manual ................................................................................................ 8 8.0 Miscellaneous Information ................................................................................... 9 8.1 Radiated Emission on the Bandedge................................................................... 9 8.2 Discussion of Pulse Desensitization .................................................................. 10 8.3 Calculation of Average Factor............................................................................ 10 8.4 Emissions Test Procedures ............................................................................... 12 8.5 Occupied Bandwidth...............................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15050260HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : Disney PG14PRR1504-TDS03166 FCC ID: 2AES5-1504TDS03166T INTERTEK TESTING SERVICE Report No: 15050260HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : Disney PG14PRR1504-TDS03166 FCC ID: 2AES5-1504TDS03166T
