2AEX7-TWINSBluetooth Speaker

USER MANUAL www.trendwoo.com Wireless Bluetooth Speakers TWINS TWINSTWINS www.trendwoo.com ACCESSORIES: 1x Twins Bluetooth Speaker 1x User Manual 1x USB Charging Cable 1x AUX 3.5mm Audio Cable The speakers also feature 1x AUX audio in port, simply connect the speakers with your non-Bluetooth mobile phone/MP3 player/ PC/laptop with the 3.5mm jack audio cable. The green and blue indicator light will be on, then you can play music via wired connection. The speakers will have voice hint to remind you to charge if battery is low( battery only left 10%). Users need to charge the speakers timely. HIGHLIGHTS AUX AUDIO-IN CONNECTOR • • • • • 12 3456 7 8 Twins are compact Bluetooth speakers that can be wirelessly connected to Bluetooth devices such as smartphones, tablets and computers to playback any music collection stored on them. Thanks to the powerful battery and passive radiators, the system delivers full stereo sound and X-bass effect. Different from other mains supply, Twins support about 6 hours’ continuous play time. Twins, the perfect indoor companion for you! The process control helps you get rid of complicated connections and wiring distance constraints. Therefore, users can enjoy high-quality music anytime and anywhere. BLUETOOTH CONNECTION At the same time, turn the two speakers on by pressing both powers for several seconds, then the two speakers connect together. Then the blue led flashes quickly. The speakers now have entered the Bluetooth pairing mode. CONNECT TO MOBILE PHONES/TABLET PCs/ COMPUTERS Activate your phone's Bluetooth. Go to your phone's Bluetooth settings , and scan for new Bluetooth devices. Upon device found (Twins), click the device name and pair with it. If your phone ask for pairing code , please enter ”0000” and confirm it. After successful pairing, the speakers will sound a prompt tone and the LED lights blue. Note: Pairing time is varied with different mobile phones. It only needs to be paired at the first time and it will auto connect the devices which have already been paired before ( The speakers only can remember the last 8 paired devices’ names) BLUETOOTH CONNECTION The speakers will show the voice instruction for incoming calls. Short press either of the single button on Twins to answer the call and talk to the speakers directly. Short press either of the single button to end the call and back to play music. Short press twice either of the single button to reject the incoming call or dial back. Low power indication CHARGING AND COMPUTER CONNECTION Connect the micro USB charging cable to a computer or USB charger, red Led indication for charging status. Red LED goes off upon charging finished. (5-6 hours for charging) SPECIFICATIONS Speaker Interfaces Audio input connector: 3.5mm AUX cable : support aux external audio input. Charging interface: Micro USB; 5V Input Front Bottom Top Back Left Right ELECTRICAL SPECIFICATIONS Bluetooth Compatibility: It is compatible with Bluetooth 3.0 Class II and supports A2DP V1.2, AVRCP V1.4 profiles agreement. Transmission distance: up to 10 m Sound track: dual track Maximum Output: 3W×2 Signal to noise ratio S / N: ≥
80dB Frequency Range: 180Hz-20KHz Distortion THD: ≤
1% Speaker unit: outer diameter 50mm, inner magnet, 4Ω, 3W • • • • • • • • PARAMETERS OF POWER • Rated voltage: 3.7V DC • Battery: built-in lithium battery, 3.7V/800mA • Charging time: 2.5 ± 0.5 hours Answer a call During an incoming call, short either of the single button to answer the phone, short press again hang up phone and back to play music. End or refuse a call Short press twice either of the single button to end the call or to refuse the call. Power ON / OFF Long press the two buttons at the same time to power on and long press either button to power off. Magnet Function The two speakers can be separated used or together ..bonded by the magnets
They can also stick to metals. Function Operation Note: 1.Under Bluetooth mode when the 3.5mm audio plug is inserted in, the speakers will switch to line in status automatically; 2.Please turn off the speakers if you don’t use Twins to prevent power loss LED status 1. Bluetooth status: blue light flashing quickly for pairing. Blue light flashes slowly for connection status. 2. Line in mode: green light on 3. Charging status: red light on 4. Charging completed: red light off WORKING TEMPERATURESTORAGE CONDITION Temperature: 0º C ~ 40º C Humidity: 0% ~ 85% RH Temperature: -30º C ~ 60º C Humidity: 0% ~ 90% RH TROUBLE SHOOTINGS 1. My mobile phone can't find any new Bluetooth devices? a) Make sure the Bluetooth speaker has entered pairing mode; b) Ensure the speaker is within the effective working range; 2.Bluetooth devices can't pair up a) Make sure your mobile phone allows new connection,
did not reach the maximum allowed connection number, please ref to your mobile's user manual b) Make sure the pairing password entered is “0000’. If your are using a Bluetooth transmitter device, please ensure the responding password of your Bluetooth transmitter supports “0000” code. 3. My mini speaker does not play music / answer call when it connected to a Bluetooth mobile phone? a) Make sure your Bluetooth mobile phone supports A2DP and HSF(hands-free) profile; b) Ensure your Bluetooth cell phone is within effective working range. 4. When paired with my computer, windows ask for new driver? Can you supply? a) We can't supply. The Bluetooth A2DP/HSF drivers may require to play stereo sound via Bluetooth connection. But the driver is actually needed for the Bluetooth module on your PC, instead of the speakers. Different Bluetooth module may require different drivers. Please contact your PC or Bluetooth module's manufacturer for driver update. 5. Why can’t I remotely control the pause, play, previous song and skip track functions with the speaker when playing music? a) When you are using 3.5mm AUX audio in connection, you can’t pause, change volume or skip tracks with the buttons on the speaker; b) This feature needs the…

Text truncated - open the document above for the full version.

Shenzhen Trendwoo Tech. Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (2AEX7-TWINS). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Twins_Blc.pdf Schematics Operational Description Twins_Schem.pdf Twins_OpDesc.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sara Liao/Manager

Shenzhen Trendwoo Tech. Co.,Ltd. DOC ATTESTATION LETTER FCC ID: 2AEX7-TWINS Date: Jun. 16, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the computer peripheral. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Sara Liao/Manager

Shenzhen Trendwoo Tech. Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015/6/16 SUBJECT: FCC Application for (2AEX7-TWINS) To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen CTL Testing Technology Co., Ltd. at Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Testing Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards,

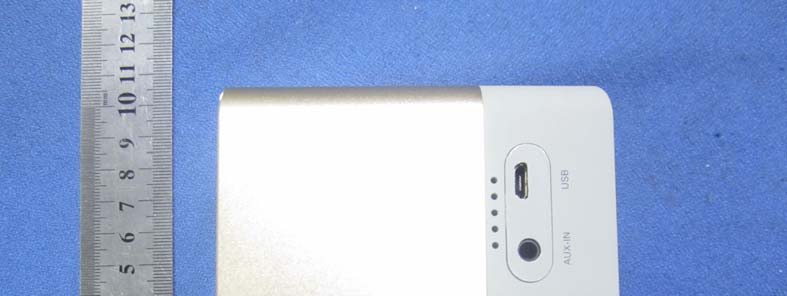

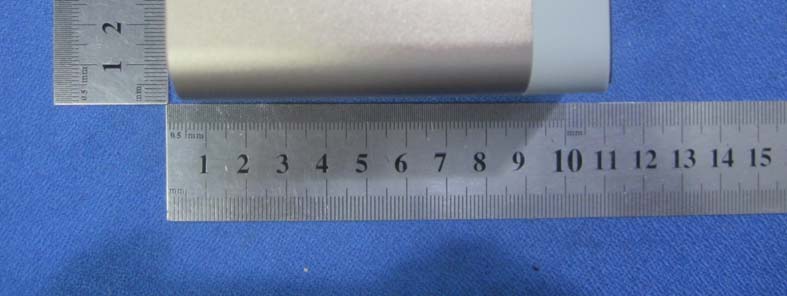

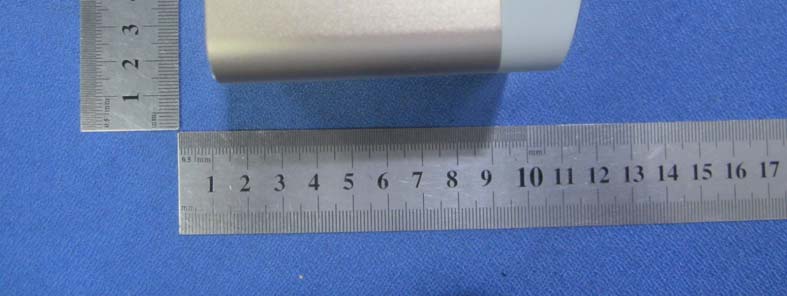

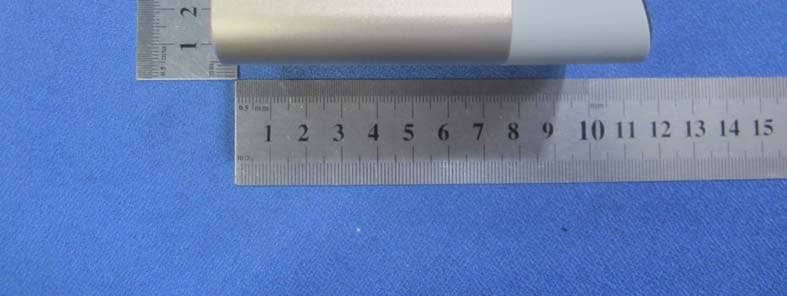

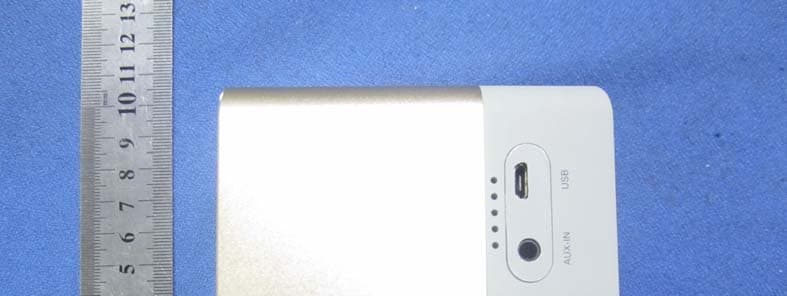

Bluetooth Speaker Model: Twins FCC ID: 2AEX7‐TWINS Shenzhen TrendwooTech. Co. ,Ltd.

RF Exposure evaluation 1. Reference According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, Where: f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison and eirp = p t x g t = (E X d ) 2 / 30 Where: p t = transmitter output power in watts, g t = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m 2. Result As the antenna EUT used was 1dBi and the Max field strength (average) level measured in EMI test report, the sar exclusion value can obtained. Frequency (MHz) Field strength dBuV/m Antenna Gain (numeric) Separation Distance (mm) calculated value exclusion thresholds 2441 85.23 1.2589 5.00 0.025 3 3. Conclusion The SAR evaluation is not required.

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC PART 15.249 Report Reference No.: CTL1506021473-WF Compiled by: ( position+printed name+signature) Jacky Chen (File administrators) Tested by: ( position+printed name+signature) Allen Wang (Test Engineer) Approved by: ( position+printed name+signature) Tracy Qi (Manager) Product Name...............................: Bluetooth Speaker Model/Type reference..................: Twins List Model(s).................................: / Trade Mark....................................: Trendwoo FCC ID...........................................: 2AEX7-TWINS Applicant’s name.........................: Shenzhen Trendwoo Tech. Co.,Ltd. Address of applicant...................: 6th Floor, Ramada Plaza, Meilong Road and Minwang Road Cross,Longhua Dist, Shenzhen, P.R.China Test Firm.......................................: Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm...................: Floor 1- A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification.........................: Standard........................................: FCC Part 15.249:Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator..........................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF..............................: Dated 2011-01 Date of Receipt.............................: Jun. 05, 2015 Date of Test Date..........................: Jun. 10, 2015 - Jun. 15, 2015 Data of Issue.................................: Jun. 16, 2015 Result............................................: Positive Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 30 Report No.: CTL1506021473-WF T E S T R E P O R T Test Report No. : CTL1506021473-WF Jun. 16, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bluetooth Speaker Model /Type : Twins Listed Models : / Applicant : Shenzhen Trendwoo Tech. Co.,Ltd. Address : 6th Floor, Ramada Plaza, Meilong Road and Minwang Road Cross,Longhua Dist, Shenzhen, P.R.China Manufacturer : Shenzhen Trendwoo Tech. Co.,Ltd. Address : 6th Floor, Ramada Plaza, Meilong Road and Minwang Road Cross,Longhua Dist, Shenzhen, P.R.China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 4. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 30 Report No.: CTL1506021473-WF Table of Contents Page 1 SUMMARY ............................................................................. 4 1.1 TEST STANDARDS 4 1.2 Test Description 4 1.3 Test Facility 5 1.4 Statement of the measurement uncertainty 5 2 GENERAL INFORMATION ......................................................... 6 2.1 Environmental conditions 6 2.2 General Description of EUT 6 2.3 Description of Test Modes and Test Frequency 6 2.4 Equipments Used during the Test 7 2.5 Related Submittal(s) / Grant (s) 7 2.6 Modifications 7 3 TEST CONDITIONS AND RESULTS ............................................. 8 3.1 Conducted Emissions Test 8 3.2 Radiated Emissions and Band Edge 11 3.3 Occupied Bandwidth Measurement 17 3.4 Antenna Requirement 21 4 TEST SETUP PHOTOS OF THE EUT .......................................... 22 5 EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 24 V1.0 Page 4 of 30 Report No.: CTL1506021473-WF 1 SUMMARY 1.1 TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electricaland Electronic Equipment in the Range of 9 kHz to 40GHz 1.2 Test Description FCC PART 15 15.247 FCC Part 15.249(a) Field Strength of Fundamental PASS FCC Part 15.209 Spurious Emission PASS FCC Part 15.209 Band edge PASS FCC Part 15.215(c) 20dB bandwidth PASS FCC Part 15.207 Conducted Emission PASS FCC Part 15.203 Antenna Requirement PASS V1.0 Page 5 of 30 Report No.: CTL1506021473-WF 1.3 Test Facility 1.3.1 Address of the test laboratory Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China There is one 3m semi-anechoic chamber and two line conducted labs for final test. The Test Sites meet the requirements in documents ANSI C63.4 and CISPR 22/EN 55022 requirements. 1.3.2 Laboratory accreditation The test facility is recognized, certified, or accredited by the following organizations: IC Registration No.: 9618B The 3m alternate test site of Shenzhen CTL Testing Technology Co., Ltd. EMC Laboratory has been registered by Certification and Engineer Bureau of Industry Canada for the performance of with Registration No.: 9618B on November 13, 2013. FCC-Registration No.: 970318 Shenzhen CTL Testing Technology Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 970318, December 19, 2013. 1.4 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within …
