  1. Home/
  2. PHILIPS/
  3. 2AEY6-S616L

2AEY6-S616Lmobile phone

PHILIPS
mobile phone - FCC ID 2AEY6-S616L - PHILIPS
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Aug 20, 2015
Application Purpose
Original Equipment
Date of Application
Aug 20, 2015
Equipment Note
mobile phone
Frequency Range
1852.40000000 - 1907.60000000
Company
PHILIPS
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

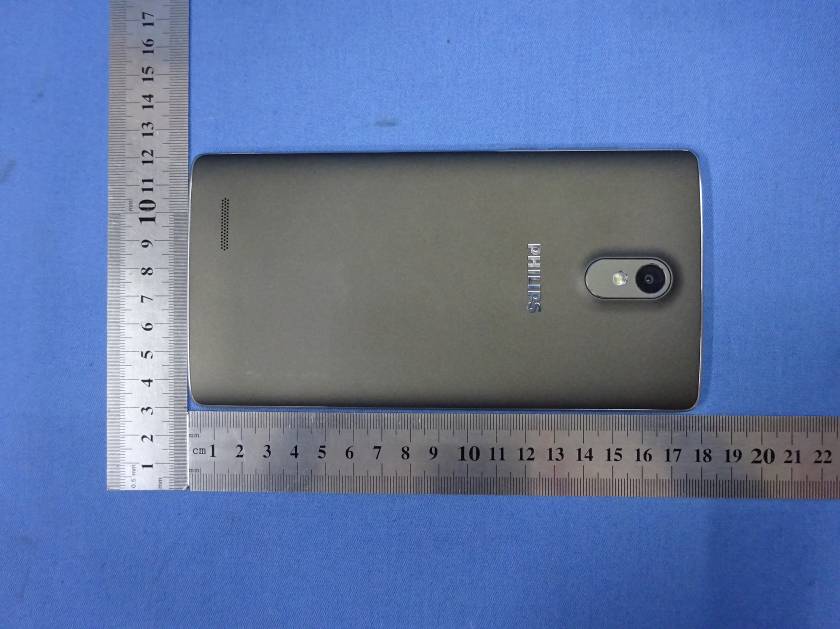

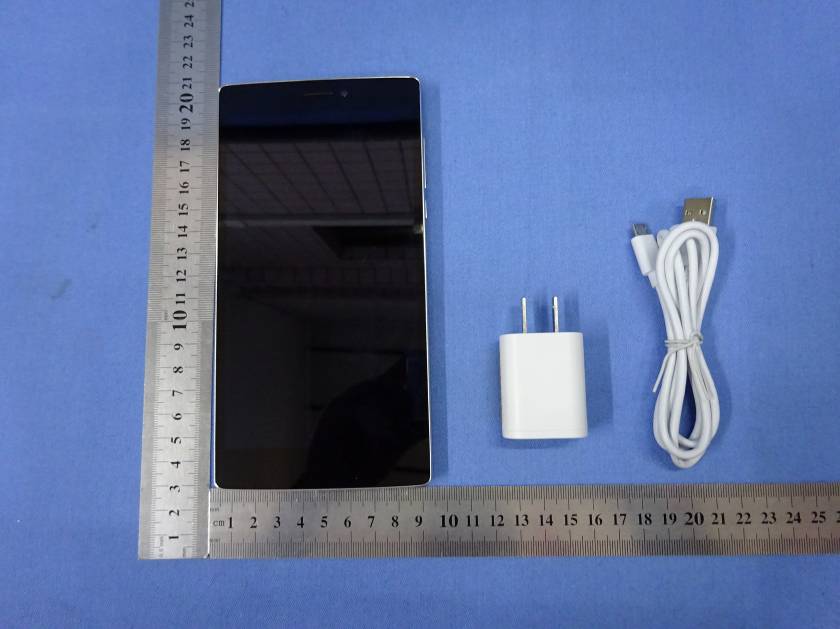

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

S616L Dual SIM Cards Smart Phone User Guide Dear Customer, Thank you for choosing S517-unistarX3 smart phone. This is a smart phone. In addition to common call functions, it also provides you with a variety of practical functions including Bluetooth, English input, Contacts, ringing or image alert for incoming calls, camera, MP3 player, Video player, memory card (T-Flash card), recorder, calculator, Schedule power on/off, MMS (Multimedia Message Service). With this manual, you can acquire a full understanding of the usage of this phone. . Contents 1. Appearance 2. Insertion and Removal of SIM card 3. Insertion and Remove of the Memory Card 4. Installation and Removal of the Battery 5. Battery Charging 6. Dialing 7-9 Guide to Menu Operations 10 Safety Precautions. 11. Cleaning and Maintenance. 12. Trouble shooting Appearance 1 Insertion and Removal of SIM card  Turn off the phone; remove the battery and unplug other external power sources.  Insert the SIM card into the SIM slot.  When you need to remove the SIM card, please first turn off the phone, remove the battery, then remove the SIM card. 2 Insertion and Remove of the Memory Card  Place the Memory Card into the Memory Card Slot.  When you need to insert or remove the memory card, it is suggest that first turn off the phone. When you turn on the phone, insert the memory card can lead to memory card don’t recognize. Warning: when the mobile phone is sending or access messages, please do not remove the memory card. Otherwise it may result in data loss or damage the mobile phone and memory card. 3 Installation,and Removal of the battery If the mobile phone is switched on, please turn off your mobile phone.  When removing the battery follow the following steps: ①Push the battery cover and remove. ②Remove the battery from the mobile phone.  When installing the battery follow the following steps: ① Push the battery to inset mobile-phone. ② Cover with the battery cover. Warning: You must turn off your mobile phone before removing the battery.  Do not place the battery in fire; follow local laws and ordinances in disposing used battery.  Check the model number of the charger before using it to charge the mobile.  Only use approved battery, charger and accessories applicable to the specific mobile model. Using other types of battery, charger and accessories may violate the certification or warranty terms of the equipment and may result in danger.”  Return waste and used batteries to the supplier or specified recovery site.  Hearing protection, long time in the environment of high volume may damage people's hearing. Setting the minimum volume required of the call and music is suggested to use. 4 Battery Charging  Plug the charger into the electrical outlet.  Plug the charger connector into the charge interface of the phone.  The mobile phone and charger will become warm during charging and this is normal.  When charging is complete, unplug the charge connector from the electrical outlet and the mobile phone. Warning: do not to take off the charger before removing the battery. Otherwise it will damage the mobile phone.  Charging must be performed in a well-ventilated area with a temperature between -10C and +55C.  If the mobile phone automatically shuts down, or indicates that the Battery is low you should immediately charge the battery.  Do not use damaged charger or battery.  Prevent battery from contacting metal objects, otherwise the pole "+" and "-" of the battery may be connected and cause temporary or permanent damage to the battery. 5 Dialing 5.1 Making Domestic Calls Use the number keys to input number, then press the dial key to dial the call via SIM card 1/2. You can input domestic calls in this order: Area code phone number dial key 5.2 Making International calls For making international calls you should long press the 0 key, until the international phone prefix “+” appears on the screen. This will allow you to make an international call in any country regardless of what the international call prefix is. You can input international calls in this order: + Country code area code telephone number dial key After entering the prefix, enter the country code and full number you wish to call. 5.3 Emergency Calls If you are located within a network area (you can find this out by referring to the network strength indicator located on the upper left-hand corner of your mobile phone screen), even if you do not have a SIM card, you will be able to transmit emergency calls. 5.4 Key board values Power key: hold down for power off or power on, press for close or switch on background light. Volume keys (up/down key): adjust sound volume in stand by interface. Home key: in function interface, shoft press the key to return to standby interface; long press the key to display Recent. Menu key: in standby interface, press the key can display the menu of Add, Wallpapers, Search, Notifications, Settings, Animation: And in different function interface, press the key can display different menus. Back key: in function interface, press the key to return to the menu. 7-8 Guide to Menu Operations All function options about the mobile phone are listed as below with brief descriptions. 7.1 Application software The mobile phone provides you with a lot of application software, While at the same time, customer can installed unlimited application software. Note: need to insert the memory card, and keep the memory card has enough space. 7.2 Phone Be used to dial the number. 7.3 Contacts It displays the contacts. Long press one contact, it displays the options in follows: View contact, Edit contact, Delete contact, Add to speed dial, Share contact 7.4 Messages You can compose new message. Press the Menu key, you can choose Compose, Search, Settings to set. In the menu of Settings, you can set it as follows: Delete old messages, Text message limit, Multimedia message limit, Delivery reports, Manage SIM card messages, Edit quick text, SMS Service Cen…

Text truncated - open the document above for the full version.

Cover Letter(s)

PHILIPS 14F.-5, No.258, Liancheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan(R.O.C.) DATE 2015-8-10 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEY6-S616L Product Name: mobile phone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description  Tune up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 8/10/2015 / By: Carol Sung Signature Printed Title: Manager On behalf of : PHILIPS Telephone: +886 2 77033970 #146

ID Label/Location Info

Label location

RF Exposure Info

Compliance Certification Services Inc. Date of Issue: August 21, 2015 FCC ID: 2AEY6-S616L Report No .: C150604S02-SF Page 1 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62;FCC 47 CFR Part 2 ( 2.1093) FCC SAR TEST REPORT For Product Name: mobile phone Brand Name: PHILIPS Model No.: S616L Series Model: N/A Test Report Number: C150604S02-SF Issued for PHILIPS. 14F.-5, No.258, Liancheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Kun Shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Date of Issue: August 21, 2015 FCC ID: 2AEY6-S616L Report No .: C150604S02-SF Page 2 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Revision REPORT NO. Date Page Revised Contents Original C150604S02-SF August 21, 2015 N/A N/A Compliance Certification Services Inc. Date of Issue: August 21, 2015 FCC ID: 2AEY6-S616L Report No .: C150604S02-SF Page 3 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................... 4 2. EUT DESCRIPTION....................................................................................................................5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................ 6 4. TEST METHODOLOGY.............................................................................................................. 6 5. TEST CONFIGURATION ............................................................................................................ 6 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................ 7 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................8 6.2 SYSTEM COMPONENTS...............................................................................................................................9 7. EVALUATION PROCEDURES ................................................................................................. 12 8. MEASUREMENT UNCERTAINTY............................................................................................ 16 9. EXPOSURE LIMIT .................................................................................................................... 17 10. EUT ARRANGEMENT .............................................................................................................. 18 10.1 ANTHROPOMORPHIC HEAD PHANTOM .................................................................................................18 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................19 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................20 11. MEASUREMENT RESULTS..................................................................................................... 21 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................21 11.2 LIQUID MEASUREMENT RESULTS ..........................................................................................................22 11.3 SYSTEM PERFORMANCE CHECK...........................................................................................................23 11.4 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................25 11.5 SAR TEST CONFIGURATIONS..................................................................................................................32 11.6 ANTENNA POSITION .................................................................................................................................33 11.7 EUT SETUP PHOTOS ................................................................................................................................35 11.8 SAR MEASUREMENT RESULTS...............................................................................................................37 11.9 REPEATED SAR MEASUREMENT ............................................................................................................40 12. SAR HANDSETS MULTI XMITER ASSESSMENT................................................................... 41 13. EUT PHOTO ............................................................................................................................. 45 14. EQUIPMENT LIST & CALIBRATION STATUS........................................................................ 49 15. FACILITIES............................................................................................................................... 50 16. REFERENCES.......................................................................................................................... 50 Appendix A: Plots of Performance Check........................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Compliance Certification Services Inc. Date of Issue: August 21, 2015 FCC ID: 2AEY6-S616L Report No .: C150604S02-SF Page 1 of 41 GSM 850-Right Head Cheek Middle CH190.................................................................................... 2 GSM 850-Right Head Tilted Middle CH190..................................................................................... 3 GSM 850-Left Head Cheek Middle CH190....................................................................................... 4 GSM 850-Left Head Tilted Middle CH190........................................................................................ 5 GSM 1900-Right Head Cheek High CH810..................................................................................... 6 GSM 1900-Right Head Tilted High CH810....................................................................................... 7 GSM 1900-Left Head Cheek High CH810........................................................................................ 8 GSM 1900-Left Head Tilted High CH810.......................................................................................... 9 WCDMA Band II-Right Head Cheek Middle CH9400.................................................................. 10 WCDMA Band II-Right Head Tilted Middle CH9400.....................................................................11 WCDMA Band II-Left Head Cheek Middle CH9400..................................................................... 12 WCDMA Band II-Left Head Tilted Middle CH9400....................................................................... 13 WCDMA Band V-Right Head Cheek Low CH4132....................................................................... 14 WCDMA Band V-Right Head Tilted Low CH4132........................................................................ 15 WCDMA Band V-Left Head Cheek Low CH4132......................................................................... 16 WCDMA Band V-Left Head Tilted Low CH4132........................................................................... 17 WiFi-Right Head Cheek Low CH1................................................................................................... 18 WiFi-Right Head Tilted Low CH1..................................................................................................... 19 WiFi-Left Head Cheek Low CH1...................................................................................................... 20 WiFi-Left Head Tilted Low CH1....................................................................................................... 21 GPRS 850-Body Front High CH251................................................................................................ 22 GPRS 850-Body Rear High CH251................................................................................................. 23 GPRS 850-Body Edge 3 High CH251............................................................................................. 24 GPRS 850-Body Edge 4 High CH251............................................................................................. 25 GPRS 1900-Body Front Low CH512............................................................................................... 26 GPRS 1900-Body Rear Low CH512................................................................................................ 27 GPRS 1900-Body Edge 3 Low CH512............................................................................................ 28 GPRS 1900-Body Edge 4 Low CH512............................................................................................ 29 WCDMA Band II-Body Front Middle CH9400............................................................................... 30 WCDMA Band II-Body Rear Middle CH9400................................................................................ 31 WCDMA Band II-Body Edge 3 Middle CH9400............................................................................ 32 WCDMA Band II-Body Edge 4 Middle CH9400............................................................................ 33 WCDMA Band V-Body Front Low CH4132................................................................................... 34 WCDMA Band V-Body Rear Low CH4132..................................................................................... 35 WCDMA Band V-Body Edge 3 Low CH4132................................................................................ 36 WCDMA Band V-Body Edge 4 Low CH4132................................................................................ 37 WiFi-Body Front Low CH1................................................................................................................ 38 WiFi-Body Rear Low CH1................................................................................................................. 39 WiFi-Body Edge 1 Low CH1............................................................................................................. 40 WiFi-Body Edge 2 Low CH1............................................................................................................. 41 Compliance Certification Services Inc. Date of Issue: August 21, 2015 FCC ID: 2AEY6-S616L Report No .: C150604S02-SF Page 2 of 41 Test Laboratory: Compliance Certification Services Inc. Date: 7/5/2015 GSM 850-Right Head Cheek Middle CH190 DUT: mobile phone; Type: S616L; Serial: N/A Communication System: UID 0, Generic GSM (0); Communication System Band: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.911 S/m; ε r = 42.623; ρ = 1000 kg/m 3 Room Ambient Temperature: 22°C; Liquid Temperature: 21.5°C Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3798; ConvF(9.3, 9.3, 9.3); Calibrated: 7/28/2014; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 7/22/2014 • P…

Text truncated - open the document above for the full version.

Test Report

Global United Technology Services Co., Ltd. Report No.: GTSE15050094501 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC Report (GSM&WCDMA) Applicant: PHILIPS Address of Applicant: 14F.-5, No.258, Liancheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Equipment Under Test (EUT) Product Name: mobile phone Model No.: S616L FCC ID: 2AEY6-S616L Applicable standards: FCC CFR Title 47 Part 2: 2014 FCC CFR Title 47 Part22 Subpart H: 2014 FCC CFR Title 47 Part24 Subpart E: 2014 Date of sample receipt: June 11, 2015 Date of Test: June 12-17, 2015 Date of report issued: June 18, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE15050094501 Global United Technology Services Co., Ltd. Project No.: GTSE150500945RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone,Xixiang Road, Baoan District, Shenzhen 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 70 2 Version Version No. Date Description 00 June 18, 2015 Original Prepared By: Date: June 18, 2015 Project Engineer Check By: Date: June 18, 2015 Reviewer Report No.: GTSE15050094501 Global United Technology Services Co., Ltd. Project No.: GTSE150500733RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone,Xixiang Road, Baoan District, Shenzhen 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 70 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION.......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................... 7 5.4 TEST METHODOLOGY.......................................................................................................................... 7 5.5 TEST FACILITY.................................................................................................................................... 7 5.6 TEST LOCATION.................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 SYSTEM TEST CONFIGURATION ......................................................................................................... 9 7.1 TEST MODE........................................................................................................................................ 9 7.2 CONFIGURATION OF TESTED SYSTEM................................................................................................ 10 7.3 CONDUCTED PEAK OUTPUT POWER.................................................................................................. 11 7.4 OCCUPY BANDWIDTH........................................................................................................................ 13 7.5 MODULATION CHARACTERISTIC............................................................................................... 23 7.6 OUT OF BAND EMISSION AT ANTENNA TERMINALS................................................................................ 23 7.7 ERP, EIRP MEASUREMENT.............................................................................................................. 35 7.8 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT.................................................................. 45 7.9 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT................................................................ 51 7.10 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT........................................................................ 55 8 TEST SETUP PHOTO ................…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emission

Contact Information

Applicant

Carol Sung
[email protected]+886 2 77033970Fax: +886 2 82272205

Test Firm

Global United Technology Service Co., LtdRobinson Lo
[email protected]86-755-27798480Fax: 86-755-2779860

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
624E1.85 GHz - 1.91 GHz194.00 mW4M18F9W0.06 ppm
Confidentiality
Long Term
Grant Notes
Power listed is ERP for Part 22, and EIRP for Part 24. SAR compliance for body-worn operations is restricted to belt-clips, holsters, or similar accessories that have no metallic component in the assembly and which provide a minimum separation distance between the device including its antenna and the body of user as described in this filing. End-users must be informed of the body-worn accessory operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.15 W/kg, 0.69 W/kg, 0.69 W/kg, and 1.39 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.

Other Applications from PHILIPS

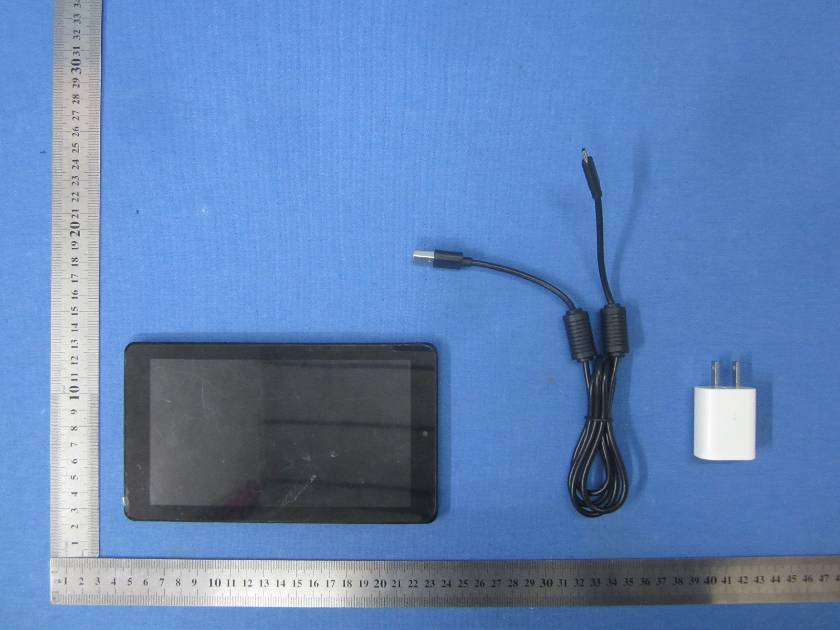

Tablet - FCC ID 2AEY6-V710 - PHILIPS
