2AEZC021DXY BLE MODULE

DXY Technology Co.,Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 29, 2015
Application Purpose: Original Equipment
Date of Application: Jun 29, 2015
Equipment Note: DXY BLE MODULE
Frequency Range: 2402.00000000 - 2480.00000000
Company: DXY Technology Co.,Ltd.
Country: China

Documents & Files

Select a file to view

Test Report

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DXYBT021 OEM/INTEGRATORS INSTALLATIONSMANUAL www.dxytech.comTel:400-9900-1081/7 VERSIONHISTORY VersionComment V1.0Firstdraft V1.1Addnewpinoutandmodifysomedescription www.dxytech.comTel:400-9900-1082/7 1Description TheDXYBT021isacompact,surfacemountBluetooth4.0LowEnergy(BLE)compliantwireless module.Itintegratesanadvancedsingle-chipBLESoCchip-QN9021withRFcircuitandantenna inacompactmodule. Duetoitssmallsize,outstandingperformanceatverylowpowerconsumptionandeasymodular handling,theDXYBT021isleadingthewayforthenewgenerationofBluetoothlowenergy modules. 2KeyFeatures ◆Bluetooth®4.0LowEnergywirelessmodule ●Frequencybands:2400MHzto2483.5MHz ●1Mbpsonairdatarate ●SlaveandMastermodeoperation ●Supportto8simultaneouslinksinmastermode ◆ Integrated32-bitCortex-M0MCUwith ● 64Ksystemmemory ● 64/128KBfalsh ◆ UltraLowPowerConsumption ●2uAdeepsleepmode ●3uAsleepmode(32kHzRCOSCon) ●DC-DCmode 8.9mARXcurrentat3V 8.8mATXcurrent@0dBmTxpowerat3V ● NonDC-DCmode 13.6mARXcurrentat3V 13.3mATXcurrent@0dBmTxpowerat3v ● IntegratedDC-DCconverterandLDO ● Single2.4V-3.6Vpowersupply ◆ HighPerformance ●-95dBmRXsensitivity(NonDC‐DCmode) ●-93dBmRXsensitivity(DC‐DCmode) ●Txpowerfrom‐20dBmto4dBm ● Excellentlinkbudgetupto99dB ◆ CompleteProtocolStackandProfile ● Bluetooth®v4.0hoststackincludingL2CAP,SMP,ATT,GATT,GAP ● Qualifiedapplicationprofilesandservices ◆ EaseofDesign ● Smallformfactor:12x18x2mm www.dxytech.comTel:400-9900-1083/7 ● EasytousecommandsetoverUART/SPItocommunicatewithAppMCU ◆ Application ● Sports&Fitness ● Healthcare&Wellness ● RemoteControl ● PCPeripherals(mouse,keyboard) ● MobilePhoneAccessories ● Home/buildingAutomation ● Industrialautomation ● WirelessSensorNetworks 3Pinout Table1Pinoutdescription PinNameFunctionDescription 1P2.4/I2C_SCLDigitalin/outGPIO/I2Cclock 2/RSTNDigitalin/outHardwarereset,activelow. 3P2.3/I2C_SDADigitalin/outGPIO/I2Cdatawithpull-up 4P2.6Digitalin/outGPIO 5P1.0/SPI_MISODigitalin/outGPIO/SPIdatamasterin/slaveout 6P2.7Digitalin/outGPIO 7P1.1/SPI_MOSIDigitalin/outGPIO/SPIdatamasterout/slavein www.dxytech.comTel:400-9900-1084/7 8P1.2/SPI_CSDigitalin/outGPIO/SPIchipselect 9P1.3/SPI_CLKDigitalin/outGPIO/SPIclock 10P1.7/UART_RXDigitalinputGPIO/UARTRXdatainput 11P0.0/UART_TXDigitaloutputGPIO/UARTTXdataoutput 12P0.3/INT0DigitalinGPIO/Interrupt 13X1AnaloginNotconnected 14X2AnaloginNotconnected 15SWDIODigitalin/outSWDdatawithpull-up 16SWCLKDigitalinSWDclockinputwithpull-up 17VCCPowerPowersupply(2.4~3.6V) 18GNDGroundShouldbeconnectedtoground 19VDD_IDCPowerNotconnected 20P3.0/ADC-AnaloginGPIO/ADC- 21P3.1/ADC+AnaloginGPIO/ADC+ 22GNDGroundShouldbeconnectedtoground 23GNDGroundShouldbeconnectedtoground 24GNDGroundShouldbeconnectedtoground 25GNDGroundShouldbeconnectedtoground 4ElectricalCharacteristics Table2RecommendedOperatingConditions SymbolParameterConditionsMinTypMaxUnit VCCPowerToGND2.43.03.6V TAOperatingtemperature-40+25+85 °C Table3DCCharacteristics SymbolParameterConditionsMinTypMaxUnit IccCurrentconsumptionDeepsleep2uA Sleep3uA Idle(w/oDC-DC)0.84mA MCU@8MHz(w/oDC-DC)1.35mA Rx(w/oDC-DC)13.6mA Rx(w/tDC-DC)8.9mA (TypicalvaluesareTa=25°CandVCC=3V) Notes: 1.Currentincludecurrentforbothanaloganddigital; 2.DependonIOconditions. 3.Deepsleepmode:digitalregulatoroff,noclocks,POR,RAM/registercontentretained 4.Sleepmode:digitalregulatoroff,32kRCOSCon,POR,sleeptimeron,andRAM/register contentretained 5.Idle:16MHzOSCon,noradioorperipherals,8MHzsystemclockandMCUidle(nocode www.dxytech.comTel:400-9900-1085/7 execution) 6.MCU@8MHz:MCUrunningat8MkHzRCOSCclock,noradioorperipherals 7.RXsensitivityis-95dBmsensitivitywhenDC-DCisdisabled. 8.RXsensitivityis-93dBmsensitivitywhenDC-DCisenabled. 5Layoutandphysicaldimemsions FullModularApproval ThisRFModuleisfullmodularapproval,itislimitedtoOEMinstallationONLY. IntegrationintodevicesthataredirectlyorindirectlyconnectedtoAClinesmustaddwithClassII PermissiveChange.(OEM)Integratorhastoassurecomplianceoftheentireendproductincl.the integratedRFModule.Additionalmeasurements(15B)and/orequipmentauthorizations(e.g Verification)mayneedtobeaddresseddependingonco-locationorsimultaneoustransmission issuesifapplicable.(OEM)Integratorisremindedtoassurethattheseinstallationinstructions willnotbemadeavailabletotheenduserofthefinalhostdevice. WiththedocumentedmaxoutputpowerthisRFModulemeetstheFCCSARExemption,soit complywithanyapplicableRFexposurerequirementsinitsfinalconfiguration.TheRFModuleis poweredbybattery,theantennaisPCBantennaandtheantennagainis2.21dBi.Thefinalhost device,intowhichthisRFModuleisintegrated"hastobelabeledwithanauxiliarylabelstating www.dxytech.comTel:400-9900-1086/7 theFCCIDoftheRFModule,suchas“ContainFCCID:2AEZC021"." Themoduleislimitedtoinstallationinmobileorfixedapplications.Theseparateapprovalis requiredforallotheroperatingconfigurations,includingportableconfigurationwithrespectto Part2.1093anddifferentantennaconfigurations. FCCRFStatement Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. NOTE:ThemanufacturerisnotresponsibleforanyradioorTVinterferencecausedby unauthorizedmodificationstothisequipment.Suchmodificationscouldvoidtheuser’sauthority tooperatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increaset…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date:17June,2015 FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 RequestforModularApprovalFCCID:2AEZC021 Item Requirements EUT 1 HaveitsownRFshielding ThemodulehasitsownRFshielding. Pleasereferto“DXYBT021Operational description.docx”and“labellocation photo.JPG”. 2 Havebufferedmodulation/data inputs(ifsuchinputsareprovided) Themodulehasbuffereddatainputs,itis integratedinchipQn9021. Pleasereferto“DXYBT021_SCH.pdf”and section5.2of“QN902xDatasheetv1.0- 021714_DXYTechnology.pdf” 3 Haveitsownpowersupplyregulation TheDXYBT021hasitsownpowersupply regulationcircuitwhichisintegratedinchip QN9021.Externalpowersupplyinrangeof 2.4v~3.6Visregulatedbeforeenergizing othercircuitsinternaltotheDXYBT021. Pleasesee“DXYBT021_SCH.pdf”and section5.5of“QN902xDatasheetv1.0- 021714_DXYTechnology.pdf” 4 Meettheantennarequirementsof section15.203 TheDXYBT021meetstheFCCantenna requirementwithintegralantenna. Pleasereferto“labellocationphoto.JPG” 5 Demonstratecomplianceina stand-aloneconfiguration TheDXYBT021wastestedinstand-alone configuration. Pleaserefertotestreportand“FCCtest.jpg”. 6 ThelicensedmodulemusthaveaFCC IDlabelonthemoduleitself.ThatFCC IDlabelmustbevisiblethrougha windowonthefinaldeviceoritmust bevisiblewhenanaccesspanel,door orcoveriseasilyremoved.Ifnot,a secondlabelmustbeplacedonthe outsideofthefinaldevice. Themoduleislabelledwithitspermanently affixedFCCIDlabel.Thelabelpositionis clearlyindicated.Pleasereferto“label locationphoto.JPG”. Themodulelabelhasbeenaddedintheuser manual.Pleaserefertheusermanualonpage 6-7. Whenthemoduleisinstalledinsideanother devicetheinformationoflabelmustbeplaced ontheoutsideofthefinaldevice.contains FCCID：2AEZC021 7 Themodulemustcomplywithall specificrulesapplicabletothe transmitter.Thegranteemust TheDXYBT021iscompliantwithall applicableFCCrules.Pleaserefertotest reportand“DXYBT021Operational description.docx”. providecomprehensiveinstructions toexplaincompliancerequirements. 8ThemodulemustcomplywithRF exposurerequirements.SeeFCC Rules.SpreadSpectrumtransmitters mustcomplywithRFexposurelimits in15.247. TheDXYBT021complieswithapplicableRF exposurerequirements. PleaserefertotheMPEreport. Thankyouforyourattentiontothismatter. YoursSincerely, EndyQin

Cover Letter(s)

DXYTechnologyCo.,Ltd Date:09June,2015 To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 Re:DXYTechnologyCo.,Ltd FCCID:2AEZC021 FCCCertificationConfidentialityRequest Gentlemen: Thisletteristocomplywith47CFR0.457and0.459pertainingtoconfidentiality material.DXYTechnologyCo.,Ltdrequeststhatthefollowingdocuments regardingthissubmissionforFCCID:2AEZC021bekeptconfidential: ExhibitTypeFileName BlockDiagramCONFAPPENDIX2AEZC021_BlockDiagram.pdf CircuitdiagramCONFAPPENDIX2AEZC021_Circuitdiagram.pdf OperationalDescriptionCONFAPPENDIX2AEZC021_OperationalDescription.pdf Thosedocumentscontaindetailedsystemandequipmentdescriptionandrelated informationabouttheproductwhichDXYTechnologyCo.,Ltdconsiderstobe confidentialproprietary,acustomdesignand,otherwise,notreleasabletothe generalpublic.Sincethisdesignisabasisformwhichfuturetechnological productswillevolve,DXYTechnologyCo.,Ltdconsidersthisinformationwouldbe ofbenefittoitscompetitors,andthatthedisclosureoftheinformationinthese documentswouldgivecompetitorsanunfairadvantageinthemarket. YoursSincerely, EndyQin 903,BlockB,SevenstarsBusinessCentre,Meilong Road,ShengZheng,Guangdong,China DXYTechnologyCo.,Ltd

Cover Letter(s)

DXYTechnologyCo.,Ltd Date:18June,2015 To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 ToWhomItMayConcern: TheDXYTechnologyCo.,Ltd，theundersigned,herebyauthorizesMr.Wu XuewenfromShenzhenBalunTechnologyCo.,Ltd.,toactonthebehalfofthe DXYTechnologyCo.,LtdsolelyinmattersrelatingtotheapplicationforanFCC equipmentauthorizationforFCCID#:2AEZC021includingthesigningof documentsinconnectionwiththisApplication.Necessaryactscarriedoutby ShenzhenBalunTechnologyCo.,Ltd.onourbehalfoftheDXYTechnology Co.,LtdinconnectionwiththeApplicationshallhavethesameeffectasactsofthe DXYTechnologyCo.,Ltd.TheDXYTechnologyCo.,Ltdalsoherebycertifythatno partytothisapplicationissubjecttoadenialofbenefits,includingFCCbenefits, pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21U.S.C.853(a). Thankyouforyourattentiontothismatter. YoursSincerely, EndyQin 903,BlockB,SevenstarsBusinessCentre,Meilong Road,ShengZheng,Guangdong,China DXYTechnologyCo.,Ltd

External Photos

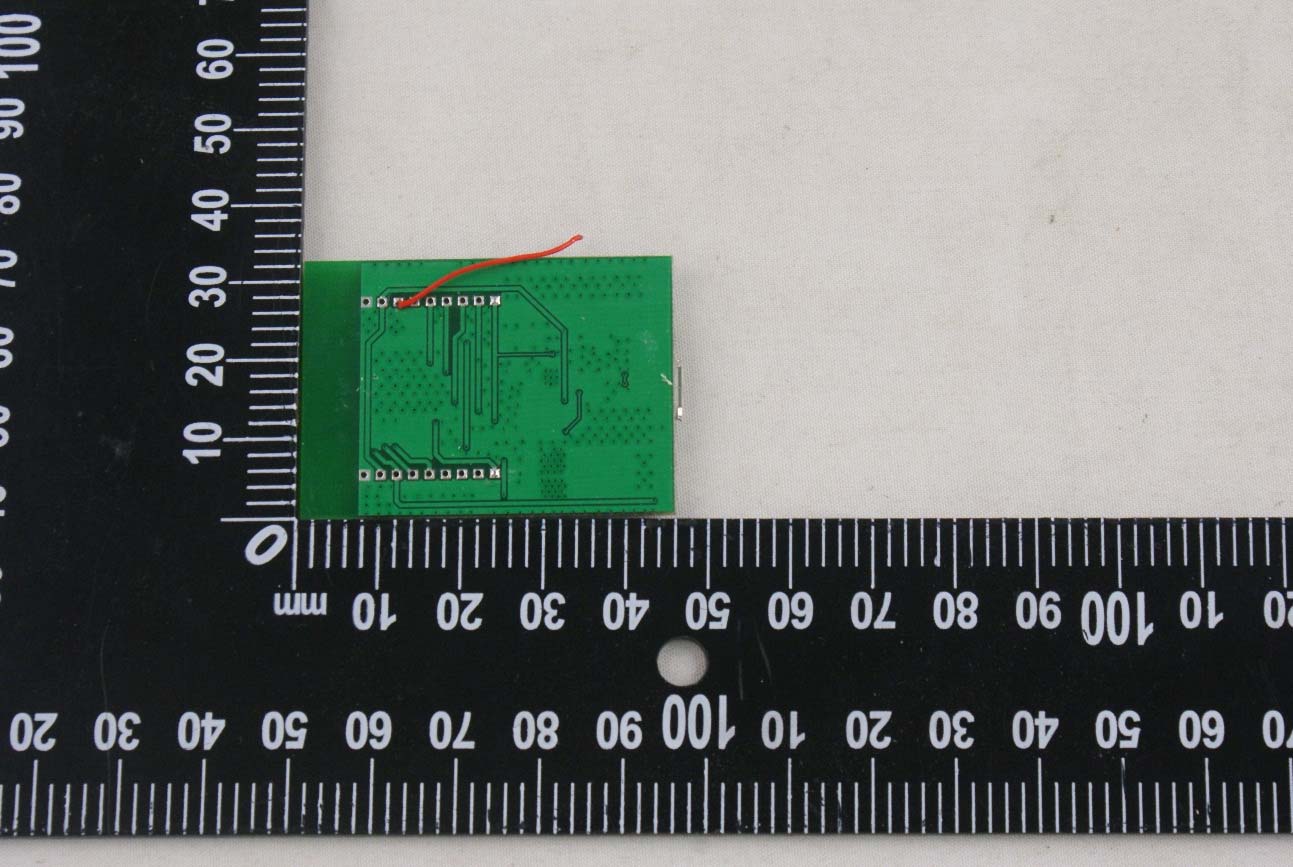

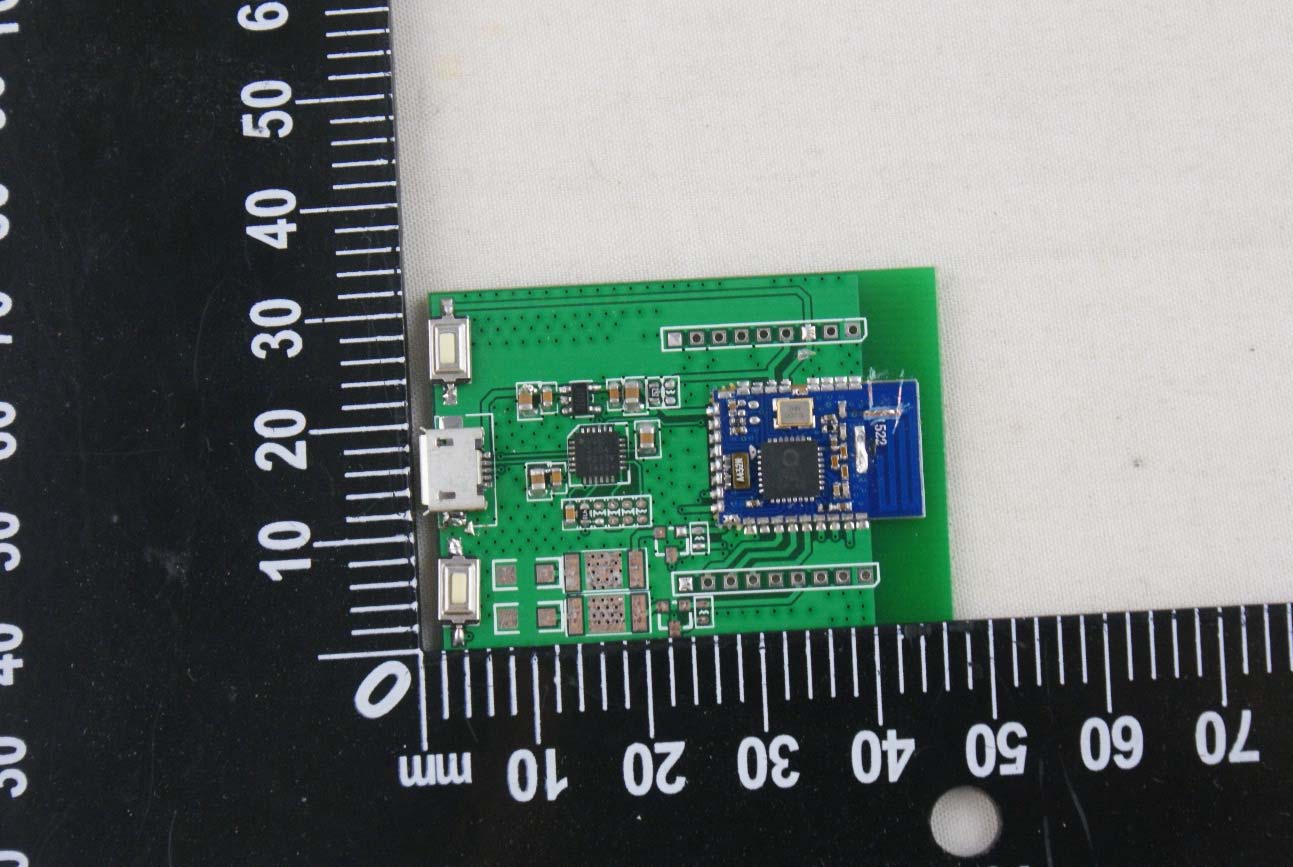

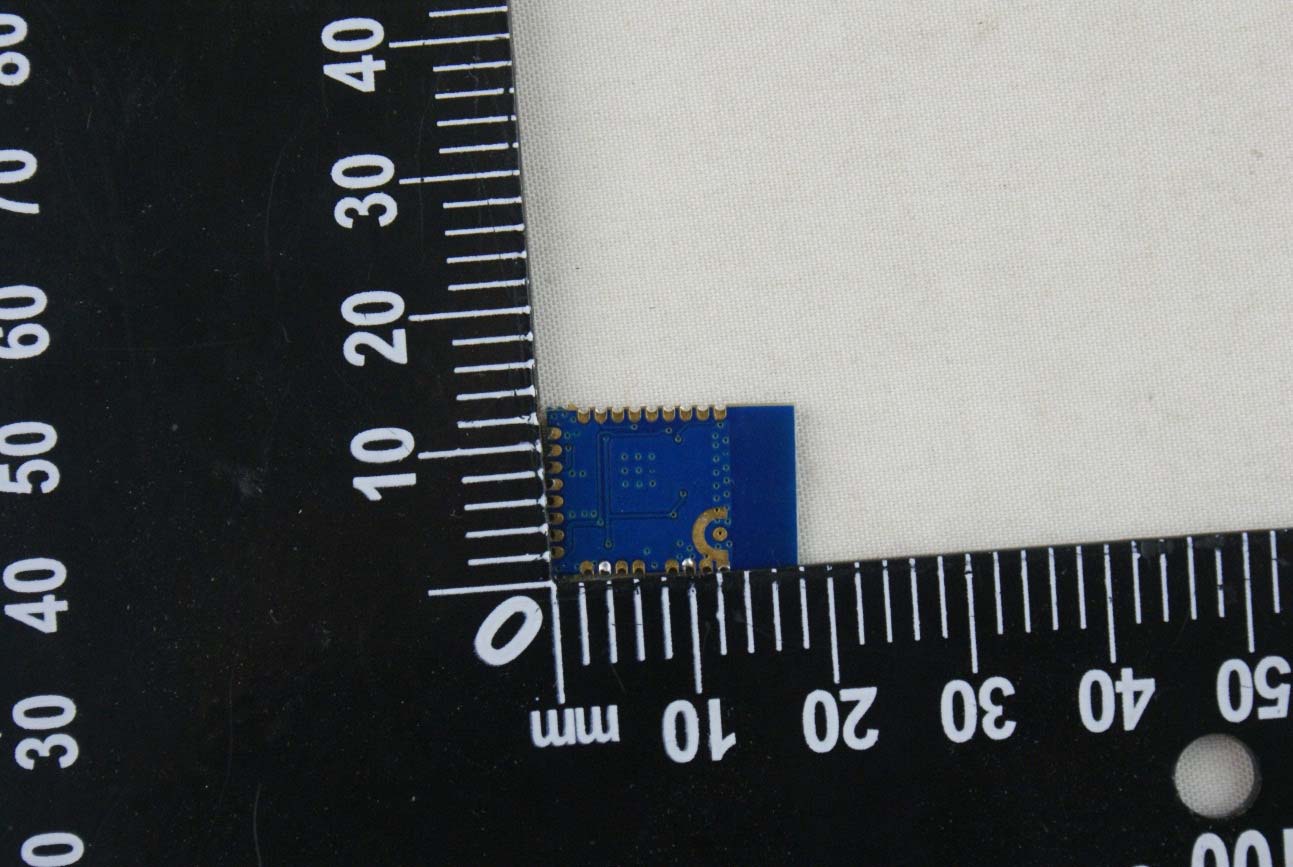

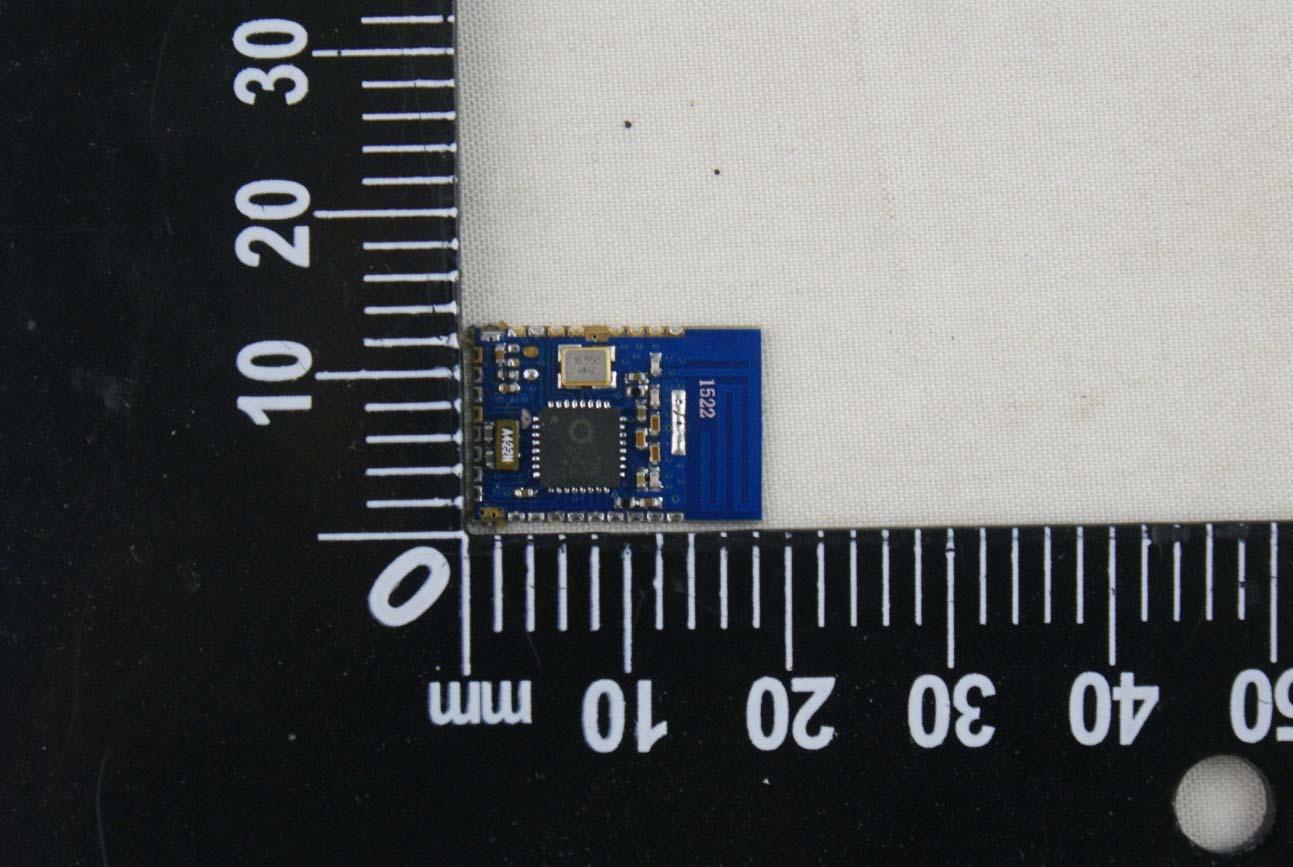

ANNEX C EUT PHOTOS C.1 Photo of the EUT THE EUT PHOTO 1 THE EUT PHOTO 2 2 / 3 THE EUT PHOTO 3 THE EUT PHOTO 4 3 / 3 THE EUT PHOTO 5

ID Label/Location Info

Label： Labellocation：

Internal Photos

ANNEX C EUT PHOTOS C.1 Photo of the EUT THE EUT PHOTO 1 THE EUT PHOTO 2 2 / 3 THE EUT PHOTO 3 THE EUT PHOTO 4 3 / 3 THE EUT PHOTO 5

RF Exposure Info

RFExposureEvaluationForFCCID:2AEZC021 ReferusermanualthisdeviceisaDXYBLEMODULEforbabywasdesignedusedinMobile devicesthattheminimumdistancebetweenhuman’sbodyis20cm.Basedonthe47CFR2.1091, thisdevicebelongstoMobiledevice.Thedefinitionofthecategoryasfollowing: MobileDerives: CFRTitle47§2.1091(b) (b)Forpurposesofthissection,amobiledeviceisdefinedasatransmittingdevicedesignedto beusedinotherthanfixedlocationsandtogenerallybeusedinsuchawaythataseparation distanceofatleast20centimetersisnormallymaintainedbetweenthetransmitter’sradiating structure(s)andthebodyoftheuserornearbypersons. FCCKDB447498D01GeneralRFExposureGuidancev05r02Limit Devicesoperatinginstandalonemobileexposureconditionsmaycontainasingletransmitteror multipletransmittersthatdonottransmitsimultaneously.Aminimumtestseparationdistance≥ 20cmisrequiredbetweentheantennaandradiatingstructuresofthedeviceandnearby personstoapplymobiledeviceexposurelimits.Thedistancemustbefullysupportedbythe operatingandinstallationconfigurationsofthetransmitteranditsantenna(s),accordingtothe source-basedtime-averagedmaximumpowerrequirementsof§2.1091(d)(2).Incaseswhere cablelossesorotherattenuationsareappliedtodeterminecompliance,themostconservative operatingconfigurationsandexposureconditionsmustbeevaluated.Theminimumtest separationdistancerequiredforadevicetocomplywithmobileexposureconditionsmustbe clearlyidentifiedintheinstallationandoperatinginstructions,forallinstallationandexposure conditions,toenableusersandinstallerstocomplywithRFexposurerequirements.Formobile devicesthathavethepotentialtooperateinportabledeviceexposureconditions,similartothe configurationsdescribedin§2.1091(d)(4),aKDBinquiryisrequiredtodeterminetheSARtest requirementsfordemonstratingcompliance. Whenthecategoricalexclusionprovisionof§2.1091(c)applies,theminimumtestseparation distancemaybeestimated,whenapplicable,bysimplecalculationsaccordingtoplane-wave equivalentconditions,toensurethetransmitteranditsantenna(s)canoperateinmannersthat meetorexceedtheestimateddistance.Thesource-basedtime-averagedmaximumradiated power,accordingtothemaximumantennagain,mustbeappliedtocalculatethefieldstrength andpowerdensityrequiredtoestablishtheminimumtestseparationdistance.Whenthe estimatedtestseparationdistancebecomesoverlyconservativeanddoesnotsupport compliance,MPEmeasurementorcomputationalmodelingmaybeusedtodeterminethe requiredminimumseparationdistance. RFExposureEvaluationResult: FCC(Worstcase) AccordingtoFCCPart1.1307,systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannertheensuresthatthepublicisnotexposedtoradiofrequencyenergylevel inexcessofthecommission’sguidelines. LimitsforGeneralPopulation/UncontrolledExposure FrequencyRange (MHz) ElectricField Strength(E)(V/m) MagneticField Strength(H)(A/m) PowerDensity (S)(mW/cm2) 0.3-1.346141.63(100)* 1.34-30824/f2.19/f(180/f2)* 30-30027.50.0730.2 300-1500f/1500 1500-100,0001.0 MPEcalculationformula Where: S=powerdensity P=outputpower(W) G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=Separationdistancebetweenradiatorandhumanbody(m) Testresult Maximumpeakoutputpoweratantennainputterminal(dBm):-0.55 Maximumpeakoutputpoweratantennainputterminal(mW):0.88 Predictiondistance(cm):20 Predicationfrequency(MHz):2480 AntennaGain(typical)(dBi):2.21 Powerdensityatpredicationfrequencyat20cm(mW/cm2):0.00029 MPElimitforRFexposureatpredictionfrequency(mW/cm2):1 FCCVerdict:PASS Note: 1.MorepowerlistpleaserefertoRFtestreport.

Test Setup Photos

ANNEX B TEST SETUP PHOTOS B.1 Radiated Field Strength Measurement Below 1 GHz Front Back Above 1 GHz Front Back B.2 Conducted Emission Note: Not applicable. B.3 RF Conducted Test Photo B.4 RF Radiated Test Photo Below 30MHz Front Back 30MHz-1GHz Front Back Above 1 GHz Front Back

Test Setup Photos

ANNEX B TEST SETUP PHOTOS B.1 Radiated Field Strength Measurement Below 1 GHz Above 1 GHz B.2 Conducted Emission Note: Not applicable. B.3 Harmonic Current Emissions Note: Not applicable. B.4 Voltage Fluctuations and Flicker Measurement Test Note: Not applicable. B.5 Electrostatic Discharge Immunity Test B.6 Radiated, Radio Frequency Electromagnetic Field Immunity Test B.7 Electrical Fast Transient/Burst Immunity Test Note: Not applicable. B.8 Transients and Surges Note: Not applicable. B.9 Surge Immunity Test Note: Not applicable. B.10 Immunity to Conducted Disturbances Induced by RF Fields Note: Not applicable. B.11 Voltage Dips and Short Interruptions Immunity Note: Not applicable. B.12 RF Conducted Test Photo B.13 RF Radiated Test Photo

Contact Information

Applicant

Endy Qin

[email protected]+ 86 13798296147Fax: +86 0755 28168579

Test Firm

Shenzhen BALUN Technology Co.,Ltd.Xuewen Wu

[email protected]86-755-66833404Fax: 86-755-61824271

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	880.00 µW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must not exceed the gain of 2 dBi and must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter or in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations.
