2AEZC1001Bluetooth Smart Watch

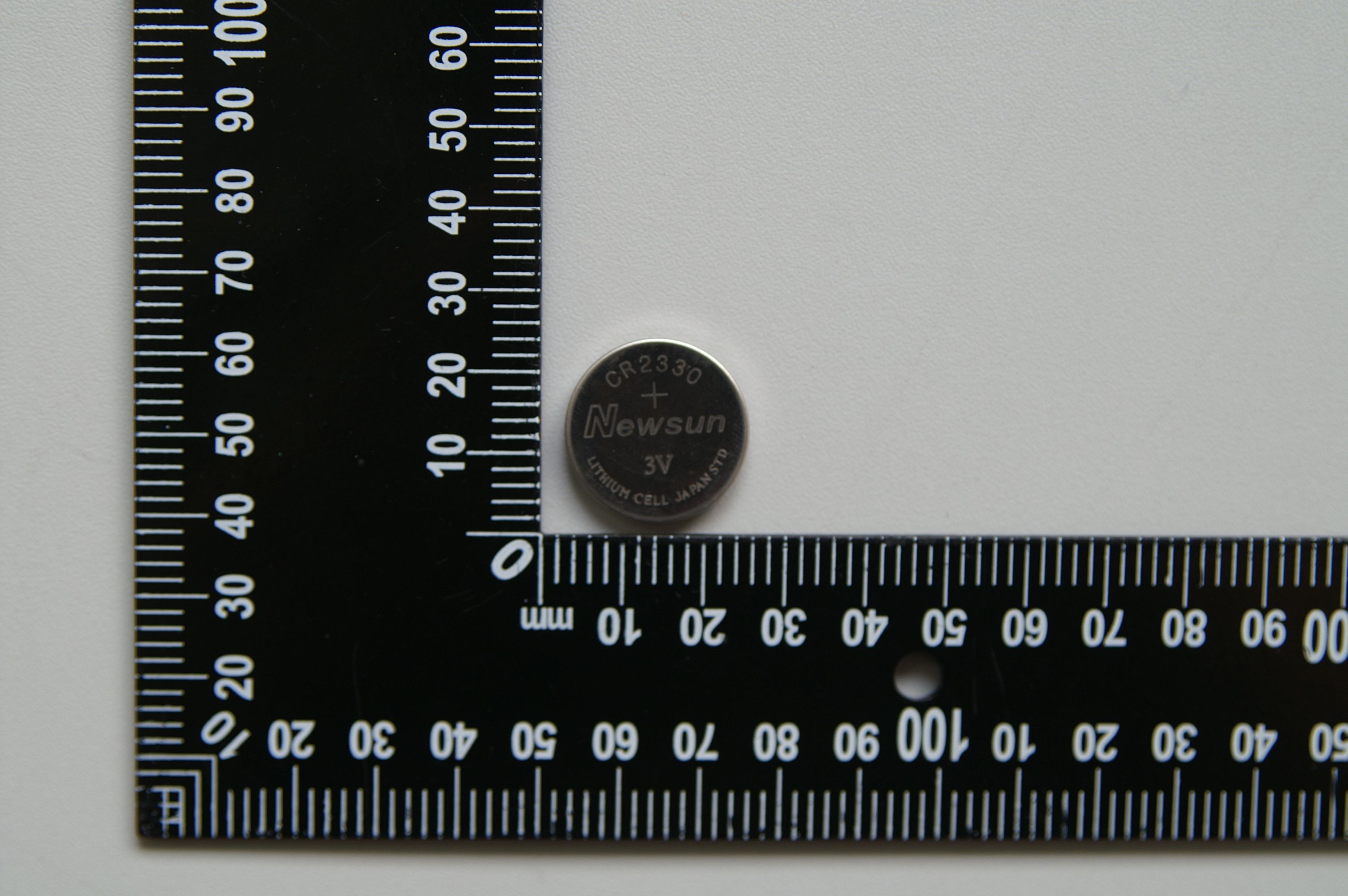

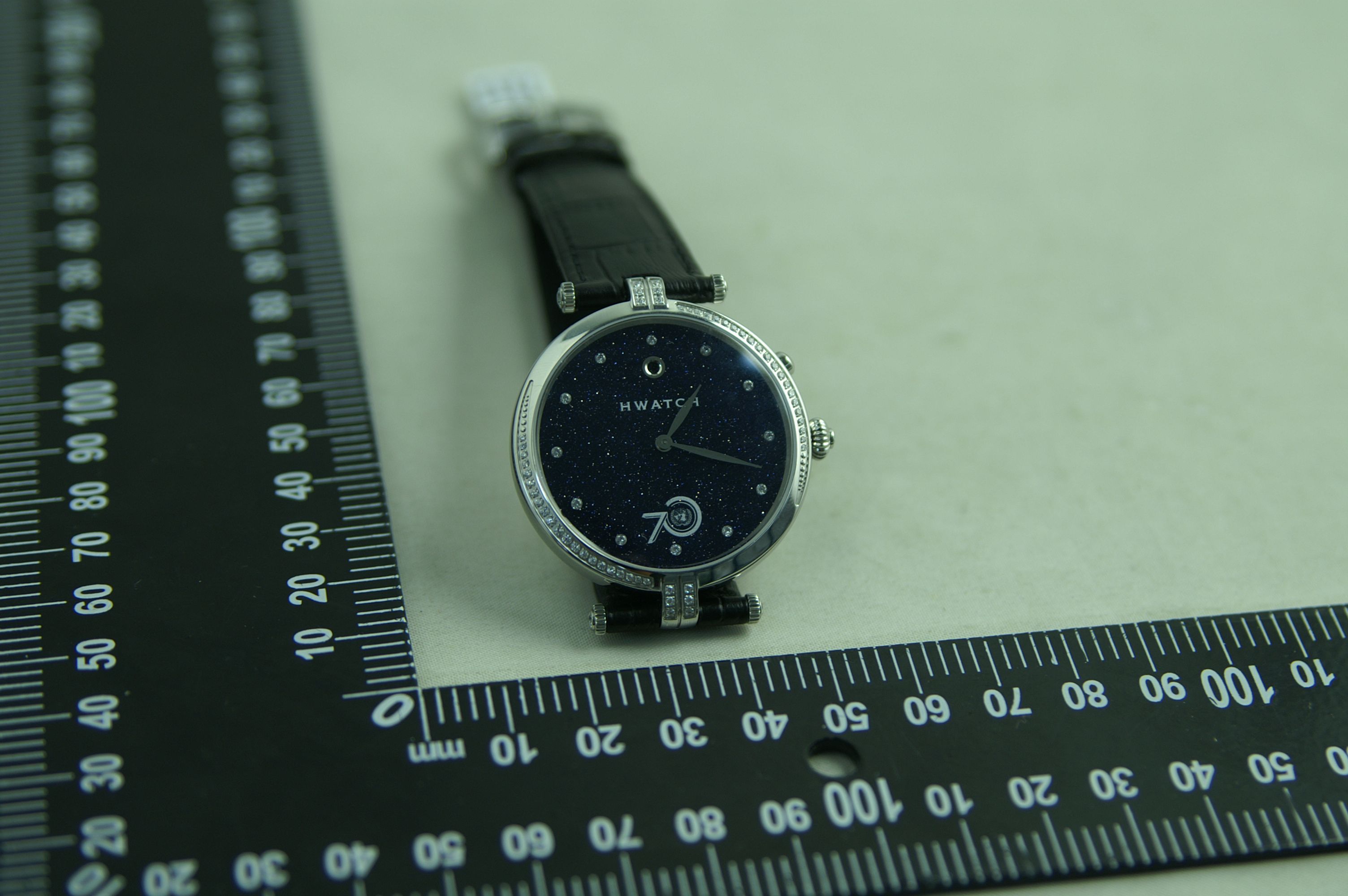

01 02 HWATCH L1/W1 The devices in HWATCH L1/W1 standard package include: 1. HWATCH L1/W1 fashionable female smart watch. 2. Specification 3. Warranty card and warranty policies 4. Certificate of quality Note: If the watch battery has no power, please replace CR2330 standard button battery. Material List HWATCH L1/W1 Welcome to use HWATCH L1/W1 smart watch. HWATCH L1/W1 is the first fashionable and smart watch for female made by DXY Technology. Like other models under HWATCH L1/W1 series, it is a trans- boundary product combining traditional watch process and technical intelligence. HWATCH L1/W1 has soft curve, reliable material and stable performance. It is L1 embedded with VS-grade real diamond, W1 embedded with colorful crystal. which makes HWATCH L1/W1 shine. Like you, it looks so beautiful, tender and strong. The pointer on dial plate follows the rotation of Ronda quartz movement. HWATCH L1/W1 is quietly recording and analyzing your exercise and sleep. It can also conduct UV inspection if needed. By this, you know well about your daily routine. To select HWATCH L1/W1 means the selection of long- term high-quality and smart watch from HWatch as well as the selection of H health mobile phone applications under the cooperation of many professional institutions. While monitoring daily parameters, daily health diary can be formed, making health a part of your fashion. From now on, you can open up a new life chapter which is healthy, beautiful and fashionable with HWATCH L1/W1. 04 03 HWATCH L1/W1 Physical buttons Long press:Activate watch (sleep)/display exercise progress (after activation) Short press:Review UV Double click: Startup and shutdown in sleep mode Crown Adjust the time of HWATCH L1/W1 HWATCH L1/W1 operation gestures After opening the package, HWATCH L1/W1 is in ex- factory mode. You need to long press the physical button to activate smart functions. After three lights at 11, 12 and 1 o’clock directions flicker, it indicates that the smart part of HWATCH L1/W1 begins to operate. Buttons and operating instructions HWATCH L1/W1 How to replace the battery? 1. Place the watch flat reversely, use a screwdriver to unscrew 4 screws in the back cover. 2. Open the back cover and slightly take out the consumed button battery. 3. Place the new battery into the watch body. Pay attention to the directions of positive and negative poles. 4. Close the back cover and fasten the screw. 5. Long press physical button to active the smart functions. 6. Open app, and reconnect your HWATCH L1/W1 to finish battery replacement. Prompt: When the battery power is less than 20%, H health App will remind you of replacing the battery. The battery for Ronda 751 quartz movement is advisably replaced in professional watch repair institution. Wearing instructions: 06 05 Adaptive devices HWATCH L1/W1 is compatible with mobile phone based on Bluetooth 4.0 hardware device. Before connecting your device, please ensure that your device has downloaded App: H health Adaptive operating system iOS7.0 and above version Android4.3 and above version Adaptive device model iOS platform: iPhone 4s/5/5S/6/6 Plus Android platform: MEIZU MX3/4, Samsung S4/S5, MI M3/M4, Hammer mobile phone T1, one plus mobile phone Installation of H health H health is a smart watch under HWATCH L1/W1 After dedicated mobile phone administration software is used to connect H Health and HWATCH L1/W1, it can help you administer watch, have a real-time review on exercise health data report, analyze and conduct UVI detection, and record daily routine on the timeline of H Health. Note: For more device support, please keep concerning about our website: http://www.hwatch.cn You can search “H health” by accessing App Store, Google Play Store or other application markets, download and install H health App for free. You can also scan QR code in the following diagram to download and install it. H health use and synchronization Connect to watch Operate H health on mobile phone. Please register and bind your HWATCH L1/W1 according to the prompt. If you have an account, please login it directly. After logging in, you can synchronize and update the data by pull-down manner. Prompt: If App is installed in iPad, please search and download it in iPhone item. HWATCH L1/W1 Mobile sync instruction HWATCH L1/W1 Mobile sync instruction 0807 By collecting data and analyzing settings, HWATCH L1/W1, new H health and its background can directly present the following data: Exercise step counting Smartly identify your exercise state: walking, running, recording steps, mileage and calorie. Exercise completeness HWATCH L1/W1 can display your exercise completeness of the day through 11 LED lights on the dial plate accord- ing to relevant settings of H health. When the physical button is long pressed, the indicator light on the dial plate will be on according to exercise completeness. Their relations are as follows: Sleep monitoring If you don’t like wearing the watch during sleep, you can double click the physical button to make the watch exit the sleep mode and record the sleep time. If you wear the watch during sleep, HWATCH L1/W1 will automatically record the time for deep sleep and light sleep. When the watch enters the sleep mode, the color light will flicker in blue for 1 time. When the watch is in sleep mode, the color light maintains flickering in blue. When the watch exits the sleep mode, the color light will flicker in white for 1 time. HWATCH L1/W1 Combination function HWATCH L1/W1 Combination function Completeness Long-lighting clock Single-point percentage (in marquee form) flickering clo ck 10% below 1 4 points 10%-20% 4,5 points 5 points 20%-30% 4,5,6 points 6 points 30%-40% 4,5,6,7 points 7 points 40%-50% 4,5,6,7,8 points 8 points 50%-60% 4,5,6,7,8,9 points 9 points 60%-70% 4,5,6,7,8,9,10 points 10 points 70%-80% 4,5,6,7,8,9,10,11 points 11 points 80%-90% 4,5,6,7,8,9,10,11,12 points 12 points 90%-100% 4,5,6,7,8,9,10,11,12,1 points 1 point Over 100& 4,5,6,7,8,9,10,…
